Haier XPB50-23BS Manuale utente

XPB50-23BS

Twin-tub Washing Machine

Please read this manual carefully before using.

Please retain it for future reference.

User's manual

Names of the parts.............the 2nd cover

Safety precautions ...............................1

Installation and adjustment ..................3

Introduction of the major functions .......5

Preparation before washing ................6

The musts in washing .........................7

Usage of the detergent .......................8

Washing sequence ..............................9

Disposal after washing .......................13

Contents

Before using

Using process

Trouble-shooting*

Answers to question.....................15

Specification..............the back cover

Packing list ......................................17

Haier

Ê¹ÓÃÖ®Ç°Ê¹ÓÃÖ®Ç°

Before Using

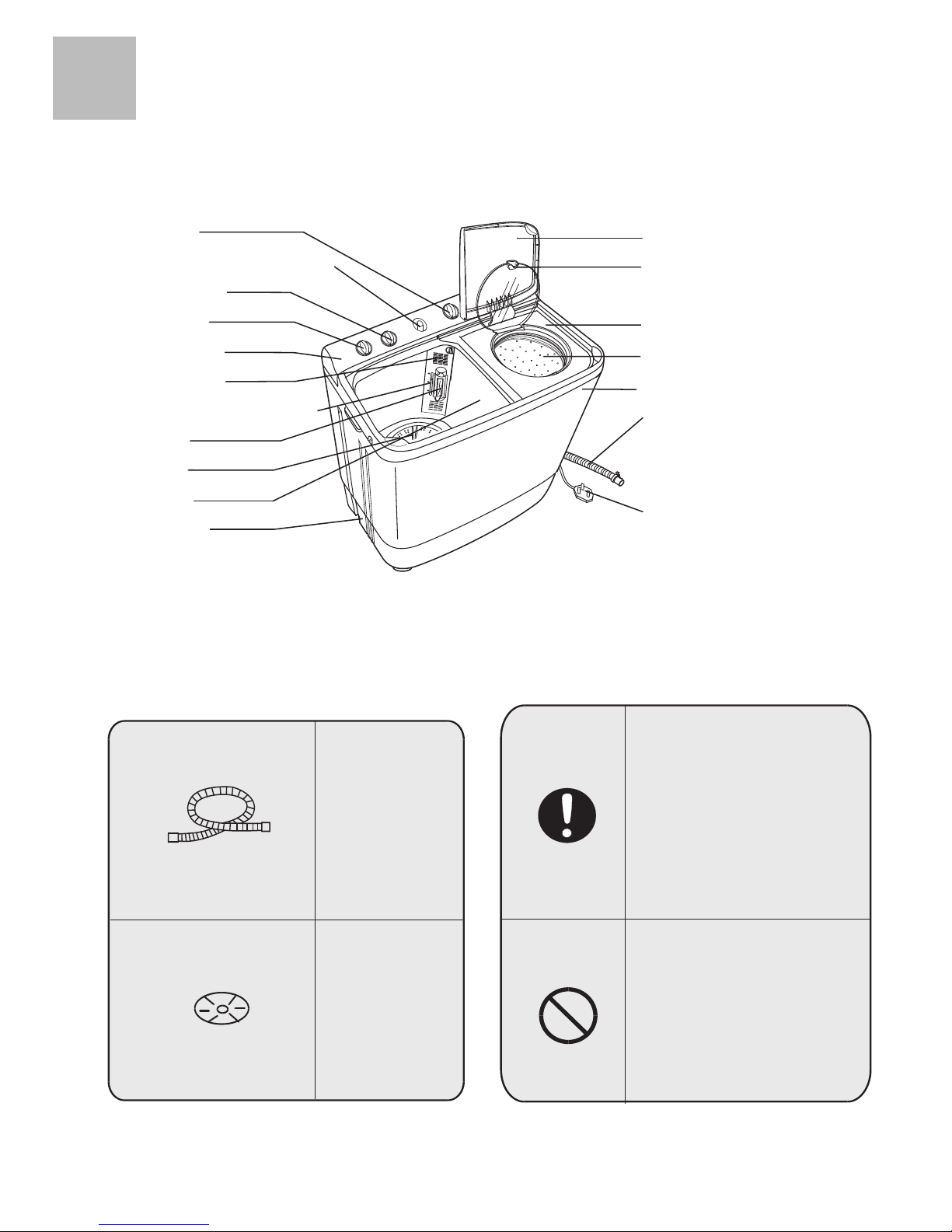

Names of the parts

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol

are related to the safety of the

product and the personal safety

of the users. Please operate in

strict conformity to the contents,

otherwise it may cause damage

of the machine or injure the

personal safety of the user.

Contents marked with that symbol

are actions forbidden to perform.

Performing of those actions may

result in damage of the machine

or injure the personal safety of

the user.

Accessories

Water inlet hose

(one piece)

Gland

(one piece)

Outer cover of the spin tub

Inner cover of the spin tub

Spin tub frame

Spin tub

Cabinet

Drain hose

Power cord

Spin timer

Wash water-filling entrance

Wash selector

Wash timer

Control panel

Overflow filter

Water level adjusting lever

Lint filter

Pulsator

Wash tub

Base frame

If the power cord is bad, to avoid risk it is required to replace it by the technicians of

our special shop or the after-sale service department. Keep the pin of the power

plug clean.

Be sure to use three-phase receptacle.

Earth the earthing terminal of the

receptacle reliably.

When the machine is normally using, please

put the power plug at the location easily to

be inserted and extracted by hand. Be sure

to pull the plug off when there'spower failure,

or the machine is being moved, cleaned or

when it is idle.

Earth

Before Using

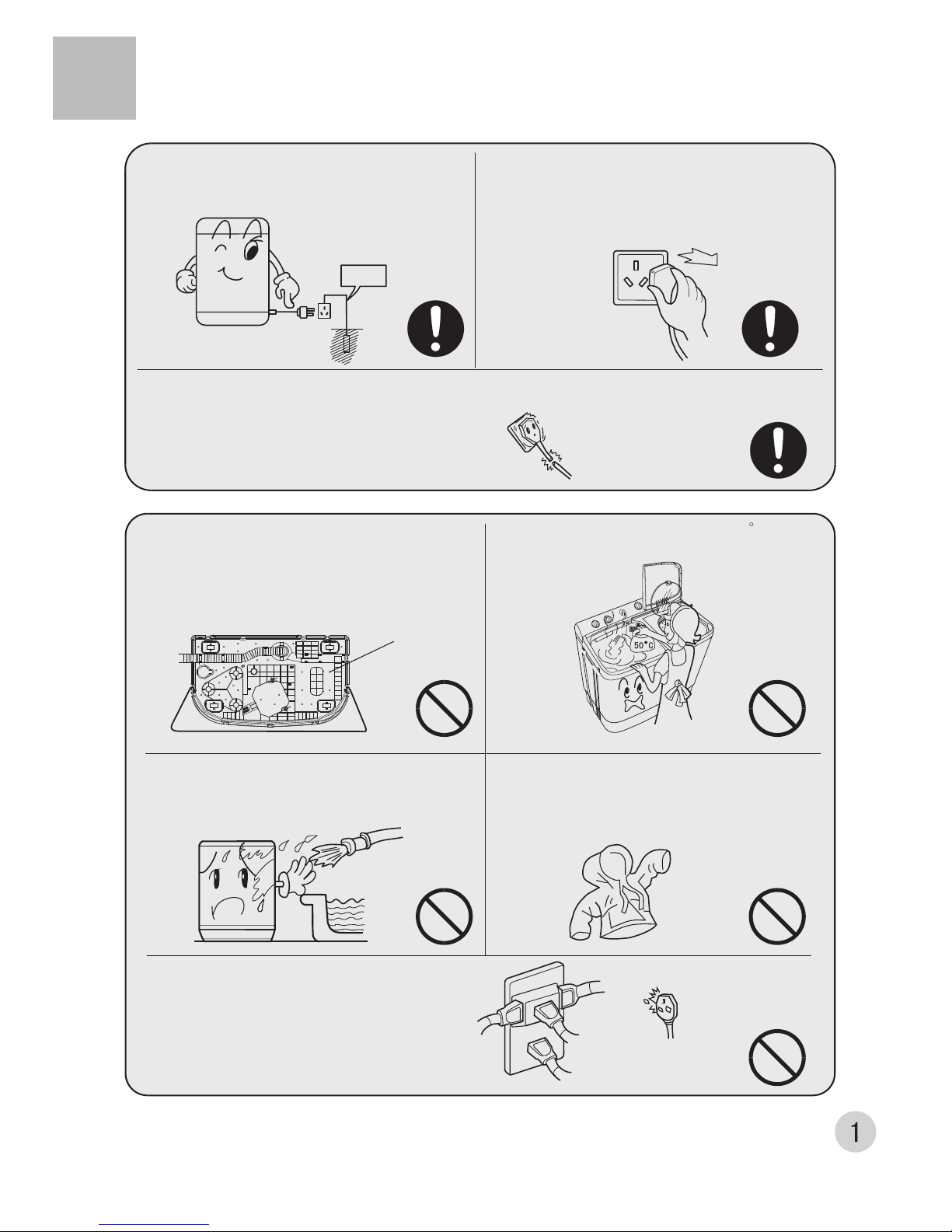

Safety precautions

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Ventilation hole at

the bottom of the

washing machine

Do not use water hotter than 50 C .

Do not share one receptacle with other

electric appliances. Do not use it in

case that the power plug is damaged

or the inserting into the receptacle is

loose.

Do not wash water-proof laundries such

as the raincoat, bicycle shelter etc. To

avoid abnormal vibration during spinning.

Do not put the machine at damp place

like the bathroom . Never wash it with

water. Do not place wet laundries on the

control panel.

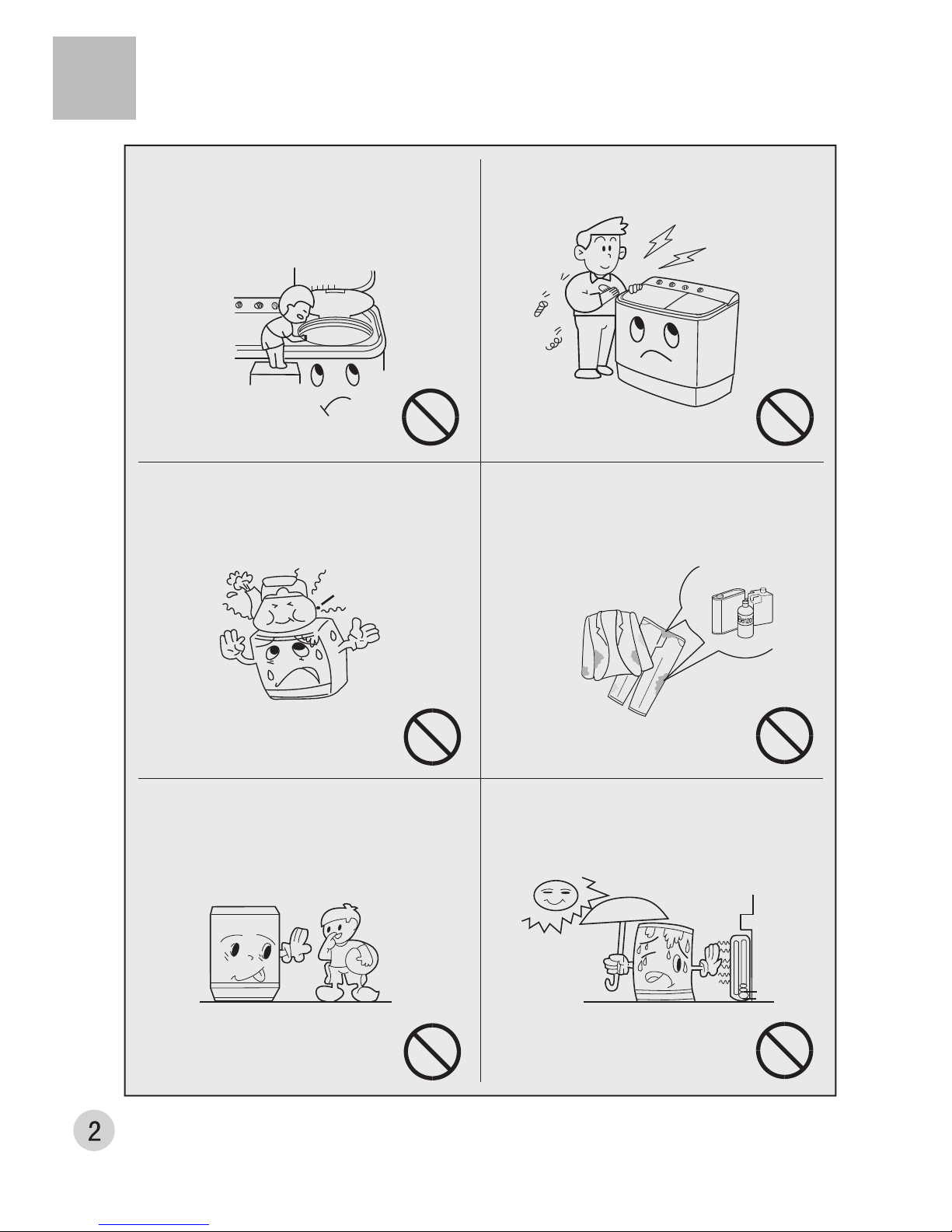

Before Using

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Handicapped or children without care

shall not use the machine.

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

Safety precautions

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

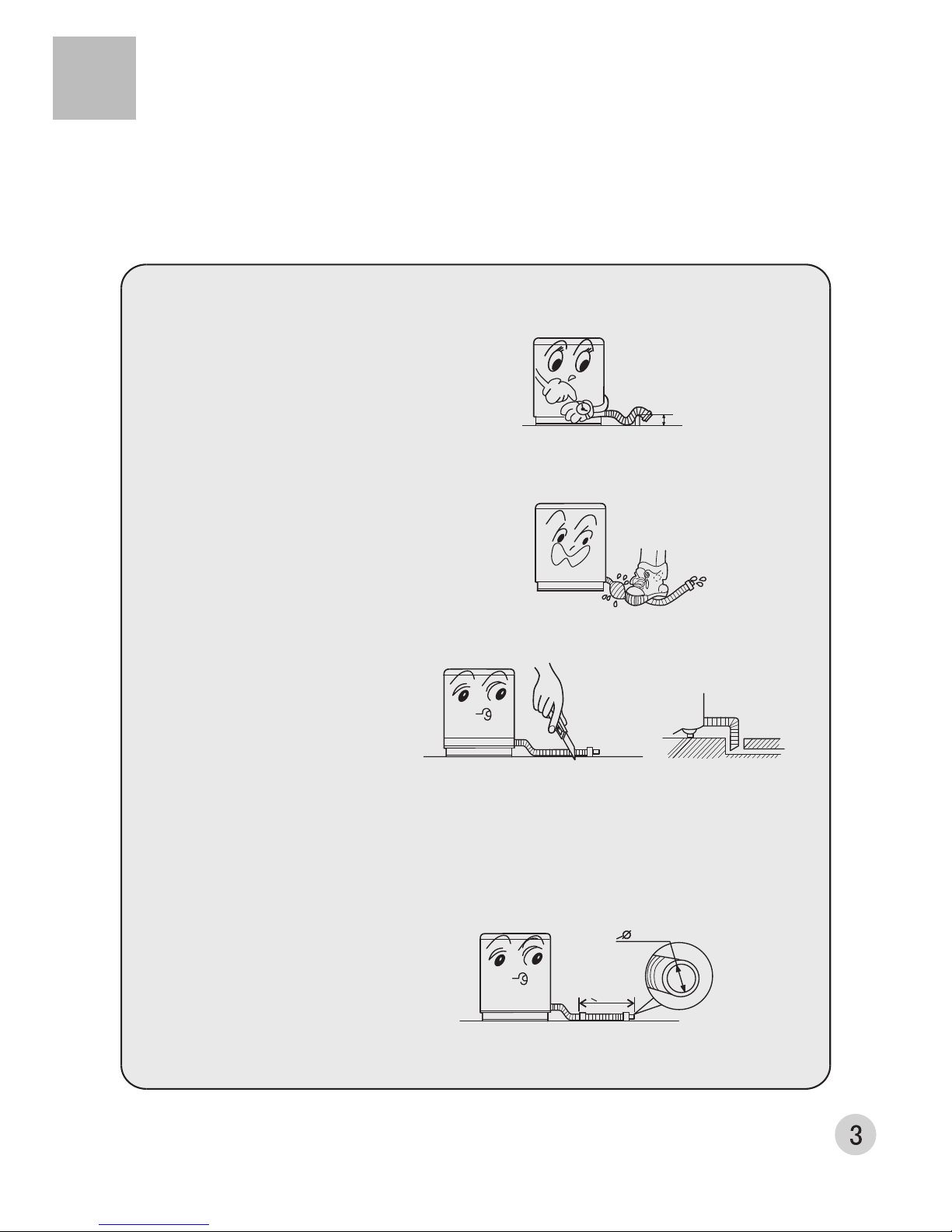

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be

less than 10cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not tramp or press the drain hose.

4.If extra drain hose is needed , please make

separate purchase. The inner diameter of the

extra hose shall not less than 30mm, and the

length shall not exceed 1.5m.

3 If the drain hose is too long, cut it at mid point.

To make smooth drainage, cut the front end of

the hose slantingly.

<10cm

> 30mm

<1.5m

Before Using

Installation and adjustment

Install the water inlet hose; Select the water level

Before Using

Water inlet hose

High High

about 39L

about 30L

about 24L

Low Low

Medium Medium

Water level

indicator

Adjust the water level adjusting

lever to desired water level line.

Insert the water inlet hose into the water-filling

entrance on the control panel directly. (pull it

out to dismantle it)

Select water level according to the

quantity of the laundries.

Wash water-filling

entrance

Extend the drain hose from the rear side

How to change the direction of the drain hoses

Figure 1 indicates the ex factory installation

position of the drain hose.

Put soft items on the ground. Lean the machine

down gently with the front surface facing the

ground. Take off the drain hose from the cabinet.

Take the hose out of the fixing groove.

(See to Figure 2).

Embed the drain hose into the groove along the side

of thewash tub in the order of (1)~(2), heading for the

side of the wash tub. (See to Figure 3).

Embed the drain hose into the groove with

hands. Take care not to damage the drain

hose in fastening the fixing clamp.

Figure 1

Figure 2

Figure 3

Figure 4

Embed into the

groove in turn

Back

Extend the drain hose from the side of wash tub

Soft item

Extend to the

wash tub side

Take out the drain hose from the fixing groove. Extend it from

the rear side as per the direction of the arrow. (When the drain

hose is extended from the rear side, it can be hung on the

point for drain hose at the two sides of the cabinet.)

(See to Figure 4).

Front

Using process

Introduction of the major function

The machine has good comprehensive performance, and nice appearance.

It adopts streamline appearance and full plastic shell, which will never get rust.

For the design on safety and reliability, it adopts the wash shelf, spin shelf and

water reception groove design, and reduces the unfavorable influence on the electrical

component by the vapor. Therefore it guarantees more safe and reliable washing.

By the technology of comprehensive energy-saving, the machine can work

under wide range of voltage, regardless of the voltage fluctuation.

It adopts complete enclosed base frame and low-noise motor, and thus reduces

the working noise significantly. We can guarantee that the purchase of this machine

will bring you a clean world without disturbing your quiet life.

Confirm if

there's special

requirement for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion,please

put the laundries

with buttons into

other laundries.

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose .

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

Using process

Preparation before washing

Pay attention to followings before washing the laundries

Reference weight of the laundries

Working suit up,down

Jeans about 800g

The capacity of washing and spinning of

the machine refer to the largest weight of

the standard laundries under dry condition

that can be washed or spinned in one time.

Laundries quantity in one washing cycle

shall be lower than the rated capacity.

The largest washing capacity of this

machine is 5.0 kg. The largest spinning

capacity of this machine is 4.5 kg.

The thickness ,size , type of the cloth will

influence the actual washing capacity. It

is suitable to put in reasonable amount of

laundries and the laundries can be turned

round in washing for one time washing.

Do not select " High " water level for

laundries less than 2.4kg, so as to avoid

splashing of water.

Blending coat

£¨about 800g£©

Shirt Jacket

Single bed sheet

Socking

Underpants

Undershirt

Pajamas

Blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

Using process

The musts in washing

cotton,about 1120g

Selection of the quantity of the washing powder list 1

Selection of the current , water level and washing time list 2

How to use the washing powder

How to use the whitener

Fill water to decided level. Dilute the whitener with container. Pour it slowly into the

washing tub.

Avoid using whitener on laundries with color or pattern as they are prone to lose color.

The whitener shall not touch the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30 seconds to

dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing powder:

1.Prepare warm water of 30 C and a container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

It is suggested not to use high sudsing

detergent.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for the usage and quantity of the whitener.

For powder whitener, please dissolve it before using.

Laundries

quantity

Laundries

quantity

Water level

Current

Standard dosage

Concentrated washing

powder

Laundries

Common washing

powder

Washing time

(minutes)

Water quantity

About About

About3~6

About8~10

About10~13

About7~13

About2~4

About3~6

About8~10

About About

3.6kg~5.0kg

2.4kg~5.0kg

2.0kg~3.6kg

Below2.0kg

Below2.4kg

High (about39L)

Strong

Low (about24L)

Soft

Medium (about30L)

33g

25g

20g

39g

30g

24g

Usage of the detergent Using process

Using process

Knitwear

Cotton,blending,linen

Very dirty and thick

Bed sheet

Silk(thin laundries)

Chemical fiber

Cotton,blending,linen

Altri manuali per XPB50-23BS

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Haier Rondella

Haier

Haier HE1005TXV Manuale utente

Haier

Haier HW-CS850TXVE Manuale utente

Haier

Haier XQBM22-C Manuale utente

Haier

Haier DWE-5102 Manuale utente

Haier

Haier XQB50-68 Manuale utente

Haier

Haier RWT300AW Manuale utente

Haier

Haier GWT 450 AW Manuale utente

Haier

Haier HW150-BP14986ES9 Manuale utente

Haier

Haier HWM66-0613TT Manuale utente

Haier

Haier HW90-B14636 Manuale utente

Haier

Haier HDWM800TX Manuale utente

Haier

Haier HW70-B1426 Manuale utente

Haier

Haier HWM60-918NZP Manuale utente

Haier

Haier HWM 30-22 Manuale utente

Haier

Haier HMS1460B Manuale utente

Haier

Haier HMS1070B Manuale utente

Haier

Haier XQS70-98 Manuale utente

Haier

Haier Thermocool HMS1000TVE Istruzioni per la costruzione

Haier

Haier HA800T Guida utente

Haier

Haier HK1007TME Manuale utente

Haier

Haier JW-W40D Manuale utente

Haier

Haier HWMP50F Manuale utente

Haier

Haier HW-K1200 Guida alla configurazione

Haier

Haier HWM60-111P Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
