Haier HK1207TVE Manuale utente

Upute za uporabu

Korisničko uputstvo

Servisna mjesta

Jamstveni list

Servisna mjesta

Garantni list

BiH

Servisna mjesta

Garantni list

Servisna mesta

Garantni list

User Manual

UPUTE ZA UPORABU

PERILICA RUBLJA

HK-1207TVE

HK-1207TVE ME

HK-1207TVE

HK-1207TVE ME

User

manual

Automatic

drum

washing

machine

ENG

HK-1207TVE ME

Table of Contents

Before using the appliance

Matters needing attention......1-3

Installation.............................4-5

Function ...............................6-7

How to operate the washing machine

Program description table........8

Preparation .............................9

Washing Procedure ..........10-11

Maintenance ..........................12

Technical Specifications ........14

Wiring Circuit .........................15

Maintenance

Troubleshooting Guide ..........13

Name of parts...inside front cover

HK-1207TVE ME

Top

Handle

Program selector

Detergent dispenser

Name of Parts

Door

Porthole

Function selector

Caution and Warning symbols

Bottom plaque

This diagram may be slightly different from the layout of the washing

machine you have just purchased due to techincal improvements

For your safety,any instructions in this manual with this

"Warning"sign must be followed strictly.

For your safety and to prevent damage to the washing

machine,any instructions in this manual with this "Stop"

sign must be followed strictly.

ON/OFF button

HK-1207TVE ME

Matters Needing Attention

Safety

.A separate earthed socket is required for the

power supply. The washing machine must be

positioned so that the plug is accessible.

2. Hold the plug and not the electric cable when

unplugging the washing machine.

3.Fuses in the power circuit should be rated for 15A.

If the supply cord is damaged, it must be replaced

by the manufacturer, a service agent or a

qualified persons in order to avoid a hazard.

4. Do not touch or use the washing machine when

bare-footed or when your hands or feet are wet.

5.Do not use flammable detergent or dry clean

ing agent; Do not use flammable spray in close

vicinity to the washing machine; Do not remove

or insert the plug in the presence of flammable

gas.

6. The door of the washing machine will become hot

during the heating process.Avoid contact with the

door during the heating process. For safety, keep

children away from the washing machine.

7. Keep children away from the packing materials after unpacked.

Ensure carpet does not obstruct the opening in the bases.

The appliance is not instruct for use of young children of infirm

persons without supervision.Young children should be supervised

to ensure that they do not play with the appliance.

HK-1207TVE ME

8.The washing machine should not be installed

outdoors or in a damp place. In the event of water

leakage or splashes allow the machine to dry

naturally.

10.Keep away from heat sources and direct sunlight

to prevent plastic and rubber components from

aging.

11.During installation, ensure that the electric

cable is not trapped by the washing machine

and avoid damage to the electric cable.

During Use

1. Before use, check the joins on the filling hose,

the tap and the drainage hose for possible

problems from water pressure fluctuations.

If joints are loose or there is leakage, turn

off the tap and repair. Do not use the washing

machine until the hoses are properly fixed.

Keep the door slightly open when the washing

machine is not in use to prevent formation of

odors. Do not cover the washing machine in a

way where dampness can occur inside the

machine.

Matters Needing Attention

9. The carpet must not obstruct the ventilation

openings in the base of the washing machine.

HK-1207TVE ME

3. Do not place heavy, heating source or wet articles

on the top of the washing machine. 4. Do not hot wash foam rubber or sponge-like

materials.

6. Do not open the detergent distribution drawer

during the wash cycle..

7. The door is fitted with a self-lock device and may

stay locked 2~3 minutes after the washing

machine stops. Do not force the door open. Do

not open the door if water level can can seen in

porthole.

8. After each wash program, turn off the tap to prevent

leakage; and unplug the washing machine and

wipe clean the lower part of the porthole.

Steel wires in bras will pop

out during washing; never

wash bras containing steel

wires.

5. Before washing, do up zippers, buttons and clothes

straps. Put small articles, such as socks, laces

or bras, into a washing bag .

Matters Needing Attention

HK-1207TVE ME

Remove all the packing materials (including the

foam base)to prevent vibration during use, as

shown in Fig.1.Upon opening of the package,

water drops may be seen on the plastic bag and

the porthole. This is normal resulting from water

test in the factory.

Fig. 1

Check attachments and materials with reference to the following

Dismantle the packing bolts as shown in Fig. 2.

The packing bolts are designed for clamping anti-vibration components

inside of the washing machine during the transportation process.

Before use:

1. Remove the back plate;

2. Remove the three packing bolts on the back plate and take out the

rubber hose;

3. Replace the back plate;

4. Fill the holes left by the packing bolts with plastic plugs.

(Attention: The packing bolts and rubber hose should be kept in a safe

place for later use)

Fig.3

Adjusting the washing machine

There are adjustable feet under the bottom of the washing machine. Before

use, the washing machine should be adjusted, as shown in Fig. 3, so that it

is level.

Fig.2

Model

Qty Name Operation

manual

Quality

certificate

Water

hose Drainage

holder Plastic

plugs

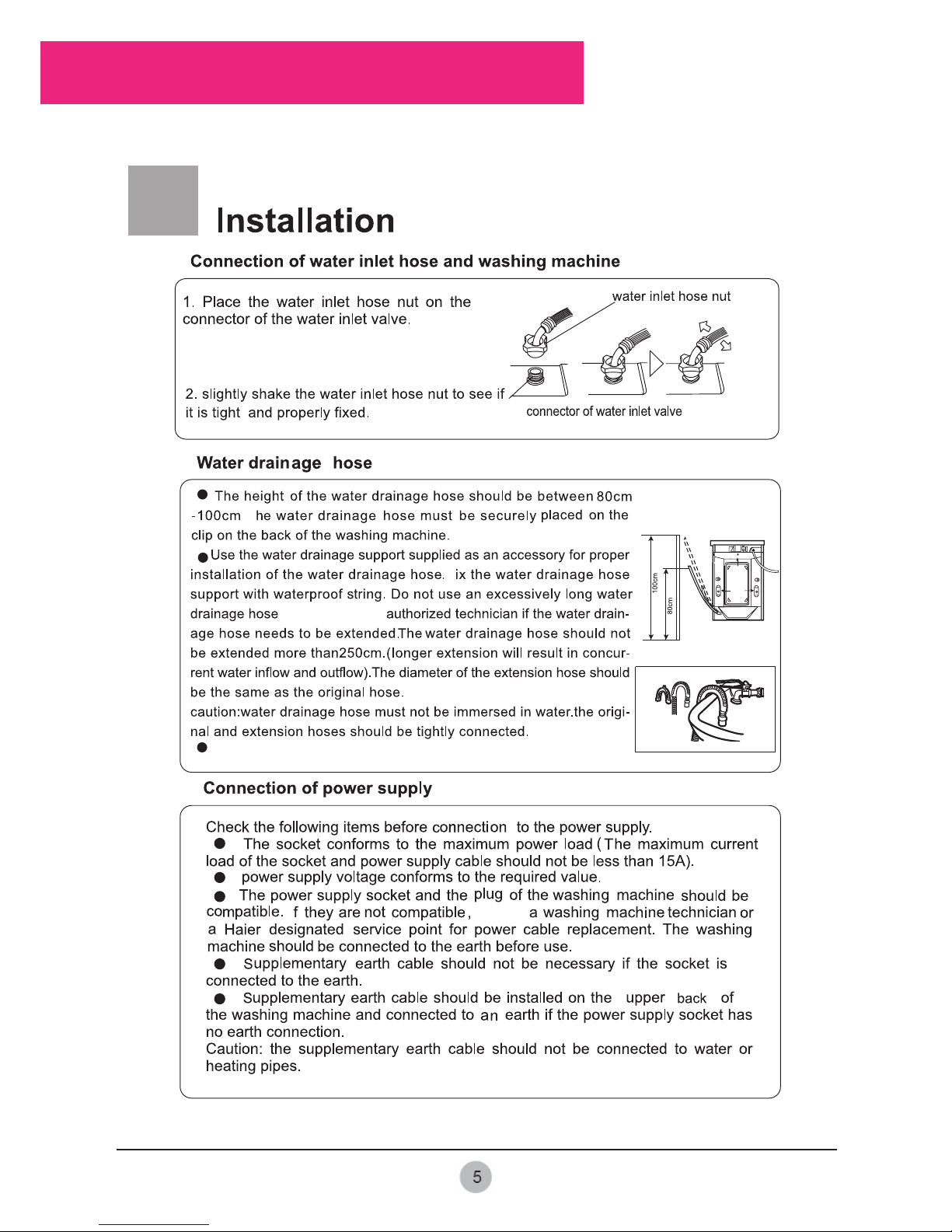

Installation

HK1207TVE/ME

HK-1207TVE ME

The appliance is to be connected to the water mains using only new

hose-sets. Old hose-sets should not be reused.

( )

Irefer to

. Contact an

HK-1207TVE ME

Operational Functions

G: Power button

Press this button to switch on the washing machine; press it again to switch the machine off.

To cancel a wash program during a wash cycle,please switch the machine off.

A: Ironing-free button

Press this button, and the laundry will be fluffed up at the end of the spinning cycle to

reduce wrinkles.

C:Prewash button

Press this button and the washing machine will automatically start a prewash cycle during

execution of a washing program.

D: Extra rinsing button

Press this button and the washing machine will run an additional rinsing cycle to further clean

your clothes.

E: Super wash button

Press this button,the display will turn on . The " " and " " will display .

The super wash sign will turn off when the super wash program has finished.

F: button

Press this button, 3 load levels : "一一一一" (0-2kg), "二二二二" (2-4kg) and "三三三三"

(4-7kg) will appear on the screen for manual selection before water is filled. After the load is

set, the water content will be automatically adjusted.

B:Delay button

Press the Delay button before the program is started if necessary. Press the Delay button

once and, the delay time will increase by one hour (the regulating range is from the current

setting to 24 hours). After the delay time is changed, press the Start button to activate the

delay function.

Note: The delay time must be longer than the program time; otherwise, the washing machine

will start the wash program directly.

Super Wash

Temp. Speed

ON/OFF

Easylroning Time DelayPre-wash Extra Rinse

Start

Quick

Spin

Rinse

Intensive Wool

Delicate

Coloured Synthetic

Normal

HK1207TVE

Load

A A
