TWIN TUB WASHING MACHINE

USER MANUAL

MODEL

HTW70-M1217

HTW90-M1217

HTW110-M1217

HTW130-M1217

CONTENTS

Safety precautions

Packing list

Installation and adjustment

Before Washing

Operation

Troubleshooting

Specifications

Cleaning and Maintenance

Laundry Guidelines

Product Overview

Important notes:

accessories may show differences from these illustrations due to our continuous

improvement .

Meaning and description of the symbols

Warning sign

Forbidden sign

Contents marked with this symbol are related to the safety

information of the products.

Please operate in accordance to the contents of this manual,

Contents marked with this symbol indicate operations or

actions that should not be undertaken by the user.

property damage ,and void warranty.

Please check power socket condition to ensure it has been earthed correctly

prior to installation to ensure your safety.

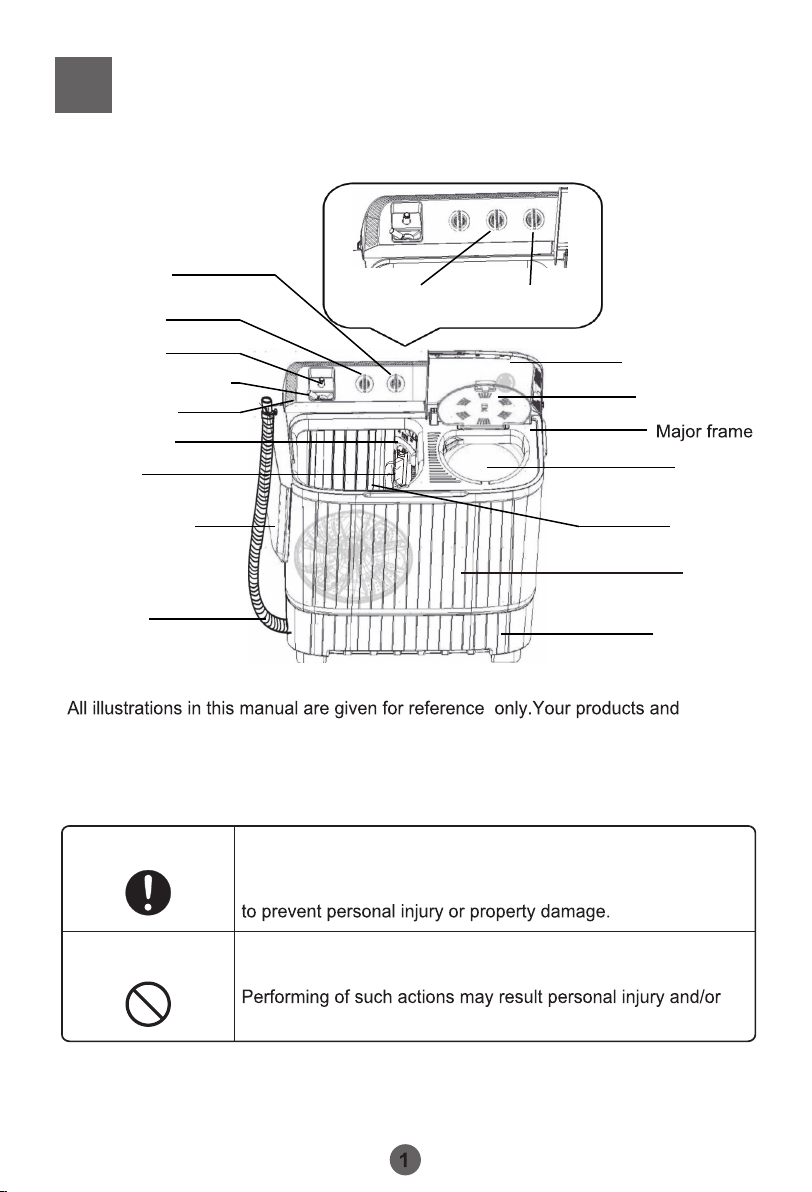

Cabinet

Base frame

Spin tub

Spin Tub Cover

Safety Cover

Wash selector

Drain selector

(HTW110-M1217/HTW130-M1217)

Wash tub

Wash selector

(HTW70-M1217/HTW90-M1217)

Wash timer

Water inlet

Water inlet selector

Control panel

Overflow filter

Lint filter

(Installed by user)

Wash Tub Cover

Drain hose

(Installed by user)

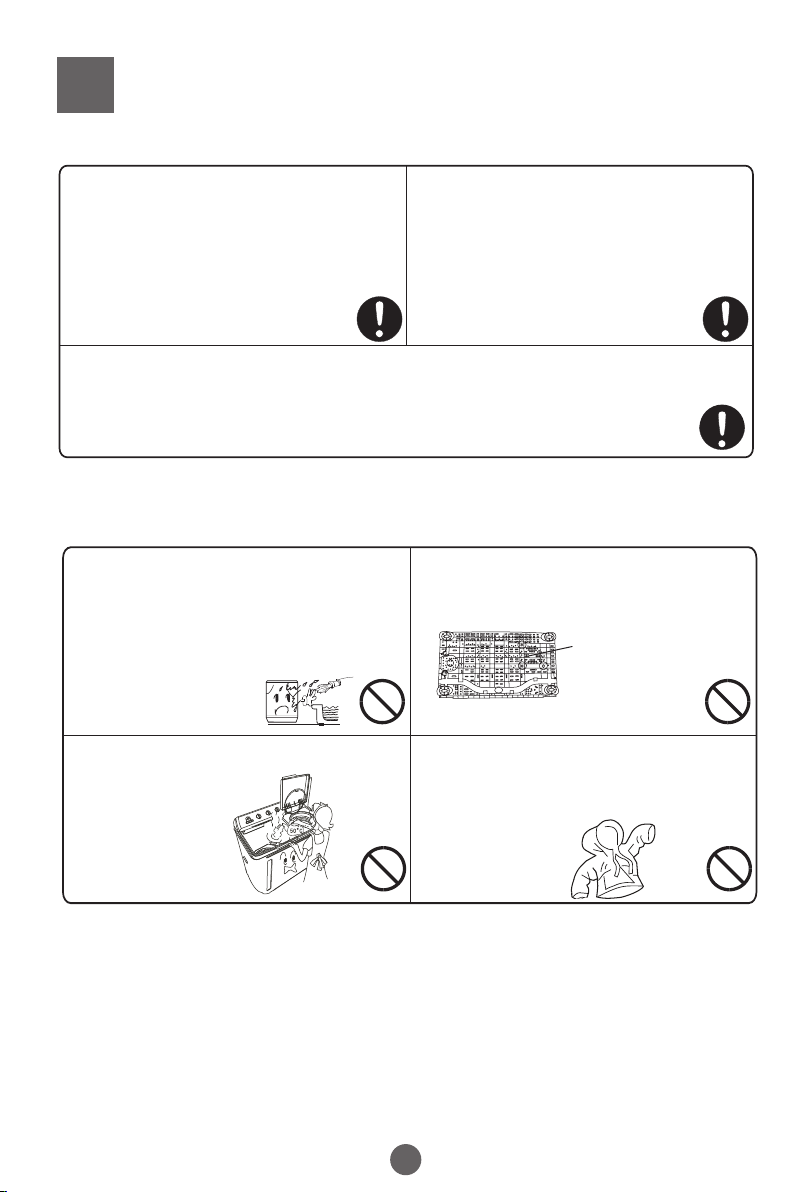

Safety precautions

Contents marked with this symbol are

related to the safety information of the

products. Please operate in accordance to

the contents of this manual, to prevent

personal injury or property damage.

Ensure the plug is removed and the taps

turned off in the following cases. Power

failure, cleaning, moving, installation and

when not in use.

Do not install this appliance in a damp or

wet environment. Do not leave wet laundry

on the Control Panel or spray water

directly on to this appliance as this may

cause the washer to malfunction or cause

an electrical fault.

Do not contact to water exceed 50°C in

temperature.

Do not wash water-proof clothing as this

may affect load balance during spin

cycle(s).

The washing machine has ventilation

opening in the base, the opening must

not be obstructed by a carpet.

Ventilation hole at

the bottom of the

washing machine

If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified persons in order to avoid a hazard.

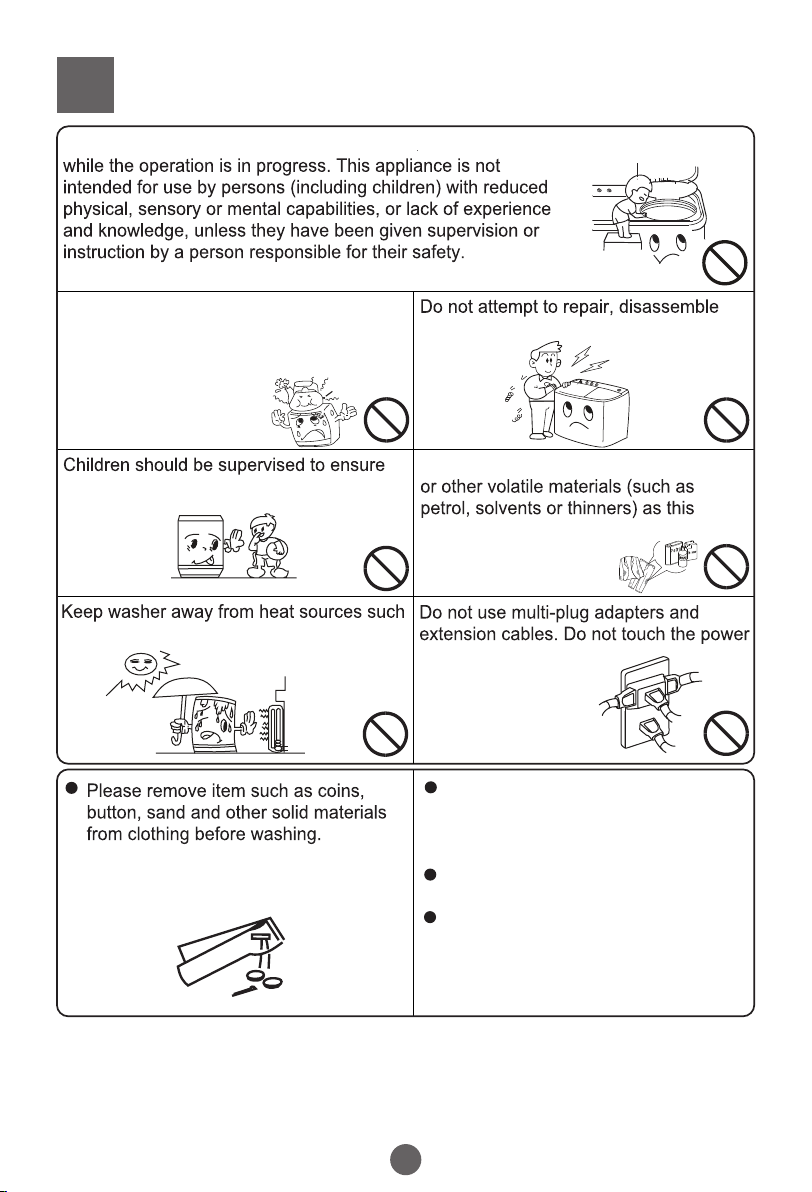

Safety precautions

cord with wet hands.

Do not leave hot or heavy items on cover

or control panel as this may cause

damage to the washer or make the

washer unsafe to operate.

that they do not play with the appliance.

as heater, stoves or direct sunlight.

Do not wash laundry with chemicals

may cause damage to the machine.

or modify the appliance yourself.

Do not attempt to put your hand into the washing machine

Check that water faucets are open

after connection to machine, prior to

operation and that pipes are

connected correctly.

It is recommended to use low suds/

high efficiency washing powder

Do not exceed the max. water level

to avoid water overflowing and

machine failure.

Installation and adjustment

Usage of the drain hose

Hose Clamp

Drain Hose

Install the lint filter into the filter case as shown.

Please ensure the lint filter is in place, otherwise the

lint filter may detach from the filter case when the

washing is undergoing and impact on the washing

performance.

Installation and adjustment

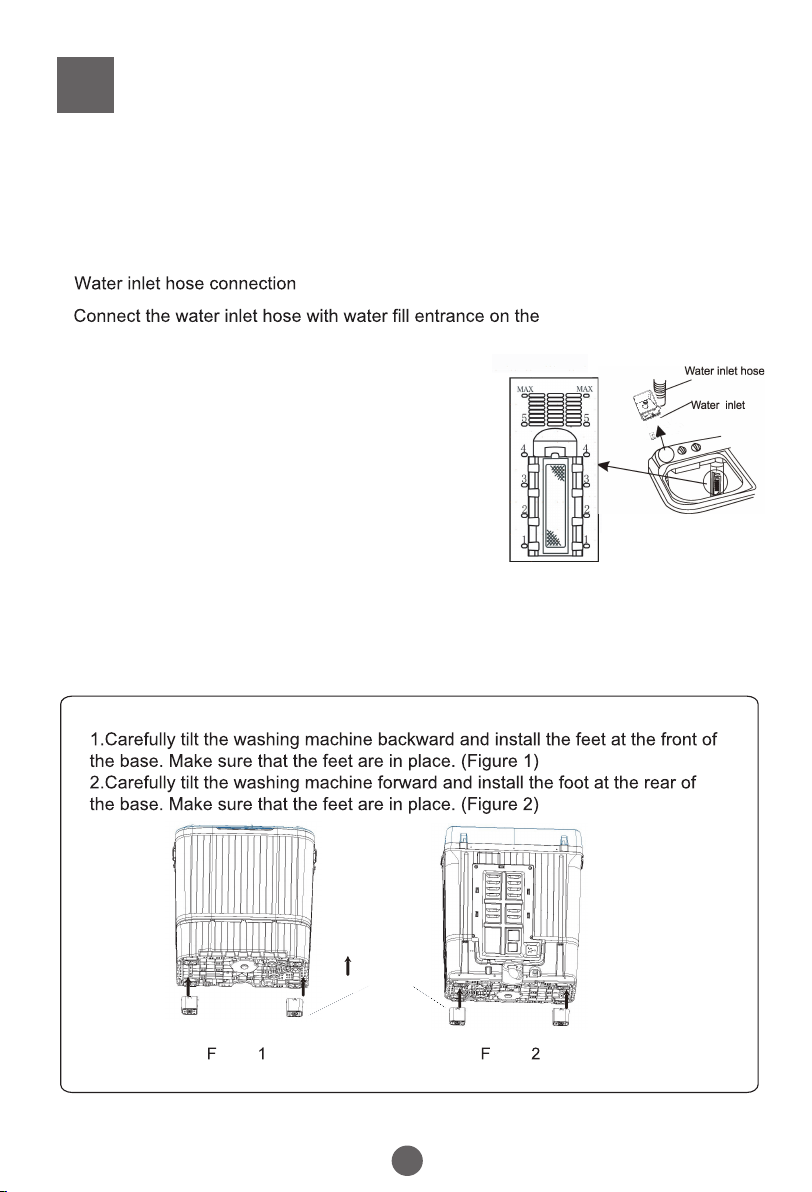

Install the water inlet hose; Select the

water level

control panel.

Set the water level according the laundries loaded.

Note: The new hose-sets supplied with the appliance

are to be used and that old hose-sets should not be

reused.

ntin

oot

igureigure

ounting

foot

Before Washing

Preparation before washing

1. Connect the jointer of the water inlet hose to the water

faucet. Turn on the water faucet.

2. The washing machine must be properly grounded. Then

plug in the power cord to the power socket. Do not ground the

washing machine to a gas pipe, water pipe or telephone line.

3. Put down the drain hose.

4. The washing machine must be grounded. Improper placement

may lead to abnormal noise and vibration creation when washing in progress.

Clear the pockets and take out loose items

such as coins, soils, pins and others metal

objects.

Pay attention to following before washing the laundries

Tie any long straps or

strings, button up and

close zippers.

The weight of the laundry

shall not exceed the rated

capacity of your machine,

spread out the laundry

before placing it evenly in

the tub.

Turn the clothing inside out or

put inside the laundry net to

prevent excessive vibration or

noise on the appliance while

operation in progress.

a. Check the care label on the clothing, and sort them accordingly before start the

wash.

b. Separate white from colours.

c. Do not put fabrics that are insoluble in water to the machine.

d. Prewash the soiled clothes and apply detergent directly on the stain before

washing.

e. Turns the clothing inside out before washing to minimize the lint build-up after

washing.

f. Do not put the laundry contaminated with alcohol, paint thinner, gasoline, benzene

and other inflammable or explosive substances like into the washing machine.

Laundry Guidelines

Usage of the detergent :

laundry that could be loaded into the appliance.

actual capacity.

laundries loaded to avoid the water splashing.

powder.

·Dissolve directly inside the washing machine:

1. Add some water.

2. Add washing powder. Run for about 30s to fully dissolve the Powder.

3.Put in laundries. Select suitable water level.

·Quick dissolving washing powder:

1. Prepare a container and pour in water at 30°C and add washing powder.

2. Stir the mixture until the washing powder dissolve completely into the water.

·Apply an appropriate amount of washing powder in accordance to the laundry

volume and select the right water level.

·Different type of washing powder request different dosage, refer to the instruction

of washing dosage for details.

bleach

bleach.

Avoid using bleach on the laundries directly. Bleach causes discoloration on

clothes.

for

washing tub.

Please dissolve the powder type bleach before use it.

g q y

DRAIN

Wash timer Wash selector

Wash selector

(HTW70-M1217)

(HTW90-M1217)

(HTW110-M1217)

(HTW130-M1217)

(HTW110-M1217)

(HTW130-M1217)

Drain selector Spin timer

Wash

0510

WASH TIMER

DRAIN SELECTOR

1. Water inlet selection

（1）

（2）

2. Turn on the tap and water flow into the tub till

the set water level dissolve the washing powder inside

if needed.

4. Select the strength(Figure 3) and washing

time(Figure 4) according to the laundries loaded.

5. Turn to “Drain” after washing period(Figure 5).

The washing instruction with soaking:

a. 0-15 minutes is normal washing;

b.15-45 minutes is soaking period. The pulsator will run

2.5 minutes each 7.5minutes interval. After soaking period,

will come to normal washing period, which last for 15 minutes.

c.When the user select the soaking, firstly make sure the

detergent power is fully dissolved. Otherwise it may be

harmful to clothing.

The most effective program for white cotton

fabric: STANDARD,washing with 30 minutes

soaking.

allows water inflow

(If to set less than 1

min, in order to

ensure a long service

life,please first turn

past 2 min and then

turn back.）

（If you wish to

set it for less than

5 min ,you should

first turn past

15 min and then

turn back.)

(Intensity can

be set to

standard,soft

and drain.)

(Intensity can

be set to

standard,soft

and drain.)

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

(HTW70-M1217)

(HTW90-M1217)

(HTW110-M1217)

(HTW130-M1217)

(HTW70-M1217)

(HTW90-M1217)

(HTW110-M1217)

(HTW130-M1217)

Questo manuale è adatto per i seguenti modelli
