Haier HWM75-27S Manuale utente

Twin-tub Washing Machine User's manual

This manual is for

HWM75-27S

Please read this manual

carefully before using.

Retain it for future reference.

Contents

Safety precautions

Installation and adjustment

Preparation before washing

The musts in washing

Usage of the detergent

Washing sequence

Disposal after washing

Packing list *Specification

Names of the parts

Trouble-Shooting *Answers to question

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

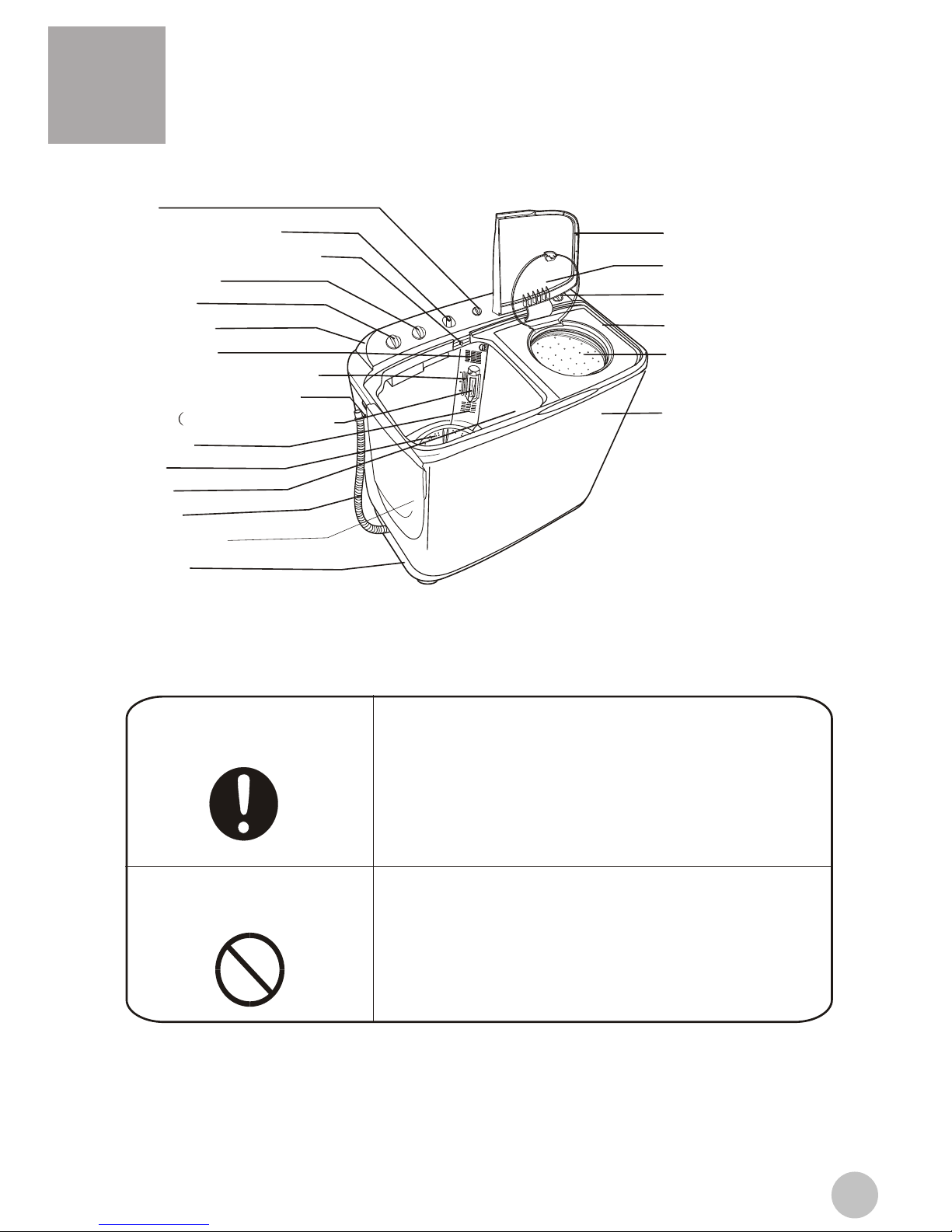

Names of the parts

Buzzer

Water-filling entrance

Water inlet selector handle

Wash selector

Wash timer

Control panel

Overflow filter

Water level adjusting lever

Drain hose hanging hole

Lint filter Installed by user)

Valve cover

Pulsator

Wash tub

Drain hose

Wash tub cober

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Cabinet

Base frame

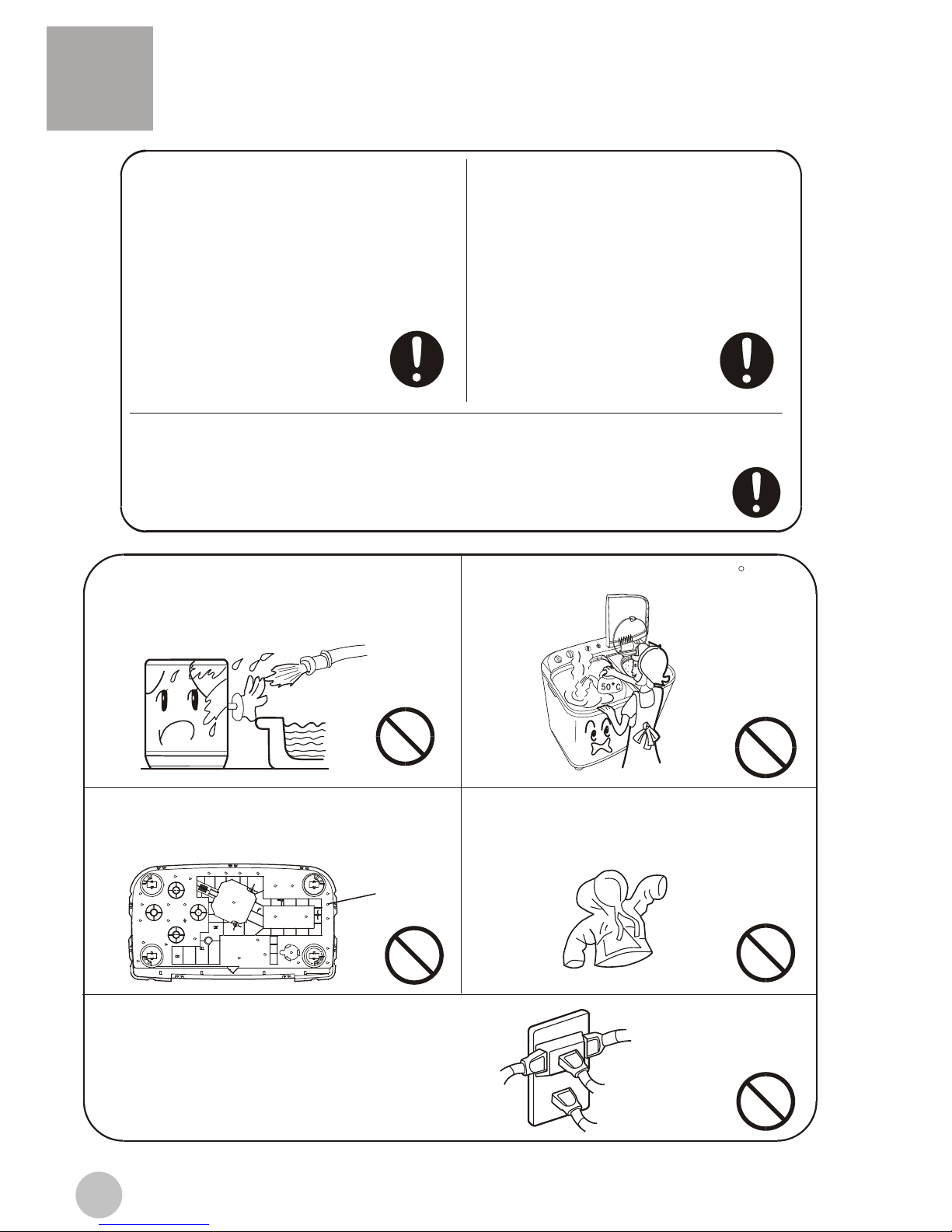

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage.Be sure to use single-phase

three pins receptacle.The earthing

terminal of the receptacle must be

earthed reliably.If possible,please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned orwhen it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians ofour special shop or the after-sale service department.

Keep the pin of the power plug clean.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Ventilation hole at

the bottom of the

washing machine

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

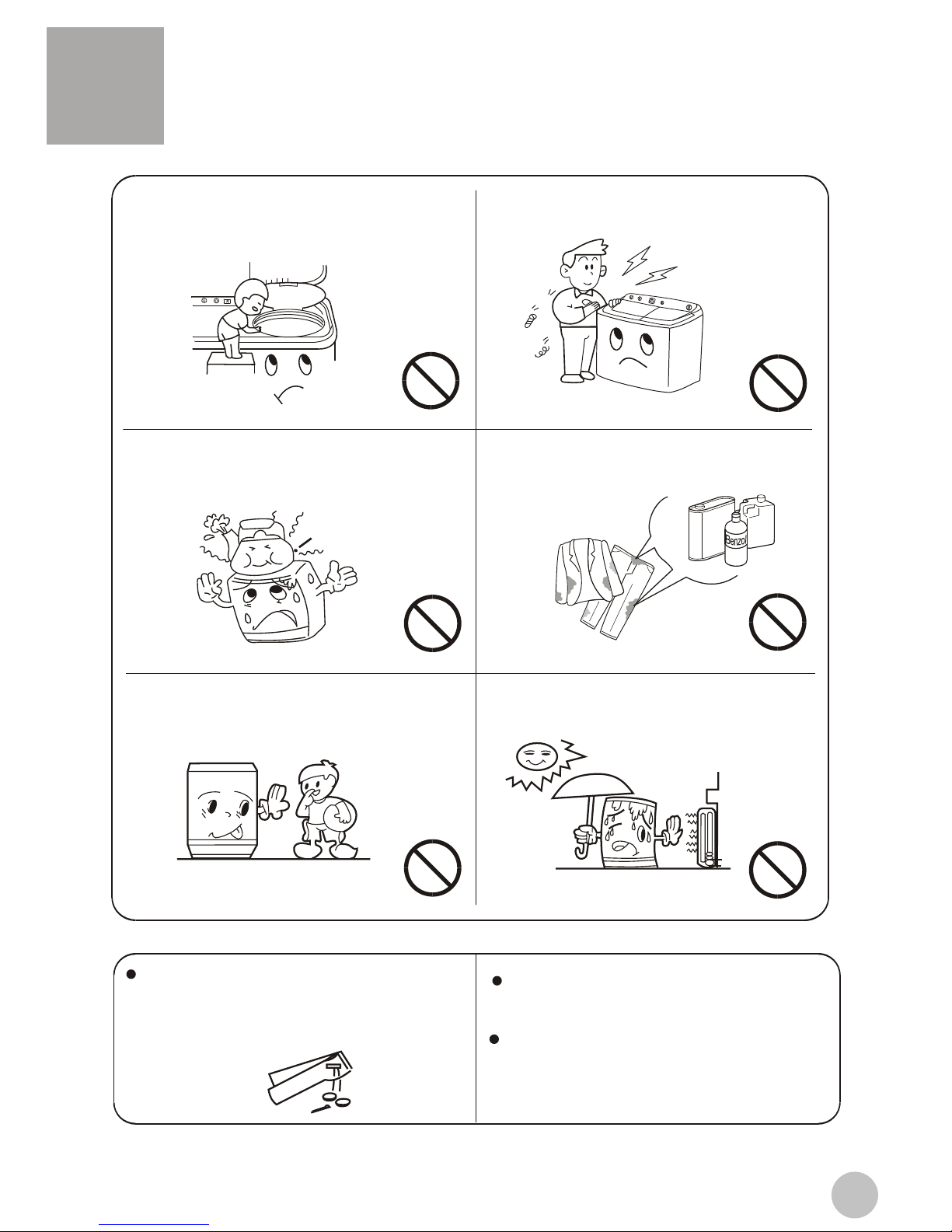

Safety precautions

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Handicapped or children without care

shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

To protect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet is open,

and if the connection of the water inlet

pipe is proper.

It is suggested to use foamless washing

powder.

Overflow filter

Lint filter

If the extra hose is too long, cut it either

at point A or B.

<10cm

> 30mm

<1.5m

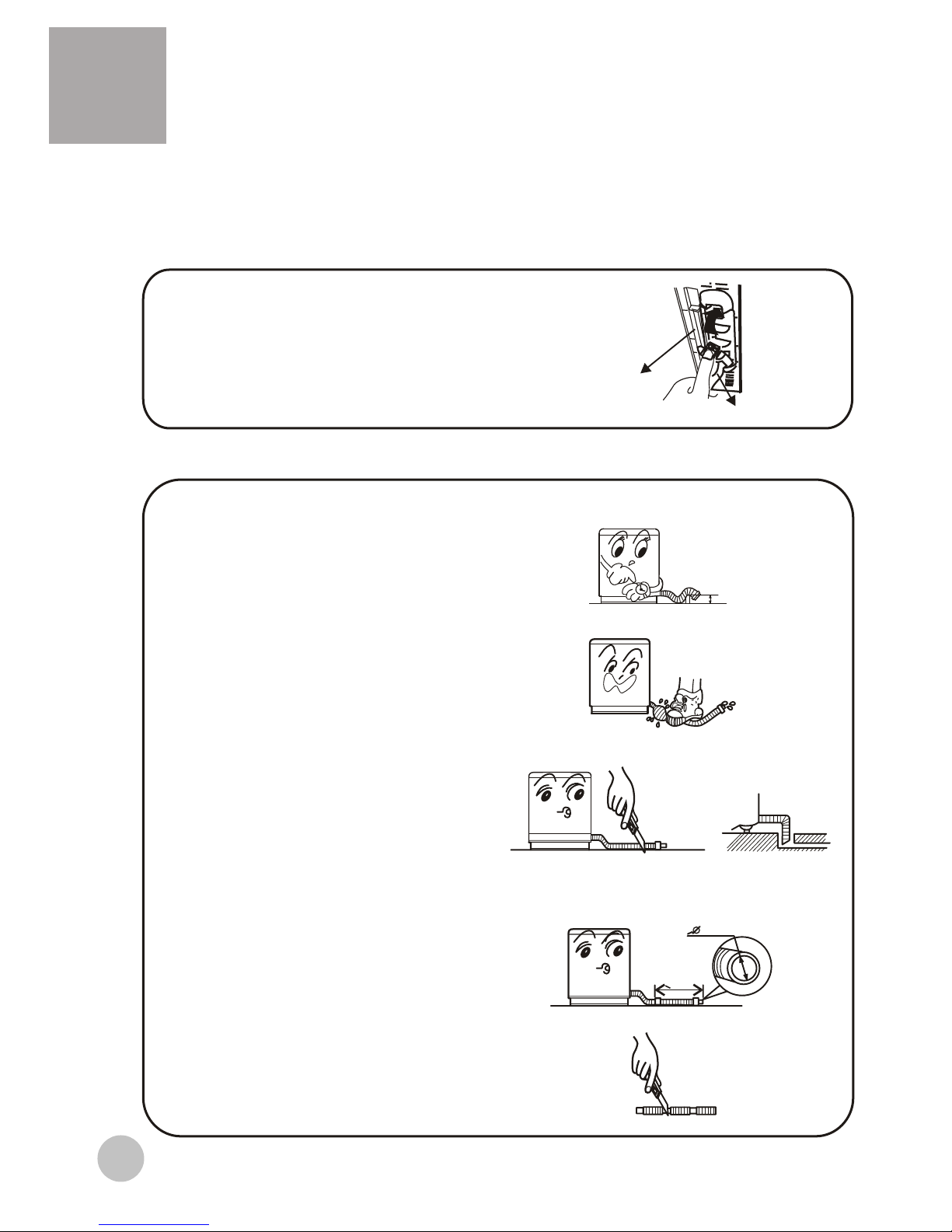

Installation and adjustment

Please install and adjust the machine according to the requirement of

the manual. It is very important to your security and correct operating

the machine.

Install the lint filter

After opening the package,please take out the lint

filter from the document bag,install it to the overflow

filter of the wash tub.See to the figure.

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be

less than 10cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not tramp or press the drain hose.

3.If the drain hose is too long, cut it at mid point.

To make smooth drainage, cut the front end of

the hose slantingly.

4.If extra drain hose is needed , please make

separate purchase. The inner diameter of the

extra hose shall not less than 30mm, and the

length shall not exceed 1.5m.

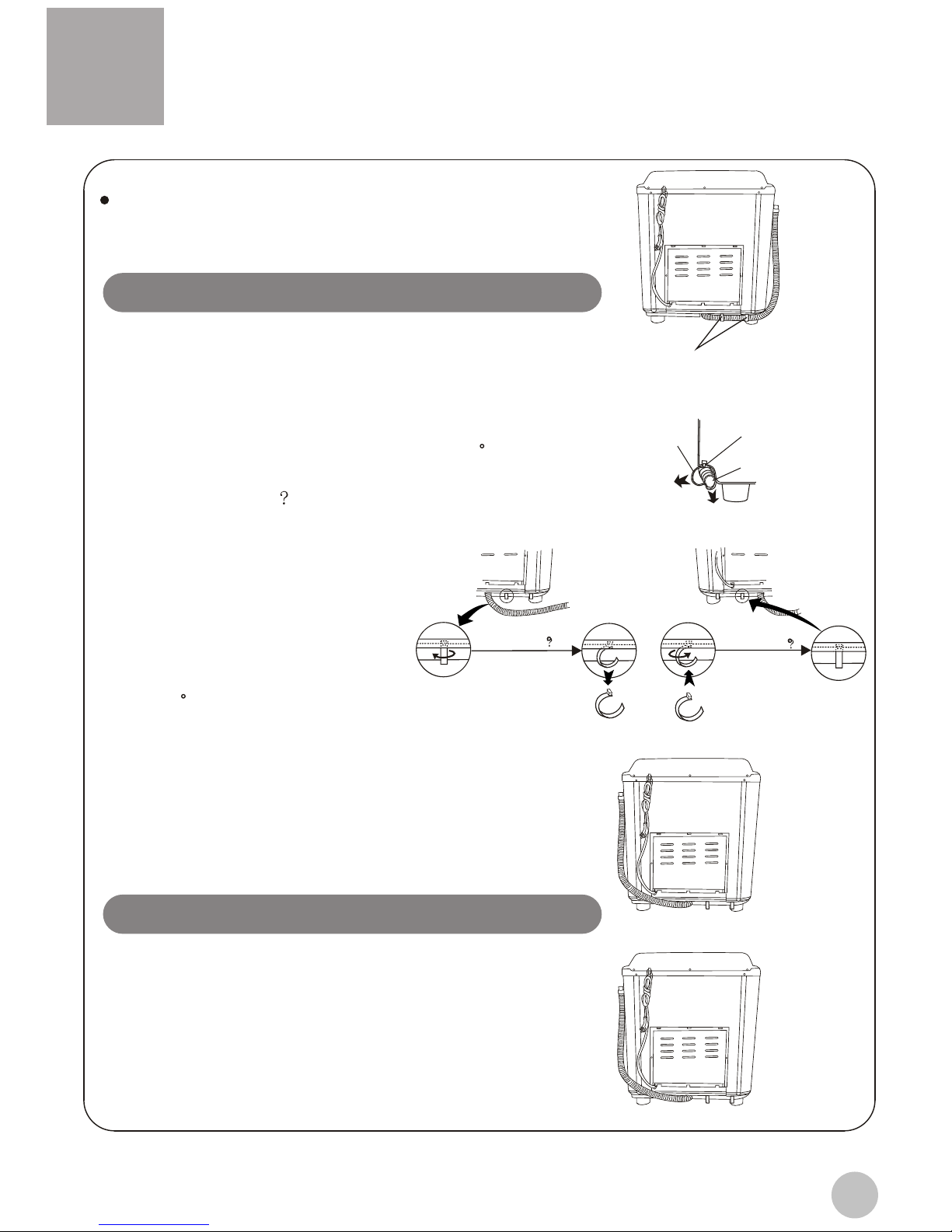

How to change the direction of the drain hoses

Figure 1 indicates the ex factory

installation position of the drain

hose.

Then hang the drain hose into the hanging

hole at the spin tub side. (As per Figure 5).

Extend the drain hose from the side of spin tub.

Extend the drain hose from the rear side

Take out the drain hose from the fixing

hook. Extend it from the rear side (When

the drain hose is extended from the rear

side, it can be hung on the point for drain

hose at the two sides of the cabinet.)

(See to Figure 6).

Take off the drain hose from the hanging

hole of the cabinet. Pull the drain hose

fixing hook outwards gently to take out

the drain hose from the two fixing hooks.

(As per Figure 2)

Rotate the drain hose fixing hook for 90

to take it out from the installation hole

(As per Figure 3).

Install the two drain hose

fixing hooks taken out into

the installation hole at the

other side of the base frame

(to aim at the installation

hole accurately you can

lean the washing machine

forward slightly).Then rotate

for 90 (As per Figure 4).

Pull the fixing hook outwards slightly.

Inlay the drain hose into the fixing hooks

reliably along the groove at spin tub side,

and make it extend towards spin tub side.

Figure 6

Figure 5

Figure 4

Figure 2

Figure 1

Figure 3

Drain hose

fixing hook

Drain hose

fixing hook

Pull outwards

slightly

Side sectional view

Fixing hook

installation hole

Drain hose

Takeoff

the drain hose

Rotate the fixing

hook for 90 Rotate the fixing

hook for 90

Insert the fixing hook into the

installation hole upwards

Takeoff the fixing

hook downwards

to fix it

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose .

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

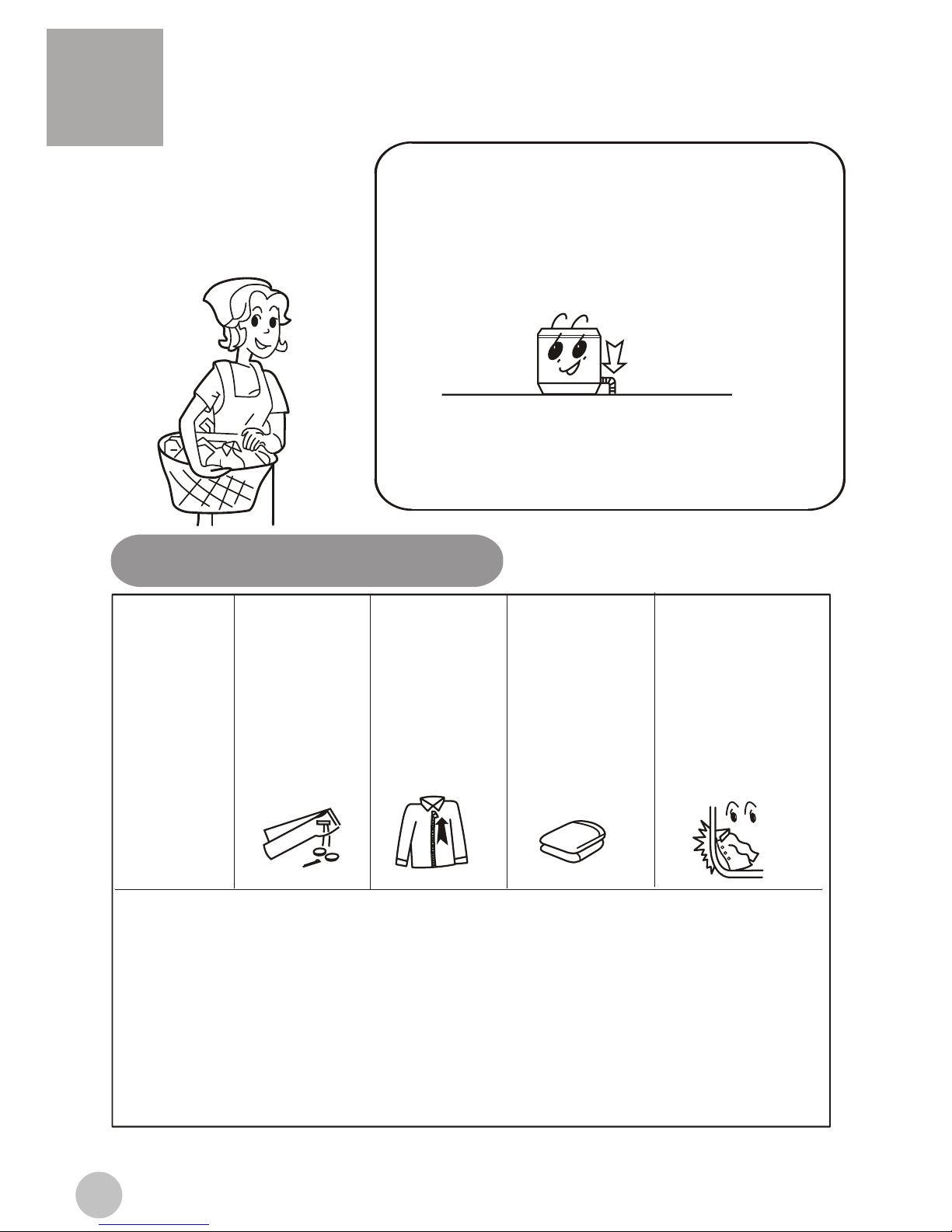

Preparation before washing

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

The capacity of washing and spinning of the

machine refer to the largest weight of the

standard laundries under dry condition that can

be washed or spinned in one time. Laundries

quantity in one washing cycle shall be lower

than the rated capacity.

The thickness ,size , type of the cloth will influ-

ence the actual washing capacity. It is suit-

able to put in reasonable amount of laundries

and the laundries can be turned round in wash-

ing for one time washing.

Do not select " Maximum " water level for

laundries less than 2.4kg, so as to avoid

splashing of water.

The musts in washing

How to use the whitener

Fill water to decided level. Dilute

the whitener with container.

Pour it slowly into thewashing tub.

Avoid using whitener on laun-

dries with color or pattern as they

are prone to lose color.

The whitener shall not touch

the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30

seconds to dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing

powder:

1.Prepare warm water of 30 C and a

container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for

the usage and quantity of the

whitener.

For powder whitener, please

dissolve it before using.

It is suggested not to use high sudsingdetergent.

How to use the washing powder

Usage of the detergent

OFF

WASH TIMER

Figure 5

DRAIN

STRONG

GENTLE

WASH SELECTOR

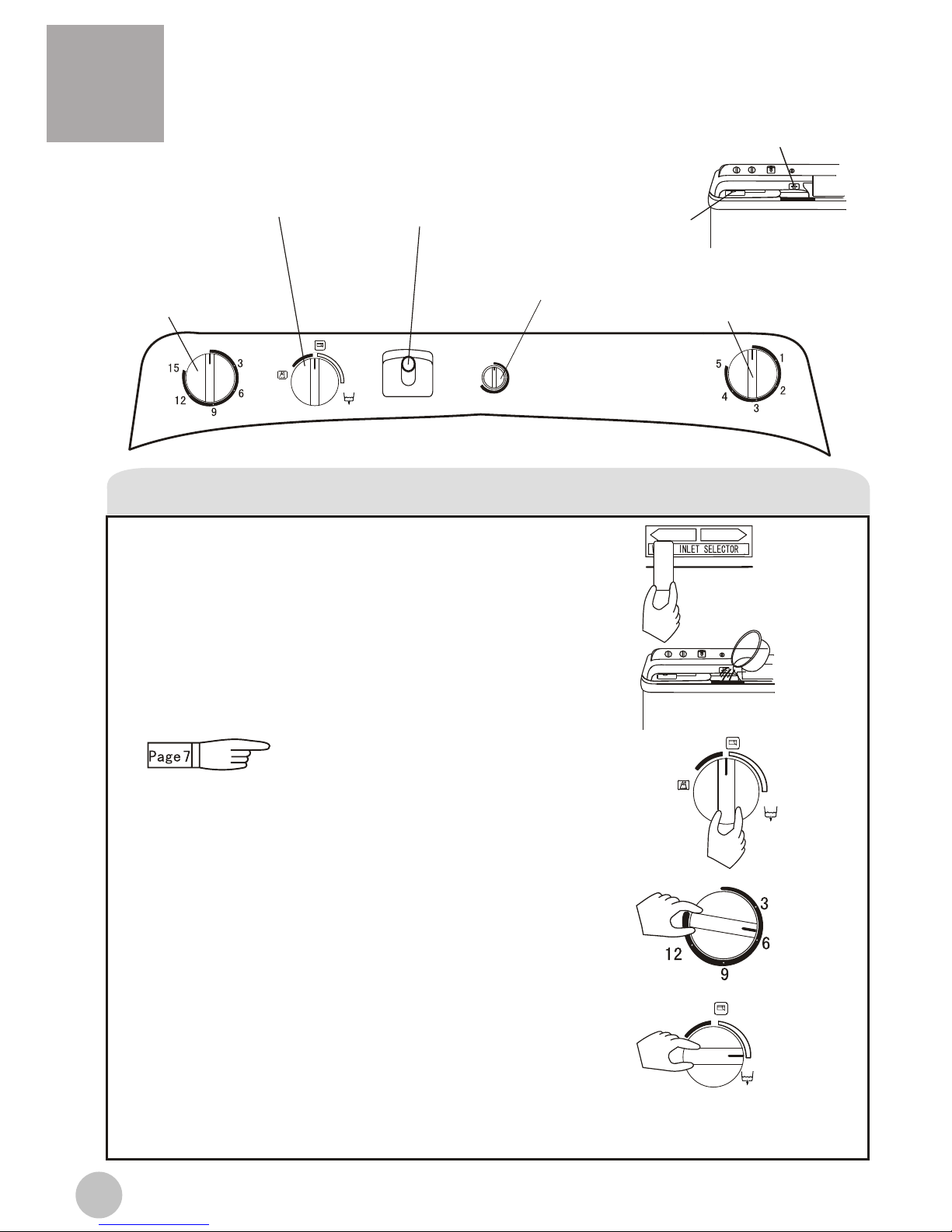

Washing sequence

Figure 1

Figure 2

Spin timer

SPIN

WASH

Wash timer

Wash selector

Buzzer

Water-filling entrance

(To set to below 2 minute,

first set to 5 minute then

turn it back. it can increase

the service life of the timer).

(standard current,

gentle current)

(The buzzer will ring when

the washing finishes)

(to set to below 1 minute,

first set to 2 minute then

turn it back. it can increase

the service life of the timer).

Overfilling sign

Water-filling selector handle

Wash

Figure 4

Figure 3

DRAIN

STANDARD

GENTLE

WASH SELECTOR

1.Water-filling selector

(1) Set the water-filling selector at the "WASH" side.

(Figure 1)

(2) Set the water level adjusting lever to needed line.

2. Fill the water and add the dissolved washing

powder to make the water level reach the preset

position. (Figure 2)

Run washing program for some time to stir and

dissolve the powder completely.

3.Put in the laundries. If the water quantity is

insufficient, please add water.

4.Select the current.

Select the strength of the current according to

the laundries. (Figure 3)

5.Select the washing time

Select the washing time according to the

laundries. (Figure 4)

6.After washing, the buzzer will ring. Set the "WASH

SELECTOR" at "DRAIN". (Figure 5).

OFF

DRAIN

STANDARD

GENTLE

MAX

SPIN TIMER

WASH TIMER WASH SELECTOR

BUZZER

Indice

Altri manuali Haier Rondella

Haier

Haier HWD1406 Manuale utente

Haier

Haier XPB50-23BS Manuale utente

Haier

Haier XPB60-0713S Manuale utente

Haier

Haier 50FREE-1 Manuale utente

Haier

Haier HW50-1010D Manuale utente

Haier

Haier HW60-1201S Manuale utente

Haier

Haier Thermocool HMS1000TVE Manuale utente

Haier

Haier HW-C1070TVE Manuale utente

Haier

Haier RWT350AW Manuale utente

Haier

Haier HW70-B14266 Manuale utente

Haier

Haier HLP23E - Electronic Touch Pulsator Ing Portable Washing... Istruzioni per il montaggio

Haier

Haier HW80-1403D Manuale utente

Haier

Haier HW100-BDV14979S8U1 Manuale utente

Haier

Haier Twin-tub Washing Manuale utente

Haier

Haier XQB60-91AF Manuale utente

Haier

Haier XPB80-113S Guida utente

Haier

Haier HWM130-113S Manuale utente

Haier

Haier HWM66-0613TT Manuale utente

Haier

Haier HWM65-113S Manuale utente

Haier

Haier HLP22P Guida alla configurazione

Haier

Haier HWM90-96A Manuale utente

Haier

Haier JW-PK90A Manuale utente

Haier

Haier HWD-D1200TXVE-S Manuale utente

Haier

Haier JW-W51A Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
