Haier HWM110-0713S Manuale utente

User's manu l

This manual is for

HWM110-0713S

Please read this manual

carefully before using.

Retain it for future reference.

Twin-tub Washing Machine

0030807886F

Contents

Names of the parts - - - - - - - - - - - - - - - - - 1

Safety precautions - - - - - - - - - - - - - - - - - 2

Installation and adjustment - - - - - - - - - - - 4

Preparation before washing - - - - - - - - - - 6

The musts in washing - - - - - - - - - - - - - - - 7

Usage of the detergent - - - - - - - - - - - - - 7

Washing sequence - - - - - - - - - - - - - - - - - 8

Disposal after washing - - - - - - - - - - - - - - - 12

Trouble-Shooting *Answer to question - - - - 14

Packing list *Specification - - - - - - - - - - - - - 16

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Please check if the power receptacle has good earthing condition

before using to guarantee your safety.

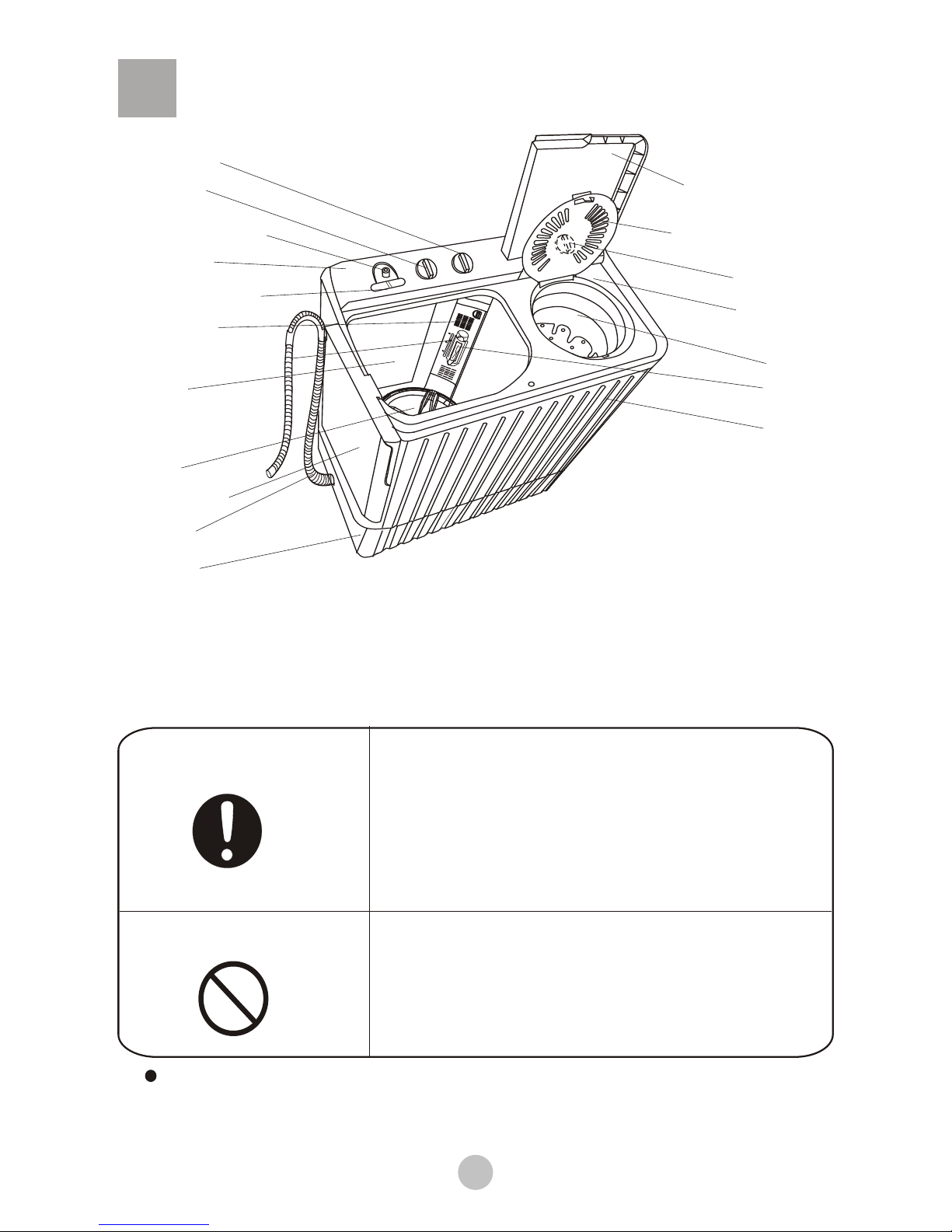

Names of the parts

Major frame

Base frame

Water-filling entrance

Wash selector

Wash timer

Control panel

Water level adjusting lever

Pulsator

Wash tub

Wash tub cover

Drain hose

Overflow filter

Outer cover of the spin tub

Inner cover of the spin tub

Spin tub

Cabinet

Notes: All illustrations in this manual are given for reference only. Your products and

accessories may show differences from these illustrations due to our

continuous improvement.

Spin timer

Water-filling translation

Lint filter

（Installed by user)

50 C

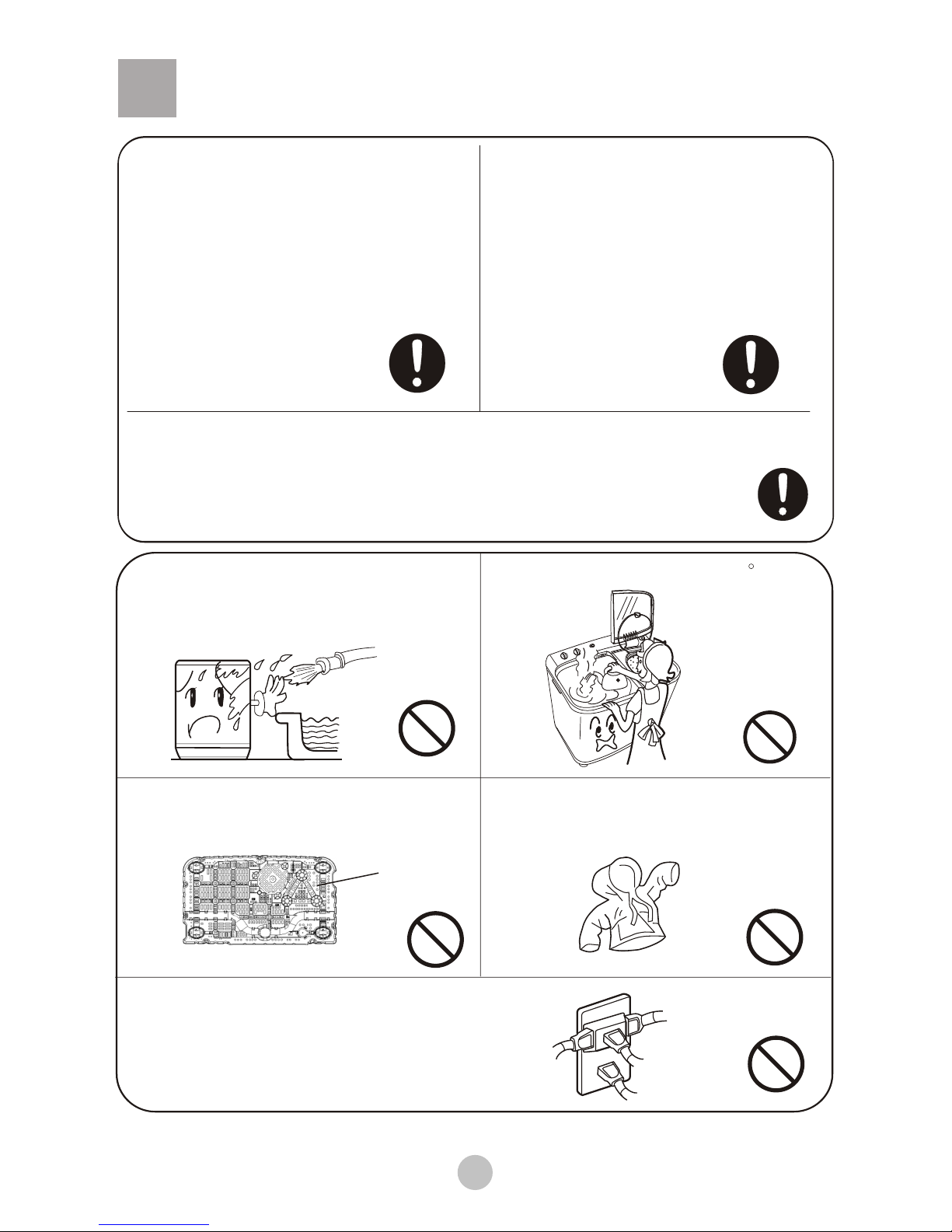

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage. Be sure to use single-phase

three pins receptacle. The earthing

terminal of the receptacle must be

earthed reliably. If possible, please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians of our special shop or the after-sale service department.

Keep the pin of the power plug clean.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Ventilation hole at

the bottom of the

washing machine

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Please don′t use the washer in the environment below 0 C. If the washer is below 0 C, the

washer′s water inlet system and draining system will be frozen ,then result in the damaged

of the whole machine. If the washer has below 0 C, please be sure to ensure the washer is

placed under the room temperature for 2~4 hours and then use .

。

It is suggested to use foamless washing powder.

。

Please put down the drain hose before washing，and connect the water inlet pipe properly.

。

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

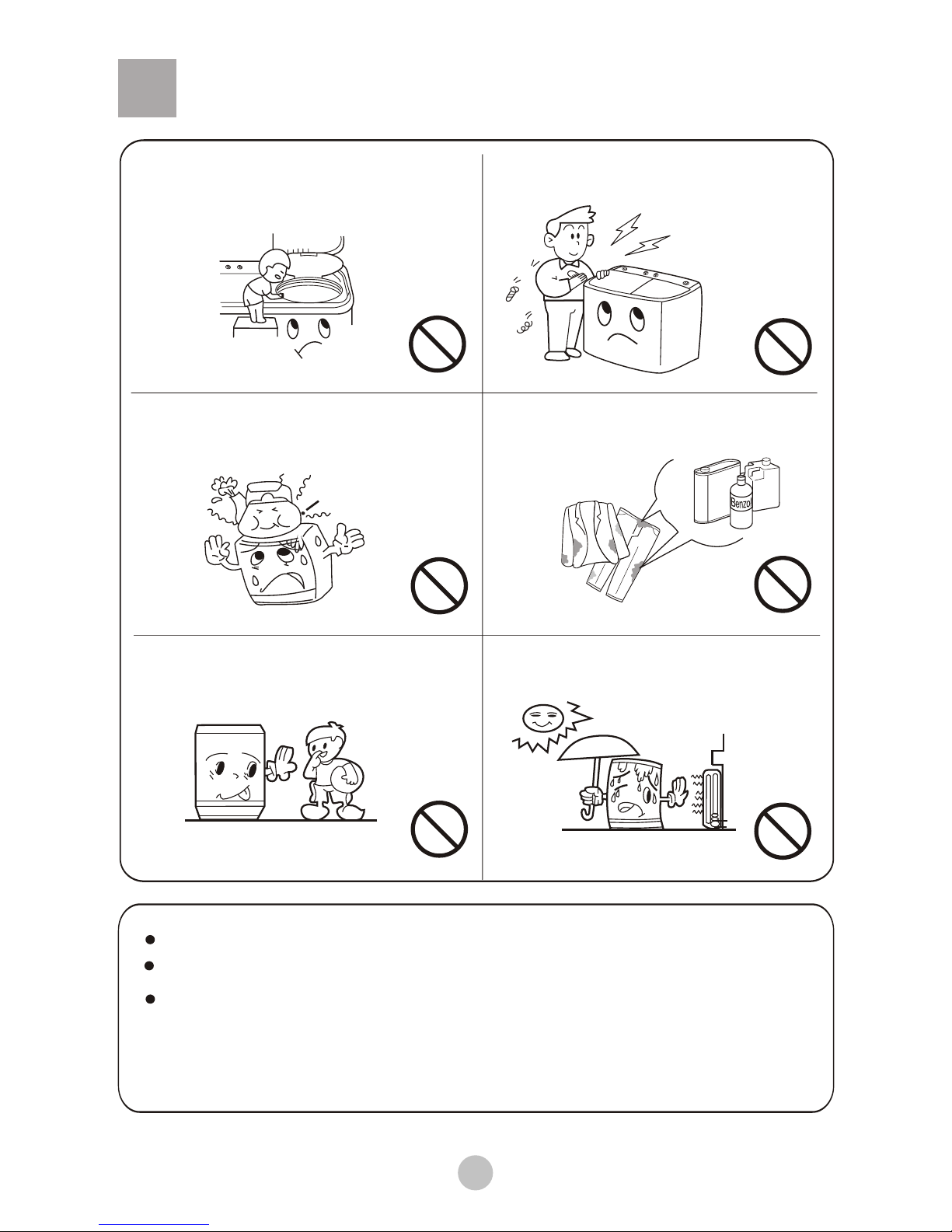

Safety precautions

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Handicapped or children without care

shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

etr

Pol

Thinner

Installation and adjustment

Please install and adjust the machine according to the requirement of

the manual. It is very important to your security and correct operating

the machine.

Install the lint filter

After opening the package, please take out the lint

filter from the document bag, install it to the overflow

filter of the wash tub. See to the figure.

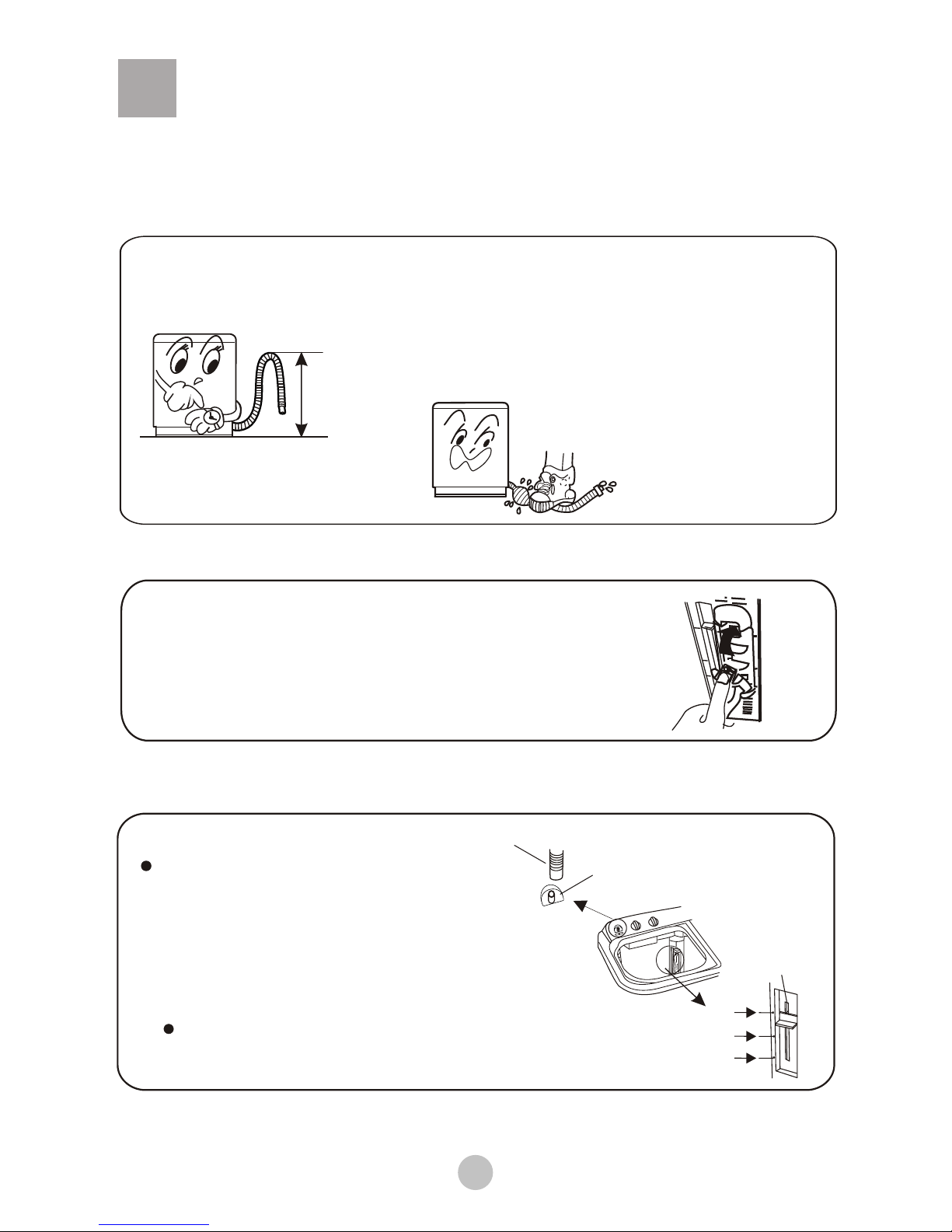

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be less than 1.2m , or the

drainage will not be smooth enough and cause incomplete drainage.

2.Do not step on or press

the drain hose.

0.7m<H≤1.2m

Install the water inlet hose; Select the water level

Insert the water inlet hose into the water-filling

entrance on the control pane directly.(pull it

out to dismantle it)

Select water level according to the

quantity of the laundries.

Set the water level adjusting lever

to needed line.

Water inlet hose

Water inlet

Maximum Max

Minimum Min

Medium Med

Water level

indicator

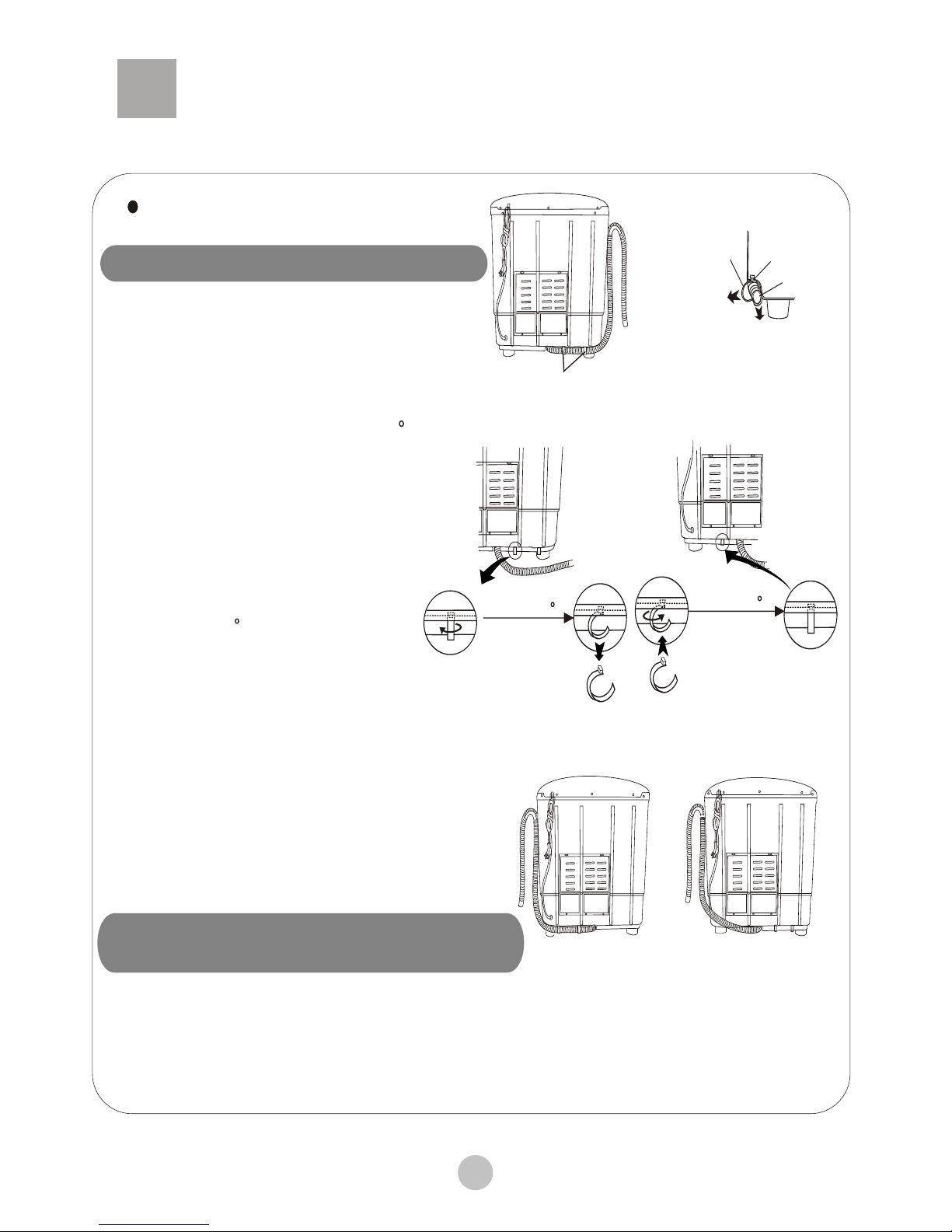

How to change the direction of the drain hoses

Fig ure 1 indicates the ex factory in stall ation

posit ion of the drain hose.

Extend the drain hose from the side of spin tub.

Extend the drain hose from the rear side

Take out the drain hose from the fixin g hook. Extend it from the rear sid e (When

the drain hose is extended from the rear sid e, it can be hung on the poin t for drain

hose at the two sid es of the cabinet.) (See to Figure 6).

Take off the drain hose from the hanging hole of

the cabinet. Pull the drain hose fix in g hook

outwards gently to take out the drain hose from

the two fixing hooks. (As per Fig ure 2)

Pull the fixing hook outwards slightly.

Inlay the drain hose into the fixing hooks

reliably along the groove at spin tub side,

and make it extend towards spin tub side.

Rotate the drain hose fixing hook for 90

to take it out from the installation hole

(As per Figure 3).

Install the two drain hose fixing hooks

taken out into the installation hole at the

other side of the base frame (to aim at the

installation hole accurately you can lean

the washing machine forward slightly).

Then rotatefor 90 (As per Figure 4).

Fig ure 5 Fig ure 6

Figure 4

Fig ure 2

Fig ure 1

Figure 3

Drain hose

fix ing hook

Drain hose

fixing hook

Pull outwards

slightly

Side sectional view

Fixing hook

installation hole

Drain hose

Take off

the drain hose

Take off the fix in g

hook downwards

Rotate the fixing

hook for 90

Insert the fixing hook into the

installation hole upwards

Rotate the fix ing

hook for 90

to fix it

Then hang the drain hose into the hanging

hole at the spin tub side. (As per Figure 5).

Preparation before washing

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put the drain hose up to suitable position.

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

The musts in washing

The capacity of washing and spinning of the

machine refer to the largest weight of the

standard laundries under dry condition that can

be washed or spinned in one time. Laundries

quantity in one washing cycle shall be lower

than the rated capacity.

The thickness ,size , type of the cloth will influ-

ence the actual washing capacity. It is suit-

able to put in reasonable amount of laundries

and the laundries can be turned round in wash-

ing for one time washing.

Do not select " Maximum " water level for

laundries less than 1.0kg, so as to avoid

splashing of water.

How to use the whitener

Fill water to decided level. Dilute

the whitener with container.

Pour it slowly into the washing tub.

Avoid using whitener on laun-

dries with color or pattern as they

are prone to lose color.

The whitener shall not touch

the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30

seconds to dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing

powder:

1.Prepare warm water of 30 C and a

container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for

the usage and quantity of the

whitener.

For powder whitener, please

dissolve it before using.

How to use the washing powder

Usage of the detergent

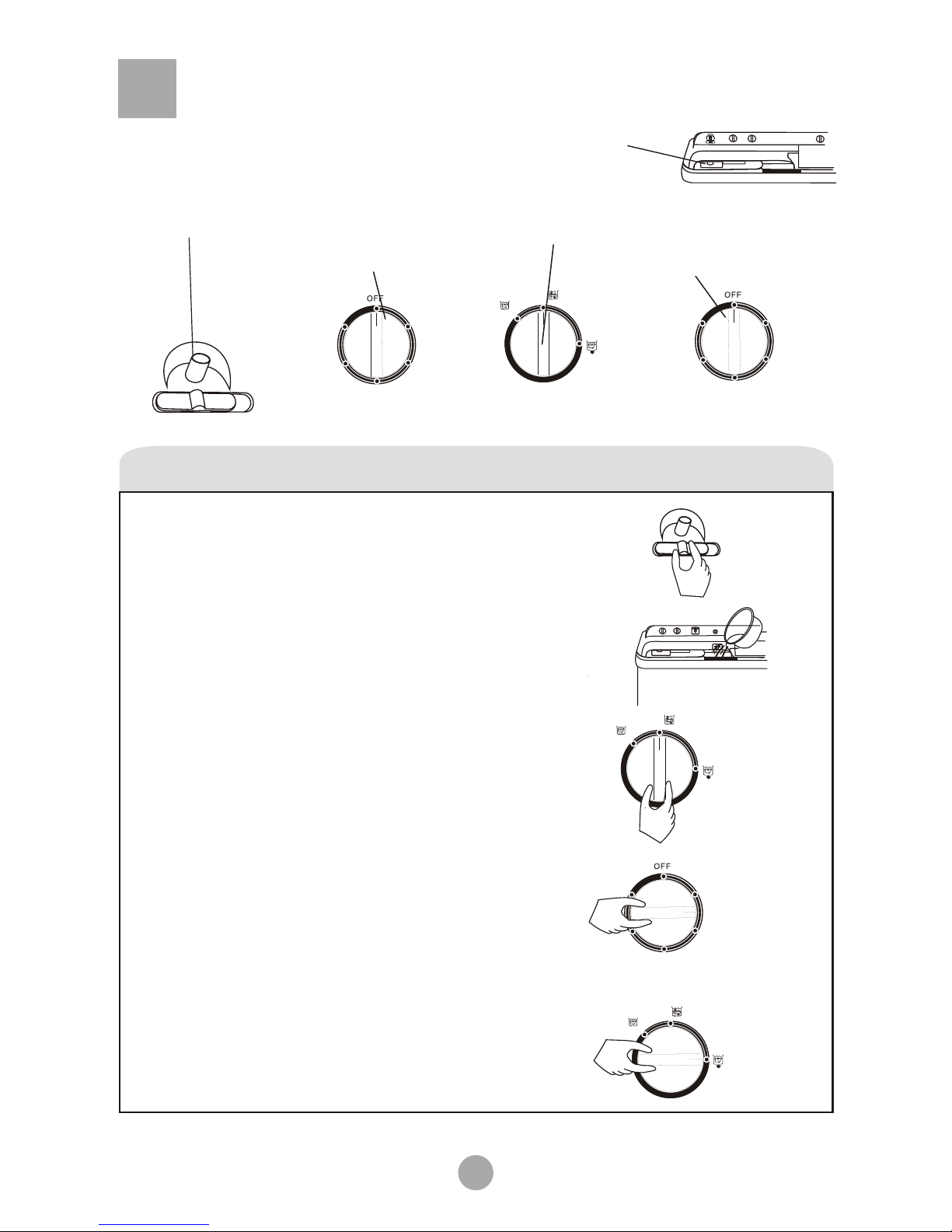

Washing sequence

Figure 1

Spin timer

Wash timer

(To set to below 2 minute,

first set to 6 minute then

turn it back. it can increase

the service life of the timer).

(to set to below 1 minute,

first set to 2 minute then

turn it back. it can increase

the service life of the timer).

Wash

Figure 2

Water inlet

Overflow sign

Wash selector

(standard current,

strong current)

1、Fill selection

(1( Set fill selection to “Wash side”.)Figure 1(

)2 (Adjust water level rod to a position as needed.

2、Fill water and add solved powder detergent until

water reaches a suitable level.(Figure 2)

It begin to wash to dispense detergent uniformly.

3、Put in the wash load, and supplement water

as necessary.

4、

、

、， “ ”

“ ”

Select the current

Select the strength of the current according to

the laundries. (Figure 3)

5 Select the washing time

Select the washing time according to the

laundries. (Figure 4)

6 After washing set the WASH SELECTOR

at DRAIN .(Figure 5)

Figure 5

SPIN

WASH

Figure 3

Figure 4

15 3

1212

1515

WASH SELECTOR

DRAIN DRAIN

STANDARDSTANDARD

STRONGSTRONG

WASH TIMER

WASH SELECTOR

STANDARDSTANDARD

STRONGSTRONG

DRAIN DRAIN

WASH SELECTOR

DRAIN DRAIN

STANDARDSTANDARD

STRONGSTRONG

WASH TIMER

15 3

1212

1515

SPIN TIMER

15 3

Altri manuali per HWM110-0713S

Altri manuali Haier Rondella

Haier

Haier HWM80-187S Manuale utente

Haier

Haier HW80-B14876 Manuale utente

Haier

Haier JW-K42F Manuale utente

Haier

Haier HW90-B14636N Manuale utente

Haier

Haier HWM70-918NZP Manuale utente

Haier

Haier HWM100-1701R Manuale utente

Haier

Haier HWM90-0713S Guida alla configurazione

Haier

Haier HW50-1210A Manuale utente

Haier

Haier HWM10-01 Manuale utente

Haier

Haier XPB50-23BS Manuale utente

Haier

Haier WD-8888-19 Manuale utente

Haier

Haier HWM-13.0/S Manuale utente

Haier

Haier HWM85-1482 Manuale utente

Haier

Haier BW1500W Manuale utente

Haier

Haier HSW-BD70A Manuale utente

Haier

Haier HWF75DW1 Manuale utente

Haier

Haier XQJ70-31 Manuale utente

Haier

Haier GWT450AW Istruzioni per il montaggio

Haier

Haier WM-1270TVE Manuale utente

Haier

Haier HN800TX Guida utente

Haier

Haier KPB70-113S-P Manuale utente

Haier

Haier PFL510W-u Manuale utente

Haier

Haier XQSB60-JN Manuale utente

Haier

Haier HWM60-0523S Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
