Haier HWM75-78 Manuale utente

User's manual

This manual is for

HWM75-78

Please read this manual

carefully before using.

Retain it for future reference.

Full automatic washing machine

Contents

Names of the parts

Safety precautions

Trouble shooting

Packing list Specification

Installation and adjustment

Usage of the drain hose

Preparation before washing

Put in the laundries

Usage of the detergent

Use the operation buttons

Installation the water inlet hose

Disposal after washing

Finish washing

Close the top lid

Answers to question

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

Warning sign

Names of the parts

Meaning and description of the symbols

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damageof the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Control panel

Outer tub cover

Lint filter

Balance ring

Inner tub

Attachment block

Cabinet

Liquid whitener inlet

Fixed leg (3 pieces)

Adjustable leg

Detergent box

Top lid component

Inner cover component

Pulsator

Water inlet valve

Water absorption

cushion

Round cover

Front control board

Cabinet handle

Drain hose

Back cover

Power cord

Cabinet base

Adjustable foot

seam

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage.Be sure to use single-phase

three pins receptacle.The earthing

terminal of the receptacle must be

earthed reliably.If possible,please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians of our special shop or the after-sale service department.

Keep the pin of the power plug clean.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is in-

stalled on ground with carpet, do not

block the ventilation hole with carpet.

The ventilation holes

at the bottom

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Earth

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

Safety precautions

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Petrol

Thinner

To protect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet is open,

and if the connection of the water inlet

pipe is proper.

It is suggested to use foamless washing

powder.

Please keep the lint filter in good condition, and

install it to proper position during washing. If the

lint filter is lost or damaged,please contact the local

after-sales service department of our company.

The back cover of lint filter

The front cover of lint filter

install

dismantle

Installation and adjustment

Please install and adjust the machine according to the requirement of the mannual.

It is very important to your security and correct operating the machine.

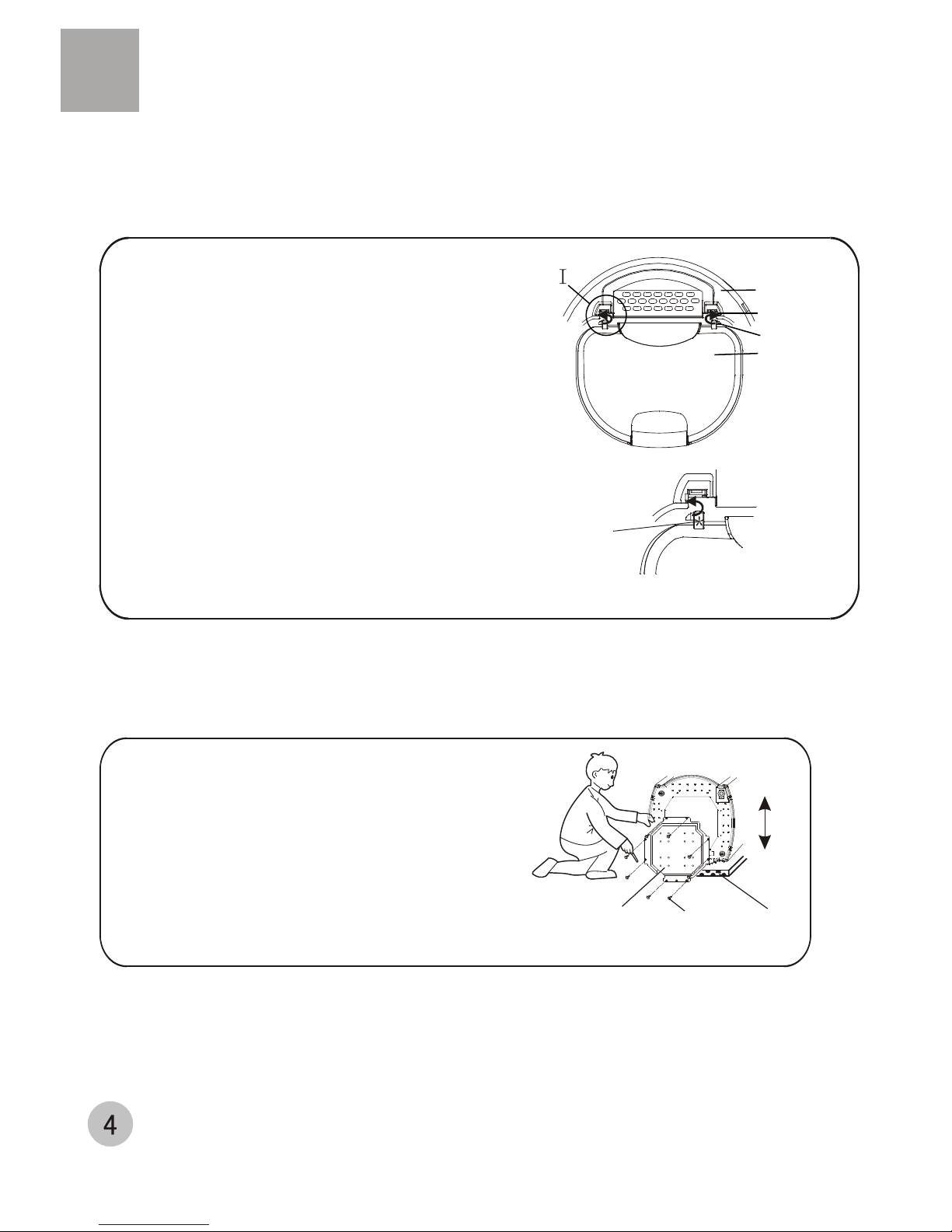

After opening the package, please lean the washing

machine gently down on soft items (like towel cloth,

blanket, etc.). Install the bottom plate to the bottom of

the machine with eight screwsby a cross screwdriver,

then lift the machine up gently. See to the figure:

Install the inner cover component

Install the bottom plate

Inner cover

Inner cover shaft

Outer tub cover

Section •enlarging

Push

Outer tub cover

shaft groove

1.Open the top lid of the washing machine.

2.Put the inner cover component on the outer

tub cover, aiming the inner cover shaft to

the installation hole of the corresponding

outer tub cover shaft groove.

3.Firstly insert the inner cover shaft of one side into the

corresponding outer tub cover shaft groove, then push

the another inner cover shaft into the corresponding

outer tub cover shaft groove. Please install to designated

position to guarantee there are no dropping or abnormal

sound in opening and closing of the inner cover, and the

operation shall be smooth. Do not dismount the inner

cover component after washing.

Soft object

Bottom plate

Back

Screw

Front

The washing machine away from wall should be overrun 20mm. The largest allowable slope of the

shank base of the machine is 1 .The slanting or rough ground will result inunstable running or

stoppage of the machine. Please adjust it with following methods:

Confirm it's horizontal:

Hang the lead line to check if it is

horizontal.

Adjust the adjustable leg:

Adjust the Installation position

Fasten

Loosen

High Low

the adjustable nut

the adjustable feet

1 .To twist the adjustable leg, please first lift up the

side of the leg slightly, loosen the adjustable nut,

and twist the leg.

2 .After adjustment, fastenthe nut.

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be less than 10cm,

or the drainage will not be smooth, and cost such long

time that the machine may stop at mid way.

Do not step on or press the drain hose.

If extra drain hose is needed, please make separate

purchase. The inner diameter of the extra hose shall

not less than 30mm, and the length shall not exceed

1.5m.

If the extra hose is too long,cut it either at A or at

B point.

<10cm

> 30mm

<1.5m

If the drain hose is too long, cut it at mid point. To make

smooth drainage, cut the front end of the hose slantingly.

Usage of the drain hose
