Haier XQS60-78 Manuale utente

User's manual

This manual is for

XQS60-78

Double-drive automatic washing machine

with pump

Please read this manual

carefully before using.

Retain it for future reference.

0030806076B

Contents

Names of the parts

Safety precautions

Trouble shooting

Packing list Specification

Installation and adjustment

Usage of the drain hose

Preparation before washing

Put in the laundries

Usage of the detergent

Use the operation buttons

Installation the water inlet hose

Disposal after washing

Finish washing

Close the top lid

Answer to question

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

Warning sign

Names of the parts

Meaning and description of the symbols

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Control panel

Outer tub cover

Lint filter

Balance ring

Inner tub

Attachment block

Cabinet

Liquid whitener inlet

Fixed leg (3 pieces)

Adjustable leg

Detergent box

Top lid component

Inner cover component

Pulsator

Water inlet valve

Water absorption

cushion

Round cover

Front control board

Cabinet handle

Drain hose

Back cover

Power cord

Cabinet base

Adjustable foot

seam

Safety precautions

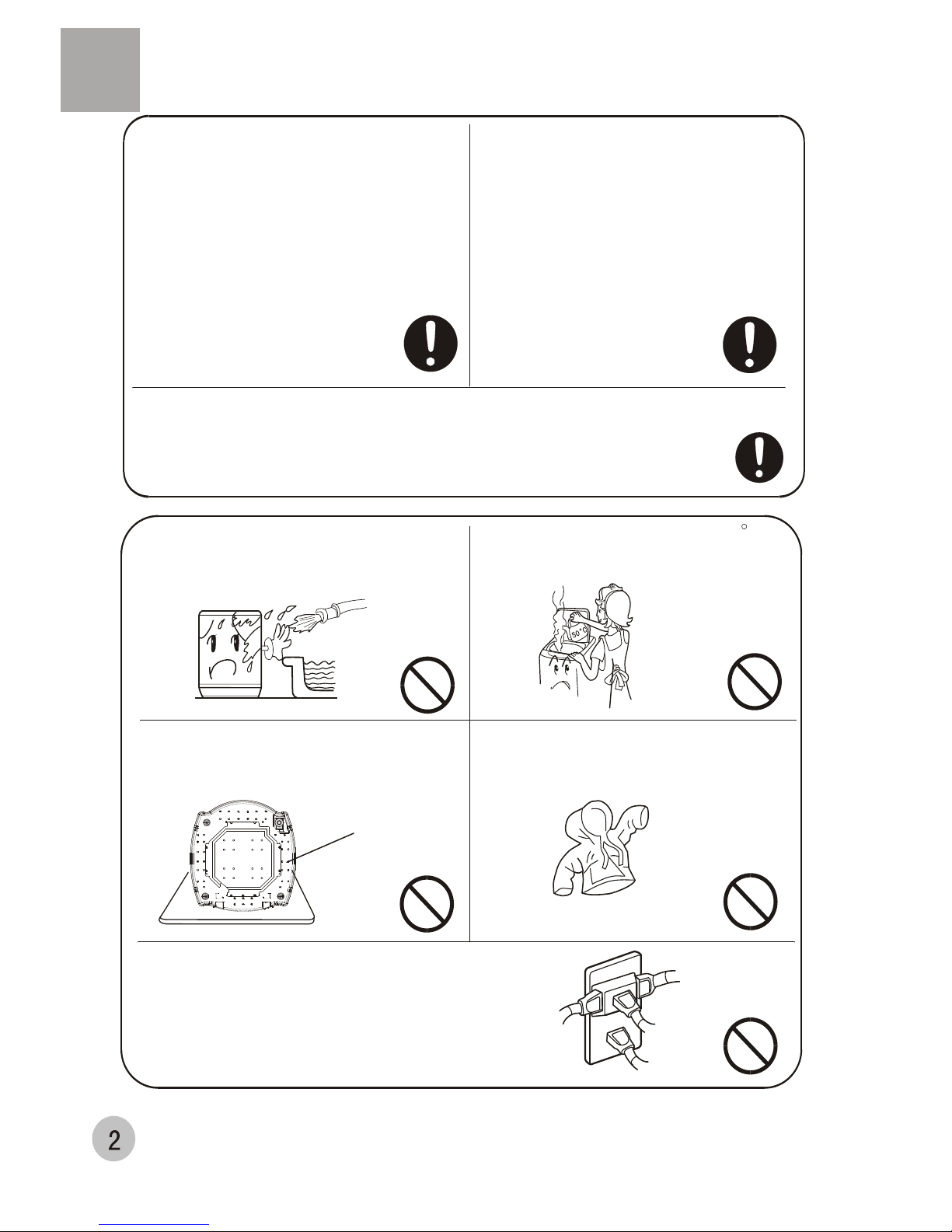

Please insert the power cord into

special receptacle with rated vol-

tage. Be sure to use single-phase

three pins receptacle.The earthing

terminal of the receptacle must be

earthed reliably .If possible, please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians of our special shop or the after-sale service department.

Keep the pin of the power plug clean.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is in-

stalled on ground with carpet, do not

block the ventilation hole with carpet.

The ventilation holes

at the bottom

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Do not decompose, repair or alter the

machine by yourself.

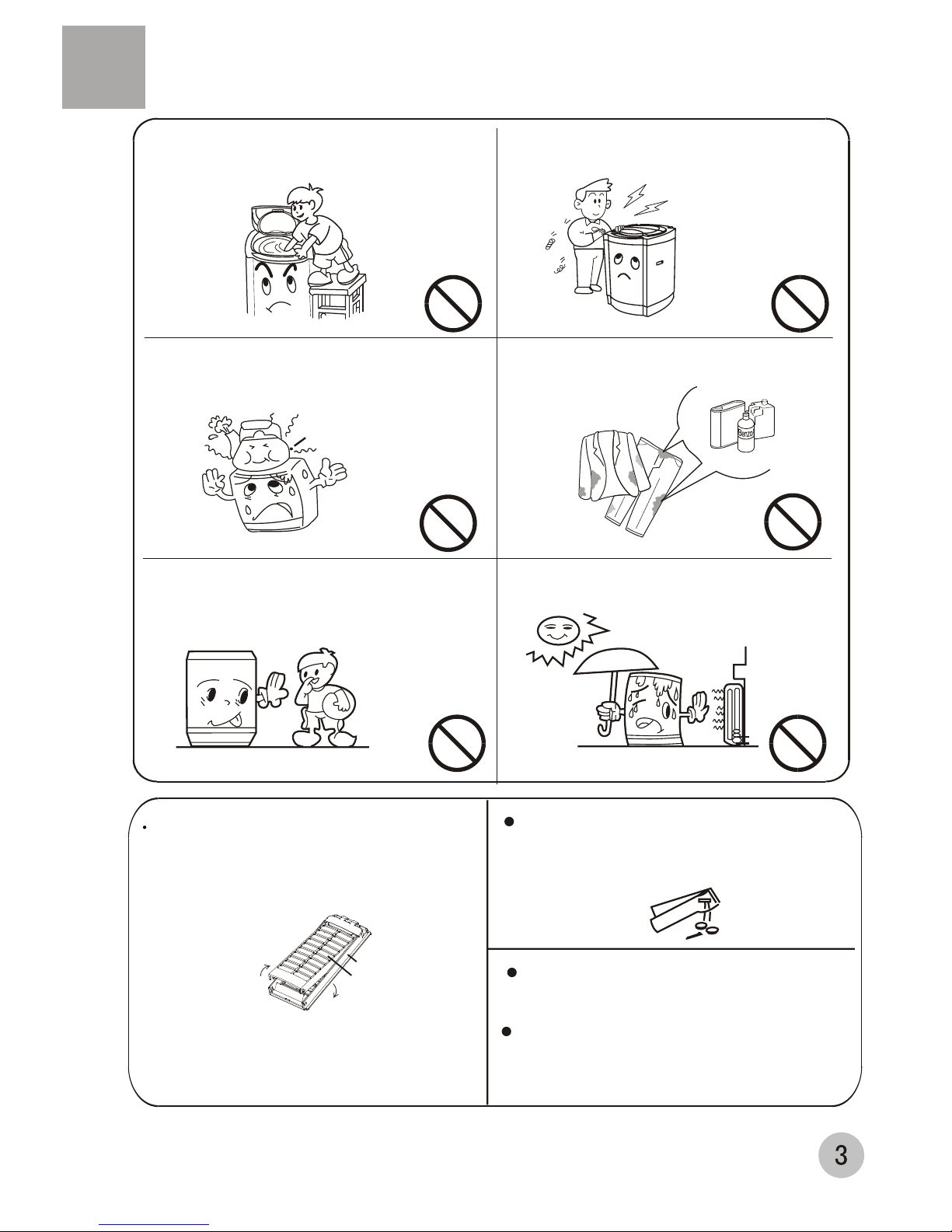

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

Safety precautions

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Petrol

Thinner

To protect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet is open,

and if the connection of the water inlet

pipe is proper.

It is suggested to use foamless washing

powder.

Please keep the lint filter in good condition, and

install it to proper position during washing. If the

lint filter is lost or damaged,please contact the local

after-sales service department of our company.

The back cover of lint filter

The front cover of lint filter

install

dismantle

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual

It is very important to your security and correct operating the machine.

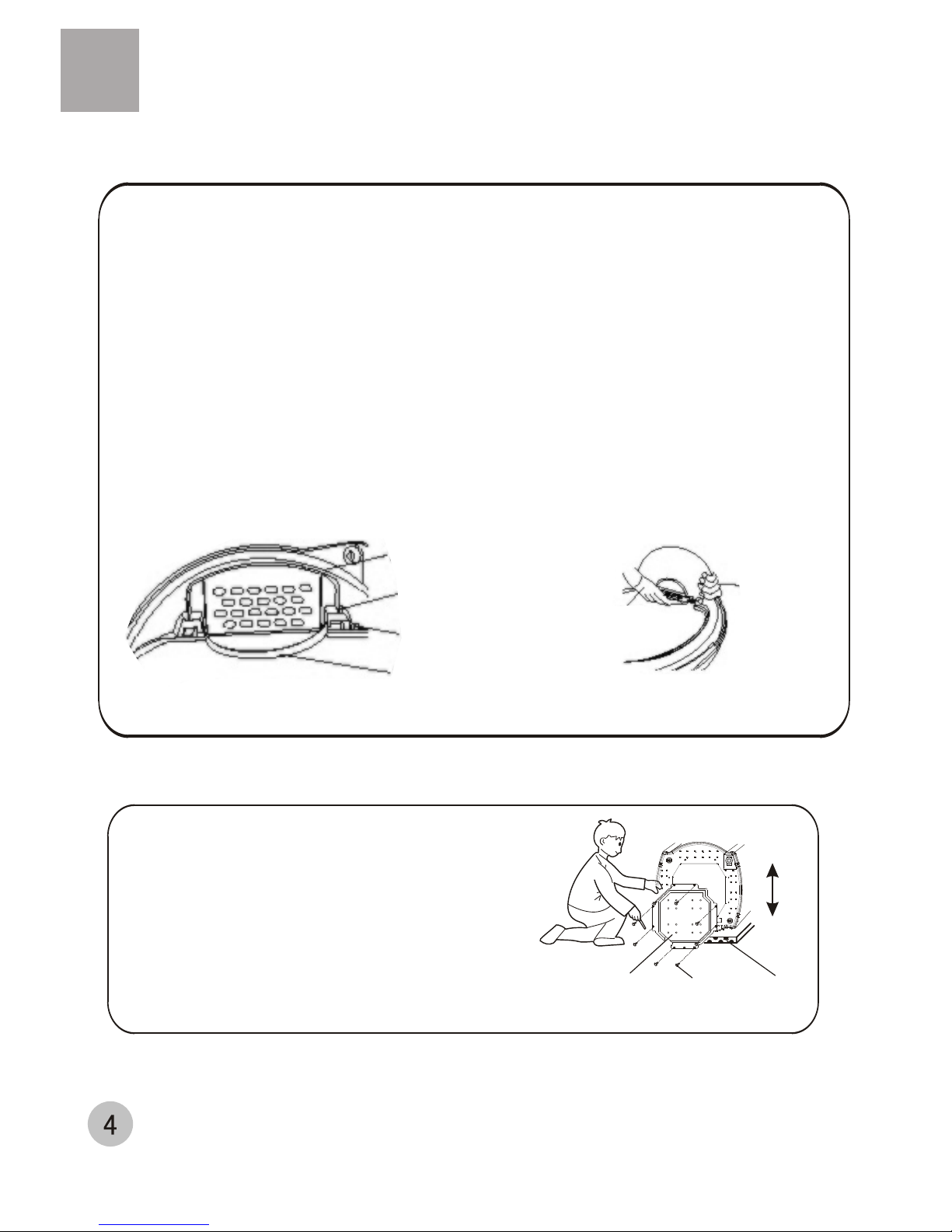

After opening the package, please lean the washing

machine gently down on soft items (like towel cloth,

blanket, etc.). Install the bottom plate to the bottom of

the machine with eight screwsby a cross screwdriver,

then lift the machine up gently. See to the figure:

Install the inner cover component

Install the bottom plate

Soft object

Bottom plate

Back

Screw

Front

1.Open the top lid of the washing machine.

2.Put the inner cover component on the outer tub cover, aiming the inner cover

shaft to the installation hole of the corresponding outer tub cover shaft groove.

3.Firstly insert the inner cover shaft of the left side into the corresponding outer tub

cover shaft groove(see to the figure 1), then hold the middle position of the front of

the outer tub cover with left hand forcibly , handhold the right and below position of

the inner cover with right hand, push the inner cover to the outer cover vertically,

make the inner cover shaft into the corresponding outer tub cover shaft groove(see

to the figure 2). Please install to designated position to guarantee there are no

dropping or abnormal sound in opening and closing of the inner cover, and the

operation shall be smooth. Do not dismount the inner cover component after washing.

Outer tub cover

Outer tub cover shaft groove

Inner cover shaft

Inner cover component

Figure 1

Right hand

Left hand

Figure 2

Before using the washing machine firstly, please install the inner cover component.

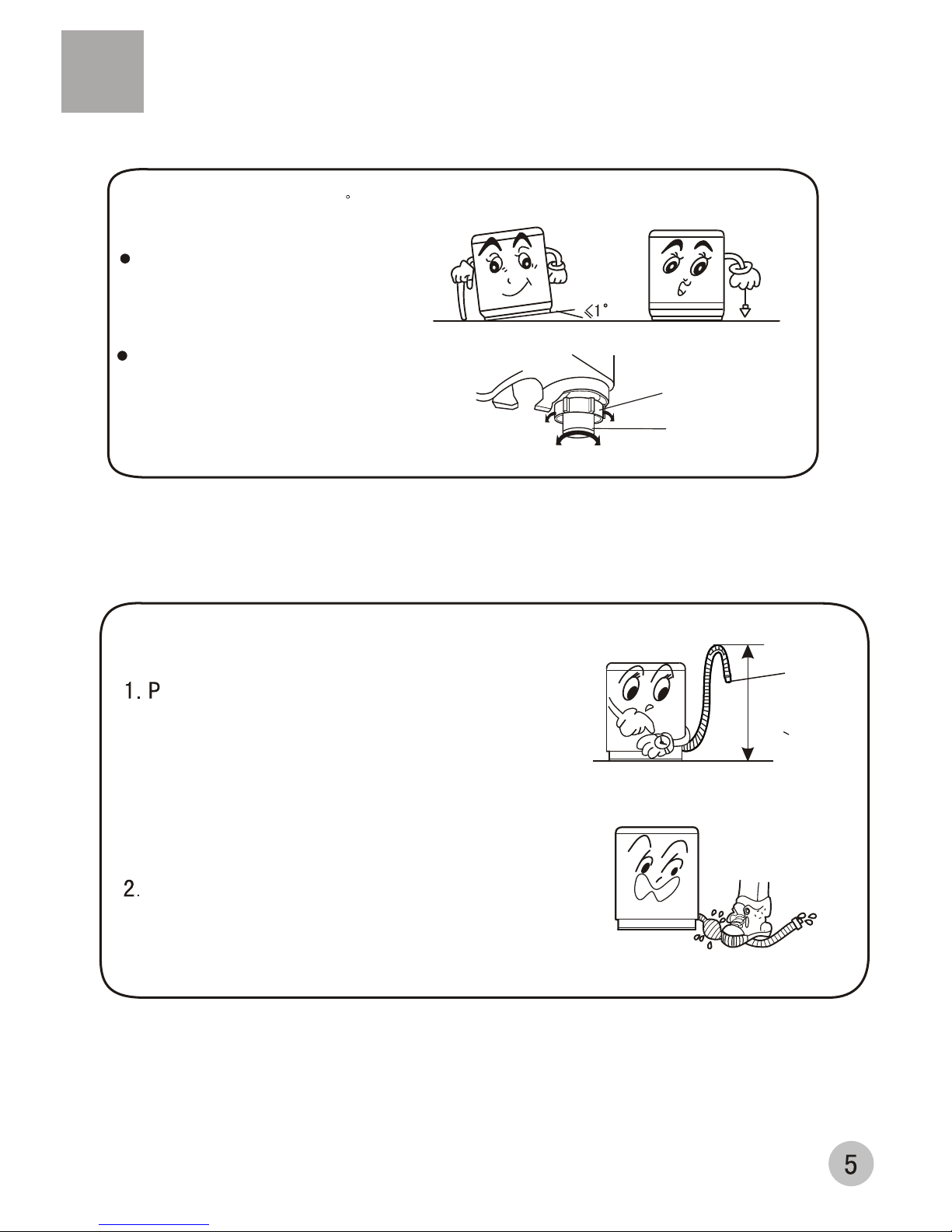

The washing machine away from wall should be overrun 20mm. The largest allowable slope of the

shank base of the machine is 1 .The slanting or rough ground will result in unstable running or

stoppage of the machine. Please adjust it with following methods:

Confirm it's horizontal:

Hang the lead line to check if it is

horizontal.

Adjust the adjustable leg:

Adjust the Installation position

Fasten

Loosen

High Low

the adjustable nut

the adjustable feet

1 .To twist the adjustable leg, please first lift up the

side of the leg slightly, loosen the adjustable nut,

and twist the leg.

2 .After adjustment, fastenthe nut.

Usage of the drain hose

The drainage shall be smooth with the drain hose

ut the drain hose up to suitable position. Do not

put it on ground.

Notes: the mouth of drain pipe should higher than

the water level of washing tub for avoiding

to siphon phenomenon during drain.

Do not tramp or press the drain hose.

Mouth of

drain hose

<1.2m

0.7<H

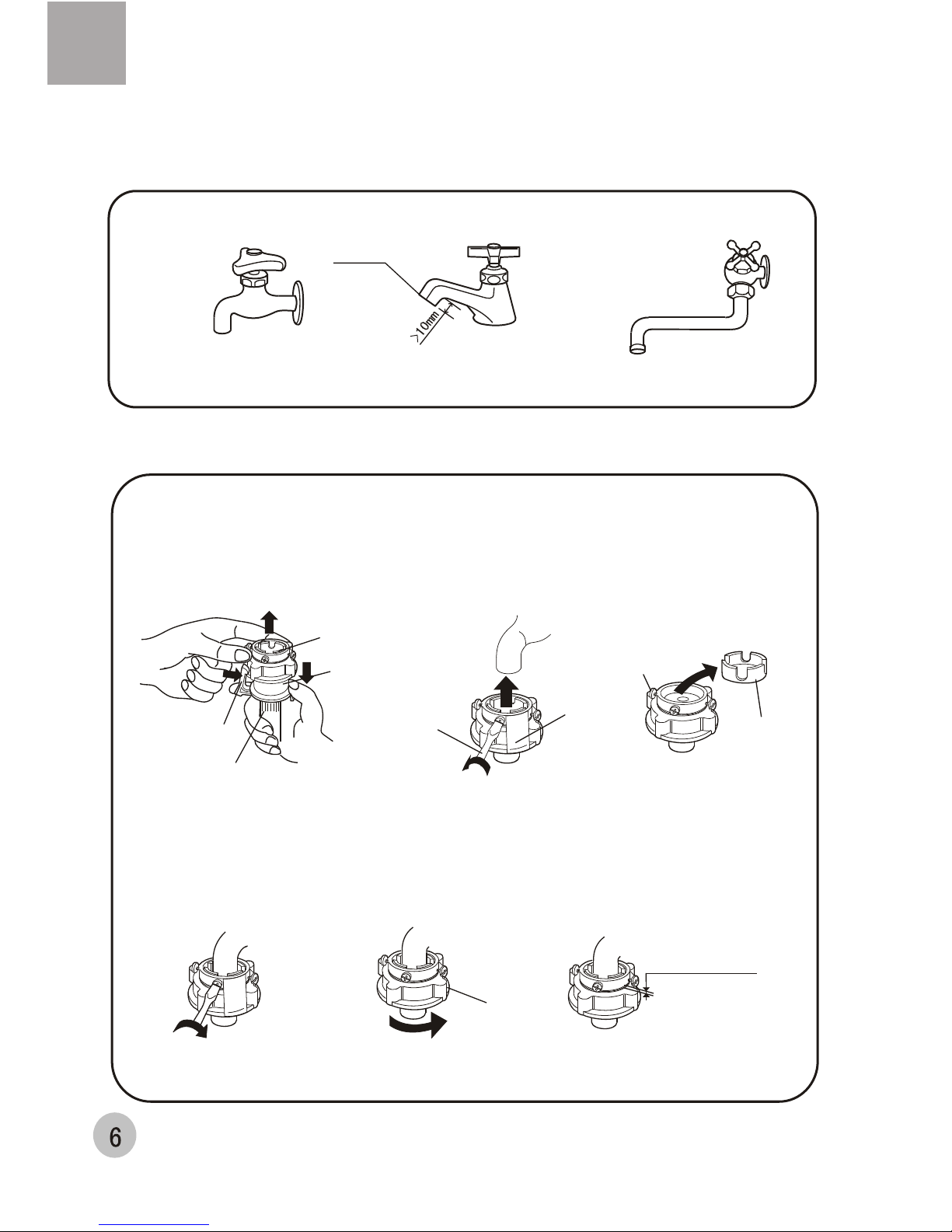

The exit end face of the faucet

Confirm the water faucet

Connection between the water inlet hose jointer and the water faucet

water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.

2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.

See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen

the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth,

otherwise it may leak water. See to Figure 3.)

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the

water inlet hose component. See to Figure 1.

3.Fasten the four screws evenly. See to Figure 4.

remark: Before installation, the threading is 4mm above the upper surface of the nut.

After installation, the threading is 2mm above the upper surface of the nut..

water inlet hose jointer

Screw knife

water inlet hose

Figure 1

Figure 4 Figure 5

Slider

Lock lever

Installation the water inlet hose

4 Take off the nameplate.Twist the fastening nut as per the indication of the figure

to seal up the exit end face of the faucet. See to Figure 5.

About 4mm before twisting

About less than 2mm after twisting

Screw

Bushing

Sign plate

Screw nut

Figure 2 Figure 3

Figure 6

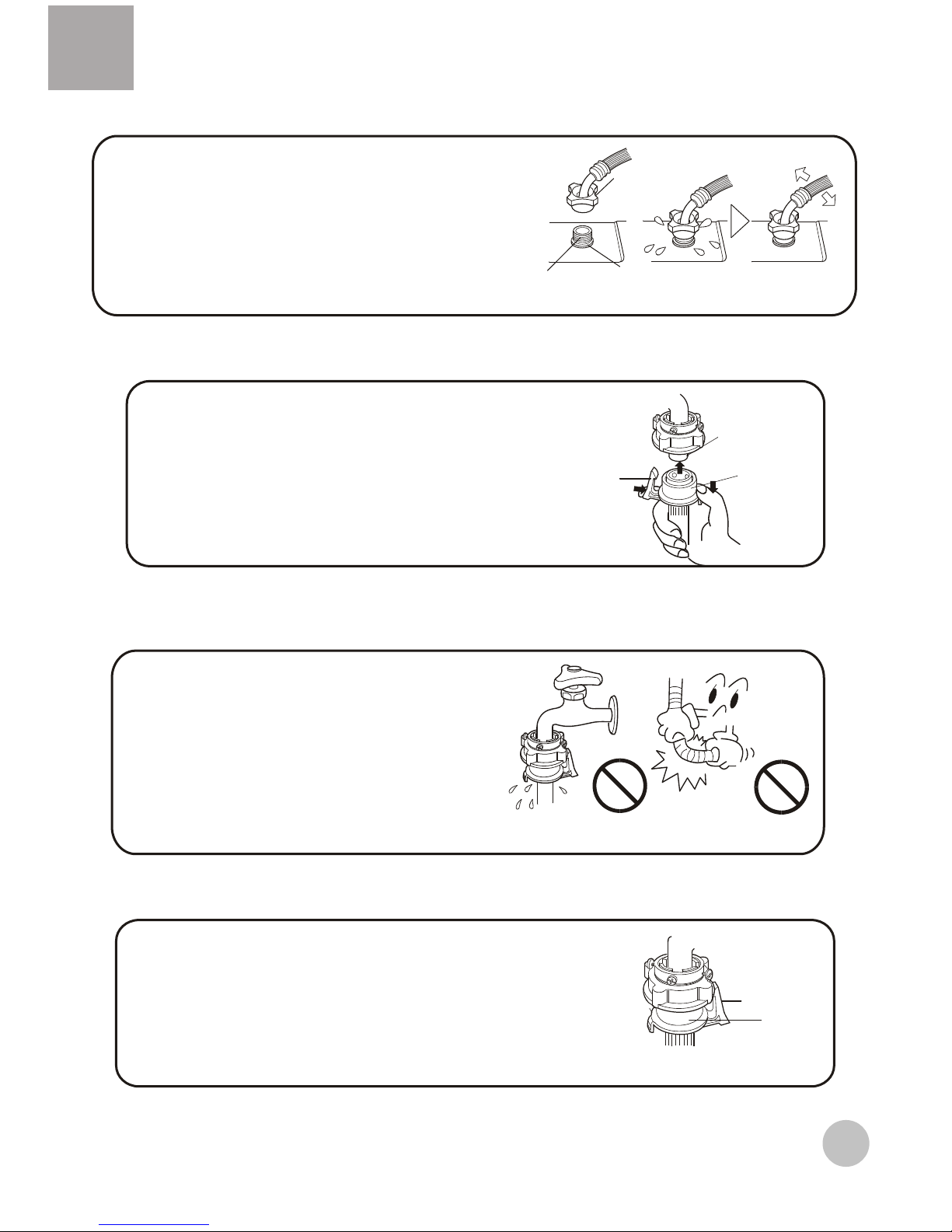

Connection between the water inlet hose and the washer

Dismantle the water inlet hose

Connection between the jointer of the water inlet hose

and the water inlet hose

Check the connection between the jointer of the water inlet hose

and the water faucet

1.Do not take off the water absorption cushion. Please check if the

cushion is dropped or damaged before each usage. If it happens

please contact our after-sale department immediately.

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

1.Push down the slider. Insert the water inlet hose into the jointer.

2 Hang the lock lever to the jointer. Release the slider till a click

sound is heard.

Locking lever

Slider

water absorption

cushion.

nut of the water

inlet hose

the jointer of the

water inlet hose

Slider

Locking lever

jointer of the

water inlet valve

1. Close the water faucet.

2. Press the locking lever. Push down the slider. Then pull of the water inlet

hose.

If the machine is used frequently, the jointer of the water inlet hose can be

kept on the faucet to prevent damaging the fixing screw.

2 Put the nut of the water inlet hose on the valve jointer.

3 Fasten the nut. Swing it gently to confirm if it's suitable.

4.Before each usage please check if the connection

between the jointer of the water inlet hose and the

water faucet, and the installation of the water inlet

hose are firm, so as to prevent dropping from

improper installation position.

1 Preparation before washing

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put the drain hose up to suitable position.

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

Indice

Altri manuali Haier Rondella

Haier

Haier HWF 5000 AW Manuale utente

Haier

Haier RW-S1000F3 Manuale utente

Haier

Haier HW100-1211N Manuale utente

Haier

Haier HNS1260TVE Manuale utente

Haier

Haier HWM100-287S Manuale utente

Haier

Haier XPB90-0713S Manuale utente

Haier

Haier HW60-12829 Manuale utente

Haier

Haier XQG50-QF800 Manuale utente

Haier

Haier ProSport1260 Manuale utente

Haier

Haier HWM100-828A Manuale utente

Haier

Haier HW50-1210A Manuale utente

Haier

Haier HWM75TL Manuale utente

Haier

Haier HW80-B14979 Manuale utente

Haier

Haier GWT700AW - Genesis Series 27 Washer Manuale utente

Haier

Haier HN800TX Guida utente

Haier

Haier XPB65-27QGS Manuale utente

Haier

Haier HWM62-0566 Manuale utente

Haier

Haier WNM1000TE Manuale utente

Haier

Haier XPB60-111S Manuale utente

Haier

Haier HW80-IM12826TNZP Manuale utente

Haier

Haier HW100-B14636N Manuale utente

Haier

Haier HWD-C1200TXVE-U Manuale utente

Haier

Haier HWM90-7288 Manuale utente

Haier

Haier XQB42-62 Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
