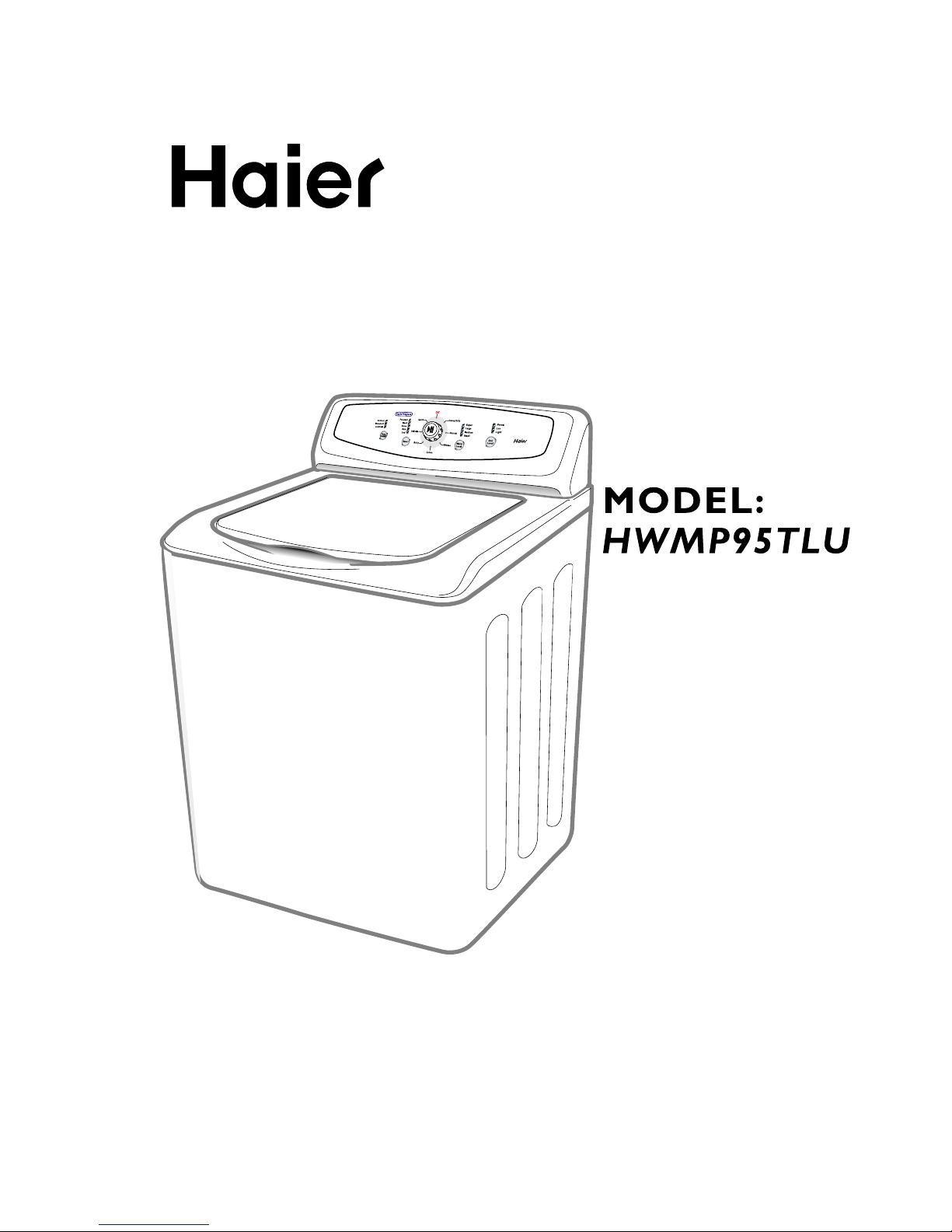

Haier HWMP95TLU Manuale utente

Washing Machine

USE & CARE GUIDE

TABLE OF CONTENTS

PAGE

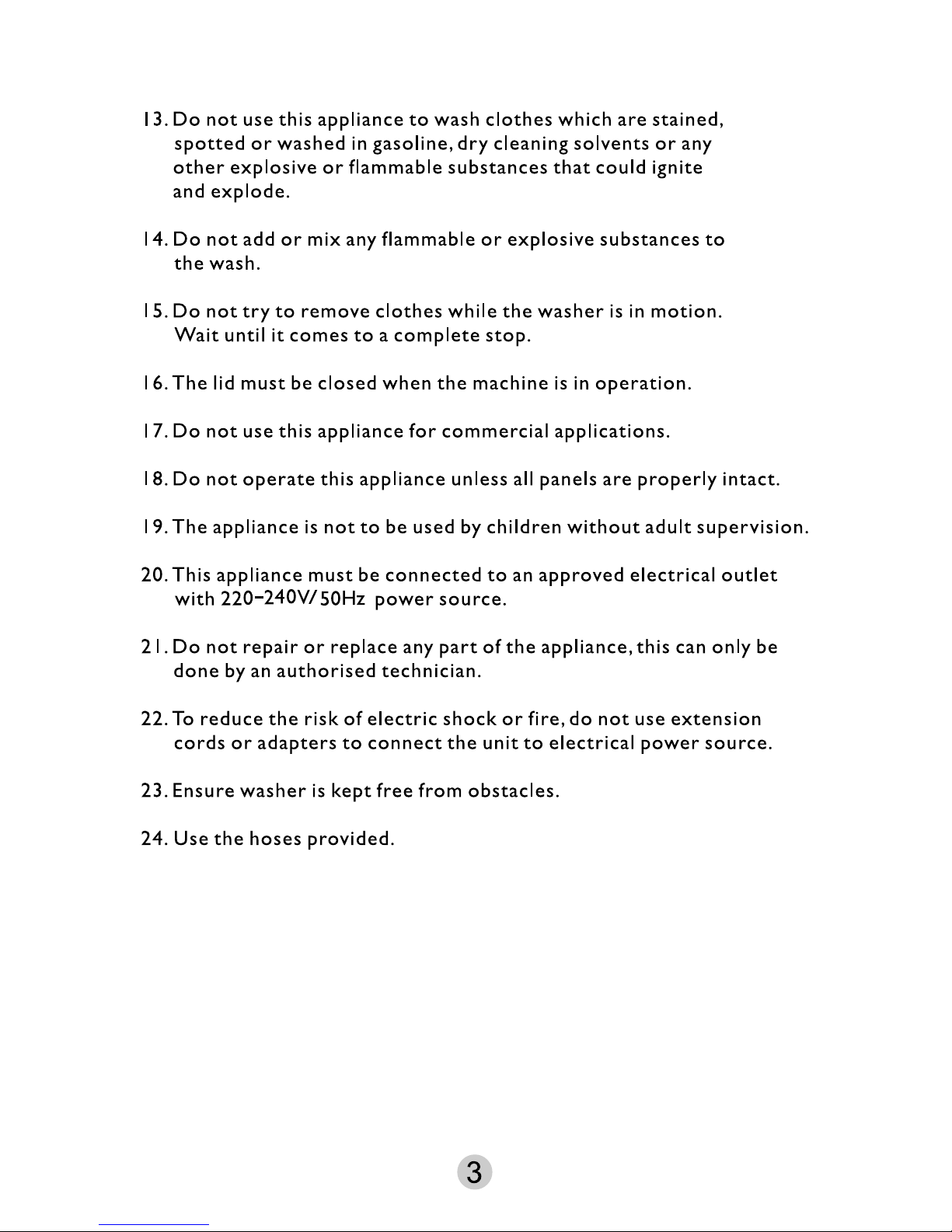

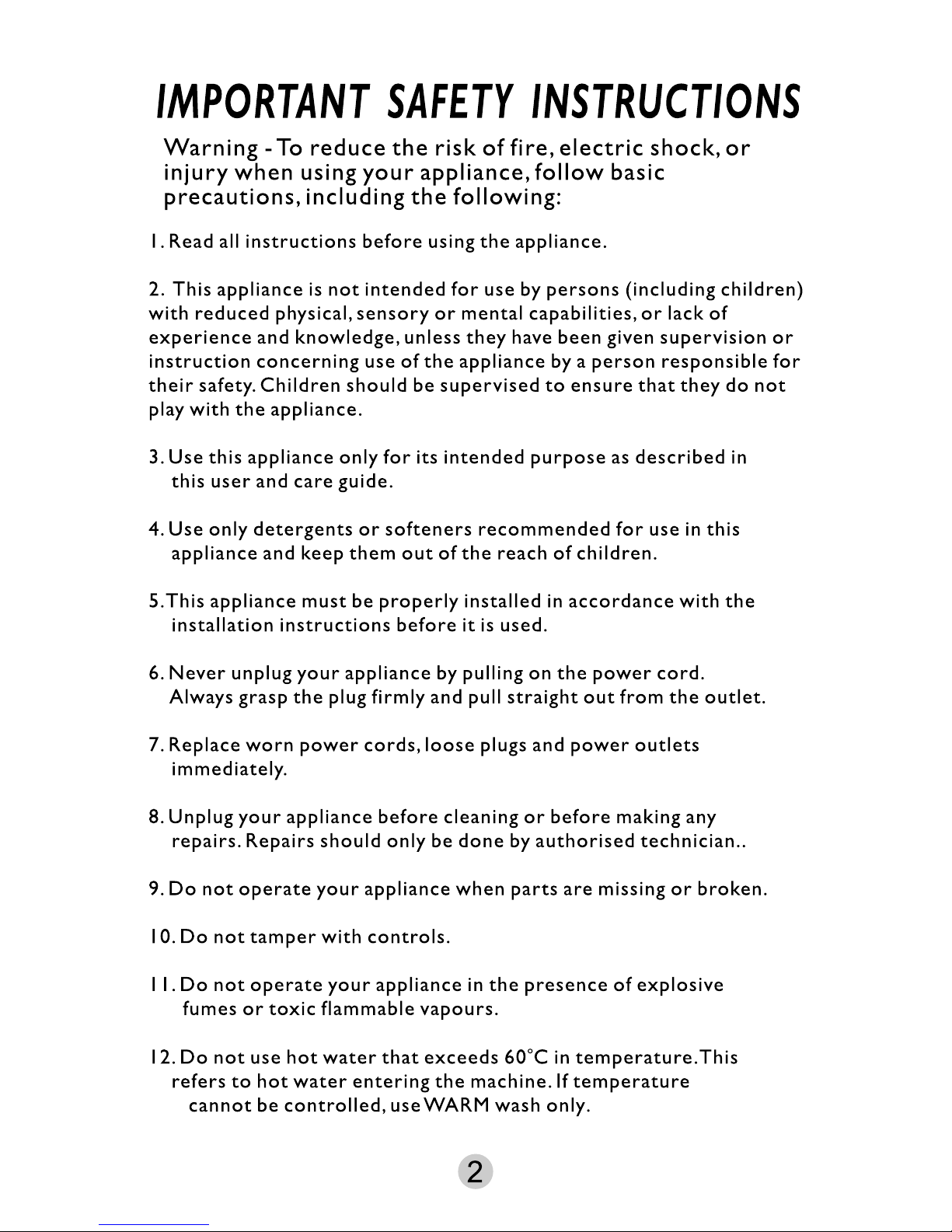

IMPORTANT SAFETY INSTRUCTIONS.............2,3

OPERATING INSTRUCTIONS....................................4

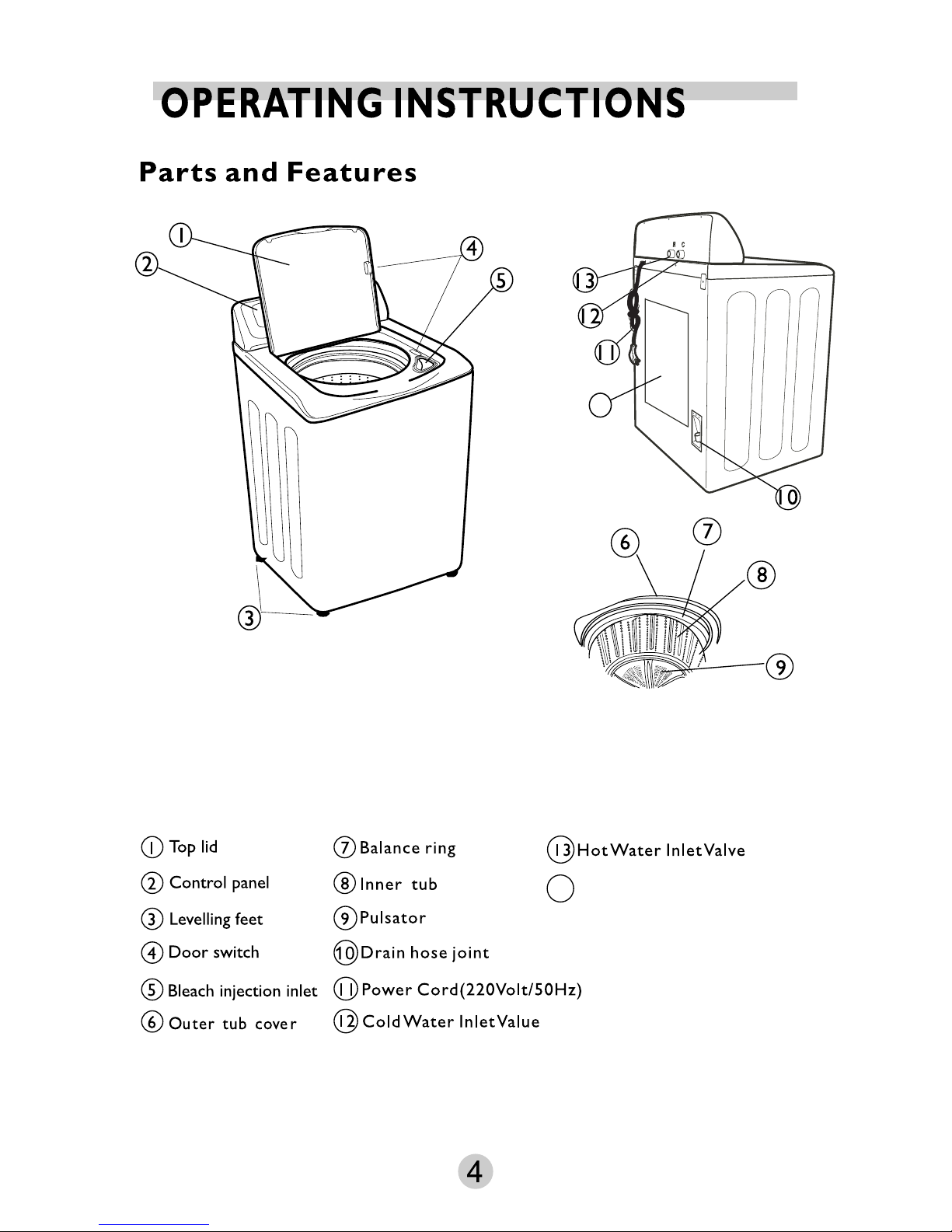

Parts and Features...........................................................................4

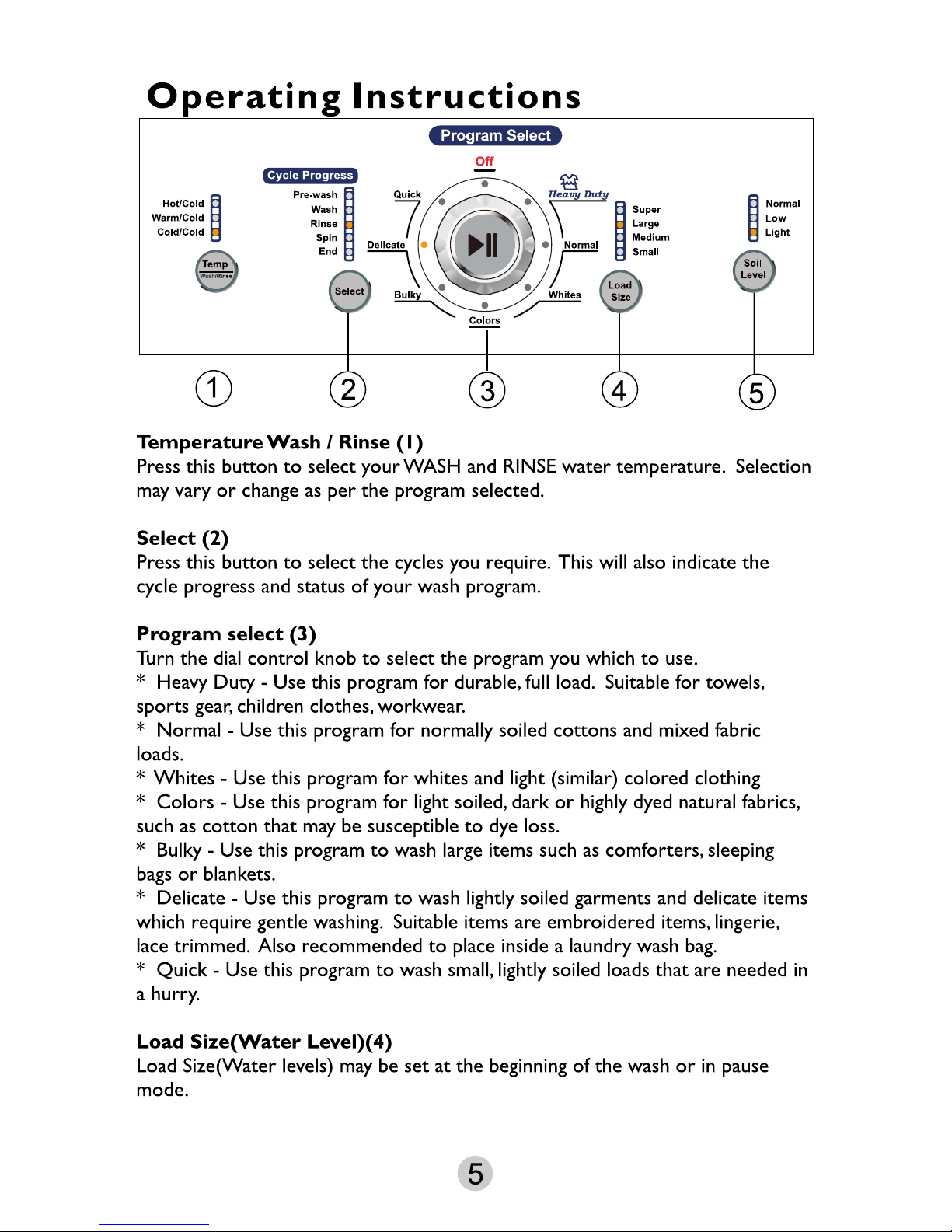

Operating instructions....................................................................5

CARE AND CLEANING GUIDE.......................................7

Cleaning and Maintenance..............................................................7

Moving & Vacationing .......................................... .. .. ... ........8

TROUBLE SHOOTING..................................................8

INSTALLATION INSTRUCTIONS..................................10

Tools and Materials Required.........................................................10

Unpacking Your Washer..................................................................11

Levelling Your Washer.....................................................................11

Steps for Installation......................................................................12

ELECTRICAL REQUIREMENTS.................................... 14

Power Interruptions.......................................................................14

SPECIFICATIONS............................................Back Cover

14 Access Panel

Temp: Hot/Cold; Program Select: Normal; Load Size:Super;

Soli Level: Normal

Energy Label Program

Note: Please only use a low-sudsing or high-efficiency type detergent.

Bleach use and dispenser:

Bleaching of clothes can help remove stains, heavy soiling and kill

bacteria.

Bleach should not be used on silk, wool, rayon or drip dry clothes.

Bleach dispenser is located on the front corner under the lid.

Fill the dispenser with the manufacturer's recommended dosage

during the first water fill.

Be careful not to spill undiluted bleach onto the washer cabinet or

your clothes.

Note: Use only liquid bleach in dispenser.

Warning: Always unplug your washer to avoid electric shock before

cleaning. Ignoring this warning may result in injury. Before using cleaning

products, always read and follow manufacturer warnings to avoid

personal Injury or product damage.

CARE AND CLEANING GUIDE

Cleaning and Maintenance

* Use only a damp or sudsy cloth for cleaning the control panel.

* To avoid any kind of damage to cabinet finish, wipe washer cabinet as

needed. If you spill liquid/powdered softener bleach or detergent on the

cabinet, wipe cabinet immediately .

* Do not use any abrasive, harsh chemicals, ammonia, chlorine bleach,

concentrated detergent, solvents or metal scouring pads. These

chemicals may dissolve, damage and/or discolor your washer.

* Leave lid open after washing to allow inside of washer to dry and assist

in preventing unwelcomed bad odours.

Moving & Vacationing

* Turn off water supply at the faucet and disconnect hoses. Drain water

from all hoses.

* Disconnect electrical plug.

* Dry inner wash tub. If moving washer disconnect drain hose.

* Turn the leveling legs clockwise all the way in.

* Move and store your washer in upright position only.

* To prevent mold or mildew, leave lid open so moisture inside machine

can evaporate.

* Insert transporting bolts if you are relocating the washer. Ensure

removal prior to usage.

If washer does not operate:

* Check the unit is plugged in. The plug may have come loose.

* Check if the electrical wall receptacle is of proper voltage.

* Check if the circuit breaker needs to be reset or if the fuse needs

replacing.

* Check if the washer is overloaded :load may need to be re-arranged or

redistributed evenly.

* Check if the lid is open. You may have to close the lid properly.

* The washer pauses in some cycles. This is normal in delicate or hand-

wash cycles which has short period of time. You will not hear washer

operation for a short period of time. When the soak time is over, it will

start automatically.

Problems with water:

* Not enough water coming out: Water faucet may need to be

completely turned on. Hoses may be tangled or kinked. Straighten out

hoses. Check water level selection, it may need to be readjusted.

TROUBLE SHOOTING

* Water temperature is incorrect: Check your water heater

temperature. Hot water needs to be at a temperature of at least 120 F-

140 F(49 C-60 C).Check to make sure the inlet hoses are properly

connected (E.g. Hot to hot & cold to cold).

* Water leaks: This may be due to incorrectiy installed drain hose or fill

hoses. Your home drain may be clogged . You may need to tighten hoses,

check the plumbing or call a plumber for assistance.

* Water will not drain: This may be due to not installing your drain hose

correctly. Check the position of the drain hose. In order to drain

properly, make sure that top of drain outlet is less than 5 ft. (1.5 m)

above the floor.

Washer is making noise:

* Washer may need to be reinstalled (Check washer installation

section).

* Washer load may need to be re-balanced, as the load may be uneven.

* Coins, loose change, buttons or other heavy objects could create

noise related sounds.

* Squealing sound: Due to overloaded wash tub.

* Vibration Noise: may be caused by not leveling washer properly on the

floor or uneven distribution of clothes in the tub.

° ° °

* The following sounds are normally heard during the

operation of the washer:

* Tumbling sounds: This is normal as the heavy wet clothes in

the washer are continuously being lossed around.

* Air rushing noise: This happens when the washer tub spins at

very high speeds.

* Wash and Rinse cycles going on and off will also make clicking

sounds.

Normal Operating Sounds
