WMS650
Twin-tub Washing Machine with Pump
User's manual
Names of the parts.............the 2nd cover
Safety precautions ...............................1
Installation and adjustment ..................3
Introduction of the major functions .......5
Preparation before washing ................6
The musts in washing .........................7
Usage of the detergent .......................8
Washing sequence ..............................9
Disposal after washing .......................13
Contents
Before using
Using process
Trouble-shooting*
Answers to question.....................15
Specification..............the back cover
Packing list ......................................17
Please read this manual carefully before using.
Retain it for future reference
Please check if the power receptacle has good earthing
condition before using to guarantee your safety.
The manufacturer will not bear the responsibility for
those risks occurred from not obeying this manual.
Before Using
Before Using
Names of the parts
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol
are related to the safety of the
product and the personal safety
of the users. Please operate in
strict conformity to the contents,
otherwise it may cause damage
of the machine or injure the
personal safety of the user.
Contents marked with that symbol
are actions forbidden to perform.
Performing of those actions may
result in damage of the machine
or injure the personal safety of
the user.
Accessories
Water-filling jointer
(one piece)
Water inlet hose
(one piece)
Gland
(one piece)
Control panel
Spin water-filling entrance
Spin timer
Wash selector
Wash timer
Transparent lid
Overflow filter
Wash water-filling entrance
Water level adjusting lever
Drain hose hook
Lint filter(Installed by user)
Pulsator
Wash tub
Drain hose
Wash tub cover
Outer cover of the spin tub
Inner cover of the spin tub
Spin tub frame
Spin tub
Cabinet
Power cord
Lint filter
(One plece)
Base frame
If the supply cord is damaged, it must be replaced by the manufacturer, it s service
agent or similarly qualified persons in order to avoid a hazard.
'
Keep the pin of the
power plug clean.
The washing machine must be positioned
so that the plug is accessible.. Be sure
to pull the plug off when there's power
failure, or the machine is being moved,
cleaned or when it is idle.
Before Using
Before Using

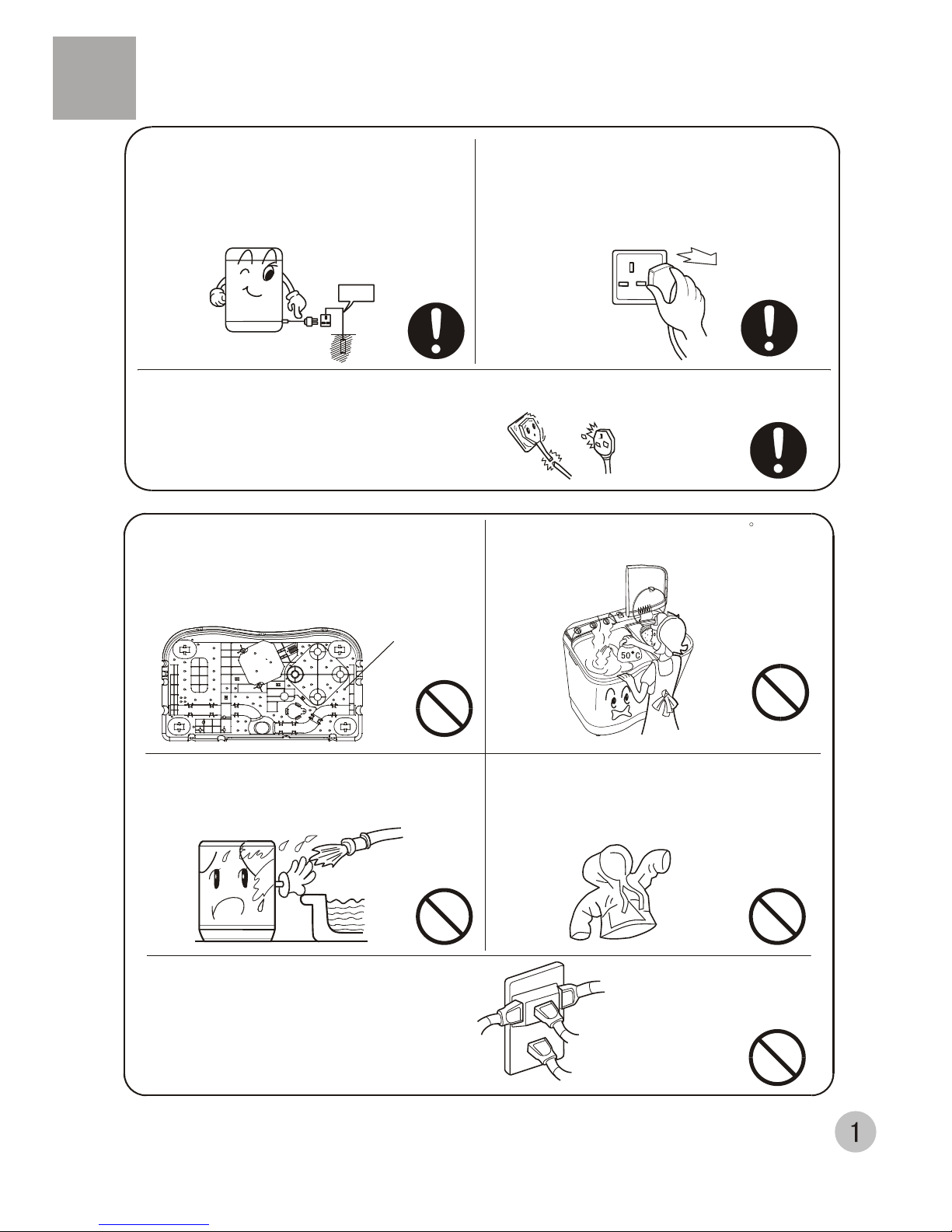

Safety precautions
The carpet must not obstruct the
ventilation openings in the base of
the washing machine.
Ventilation hole at
the bottom of the
washing machine
Do not use water hotter than 50 C .
Do not share one receptacle with other
electric appliances. Do not use it in
case that the power plug is damaged
or the inserting into the receptacle is
loose.
Do not wash water-proof laundries such
as the raincoat, bicycle shelter etc. To
avoid abnormal vibration during spinning.
Do not put the machine at damp place
like the bathroom . Never wash it with
water. Do not place wet laundries on the
control panel.
Please insert the power cord into special
receptacle with rated voltage.Be sure to
use single-phase three pins receptacle.
The earthing terminal of the receptacle
must be earthed reliably.If possible,please
adopt electric leakage protector.
Earth
Before Using
Before Using
Safety precautions
Do not put hand into the rotating tub. It is
dangerous even if the rotation speedis slow.
Take special care of the children. Keep
children away from the washing machine
to avoid them climbing on it.
Do not decompose, repair or alter
the machine by yourself.
Do not put any hot or heavy items
(such as the kettle with hotwater) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Keep the machine away from direct
sunlight and heat source like theheater.
The handicapped or children shall not
use the machine without care.
Please check if the water faucet is open, and if
the connection of the water inlet pipe is proper.
It is suggested to use foamless washing powder.
Toprotect your laundries and washing
machine, please take out all of the coins,
buttons, sand, hairpin and other foreign
materials before washing.
Before Using
Before Using
Installation and adjustment
Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.
Usage of the drain hose
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall be
less than 10cm , or the drainage will
not be smooth enough and cause
incomplete drainage.
2.Do not tramp or press the drain hose.
4.If extra drain hose is needed , please make
separate purchase. The inner diameter of the
extra hose shall not less than 30mm, and the
length shall not exceed 1.5m.
5.If the extra hose is too long, cut it either
at point A or B.
3 If the drain hose is too long, cut it at mid point.
To make smooth drainage, cut the front end of
the hose slantingly.
<10cm
BA
> 30mm
<1.5m
Lint filter
Overflow filter
Install the lint filter
After opening the package,please take out the
lint filter from the document bag,install it
to the overflow filter of the cabinet.
See to the figure
Select the water level
Before Using
Before Using
Extend the drain hose from the rear side
How to change the direction of the drain hoses
Figure 1 indicates the ex factory installation
position of the drain hose.
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Take the hose out of the fixing groove.
(See to Figure 2).
Embed the drain hose into the groove along the side
of thewash tub in the order of (1)~(2), heading for the
side of the wash tub. (See to Figure 3).
Embed the drain hose into the groove with
hands. Take care not to damage the drain
hose in fastening the fixing clamp.
Figure 4
Extend the drain hose from the side of wash tub
Take out the drain hose from the fixing groove. Extend it from
the rear side as per the direction of the arrow. (When the drain
hose is extended from the rear side, it can be hung on the
point for drain hose at the two sides of the cabinet.)
(See to Figure 4).
Figure 2
Figure 3
Figure 1
Front
Back
Soft item
Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line. Water level
indicator
Maximum
about 43L
about 36L
about 30L
Minimum
Medium
Max.
Med.
Min.
Soft item
Introduction of the major function
The machine has good comprehensive performance, and nice appearance.
It adopts streamline appearance and full plastic shell, which will never get rust.
For the design on safety and reliability, it adopts the wash shelf, spin shelf and water
inlet groove design, and reduces the unfavorable influence on the electrical component
by the vapor. Therefore it guarantees more safe and reliable washing.
It adopts complete enclosed base frame and low-noise motor, and thus reduces the
working noise significantly. We can guarantee that the purchase of this machine will bring
you a clean world without disturbing your quiet life.
Foam-removing
spinning
Remove most of
the foam extra
detergent liquid.
Remove the detergent
liquid remained
The effect is best when the
laundries quantity is below
80% of the rated value.
Spin
Fill water for
about 1 minutes Spin for about
1~2 minutes
Filling water from wash water-filling entrance
When foam-removing spinning during
high-efficiency rinsing, please fill water
from the spin water-filling entrance.
Spin water-filling
entrance
Foam-removing spinning during high-efficiency rinsing
Use the foam-removing spinning to
remove the extra detergent liquid. It
can both shorten the washing time
and save the water consumption.
Water inlet hose
Water inlet hose
Water-filling jointer
Push
Control handle
Wash water-filling entrance
Insert the water inlet hose into the water-filling
entrance, then push the water-filling jointer into
the entrance on the control panel. (To dismantle
the water inlet pipe, just push the control handle
as indicated in the figure and pull it out)
The appliance is to be connected to the water
mains using new hose-sets and that old hose-
sets should not be reused.
Before Using
Before Using
Using process
Using process
Preparation before washing
Pay attention to followings before washing the laundries
Check if
the laundries
has special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like mud or dust.
For the parts with heavy soil, please apply detergent on them in advance, which
can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn it over before
putting in.
f. Do not put those laundries polluted by chemicals into the washing machine directly.
Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3.Put down the drain hose.
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
Reference weight of the laundries
Working suit up,down
Jeans about 800g
The capacity of washing and spinning of
the machine refer to the largest weight of
the standard laundries under dry condition
that can be washed or spinned in one time.
Laundries quantity in one washing cycle
shall be lower than the rated capacity.
The thickness ,size , type of the cloth will
influence the actual washing capacity. It
is suitable to put in reasonable amount of
laundries and the laundries can be turned
round in washing for one time washing.
Do not select " Maximum " water level
for laundries less than 2.4kg, so as to
avoid splashing of water.
Blending coat
about 800g
Shirt Jacket
Single bed sheet
Socking
Underpants
Undershirt
Pajamas
Blanket
cotton,about 900g
cotton,about
300g
cotton,about
800g
cotton,about 600g
blending,about 50g
cotton,about 70g
cotton,about 180g
Using process
Using process
The musts in washing
cotton,about 1120g
Selection of the quantity of the washing powder list 1
Selection of the current , water level and washing time list 2
How to use the washing powder
How to use the whitener
Fill water to decided level. Dilute the whitener with container. Pour it slowly into the
washing tub.
Avoid using whitener on laundries with color or pattern as they are prone to lose color.
The whitener shall not touch the laundries directly.
Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30 seconds to
dissolve it completely.
3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing powder:
1.Prepare warm water of 30 C and a container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
It is suggested not to use high sudsing
detergent.
Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.
Refer to the user's manual for the usage and quantity of the whitener.
For powder whitener, please dissolve it before using.
Laundries
quantity
Laundries
quantity
Water level
Water level
Current
Standard dosage
Concentrated washing
powder
Laundries
Common washing
powder
Washing time
(minutes)
Water quantity
Water quantity
About About
About3~6
About8~10
About10~13
About7~13
About2~4
About3~6
About8~10
About About
About About
3.6kg~6.5kg
2.4kg~6.5kg
2.0kg~3.6kg
Below2.0kg
Below2.4kg
Maximum(about55L)
Maximum (about43L)
Minimum (about36L)
Minimum (about30L)
~
Strong
Medium (about46L)
Medium (about36L)
~
Medium (about36L)
36g
30g
25g
43g
36g
30g
Usage of the detergent Using process
Using process
Knitwear
Cotton,blending,linen
Very dirty and thick
Bed sheet
Silk(thin laundries)
Chemical fiber
Cotton,blending,linen
Soft
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Haier Rondella
Haier
Haier XPB150-0623S Manuale di istruzioni
Haier
Haier HWM50-23BS Manuale utente
Haier
Haier HW150-BP14986ES9 Manuale utente
Haier
Haier JW-K71A Manuale utente
Haier
Haier HWM15-0501 Manuale
Haier
Haier HDY-D70 Manuale utente
Haier
Haier HWM60-0566A Manuale utente
Haier
Haier HWM75-23BS Manuale utente
Haier
Haier XQJ70-31 Manuale utente
Haier
Haier HWM85-1482 Manuale utente
Haier
Haier XQG50-600SW Manuale utente
Haier
Haier HW80-BD1626 Manuale utente
Haier
Haier HLP23E - Electronic Touch Pulsator Ing Portable Washing... Manuale utente
Haier
Haier HWM60-15P Manuale utente
Haier
Haier HN500TX Manuale utente
Haier
Haier HWM68-0523K Manuale utente
Haier
Haier XQG65-8SU Manuale utente
Haier
Haier WN600 Manuale utente
Haier
Haier HWM65-187S Manuale utente
Haier
Haier HWM1270KFL Manuale utente
