Haier RS35 Manuale utente

RS35

Single-tub Washing Machine

Names of the parts...........the 2nd cover

Safety precautions ...........................1

Installation and adjustment ..................3

Preparation before washing ..............5

Put in the laundries ............................6

Put in the detergent ............................7

Select the wash time ..........................7

Close the top cover .............................8

Finish washing ....................................8

Disposal after washing .........................8

Trouble shooting*Packing list...........9

Specification................the back cover

Contents

Before using

Using process

User's manual

Please read this manual carefully before using.

Retain it for future reference

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

The manufacturer will not bear the responsibility for

those risks occurred from not obeying this manual.

Contents marked with that symbol are related to the safety of the product

and the personal safety of the users. Please operate in strict conformity to

the contents.

Contents marked with that symbol are actions forbidden to perform.

Performing of those action may result in damage of the machine or

influence the personal safety of the users.

Water inlet jointer

Accessories

Water inlet hose

( one piece )

base

cabinet

drain hose

back cover

fixing leg

(four pieces)

power cord

handle

Panel support

Pulsator

Lint filter(Installed by user)

Filter cap

Top lid

Before Using

Names of the parts

Control panel

water inlet

timer knob

Lint filter

( one piece)

Meaning and description of the symbols

If the power cord is bad, to avoid risk it is required to replace it by the technicians of

our special shop or the after-sale service department. Keep the pin of the power

plug clean.

When the machine is normally using, please

put the power plug at the location easily to

be inserted and extracted by hand. Be sure

to pull the plug off when there'spower failure,

or the machine is being moved, cleaned or

when it is idle.

Before Using

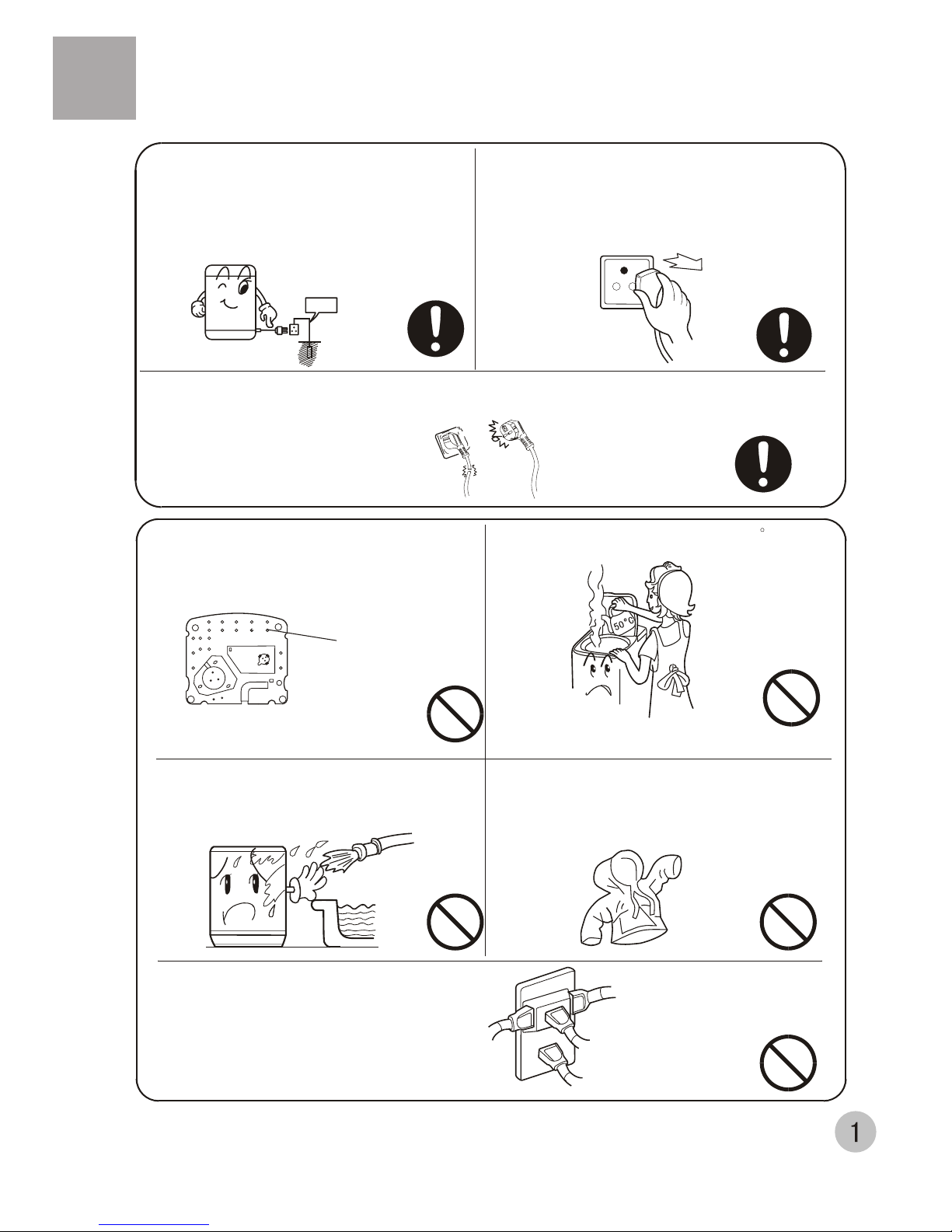

Safety precautions

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Do not use water hotter than 50 C .

Do not share one receptacle with other

electric appliances. Do not use it in

case that the power plug is damaged

or the inserting into the receptacle is

loose.

Do not wash water-proof laundries such

as the raincoat, bicycle shelter etc. To

avoid abnormal vibration during spinning.

Do not put the machine at damp place

like the bathroom . Never wash it with

water. Do not place wet laundries on the

control panel.

Ventilation hole at

the bottom of the

washing machine

Earth

Please insert the power cord into special

receptacle with rated voltage.Be sure to

use single-phase three pins receptacle.

The earthing terminal of the receptacle

must be earthed reliably.If possible,please

adopt electric leakage protector.

Before Using

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Handicapped or children without care

shall not use the machine.

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

Safety precautions

Please check if the water faucet is open, and if

the connection of the water inlet pipe is proper.

It is suggested to use foamless washing powder.

Toprotect your laundries and washing

machine, please take out all of the coins,

buttons, sand, hairpin and other foreign

materials before washing.

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be

less than 10cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not step on or press the drain hose.

3.If extra drain hose is needed , the inner

diameter of the extra hose shall not less

than 30mm, and the length shall not exceed

1.5m.

<10cm

> 30mm

<1.5m

Before Using

Installation and adjustment

Lint filter

Filter cap

After opening the package,please take out the lint filter

from the document bag,install it to the filter cap of the

cabinet.See to the figure

Install the lint filter

water inlet hose

water inlet jointer

control handle

push

water inlet entrance

Adjust the installation position

Install the water inlet hose ; Select the water level

The largest permitted slope of the bearing surface of the washing machine is 2.

Slanting or uneven ground will cause unstable operation of the machine. Please

check with following methods:

Hang a becket with weight to confirm if the washing machine is horizontal.

Insert the water inlet jointer into the

water inlet hose ,then push the jointer

into the water inlet on the control panel.

(To dismantle the water inlet hose,you only

need to push the control handle to the

direction indicated in the figure , then pull

the hose out.)

Fill the water to the water level selected

according to the quantity of the laundries.

Attention:

Put in the laundries first before

water inlet.

Do not exceed the " Maximum "

waterlevel ( water level 3 ) ,

otherwise the water may overflow

out of the machine.

Maximum

about 43L

about 36L

about 30L

Minimum

Medium

water level

indicator

Before Using

Confirm if

there's special

requirement for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion,please

put the laundries

with buttons into

other laundries.

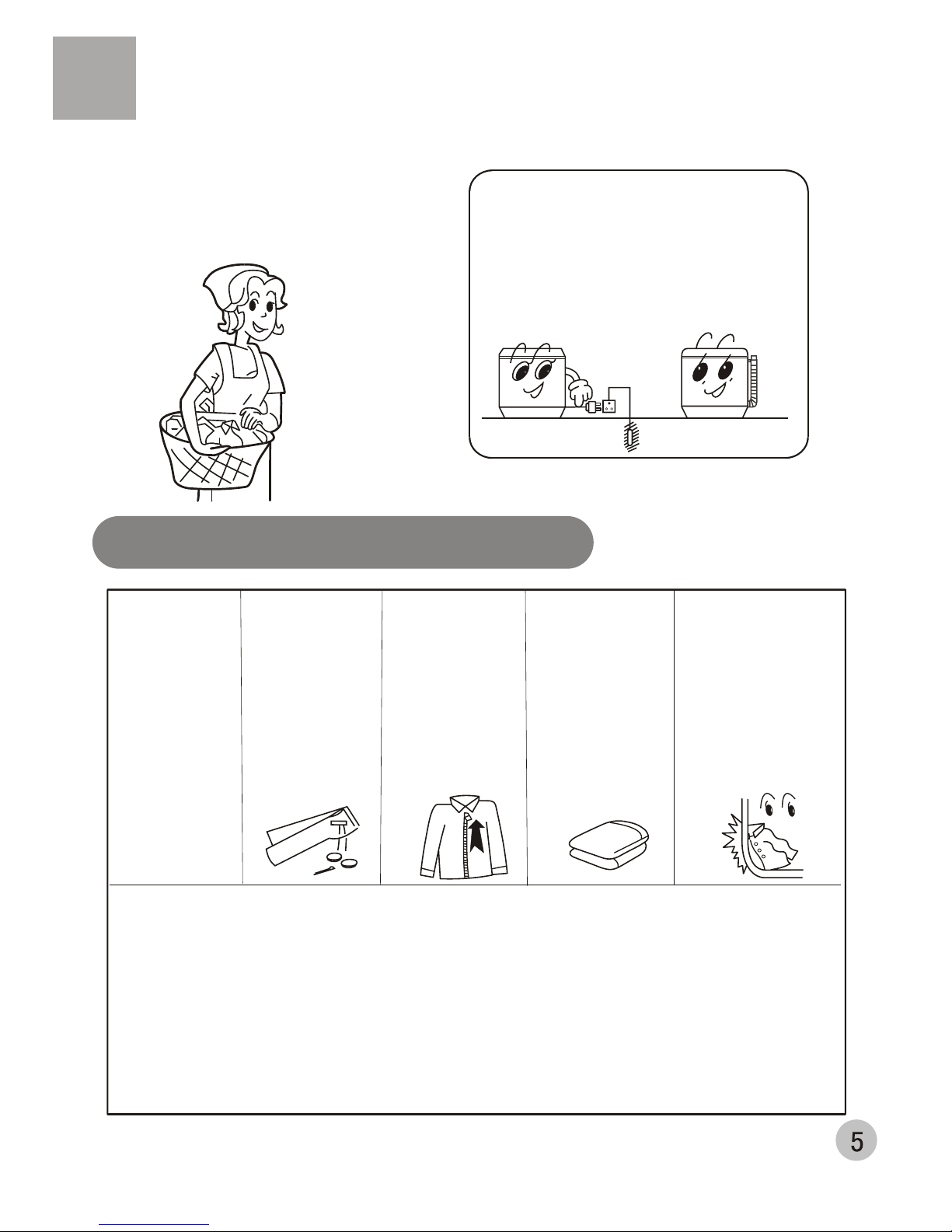

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is

earthed reliably . Then insert the power

plug into the receptacle. Do not connect

the earth terminal to the gas pipe and

tap water pipe.

3.Hang the drain hose up.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

Using process

1 Preparation before washing

Pay attention to followings before washing the laundries

A. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like mud or dust.

For the parts with heavy soil, please apply detergent on them in advance, which

can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn it over before

putting in.

f. Do not put those laundries polluted by chemicals into the washing machine directly.

Reference weight of the laundries:

working suit up,down

jeans about 800g

The capacity of washing of the machine

refer to the largest weight of the standard

laundries under dry condition that can be

washed in one time. Laundries quantity

in one washing cycle shall be lower

than the rated capacity. The largest

capacity of this machine is 4.0kg.

The thickness ,size , type of the cloth will

influence the actual washing capacity. It

is suitable to put in reasonable amount of

laundries and the laundries can be turned

round in washing for one time washing.

Do not select " Maximum" water level

for laundries less than 2.0kg, so as to

avoid splashing of water.

blending coat

about 800g

shirt jacket

single bed sheet

socking

underpants

undershirt

pajamas

blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

Using process

2 Put in the laundries

cotton,about 1120g

Selection of the quantity of the washing powder

How to use the washing powder

How to use the whitener

Fill water to decided level. Dilute the whitener with container. Pour it slowly into the

washing tub.

Avoid using whitener on laundries with color or pattern as they are prone to lose color.

The whitener shall not touch the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30 seconds to

dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing powder:

1.Prepare warm water of 30 C and a container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

It is suggested not to use high sudsing

detergent.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for the usage and quantity of the whitener.

For powder whitener,please dissolve it before using.

Laundries

quantity Water level

Standard dosage

Concentrated washing

powder

Common washing

powder

Water quantity

About About

4.0kg~3.6kg

3.6kg~2.0kg

Below2.0kg

Maximum (about43L)

Minimum (about30L)

Medium (about36L)

36g

30g

25g

43g

36g

30g

Wash timer

OFF

Please select wash time according to the laundries.

Laundries Wash time minutes

Knitwear/chemical fiber

Cotton,blending,linen

Very dirty and thick laundries

Silk(thin laundries) About2 4~

About3~6

About7~13

About8~10

About10~15

3 Put in the detergent

4 select the wash time

Using process

(To set to below 2 minute,

first set to 6 minute then

turn it back. it can increase

the service life of the timer).

5 Close the top lid

6 Finish washing

7 Disposal after washing

The pulsator stops rotating. Put down the drain hose

to discharge the water.

After using, please clean the lint and foreign materials of the lint filter and lint frame in time.

Otherwise it may influence your using the machine.

Please first pull off the power plug from the receptacle before cleaning.

Figure 2

Figure 3

Figure 1

Thinner

Alcohol

Petrol

1. Take off the lint filter

Put hand at the indicated position.

Push down to take it off. (See to

Figure 1)

2. Clean the lint

Put it in water and clean while it is still

wet.(See to Figure 2)

Attention: be sure not to confuse the direction.

Wipe the complete unit with soft cloth

twisted dry.

Wipe with neutral detergent if too dirty.

After washing, dismount the water inlet hose.

Pull off the power plug and hang up the

power cord.

Do not store water in the tub for long period.

Discharge the water immediately after each

using.

Wipe off the water drops on the surface and

inside the tub with clean soft cloth. Open the

cover of the wash tub for some time (about

one hour), then close it.

Hang up the drain hose.

Do not wash it directly by water.

3. Install the lint filter

After cleaning, insert the bottom of

the lint filter (marked with "down side")

into the filter frame, then push the

upper part of the filter in (marked with

"up side"). (See to Figure 3)

The lint filter must be used during washing.

It must be cleaned in time after each using.

Cleaning the lint filter

Using process

Indice

Altri manuali Haier Rondella

Haier

Haier HWM65-7288P Manuale utente

Haier

Haier HW80-1486I Manuale utente

Haier

Haier XPB70-111S Manuale utente

Haier

Haier HW70-BP1439 Manuale utente

Haier

Haier HWM-20.0 Guida alla configurazione

Haier

Haier XQB55-10H Manuale utente

Haier

Haier HWM75-111S Manuale utente

Haier

Haier HWM100-828A Manuale utente

Haier

Haier HWM60-78 Manuale utente

Haier

Haier HWM100-0626S Manuale utente

Haier

Haier HNS1000B Manuale utente

Haier

Haier HW-B1470TVE-F Manuale utente

Haier

Haier HW-E1050TVE Manuale utente

Haier

Haier Thermocool HMS1000TVE Manuale utente

Haier

Haier HBS800TXV Manuale utente

Haier

Haier HWM70-0528T Manuale utente

Haier

Haier HA600TX Manuale utente

Haier

Haier HNS1250TVE Guida rapida

Haier

Haier HWM90-0713S Manuale utente

Haier

Haier HW80-1479 Manuale utente

Haier

Haier HBS800 Manuale utente

Haier

Haier AWT-100LI Manuale utente

Haier

Haier HW100-B14636N Manuale utente

Haier

Haier HWM60-113S Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
