Haier WNM1000TE Manuale utente

Automatic Drum

Washing Machine

WNM1000TE WNM800TE

Table of Contents

Before using

Names of Parts---------------------------------inside front cover

Matters Needing Attention-------------------------------------1-3

Installation---------------------------------------------------------4-5

Control Panel--------------------------------------------------------6

Operational Functions-----------------------------------------6-7

Program Selection-------------------------------------------------8

Preparation----------------------------------------------------------9

Washing Methods--------------------------------------------10-11

Maintenance

Maintenance ------------------------------------------------------13

Trouble Shooting-------------------------------------------------14

Technical Specification---------------------------------- --------16

Wiring Circuit------------------------------------------------------15

During using

Other Function----------------------------------------------------12

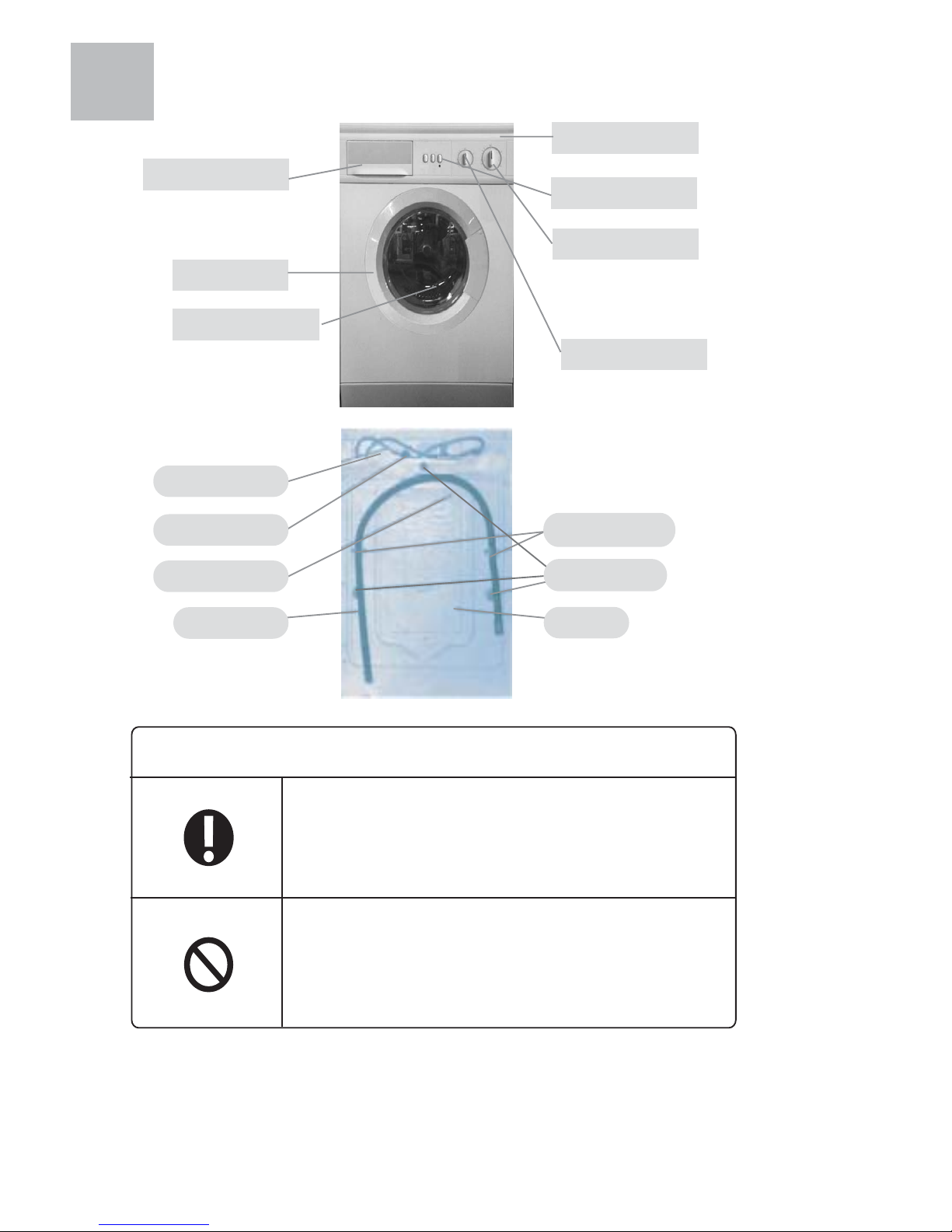

Names of Parts

Table Cover

Program Knob

Operation Button

Drainage hose clip

Back plate

Packing bolt (3)

Washing Allocating box

Wash Door

Observing Glass Window

Drainage hose

Earth terminal

Power supply cable

Back plate screw (3)

Caution and Warning symbols

For your safety and to prevent damages to the washing machine, any

instructions in this manual with this "Stop" sign shall be strictly followed.

For your safety, any instructions in this manual with this "Warning" sign

shall be strictly followed.

This diagram may vary slightly with the layout of the washing machine you have just purchased due

to technical improvements.

Temperature knob

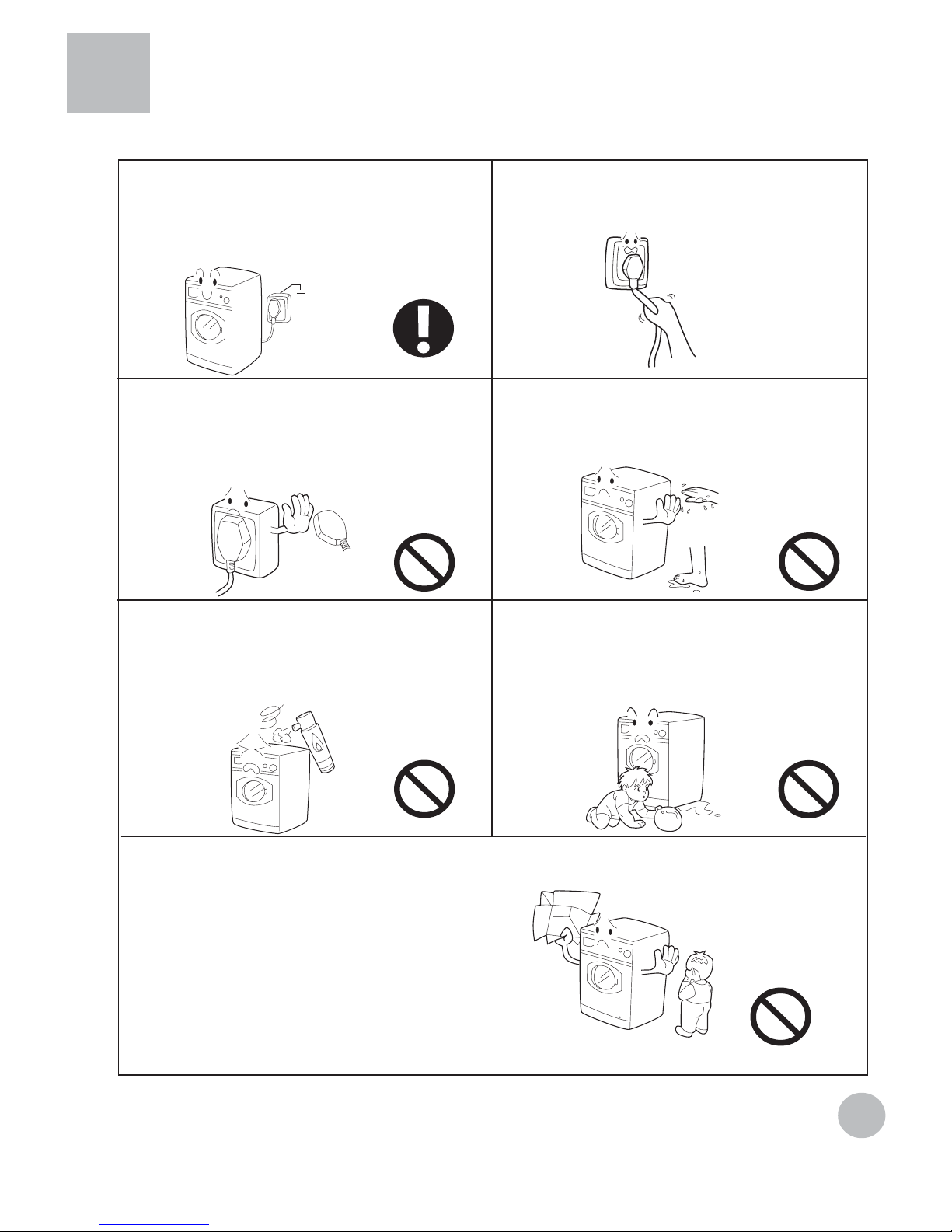

Safety

1. A separate earthed socket is required

for the power supply. After installation of

the washing machine,the power plug

should be accessible during the normal

wash.

3. Fuses in the power circuit should be rated

for 15A. Refer to a washing machine techni-

cian or a Haier designated service point for

power cable replacement.

5. Do not use flammable detergent or dry

cleaning agent; do not use flammable

spray in close vicinity to the washing

machine; do not remove or insert the plug

in the presence of flammable gas.

2. Hold the plug and not the electric cable

when unplugging the washing machine.

4. For your safety, dry hands before touch-

ing the washing machine and wear appropri-

ate footwear .

6. The door of the washing machine will be-

come hot during the water heating process.

Avoid contact with the door during the heat-

ing process. For safety, keep children away

from the washing machine.

7. Do not allow children play with the packing materials after unpacking.

Matters Needing Attention

Use

9. Keep the door slightly open when the washing machine is not being used. Never cover the

machine with a plastic sheet.

4. Do not wash foam rubber or similar sponge

materials.

5. Before washing, do up zippers, buttons ,

laces and repair damaged areas,under-

wear or small articals should be placed

in the laundry bag or a pillowslip.

Do not wash clothes containing wire

frames.

6. Do not open the detergent box during

the wash cycle.

7. The door is fitted with a self-lock device and

will not open until 2~3 minutes after the wash-

ing machine stops. Do not force the door

open. Do not open the door when water level

reaches the port hole.

8. After washing, turn off the tap to prevent

leakage; unplug the washing machine

and wipe clean the lower part of the port

hole.

3. Never place heavy objects ,a heating

applianceor a water container on the top panel

of the washing machine.

Matters Needing Attention

As shown in figure1 remove all the packing materials

(including the foam base).

Fig 1

Check attachments and materials.

Name

Qty

Model

Operational

manual

Quality

certificate

Water

hose

Drainage

holder

Plastic

plugs

WNM1000TE

WNM800TE 1

Remove the packing screws as shown in figure 2.

The packing bolts protect the appliance from shock during trans-

portation The steps below should be followed before using the

appliance,

1. Remove the rear panel of the washing machine;

2. Remove the three packing bolts from the rear panel of the wash-

ing machine,the rubber hose and then the shock absorption chan-

nel steel;

3. Reinstall the back plate;

4. Fill the holes left by the packing bolts with plastic plugs.

(Attention: the packing bolts and rubber hose should be kept in a

safe place for later use)

Adjusting the position of the washing machine .There are ad-

justable feet under the bottom of the washing machine. Before use,

the washing machine should be adjusted, as shown in figure 3, so

that it is level.

Installation

Upon opening of the package, water drops may be seen on

the plastic bag and the porthole. This in normal phenomenon

resultingfrom water test in the factory.

Fig 2

Fig 3

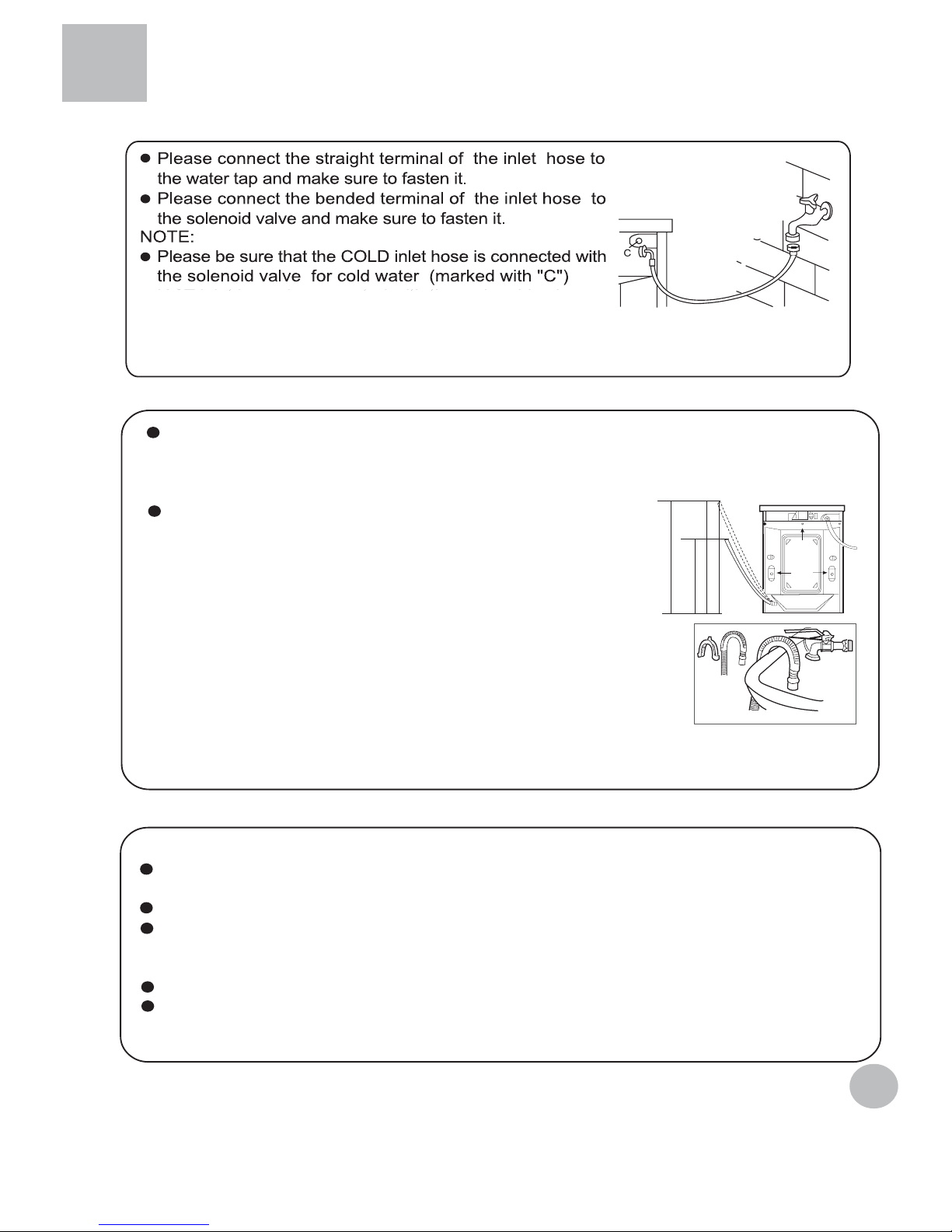

Connection of water inlet hose and washing machine

Waterdrainagehose

Connection of power supply

The height of the terminal of the water drainage

hose should be between 80cm-100cm, the water

drainage hose must be securely placed on the clip

on the back of the washing machine.

Use the water drainage support supplied as an

accessory for proper installation of the water drain-

age hose .fix the water drainage hose support with

waterproof sring.Do not use an excessively long wa-

ter drainage hose and contract the authorized tech-

nician if the water drainage hose needs to be

extended.the water drainage hose should not be ex-

tended more than250cm.(longer extension will result

in concurrent water inflow and outflow).The diam-

eter of the extension hose should be the same as

the original hose.

caution:water drainage hose must not be immersed

in water.the original and extension hoses should be

tightly connected .

Installation

Check the following items before connection to the power supply.

The socket conforms to the maximun power load(The maximum current load of the socket and

power supply cable should not be less than 15A).

Power supply voltage conforms to the required value.

The power supply socket and the plug of the washing machine compatible,if they are compat-

ible ,Refer to a washing machine technician or a Haier designated service point for power cable

replacement.The washing machine should be connected to an earth before use.

Supplementary earth cable should not be necessary if the socket is connected to the earth.

Supplementary earth cable should be installed on the upper back of the washing machine

andconnected to an earth if the power supply socket has no earth connection.

100cm

80cm

Control Panel

Turn the knob at "0", then turn off the power and

turn the program knob for setting desired wash program.

The program knob will not rotate with the programmed washing

process.

1/2

Operational Functions

Economic Wash button

Note: Select this function when "Cotton" "Synthetics", "Wool" or "Silk"

(programs 1-12) is selected.



No Soak Button

For the synthetics cycle and the wool cycle, push the

button down, the anticrease funtion wil l be skiped and

automatically enter into the next step;Press the

button, the anti-crease funtion willwork again.

It reduces water and power consumption when

rinsing if the m achine does not have a full load.

1/2

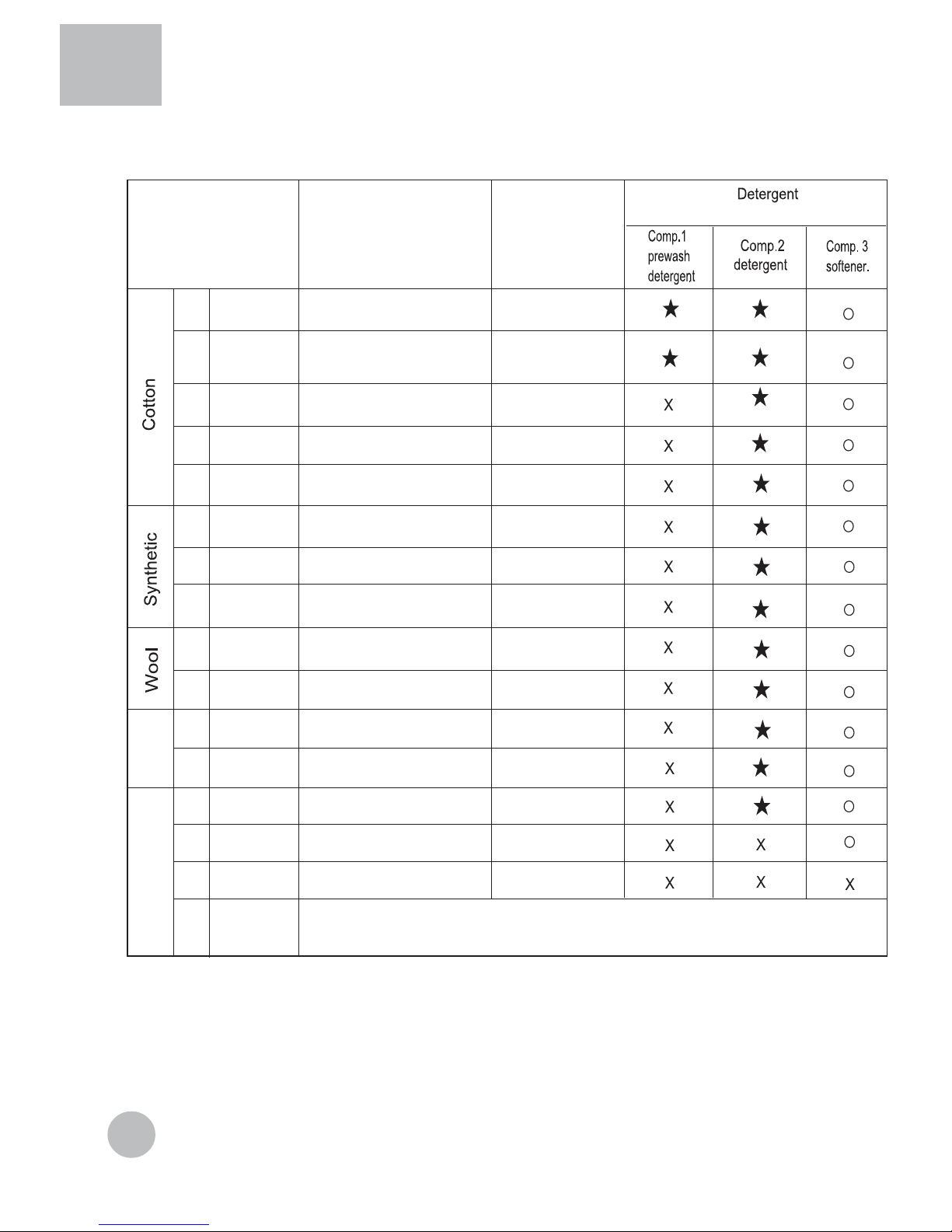

Program Selection

Intense

Prewash

Normal

Middle

Delicate

Normal

Middle

Delicate

Normal

Delicate

Normal

Delicate

Silk

Very heavy soil

Non-fade heavily soiled

woolen fabrics

Fading and medium

soiled woolen fabrics

Non-fade heavily soiled

silk fabrics

Fading and medium

soiled silk fabrics

End

Spin

Rinse

Quick

Medium-soiled lanudry

Fading and medium

soiled chemical fiber

Non-fade and medium

soiled chemical fiber

Non-fade heavily

soiled chemical fiber

Fading and medium

soiled cotton

Non-fade and medium

soiled cotton

Soiled cotton

Heavy soil

Program Setting Laundry Temperature

-30-40-50-60

-70-80-90

-30-40-50-60

-30-40

-30-40-50-60

-30-40

-30

Turn the program knob at "0" position and turn off the power. The wash

program ends and the washing machine stops operation.

HD600TXE/HD600SWE/HD600GE

NOTE: " " means softener liquid detergent canbe added when necessary.

" " means detergent can be added when necessary.

" " means no detergent can be added.
