Twin-tub Washing Machine User's manual

This manual is for

Twin-tub Washing Machine

Please read this manual

carefully before using.

Retain it for future reference.

Contents

Packing list

Names of the parts

Safety precautions

Installation and adjustment

Preparation before washing

The musts in washing

Usage of the detergent

Washing sequence

Disposal after washing

Trouble-Shooting Answer to question

Specification

Introduction of the major function

Notes 1.Part of types do not have water inlet selector handle.valve cover.quick

water-filling entrance.buzzer,according to your purchased model concretely.

2.Discrepancy structure of the water inlet in different machine type,

3.All graphics in this manual are sketch maps,simultaneity,due to the incessant

progress,the products and fittings which you had bought may be different

from the drawing in this manual,thanks for your kindly understanding

according

to your purchased model concretely.

The product utilized integrative save energy technology which can implement wide

voltage design,it can be easily started and keep working even in the situation of low

voltage,you won't be bothered by the fluctuant voltage.

Drain hose hook

Part plastic types,the cabinet

and wash tub are integrative

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Cabinet

Base frame

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related to the safety of

the product and the personal safety of the users. Please

operate in strict conformity to the contents, otherwise it may

cause damage of the machine or injure the personal safety

of the user.

Contents marked with that symbol are actions forbidden to

perform. Performing of those actions may result in damage of

the machine or injure the personal safety of he user.

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

Water-filling entrance

Buzzer

Water inlet selector handle

Wash selector

Wash timer

Control panel

Overflow filter

Quick water-filling entrance

Water level adjusting lever

Lint filter(Installed by user)

Pulsator

Wash tub

Wash tub cover

Drain hose

Valve cover

Names of the parts

Power cord

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage.Be sure to use single-phase

receptacle.The earthing terminal

must be earthed reliably.If possible,

please adopt electric leakage

protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians ofour special shop or the after-sale service department.

Keep the pin of the power plug clean.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Ventilation hole at

the bottom of the

washing machine

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Safety precautions

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Handicapped or children without care

shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

To protect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet is open,

and if the connection of the water inlet

pipe is proper.

It is suggested to use foamless washing

powder.

Overflow filter

Lint filter

If the extra hose is too long, cut it either

at point A or B.

<10cm

> 30mm

<1.5m

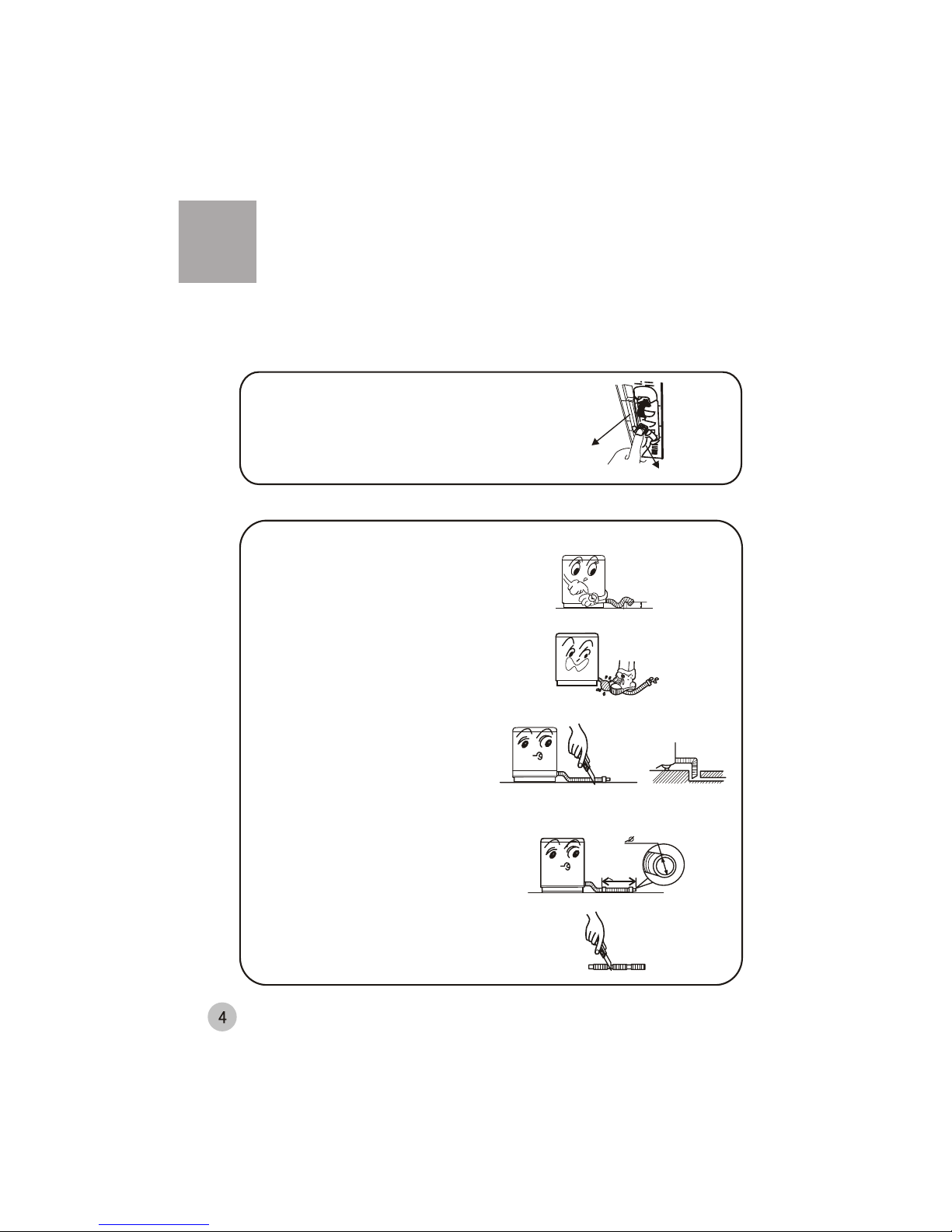

Installation and adjustment

Please install and adjust the machine according to the requirement of

the manual. It is very important to your security and correct operating

the machine.

Install the lint filter

After opening the package,please take out the lint

filter from the document bag,install it to the overflow

filter of the wash tub.See to the figure.

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be

less than 10cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not tramp or press the drain hose.

3.If the drain hose is too long, cut it at mid point.

To make smooth drainage, cut the front end of

the hose slantingly.

4.If extra drain hose is needed , please make

separate purchase. The inner diameter of the

extra hose shall not less than 30mm, and the

length shall not exceed 1.5m.

How to change the direction of the drain hoses

Figure 1 indicates the ex factory installation

position of the drain hose.

Put soft items on the ground. Lean the machine

down gently with the front surface facing the

ground. Take off the drain hose from the cabinet.

Take the hose out of the fixing groove.

(See to Figure 2).

Embed the drain hose into the groove along the

side of the spin tub in the order of (1)~(3), heading

for the side of the spin tub. (See to Figure 3).

Embed the drain hose into the groove with

hands. Take care not to damage the drain

hose in fastening the fixing clamp.

Figure 1

Figure 2

Figure 3

Figure 4

Embed into the

groove in turn

Extend the drain hose from the side of spin tub

Soft item

Extend to the

spin tub side

Take out the drain hose from the fixing groove.

Extend it fromthe rear side as per the direction

of the arrow. (When the drainhose is extended

from the rear side, it can be hung on the

point for drain hose at the two sides of the cabinet.)

(See to Figure 4).

Soft item

Back

Front

Extend the drain hose from the rear side

Install the water inlet hose; Quick water-filling entrance Select the water level

Select water level according to the

quantity of the laundries.

Set the water level adjusting lever to needed line.

Water inlet hose

Water inlet

Please fix water inlet hose according to the fact of the

washing machine model which you bought.

Figure 1 shows the frame of the control panel

Figure 2 shows the frame of the control panel

Insert the water inlet hose into the water-filling

entrance on the control pane directly.(pull it

out to dismantle it)

Insert the water inlet hose into the water-

filling entrance on the control panel,

then push the water-filling jointer into

the entrance on the control panel.

(To dismantle the water inlet pipe,just

push the control handle as indicated in the

figure and pull it out)

Water inlet hose

Water inlet jointer

Control handle

Push

Water inlet

Figure 1

Figure 2

Water level

indicator

Maximum Max

Medium Med

Min

Minimum

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose .

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

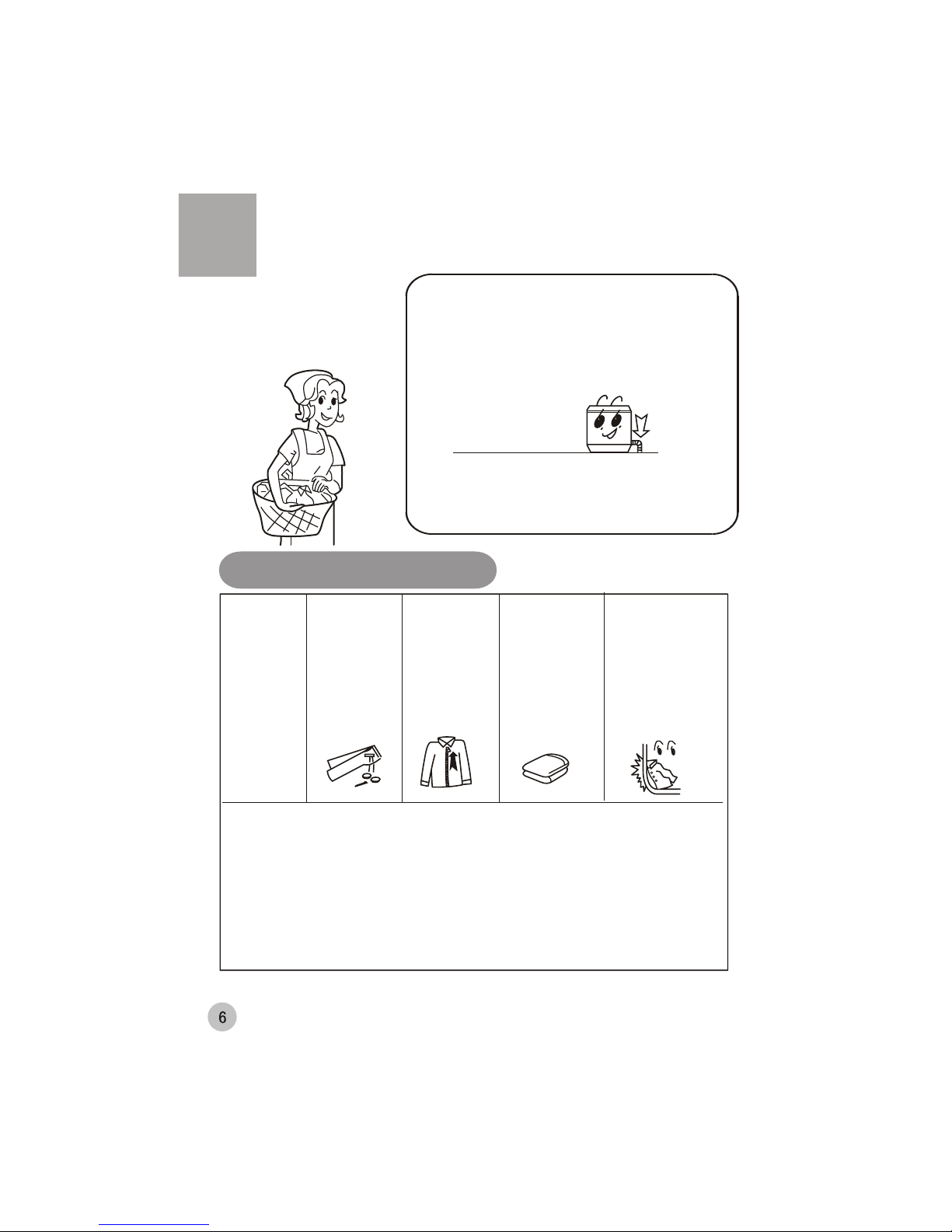

Preparation before washing

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

The capacity of washing and spinning of the

machine refer to the largest weight of the

standard laundries under dry condition that can

be washed or spinned in one time. Laundries

quantity in one washing cycle shall be lower

than the rated capacity.

The thickness ,size , type of the cloth will influ-

ence the actual washing capacity. It is suit-

able to put in reasonable amount of laundries

and the laundries can be turned round in wash-

ing for one time washing.

Do not select " Maximum " water level for

laundries less than 2.4kg, so as to avoid

splashing of water.

The musts in washing

How to use the whitener

Fill water to decided level. Dilute

the whitener with container.

Pour it slowly into thewashing tub.

Avoid using whitener on laun-

dries with color or pattern as they

are prone to lose color.

The whitener shall not touch

the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30

seconds to dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing

powder:

1.Prepare warm water of 30 C and a

container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for

the usage and quantity of the

whitener.

For powder whitener, please

dissolve it before using.

It is suggested not to use high sudsingdetergent.

How to use the washing powder

Usage of the detergent

Washing sequence

Figure 1

Figure 2

Figure 3

Figure 5

SPIN

WASH

Using process

Wash

DRAIN

STRONG

WASH SELECTOR

1.Water-filling selector(Part of types do not havesuch frame,

please according to your purchased model concretely)

(1) Set the water-filling selector at the "WASH" side.

(Figure 1)

(2) Set the water level adjusting lever to needed line.

2. Fill the water and add the dissolved washing

powder to make the water level reach the preset

position. (Figure 2)

Run washing program for some time to stir and

dissolve the powder completely.

3.Put in the laundries. If the water quantity is

insufficient, please add water.

4.Select the current.

Select the strength of the current according to

the laundries. (Figure 3)

5.Select the washing time

Select the washing time according to the laundries.

(Figure 4)

6.After washing, the buzzer will ring Part of types do not

havesuch frame ,please according to your purchased model

concretely) . Set the "WASH SELECTOR" at "DRAIN". (Figure 5).

STANDARD

STRONG

Spin timer

Wash timer Wash selector Buzzer

Water-filling entrance

(To set to below 2 minute,

first set to 5 minute then

turn it back. it can increase

the service life of the timer).

(Strong current,

standard current)

(The buzzer will ring when

the washing finishes) (to set to below 1 minute,

first set to 2 minute then

turn it back. it can increase

the service life of the timer).

Overfilling sign

Water-filling selector handle

OFF

DRAIN

STRONG

STANDARD

MAX

SPIN TIMER

WASH TIMER WASH SELECTOR

BUZZER

OFF

Figure 4

WASH TIMER

OFF

Note:All above are sketch maps,referring to the different function and framework,

because of different models,please according to your purchased model concretely

(SOFT)

Indice

Altri manuali Haier Rondella

Haier

Haier HWM50-22S Manuale utente

Haier

Haier HW80-BP16636 Manuale utente

Haier

Haier HWM70-1201 Manuale utente

Haier

Haier HA1000 Manuale utente

Haier

Haier XQJ100-96A Manuale utente

Haier

Haier HLP021WM - PULSATOR Portable Washer Manuale utente

Haier

Haier HLTW600AXW Manuale utente

Haier

Haier XQB60-91AF - 07-01 Manuale utente

Haier

Haier HWM65-0566 Manuale utente

Haier

Haier HWM75-0528 A Manuale utente

Haier

Haier B629TX Guida all'installazione

Haier

Haier HW80-B14979 Manuale utente

Haier

Haier hW80-1401B-u Manuale utente

Haier

Haier XPB10-LAP Manuale utente

Haier

Haier HWM55-918P Manuale utente

Haier

Haier HDS1260TVE Manuale utente

Haier

Haier HWM100-678NZP Manuale utente

Haier

Haier XQG65-8SU Manuale utente

Haier

Haier HWF5300AW Istruzioni per il montaggio

Haier

Haier HWM120-01A6 Manuale utente

Haier

Haier HW120-B14686-F Manuale utente

Haier

Haier HWM90DD Manuale utente

Haier

Haier HVS1200 Manuale utente

Haier

Haier HWM85-9288 Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
