Haier XPBM15-0501 Manuale utente

1.5

Packing list..............................................................................................the 2nd cover

.............................................................................................1

Safety precautions .................................................................................................2

Installation and adjustment ....................................................................................4

Preparation before washing ..................................................................................5

Washing Process ....................................................................................................7

Disposal after washing ............................................................................................8

Trouble shooting .....................................................................................................9

Specifications...........................................................................................................9

Identifications of parts

Washing capacity....................................................................................................6

Detergent usage......................................................................................................6

Contents

User's manual

Name

One

Quantity

Packing list

Water inlet hose

Washing machine

Warranty manual One

Description of the symbols

Warning sign

Forbidden sign

Contents marked with this symbol are related to the safety

of the product and the personal safety of the users. Please

operate in strict conformity to the instructions, otherwise it

may cause damage to the machine or the personal

safety of the user.

endanger

Contents marked with this symbol are actions forbidden to

perform. Performing of those actions may result in

destruction of the machine or permanent injury to the user.

Fixed legs

Cabinet

Release button

Base frame

Control knob

Drain hose

Control panel

Filter cover

Power cord

Pulsator

Handle

MAX

Top lid

Water-filling

entrance

Safety precautions

Do not twist pinch or damage the cord.

If the cord or plug becomes damaged,

please contact the service agent or an

authorised technician.

If the washing machine is installed on

carpet, do not block the ventilation hole

with carpet.

Do not let the machine share one power point with other

electric appliances. If the power plug is damaged or

loose, do not use the plug any more.

Do not wash water-proof items like

the raincoat, bike covers etc.

Do not use water hotter than 50 C .

Do not put the machine in damp places like

the bathroom. Never wash it with water.

Do not put wet clothes on the control panel.

soft items

The ventilation holes

at the bottom

Please plug the washer into a

220V-240V a.c receptacle. Be sure

to use single-phase three pin

receptacle. Ensure the earthing

prong of the power receptacle is

earthed reliably. Use leakage

protector if possible.

Earth

The appliance must be positioned so that

the power plug is accessible.Be sure to pull

the plug out and close the water faucets in

the following cases: power failure, installing

the machine,leaving the machine idle or

cleaning the machine. Do not push or pull

the power plug with wet hand.

If the appliance is attached to an extension

cord or electrical portable outlet device,it should

not be exposed to the splashing of water or

ingress of moisture.

Safety precautions

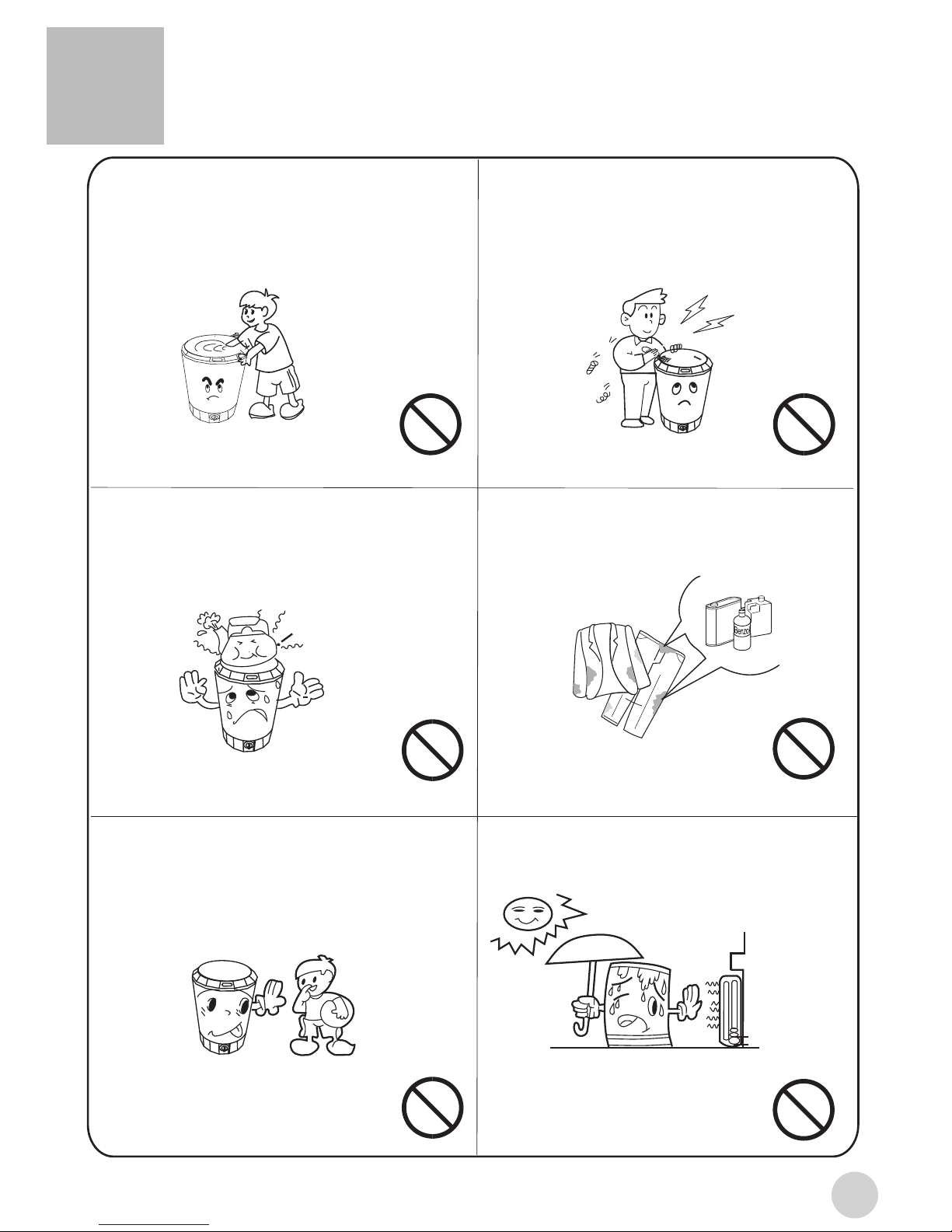

Do not repair or alter the machine by

yourself.

Do not put any hot or heavy items on the

washing machine. Do not wash clothes, with volatile

materials (such as thinner, petrol etc.)

Do not allow children to use the washing

machine. Keep the machine away from direct

sunlight and heat sources.

Do not put your hands into the machine

while it is in operation. It is dangerous

even if the rotation is slow.

Take special care ofchildren. Do not let

children climb on the washing machine.

Petrol

Thinner

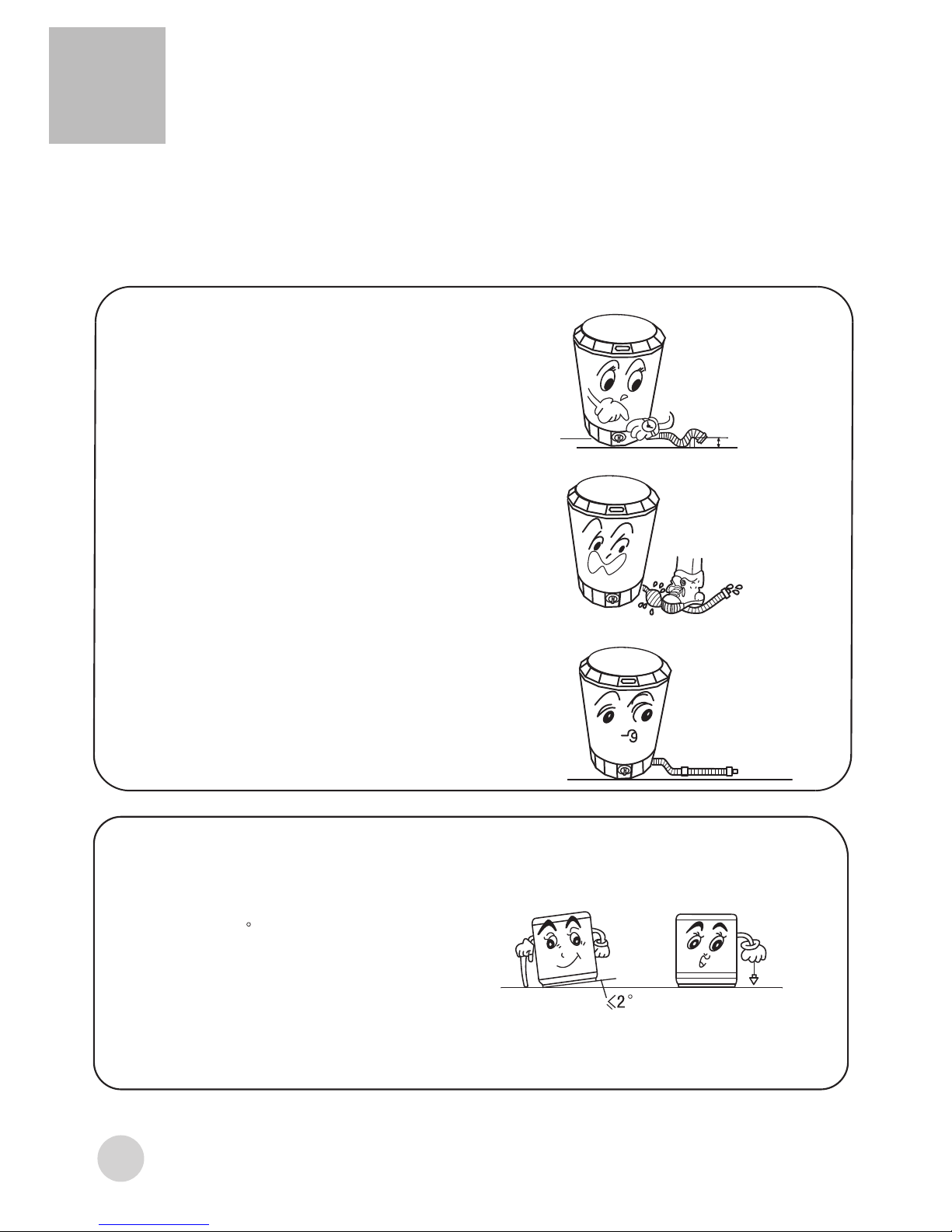

Installation and adjustment

The largest allowed angle of the

machine is 2 .

More than this will result in unstable

operation or stoppage of the machine.

Adjust the installation position

Please install and adjust the machine according to the requirement of the manual.

It is very important for your safety and operation of the machine.

1.The height of the drain hose should be

less than 10cm, otherwise drainage will

not be smooth.

2.Do not trample or step on the drain hose.

Usage of the drain hose

<10cm

3. Do not lengthen or cut down the drain hose.

Preparation before washing

Pay attention to the following before washing.

Look for the

care label on

your laundry

for special

washing requi-

rements

Make sure you

have checked all

pockets for any

loose items.

Fasten all zippers,

hooks,buttons and

strings to make sure

that these items don't

snag on other clothes..

The quantity of

clothes shall not

exceed the rated

value.For large

clothes like jeans

should be put

in loosely.

they

a.Separate non-colorfast clothes from those that are.

b.For laundry that are water resistant, please push them into the water with your hands

to soak.

c.For heavy soiled clothes,try to remove most of the loose soil before washing.

d.Do not put clothes polluted with chemicals directly into the washing machine.

e.Mend any torn garments or loose buttons as it may tear larger during washing.

Reference weight of the laundries:

shirt Socks

underpants undershirt

Pyjamas

cotton, about

300g

blend, about

50g

cotton, about

70g cotton, about

180g

about 200g

The washing capacity of the machine refers

to the maximum weight of dry clothes being

washed at any one time.

This capacity is 1.5kg.

The thickness, size and type of the cloth will

affect the actual washing capacity.

Fill water to the desired level. Dilute the whitener and pour it slowly into the

washing tub.

Avoid using whitener with colored or patterned laundries, as they are prone

to lose color.

The whitener should not go on the laundries directly.

Refer to the user's manual for the usage and quantity of the whitener.

For powder whitener, dissolve it before use.

Dissolving power inthe machine

1.Fill machine with water to level"1".Indicators can be seenon the inner tub.

2.Add the powder. Run themachine for approx30 seconds, todissolve

powder.

3.Put the clothes in. Add waterto a suitable water level.

Soap flakes

1.Prepare warm water of 30 in a container.

2.Add the soap and thenstir it until it`s fully dissolved.

Put in theproper quantity ofdetergent according tothe water leveland the

washing quantities .

It is suggestednot to usehigh sudsing detergent.

Detergent usage

Usage of whitener

Usage of washing powder

Washing Capacity

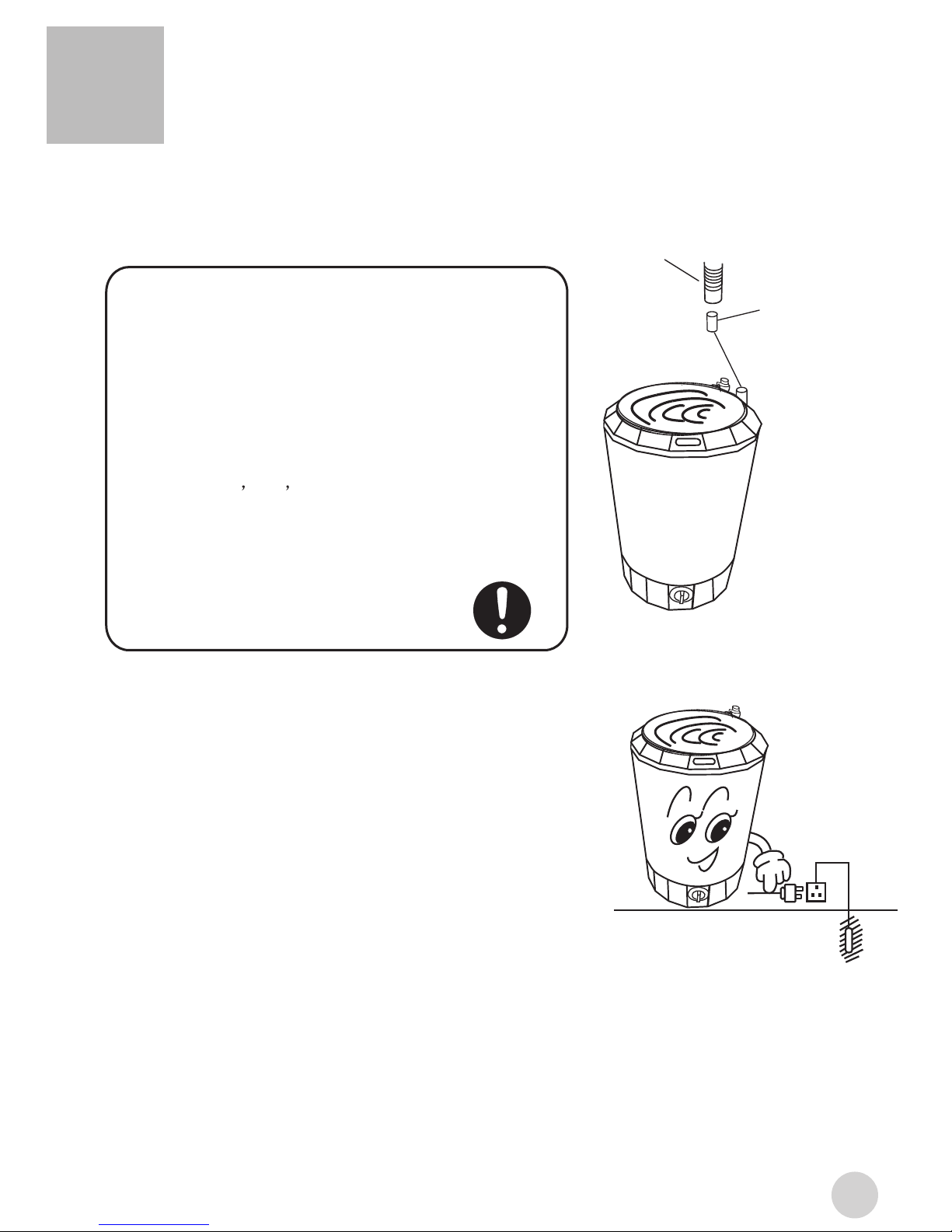

Insert the water inlet hose into the water-filling

entrance on the control panel.

Water inlet hose

Water-filling

entrance

Install the water inlet hose

1. Connect the water hose provided to the water mains

Washing Process

2.Connect the power

3. Fill the machine enough with water

to mix detergent, put in your laundr y

and fill up water to the desired level.

4. Close the lid.

Confirm that the washing machine is

earthed reliably. Then insert the power

plug into the receptacle.

1.Confirm that the drain hose is properly

stowed before filling with water, or the water

will flow through the drain hose.

2.Inside the machine you will see water filling

levels-"1" "2" "3"and"MAX".

This relates to the amount of washing you are

using.Never exceed the "MAX"Mark!

3.Only use the new hose set provided.

NOTE

5.Washing duration reference

Select washing duration depending on the laundry

About ~36

About7~8

About8~10

About2 4~

Laundry Washing Duration(min)

Silk fabric(thin laundry)

Knitted fabric/man-made fabric

Bed sheet

Cotton, blending or linen fabrics

Very dirty or heavy laundry About10~15

6.Finish washing

The tumbler will stop revolving.Level the draining hose

down to let the waste water out.

If the cabinetis dirty, wipe itwith

wet cloth

Do not flushit directly withwater.

Wipe it withneutral detergent.

Do not wipeit with thinner, petrol,

alcohol etc.

Disposal after washing

After washing, close the water faucet. ( If needed,

you can dismantle the water inlet hose).

Hang up the power cord and drain hose.

Be sure to pull off the power plug before maintenance.

Do not store water in the washing machine for a long

period. Drain the water completely after each using.

Wipe off the water drops on the surface of the

machine and inside the tub. Open the top lid for

some time (about 1 hour), then close the top lid.

Thinner

Alcohol

Petrol

If you intend to set the timer at 2 minutes or less,you will need to turn it over

6 minutes thenturn back.
