Haier HP200M1-U1 Scheda tecnica

Heat Pump Water Heater

OperationandInstallationManual

Model

HP200M1-U1

HP250M1-U1

SAA-230239-EA

AS/NZS 2712

SMK41331

AS 3498 WMK26822

Please read thismanual carefully prior tothe

installation and use of this appliance.

The appearance of the water heater given in

this manual is for reference only.

This product must be installed outdoors.

Productsafety statement:

Contents

1. Safetywarnings.......................................................................................................4

2. Functioningprinciplesofheat pumpwater heaters.....................................................8

3. Technical specification.............................................................................................9

4. Descriptionofpartsandcomponents......................................................................10

5. Transport and storage instructions.........................................................................12

6. Installation instructions...........................................................................................12

7. Commissioning checklist.........................................................................................19

8. Operating functions...............................................................................................20

9. Checking and maintenance...................................................................................25

10. Faultsand protection..............................................................................................27

DearusersofHaier,

Thank you forchoosing Haierproducts.

Pleasereadthis manualcarefullyandfollow theoperation andsafety instructionto

ensure best installation and utilisation of the product.

This appliance is not intended for use by persons with reduced physical,

sensory or mental capabilities, persons with a lack of experience and

knowledge, or children under the age of 8 years. Persons in this group must

be supervised while using the appliance by a person responsible for their

safety.

Children should be supervised to ensure that they do not play with the

appliance.

Installation must be carried out by qualiﬁed professionals. Do not

open the cover or panel unless qualified to undertake this work.

Contact Haier Customer Service if service or repair work is required.

This appliance must be permanently connected to mains water supply

and continuous electrical supply.

Warning Riskofdamagetotheenvironment

ThisheatpumpcontainsR290refrigerant.Thisrefrigerantmustnotescape into

the atmosphere.

Refrigerantmustbe removedanddisposedof by aqualiﬁed professional.

Warning: flammable hazard!

1. Please read the instructions carefully before

installation and use of this appliance.

2. Donotpunctureorignitethisproduct.

3. The environment-friendly refrigerant R290 used in

this product is odorless.

4. Thisproductmustbeinstalledoutdoors.

5. This product cannot be discarded or scrapped without

correct retrieval of the refrigerant.

a. If necessary, please contact Haier Customer Service to

obtain the correct disposal method.

6. The product must not be stored in an area containing

an open ﬂame such as an open ﬁre, gas appliance or

electricheater.

7. Before the refrigeration system is repaired, the refrigerant

must beremoved by a qualified professional.

8. Do not use any method to accelerate the defrosting

processorcleanfrostedcomponentsoftheappliance.

Safetywarnings –To be followed at all times

Failuretofollowtheseinstructionsmayleadtoseriousmalfunctionsofthe device

and danger to the user.

Instructionsmarkedwith this symbol must befollowed. Failure to do so

may lead to product damage and harm to the user.

Information marked with this symbol are forbidden. Failure to follow

this instruction may lead to product damage and harm to the user.

The water heater shall be

installed in strict accordance

with local wiring regulations.

The power supply must have

a grounding line. Ensure an

eﬀective ground connection.

Ground and neutral lines of

the power supply must not

be connected. The ground

line shall not be connected

to gas or water pipes,

lightning arresters or

telephonelines.

The water heater must be

installed in a location where

suitable water drainage is

possible.

The water heater must be

installed outside.

This appliancemust be ﬁtted

with thepressuretemperature

relief valve (PTR valve)

supplied withthe appliance.

The PTR valvemustbe fitted

directlyto the appliance.

While bathing, children must

be under guidance of an adult.

Children must not play with

theappliance.

Interpretationofmarksandsymbols

Safetywarnings –To be followed at all times

The outlet water temperature

of a water heater is typically

higher than the temperature

indicated on the display.

Ensurethatcontact to hot

water directly leaving the

appliance cannot occur.

This appliance must be

installed with an isolation

switchto the power supply.

This switch must ensure full

disconnection and be in

accordance with the wiring

rules.

Installthe water heater in strict

accordance with these

installation instructions.

If the power cord is damaged,

it must be replaced by a

qualiﬁed professional.

Do not put hands or other

items into the air grid. This

may cause injury or damage

to the appliance.

Risk of damage to the

environment. This heat pump

contains the refrigerant R290.

The PTR valve drain must be

installed in a continuously

downwarddirection, be open

to the atmosphere, be free

from blockages, and the

potential to frost.

The PTR valve must be

operatedeverysix monthsto

remove lime deposits, and to

ensure that it is free from

blockages.

Safetywarnings –To be followed at all times

Installation, service, or maintenance of this appliance must be carried out

by a qualified professional. Failure to adhere to this may result in damage

to the appliance or other property, or cause injury.

Fit the appliance in accordance with this installationmanual.

Be sure to use only certified parts and accessories in the installation of this

appliance.

Install the product on a base that can hold the filled weight of the

appliance.

Electrical work must be performed in accordance with all local standards

and regulations, including AS/NZS3000, and the instructions in this

manual.

This appliance must be connected to a dedicated electrical circuit.

During installation, ensure that the ground wire is disconnected last.

If a refrigerant leak occurs, ventilate the area immediately. The refrigerant

is flammable, so damage or injury is possible if it reaches an open flame.

Be aware that the refrigerant contained in this appliance does not have an

odour.

10.

Do not accelerate the defrosting process or clean the evaporator when

frosted. Only a qualified person should clean the evaporator.

11.

Donot pierce or burn this appliance.

12.

This appliance must be installed outside and be well ventilated. A gas

leak in a poorly ventilated area could create an explosion risk.

13.

Prevent insects andsmall animals entering the appliance. This may cause

electrical shorts, malfunctions or ﬁre.

14.

Only qualiﬁed personnel can handle, ﬁll, purge and dispose of the

refrigerant in this appliance.

15.

If installed in a coastal or high sulfate gas region, corrosion will occur

shortening the appliance life.

Safetywarnings –To be followed at all times

Loading and unloading requirements

This appliance shall be carefully handled during transport loading and

unloading.

Ensure that the appliance is not dropped, bumped, or rolled during

transportation as this could cause damage to the appliance,

potentially creating a refrigerant leak.

Transport requirements

Local transport regulations should be consulted to determine the

maximum allowable appliance quantity or refrigerant (R290) volume

that can be transported at any one time.

Storage requirements

As this appliance contains a flammable refrigerant R290, its storage

must be in accordance with local regulations.

The storage should ensure that there is no potential for damage to the

appliance. Any damage could result in a refrigerant leak.

Scrapping and recovery requirements

Scrapping must only be carried out by a qualified professional. This

professional must safely recover the appliance’s refrigerant before the

appliance is scrapped. Contact Haier Customer Service to correctly

dispose of this appliance.

Technical specifications

Functioning principles of heat pump water heaters

Air source heat pump water heaters mainly consist of a compressor, an

expansion valve, a filter, an evaporator, a condenser, and a fan. Powered

by electricity, the compressor absorbs low-temperature and low-pressure

refrigerant gas from the evaporator. It compresses the gas into high-

temperature and high-pressure gas, which is passed through the condenser

totransfer heattothe water. The condensed refrigerant is then throttled and

depressurized by the expansion valve. It then absorbs heat from the

surrounding air via the evaporator.

Technical specifications

Model

HP200M1-

HP250M1-

Tank

Total water

capacity

195L

246L

Rated

voltage/

frequency

220-

240V/50Hz

220-

240V/50Hz

Tank

max pressure

700kPa

Corrosion

protection

Magnesium

rod

Magnesium

rod

Waterproof

grade

IPX4

Performance

(20°C/15°C

Ambient

air

temperature,

15°C

-55°C

water

temperature)

COP*@ 20°C/15°C

4.49

4.48

Power

input

electric

element

1500W

Rated

power

input of heat

pump

430W

Maximum

power

input

heat

pump

750W

Maximum

power

input

2250W

Average

heating

capacity

heat

pump

2000W

Heating

water

capacity

42L / h

Heating

time

(15

℃

-55

℃

)

4.6h

5.8h

Default

temperature

setting

60°C

Temperature

setting

range-

with

heater

35°C – 75°C

Max temperature of the heat pump only

65°C

Max

working

pressure

of refrigerant

1.0/3.3MPa

Refrigerant

type

weight

R290/0.34kg

Sound

pressure

level

43dB(A)

Ambient

temperature for heat pump

and element

-7~45°C

Ambient

temperature

of heat

pump

-7~45°C

Dimension

and

connections

Water

inlet

and

outlet

connection

¾”

TPR

valve

connection

¾”

Drain

Water

inlet

connection

¾”

Product

Dimensions

600*630*1658mm

600*630*1951mm

Packing

dimension

with

pallet

736*695*1940mm

736*695*2250mm

Net/Gross

weight

91/116kg

106/128kg

Filled

weight

the

appliance

286kg

352kg

The COP was measured under test conditions with an ambient air temperature of 20˚C/15˚C

(Dry Bulb/Wet Bulb) and heating of the water from 15˚C to 55˚C during water heater operation.

The noise level was measured at 1 m from the water heater during a Noise Test conducted to

Standard GB/T 23137 in a hemi-anechoic chamber within a laboratory.

Description of parts and components

Carton contents

Display

PTR valve

connection

Condensation drain

Hot water

outlet

PTR valve

connection

Cold water

Inlet

Part

name

Heat pump

water heater

TPR

valve

Instruction

manual

Quantity

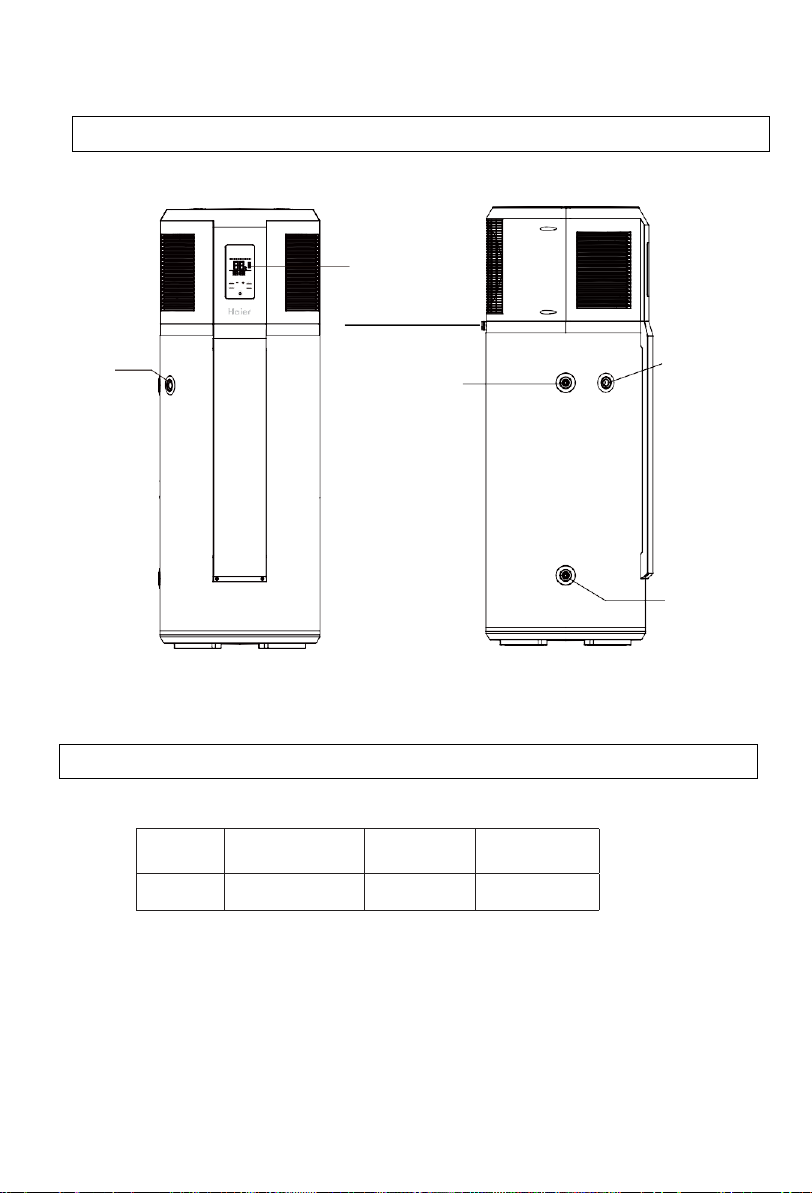

Heat pump layout

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Haier Scaldabagno

Haier

Haier Little Sea-ox FCD-JTSA50-III Manuale utente

Haier

Haier FCD-8 Manuale utente

Haier

Haier S110ENF Manuale utente

Haier

Haier HP150M5 Scheda tecnica

Haier

Haier ES15V-SD Manuale utente

Haier

Haier Little Sea-ox FCD JTHA60-III Manuale utente

Haier

Haier ES6VQ2 (R) Manuale utente

Haier

Haier ES30V-A3 Manuale utente

Haier

Haier Little Sea-ox FCD-JTSA60-III Manuale utente

Haier

Haier FCD-SHX200A30 Manuale utente

Haier

Haier FCD-JTHC100A-III (E) Manuale utente

Haier

Haier Sea Elephant PJF2-150W Manuale utente

Haier

Haier ES35HH1 (R) Manuale

Haier

Haier GV270REMB Manuale utente

Haier

Haier LITTLE SEA-OX FCD JTHA30- ET Manuale utente

Haier

Haier FCD-8 Manuale utente

Haier

Haier HP80M5 Scheda tecnica

Haier

Haier FCD-JTLD100 Manuale utente

Haier

Haier Sea-ox King FCD-JTLD80 Manuale utente

Haier

Haier HP200M3 Manuale

Haier

Haier FCD-JTLD200 Manuale utente

Haier

Haier S110EHF Manuale utente

Haier

Haier ES50V-R1 Manuale

Haier

Haier Little Sea-ox FCD-JTSA50-III Manuale utente

Manuali Scaldabagno popolari di altre marche

Kenmore

Kenmore 153.582400 Manuale utente

Applimo

Applimo Edel AIR Manuale utente

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Manuale utente

clage

clage E-Mini Series Manuale utente

Toyotomi

Toyotomi Oil Miser OM-180 Manuale utente

Bradford White

Bradford White EF Series Manuale utente

Eccotemp

Eccotemp 40-H Manuale utente

Dimplex

Dimplex ECSd125-580 Guida

Dux

Dux 32FCR6N Manuale utente

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Guida alla risoluzione dei problemi

Noritz

Noritz N-132M Manuale di istruzioni

TESY

TESY GCV7/4S 10047 Scheda tecnica

A.O. Smith

A.O. Smith Gphe 50 Manuale utente

Koryo

Koryo KWHZF15Y Manuale utente

Pentair

Pentair PSC-14-4-02 Manuale utente

GE 40M06AAG Istruzioni per il montaggio

Thermor

Thermor AEROMAX SPLIT 2 Manuale utente

American Hometec

American Hometec AHQ-B03X Manuale utente
