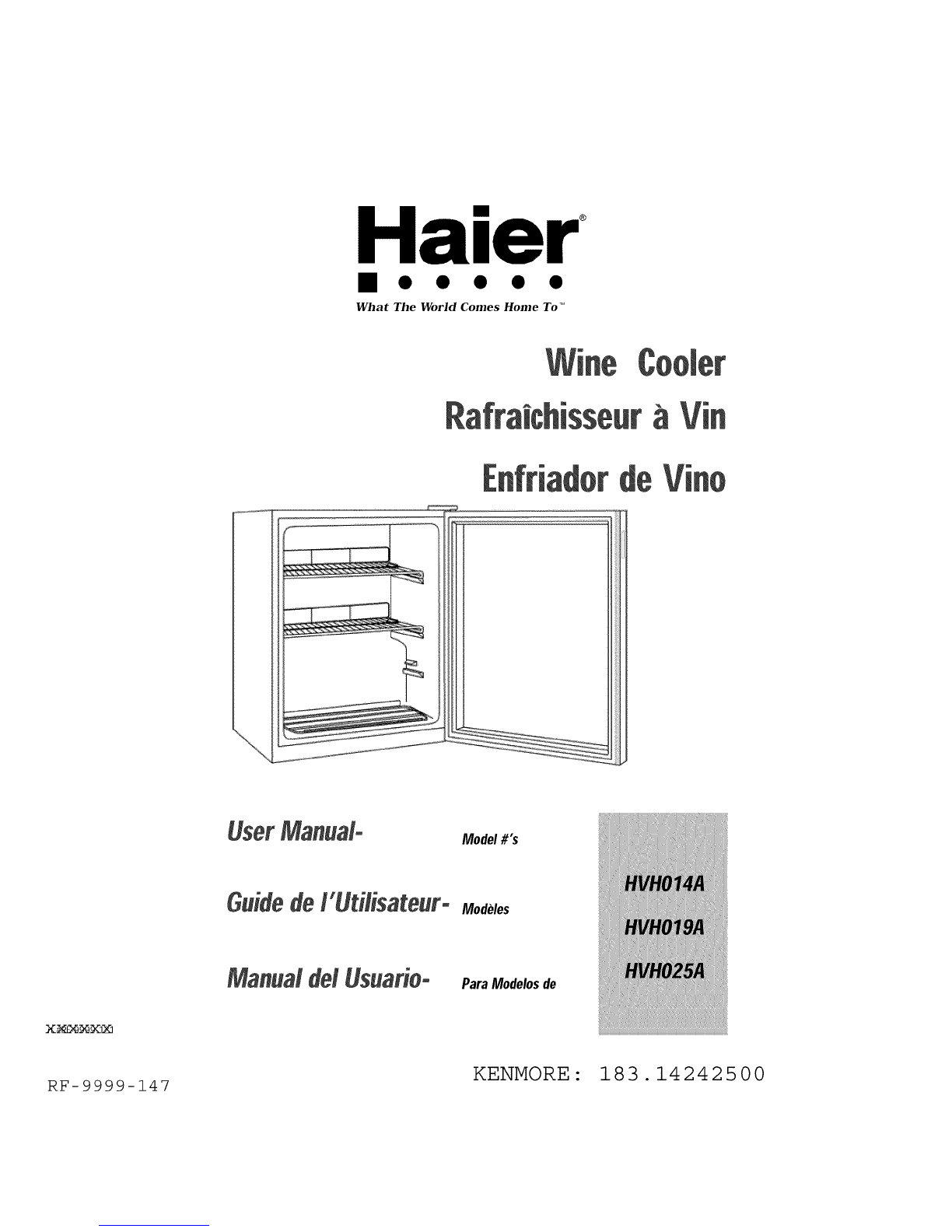

Haier HVH014A Manuale utente

Haier

What The World Comes Home To "_

UserManual- Model#%

GuidedeFUtilisateur- Modeles

ManualdelUsuario- ParaModelosde

RF-9999-147 KENMORE : 183. 14242500

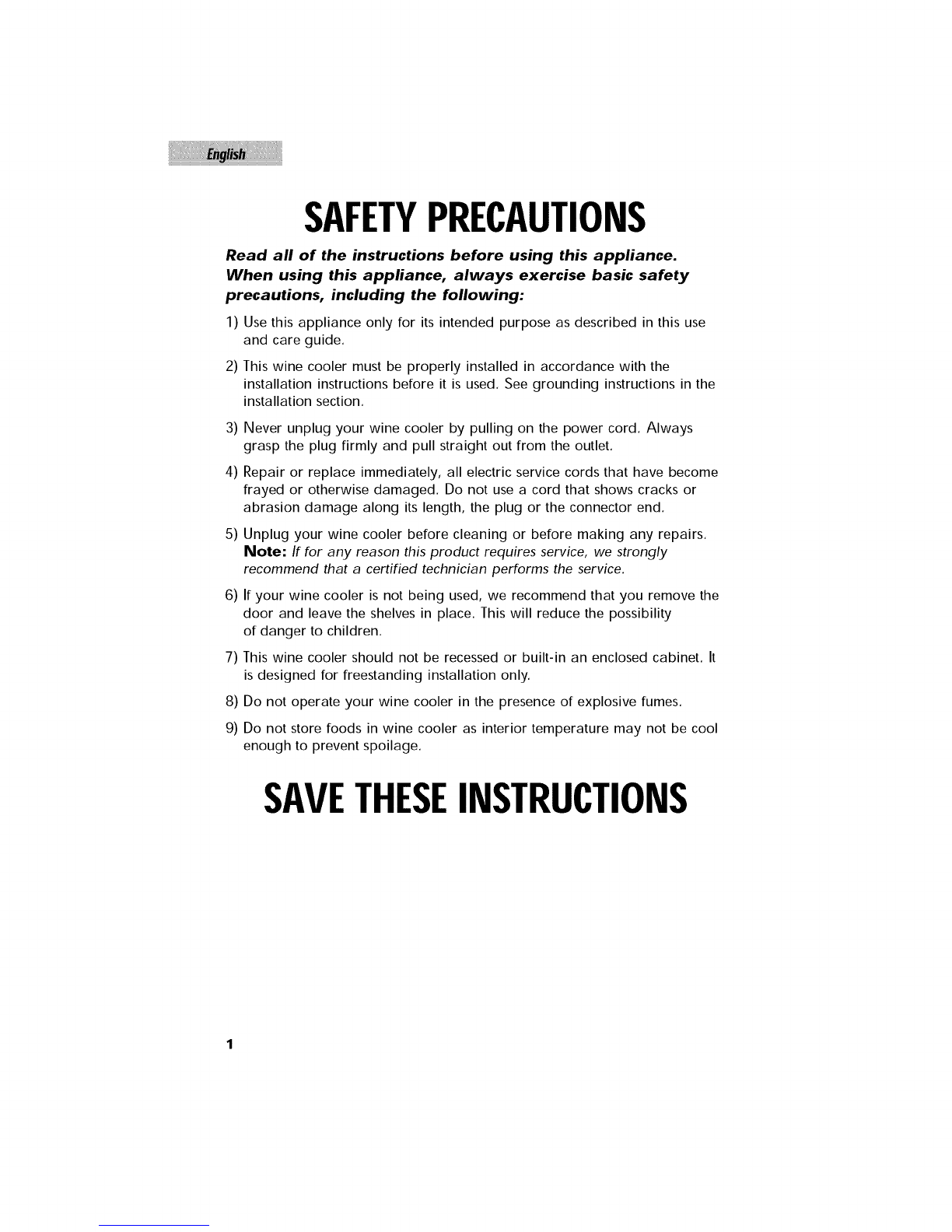

SAFETYPRECAUTIONS

Read all of the instructions before using this appliance.

When using this appliance, always exercise basic safety

precautions, including the following:

1) Use this appliance only for its intended purpose as described in this use

and care guide,

2) This wine cooler must be properly installed in accordance with the

installation instructions before it is used, See grounding instructions in the

installation section,

3) Never unplug your wine cooler by pulling on the power cord, Always

grasp the plug firmly and pull straight out from the outlet,

4) Repair or replace immediately, all electric service cords that have become

frayed or otherwise damaged. Do not use acord that shows cracks or

abrasion damage along its length, the plug or the connector end.

5) Unplug your wine cooler before cleaning or before making any repairs,

Note: If for any reason this product requires service, we strongly

recommend that a certified technician performs the service.

6) If your wine cooler is not being used, we recommend that you remove the

door and leave the shelves in place. This will reduce the possibility

of danger to children,

7) This wine cooler should not be recessed or built-in an enclosed cabinet, It

is designed for freestanding installation only,

8) Do not operate your wine cooler in the presence of explosive fumes,

9) Do not store foods in wine cooler as interior temperature may not be cool

enough to prevent spoilage,

SAVETHESEINSTRUCTIONS

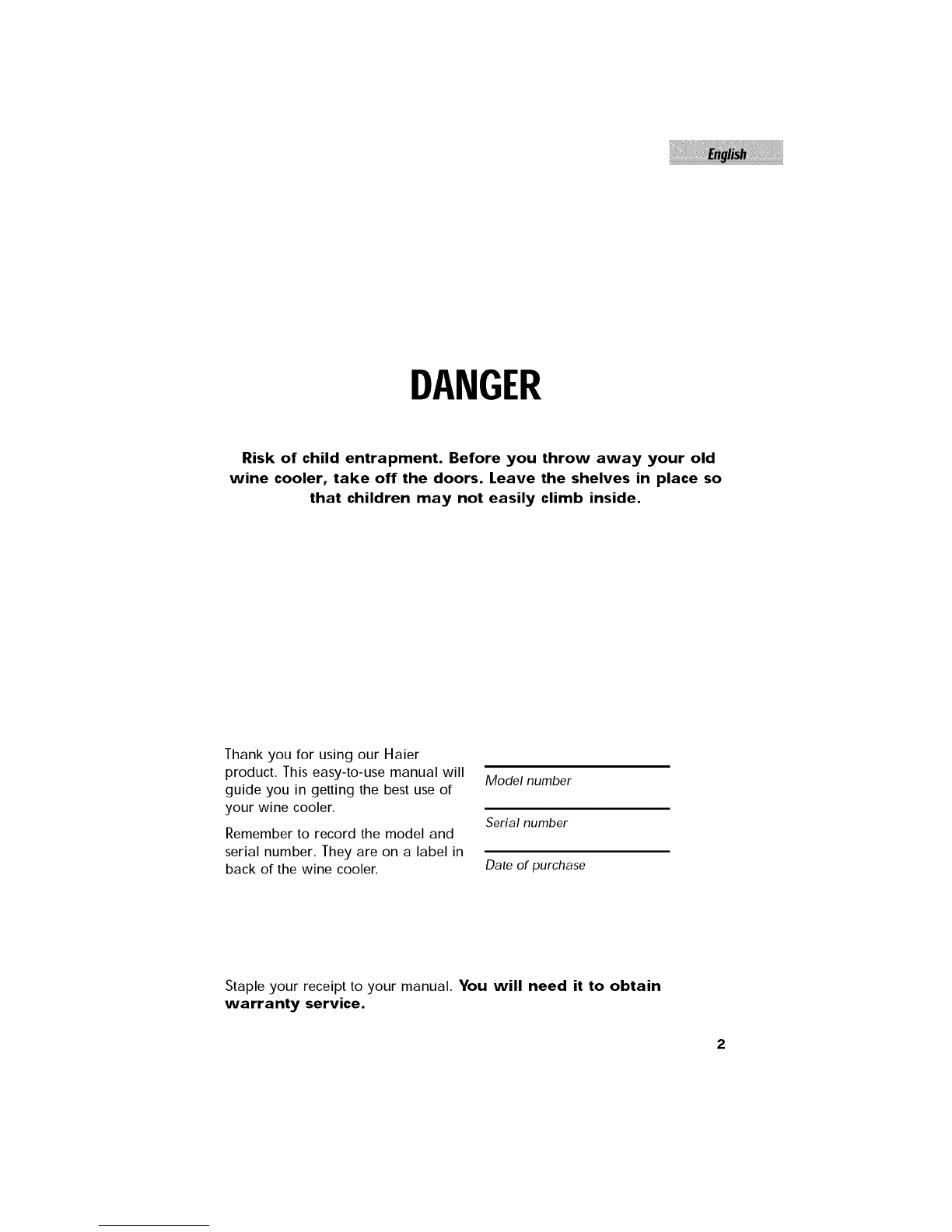

DANGER

Risk of child entrapment. Before you throw away your old

wine cooler, take off the doors. Leave the shelves in place so

that children may not easily climb inside.

Thank you for using our Haier

product. This easy-to-use manual will

guide you in getting the best use of

your wine cooler.

Remember to record the model and

serial number. They are on a label in

back of the wine cooler.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain

warranty service.

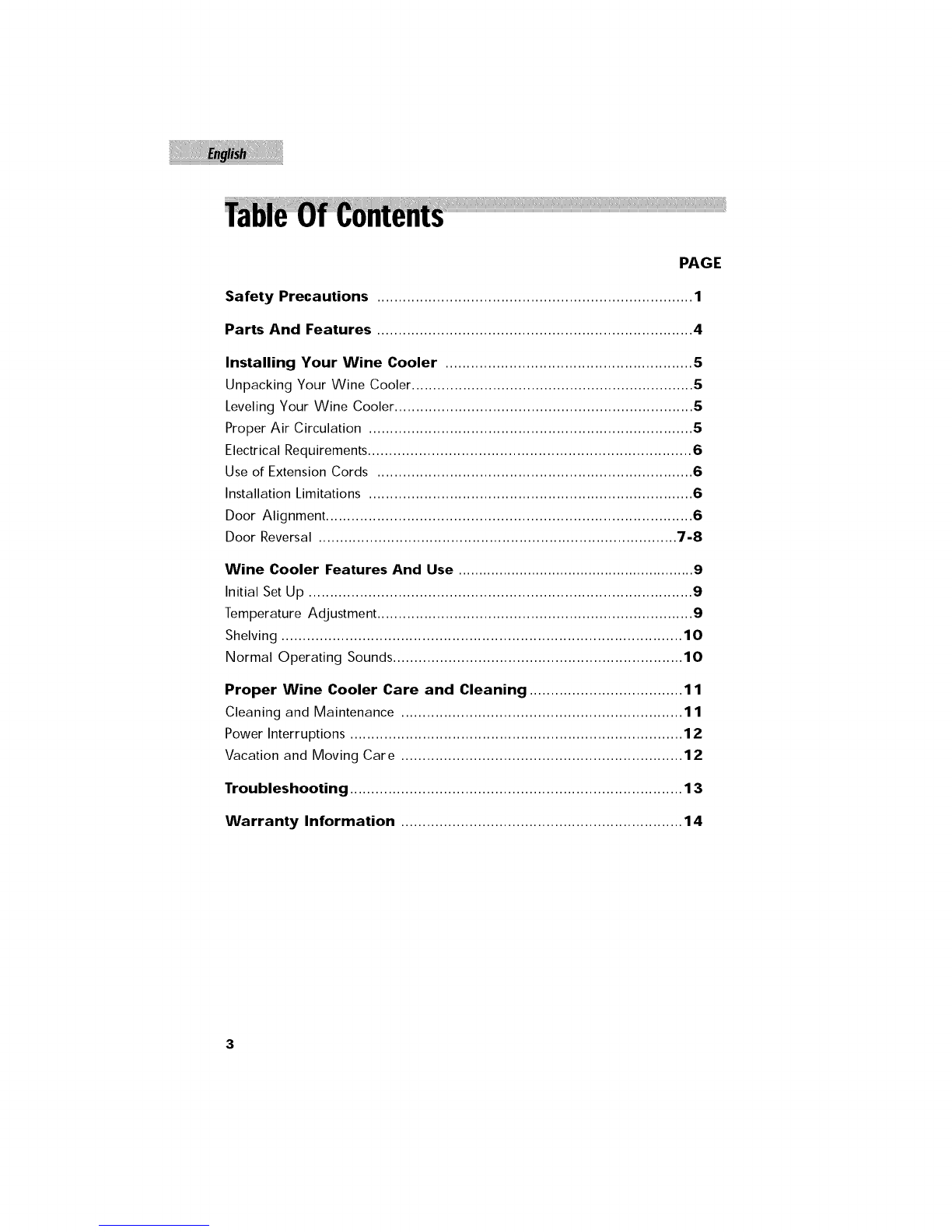

PAGE

Safety Precautions .......................................................................... 1

Parts And Features .......................................................................... 4

Installing Your Wine Cooler .......................................................... 5

Unpacking Your Wine Cooler .................................................................. S

Leveling Your Wine Cooler ...................................................................... 5

Proper Air Circulation ............................................................................ 5

Electrical Requirements ............................................................................ 6

Use of Extension Cords .......................................................................... 6

installation Limitations ............................................................................ 6

Door Alignment ...................................................................................... 6

Door Reversal .................................................................................... 7-8

Wine Cooler Features And Use .......................................................... 9

initial Set Up .......................................................................................... 9

Temperature Adjustment .......................................................................... 9

Shelving .............................................................................................. 10

Normal Operating Sounds .................................................................... 10

Proper Wine Cooler Care and Cleaning .................................... 11

Cleaning and Maintenance .................................................................. 11

Power Interruptions .............................................................................. 12

Vacation and Moving Care .................................................................. 12

Troubleshooting .............................................................................. 13

Warranty Information .................................................................. 14

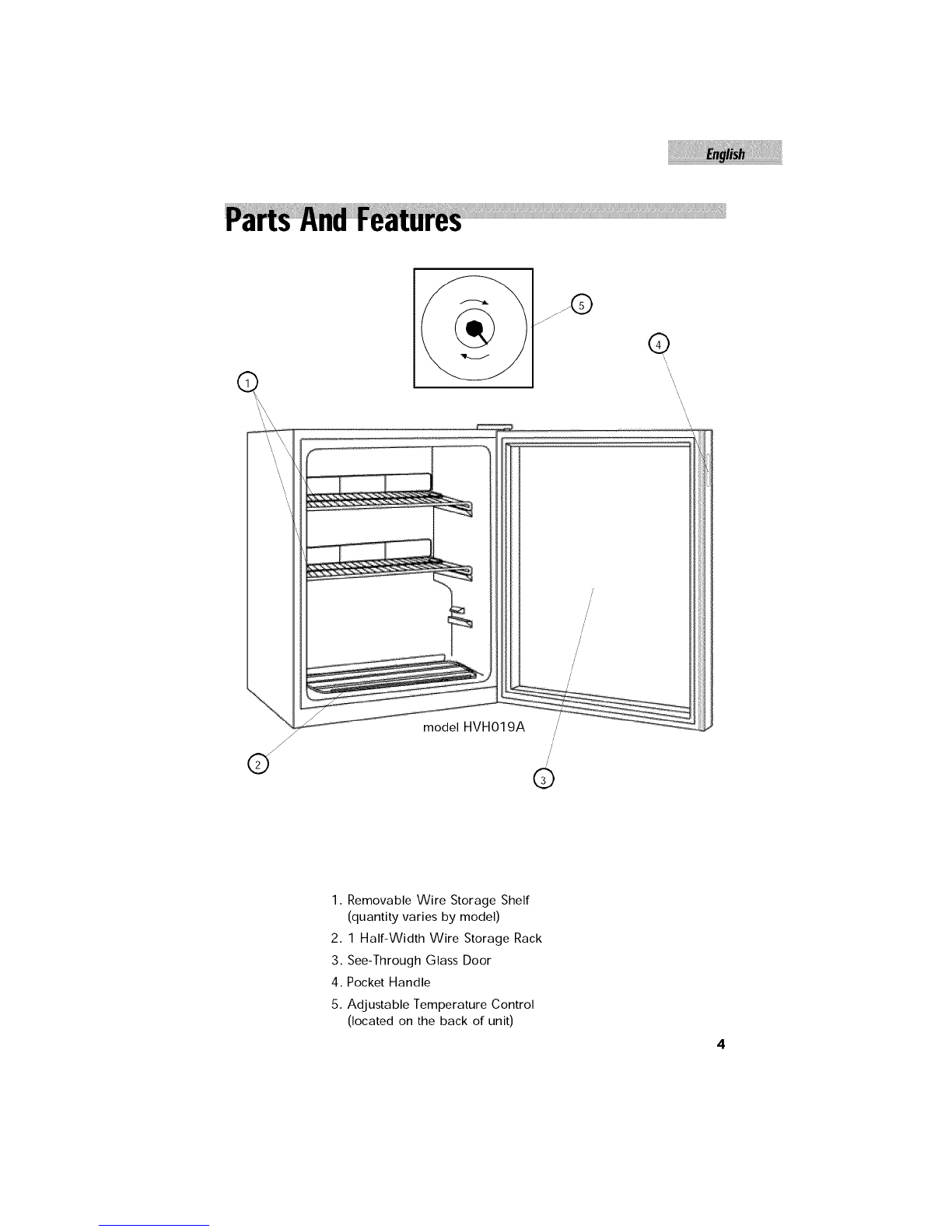

model HVH019A

1. Removable Wire Storage Shelf

(quantity varies by model)

2. 1 Half-Width Wire Storage Rack

3. See-Through Glass Door

4. Pocket Handle

5. Adjustable Temperature Control

(located on the back of unit)

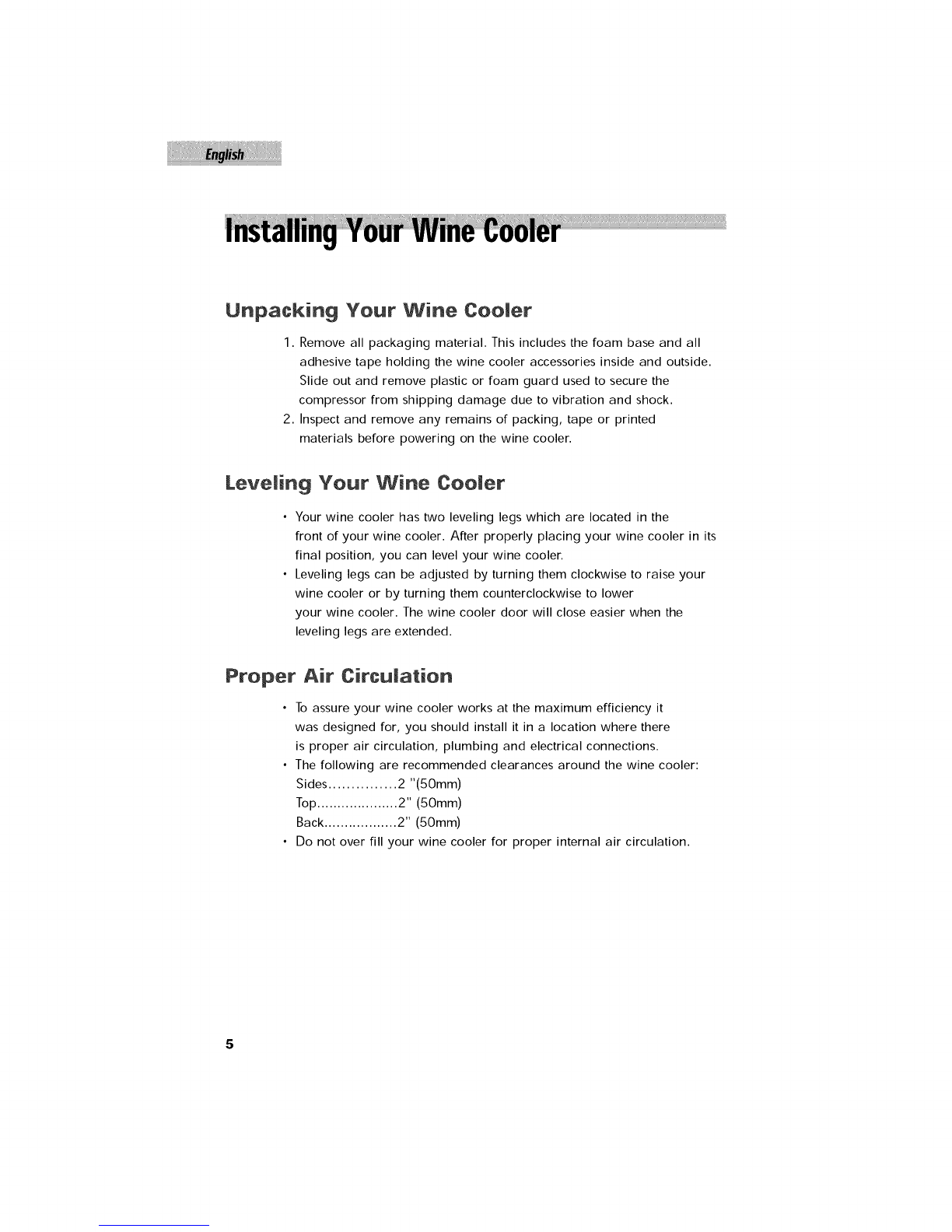

Unpacking Your Wine Coo|er

1. Remove all packaging material. This includes the foam base and all

adhesive tape holding the wine cooler accessories inside and outside.

Slide out and remove plastic or foam guard used to secure the

compressor from shipping damage due to vibration and shock.

2. Inspect and remove any remains of packing, tape or printed

materials before powering on the wine cooler.

Leveling Your Wine Cooler

• Your wine cooler has two leveling legs which are located in the

front of your wine cooler. After properly placing your wine cooler in its

final position, you can level your wine cooler.

• Leveling legs can be adjusted by turning them clockwise to raise your

wine cooler or by turning them counterclockwise to lower

your wine cooler. The wine cooler door will close easier when the

leveling legs are extended.

Proper Air Circulation

• To assure your wine cooler works at the maximum efficiency it

was designed for, you should install it in a location where there

is proper air circulation, plumbing and electrical connections.

• The following are recommended clearances around the wine cooler:

Sides ............... 2 "(50mm)

Top .................... 2" (50mm)

Back .................. 2" (50mm)

• Do not over fill your wine cooler for proper internal air circulation.

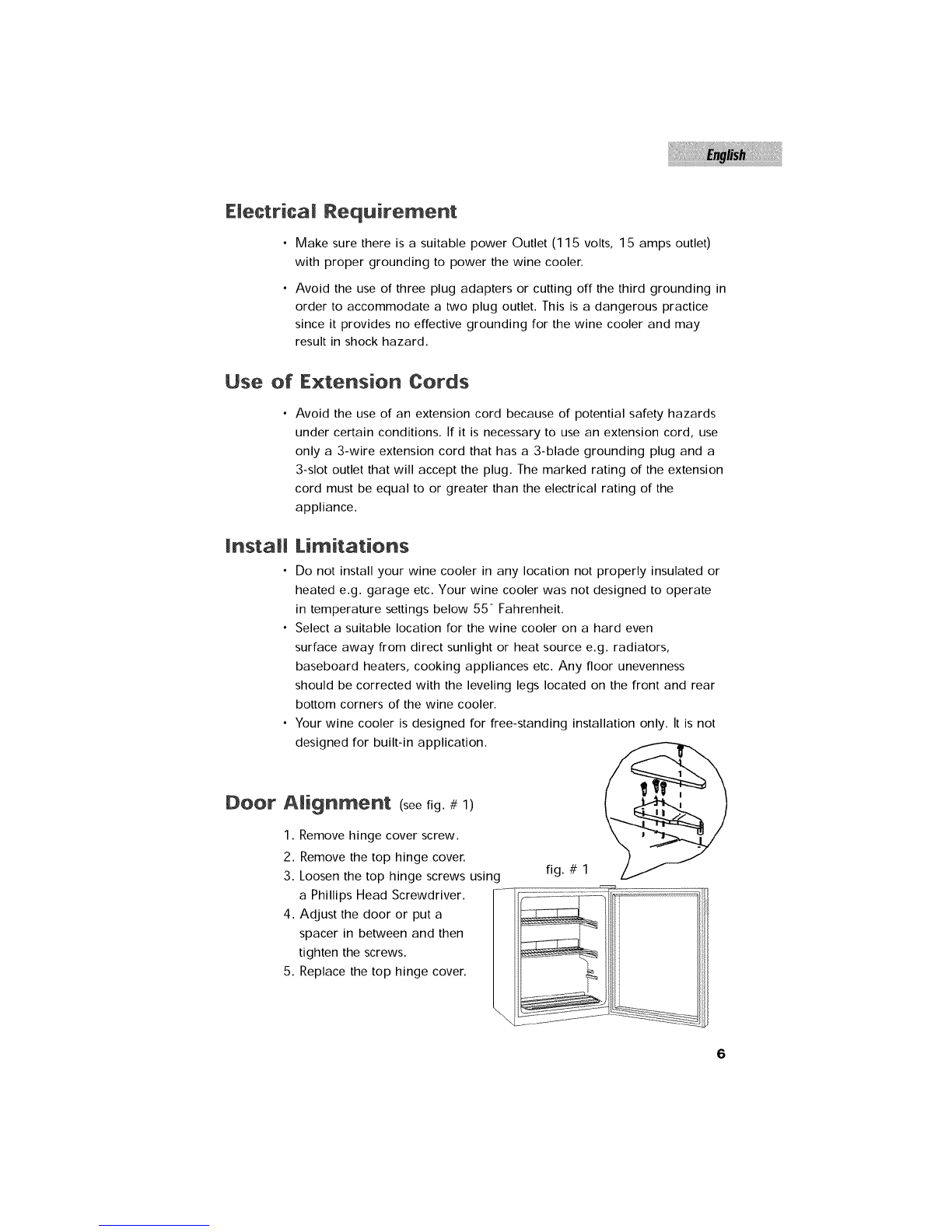

E|ectricaJ Requirement

•Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)

with proper grounding to power the wine cooler.

• Avoid the use of three plug adapters or cutting off the third grounding in

order to accommodate a two plug outlet. This is a dangerous practice

since it provides no effective grounding for the wine cooler and may

result in shock hazard.

Use of Extension Cords

Avoid the use of an extension cord because of potential safety hazards

under certain conditions. If it is necessary to use an extension cord, use

only a 3-wire extension cord that has a 3-blade grounding plug and a

3-slot outlet that will accept the plug. The marked rating of the extension

cord must be equal to or greater than the electrical rating of the

appliance.

Lh_nitations

Do not install your wine cooler in any location not properly insulated or

heated e.g. garage etc. Your wine cooler was not designed to operate

in temperature settings below 55 ° Fahrenheit.

Select a suitable location for the wine cooler on a hard even

surface away from direct sunlight or heat source e.g. radiators,

baseboard heaters, cooking appliances etc. Any floor unevenness

should be corrected with the leveling legs located on the front and rear

bottom corners of the wine cooler.

Your wine cooler is designed for free-standing installation only. It is not

designed for built-in application.

Door Alignment (see fig. # 1)

1. Remove hinge cover screw.

2. Remove the top hinge cover.

3. Loosen the top hinge screws using

a Phillips Head Screwdriver. --

4. Adjust the door or put a

spacer in between and then

tighten the screws.

5. Replace the top hinge cover.

fig. # 1

.... _t _/_-

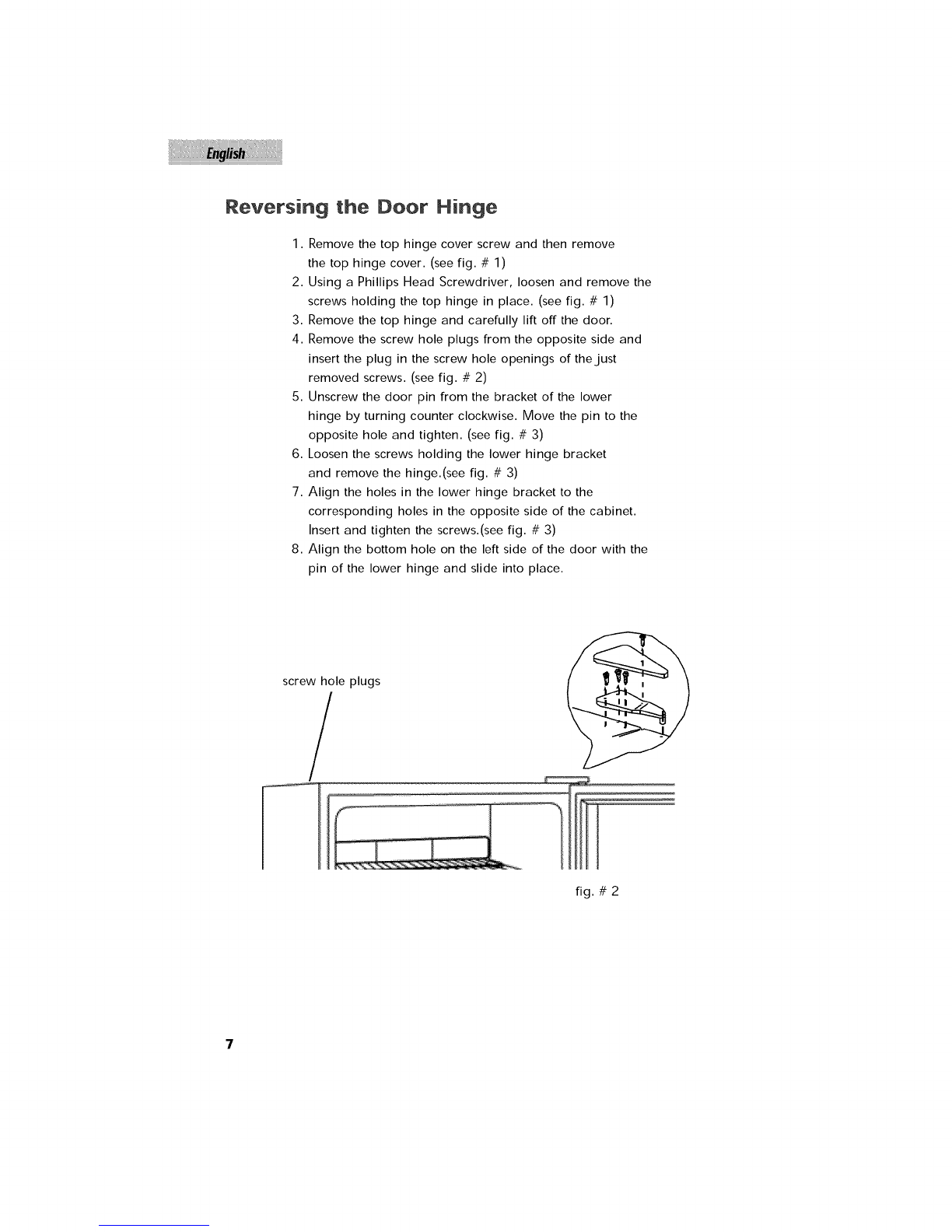

Reversing the Door Hinge

1. Remove the top hinge cover screw and then remove

the top hinge cover. (see fig. #1)

2. Using a Phillips Head Screwdriver, loosen and remove the

screws holding the top hinge in place. (see fig. #1)

3. Remove the top hinge and carefully lift off the door.

4. Remove the screw hole plugs from the opposite side and

insert the plug in the screw hole openings of the just

removed screws. (see fig. #2)

5. Unscrew the door pin from the bracket of the lower

hinge by turning counter clockwise. Move the pin to the

opposite hole and tighten. (see fig. #3)

6. Loosen the screws holding the lower hinge bracket

and remove the hinge.(see fig. #3)

7. Align the holes in the lower hinge bracket to the

corresponding holes in the opposite side of the cabinet.

Insert and tighten the screws.(see fig. #3)

8. Align the bottom hole on the left side of the door with the

pin of the lower hinge and slide into place.

screw hole plugs

fig. # 2

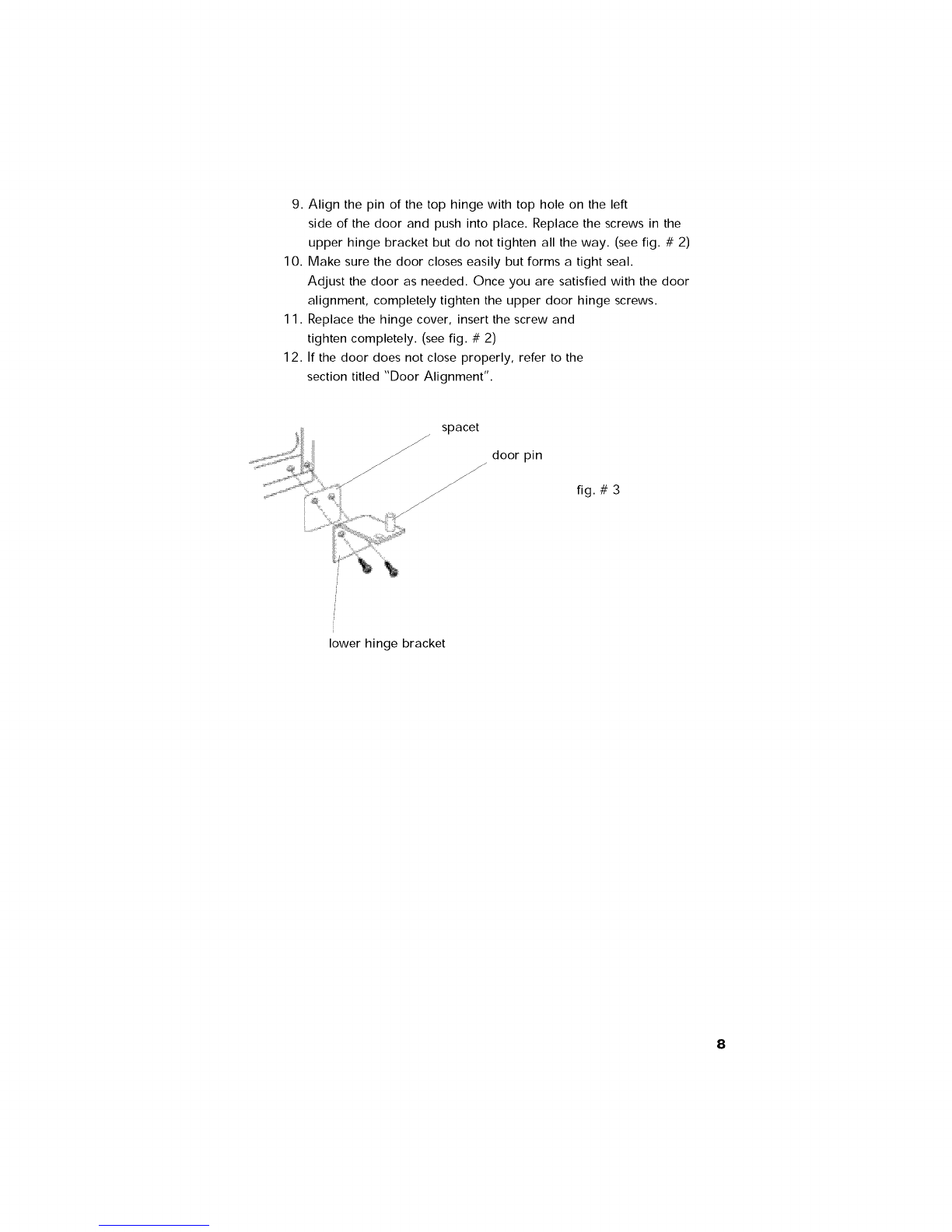

9.Alignthepinofthetophingewithtopholeontheleft

sideofthedoorandpushintoplace.Replacethescrewsinthe

upperhingebracketbutdonottightenalltheway.(seefig.#2)

10.Makesurethedoorcloseseasilybutformsatightseal.

Adjustthedoorasneeded.Onceyouaresatisfiedwiththedoor

alignment,completelytightentheupperdoorhingescrews.

11.Replacethehingecover,insertthescrewand

tightencompletely.(seefig.#2)

12.Ifthedoordoesnotcloseproperly,refertothe

sectiontitled"DoorAlignment".

spacetdoorpin

fig. # 3

lower hinge bracket

mnitial Setup

Mechanical Controlled Units:

The control for this is on the back of the unit. There are 7 settings

plus 0 (OFF). Initially set the temperature setting to 3. Let the unit run for at

least 30 minutes to acclimate itself before making any adjustments.

Temperature Adjustments:

Mechanical Control Unit: See fig. #4

• Your wine cooler has a temperature control knob on the back of the

unit. There are 7 settings: 1 being the warmest and 7 being the coolest.

You can set the temperature of your wine cooler at any

setting you desire.

fig. #4

Setting Temperature Range Temperature Range

(Fahrenheit) (Celcius)
