Haier JC-82G Manuale utente

JC-82G

Wine Cooler

Service Manual

●Features

●Optimized for Preservation of Wine Flavors.

●Temperature adjustable,electrical control .

●Temperature range:A-3～A+3℃(A=7～15).

●Interior lights.

●wine rack. Haier Group

Manual No.: JC-82G Edition:20050820

JC-82G

JC-112G

JC-152G

１

CONTENTS

Contents

1. Contents…………………………………………………… ………….……. 1

2. Product Code illustration and Series Introduction…………………… . …2

3. Features ……………………………………………………………………...3

4. Specifications…………………………………………………………………4

5. Safety Precautions(including Warning and Cautions)…………………....5

6. Net Dimension……………………………………………………..………....7

7. Installation and Accessory Parts…………………… ……………..…….…8

8. Parts and Functions………………………………… ………….….………13

9. System Flow Chart………………………………………………....………14

10. Function Schedule…………………………………………….. …….…15

11. Circuit Diagram………………………………………………..….….….16

12. Maintenance Service and Trouble Shooting…………………..…..….17

13. Exlpoded View……………………………………………………...……20

14. List of Parts………………………………………………………...…….21

２

PRODUCT CODE ILLUMINNATION AND SERIES INTRODUCTION

Product Code illustration and Series Introduction

C-□G □

A B C D E

A: The first letter of “wine” in Chinese spelling.

B: Abbreviation of Cooler or Celler.

C: Capacity .( Unit:Litre ).

D:G stands for “Freon free”.

E:A Stands for “Mechanical thermostat control” .

Examples:

JC-112G

-It represents wine cooler (or cellar) with capacity 112 l,controlled by

Control Panel.

JC-112GA

-It represents wine cooler (or cellar) with capacity 112 l,controlled by

the thermostat.

３

FEATURES

Features

1. Optimized for Preservation of Wine Flavors

The wine cooler can be set to any temperature you desire to accommodate your

wine storage requirements.

2. Temperature adjustable

The wine cooler can be set to any temperature you desire to accommodate your

wine storage requirements.

3. Temperature range:A-3～A+3℃(A=7～15).

4.Interior lights（Only for the style of electrical control）

To complement the look of your wine collection, soft light has been built into the

wine cooler. Simply push the “Light/Set” button on the electronic controlled unit,

and the light comes on, push again for off. On the mechanical control units ,the

light switch is on the front for your convenience. For maximum energy efficiency,

leave light off when not viewing your collection.

5.wine rack.

The shelves are designed for flexibility and easy cleaning. To accommodate

different sized bottles the shelves slide out and can be moved up or down into

any of the tracks molded into the cooler cabinet. Larger bottles or Magnums can

be more easily accommodated on the cross shelves of the bottom basket of the

cooler, You will notice that the shelves are designed so the bottles do not line-up

directly over one another, This allows free air movement and provides more

space.

４

SPECIFICATIONS

Specifications

SAFETY PRECAUTIONS

Safety Precautions

Read all of the instructions before using this appliance. When using this

appliance ,always exercise basic safety precautions, including the

following:

1. Use this appliance only for its intended purpose as described in this use

and care guide.

2. This wine cooler must be properly installed in accordance with the

installation section. instructions before it is used ,See grounding

instructions in the installation section.

3. Never unplug your wine cooler by puling on the power cord, Always

grasp the plug firmly and pull straight out from the outlet.

4. Repair or replace immediately, all electric service cords that have

become frayed or otherwise damaged ,Do not sue a cord that shows

cracks or abrasion damage along its length, the plug or the connector

end.

5. Unplug your wine cooler before cleaning or before making any repairs,

Note: If for any reason this product requires service ,we strongly,

recommend that a certified technician performs the service.

５

6. If your old wine cooler is not being used, we recommend that you

remove the door and leave the shelves in place ,This will reduce the

possibility of danger to children.

7. This wine cooler should not be recessed or built-in an enclosed

SAFETY PRECAUTIONS

cabinet ,It is designed for freestanding installation only

8. Do not operate your wine cooler in the presence of explosive fumes.

9. Do not store foods in wine cooler as interior temperature may not be

cool enough to prevent spoilage.

６

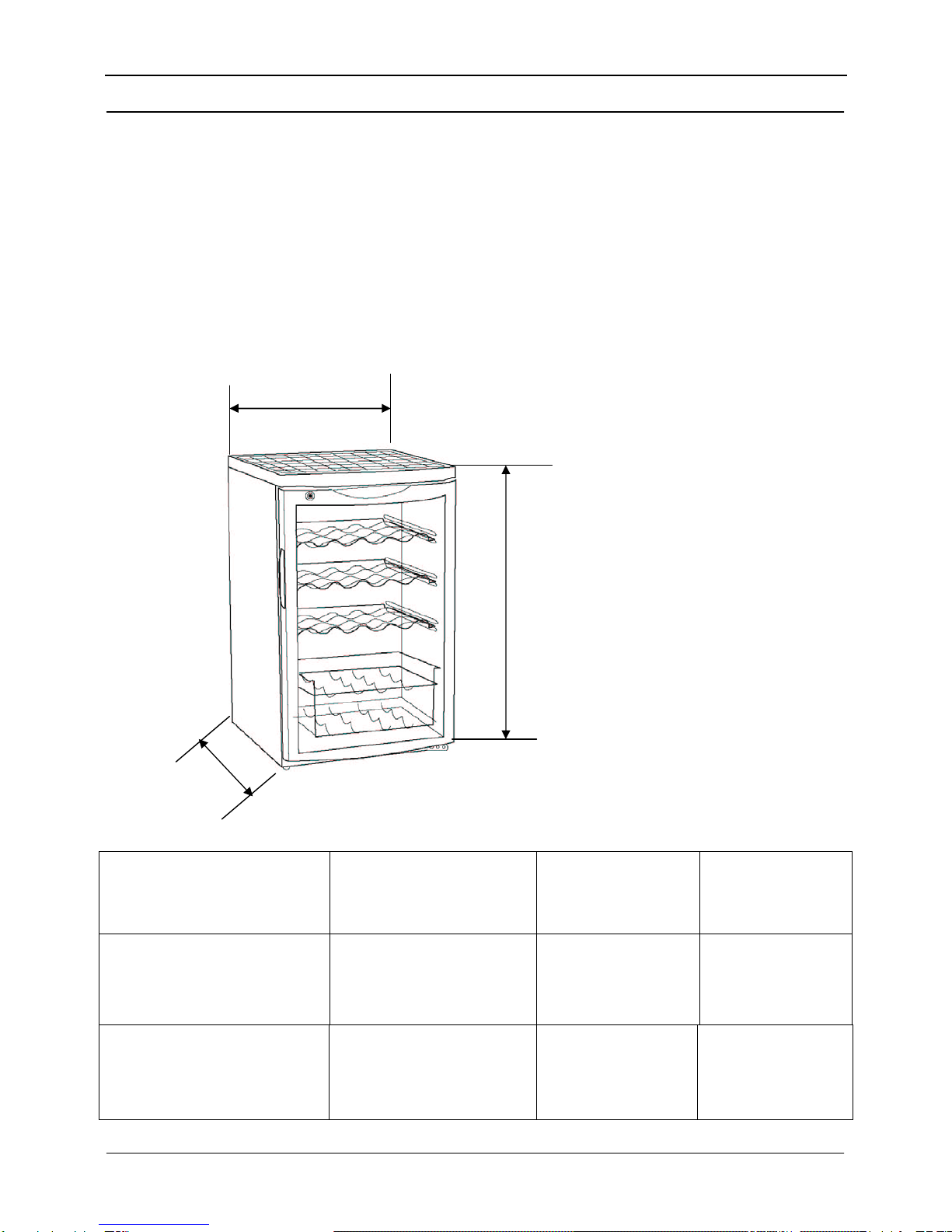

NET DIMENSION

Net Dimesion

Model JC-82G JC-112G

JC-152G

Unit Dimersion(W*D*H) 506*550*780 506*550*980 506*550*1280

Dimersion

(Opening door:1350)

506*950*780 506*950*980 506*950*1280

７

INSTALLATION AND ACCESSORY PARTS

Unpacking Your Wine Cooler

1.Remove all packaging material, This includes the foam base and all adhesive

tape holding the wine cooler accessories inside and outside ,compressor from

shipping damage due to vibration and shock.

2.Inspect and remove any remains of packing ,tape or printed materials before

powering on the wine cooler.

Leveling Your Wine Cooler

Your wine cooler has four leveling legs which are located in the front and rear

Corners of your wine cooler . After properly placing your wine cooler in its final

position ,you can level your wine cooler.

Leveling cooler or by turning them clockwise to lower your wine cooler, The wine

cooler door will close easier when the leveling legs are extended.

Proper Air Circulation

zTo assure your wine cooler works at the maximum efficiency it was designed

for ,you should install it in a location where there is proper air

circulation ,plumbing and electrical connections.

zThe following are recommended clearances around the wine cooler:

Sides…………..2”(50mm)

Top ……….……2”(50mm)

８

Back…………..2”(50mm)

zDo not over fill your wine cooler for proper internal air circulation.

INSTALLATION AND ACCESSORY PARTS

Electrical Requirement

zMake sure there is a suitable power Outlet(220-230V)with proper grounding to

power the wine cooler.

zAvoid the use of three plug adapters or cutting off the third grounding in order

to accommodate a two plug outlet ,This is a dangerous practice since it

provides no effective grounding for the wine cooler and may result in shock

hazard.

Install Limitations

zDo not install your wine cooler in any location not properly insulated or heated

e.g. garage etc, Your wine cooler was not designed to operate in temperature

settings below 13℃Centigrade.

zSelect a suitable location for the wine cooler on a hard even surface away

from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking

appliances etc, Any floor unevenness should be corrected with the leveling

legs located on the front and rear bottom corners of the wine cooler.

zYour wine cooler is designed for free-standing installation only, It is not

designed for built-in application.

Electronic Controlled Units:See fig.#1

Once you have plugged the unit into an electrical outlet, Let the unit run for at

least 30 minutes to acclimate itself before making any adjustments, during this

９

time the Red Wine light may stay on.

INSTALLATION AND ACCESSORY PARTS

Temperature Adjustments:

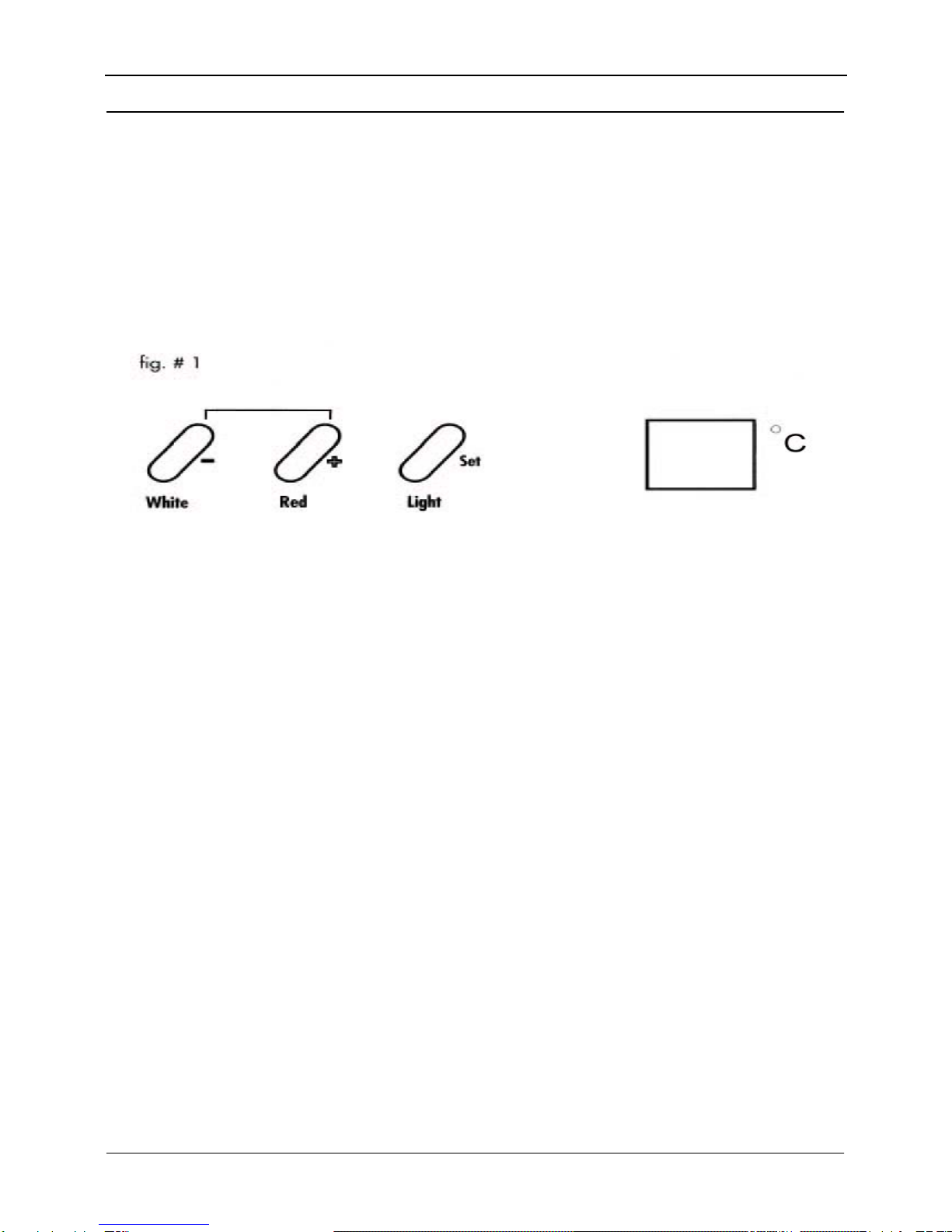

Electronic control unit: See fig.#1

zThe wine cooler is preset in the factory to automatically accommodate

temperature requirements for red or white wines. If you store mostly white

wines, press the “White Wine” button and the wine cooler will maintain an

average temperature between 7℃to 10℃.Pushing the “Red wine” button will

yield an average temperature between 13℃to 16℃.

zThe wine cooler can be set to any temperature you desire to accommodate

your wine storage requirements. To set the temperature, press both the

“White Wine” and “Red Wine” button simultaneously and hold for

approximately 3 seconds. Now you are in temperature set mode. Decrease

the temperature by pushing the “Whine Wine” button and increase the

temperature by pressing the “Red Wine” button. Pressing the appropriate

button 3 times will adjust the temperature 3 degrees, press 4 times equals 4
