Hamilton Khaki Manuale utente

www.hamiltonwatch.com

H860.000.012

KHAKI

SUB / NAVY / NAVY GMT /

GMT 3 TZ / GMT AIR RACE

I N S T R U C T I O N M A N U A L

KHAKI SUB

KHAKI GMT AIR RACE

KHAKI NAVY GMT

KHAKI GMT 3 TZ

KHAKI NAVY

2© HAMILTON 2006 / KHAKI NAVY

Hamilton is delighted that you have chosen a timepiece from its collection. You have acquired a small

technological marvel that will serve you faithfully for many years. The most advanced technologies were

used throughout its manufacture and it underwent stringent controls before it was released for sale.

Recommendations

Like all micro-mechanical precision instruments, your Hamilton watch should be checked at least once every two

years. Entrust your watch only to an authorized Hamilton agent. To keep your watch water-resistant, make sure

that its sealing features are tested at every check-up.

The water-resistance of your watch is 20 ATM = 200 meters = 660 feet.

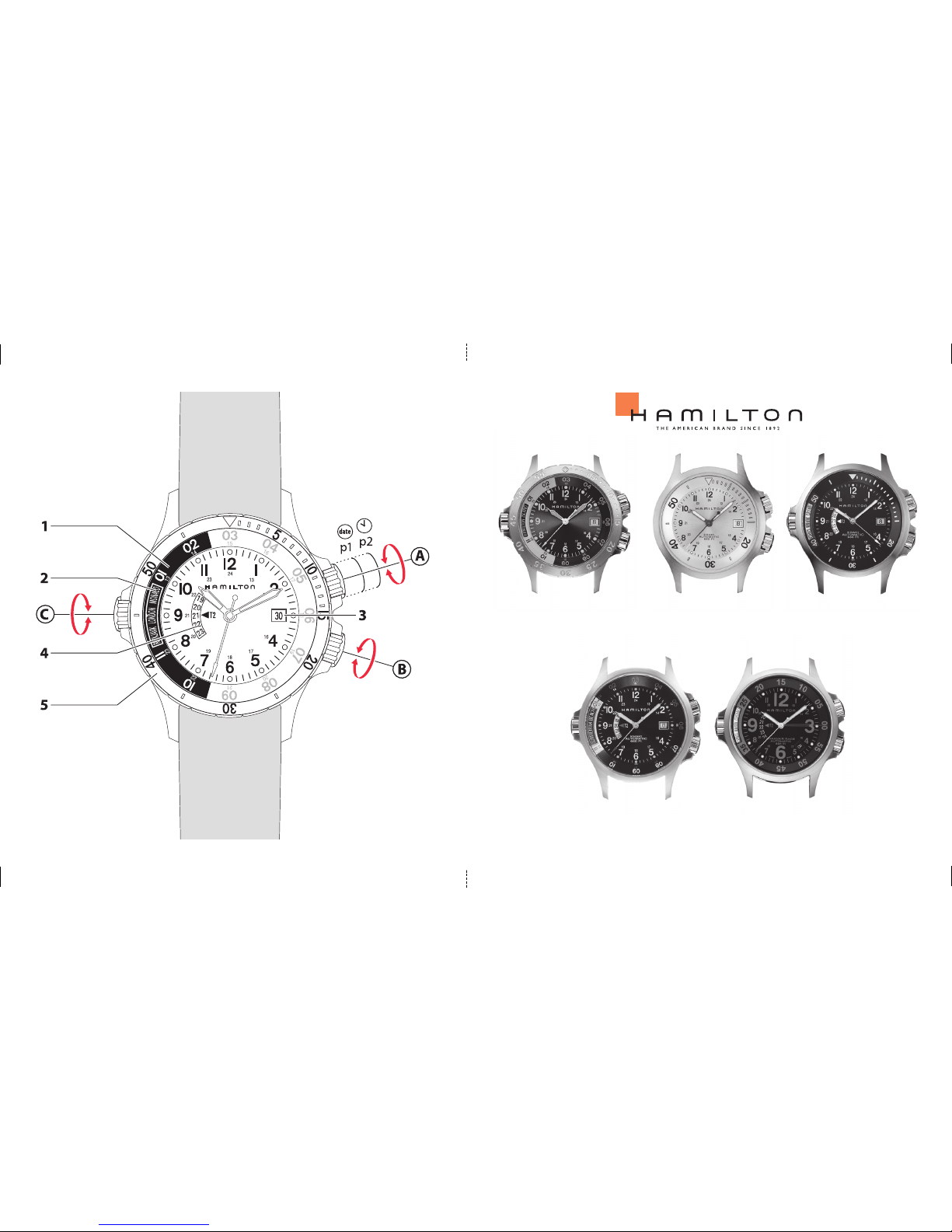

Legend:

A) Crown for adjustment of time and date

B) Crown for adjustment of interior rotating bezel

C) Crown for selection of city (according to model)

1) Interior rotating bezel

2) City (according to model): window in interior rotating bezel

3) Date

4) Time «T2» on the dial (according to model)

5) Exterior rotating bezel (according to model)

Functions SUB NAVY NAVY GMT GMT 3TZ

GMT

AIR RACE

Quartz movement ETA 955-112

Automatic movement ETA 2824-2 ETA 2893-1 ETA 2893-1 ETA 2893-1

Time «T1» XXXXX

Date XXXXX

Time «T2» on the dial XXX

Time «T2» or «T3» on the interior bezel X X

City X X X X

Elapsed time on the interior bezel X X

Elapsed time on the exterior bezel X

Countdown X

Running reserve (hours) 42 46 46 46

Quartz movement: the electrical energy of the battery makes the quartz at the interior of the movement oscillate

32,768 times per second. This high frequency gives great accuracy. The battery is type Renata 371 (SR 920 SW).

Automatic movement: the mechanism of the watch includes an oscillating rotor (28,800 alternations per

hour / 4Hz) that winds the mainspring via the movement of your wrist. If necessary, the watch may be rewound

manually. The beauty of the inner working of the watch movement can be admired through the transparent case

back.

* Used batteries and watch components should not be thrown away in household rubbish but

should be properly recycled. It is recommended that you bring them to your retailer.

© HAMILTON 2006 / KHAKI NAVY

Five basic rules for maintaining the

water-resistance of your watch

1. Have your watch checked regularly.

2. Do not move the crown when you are in water.

3. Rinse o your watch after having been in the sea.

4. Dry your watch whenever it gets wet.

5. Have your watch checked for water-resistance by

an authorized Hamilton agent each time the case

is opened.

Adjustment of time «T1»

1. Unscrew the crown (A).

2. Pull out the crown completely to position (p2).

The second hand stops.

3. Adjust the time by turning the crown in the

desired direction.

4. Push the crown completely back in and screw

it down again. The second hand starts again,

allowing precise synchronization with a time

signal.

Adjustment of the date

1. Unscrew the crown (A).

2. Pull out the crown to position (p1).

3. Turn the crown counterclockwise until the desired

date is displayed.

4. Push the crown completely back in and screw it

down again.

Adjustment of time zone «T2» on the

dial (according to model)

1. Unscrew the crown (A).

2. Pull out the crown to position (p1).

3. Turn the crown clockwise until the time «T2» is

facing the arrow.

4. Push the crown completely back in and screw it

down again.

Adjustment of time zone «T2» or «T3»

on the interior bezel (according to model)

1. Unscrew the crown (B).

2. Turn the crown until the interior bezel graduation

that represents the desired time dierence is

positioned at 12 o’clock on the dial.

Ex. +3 hours of time dierence:

Read the local time 3.30 and the time «T2» 6.30.

3. Screw the crown down again.

Selection of city (according to model)

1. Unscrew the crown (C).

2. Turn the crown to display in the window the

name of the city corresponding to the value «T2»

or «T3».

3. Screw the crown down again.

Elapsed time on the exterior bezel

(Khaki SUB)

1. Turn the exterior rotating bezel (5) clockwise until

the arrow points at the minute hand.

2. The minute hand will indicate the elapsed time on

the graduations of the bezel.

Elapsed time on the interior bezel

(according to model)

1. Unscrew the crown (B).

2. Turn the crown until the arrow of the interior

rotating bezel (1) points at the minute hand.

3. Screw the crown down again.

4. The minute hand will indicate the elapsed time on

the graduations of the interior bezel.

Countdown function (Khaki GMT Air Race)

1. Unscrew the crown (B).

2. Turn the crown so that the desired countdown

time points at the minute hand.

3. Screw the crown down again.

4. The countdown is at zero when the minute hand

is located over the marking (in the form of a

watch hand).

www.hamiltonwatch.com

H860.000.012

KHAKI

SUB / NAVY / NAVY GMT /

GMT 3 TZ / GMT AIR RACE

I N S T R U C T I O N M A N U A L
