Brookedale by Hampton Bay

60” Brookedale

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit . . . . . . . . . . . 10

Operating Your Transmitter . . . . . . . . . . . 11

Care of Your Fan . . . . . . . . . . . . . . . . 13

Troubleshooting . . . . . . . . . . . . . . . . . 13

Specifications . . . . . . . . . . . . . . . . . . 14

Warranty Information . . . . . . . . . . . . 15

792145353935

219032

247-008

Safety Rules - Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 50 pounds. Use only UL

Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

10.

11.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL

INJURY, MOUNT TO OUTLET BOX MARKED "ACCEPTABLE FOR

FAN SUPPORT OF 22.7 KG (50 LBS.) OR LESS" AND USE MOUNTING

SCREWS PROVIDED WITH THE OUTLET BOX.

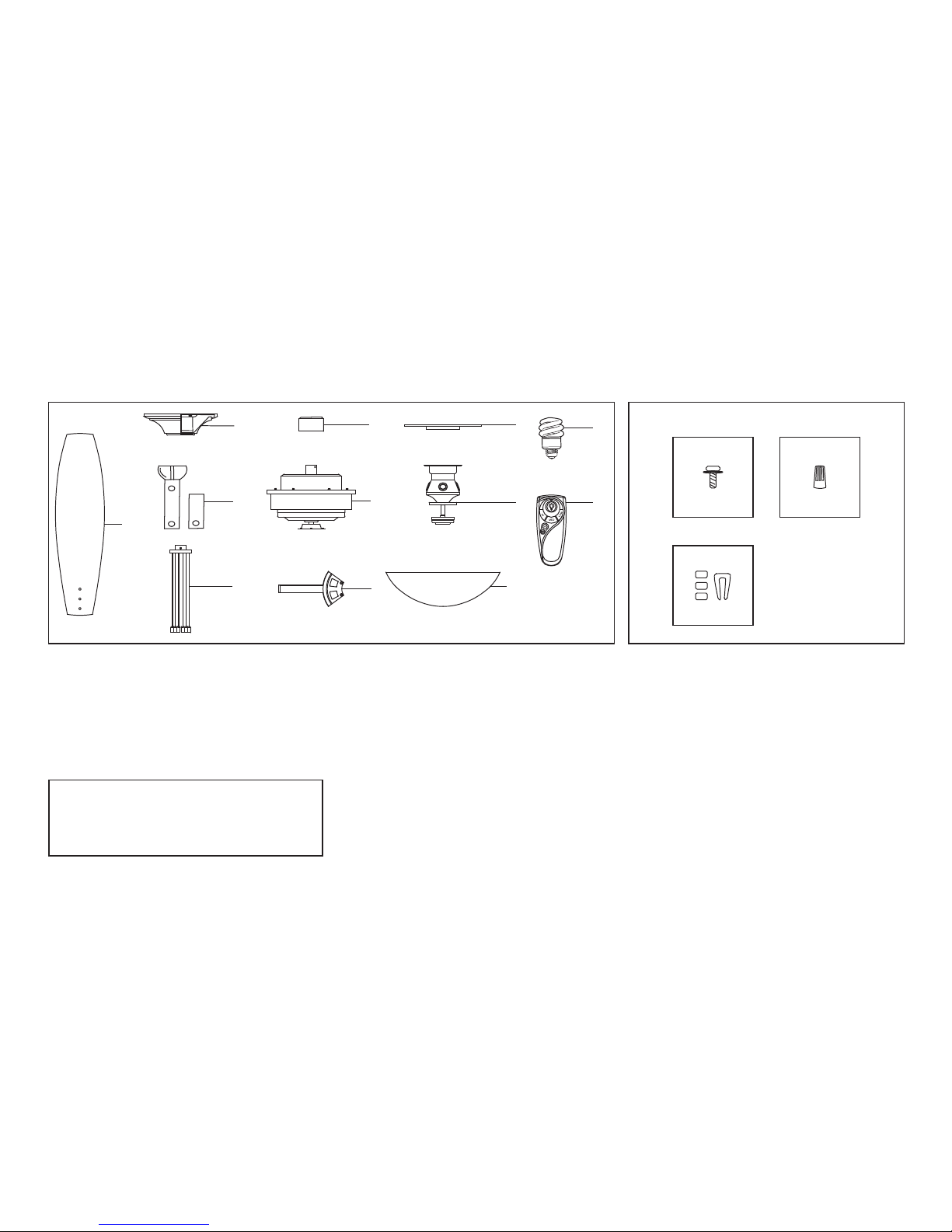

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

Set of blades (5)

Canopy assembly

Ball/downrod assembly (1)

& extra downrod (1)

Decorative cable wire assembly

Coupling cover

Fan motor assembly

Blade arms (5)

Mounting plate

Light kit

Glass shade

13 Watt compact fluorescent bulbs (2)

Transmitter+holder+2 mounting

screws + 2 plastic plugs

10.

11.

12.

Blade Attachment Hardware

(16 Screws with Fiber Washers)

Electrical Hardware

(3 Plastic Wire Nuts)

Balancing Kit

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-902-5588.

126 9

Installing Your Fan

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,

OR PERSONAL INJURY, MOUNT TO OUTLET BOX

MARKED "ACCEPTABLE FOR FAN SUPPORT OF

22.7 KG (50 LBS.) OR LESS" AND USE MOUNTING

SCREWS PROVIDED WITH THE OUTLET BOX.

MOST OUTLET BOXES COMMONLY USED FOR

THE SUPPORT OF LIGHT FIXTURES ARE NOT

ACCEPTABLE FOR FAN SUPPORT AND MAY

NEED TO BE REPLACED. DUE TO THE

COMPLEXITY OF THE INSTALLATION OF THIS

FAN, A QUALIFIED LICENSED ELECTRICIAN IS

STRONGLY RECOMMENDED.

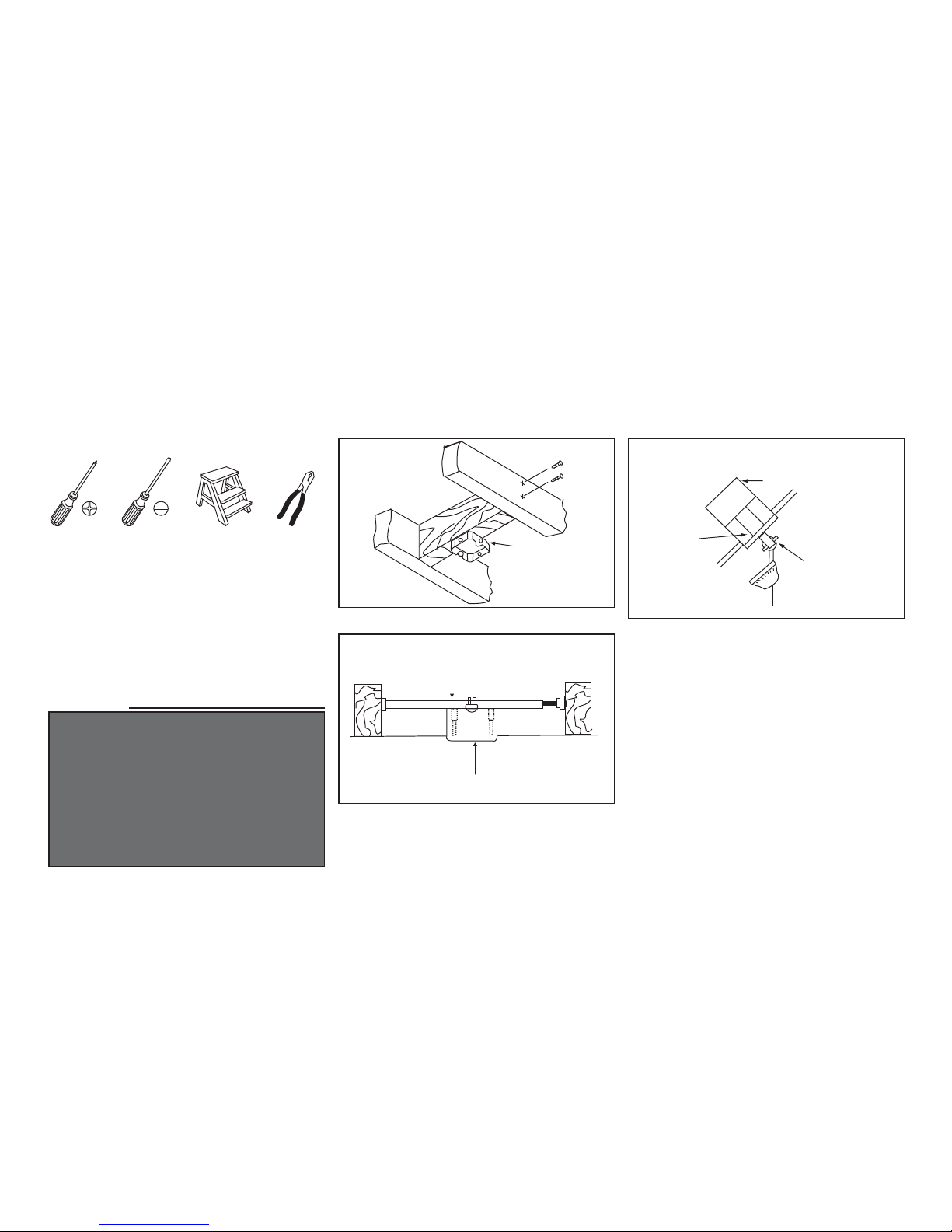

Figure 2

Figures 1~3 are examples of different ways to

mount the outlet box.

Outlet Box

Figure 1

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

heavy duty fan brace as shown in Figure 2

(available at any Home Depot store).

Figure 3

Heavy Duty Outlet Box for Fan

Heavy Duty Fan Brace

Provide Strong Support

Recessed

Outlet Box

Mounting bracket

opening must be

toward the top

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 50 lbs). Do not use plastic outlet boxes.

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum angle

allowable is 18°. If the canopy touches downrod,

remove the decorative canopy bottom cover and

turn the canopy 180°before attaching the canopy

to the mounting plate.

Phillips screwdriver, straight slot screwdriver, step

ladder and wire cutters.

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

Hanging the Fan

WARNING

FAILURE TO PROPERLY INSTALL COTTER

PIN AS NOTED IN STEP 6 COULD RESULT IN

FAN LOOSENING AND POSSIBLY FALLING.

Tighten two set screws at top of the fan motor

collar firmly and evenly. (Fig. 5)

Place the nut at the end of the decorative cable

wire to the screw on the top of the motor

housing. Tighten the nut to the screw. Repeat

this procedure for the remaining decorative

cable wires. Secure the coupling with setscrew

tightly. (Fig. 6)

Remove the decorative canopy bottom cover

from the canopy by turning the cover counter

clockwise. (Figure 4)

Remove the mounting bracket from the canopy

by removing the 1 of 2 screws from the

bottom of the mounting bracket and loosening

the other one a half turn from the screw head.

Next, turn the canopy counter clockwise to

removing the mounting bracket from the

canopy. (Figure 4)

Remove the clevis pin, cotter pin and set

screws from the top of the motor assembly.

(Fig.5)

Loosen the setscrew from the coupling located

at the top of the decorative cable wire

assembly.

Route wires exiting from the top of the fan

motor through the coupling cover, decorative

cable wire assembly, canopy cover, canopy

and then through the ball/downrod. (Fig. 5)

Align the holes at the bottom of the downrod

with the holes in the coupling on top of the

motor housing. (Figure 5) Carefully insert the

clevis pin through the holes in the collar and

downrod. Be careful not to jam the clevis pin

against the wiring inside the downrod. Insert

the cotter pin through the hole near the end of

the clevis pin until it snaps into its locked

position, as noted in the circle inset of Fig. 5.

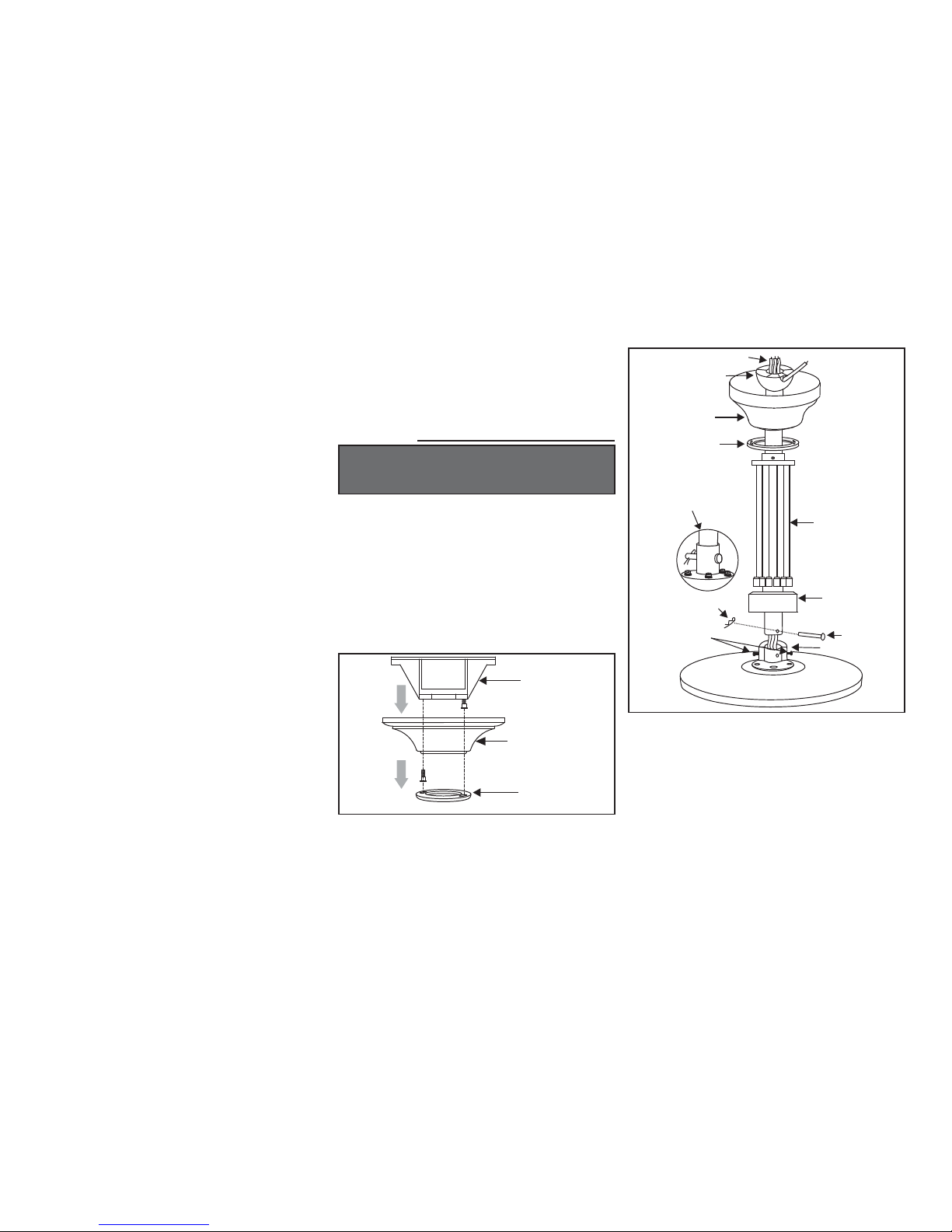

Figure 4

Ceiling

Mounting

Bracket

Ceiling Canopy

Canopy Bottom

Cover

Figure 5

Motor Wires

Ceiling Canopy

Ball/Downrod

Assembly

Canopy Bottom

Cover

Cotter Pin

Tighten Screw

Firmly Motor Collar

Clevis Pin

Coupling

Cover

Decorative Cable

Wire Assembly

Pin in Locked

Positioon

Changing the Downrod

(Optional)

Set Screw

Decorative

Cable

Nut

Screw

Figure 6

NOTE: Your fan comes with a 12" downrod

attached to the hanger ball. In addition you have

been provided with a 4-1/2" downrod to use if

desired. If you choose to use the 4-1/2" downrod,

perform the following steps:

Remove the hanger ball from the 12" downrod

by loosening the set screw at the top of the

downrod which holds the hanger ball to the

downrod.

Slide the hanger ball down the downrod and

remove the support pin.

Insert the support pin in the holes at the top of

the 4-1/2" downrod and slide the hanger ball up

the 4-1/2" downrod. Make sure the support pin

is properly seated in the grooves in the top of

the hanger ball.

Tighten the set screw firmly.

Figure 8

Groove

Tab

WARNING

THE TAB IN THE RING MUST REST IN THE

GROOVE OF THE HANGER BALL AS FIGURE 8.

FAILURE TO PROPERLY SEAT THE TAB IN

THE GROOVE COULD CAUSE DAMAGE TO

WIRING.

Figure 7

Ceiling

Mounting

Bracket

120V

Wires

Washers

Tab

UL Listed

Outlet Box

Posts in the

Outlet Box

Mounting

Screws (Supplied

with Electrical Box)

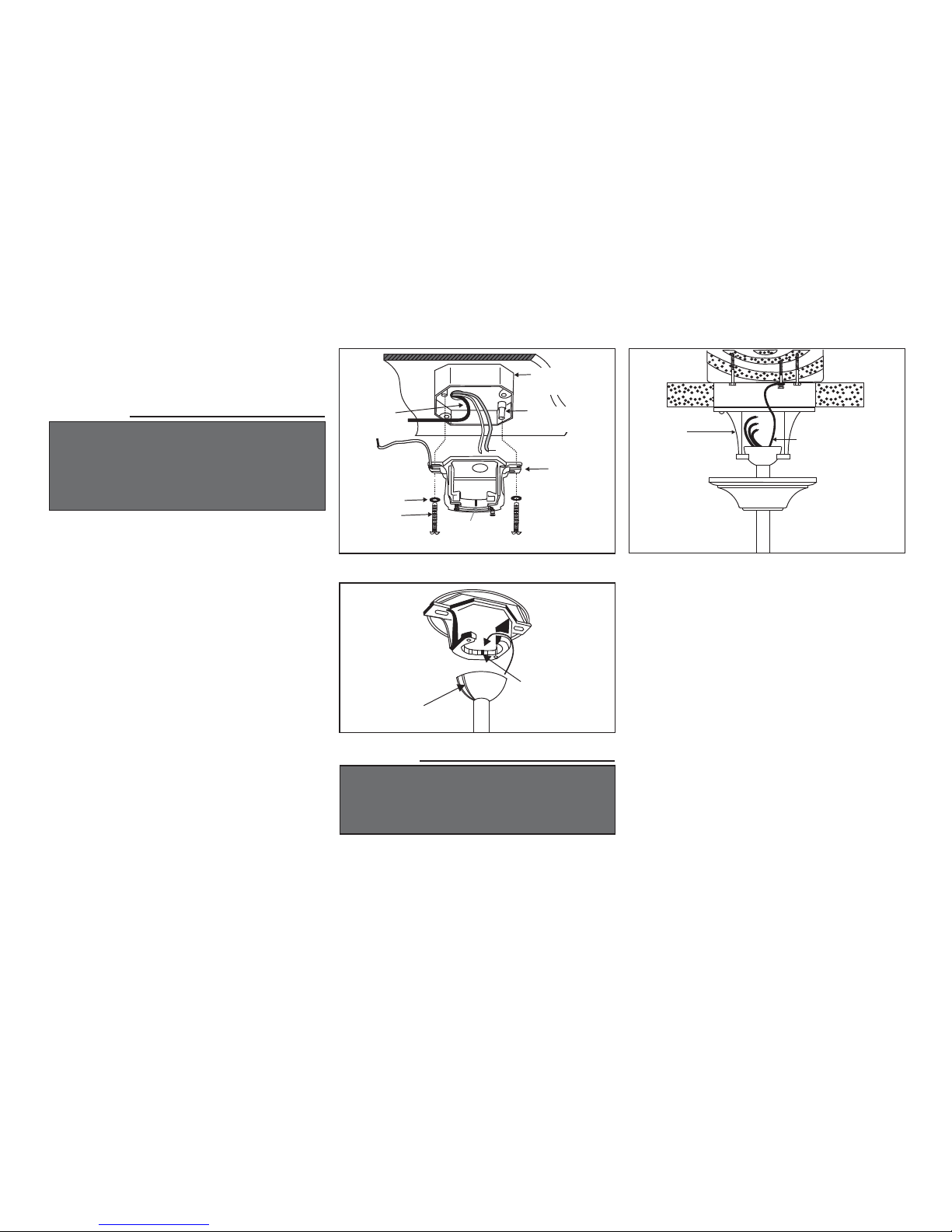

Figure 9

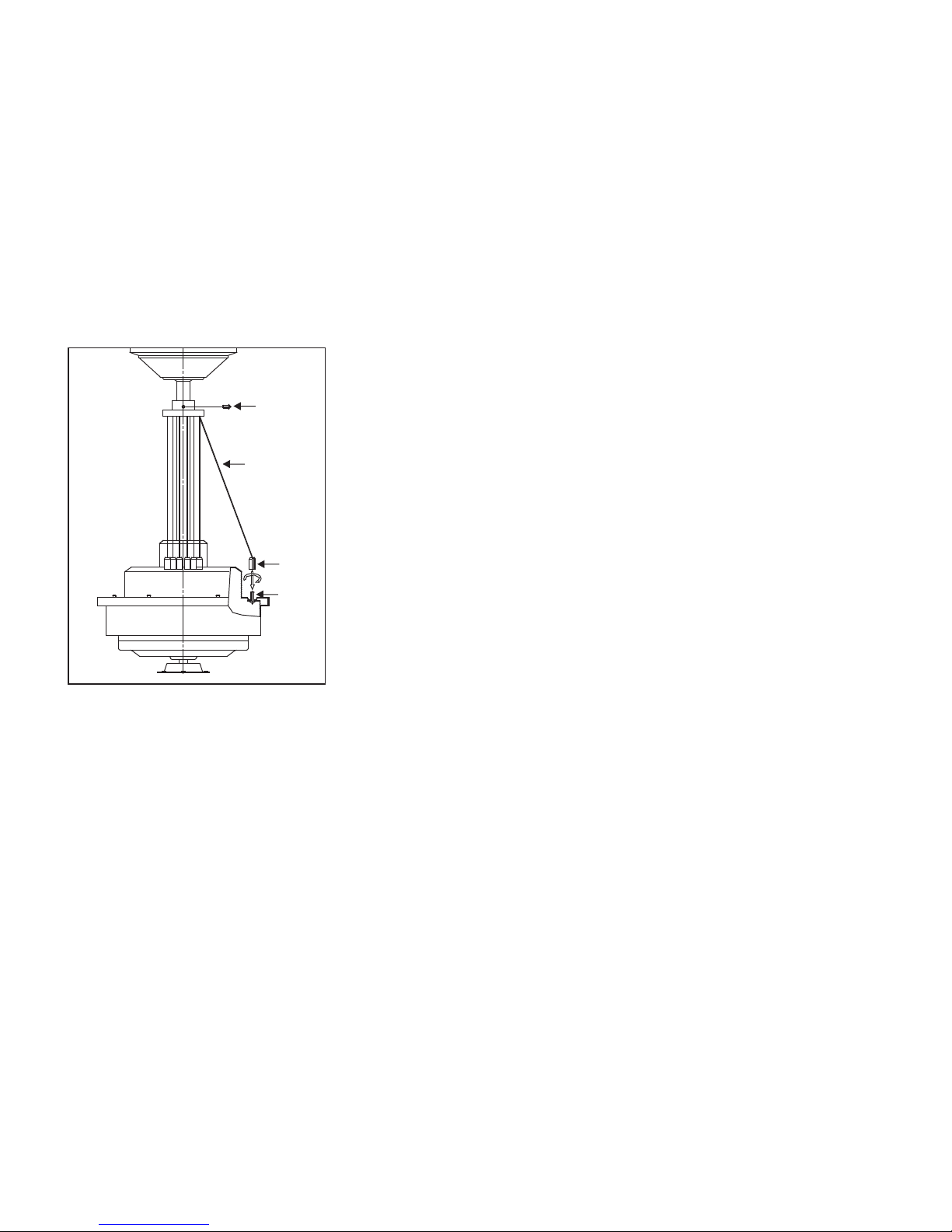

Safety Cable

Ceiling

Mounting

Bracket

Installing Fan to the

Electrical Box

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR OTHER PERSONAL INJURY.

MOUNT FAN ONLY TO AN OUTLET BOX OR

SUPPORTING SYSTEM MARKED ACCEPTABLE

FOR FAN SUPPORT AND USE THE MOUNTING

SCREWS PROVIDED WITH THE OUTLET BOX.

WARNING

Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket as

shown in Figure 7.

Install the ceiling mounting bracket to the

outlet box; be sure to align the holes in the

hanger bracket with the post holes in the outlet

box and secure with screws and washers

provided by the outlet box. (Fig. 7)

Security tighten the two mounting screws.

Carefully lift the fan assembly up to the ceiling

mounting bracket and seat the hanger ball in

the mounting bracket socket. Make sure the tab

on the mounting bracket socket is properly

seated in the groove in the hanger ball (Figure

8). This will help to balance the ceiling fan.

Secure the safety cable to the building structure

as shown in Figure 9.

Connect the fan supply (black) wire to the

black household supply wire as shown in

Figure10.

Connect the neutral fan (white) wire to the

white neutral household wire.

Connect the fan ground wire (green) to the

household ground wire.

After connecting the wires, spread them apart

so that the green and white wires are on one

side of the outlet box and the black wires are on

the other side.

Turn the connecting nuts upward and push the

wiring into the outlet box.

REMEMBER to disconnect the power.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the wire nuts supplied with

your fan. Secure the wire nuts with electrical tape.

Make sure there are no loose strands or

connections.

WARNING

CHECK TO SEE THAT ALL CONNECTIONS ARE

TIGHT, INCLUDING GROUND, AND THAT NO

BARE WIRE IS VISIBLE AT THE WIRE NUTS.

EXCEPT FOR THE GROUND WIRE.

WARNING

ELECTRICAL DIAGRAMS ARE FOR REFER-

ENCE ONLY. OPTIONAL USE OF ANY LIGHT

KIT SHALL BE UL LISTED AND MARKED

SUITABLE FOR USE WITH THIS FAN.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK. DO NOT USE THIS FAN WITH ANY

SOLID-STATE SPEED CONTROL DEVICE.

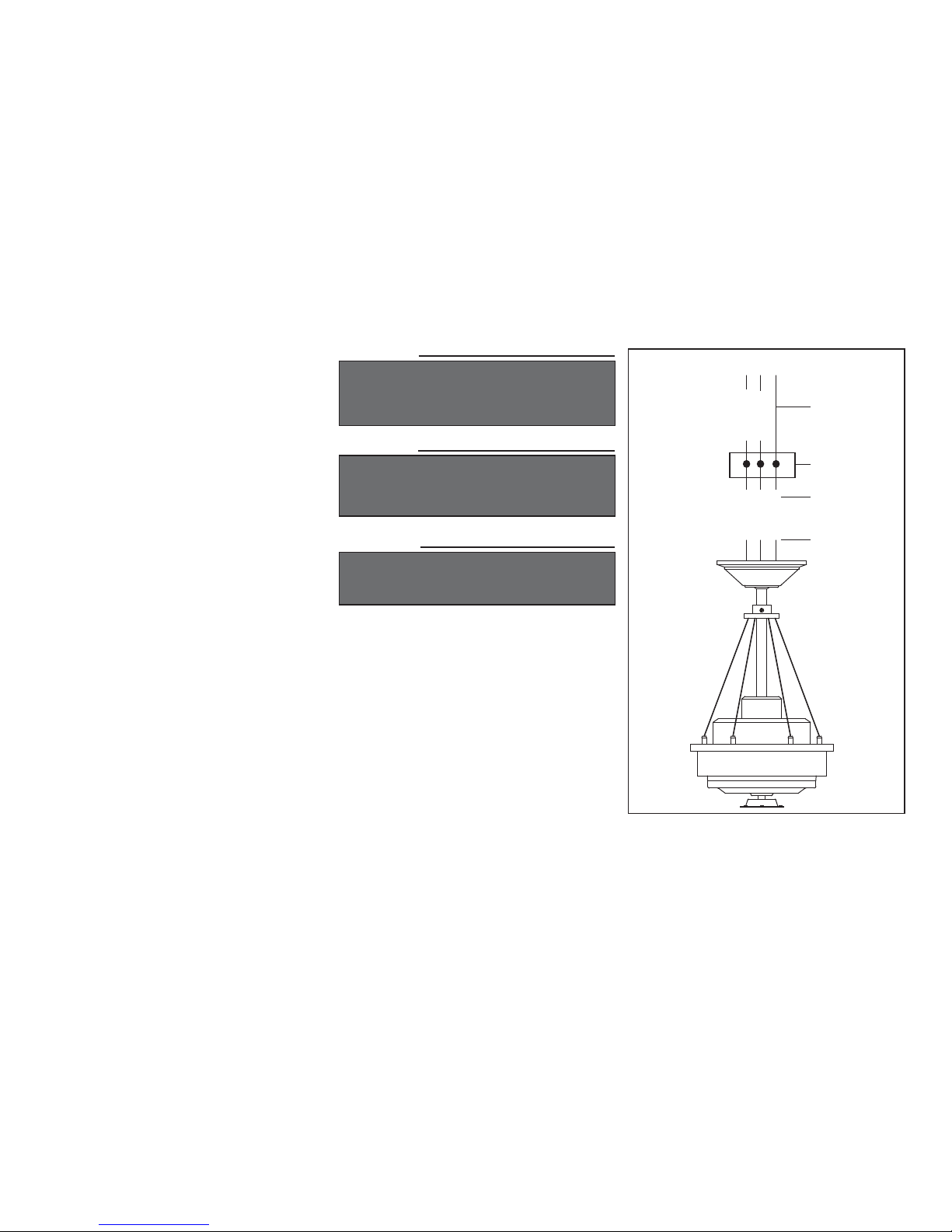

Figure 10

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green Ground

Lead

Ground to

Fan

BLACK

WHITEWHITE

BLACK

GREEN

Making the Electrical

Connections

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HAMPTON BAY Fan

HAMPTON BAY

HAMPTON BAY YG269AP-MWH Manuale utente

HAMPTON BAY

HAMPTON BAY LYNDHURST 51015 Manuale utente

HAMPTON BAY

HAMPTON BAY 582-052 Manuale utente

HAMPTON BAY

HAMPTON BAY BISTRO 499 430 Manuale utente

HAMPTON BAY

HAMPTON BAY RIVERWALK Manuale utente

HAMPTON BAY

HAMPTON BAY Altura 128 925 Manuale utente

HAMPTON BAY

HAMPTON BAY 55370 Manuale utente

HAMPTON BAY

HAMPTON BAY AERATRON Manuale utente

HAMPTON BAY

HAMPTON BAY CAPRICE SW19151R MWH Manuale utente

HAMPTON BAY

HAMPTON BAY 593-548 AC324A-WH Manuale utente

HAMPTON BAY

HAMPTON BAY VFB25ACLED1-5 Manuale utente

HAMPTON BAY

HAMPTON BAY Northport 178-047 Manuale utente

HAMPTON BAY

HAMPTON BAY LOOMIS YG990-MBK Manuale utente

HAMPTON BAY

HAMPTON BAY BPT18-34A-5 Manuale utente

HAMPTON BAY

HAMPTON BAY ASHBURTON YG593-TB Manuale utente

HAMPTON BAY

HAMPTON BAY San Lorenzo Manuale utente

HAMPTON BAY

HAMPTON BAY CEDAR LAKE 52109 Manuale utente

HAMPTON BAY

HAMPTON BAY NORWOOD 52129 Manuale utente

HAMPTON BAY

HAMPTON BAY Vasner Manuale utente

HAMPTON BAY

HAMPTON BAY Portsmouth Manuale utente

HAMPTON BAY

HAMPTON BAY WELLSTON EF200B-44 Manuale utente

HAMPTON BAY

HAMPTON BAY 68144 Manuale utente

HAMPTON BAY

HAMPTON BAY Lonestar 52 Manuale utente

HAMPTON BAY

HAMPTON BAY FE30-DM Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
