HAMPTON BAY FS40-21MA Manuale utente
THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this [product description].
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of
products available for your home improvement needs. Thank you for choosing Hampton Bay!
Item #1000 000 000
Model #FS40-21MA
USE AND CARE GUIDE
THD PRODUCT NAME: 16-INCH STAND FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
2
WARNING
1. This appliance has a polarized plug (one blade is wider than the other).
To reduce the risk of electric shock, this plug is intended to fit in a
polarized outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electrician. Do
not attempt to defeat this safety feature.
2. WARNING—To reduce the risk of fire or electric shock, do not use this
fan with any solid-state speed control device.
3. This product employs overload protection (fuse). A blown fuse indicates
an overload or short-circuit situation. If the fuse blows, unplug the
product from the outlet. Replace the fuse as per the user servicing
instructions (follow product marking for proper fuse rating) and
check the product. If the replacement fuse blows, a short-circuit may
be present and the product should be discarded or returned to an
authorized service facility for examination and/or repair.
a) “Do not operate any fan with a damaged cord or plug. Discard fan or
return to an authorized service facility for examination and/or repair.”
b) “Do not run cord under carpeting. Do not cover cord with throw rugs,
runners, or similar coverings. Do not route cord under furniture or
appliances. Arrange cord away from traffic area and where it will not
be tripped over.”
CAUTION
Read Rules for Safe Operation and Instructions carefully.
Table of Contents
Table of Contents .......................................................... 2
CAUTION .................................................................... 2
WARNING ........................................................................ 2
WARNING ........................................................................ 3
RULES FOR SAFE OPERATION ................................... 4
PART FIGURE ........................................................ 5
Notice:....................................................................6
ASSEMBLY OF CROSS STAND & COLUMN UNIT. 7
ASSEMBLY OF CROSS STAND & COLUMN UNIT. 8
FRONT AND REAR GUARD INSTALLATION......... 9
FRONT AND REAR GUARD INSTALLATION.........10
USER SERVICING INSTRUCTIONS ......................11
CLEANING ..........................................................11
3 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
4. Do not leave the fan running unattended.
5. Keep electrical appliances out of reach from children or infirm persons.
Do not let them use the appliances without supervision.
6. If the supply cord is damaged, it must be replaced by manufacturer
or its service agent or a similarly qualified person in order to avoid a
hazard.
7. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not
play with the appliance.
8. When the fan was assembled, the rotor blade guard shall not be taken
off anymore.
- Prior cleaning unplug the fan.
- The rotor guard shall not be dissembled/opened to clean the rotor
blades.
- Wipe the fan enclosure and rotor blade guard with a slightly damp
cloth.
WARNING
4
RULES FOR SAFE OPERATION
1. Never insert fingers, pencils, or any other object through the grille when
fan is running.
2. Disconnect fan when moving from one location to another.
3. Be sure fan is on a stable surface when operating to avoid overturning.
4. DO NOT use fan in window, rain may create electrical hazard.
5. Household use only.
5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

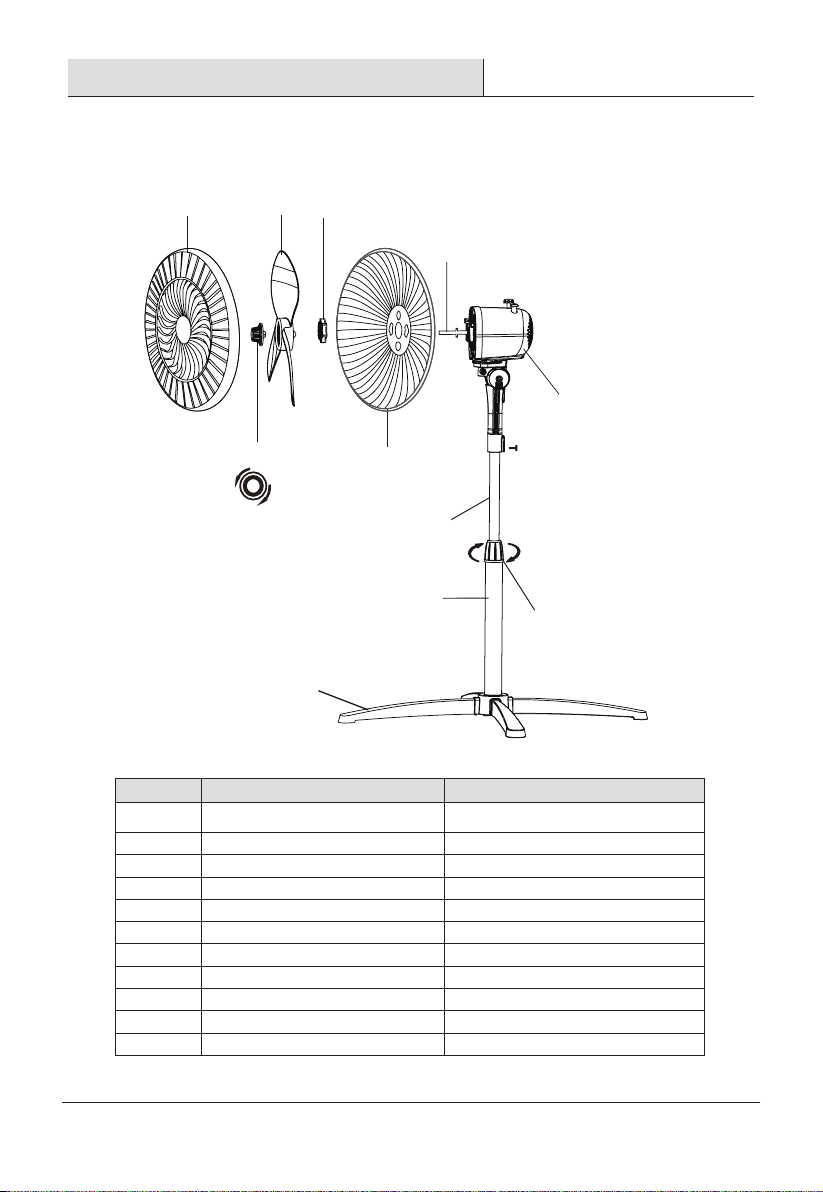

PART FIGURE
Package Contents
Part Description Quantity
A Front grill 1
B Fan blade 1
C Plastic nut 1
D Rear grill 1
E Motor shaft 1
F Motor housing 1
G Spinner 1
H Internal Pole 1
I Extension Pole 1
J Height adjustment ring 1
K Stand 1
A B C
D
E
F
G
H
J
K
Tighten
Loosen
Fasten
I
6
Notice:
All the pictures in this manual are for explanation purpose only. Any discrepancy between
the real object and the illustration in the drawing shall be subject to the real subject.
7 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

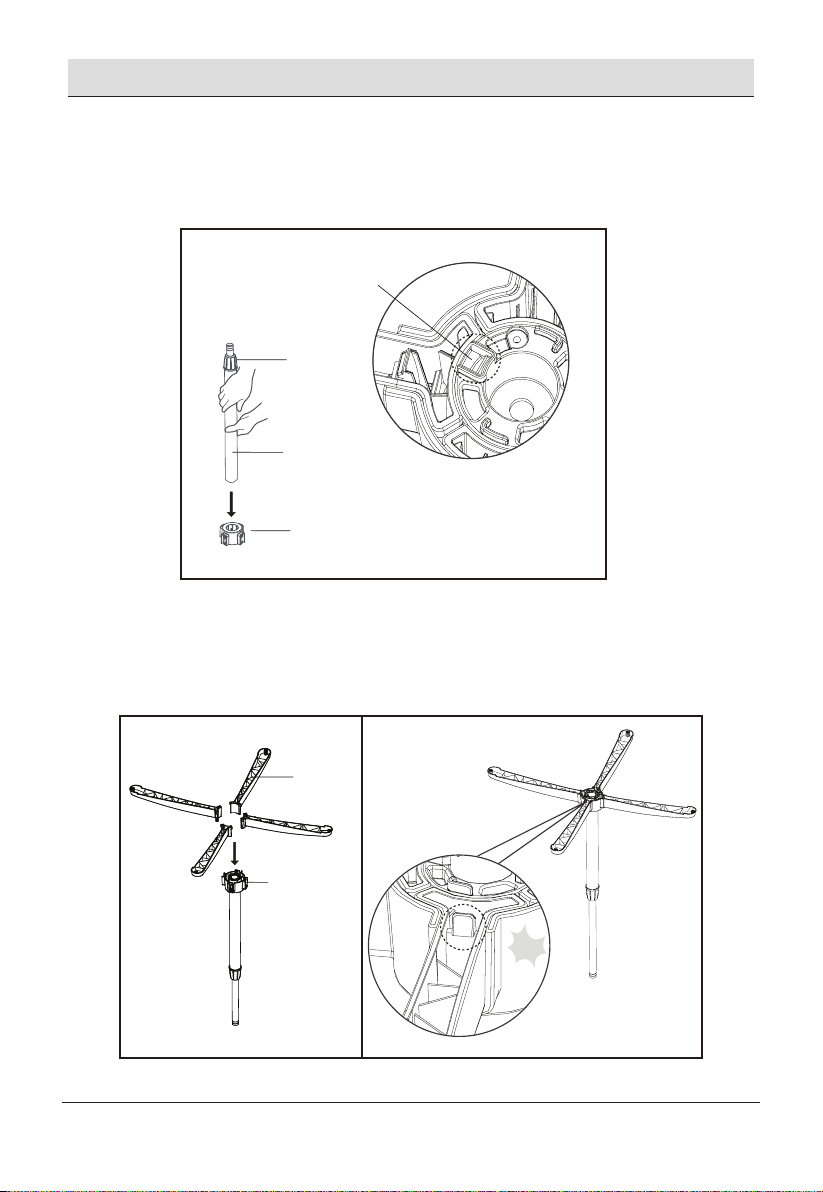

1. Insert the pole assembly into the connector from top to bottom, ensure it is installed
in place(Through the through hole at the bottom of the connector, it can be judged
whether the pole is installed in place) .(Fig.1)
Fig.1
Fig.2 Fig.3
Observation hole
Stand
Crossbase
connector
Pole assembly
Crossbase connector
Height
adjustment
ring
ASSEMBLY OF CROSS STAND & COLUMN UNIT
2. Insert 4 stands into the crossbase connector. Ensure the stands are well fixed into the
connector.(Fig.2,3)
Pa!
8

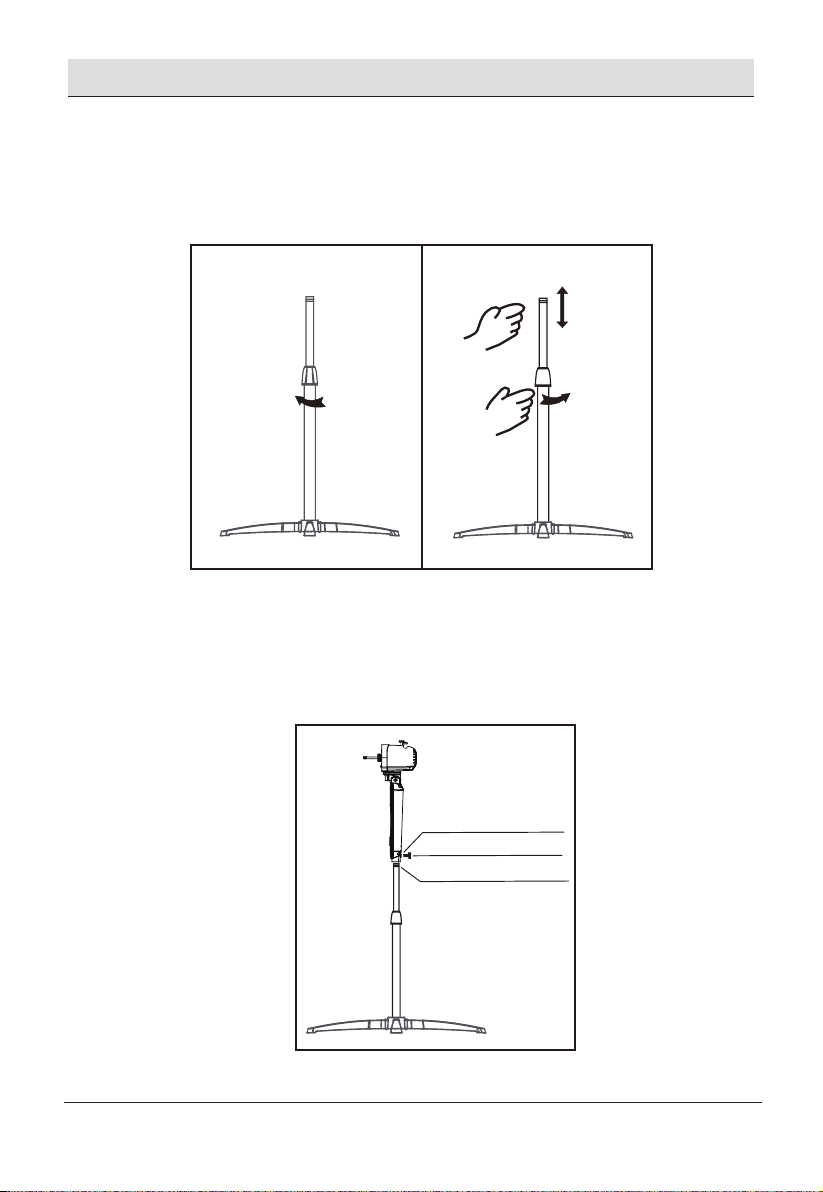

3. From the extension pole loosen the height adjustment ring and adjust the internal
pole to the desired height. (Note: If you can’t find the internal pole, it slides inside
the extension pole. You can pull it out from the extension pole.) Fasten the height
adjustment ring.(Fig.4,5)
ASSEMBLY OF CROSS STAND & COLUMN UNIT
4. To attach the head unit to the internal pole, loosen the thumb screw on the bottom of
the head unit. Place the head unit on the internal pole and tighten the thumb screw in
alignment with the groove on the internal pole. (Fig.6)
Fig.4
Fig.6
Fig.5
Tighten Loosen
Screw installation hole
Thumb screw
Mounting hole
9 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

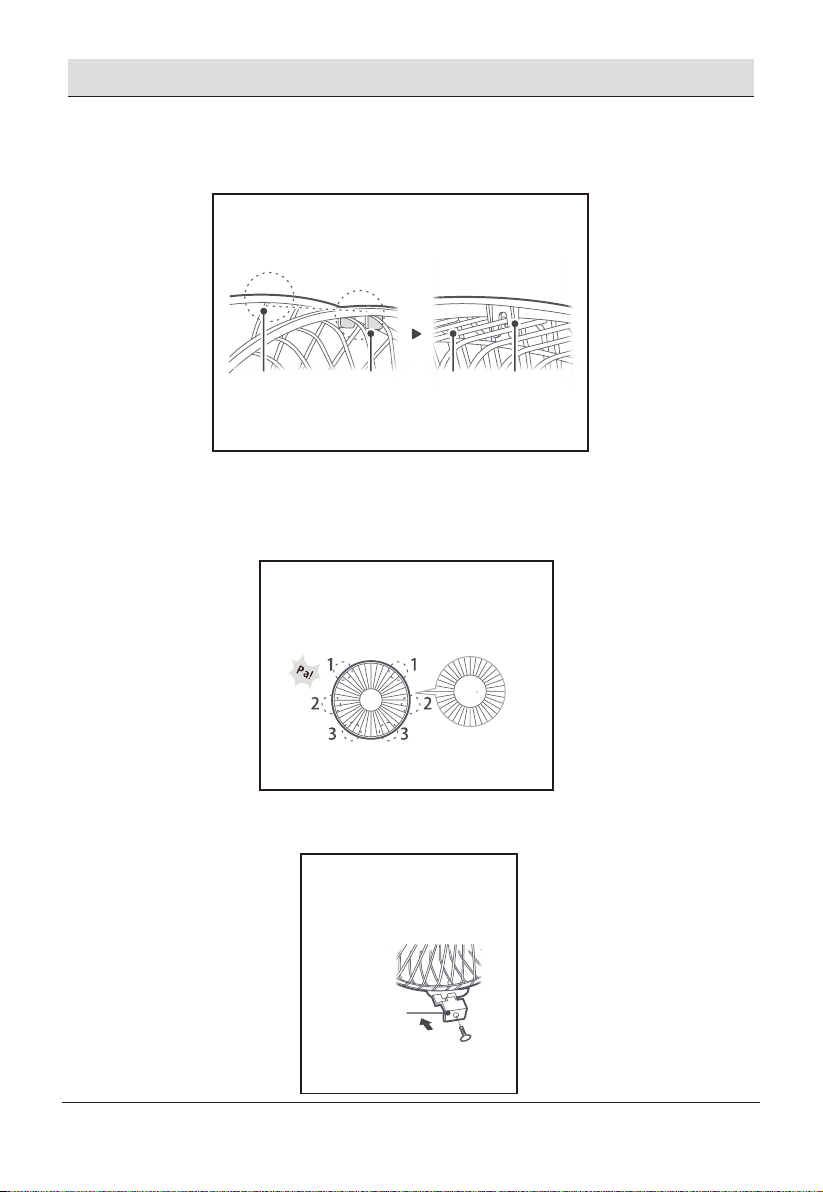

1. Align the front grill buckle with the top line of the rear grill from top to bottom, after
aligning, look at the schematic from the back.(Fig.7)
FRONT AND REAR GUARD INSTALLATION
Grill line
Grill buckle
Buckle Grill line Buckle
2. Press the grill in both hands in sequence, and when it is installed, you will hear a click.
(Fig.8)
3. Self-locking installation.(Fig.9)
Fig.7
Fig.8
Fig.9
10
1. Speed is controlled by the Knob switch:
0---Off 1---Low 2---Medium 3---High
2. To make/stop the fan head oscillate. Push down/pull up the clutch knob.
3. To adjust the air flow upward or downward, push the grilles lightly to the desired
direction.
4. The height of the fan can be adjusted by loosening the height adjustment ring, carefully
carefully raising or lowering the fan and firmly re-tightening the height adjustment
ring.
FRONT AND REAR GUARD INSTALLATION
