Hawkins

44 in Ceiling Fan

Owner’s Manual

Hawkins

Ventilador de Techo de 1,12 m

Manual del Propietario

122 135

44” Hawkins

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit. . . . . . . . . . . . . 8

Operating Your Fan . . . . . . . . . . . . . . . 9

Care of Your Fan . . . . . . . . . . . . . . . . 10

Troubleshooting . . . . . . . . . . . . . . . . . 10

Specifications . . . . . . . . . . . . . . . . . . 11

Warranty Information . . . . . . . . . . . . 12

122-135

792145352808

11289

Safety Rules - Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds, Use only UL

Listed outlet boxes marked “FOR FAN SUPPORT.”

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

10.

11.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET

BOX.

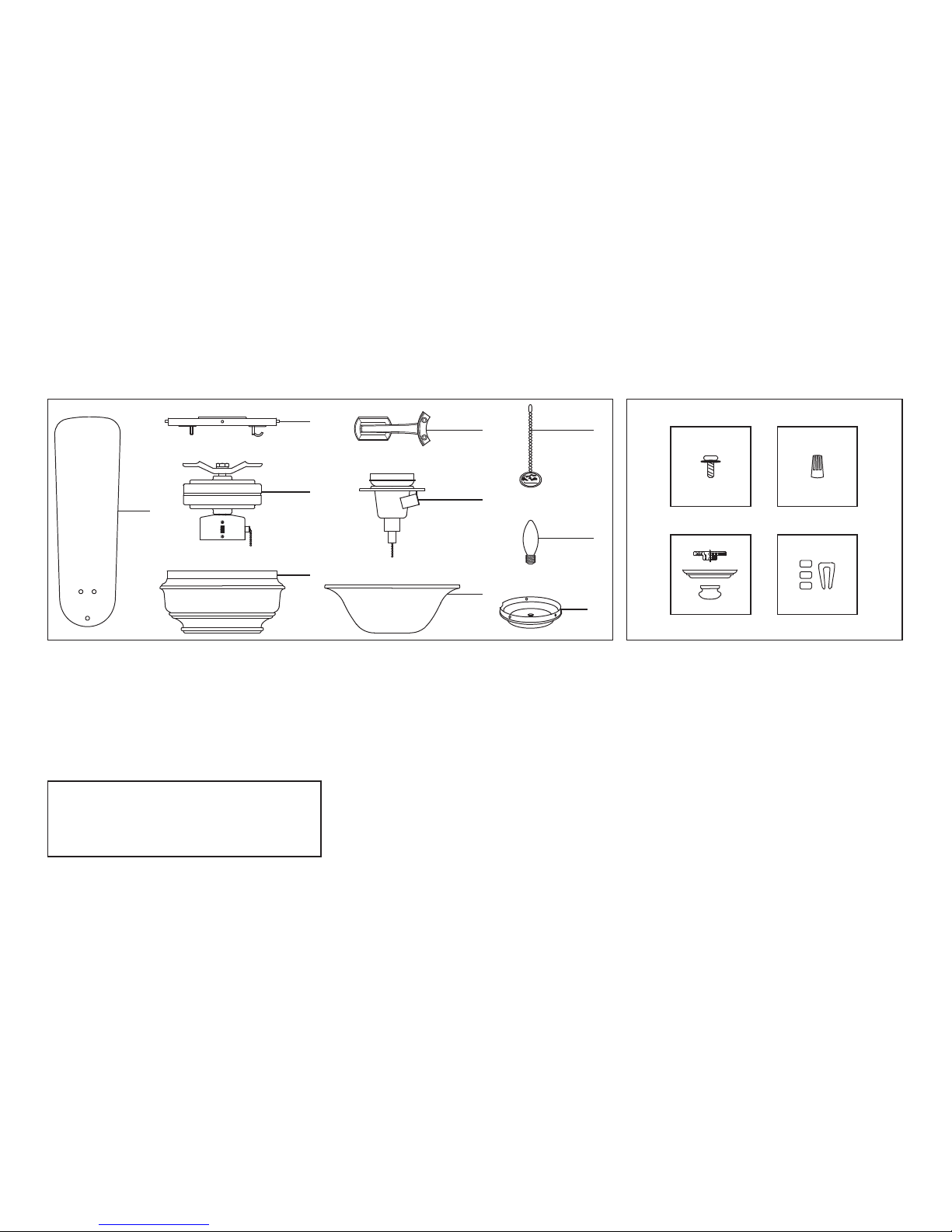

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

25 8

Set of blades (5)

Mounting bracket

Fan motor assembly

Motor housing

Blade arms (5)

Light kit

Glass shade

Pull chains and fobs (2)

40 Watt candelabra bulbs (3)

Extra switch housing cover

10.

Blade Attachment Hardware

(16 Screws with Fiber Washers)

Electrical Hardware

(3 Plastic Wire Nuts)

Light Kit Hardware

(Metal Nut, Glass Cap, Decorative Nut)

Balance Kit

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-898-1881.

Figure 2

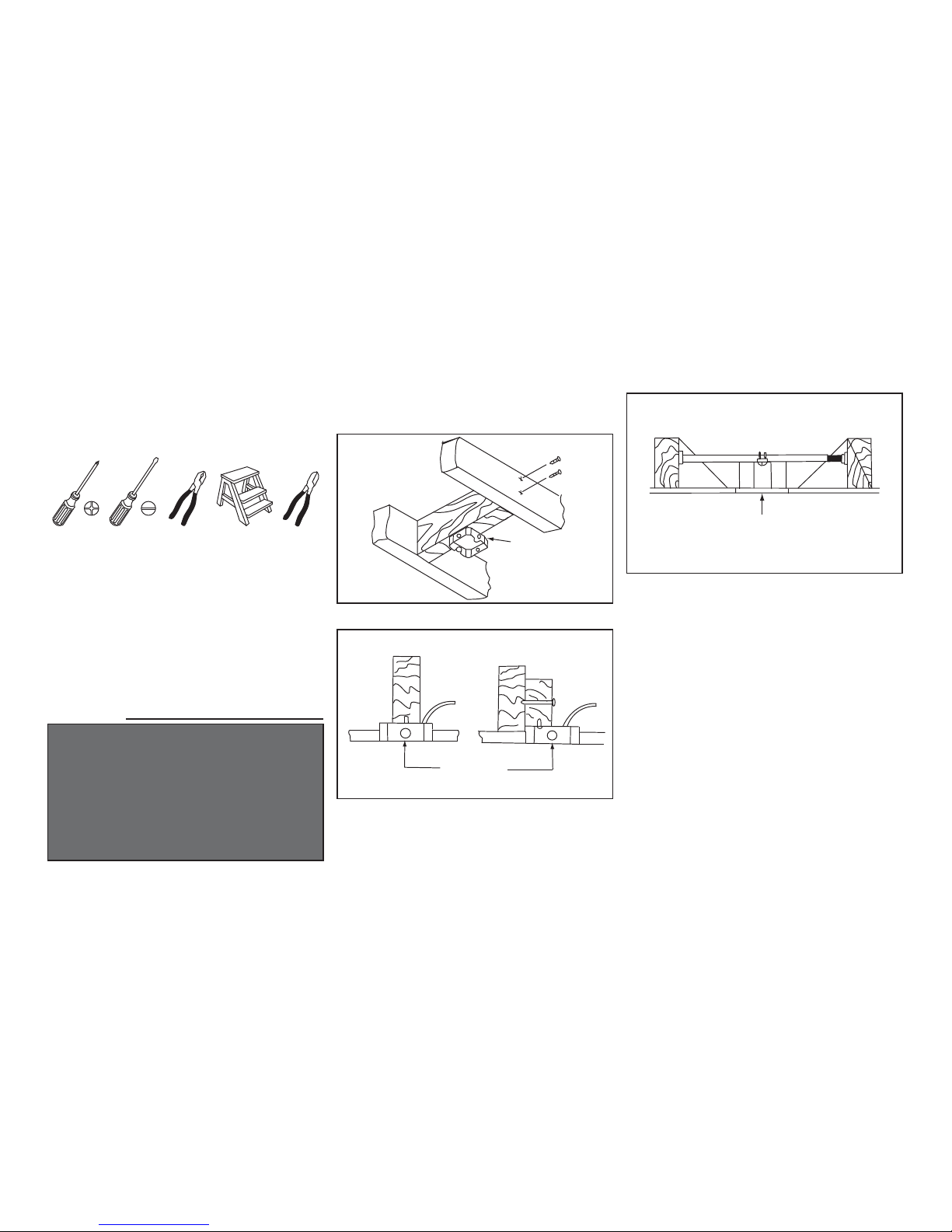

Figures 1 and 2 are examples of different ways to

mount the outlet box.

Outlet Box

Figure 1 To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 3 (available at any

Home Depot retailer).

Figure 3

Outlet Box

Installing Your Fan

Phillips screwdriver, straight slot screwdriver,

adjustable wrench, step ladder, and wire cutters.

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Outlet Box

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

Hanging the Fan

Making the Electrical

Connections

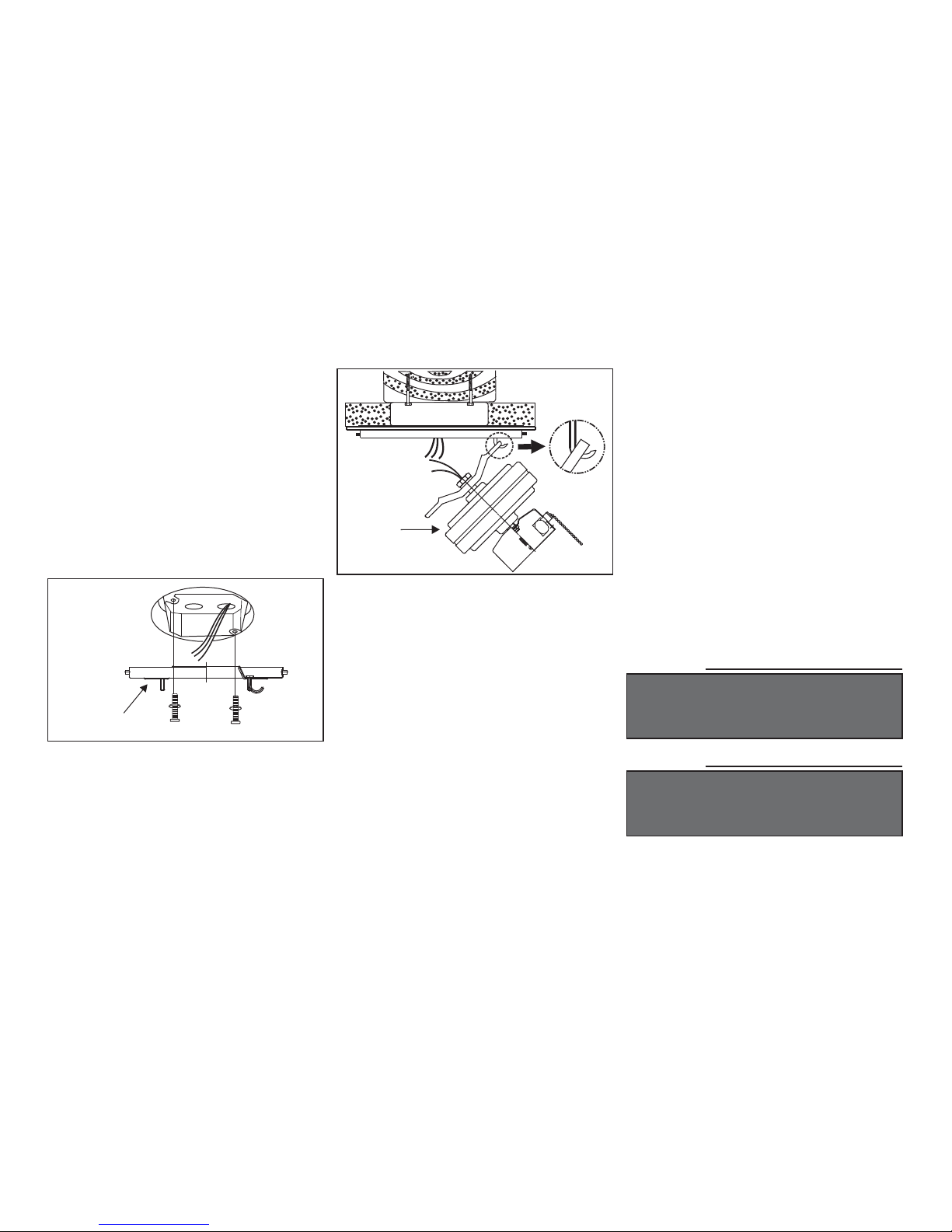

Attach the mounting bracket to the outlet box

with two screws and washers provided with the

outlet box. Make sure the bracket is tight and

secured (Fig. 4).

Lift fan into position by hanging the motor

assembly onto the hook from the ceiling

mounting bracket allowing it to hang freely

(Fig. 5).

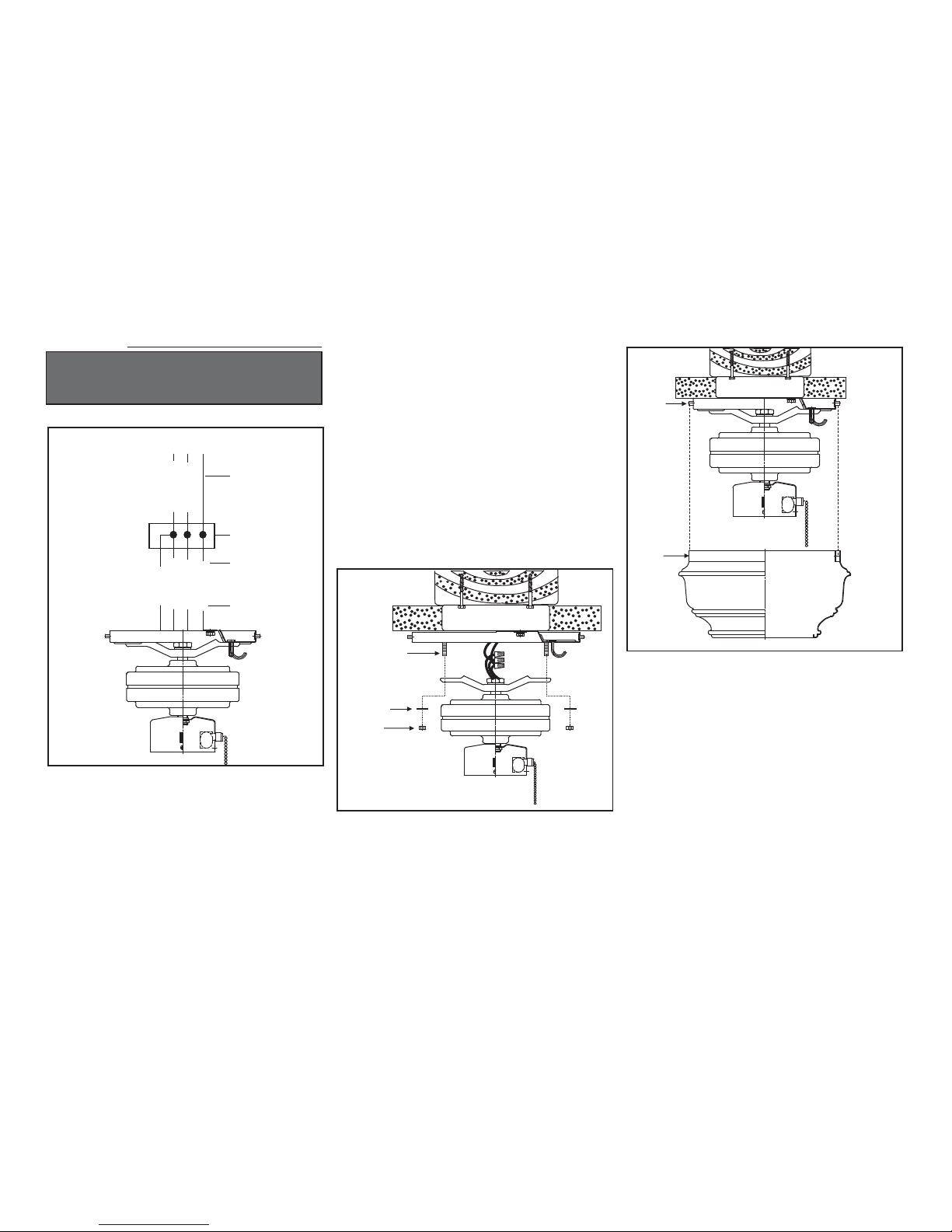

Connect the ground cnductor of the 120V

supply (this may be a bare wire or a wire with

green colored insulation) to the green ground

lead(s) of the fan (Figure 6).

Connect the fan motor white wire to the supply

white (neutral) wire using a wire nut. (Figure

Connect the fan motor black wire to the supply

black (hot) wire using a wire nut (Figure 6).

Connect the blue wire for light kit to the black

household supply wire.

Turn wire nut connections upward, spreading

them apart so the green (ground) will be on one

side of the outlet box and the white, black and

blue wire will be on the other side, and push

carefully up into the outlet box.

Figure 5

Figure 4

Outlet Box

Mounting Bracket

REMEMBER to disconnect the power.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the wire nuts supplied with

your fan. Secure the wire nuts with electrical tape.

Make sure there are no loose strands or

connections.

WARNING

CHECK TO SEE THAT ALL CONNECTIONS ARE

TIGHT, INCLUDING GROUND, AND THAT NO

BARE WIRE IS VISIBLE AT THE WIRE NUTS.

EXCEPT FOR THE GROUND WIRE.

WARNING

ELECTRICAL DIAGRAMS ARE FOR REFER-

ENCE ONLY. OPTIONAL USE OF ANY LIGHT

KIT SHELL BE UL LISTED AND MARKED

SUITABLE FOR USE WITH THIS FAN.

Motor

Figure 6

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green Ground

Lead

Ground to

Fan

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 7

Figure 8

Move fan into position over the four mounting

studs and secure with the provided washers and

nuts (Fig. 7).

Raise the motor housing up against the

mounting bracket, the four supports inside the

housing should be placed against the four studs

on mounting bracket, twist the housing

clockwise until snug (Fig. 8).

Finishing the Fan

Installation

Washers

Nuts

Mounting

Studs

Motor

Housing

Studs

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK. DO NOT USE THIS FAN WITH ANY

SOLID-STATE SPEED CONTROL DEVICE.

Attaching the Fan Blades

Step 1. Attach blades to blade arms using three

screws with fiber washers. (Fig. 9) Start a screw

into the blade arm, do not tighten. Repeat for the 2

remaining screws and washers.

Step 2. Tighten each screw securely starting with

the center screw. Make sure the blade is straight.

Repeat steps for the remaining blades.

Step 3. Fasten the blade assemblies to the motor

housing by lining up the slots of the blade arms

with the tabs on the motor housing, then tighten

the two screws and washers already installed in the

blade arms. (Fig. 10)

Figure 9

Blade Arm

Screws with

Fiber Washers

Blade

Figure 10

Motor

Blade Assembly

Slot

Tab

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE ARMS WHILE

INSTALLING, BALANCING THE BLADES, OR

CLEANING THE FAN. DO NO INSERT FOREIGN

OBJECTS BETWEEN ROTATING FAN BLADES.

Blade Balancing

Figure 11

Check that all blade and blade arm screws are secure.

Most fan wobble problems are caused when blade levels are unequal.

Check this level by selecting a point on the ceiling above the tip of one of

the blades. Measure from a point on the center of each blade to the point

on the ceiling. Measure this distance as shown in Figure 11. Rotate the fan

until the next blade is positioned for measurement. Repeat for each blade.

Measurements deviation should be within 1/8˝. Run the fan for 10

Minutes.

Use the enclosed Blade Balancing Kit if the blade wobble is still

noticeable.

The following procedure should correct most fan wobble. Check after each

step.

Touching Ceiling

Installing the

Light Kit

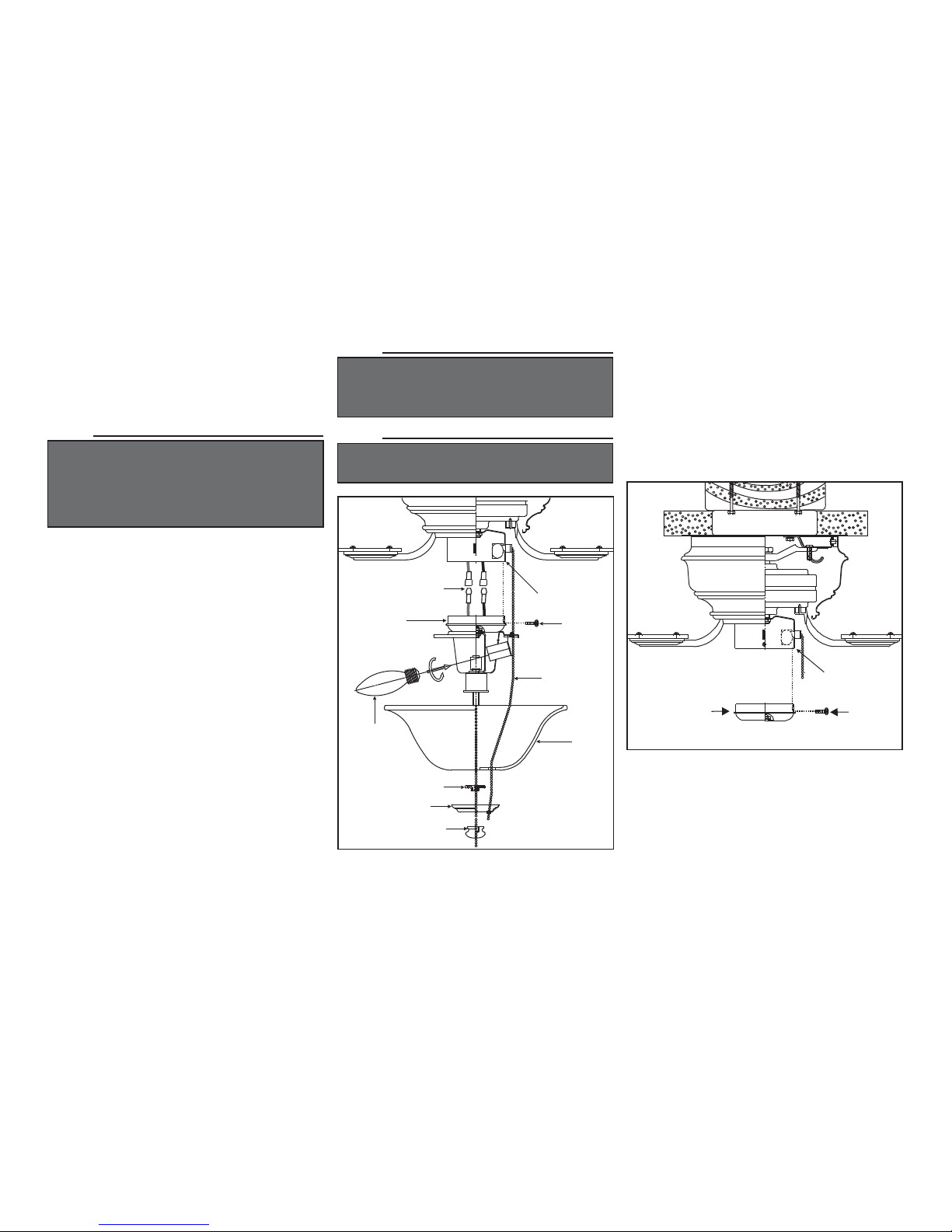

While holding the light kit assembly under your

fan, locate two single white and blue wires in

the switch housing labeled FOR LIGHT. Make

the polarized plug connections:

- White to white

- Blue to black

Carefully push all wires back into the switch

housing. Attach the light kit fitter by aligning its

keyhole slots with the three screws holes and

reversing switch on the side of switch housing.

Tighten the three screws securely to prevent the

light kit from vibrating loose.(Fig. 12)

Install 3 x 40W candelabra bulbs (included).

Place glass shade over the light kit stem, secure

with the metal nut (rubber side on the top). Do

not overtighten.

Insert the 2 pull chain through the eyelet in the

shade and cap. Secure the glass cap and decora-

tive nut provided. Do not overtighten. (Fig. 12)

Fan without Light Kit

(Optional)

Your fan is designed with light kit, in case you

intend to install the fan without light kit, attach the

switch housing cover to the switch housing with

the screws provided. (Fig. 13)

Switch Housing

Screws

Switch Housing

Cover

Figure 13

NOTE

LIGHT BULBS HAVE NO WARRANTY; CAN BE

PURCHASED AT ANY HOME DEPOT RETAILER.

NOTE

MAKE SURE TO LEAVE ENOUGH SPACE

BETWEEN THE FAN PULL CHAIN AND THE

BULBS SO THE CHAIN DOESN'T RUB AGAINST

ANY OF THE BULBS.

NOTE

BEFORE STARTING INSTALLATION, DISCONNECT

THE POWER BY TURNING OFF THE CIRCUIT

BREAKER OR REMOVING THE FUSE AT FUSE

BOX. TURNING POWER OFF USING THE FAN

SWITCH IS NOT SUFFICIENT TO PREVENT

ELECTRIC SHOCK.

Screws

Pull Chains

Switch Housing

Bulbs Glass

Shade

Metal Nut

Glass Cap

Decorative Nut

Wire Connectors

Light Kit

Assembly

Figure 12

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HAMPTON BAY Fan

HAMPTON BAY

HAMPTON BAY Vasner 529-751 Manuale utente

HAMPTON BAY

HAMPTON BAY GAZEBO III Manuale utente

HAMPTON BAY

HAMPTON BAY SUSSEX II AL694LED-BN Manuale utente

HAMPTON BAY

HAMPTON BAY Palisades Manuale utente

HAMPTON BAY

HAMPTON BAY Milton 458 412 Manuale utente

HAMPTON BAY

HAMPTON BAY YG188M-NI Manuale utente

HAMPTON BAY

HAMPTON BAY SUSSEX Manuale utente

HAMPTON BAY

HAMPTON BAY Devereaux II Manuale utente

HAMPTON BAY

HAMPTON BAY METARIE II 24 Manuale utente

HAMPTON BAY

HAMPTON BAY SOUTHWIND II 52-RMGII Manuale utente

HAMPTON BAY

HAMPTON BAY Miramar Manuale utente

HAMPTON BAY

HAMPTON BAY 178 128 Manuale utente

HAMPTON BAY

HAMPTON BAY AM217-BK Manuale utente

HAMPTON BAY

HAMPTON BAY Malone Manuale utente

HAMPTON BAY

HAMPTON BAY Pendleton 91252 Manuale utente

HAMPTON BAY

HAMPTON BAY SIDLOW 52151 Manuale utente

HAMPTON BAY

HAMPTON BAY 54" Tropics Manuale utente

HAMPTON BAY

HAMPTON BAY Redington 740-125 Manuale utente

HAMPTON BAY

HAMPTON BAY San Lorenzo Manuale utente

HAMPTON BAY

HAMPTON BAY LILLYCREST II Manuale utente

HAMPTON BAY

HAMPTON BAY AG524-ORB Manuale utente

HAMPTON BAY

HAMPTON BAY Lodge 285 313 Manuale utente

HAMPTON BAY

HAMPTON BAY Savona Tiffany Manuale utente

HAMPTON BAY

HAMPTON BAY LYNDHURST 51015 Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
