Hanna Instruments HI 9828 Manuale utente

Instruction Manual

HI 9828

Multiparameter

www.hannainst.com

Hanna Instruments reserves the right to modify the design,

construction and appearance of its products without advance notice.

Dear Customer,

Thank you for choosing a Hanna Instruments product.

Please read this instruction manual carefully before using the instrument. It will

provide you with the necessary information for correct use of the instrument, as

well as a precise idea of its versatility.

If you need additional technical information, do not hesitate to e-mail us at

[email protected] or see the back cover for our worldwide contact list.

This instrument is in compliance with the CE directives.

TABLE OF CONTENTS

CHAPTER 1- INTRODUCTION

1.1 Preliminary examination ................................................................................8

1.2 Model identification ......................................................................................8

1.3 General description ......................................................................................9

1.4 Power supply .............................................................................................. 10

1.4.1 Batteries installation .............................................................................. 10

1.4.2 Recharging batteries ............................................................................. 10

1.5 Probe description & installation .................................................................... 11

1.5.1 D.O. sensor activation .......................................................................... 11

1.5.2 Installation........................................................................................... 12

1.5.3 pH & pH/ORP sensors .......................................................................... 13

1.6 Specifications ............................................................................................. 14

1.7 Display & keyboard description..................................................................... 18

1.8 Help function ............................................................................................. 19

CHAPTER 2 - MEASUREMENT MODE

2.1 Procedure ................................................................................................. 20

CHAPTER 3 - SYSTEM SETUP

3.1 Measurement setup ..................................................................................... 21

3.2 System setup .............................................................................................. 23

3.3 Table of measurement & setup items .............................................................. 27

CHAPTER 4 - CALIBRATION MODE

4.1 Quick calibration ....................................................................................... 29

4.2 pH calibration ............................................................................................ 31

4.2.1 Preparation ......................................................................................... 31

4.2.2 Procedure ............................................................................................ 32

4.2.3 Error list .............................................................................................. 33

4.3 Dissolved oxygen calibration ........................................................................ 34

4.3.1 Procedure ............................................................................................ 34

4.4 Conductivity calibration ............................................................................... 36

4.4.1 Procedure............................................................................................ 36

4.5 Atmospheric pressure .................................................................................. 38

4.5.1 Procedure ............................................................................................... 38

4.6 ORP calibration ......................................................................................... 38

4.6.1 Procedure............................................................................................ 38

4.7 Temperature calibration .............................................................................. 39

4.7.1 Procedure............................................................................................ 39

CHAPTER 5 - LOGGING MODE

5.1 Logging .................................................................................................... 40

5.1.1 Logging options ................................................................................... 40

5.2 Log data setup ........................................................................................... 41

5.2.1 Lots .................................................................................................... 41

5.2.2 Delete all lots ....................................................................................... 43

5.2.3 Remarks .............................................................................................. 43

5.2.4 Delete all remarks ................................................................................. 44

5.2.5 Tags .................................................................................................... 44

CHAPTER 6 - GLP

6.1 Probe information ....................................................................................... 46

6.2 pH ........................................................................................................... 47

6.3 Dissolved oxygen ........................................................................................ 47

6.4 Conductivity .............................................................................................. 48

6.5 Atmospheric pressure .................................................................................. 48

6.6 ORP ......................................................................................................... 49

6.7 Temperature ............................................................................................... 49

CHAPTER 7 - PC CONNECTION

7.1 Software installation .................................................................................... 50

7.2 PC connection ........................................................................................... 50

CHAPTER 8 - MESSAGES & ERRORS ................................................................. 52

APPENDIX

A - PROBE MANTEINANCE .............................................................................. 55

B - ACCESSORIES ............................................................................................ 57

C - WARRANTY ............................................................................................... 59

Chapter 1 - INTRODUCTION

1.1 PRELIMINARY EXAMINATION

Remove the instrument from the packing material and examine it carefully to

make sure that no damage has occurred during shipping. If there is any notice-

able damage, notify your Dealer or the nearest Hanna Customer Service Center

immediately.

HI 9828 is supplied complete with:

- HI 769828DO DO/EC/Temperature probe

- HI 9828-27 quick calibration standard solution, 500 mL

- Probe maintenance kit

- 4 rechargeable C size, Ni-MH batteries

- Power adaptor & cable

- Cigarette lighter cable

- 5 i-Button©with holder

- HI 7698281 USB interface cable

- HI 92000 Windows®compatible software

- instruction manual

- rugged carrying case

NOTE: Save all packing materials until you are sure that the instrument func-

tions correctly. Any damaged or defective items must be returned in

their original packing materials together with the supplied accessories.

1.2 MODEL IDENTIFICATION

Based on probe cable length, there are 3 different models according to the fol-

lowing scheme.

Windows is registred Trademark of “Microsoft Co.”

1.3 GENERAL DESCRIPTION

HI 9828 is a multiparameter system that benefits from years of experience of

Hanna Instruments as a manufacturer of analytical instruments. Waterproof,

resistant and easy to use, it is the ideal solution for field measurements of lakes

and rivers. Thanks to the microprocessor based multisensor probe, it is possible

to measure all the parameters necessary to evaluate the water quality, as Dis-

solved Oxygen saturation percentage, Conductivity, Specific Gravity and other

parameters that ensure life in water as pH and temperature. It is also possible to

use the same probe with different meters without the need to recalibrate the

system.

Up to 12 parameters can be enabled and seen in the large graphic display with

backlight. All the readings can be memorized and associated to a precise sam-

pling area thanks to the i-Buttom system and the remarks that the operator can

insert before or during measurements. The same data can be plotted on the

meter and also downloaded to a PC by means of USB connector and HI92000

Windows®compatible application for successive elaborations.

The setting menu can be protected by password to avoid not authorized modifi-

cations and the help function is always available to explain the selected function,

operation or message.

The main features of HI 9828 series include:

• Measurement of Dissolved Oxygen, pH, ORP, Conductivity and related pa-

rameters, Temperature, Atmospheric pressure and Seawater specific gravity;

• Field replaceable sensor modules for DO/Temperature/EC and pH/ORP;

• 5 interface languages: English, Italiano, Française, Espagnol, Portogues;

• Graphical display with backlight;

• GLP features;

• i-Button system to remark the sampling area;

• Up to 60,000 samples stored in 100 different lots;

• 4 C size Ni-MH rechargeable batteries;

• Possibility to recharge from mains power supply and from cigarette lighter;

• Password protection.

1.4 POWER SUPPLY

HI 9828 runs with 4 rechargeable C size, Ni-MH batteries.

On display the battery icon visualizes the remaining battery charge. When this

icon starts blinking, it is necessary to recharge or to replace them with alkaline

batteries. When the batteries completely rundown the meter automatically shuts

off to avoid wrong readings.

1.4.1 Batteries installation

Battery replacement must only take place in a

non-hazardous area.

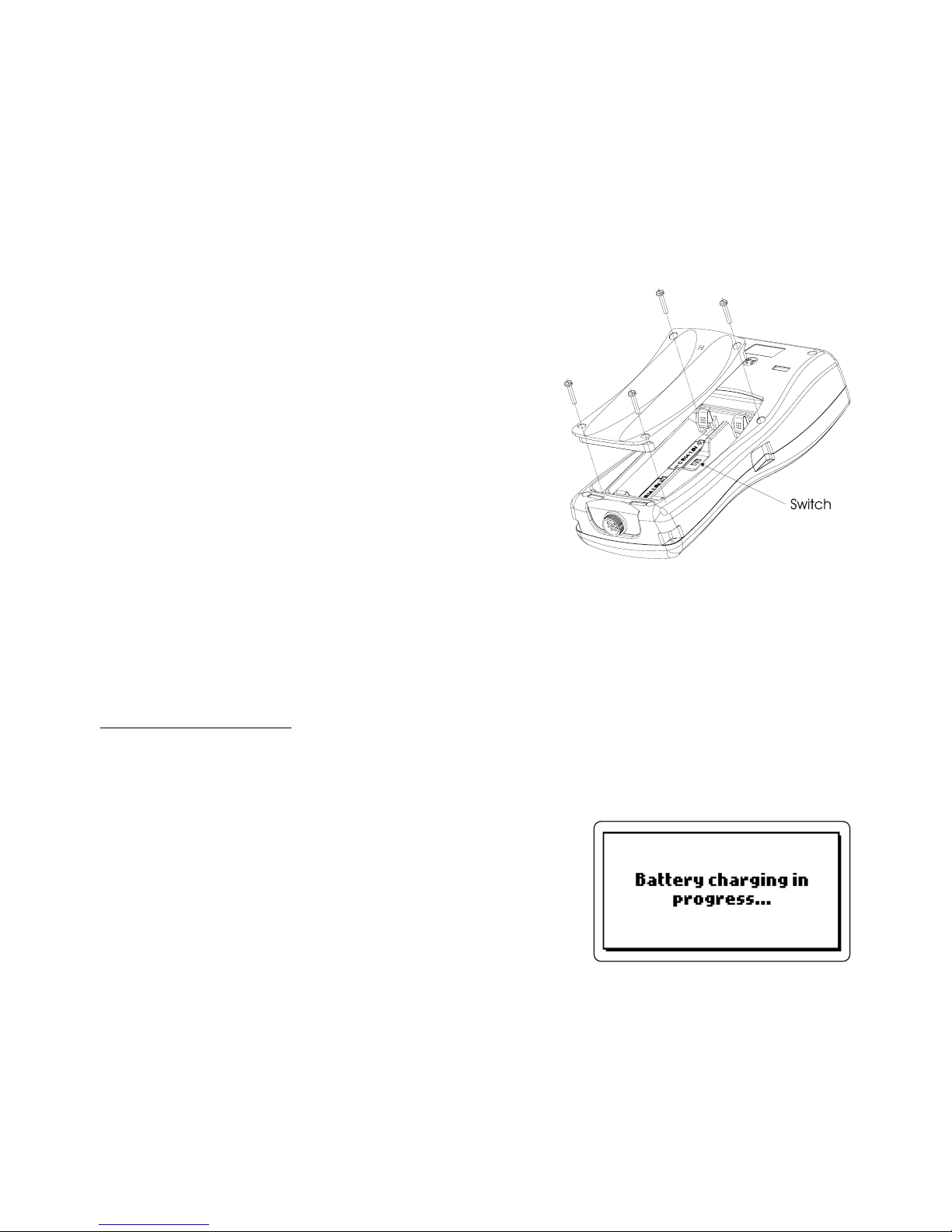

Remove the 4 screws on the rear cover of the

instrument and insert the batteries paying at-

tention to the correct polarity.

IMPORTANT NOTE: To use alkaline C size

batteries, it is necessary to move up

the switch in the battery compartment.

1.4.2 Recharging batteries

HI 9828 is supplied with two different cables for recharging batteries: HI 710045

and HI 710046.

Mains power supply

HI 710045 combined with the 12 Vdc adapter is used to recharge batteries

from the mains power supply.

• With the meter OFF, disconnect the probe.

• Connect HI 710045 to the meter and to the

power adapter; connect the adapter to the mains

power supply.

• On display the message “Battery charging in progress” appears and then the

battery icon.

• For complete batteries recharging 14 hours are necessary.

NOTE: It is possible to recharge batteries with the meter ON; if Auto shut-off

feature is enabled, the meter will switch off automatically when the fixed

time is expired.
