Hot tub performance parameters

1 Hot tub performance parameters

1.1 Performance parameters of CELTIC SPAS hot tubs

Performance parameters

rated voltage: three-phase 400 V 50/60 Hz*

maximum working current: 3 × 16 A

voltage resistance: 1 250 V/min. without breakdown

insulation resistance: >= 200 M Ω

water resistance (cover): IPX5

protection against electric shock: rst stage

*It can also be set to 230 V, but this is not recommended due to possible function

limitations

Load capacity

heating: 230 V/3 kW/13.6 A

ozone: 230 V/50 – 60 Hz /80 mA

blower: 230 V/0.66 kW/ 6.3 A

pump 1/2: 2.2 kW

total input power (depending on type of hot tub): 6.26 kW / h

protection class: I.

lighting: LED 12 V alternating /10 W

maximum output power: 20 W

moisture resistant speakers: yes

Preparation and possibilities of electrical connection

– alternating three-phase current 3 × 400 V/16 A/20 A

Ensure that the hot tub is always connected to a circuit protected by a residual-current

protector with a residual current of 0.03 A. If the circuit breaker needs to be replaced,

it is necessary to use a circuit breaker with the same type of rated value.

For your own safety and the safety of your product, please observe the following

instructions. Read the following information carefully and follow the user manual

exactly when using the hot tub to avoid damaging the product or the risk of injury.

This appliance is intended for use by children 8 years of age or older with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge,

provided they are under supervision or have been instructed on the use of the

product and understand the risks. Children must not play with the product.

Cleaning and maintenance must not be performed by children without supervision.

Performance parameters/Installation preparation

Recommended circuit breaker with characteristic C

Hot tubs with two massage motors: C 16 3 × FAZ

Hot tubs with three massage motors: C 20 3 × FAZ

!!!THE HOT TUB MUST ONLY BE CONNECTED BY A PERSON WITH PROFESSIONAL

ELECTRICAL QUALIFICATION IN ACCORDANCE WITH DECREE NO. 50/1978 COLL.!!!

1.2 Performance parameters of PLUG & PLAY hot tubs

Performance parameters

rated voltage: single phase 230 V 50/60 Hz*

maximum working current: 1 × 16 A

voltage resistance: 1 250 V/min. without breakdown

insulation resistance: >= 200 M Ω

water resistance (cover): IPX5

protection against electric shock: rst stage

Load capacity

heating: 230 V/2 kW/13,6 A

ozone: 230 V/50 – 60 Hz /80 mA

pump 1/2: 2,2 kW

total input power (depending on type of hot tub): 4,5 kW / h

protection class: I.

lighting: LED 12 Valternating /10 W

moisture resistant speakers: yes

2 Hot tub installation preparation

Inspect the hot tub prior to installation! If any part is damaged or missing,

contact the seller immediately! Make sure that all components are in

accordance with your order. Check the hot tub before each use. In the event

of damage, do not use the hot tub!.

Hot tub installation preparation

2.1 Preparation of the place for installation and connection to

electricity

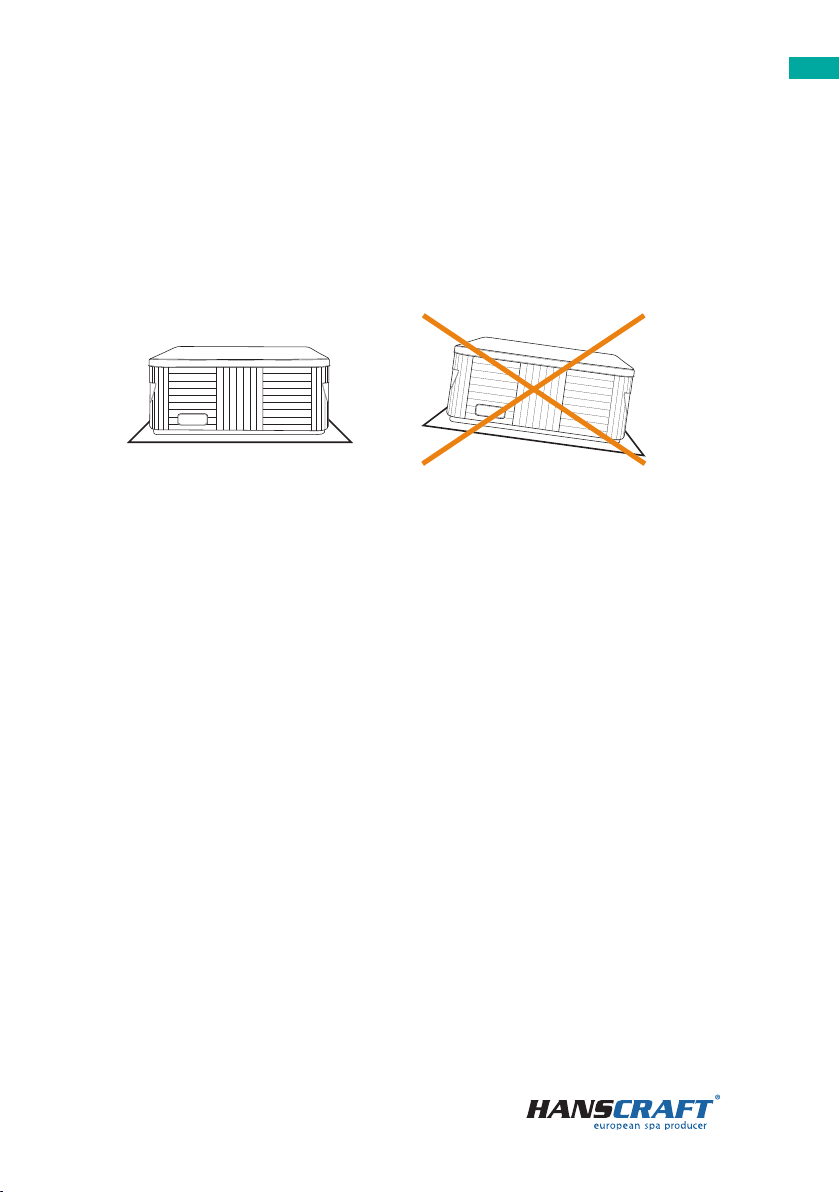

The hot tub must be installed on a at, suciently strong pad with regard to

the load-bearing capacity of the hot tub. If the hot tub is installed outdoors, we

recommend making a monolithic concrete pad with a minimum thickness of 10 cm. It

is always necessary to choose the load-bearing capacity of the pad with regard to the

dimensions and weight of the hot tub. Consult your building supervisor. The weight is

specied in the technical description of the hot tub.

CELTIC SPAS hot tubs are made for electrical connection of 400 V ~ alternating

current; it is therefore necessary to use a 3 × 16 A/C or 3 × 20 A/C circuit breaker and

a residual-current device corresponding to this connection. You will also need

a 5 × 2.5 mm cable. The cable must have 4 more usable meters in the place of

the hot tub so that it can be easily routed and connected to the control unit. Do

not route the cable under the whirlpool! PLUG & PLAY hot tubs are made for 230 V

electrical connection with an installed circuit breaker and conductor.

2.2 Preparation of indoor hot tub installation

If the hot tub is installed indoors, safety precautions must be observed. The basic

requirements for the safe operation of the hot tub are anti-slip oors and drainage

of the installation site in the event of a water overow. It is also necessary to

realize that humidity will rise around the hot tub, and this may damage surrounding

electrical appliances. We therefore recommend adapting the installation site to these

conditions. The whirlpool should always be accessible from all sides for future

service. If it is not suciently accessible during the warranty period, the owner is

obliged to provide this access. (Sucient access is generally considered to be at least

60 cm from all sides of the hot tub.)

2.3 Preparation of outdoor hot tub installation

If the hot tub is installed outdoors, safety precautions must be observed. The basic

requirements for the safe operation of the hot tub are anti-slip oors and drainage of

the installation site in the event of a water overow from the hot tub. We therefore

recommend adapting the installation site to these conditions.

YES

Hot tub installation

3 Hot tub installation

Attention: the hot tub must be connected pursuant to standards valid in the

Czech Republic according to ČSN 33 2000 -7-701

3.1 General information

For the installation, electrical connection and the rst commissioning of the hot tub,

we recommend using the services of professionally trained technicians. If you decide

to install the hot tub yourself, follow the recommendations below.

a) Carefully remove all packing material in which the hot tub was shipped, and place

the hot tub on the site prepared for installation.

b) Remove the front panel located on the side of the hot tub control panel. Remove

the top cover of the electric switchboard, under which the circuit breaker and

residual-current device (if the hot tub is equipped with them) and the ground

terminal are located. Only a professionally qualied person may connect it to the

power cable.

c) Because your hot tub has been thoroughly tested during the production process,

it is possible that a certain percentage of dirt remains in the technological parts

of the hot tub and on its surface; we therefore recommend that you clean the

surface of the whirlpool rst. Use lukewarm water to clean it. Always clean the

surface with suitable soft cloths. Never use any coarse abrasives or textiles that

could damage the surface of the hot tub. If you decide to use a cleaning product,

this product must not damage the surfaces of the hot tub.

3.2 Filling the hot tub with water

Fill the hot tub with a sucient amount of water. The water level in the hot tub

must never fall below the level of the skimmer. If you nd that there is a water leak

when lling the hot tub with water, stop lling the hot tub until the fault has been

corrected. Hot tubs do not have water softening technology and hard water damages

them. Damage caused by misuse is not covered by the warranty.

a) Fill the whirlpool through the skimmer to prevent the aeration of pumps.

b) Do not ll the hot tub with water warmer than 104 ºF.

c) When the water reaches the desired level, insert the cartridge lter into the

skimmer. When installing it, tilt the lter so that no air bubbles remain in it. After

the air has been removed, install the lter.

Installation/Audio system/Control panel

3.3 Starting the hot tub power supply

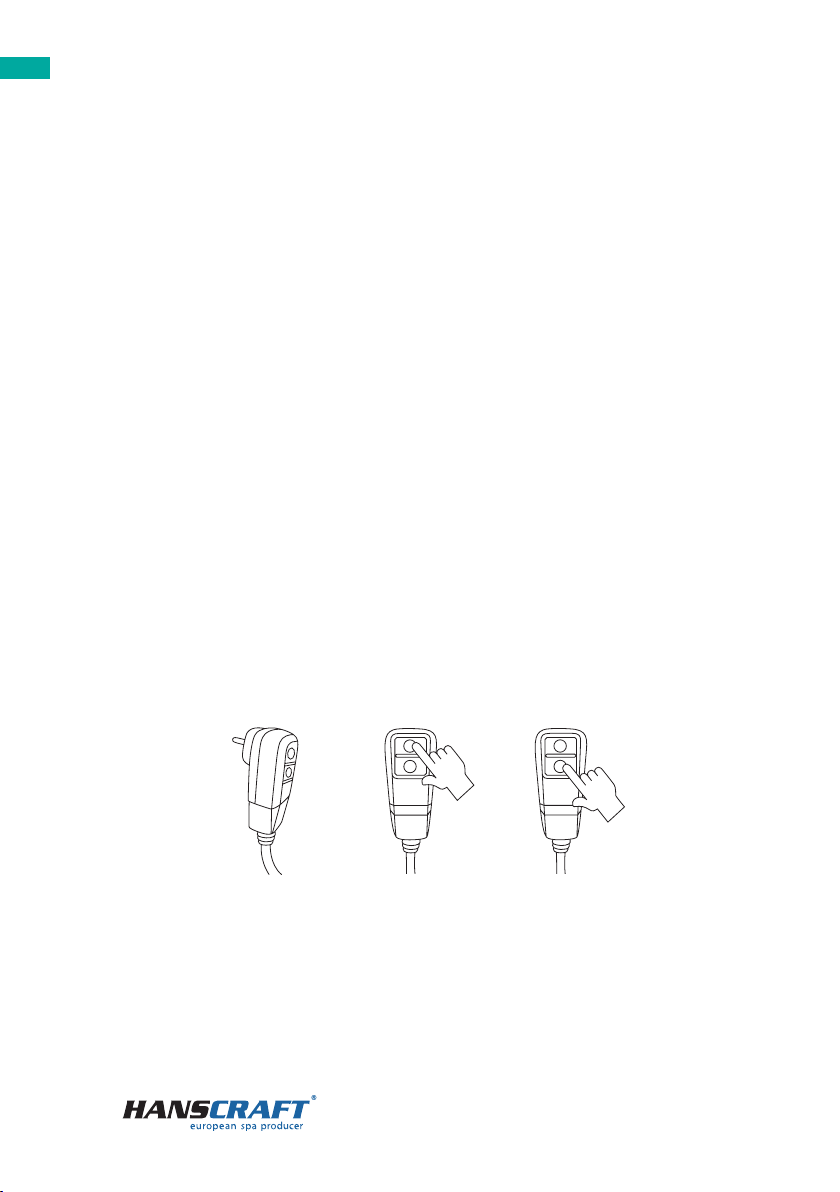

If the hot tub is connected by a mobile power cable, the power supply cable must not

be loaded by sharp objects or exposed to other inuences. In this case, we recommend

placing the supply cable in a protective cover (protector). Switch on the appropriate

circuit breaker for the hot tub.

3.4 Programming the hot tub control unit with the control panel

Now you can start programming the hot tub. The programming process is described

in the Control panel chapter. After programming the hot tub, cover it with a thermal

cover and let its temperature stabilize. Check the water level in the hot tub regularly.

4 Aquatic audio system

AQUATIC/MY MUSIC audio system (if the hot tub is equipped with it)

To listen to music from an external device, you must rst pair the device from which

you will play the music (PHONE, TABLET, COMPUTER). On the external device, turn

on bluetooth and search for the AQUATIC device. The connection is not coded, and

only one connection can be active at a time. When everything is properly connected,

you can start playing music. All functions such as switching, volume control, etc. are

controlled from the connected device. In some cases, the connection to the audio

system is conditioned by a password, in which case enter 0000 as the password.

5 Control panel (BALBOA TP500)

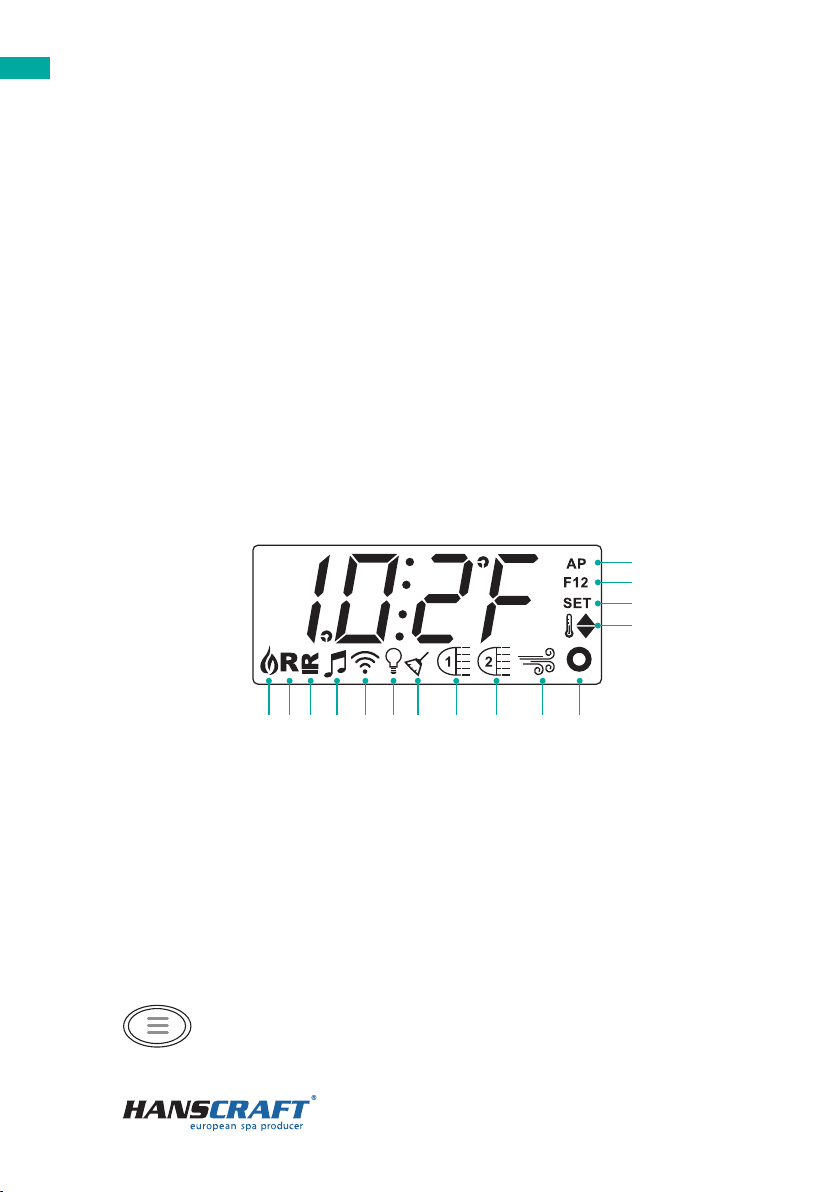

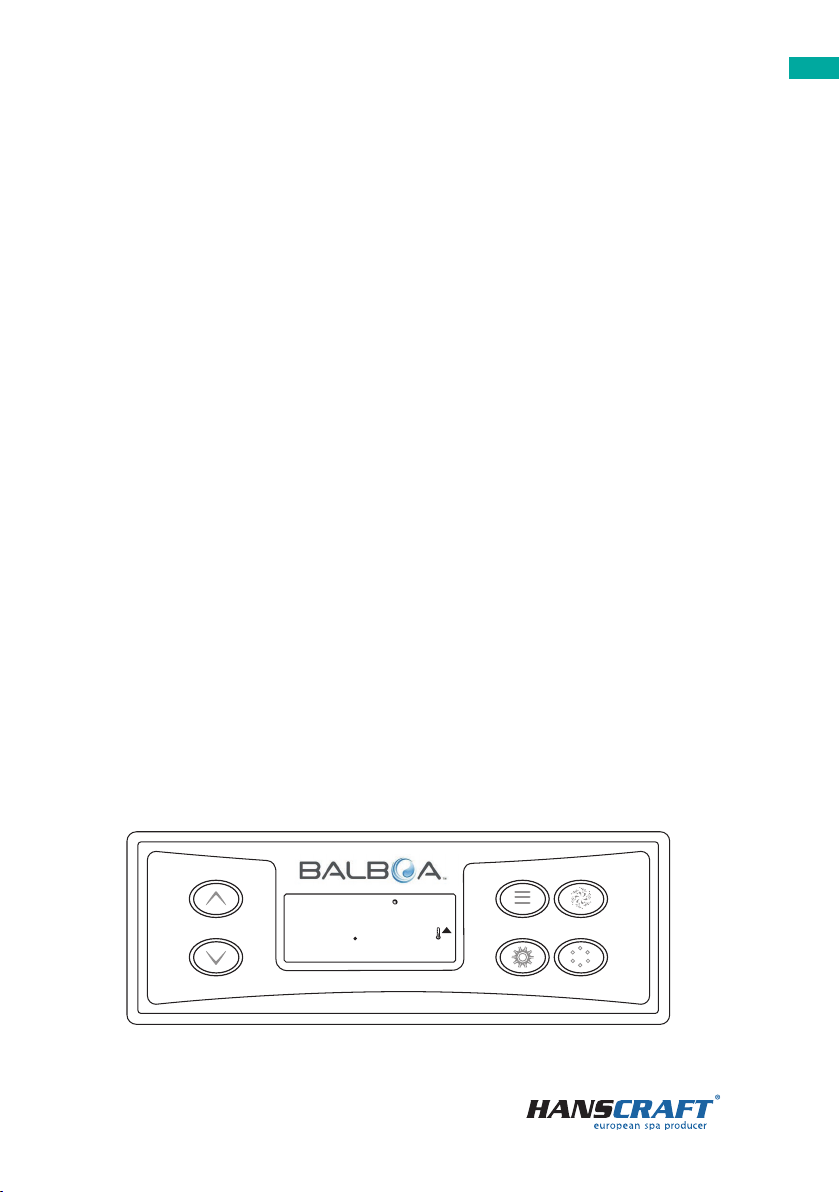

5.1 Panel description

LIGHTCOOL AUX

JETSMENUWARM

102F

Control panel

A B C D E F G H I J K

5.2 Detailed description of monitor

JETS This button is used for quick control of massage jets. If the lter is not

running, the JETS button must be pressed twice. The pressure of the

water ow through the jets can be adjusted by turning the nozzles to the

left or right. Therefore, if water is not owing through the nozzle, it may

not be due to a malfunction, the nozzle may just be closed. Not all jets can

be controlled like this. It is also possible to regulate the pressure of the

massage with the massage engine running by turning the air intake valve

into the jets located at the top edge of the hot tub.

AUX The AUX button turns on the blower.

WARM The up arrow labeled WARM is used to increase the heating temperature.

In other menus it is used to scroll up when selecting options.

LIGHT Switches on the lights.

COOL The down arrow labeled COOL is used to lower the heating temperature.

In other menus it is used to scroll down when selecting options.

5.3 Entering the menu

To enter the menu, use the MENU button.

A. heating

B. prepared mode

C. rest mode

D. bbaTM 2 audio bluetooth

E. wifi

F. light

G. cleaning cycle

H. jets 1

I. jets 2

J. blower

K. connection (jets 3

or MicroSilk)

L. temperature range

(high/low)

M. settings

N. filter cycle

(1 or 2 or both)

O. time (AM or PM)

Control panel

5.4 Setting the temperature

Use the arrow buttons (labeled WARM and COOL) to set the temperature directly on

the monitor. The temperature range (high and low) is indicated by a thermometer

pictogram and a small arrow next to it. If the arrow is up, a high temperature range is

set, and if the arrow is pointing down, a low temperature range is set.

Temperature range

high 79.88–104 °F

low 50 –98.6 °F

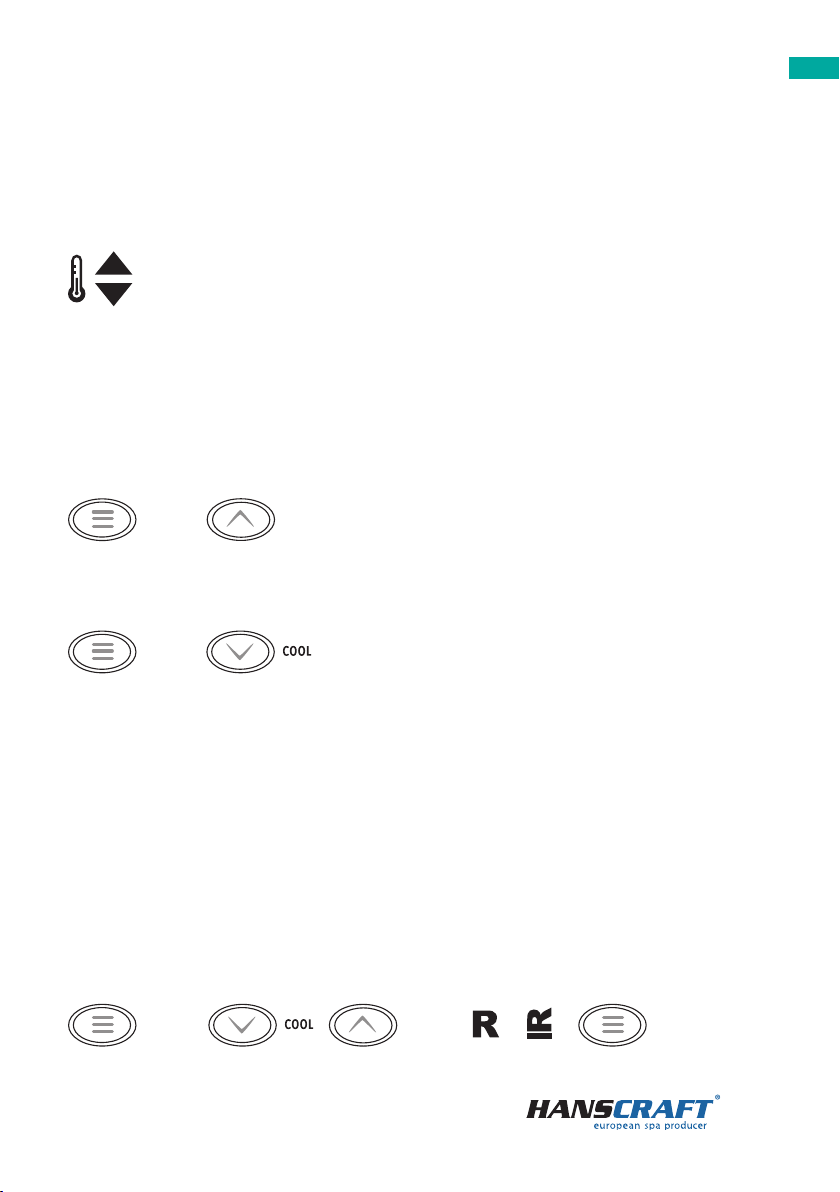

To set the high temperature range, proceed by pressing the following buttons: MENU

and then arrow up WARM.

To set the low temperature range, proceed by pressing the following buttons: MENU

and then arrow down COOL.

5.5 Heating mode

Here you can set the following heating modes:

ready in this mode the hot tub heats the water to the set temperature

rest in this mode the hot tub only heats the water during ltration

To change the heating mode, use the following combination of buttons:

MENU 2× + arrow WARM or COOL. Use the up or down arrow to select a mode. For

mode pictograms, see description of the control panel (Chapter 5.2). Conrm your

selection with the MENU button.

WARM

MENU MENU

2× ( )

WARM

L. temperature range

(high/low)

M. settings

N. filter cycle

(1 or 2 or both)

O. time (AM or PM)

Control panel

5.6 Setting the time

The time needs to be set for the hot tub to work properly. To do this, press MENU 3×

then use the arrows (WARM and COOL) to select the value and conrm with MENU.

The hours and minutes are set separately, and they must always be conrmed with

the MENU button.

5.7 FLIP (flipping monitor)

Press MENU 4× then use the arrows to rotate the monitor. Save your selection with the

MENU button.

5.8 LOCK (locking)

This control panel is equipped with a lock for both the entire monitor and a separate

temperature lock, whereby the user can switch on the jets and lights, but cannot

change the temperature setting. You can access this function by pressing 5× MENU

and then the up arrow (WARM) to move to the rst TEMP (temperature lock)

selection. If you want to lock the temperature, continue with the up arrow (WARM) to

ON. Then press MENU to save the settings.

The entire panel is locked in the same way up to the TEMP point. To lock the panel

PANL, press the MENU button, then use the up arrow to select OFF/ON. Finally,

conrm your choice with the MENU button.

3×

4×

5×

( )

WARM

( )

WARM

( )

WARM

TEMP

TEMP PANL

ON / OFF

Indice

Altri manuali HANSCRAFT Vasca idromassaggio

HANSCRAFT

HANSCRAFT IN.K300 Manuale utente

HANSCRAFT

HANSCRAFT TP 700 Manuale utente

HANSCRAFT

HANSCRAFT SPATOUCH 2 Manuale utente

HANSCRAFT

HANSCRAFT PLUG & PLAY Manuale utente

HANSCRAFT

HANSCRAFT HOT TUB WAVE Manuale utente

HANSCRAFT

HANSCRAFT TP 800 Manuale utente

HANSCRAFT

HANSCRAFT SPATOUCH 3 Manuale utente

Manuali Vasca idromassaggio popolari di altre marche

Bestway

Bestway Lay-Z-Spa 54189 Manuale utente

Jacuzzi

Jacuzzi ARGA ARG101C0110 Manuale elenco delle parti

Morphy Richards

Morphy Richards Essentials PC4006 Manuale utente

Softub

Softub PRESTIGE Manuale utente

JNJ SPAS

JNJ SPAS SPA-318 Manuale di installazione

KIRAMI

KIRAMI Comfort Family Manuale utente

QCA Spa

QCA Spa VS501 PAK (VL260 TOPSIDE) Manuale utente

HoMedics

HoMedics FB-655HJ-GB Manuale utente

Everyday Hot Tubs

Everyday Hot Tubs 530 Manuale utente

anko

anko SS-601A Manuale utente

Jacuzzi

Jacuzzi Duetta 6042 Manuale utente

Pooli

Pooli OS030979B Manuale utente

Jacuzzi

Jacuzzi alimia Manuale utente

ab Solares Smart Spa Manuale utente

CalderaSpas

CalderaSpas CalderaSpas Utopia Series Manuale utente

Outsunny

Outsunny 848-047V70 Manuale utente

Aquatic

Aquatic INFINITY 1 Manuale utente

Master Spas

Master Spas MP Force Manuale utente
