Harbor Breeze 35062 Manuale utente
ITEM #0428800
MODEL #35062
CEILING FAN
1
Français p. 15
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday,
8 a.m. - 5 p.m., EST, Friday.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date

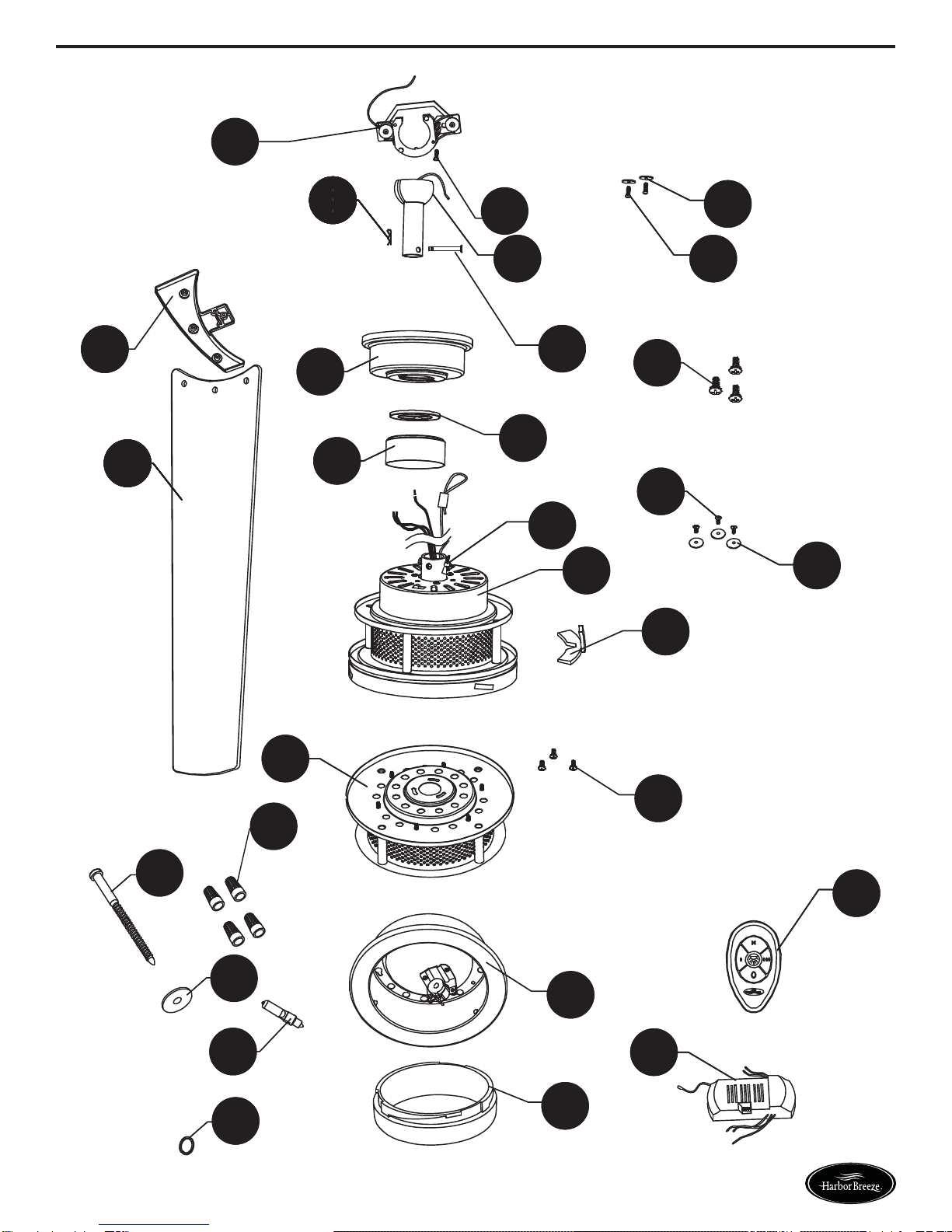

PACKAGE CONTENTS
2
Q
EEEE
G
M
B
C
D
R
H
L
Q
Q
W
Q
CC
QP
BB
Z
AA
EEEE
EEEEEEEK
EEEI Y
A
G
GO M
B
C
U
D
DF
R
RX
RS
RV
H
L
Lowes.com/harborbreeze
J
TT J
JN
PACKAGE CONTENTS
3
PART DESCRIPTION QUANTITY
A
BHanging Bracket 1
Washer 2
Mounting Screws 2
Down Rod 1
Hair Pin 1
Clevis Pin 1
Canopy 1
Canopy Hole Cover 1
Blade Brackets 3
Motor Assembly 1
Blades 3
Blade Washers 9
Blade Screws 9
Shipping Retainers 3
Motor Coupling Cover 1
Switch Housing 1
Receiver 1
Remote 1
Switch Cover 1
Set Screws 2
Shoulder Screws 2
Glass Shade 1
Bulb 1
Housing Screws 3
Blade Iron Screws w/ Semi-Washer 9
Lag Screw 1
Lag Screw Washer 1
Wire Connector 4
Spring Washer 1
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
AA
BB
CC
Lowes.com/harborbreeze
SAFETY INFORMATION
4Lowes.com/harborbreeze
A B C
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, please call customer service at
1-800-643-0067, 8 a.m. - 4:30 p.m., EST.
WARNING:
• Important: When using an existing outlet box, be sure the box is securely attached to the building
structure and can support the full weight of the fan. Failure to do so can result in serious injury or
death.
• Turn off circuit breakers and wall switch to the fan supply wire leads. Warning: Failure to
disconnect power supply prior to installation may result in serious injury or death.
• Do not install fan on a ceiling with a pitch greater than 20°.
• Installation work and electrical wiring must be done by qualified person(s) in accordance with all
applicable codes and standards (ANSI/NFPA 70-1999). If you are unfamiliar with the wiring
codes, contact a qualified electrician.
• Important: Be sure wiring box is properly grounded or that a ground (green) wire is present.
• Make sure the installation site you choose allows a minimum of 7 feet from the floor to the end of
the blades
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and diagram. If any part is missing or damaged, do not attempt to assemble the product.
Contact customer service for replacement parts.
Estimated assembly time: 30 minutes to 1 hour.
Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers,
electrical tape, ladder, safety glasses, silicone caulk, caulking gun.
ASSEMBLY INSTRUCTIONS
• WARNING-To reduce risk of fire, electric shock, or personal injury, mount to outlet box marked
“Acceptable for Fan Support of 15.9kg (35lbs) or less” and use mounting screws provided with the
outlet box and/or support directly from building structure. Most outlet boxes commonly used for
the support of luminaries are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
• Warning-Risk of fire, electric shock, or personal injury. Ceiling fans may be either directly
supported from a structural framing member of a building and (see examples in figures A & B) or
may be mounted to an outlet box marked acceptable for fan support of 31.8 kg (70 lbs) to 15.9kg
(35 lbs) (see example in figure C).
5
ASSEMBLY INSTRUCTIONS
1. Secure the hanger bracket (A) to the ceiling outlet
box using screws (C) and washers (B) provided with
the outlet box. Important: If attaching the fan to a
sloped ceiling, make sure open end of mounting
bracket is installed facing the roof. Do not install fan
on a ceiling with a pitch greater than 20°.
1
AB
C
2. Check the motor body (J) for the three plastic
shipping retainers (N) and pull them out if they are
present. 2
JJ
JN
Lowes.com/harborbreeze
6
ASSEMBLY INSTRUCTIONS
3. Remove the hairpin (E) clip and clevis pin (F) from the downrod support of the motor assembly (J)
and loosen the two set screws (T). Slide the downrod (D) through the canopy (G), canopy hole
cover (H) and motor coupling cover (O). Feed the black, white and blue wires with safety cable
from fan through the downrod (D). Insert the downrod into motor assembly (J) Secure clevis pin
(F) with hairpin (E) clip and tighten setscrews (T).
3
EEEUEEEA
EEEUEEU EEEUEEED
4. Loosen the two shoulder screws (U) without fully
removing in the hanger bracket (A). Carefully lift the
fan and seat the downrod (D)/hanger ball assembly
on the hanger bracket (A) that was just attached to
the outlet box. Be sure the groove in the ball is lined
up with the tab on the hanger bracket (A).
4
DD
EEEEEEEE DF
JJ
JH
O
TT
GG
Lowes.com/harborbreeze
ASSEMBLY INSTRUCTIONS
7
6. The frequency switches on your receiver and
transmitter have been preset at the factory. Remove
the transmitter battery cover and make sure the
switches are set to the same position. This must be
done so that your fan will communicate properly. If
you are using more than one fan in the same area
and want to control them separately, change one
fan’s dip switch settings in the transmitter and
remote to a new pattern.
NOTE: If not using for long periods of time, remove
battery to prevent damage to transmitter. Store the
remote away from excessive heat or humidly.
5. For Canadian installation and for USA fans over 35
lbs, the safety cable must be installed into the house
structure beams using a 3” lag screw (Z). Make sure
that when the safety cable is fully extended the
leadwires are longer than the cable and no stress is
placed on the lead.
Lowes.com/harborbreeze
5
Safety
Cable
Safety
Cable
Safety
Cable
R
6Q
Z
AA
CC
ASSEMBLY INSTRUCTIONS
8
7. Wring the fan per wiring diagram and Securely connect wires with wire connectors (BB):
• Connect WHITE fan motor wire to WHITE receiver unit wire marked TO MOTOR N.
• Connect BLUE fan motor wire to BLUE receiver unit wire marked FOR LIGHT.
• Connect BLACK fan motor wire to BLACK receiver unit wire marked TO MOTOR L.
• Connect BLACK supply wire to RED receiver unit wire marked AC IN L.
• Connect WHITE supply wire to WHITE receiver unit wire marked AC IN N.
• Connect GROUND (GREEN) wires from hanger bracket and downrod ball, to GROUND (GREEN
or BARE COPPER) from house.
7
Lowes.com/harborbreeze
BB
Red
ASSEMBLY INSTRUCTIONS
9
8. Once wiring step has been completed, slide the
wired remote receiver in between the bracket and
the top of the downrod ball, with the flat side of the
receiver facing the ceiling. Turn lead wires upward
and carefully push them into the outlet box, with the
white and green wires to one side of the box and the
black wire toward the other side.
9. Loosen the two shoulder screws (U) without fully removing the hanger bracket (A). Assemble
canopy (G) by rotating keyhole slot in canopy over shoulder screws (U) in hanger bracket (A).
Tighten shoulder screws (U). Securely attach and tighten the canopy hole cover (H) over the
shoulder screws (U) in the hanger bracket (A) utilizing the keyhole slot twist-lock feature.
8
9
EEEUEEEAEEEUU G
H
Lowes.com/harborbreeze
ASSEMBLY INSTRUCTIONS
10

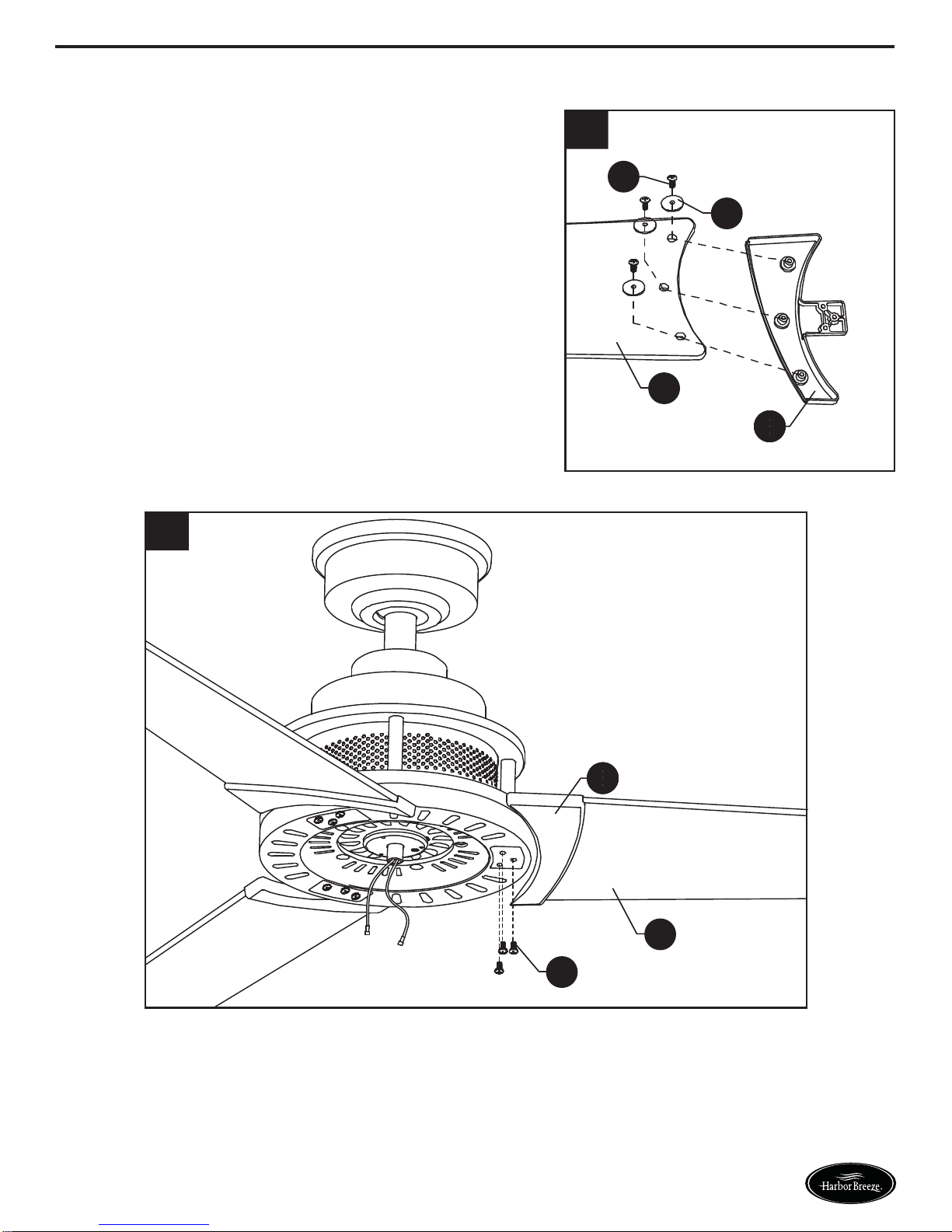

10.Attach blade brackets (I) to blades (K) with screws
(M) and metal or fiber washers (L). Do not tighten
screws (M) until each screw (M) has been started.
Then, tighten each screw (M) starting with the center
screw.
11.Assembling the blades: Insert end of each blade bracket (I) into the slots on the blade ring. Align
the holes on the blade bracket (I) with the holes on the blade ring and secure using the blade iron
screws w/ semi-washers (Y). Do not tighten screws until all blades (K) have been attached.
11
10
K
L
K
L
K
L
K
L
MMM
EEEI
KKKK
Y
EEEI
Lowes.com/harborbreeze
