Quick Reference Guide

Why Buy Harbor Breeze Ceiling Fans

●3-Speeds(Low,MediumorHigh)

●ReversibleMotorforYear-RoundComfortandEnergySavings

●TripleCapacitorSpeedControlForQuietOperation

●SiliconSteelMotor-HighestQualitySteelAvailable-ProducesLess

Heat for Longer Life

●ConcealedHardwareforEnhancedAppearance

●Double-SealedBearingsNeverNeedLubrication

●3/4”Downrod(InsideDiameter)

●PrecisionBalancedBladesandBladeArmsforWobble-FreeOperation

●ExtraSwitchCoverIncludedforUse with or without a Light Kit.

●LightKitAdaptable

●Quiet Operation

●Larger Housing

●Larger Motor (172 x 14mm or 188 x 12mm)

●Triple Capacitor Speed Control

●Die Cast Ball/Hanger Bracket for Safe Installation of Heavier Fans

●54” Lead Wires- No Splicing in Downrods up to 48”

●14 Degree Blade Pitch (Steeper Pitch for MoreAir Movement)

●“Quick and Easy” BladeAssembly

●Triple Step Heavy Duty Capacitors for Silent Operation

●54” Lead Wires- No Splicing in Downrods up to 48”

●Insulator Pad Between Motor and BladeArms

●14 Degree Blade Pitch

●Larger Motor for Longer Life

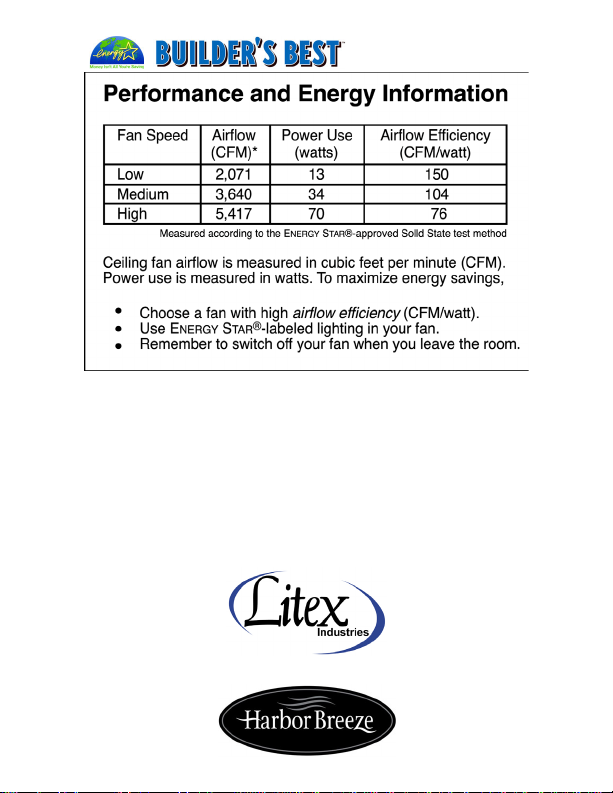

●Energy Star Rated and Labeled Ceiling Fans MoveAir 15 to 20% More

●Efficiently than a Typical Ceiling Fan

Lifetime Warranty Ceiling Fans

Lifetime Warranty Outdoor Ceiling Fans

Lifetime Warranty Builder’s Best Ceiling Fans

●Stainless Steel Hardware

●ABS Plastic Blades

●Rubber Gaskets on Switches and Downrod

●Powder Coated Paint on Inside and Outside of Motor Housing

●Quiet Operation

●Silicon Steel Motor

●Triple Capacitor Speed Control

●18” Lead Wire - Dual Mount Only (8” for Hugger Styles)

15 Year Warranty Ceiling Fans

4 Easy Steps Help You Choose The Most

Efficient Ceiling Fan For Your Needs

1.The size of the room determines the fan size you need (see below).

2. Select the proper mounting option:

a. For low ceilings, choose a Closemount Fan

b. For more mounting options choose the Dualmount System

3. Decide whether you need a Light Kit and how much light you require

4. Choose a style and finish to enhance your room’s décor.

Fan Sizing Guide

Fan Mounting Systems

●The Dualmount System Gives You

Three Installation Options

1. Closemount for additional clearance

in rooms with normal to low ceilings

2. Downrod for standard ceiling

3. Downrod for vaulted ceilings. Longer

downrods for vaulted ceilings are

available at Lowe’s.

●Flushmount fans are excellent for

installation in rooms with low ceilings.

Ceiling Height

For optimum performance, fan blades should be 7 to 9 feet from the floor.

Fans with blades lower than 7 feet from the floor can be a safety hazard.

The blades in standard mounts are 12 inches from the ceiling and 9

inches from the ceiling for huggers. Fans with downrods move more air

than huggers because there is more air to move between the ceiling and

the blades.

Year-Round Comfort &

Energy Savings Are A Breeze

Energy Savings

Reversible Operated Motor Gives Upward and

Downward Air Flow Providing DesiredAir Circulation

Inwarmweatheroperate

thefanCOUNTERCLOCKWISE.

Thiscreatesadowndraftwhichgivesa

windchilleffectto improvetheefficiency

ofyourairconditioner.

Incoolweatheroperatethefan

CLOCKWISE.Thiscreatesanupdraft

whichcirculatesthehotairtrappedatthe

ceilingandpushesit downto provide

even,comfortableheat.

All Harbor Breeze Ceiling Fans

Have a 3-Speed Reversible Motor

for Year Round Comfort

Look for this Logo on Select Ceiling Fans

Accessories Let You Get

The Most Out Of Your Ceiling Fan

Item # 43147

Model # RC103L

Universal Remote Control

3-Speeds, Variable Light

Control, Instant Off Button

Item # 103186

Model # TRC100L

Universal LCD Remote Control

Control ByTimer,Thermostat Or

Manually, Variable Light Control

Item # 103185

Model # WC100L

Wall Command Remote Control

Uses 2 Wires, 3-Speeds, Dimmer,

Instant Off Button

Item # 130622

Model # WM-7WWL

4-Speed Fan Control, Slider Style

Buttons, Variable light Control

(requires 3 wires in wall)

Accessories Are Available To Allow You To Enhance

The Beauty Of Your Harbor Breeze FanAnd Adapt It To Your Home.

●Light Kits

●Fan Hangers

●Down Rods

●Fan Speed/Light Controls

●Pull Chains/Tassels

●Ceiling Medallions

●Replacement Glass

●Fan Light Bulbs

For Customer Service, Technical Support,

and Replacement Parts Call: 1-800-444-6742

For Special Orders Call:

1-800-527-1292 ext. 210

For Litex Store Service Call:

1-800-223-6156

This reference guide provided compliments of:

A Proud Supplier of:

CEILING FAN
