AVR 130 Audio/VideoReceiver

SERVICE MANUAL

DIGITAL LOGIC 7 VID 1 DVD

FMAM

TAPE

6 CH

VID 2

VID 3

PRO LOGIC

3 STEREO DSP

5 CH. STEREO

SURR. OFF

Surr. Select

Coaxial

RDS

Power for the Digital Revolution™

TECHNICAL SPECIFICATIONS

Technical Specifications

Audio Section

Stereo Mode

Continuous Average Power (FTC)

50 Watts per channel, 20Hz–20kHz,

@ < 0.07% THD, both channels driven into 8 ohms

Five-Channel Surround Modes

Power Per Individual Channel

Front L&R channels:

40 Watts per channel,

@ < 0.07% THD, 20Hz–20kHz into 8 ohms

Center channel:

40 Watts, @ < 0.07% THD, 20Hz–20kHz into 8 ohms

Surround channels:

40 Watts per channel,

@ < 0.07% THD, 20Hz–20kHz into 8 ohms

Input Sensitivity/Impedance

Linear (High Level) 200mV/47kohms

Signal-to-Noise Ratio (IHF-A) 95dB

Surround System Adjacent Channel Separation

Analog Decoding 40dB

(Pro Logic, etc.)

Dolby Digital (AC-3) 55dB

DTS 55dB

Frequency Response

@ 1W (+0dB, –3dB) 10Hz–100kHz

High Instantaneous

Current Capability (HCC) ±25 Amps

Transient Intermodulation

Distortion (TIM) Unmeasurable

Rise Time 16 µsec

Slew Rate 40V/µsec

FM Tuner Section

Frequency Range 87.5–108MHz

Usable Sensitivity IHF 1.3 µV/13.2dBf

Signal-to-Noise Ratio Mono/Stereo: 70/65dB (DIN)

Distortion Mono/Stereo: 0.15/0.3%

Stereo Separation 35dB @ 1kHz

Selectivity ±400kHz: 70dB

Image Rejection 80dB

IF Rejection 90dB

AM Tuner Section

Frequency Range 522–1720kHz

Signal-to-Noise Ratio 45dB

Usable Sensitivity Loop: 500µV

Distortion 1kHz, 50% Mod: 0.8%

Selectivity ±10kHz: 30dB

Video Section

Video Format PAL/NTSC

Input Level/Impedance 1Vp-p/75 ohms

Output Level/Impedance 1Vp-p/75 ohms

Video Frequency

Response 10Hz–8MHz (–3dB)

General

Power Requirement AC 220-240V/50Hz

Power Consumption 72W idle, 580W maximum

(2 channels driven)

Dimensions (Max)

Width 440mm

Height 168mm

Depth 390mm

Weight 10.9 kg

Depth measurement includes knobs, buttons and terminal connections.

Height measurement includes feet and chassis.

All features and specifications are subject to change without notice.

Harman Kardon is a registered trademark, and Power for the digital revolution is a

trademark, of Harman International Industries, Inc.

*Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, and the Double-D symbol are

trademarks of Dolby Laboratories, Inc.

†“DTS” and “DTS Digital Surround” are registered trademarks of

Digital Theater Systems, Inc.

††UltraStereo is a trademark of UltraStereo Corp.

VMAx is a trademark of Harman International Industries, Inc., and is an

implementation of Cooper Bauck Transaural Stereo under patent license.

Logic 7 is a registered trademark of Lexicon, Inc.

Crystal is a registered trademark of Cirrus Logic Corp.

1/1

Pos Part number 1st part name 2nd part name

CQXAVR130 INSTRUCTION MANUAL ASS'Y

CPG1A732ZBOX , OUT CARTON

CPP1A081Z BAG,POLY SET

CPS4A564 PAD , SNOW L

CPS4A565 PAD , SNOW R

CPB1061Y BAG , POLY

CQE1A180Z BOOKLET , IMFORMATIONS AVR2550/3550

CQX1A861zMANUAL , INSTRUCTION AVR130

CQX1A865Y MANUAL , SETUP AVR130

CSA1A018Z FM 1 POLE ANT

CSA3A012Z AM LOOP ANTENNA ASS'Y LUG WIRE TYPE

HABAAAM1.5VHK BATTERY

HARTAVR130cc REMOCON ASS'Y AVR130

KPL0905 STAPLE

CRE1A037 LOCKER SH08M790BO

KHE154 CLAMPER , ARM

KPL6500 STAPLE

K4FC240CL TAPE , P.P

K4FC500CL TAPE , OPP CLEAR 50M/M

1/2

Pos Part number 1st part name 2nd part name

AVR 130 SET SET , AV SURROUND RECEIVER

KBN1A174MBC22 KNOB , ROTARY

KGB1A111X BADGE , HARMAN/KARDON

KGX1A338MBC22 CAP , VOLUME

CGL1A222 INDICATOR , VOLUME

CGU1A317ZWINDOW , FIP

CGU1A318Z ORNAMENT , VOLUME

CGWAVR2600 FRONT PANEL ASS'Y

CBT1A819K128 KNOB , DELAY

CGL1A221 INDICATOR , POWER

CGW1A366RDZH43 PANEL , FRONT

CMC1A200 PLATE , SHIELD

CMD1A443 BRACKET , SIDE

CMH1A215 HOLDER , LED

CMK1A010 BRACKET , PCB

CMX1A148 INSULATOR , FUBCTION

CMX1A149 INSULATOR , SET

CMZ1A088 FILTER , FIP

CUAAVR505 BOTTOM CHASSIS ASS'Y

CHD1A012Z SCREW , SPECIAL

CHD1A023 SCREW , TRANS M4X10(SP/WA)

CHD2A012 SCREW , TR

AVR130 PACKING

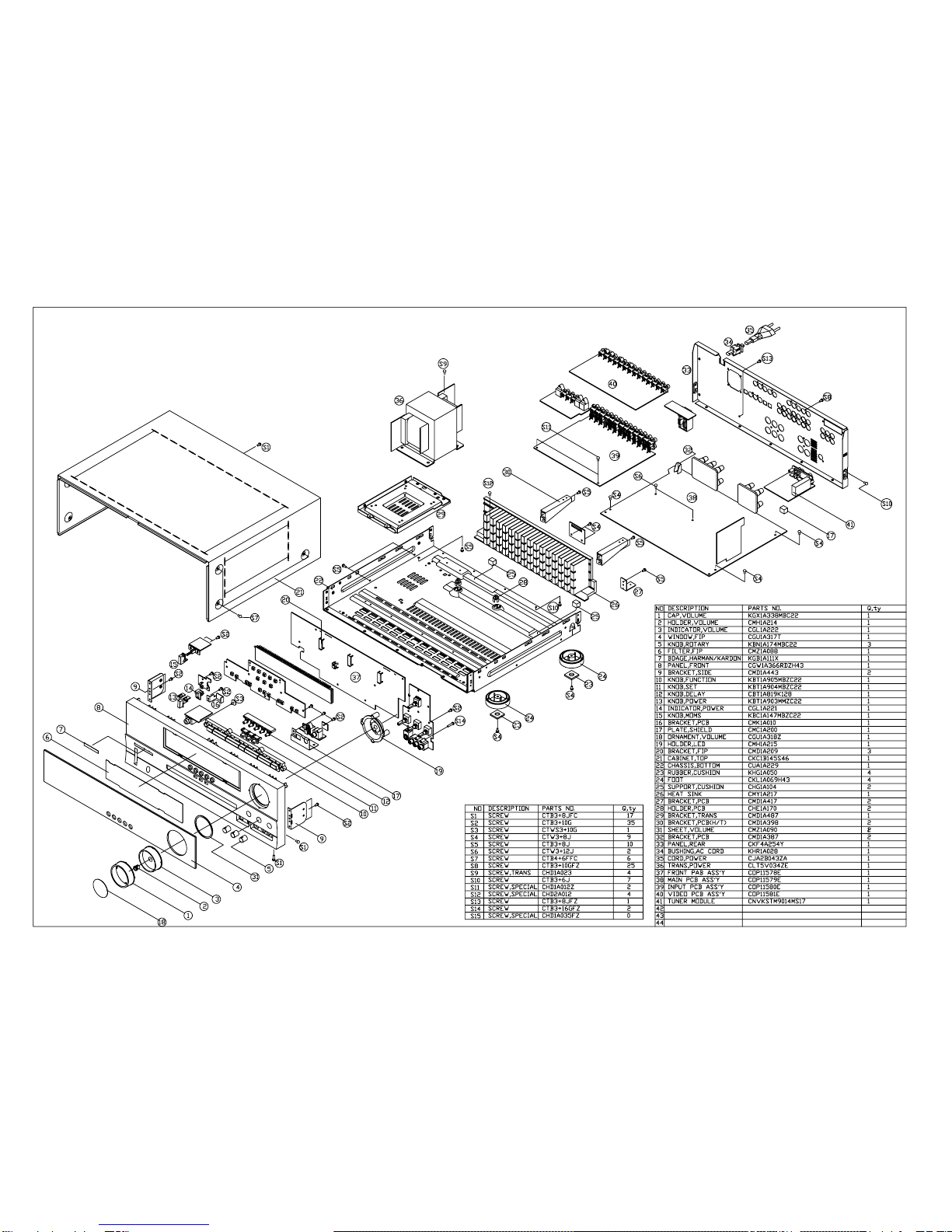

AVR130 MECH

2/2

Pos Part number 1st part name 2nd part name

CB13 CWC1C4A13B080B CABLE , CARD 13pins FFC TUNER - DSP

CB15 CWC1C4A09B100B CABLE , CARD 9pins FFC VIDEO DSP

CHE170 HOLDER , PCB

CHG1A104 CUSHION , EVA H=9.5(15X20)

CHG1A157 CUSHION , RUBBER

CJA2B043ZA CORD , POWER(EUR) QDR-7100CC

CKF4A254Y PANEL , REAR AVR505

CKL1A069H43 FOOT

CLZ9W003Z FERRITE , RING 29X7.7X19

CMD1A487 BRACKET , TRANS

CNVKSTM9014MS17 TUNER MODULE(EUR)

CTB3+10G SCREW

CTB3+16GFZ SCREW

CTWS3+10G SCREW

KBC1A147MBZC22 KNOB , MOMS

KBT1A903MMZC22 KNOB , POWER

KBT1A904MBZC22 KNOB , SET

KBT1A905MBYC22 KNOB , FUNCTION

KHR301 CLAMPER

BN72 CWZAVR230BN72 WIRE ASS'Y

CKC1B145S46 CABINET , TOP

CLZ9Z028Z FERRITE CORE(21.2X6.4X12.7)

CMH1A214 HOLDER , VOLUME

CMZ1A090 SHEET , VOLUME

CTB3+8JFC SCREW

CTB4+6FFC SCREW

1/10

Pos Part number 1st part name 2nd part name

COP11578EFRONT PCB ASS'Y

C712 HCEA1HH1R0T CAP , ELECT 1UF 50V

C713 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C714 HCBS1H151KBT CAP , CERAMIC 150PF 50V K

C716 HCEA1CH331T CAP , ELECT

C717 HCBS1H221KBT CAP , CERAMIC 220PF 50V K

C718 HCBS1H221KBT CAP , CERAMIC 220PF 50V K

C719 HCBS1H181KBT CAP , CERAMIC 180PF 50V K

C720 HCBS1H181KBT CAP , CERAMIC 180PF 50V K

C721 HCBS1H181KBT CAP , CERAMIC 180PF 50V K

C722 HCEA1CH101T CAP , ELECT 100UF 16V

C723 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C724 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C725 CCKT1H473ZF CAP , CERAMIC 0.047UF 50V ZF

C726 HCEA0JH102T CAP , ELECT 1000UF 6.3V

AVR130 MECH

AVR130 FRONT BD

2/10

Pos Part number 1st part name 2nd part name

C727 HCBS1H221KBT CAP , CERAMIC 220PF 50V K

C728 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C729 CCKT1H473ZF CAP , CERAMIC 0.047UF 50V ZF

C730 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C731 HCEA1HH100T CAP , ELECT 10UF 50V

C732 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C733 HCEA1EH470T CAP , ELECT 47UF 25V

C735 HCEA1VH100T CAP , ELECT 10UF 35V

C736 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C737 HCBS1H180JT CAP , CERAMIC

C738 HCBS1H180JT CAP , CERAMIC

C770 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C771 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C773 HCEA1VH100T CAP , ELECT 10UF 35V

C774 HCEA1VH100T CAP , ELECT 10UF 35V

C775 HCBS1H151KBT CAP , CERAMIC 150PF 50V K

C776 HCBS1H151KBT CAP , CERAMIC 150PF 50V K

C777 HCEA1VH100T CAP , ELECT 10UF 35V

C778 HCEA1VH100T CAP , ELECT 10UF 35V

C779 HCEA1CKS470T CAP, ELECT

C780 HCEA1CKS470T CAP, ELECT

C781 HCEA1CKS100T CAP , ELECT

C782 HCEA1CKS100T CAP , ELECT

C785 HCBS1H470JT CAP , CERAMIC 47PF 50V J

C786 HCBS1H470JT CAP , CERAMIC 47PF 50V J

C787 HCEA1CKS100T CAP , ELECT

C788 HCEA1CKS100T CAP , ELECT

C789 HCEA1CKS100T CAP , ELECT

C790 HCEA1CKS100T CAP , ELECT

C791 HCEA1CKS470T CAP, ELECT

C792 HCEA1CKS470T CAP, ELECT

C793 KCFE1J183JBT CAP , FILM 0.018UF 63V J

C794 KCFE1J183JBT CAP , FILM 0.018UF 63V J

C795 KCFE1J823JBT CAP , FILM 0.082UF 63V J

C796 KCFE1J823JBT CAP , FILM 0.082UF 63V J

C797 KCFE1J332JBT CAP , FILM 0.0033UF 63V J

C798 KCFE1J332JBT CAP , FILM 0.0033UF 63V J

C799 KCFE1J183JBT CAP , FILM 0.018UF 63V J

C800 KCFE1J183JBT CAP , FILM 0.018UF 63V J

C805 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C806 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C807 CCKT1H104ZF CAP , CERAMIC 50V 0.1UF

C808 CCKT1H181KB CAP , CERAMIC 180PF 50V KB

C809 HCEA1AH471T CAP , ELECT 470UF 10V

AVR130 FRONT BD

3/10

Pos Part number 1st part name 2nd part name

C810 HCEA1CH101T CAP , ELECT 100UF 16V

C811 HCEA1CH101T CAP , ELECT 100UF 16V

C812 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C813 HCEA1HH4R7T CAP , ELECT 4.7UF 50V

C814 HCEA1HH4R7T CAP , ELECT 4.7UF 50V

C850 HCBS1H471KBT CAP , CERAMIC

C851 HCBS1H471KBT CAP , CERAMIC

C852 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C855 HCBS1H101KBT CAP , CERAMIC 100PF 50V K

C856 HCBS1H101KBT CAP , CERAMIC 100PF 50V K

C857 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C858 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C859 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C860 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C861 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C862 HCBS1H101KBT CAP , CERAMIC 100PF 50V K

C863 HCBS1H101KBT CAP , CERAMIC 100PF 50V K

C864 HCEA1VH100T CAP , ELECT 10UF 35V

C865 CCKT1H473ZF CAP , CERAMIC 0.047UF 50V ZF

C866 HCEA1CKS100T CAP , ELECT

C867 HCEA1CKS100T CAP , ELECT

C868 HCEA1CKS470T CAP, ELECT

C869 HCEA1CKS470T CAP, ELECT

C870 HCBS1H681KBT CAP , CERAMIC

C871 HCBS1H681KBT CAP , CERAMIC

C872 HCEA1CH331T CAP , ELECT

C873 HCEA1CH331T CAP , ELECT

C874 HCBS1H101KBT CAP , CERAMIC 100PF 50V K

C875 HCBS1H473ZFT CAP , CERAMIC 0.047UF 50V Z

C876 HCBS1H473ZFT CAP , CERAMIC 0.047UF 50V Z

C877 HCBS1H473ZFT CAP , CERAMIC 0.047UF 50V Z

C878 HCBS1H473ZFT CAP , CERAMIC 0.047UF 50V Z

C880 HCEA1AH221T CAP , ELECT

C882 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C886 HCEA0JH102T CAP , ELECT 1000UF 6.3V

C889 HCBS1H220JT CAP , CERAMIC

C890 HCBS1H220JT CAP , CERAMIC

C891 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C892 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C893 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C894 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C895 HCEA1AH471T CAP , ELECT 470UF 10V

C896 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C897 HCEA1AH471T CAP , ELECT 470UF 10V

AVR130 FRONT BD

4/10

Pos Part number 1st part name 2nd part name

C900 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

D724 HVD1SS133MT DIODE 1SS133T-77

D728 HVD1SS133MT DIODE 1SS133T-77

D729 HVD1SS133MT DIODE 1SS133T-77

D730 HVD1SS133MT DIODE 1SS133T-77

D761 HVD1SS133MT DIODE 1SS133T-77

D774 HVD1SS133MT DIODE 1SS133T-77

D775 HVD1SS133MT DIODE 1SS133T-77

D776 KVD1N4003ST DIODE 1N4003

D777 HVD1SS133MT DIODE 1SS133T-77

D778 KVD1N4003ST DIODE 1N4003

D779 HVD1SS133MT DIODE 1SS133T-77

D783 HVD1SS133MT DIODE 1SS133T-77

D784 HVD1SS133MT DIODE 1SS133T-77

D785 HVD1SS133MT DIODE 1SS133T-77

D786 HVDMTZJ5.6BT DIODE , ZENER

D787 HVDMTZJ5.6BT DIODE , ZENER

IC87 HVIRE5VL28CATZ IC , RESET

L702 HLQ02C100KT COIL , AXAIL

Q701 HVTKRC107MT T.R KRC107M

Q702 HVTKRC107MT T.R KRC107M

Q703 HVTKRC107MT T.R KRC107M

Q705 HVTKRC107MT T.R KRC107M

Q706 HVTKRC107MT T.R KRC107M

Q722 HVTKRA107MT T.R KRA107M

Q724 HVTKRC107MT T.R KRC107M

Q725 HVTKRC107MT T.R KRC107M

Q726 HVTKRC107MT T.R KRC107M

Q727 HVTKRC107MT T.R KRC107M

Q728 HVTKRC107MT T.R KRC107M

Q729 HVTKRC107MT T.R KRC107M

Q734 HVTKTC2874BT T.R , MUTE KTC2874B

Q735 HVTKTC2874BT T.R , MUTE KTC2874B

Q736 HVTKTC2874BT T.R , MUTE KTC2874B

Q737 HVTKTC2874BT T.R , MUTE KTC2874B

Q738 HVTKRC107MT T.R KRC107M

Q739 HVTKTA1271YT T.R KTA1271Y

Q743 HVTKRA107MT T.R KRA107M

R701 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R702 CRD20TJ1R0T RES , CARBON 1 OHM 1/5W J

R704 CRD20TJ100T RES , CARBON 10 OHM 1/5W J

R705 CRD20TJ820T RES , CARBON 82 OHM 1/5W J

R706 CRD20TJ820T RES , CARBON 82 OHM 1/5W J

R707 CRD20TJ820T RES , CARBON 82 OHM 1/5W J

AVR130 FRONT BD

5/10

Pos Part number 1st part name 2nd part name

R708 CRD20TJ820T RES , CARBON 82 OHM 1/5W J

R709 CRD20TJ470T RES , CARBON 47 OHM 1/5W J

R710 CRD20TJ470T RES , CARBON 47 OHM 1/5W J

R711 CRD20TJ470T RES , CARBON 47 OHM 1/5W J

R712 CRD20TJ470T RES , CARBON 47 OHM 1/5W J

R713 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J

R714 CRD20TJ470T RES , CARBON 47 OHM 1/5W J

R715 CRD20TJ470T RES , CARBON 47 OHM 1/5W J

R716 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R717 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R718 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J

R719 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R721 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R723 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J

R724 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R725 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R726 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R727 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R728 CRD20TJ101T RES , CARBON 100 OHM 1/5W J

R730 CRD20TJ112T RES,CABON

R731 CRD20TJ223T RES , CARBON 22K OHM 1/5W J

R732 CRD20TJ202T RES , CARBON

R733 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J

R734 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R735 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R736 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J

R737 CRD20TJ100T RES , CARBON 10 OHM 1/5W J

R744 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R745 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R746 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R747 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R749 CRD20TJ223T RES , CARBON 22K OHM 1/5W J

R750 CRD20TJ223T RES , CARBON 22K OHM 1/5W J

R751 CRD20TJ223T RES , CARBON 22K OHM 1/5W J

R753 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R754 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J

R755 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J

R756 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J

R757 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J

R758 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J

R759 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R760 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J

R761 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J

R762 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J

AVR130 FRONT BD

6/10

Pos Part number 1st part name 2nd part name

R763 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J

R764 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J

R765 CRD20TJ752T RES , CARBON 7.5K OHM 1/5W J

R766 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R767 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J

R768 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J

R769 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J

R771 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R772 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R773 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R774 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J

R775 CRD20TJ470T RES , CARBON 47 OHM 1/5W J

R776 CRD20TJ470T RES , CARBON 47 OHM 1/5W J

R777 CRD20TJ100T RES , CARBON 10 OHM 1/5W J

R810 CRD20TJ101T RES , CARBON 100 OHM 1/5W J

R811 CRD20TJ101T RES , CARBON 100 OHM 1/5W J

R813 CRD20TJ104T RES , CARBON 100K OHM 1/5W J

R814 CRD20TJ104T RES , CARBON 100K OHM 1/5W J

R822 CRD20TJ471T RES , CARBON 470 OHM 1/5W J

R824 CRD20TJ820T RES , CARBON 82 OHM 1/5W J

R825 CRD20TJ181T RES , CARBON 180 OHM 1/5W J

R826 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R827 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R829 CRD20TJ184T RES , CARBON

R830 CRD20TJ184T RES , CARBON

R831 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J

R832 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J

R833 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R834 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R835 CRD20TJ184T RES , CARBON

R836 CRD20TJ184T RES , CARBON

R837 CRD20TJ101T RES , CARBON 100 OHM 1/5W J

R838 CRD20TJ101T RES , CARBON 100 OHM 1/5W J

R839 CRD20TJ104T RES , CARBON 100K OHM 1/5W J

R840 CRD20TJ104T RES , CARBON 100K OHM 1/5W J

R841 CRD20TJ473T RES , CARBON 47K OHM 1/5W J

R842 CRD20TJ473T RES , CARBON 47K OHM 1/5W J

R843 CRD20TJ105T RES , CARBON 1M OHM 1/5W J

R844 CRD20TJ105T RES , CARBON 1M OHM 1/5W J

R845 CRD20TJ104T RES , CARBON 100K OHM 1/5W J

R846 CRD20TJ104T RES , CARBON 100K OHM 1/5W J

R847 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R848 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R849 CRD20TJ223T RES , CARBON 22K OHM 1/5W J

AVR130 FRONT BD

Altri manuali per AVR 130

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Harman Kardon Ricevitore

Harman Kardon

Harman Kardon AVR 254 Manuale utente

Harman Kardon

Harman Kardon AVR 500 Manuale utente

Harman Kardon

Harman Kardon AVR 20 Manuale utente

Harman Kardon

Harman Kardon 730 Manuale utente

Harman Kardon

Harman Kardon Harman/kardon HK3490 Manuale d'uso e manutenzione

Harman Kardon

Harman Kardon AVR 155 Manuale utente

Harman Kardon

Harman Kardon AVR 147 Manuale utente

Harman Kardon

Harman Kardon AVR 1610 Manuale utente

Harman Kardon

Harman Kardon AVR 630 Manuale utente

Harman Kardon

Harman Kardon AVR 2700 Manuale utente

Harman Kardon

Harman Kardon AVR 3600 Manuale utente

Harman Kardon

Harman Kardon AVR 247 Manuale utente

Harman Kardon

Harman Kardon AVR 120 Manuale utente

Harman Kardon

Harman Kardon AVR 745 Manuale utente

Harman Kardon

Harman Kardon AVR 247 Manuale utente

Harman Kardon

Harman Kardon System 13828 Manuale utente

Harman Kardon

Harman Kardon AVR 130 Manuale di istruzioni

Harman Kardon

Harman Kardon DAL 150 Manuale utente

Harman Kardon

Harman Kardon AVR-133 Manuale utente

Harman Kardon

Harman Kardon AVR 310 Manuale utente

Harman Kardon

Harman Kardon AVR 100 Manuale utente

Harman Kardon

Harman Kardon AVR 110 Manuale di istruzioni

Harman Kardon

Harman Kardon AVR 30 Manuale utente

Harman Kardon

Harman Kardon AVR 1600 Istruzioni e ricette

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
