Harman Kardon AVR 225 Manuale utente

FRONT

LEFT

SPEAKER

(White)

CENTER

SPEAKER

(Green)

SUBWOOFER

(Purple)

SURROUND

LEFT

SPEAKER

(Blue)

FRONT

RIGHT

SPEAKER

(Red)

SURROUND

RIGHT

SPEAKER

(Gray)

SPEAKER PLACEMENT

Thank you for purchasing a Harman Kardon AVR 225.This Quick-Start Guide

will help you with a basic system installation. For detailed information on any step

in this Guide,please refer to the pages referenced in the Owner’s Manual.

We strongly recommend that you read the Owner’s Manual for complete details

on how to install, configure and operate the AVR 225, as well as for the

important safety information it contains.

Power for the Digital Revolution.

Connections Color Guide

Audio Connections Left Right

Front

Center

Surround

Subwoofer

Digital Audio Connections

Coax

Optical

Video Connections

Composite

S-Video

Match the colored jacks on the AVR 225 to the appropriate

jacks on your source equipment or speakers.The colors are

standardized,but not all equipment or connectors use them.

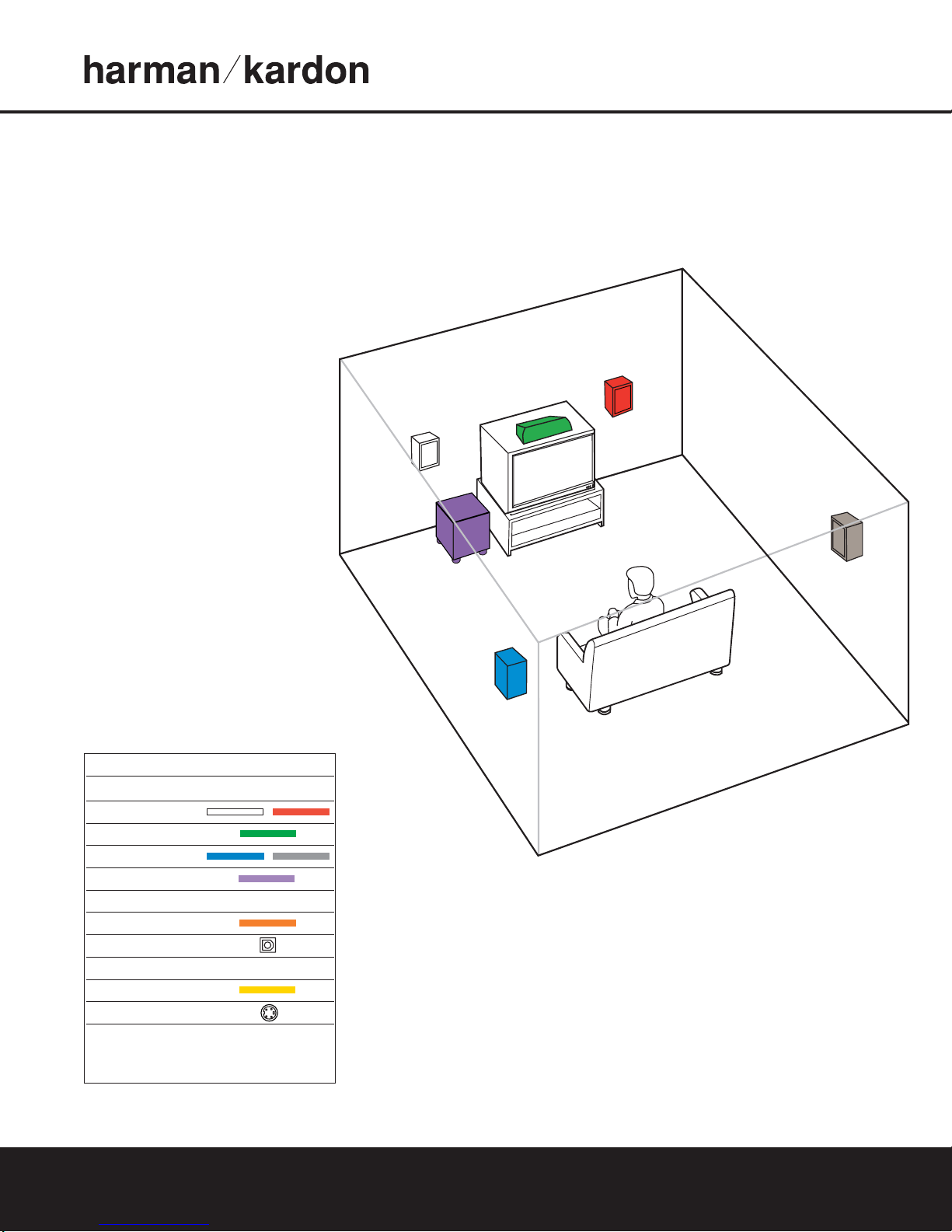

Figure 1 – Speaker Placement

The colors shown for each speaker correspond to

the matching output terminal connection on the back

of the AVR 225 (see page 14).

Step 1. Place your speakers in the listening room

(see page 16).

AVR 225 QUICK-START GUIDE

SURROUND

RIGHT SPEAKER SURROUND

LEFT SPEAKER

FRONT RIGHT

SPEAKER FRONT LEFT

SPEAKER

CENTER SPEAKER

SUBWOOFER

LINE IN/SUB/LFE +

, 1A

, 0.5A

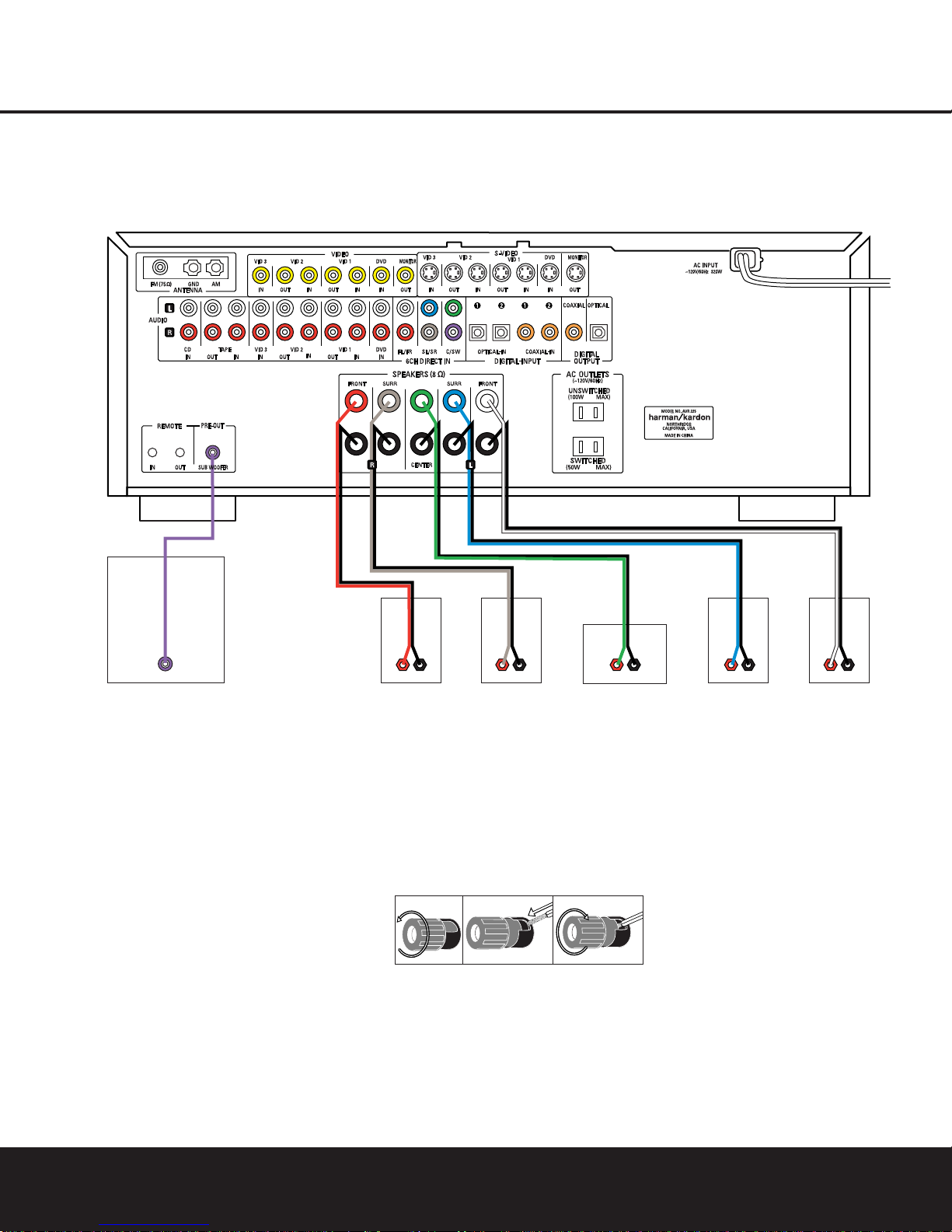

SPEAKER CONNECTIONS

Figure 2 – Speaker Connections

Figure 3 – How to Use the Binding-Post

Speaker Terminal

Step 2. Connect the speakers to the receiver:Red (+)

on speaker to colored (+) on receiver and

black (–) to black (–). (See page 14.)

Step 3. Connect the Subwoofer Pre-Out jack to

the Line-In jack on your subwoofer (see

page 16).Adjust the settings on the

subwoofer as needed.

Step 4. Connect AM and FM antennas (Figure 4).

(See page 14.)

Step 5. Connect source components, as shown in

Figures 4 and 5, and the Device Connection

Options chart at right (see pages 14–15).

AUDIO connections: right channel (red) on

source to right (red) on AVR, and left channel

(white) on source to left (white) on AVR.

DIGITAL AUDIO connections, if available:

Choose either coax (orange) to coax (orange)

OR optical to optical for each device.The

Coax 1 input defaults to the DVD player, but

may be reassigned.Assign the other digital

inputs and outputs as appropriate for your

equipment (as described in Step 7).

VIDEO connections: Choose either composite

(yellow) or S-Video (4-pin) for each video

source. Connect the composite and S-Video

Monitor outputs to your Video Monitor (TV).

Switch your TV set’s input to match the type of

video used for the currently selected source.

Step 6. Plug all components into AC power outlets.

The outlets on the back of the AVR 225 may

be used only for low-current products, such as

CD or DVD players, as long as the total does

not exceed 100 watts.

Basic Receiver Configuration

Step 7. Select digital inputs: If your DVD is connected

to Coax 1, no adjustment is needed. For any

other digital-device connections, use the On-

Screen In/Out Setup menu or the front-panel

Digital Select button and the arrow buttons to

select an optical or coax digital input

(see pages 17–18 and 26).

Step 8. Select a surround mode: Press the Surround

Mode button on the front panel to select

Dolby

Pro Logic

II – Movie. (You may select

other modes later as you become familiar with

the AVR 225; see pages 18 and 25–26.)

Step 9. Configure speakers: No action is needed if

you have five “small” satellite-type speakers

and a subwoofer. Otherwise, use the OSD

Speaker Setup Menu, or press the Speaker

button and then the Set and arrow buttons to

select the correct speaker choices for your

system (see pages 19–20).

Step 10. Use EzSet™to set output levels: Set the

Balance to 12 o’clock, and the Volume to

–15dB. Hold the remote in front of you at

shoulder level, and point it at the AVR 225.

Press the SPL button for 3 seconds, hold the

remote steady, and wait for the process to

complete (see pages 21–22).

Step 11.

Your system is configured – sit back and enjoy!

CD PLAYERAM AntennaFM Antenna

AUDIO RECORDER

L R Optical Coax

REC/IN

PLAY/OUT

, 1A

, 0.5A

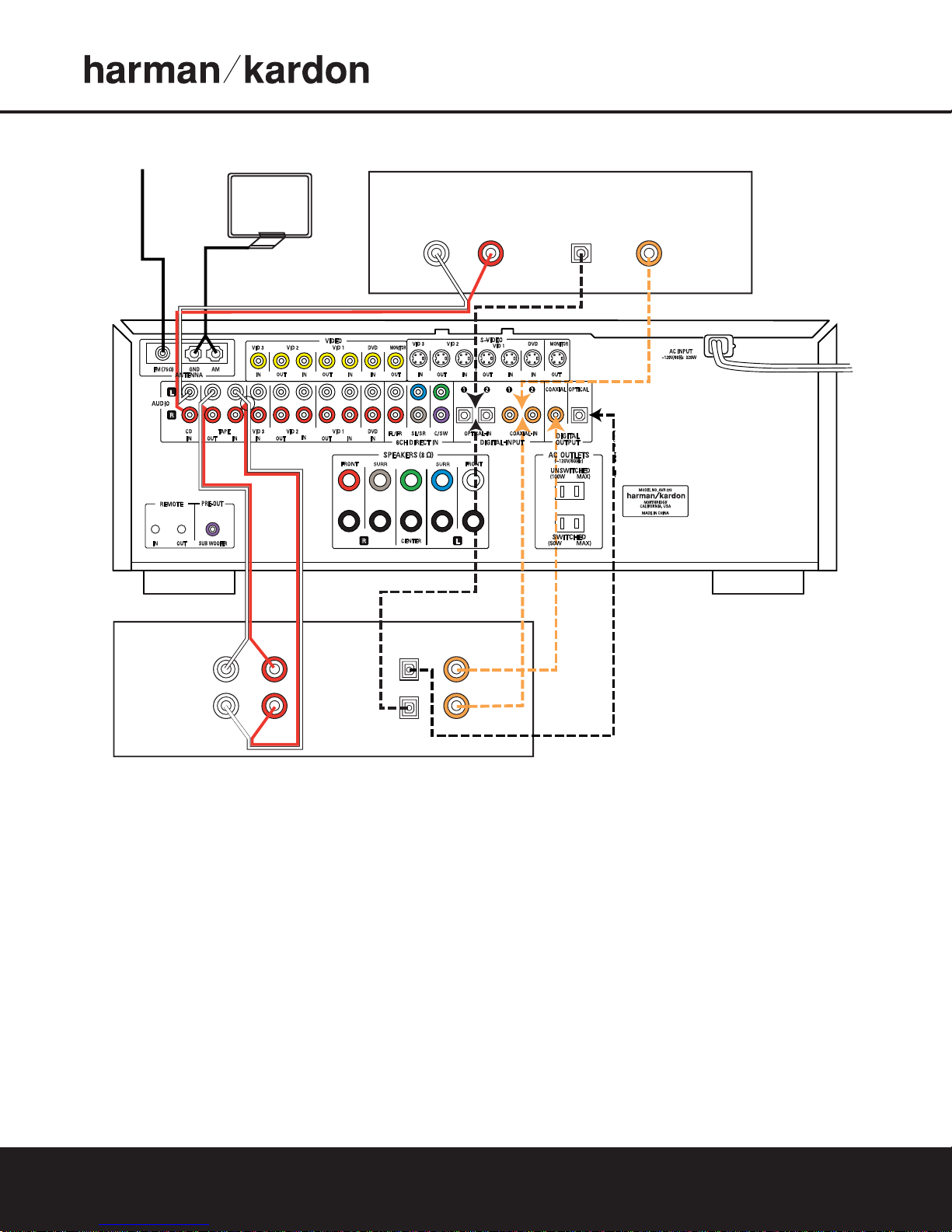

AUDIO CONNECTIONS

Figure 4 –Audio Connections

Power for the Digital Revolution.

Dashed lines (––––) indicate coax and optical

digital audio connections. Choose either type

(but not both) for each digital audio source.

AVR 225 QUICK-START GUIDE

*Check with your cable company to make certain that digital audio is available for all channels. It may be necessary to make BOTH analog and digital connections.

DVD PLAYER

VCR (Video 1) Cable or Sat or HDTV Set-Top Box (Video 3) TV (Video Monitor)

In/Rec

Out/Play

Video In

S-Video In

OUT

L R VIDEO L R Video S-Video

Optical Coax

OPTICAL-IN COAXIAL-IN

, 1A

, 0.5A

L R Video S-Video

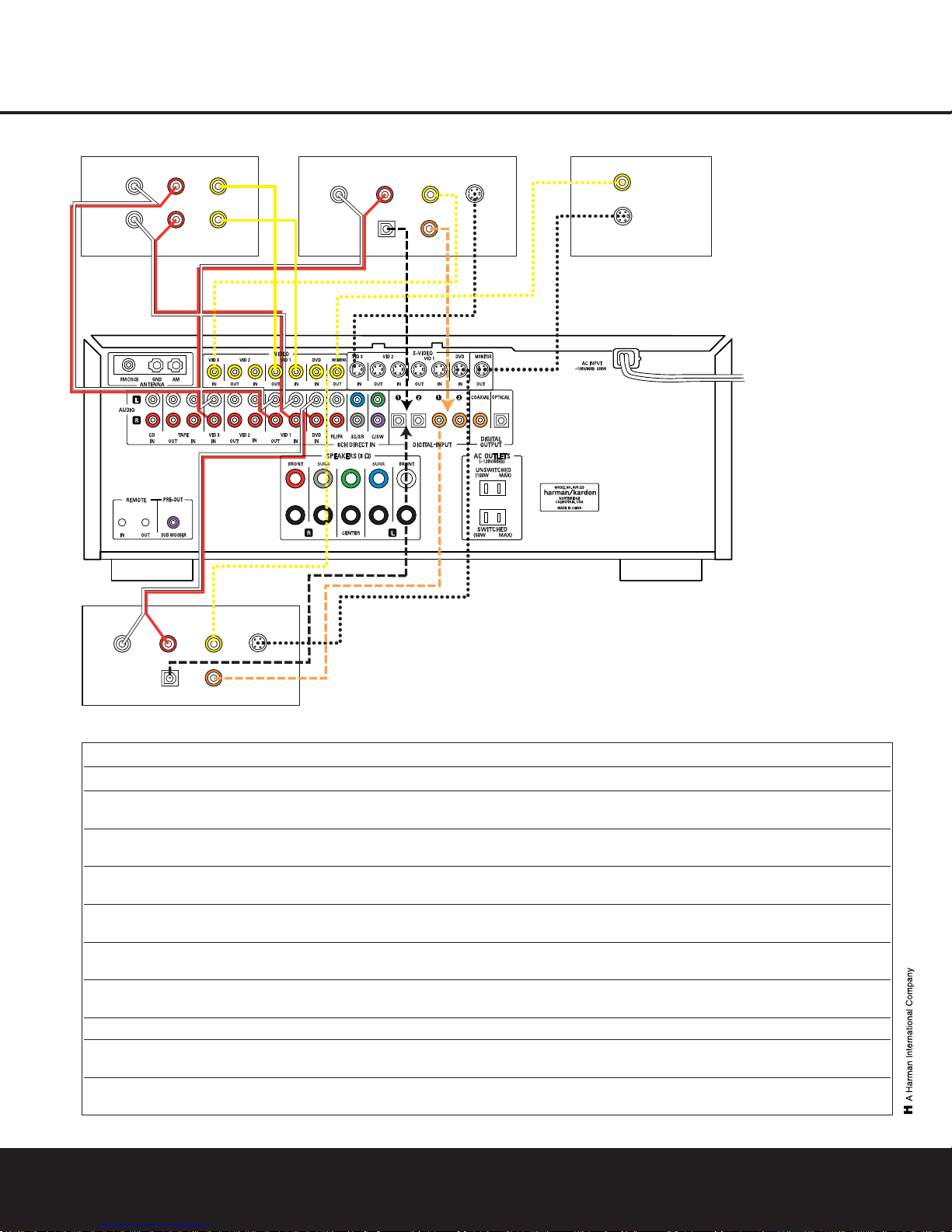

VIDEO CONNECTIONS

Figure 5 –Video Connections

Dashed lines (––––) indicate coax and optical

digital audio connections. Choose either type

(but not both) for each digital audio source.

Dotted lines (••••) indicate composite or S-Video

connections. S-Video is the preferred connection

when available, but you may use either type (but

not both).When both composite and S-Video

sources are connected to the AVR you must also

connect both outputs from the AVR to your TV.

Device Connection Options:Recommended connections are shown in red, but connections may be made to best fit your system requirements.

Device Input Name Audio Input Connections Audio Output Connections Video Connections

CD Player CD CD L/R Inputs, Optical Digital 1 Not required Not required

or 2, or Coaxial Digital 1 or 2

DVD Player DVD Coaxial Digital 1 or 2, Optical Digital 1 Not required DVD Composite or S-Video

or 2, or DVD L/R Inputs

VCR Video 1 Video 1 L/R Inputs Video 1 L/R Outputs Video 1 Composite or S-Video

Input and Output

Cable Box or Video 2 or 3Video 2 or 3L/R Inputs, Optical Digital Not required Video 2 or 3Composite or

Satellite Receiver 1 or 2, or Coaxial Digital 1 or 2 Inputs* S-Video Input

Video Game Video 2, 3 or 4Video 2, 3 or 4L/R Inputs, Optical Digital Not required Video 2, 3 or 4Composite

1, 2 or 3, or Coaxial Digital 1, 2 or 3 Inputs or S-Video Input

Camcorder Video 2, 3 or 4 Video 2, 3 or 4 L/R Inputs Video 2, or 3 L/R Outputs Video 2, 3 or 4 Composite or

S-Video Input and Output

Audio Cassette Recorder Tape Tape L/R Inputs Tape L/R Outputs Not required

Digital Audio Recorder Tape and/or CD Tape L/R Inputs, Optical Digital 1/2 or Tape L/R Outputs, Digital Optical Not required

Coaxial Digital 1/2 Inputs or Coaxial Outputs

TV or Projector Video 2 or 3 Video 2 or 3 L/R Inputs Not required Monitor-Out Composite

and/or S-Video
