HazeBase classic 2 Manuale utente
Instruction manual
Classic² / Highpower²
Scope of delivery
1 Classic² or Highpower²
1 5l empty canister
1 tank cap with quick coupling
1 fluid hose with quick coupling and grommet
1 Power cord with TrueOne plug
1 Tank holder
1 Wide jet nozzle (only with Highpower²)
1 Noise-reducing nozzle (only for Highpower²)
1 Operating instructions
Please check the completeness of the delivery
1
Classic² / Highpower²
Content
1. Introduction 3
2. Safety instructions 4
3. Designation of the parts 5
4. Preparation 6
4.1 Selection of the site 6
4.2 Changing the canister 6
4.3 Ducting adapter 6
4.4 Interchangeable nozzle (Highpower² only) 7
5. Fog fluids 8
6. Working with the Classic²/Highpower² 8
6.1 Control panel of the Classic²/Highpower² 9
6.2 Operation in stand-alone mode 9
6.3 Operation via DMX512/RDM 10
6.4 Operation via Modbus RTU 10
6.5 Operation via cable remote control (option) 11
6.6 Operation via radio remote control (option) 12
6.7 Operation via the internal timer 13
7 "Options" menu item 13
7.1 Setting the pump characteristics 14
7.2 Setting the communication protocol of the XLR sockets 15
8. Care and maintenance 16
9. Troubleshooting 17
10. Technical data 18
10.1 Highpower² 18
10.2 Classic² - 230V 19
10.3 Classic² - 115V 20
11. Warranty conditions 21
A1. Appendix 23
2
Classic² / Highpower²
1. Introduction
The Classic² and Highpower² are powerful fog machines with classic accumulating
evaporators. The large storage volume allows large amounts of fog to be generated.
Likewise, the smallest fog clouds can be generated.
The Highpower² also has an alternating nozzle system. Here, a choice can be made
between a wide-jet nozzle and a noise-reducing nozzle.
There are many possible uses, ranging from theme parks and fire drills to small and
large stages.
The diverse control options enable use in a wide variety of scenarios.
The machines are designed to create artificial fog.
3
Classic² / Highpower²
2. Safety instructions
Very hot steam escapes from the mist outlet. Caution: Danger of burns!
During the fogging process, very hot fluid droplets may occasionally escape from the
fog outlet opening. Therefore, there must be no persons or heat-sensitive objects
within a distance of 1.5 m from the fog outlet opening.
Never handle the mist outlet during operation or when activated.
The device must be set up in a place that is not sensitive to heat. Keep a minimum
distance of 60 cm from flammable, combustible and heat-sensitive objects.
The fogging fluid used contains a glycol which burns with a slightly bluish, almost
invisible flame. Therefore, never fog into strong ignition sources such as open fire.
Never open the device connected to a power source.
During operation, sporadic leakage of hot fluid droplets is possible. Care should
therefore be taken to ensure that these cannot become a hazard to people. Keep a
safety distance of 3m to the fog outlet nozzle.
Do not ingest the fog fluid and keep away from children. In case of eye contact, rinse
with plenty of water. In case of accidental ingestion, consult a doctor.
Spilled or splashed fluid can cause slipping hazards. Absorb the fluid and dispose of it
in accordance with the regulations.
Do not let visibility drop below 2m, you are responsible for people moving in the foggy
room.
The mist produced can set off smoke detectors.
The method used here to generate artificial fog is largely harmless and is used
worldwide in the entertainment sector. We are not aware of any case in which a
healthy person has been harmed by the use of this artificial fog. Nevertheless, we
recommend that ill persons or persons with previous damage to the
respiratory tract or a tendency to allergies avoid contact with artificial fog!
4
Classic² / Highpower²
3. Designation of the parts
Front view
Rearview
5
Classic² / Highpower²
4. Preparation
4.1 Selection of the site
The location where the Classic²/Highpower² is operated must be
●Have good ventilation, with cold and fog-free air
●Be dry
●Be vibration and shock free
●Consist of a non-flammable footprint
●Be far enough away from easily flammable objects
●Have an ambient temperature between 5 °C and 45 °C
●Have a relative humidity of less than 80%.
4.2 Changing the canister
1. Release the plug-in nozzle from the quick coupling by pressing the locking
button
2. Remove the canister lock
3. Take the canister out of the tank holder
4. Unscrew the tank cap from the empty canister and screw it onto a new, or
full, canister.
5. Push the canister back into the tank holder.
6. Reattach the canister lock to the tank holder
7. Put the plug-in nozzle back into the tank cap.
4.3 Ducting adapter
The Classic²/Highpower² is equipped with a ducting adapter (100 mm). Please only
use hoses that can cope with the temperatures. The hose may only be pushed a
maximum of 50 mm onto the adapter so that the fog nozzle is surrounded by
sufficient fresh and cold air.
6
Classic² / Highpower²
4.4 Interchangeable nozzle (Highpower² only)
The Highpower² has an interchangeable nozzle system.
ATTENTION! Please change the nozzle only when the heating element is cold, danger
of burns!
To do this, unscrew the nozzle from the front using a 14 mm nut with extension and
ratchet. Make sure that the copper sealing ring is still on the nozzle adapter. Now
screw the new nozzle onto the nozzle adapter. The nozzle should be screwed on
tightly without overtightening the thread. If leaks occur at the copper sealing ring,
tighten the nozzle again. If necessary, replace the sealing ring if it is worn.
7
Classic² / Highpower²
5. Fog fluids
Four different fluids are available for the Classic²/Highpower²
●base*X is a very long-lasting fluid
●base*L is a long-lasting fluid
●base*M is a normal lasting fluid
●base*Q is a very fast dissolving fluid
6. Working with the Classic²/Highpower²
The Classic²/Highpower² is a fog machine with powerful output. From a small cloud of
fog to dense, room-filling fog, any desired effect can be achieved. The fine adjustment
of the pump allows fog output settings between 1% and 100%.
After plugging in the power plug, the machine heats up the heating element. This
takes between 8 and 12 minutes, depending on the machine.
8
Classic² / Highpower²

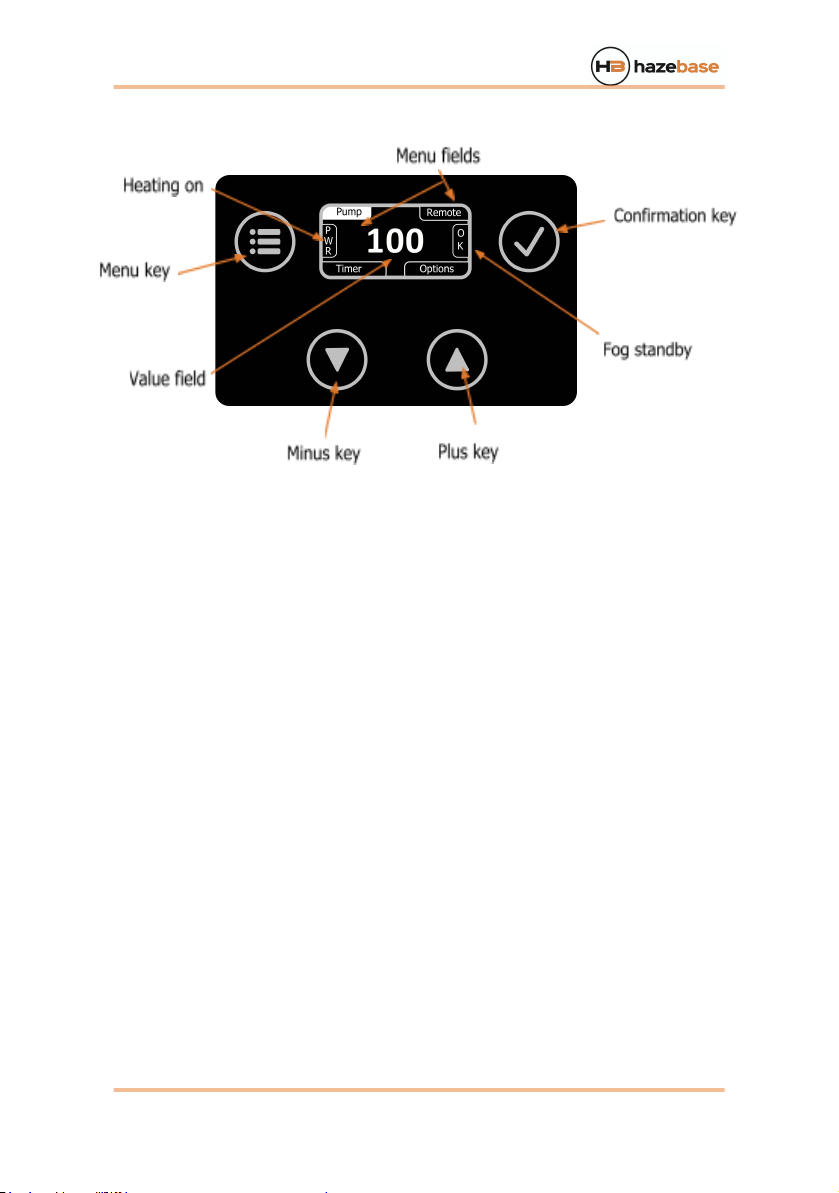

6.1 Control panel of the Classic²/Highpower²
The Classic²/Highpower² is operated via the four keys (menu, minus, plus,
confirmation) and the OLED display. The menu fields are located in the corners of the
display, and the value field, which displays the value of the selected menu field, is
located in the center. The menu key is used to select the individual menus
counterclockwise. The corresponding value can then be changed with the help of the
plus and minus keys and then saved with the confirmation key.
On the left edge of the screen, "PWR" indicates whether the heating is active. On the
right edge of the screen, "OK" indicates that the machine is ready to fog.
6.2 Operation in stand-alone mode
The simplest case of control is the stand-alone mode. For this, the pump value is set
to the desired value and the confirmation key is pressed. If fogging readiness is
displayed, the fogging process starts immediately.
The pump value can also be changed during the fogging process.
Pressing the confirmation key again stops the fogging process.
9
