Headsight TS-JD9x10 Manuale utente

TS-JD9x10

Manual 09050102b

About TrueSight

Contacting Headsight

Headsight, Inc

3529 Fir Rd

Bremen, IN 46506

Phone:574-546-5022

Fax: 574-546-5760

Email: [email protected]

Web: www.headsight.com

About this Manual

How to use this manual

The numbered sections are instructions which should be completed for each

system. The lettered appendices are information which may be of interest, but is

not required for ordinary use.

This icon designates information of which you should take note.

This icon designates an important instruction.

Disclaimers

Headsight and TrueSight are trademarks of Headsight, Inc.

John Deere, JD, CaseIH, AFX, CAT, LEXION, AGCO, New Holland, Trimble,

Outback, WeatherPack, MetriPak, AutoTrac, AccuGuide, EZ-Steer, OnTrac,

AutoTrac, AutoPilot and all other trademarks are property of their respective

owners.

Suggestions

If you have any suggestions to improve this manual –please call 574-546-5022 or

email [email protected].

Table of Contents

About TrueSight i

Contacting Headsight i

About this Manual i

How to use this manual i

Disclaimers i

Suggestions i

1Quick-Start Guide 1

1.1Identify the components 1

1.2Install the system 5

1.3Learn how to use TrueSight 5

1.4Perform the initial calibration steps 5

1.5Complete in-field tuning 8

2Installation 9

2.1Harness installation 9

2.1.1Wiring overview 9

2.1.2Access panel 11

2.1.3Feeder clutch 11

2.1.4Power supply 12

2.1.5Auxiliary switch 12

2.1.6Remote controller 13

2.1.7Base controller 13

2.1.8Safety connectors 14

2.1.9Optional: Feeder position sensor 14

2.1.10Crop sensor 14

2.1.11Speed sensor 14

2.1.12Wheel angle sensor wiring 15

2.2Wheel angle sensor installation 15

2.3Steering device wiring 17

2.3.1Trimble AutoPilot 17

2.3.2OnTrac motor 18

2.3.3EZ-Steer motor 18

2.3.4Outback valve 19

2.4Crop sensor installation 20

2.4.1Sensor assembly 20

iii

2.4.2Width adjustment 21

2.4.3Safety reminder 21

2.4.4Snout choice 21

2.4.5Sensor mounting 22

2.4.6Wiring instructions 23

3Operation 24

3.1Controls description 24

3.2Run screen controls 25

3.3Menu controls 25

4Settings 26

4.1Range (Default = 40) 26

4.2Tilt range (Default = 20) 26

4.3Auxiliary engage 27

4.4Alert timer 27

4.5LCD backlight (Default = 10) 27

4.6LCD contrast (Default = 10) 27

4.7Gain (Default = 6) 27

4.8Deadband (Default = 8) 27

4.9Auto-engage delay (Default = 2.5 sec) 28

4.10Override value (Default = 6) 28

4.11Speed select (Default = GPS) 28

4.12Speed value (Default = 10,700) 28

4.13Gain balance (Default = 0) 28

4.14Left Deadzone (Default = Calibrated Value, 0 if not calibrated) 29

4.15Right Deadzone 29

4.16System select 29

4.17Fine Control (Default = 0) 29

4.18Range2 (Default = 20) 29

5Calibration 30

5.1Bump centering calibration 30

5.2Wheel angle sensor calibration 30

5.3Auto-engage sensor calibration 31

5.4Speedometer calibration 31

5.5Tilt calibration 31

5.6Auto Dead Zone 31

AMenu Layout 32

BTroubleshooting 33

1Troubleshooting by TrueSight™ service code 33

Error 1 or 3 – Comm Failed 33

Error 2 – Wheel Angle Not Done 33

Error 11 - Crop Sensor > 4.7V 34

Error 12 - Crop Sensor < 0.3V 35

Error 21 - Wheel Angle Sensor > 4.7V 37

Error 22 - Wheel Angle Sensor < 0.3V 38

Error 23 - Wheel Angle Swing < 1V 40

Error 24 - Wheel Angle Not Found 41

Error 31 - Feederhouse > 4.7V 42

Error 32 - Feederhouse < 0.3V 43

Error 46 or 47 - Speed out of Range 44

Error 54 - Encoder Not Detected 46

Error 66 – Steering Wheel Moving 47

Error 74/78/88 – No 12V or 5V Safety 48

Error 99 – Outputs are Reversed 48

2Troubleshooting by symptom 49

System is engaged, but doesn’t steer 49

When the system is engaged, it steers fully to the right or left 50

3Wiring Information 51

JD9x10 series 51

EZ-Steer & Ontrac 52

Outback 53

Trimble AutoPilot 54

CSoftware Updates 55

1Basic preparation 55

2Updating the Base controller 55

3Updating the Remote controller 56

4Finishing up 56

D Sensor Parts 57

1Quick-Start Guide

Note: Follow the steps in order in this Quick-Start section when

installing the system for the first time. All of the calibration and tuning steps

will be available in the TrueSight menu.

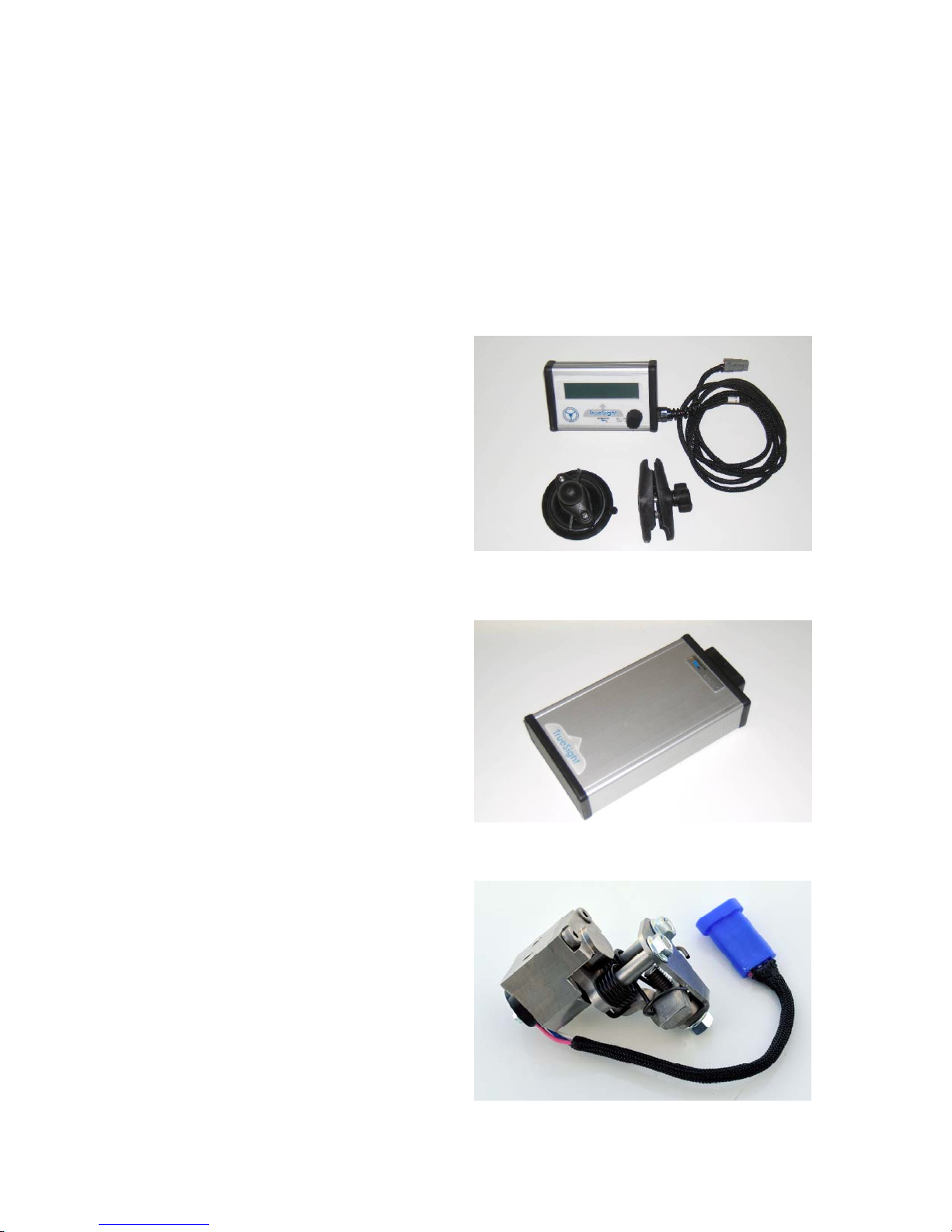

1.1 Identify the components

1. Remote controller

1- -Remote

1- -Mount kit

2. Base controller

1- -Base

3. Crop sensor assembly

1- HT2501 -Crop sensor asm

For parts breakdown see

appendix.

4. Crop whiskers

2- HT2695 -Arm TrueSight

5. Crop sensor mounting kit

oMay vary based on header

1- B2711 -Mounting kit

1- HT2711 -Bracket

2- 08200115 -Bolt M10x50

2- 08200134 -Bolt 5/16” x .75”

2- 08200133 -Washer 5/16”

AR- 08100101 -Cable clamp small

AR- 08100102 -Cable clamp large

AR- 08300102 -Zip ties

6. Main harness

oMay vary based on system

type

1- TS-JD010-TREZ-harness

7. Wheel angle sensor asm

1- HT2503 -Wheel sensor asm

For parts breakdown

see appendix.

8. Feedback sensor hardware kit

1- BTSF1 -hardware kit

1- HT2693 -tie rod asm

1- HT2784 -bracket tie rod clip

2- 08100111 -3” hose clamp

2- 08200181 -Bolt 5/16” x 2.25”

2- 08200151 -Nut flange 5/16

1- 08100137 -Clip

9. Feedback sensor bracket kit

1- B2712 -bracket kit

1- 08200176 -bolt 3/4” x 7”

1- 08200165 -nylon lock nut 3/4

10. Wheel angle sensor wiring

extension

1- PFB23 -23’ wiring extension

11. Footswitch

AR- HT2810 -footswitch

12. Footswitch adapter

AR- HT2806 -footswitch adapter

When applicable

13. Harness attaching hardware

1- BTS1 -hardware kit

1- 08300109 -3/16 allen wrench

1- 08300108 -5/32 allen wrench

AR- 08100101 -Cable clamp small

AR- 08300102 -Zip ties

14. GPS

1- HT-GPS -GPS unit

1- HT2735 -GPS mount
