Heat Wave NP5880 Guida rapida

NP5880

PREMIUM COVER LIFT

Assembly, Installation, and Use Instructions

Questions, problems, missing parts?

Before returning to your retailer, call our Consumer Hotline at 1-800-759-0977,

Monday – Friday, 8 a.m. – 5 p.m. (CST).

F. Push the cover

downward

13. To use the Cover Caddy, follow the steps in Fig 13.

Figure 13

B. Rotate the arms outward and make

sure the spring pins lock.

D. Fold the cover in half

E. Slide the cover in between

the U-Arms

C. Cover Caddy deployed

A. Cover on the spa with Cover Caddy

stowed

V1: 122020

NP5880

(Spa and spa cover

not included)

THANK YOU!

!SAFETY INFORMATION

ASSEMBLY TIPS

Thank you for purchasing this product! We work around the clock and around the globe to ensure

that our products maintain the highest possible quality. However, in the rare case of issues during

assembly or use of this product, please contact our Consumer Hotline at 1-800-759-0977 for immediate

assistance before contacting your retailer. Please read the warranty information at the end of this User

Manual for further details.

Please read and understand this entire manual before attempting to assemble, install, or operate

the product.

• Layout all the parts and verify that they are all present according to the Parts and Hardware list.

• Some gures or drawings may not look exactly like the product.

• Hand-tighten all bolts in place and then tighten with a wrench once fully assembled.

CHOKING HAZARD

ITEM CONTAINS SMALL PARTS

NOT FOR CHILDREN UNDER 3 YEARS

RISQUE D'ÉTOUFFEMENT! L'ARTICLE CONTIENT DE PETITES

PIÈCES PAS POUR LES ENFANTS DE MOINS DE 3 ANS

WARNING!

ATTENTION!

TSCA Title VI Compliant California 93120

Compliant for Formaldehyde Phase II

Conformité TSCA Title IV Californie 93120

Conforme for Formaldéhyde Phase II

COMPLIANCE

CONFORMITÉ

CANCER AND

REPRODUCTIVE HARM

CANCER ET TROUBLES DE LA REPRODUCTION

WWW.P65WARNINGS.CA.GOV

WARNING!

ATTENTION!

Cover Caddy Installation Instructions

1. Lay out all the parts and verify that they are all present according to the Cover Caddy Parts and

Hardware List. See Fig 1.

Figure 1

Name

Quantity Part Description

ccAA

1Main Unit

ccBB

2U-Arm, w/out extension (Left)

ccCC

2U-Arm, w/out extension (Right)

ccDD

1Gas Shock

ccEE

1Pivot Arm

ccFF

1Base Plate

ccGG

2Support Leg

ccSPACER2

2U-Arm Extension

ccA

4Round Head Bolt

ccE

2Adjustment Bolt

ccF

2Pin

ccG

4Washer for Round Head Nut (Black)

ccH

2Washer for Adjustment Bolt (Silver)

ccK

2Lock Nut

ccL

2Ball Stud

ccN

4Round Head Nut

ccZ 4Lag Screw

Cover Caddy Installation Instructions

1. Lay out all the parts and verify that they are all present according to the Cover Caddy Parts and

Hardware List. See Fig 1.

Figure 1

Name Quantity Part Description

ccAA 1Main Unit

ccBB 2U-Arm, w/out extension (Left)

ccCC 2U-Arm, w/out extension (Right)

ccDD 1Gas Shock

ccEE 1Pivot Arm

ccFF 1Base Plate

ccGG 2Support Leg

ccSPACER2 2U-Arm Extension

ccA 4Round Head Bolt

ccE 2Adjustment Bolt

ccF 2Pin

ccG 4Washer for Round Head Nut (Black)

ccH 2Washer for Adjustment Bolt (Silver)

ccK 2Lock Nut

ccL 2Ball Stud

ccN 4Round Head Nut

ccZ 4Lag Screw

Cover Caddy Installation Instructions

1. Lay out all the parts and verify that they are all present according to the Cover Caddy Parts and

Hardware List. See Fig 1.

Figure 1

Name Quantity Part Description

ccAA 1Main Unit

ccBB 2U-Arm, w/out extension (Left)

ccCC 2U-Arm, w/out extension (Right)

ccDD 1Gas Shock

ccEE 1Pivot Arm

ccFF 1Base Plate

ccGG 2Support Leg

ccSPACER2 2U-Arm Extension

ccA 4Round Head Bolt

ccE 2Adjustment Bolt

ccF 2Pin

ccG 4Washer for Round Head Nut (Black)

ccH 2Washer for Adjustment Bolt (Silver)

ccK 2Lock Nut

ccL 2Ball Stud

ccN 4Round Head Nut

ccZ 4Lag Screw

Cover Caddy Installation Instructions

1. Lay out all the parts and verify that they are all present according to the Cover Caddy Parts and

Hardware List. See Fig 1.

Figure 1

Name Quantity Part Description

ccAA 1Main Unit

ccBB 2U-Arm, w/out extension (Left)

ccCC 2U-Arm, w/out extension (Right)

ccDD 1Gas Shock

ccEE 1Pivot Arm

ccFF 1Base Plate

ccGG 2Support Leg

ccSPACER2 2U-Arm Extension

ccA 4Round Head Bolt

ccE 2Adjustment Bolt

ccF 2Pin

ccG 4Washer for Round Head Nut (Black)

ccH 2Washer for Adjustment Bolt (Silver)

ccK 2Lock Nut

ccL 2Ball Stud

ccN 4Round Head Nut

ccZ 4Lag Screw

Cover Caddy Installation Instructions

1. Lay out all the parts and verify that they are all present according to the Cover Caddy Parts and

Hardware List. See Fig 1.

Figure 1

Name Quantity Part Description

ccAA 1Main Unit

ccBB 2U-Arm, w/out extension (Left)

ccCC 2U-Arm, w/out extension (Right)

ccDD 1Gas Shock

ccEE 1Pivot Arm

ccFF 1Base Plate

ccGG 2Support Leg

ccSPACER2 2U-Arm Extension

ccA 4Round Head Bolt

ccE 2Adjustment Bolt

ccF 2Pin

ccG 4Washer for Round Head Nut (Black)

ccH 2Washer for Adjustment Bolt (Silver)

ccK 2Lock Nut

ccL 2Ball Stud

ccN 4Round Head Nut

ccZ 4Lag Screw

Cover Caddy Installation Instructions

1. Lay out all the parts and verify that they are all present according to the Cover Caddy Parts and

Hardware List. See Fig 1.

Figure 1

Name Quantity Part Description

ccAA 1Main Unit

ccBB 2U-Arm, w/out extension (Left)

ccCC 2U-Arm, w/out extension (Right)

ccDD 1Gas Shock

ccEE 1Pivot Arm

ccFF 1Base Plate

ccGG 2Support Leg

ccSPACER2 2U-Arm Extension

ccA 4Round Head Bolt

ccE 2Adjustment Bolt

ccF 2Pin

ccG 4Washer for Round Head Nut (Black)

ccH 2Washer for Adjustment Bolt (Silver)

ccK 2Lock Nut

ccL 2Ball Stud

ccN 4Round Head Nut

ccZ 4Lag Screw

Cover Caddy Installation Instructions

1. Lay out all the parts and verify that they are all present according to the Cover Caddy Parts and

Hardware List. See Fig 1.

Figure 1

Name Quantity Part Description

ccAA 1Main Unit

ccBB 2U-Arm, w/out extension (Left)

ccCC 2U-Arm, w/out extension (Right)

ccDD 1Gas Shock

ccEE 1Pivot Arm

ccFF 1Base Plate

ccGG 2Support Leg

ccSPACER2 2U-Arm Extension

ccA 4Round Head Bolt

ccE 2Adjustment Bolt

ccF 2Pin

ccG 4Washer for Round Head Nut (Black)

ccH 2Washer for Adjustment Bolt (Silver)

ccK 2Lock Nut

ccL 2Ball Stud

ccN 4Round Head Nut

ccZ 4Lag Screw

Cover Caddy Installation Instructions

1. Lay out all the parts and verify that they are all present according to the Cover Caddy Parts and

Hardware List. See Fig 1.

Figure 1

Name Quantity Part Description

ccAA 1Main Unit

ccBB 2U-Arm, w/out extension (Left)

ccCC 2U-Arm, w/out extension (Right)

ccDD 1Gas Shock

ccEE 1Pivot Arm

ccFF 1Base Plate

ccGG 2Support Leg

ccSPACER2 2U-Arm Extension

ccA 4Round Head Bolt

ccE 2Adjustment Bolt

ccF 2Pin

ccG 4Washer for Round Head Nut (Black)

ccH 2Washer for Adjustment Bolt (Silver)

ccK 2Lock Nut

ccL 2Ball Stud

ccN 4Round Head Nut

ccZ 4Lag Screw

Cover Caddy Installation Instructions

1. Lay out all the parts and verify that they are all present according to the Cover Caddy Parts and

Hardware List. See Fig 1.

Figure 1

Name Quantity Part Description

ccAA 1Main Unit

ccBB 2U-Arm, w/out extension (Left)

ccCC 2U-Arm, w/out extension (Right)

ccDD 1Gas Shock

ccEE 1Pivot Arm

ccFF 1Base Plate

ccGG 2Support Leg

ccSPACER2 2U-Arm Extension

ccA 4Round Head Bolt

ccE 2Adjustment Bolt

ccF 2Pin

ccG 4Washer for Round Head Nut (Black)

ccH 2Washer for Adjustment Bolt (Silver)

ccK 2Lock Nut

ccL 2Ball Stud

ccN 4Round Head Nut

ccZ 4Lag Screw

Cover Caddy Installation Instructions

1. Lay out all the parts and verify that they are all present according to the Cover Caddy Parts and

Hardware List. See Fig 1.

Figure 1

Name Quantity Part Description

ccAA 1Main Unit

ccBB 2U-Arm, w/out extension (Left)

ccCC 2U-Arm, w/out extension (Right)

ccDD 1Gas Shock

ccEE 1Pivot Arm

ccFF 1Base Plate

ccGG 2Support Leg

ccSPACER2 2U-Arm Extension

ccA 4Round Head Bolt

ccE 2Adjustment Bolt

ccF 2Pin

ccG 4Washer for Round Head Nut (Black)

ccH 2Washer for Adjustment Bolt (Silver)

ccK 2Lock Nut

ccL 2Ball Stud

ccN 4Round Head Nut

ccZ 4Lag Screw

PARTS AND HARDWARE

ITEM PART DESCRIPTION QTY PART

NUMBER

AA Lift Assembly 1 NPP50500

BB U-Arm w/out Extension (Left) 2 NPP50501

CC U-Arm w/out Extension (Right) 2 NPP50502

DD Hydraulic Lift 1 NPP50503

EE Pivot Arm 1 NPP50504

FF Base Plate 1 NPP50505

GG Support Upright 2 NPP50506

HH U-Arm Extension 2 NPP50507

A* Round Head Bolt 4

NPP50508

E* Adjustment Bolt 2

F* Lock Pin 2

G* Washer for Round Head Nut (Black) 4

H* Washer for Adjustment Bolt (Silver) 2

K* Lock Nut 2

L* Ball Stud 2

N* Round Head Nut 4

Z* Lag Screw 4

A x 4 H x 2F x 2 L x 2E x 2 K x 2G x 4 N x 4 Z x 4

*Items included in Hardware Pack (NPP50508)

Illustrations are not to scale.

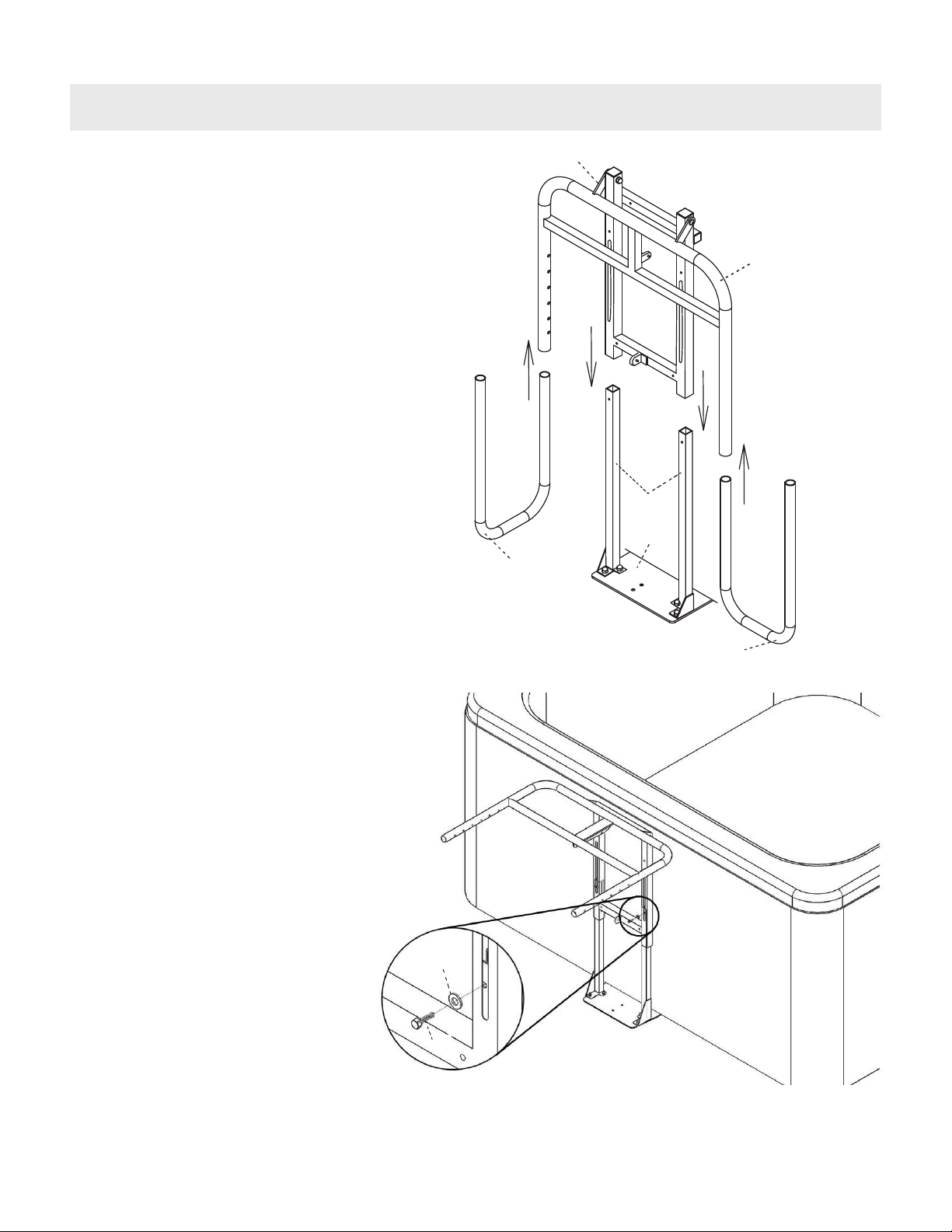

ASSEMBLY INSTRUCTIONS

NOTE: IF USING A SIDE MOUNT SETUP, SKIP TO STEP 5.

STEP 1

Attach the Support Uprights (GG) to the Base

Plate (FF) using the Round Head Bolts (A),

Washers (G), and the Round Head Nuts (N).

STEP 2

Make sure the spa is empty and slide the Base

Plate/Support Upright assembly under the center

of the back of the spa cabinet. This will be the

side the spa cover will be stored behind. Make

sure the Base Plate (FF) sits at on the ground,

with no overhang off the slab or deck.

Figure 3

NOTE: IF YOU ARE USING A SIDE MOUNT SETUP, SKIP TO STEP 6

2. Attach the ccGG Support Legs to the ccFF Base Plate using the ccA Round Head Bolts, the ccG Washers,

and the ccN Round Head Nuts. See Fig 2.

Figure 2

3. Make sure the spa is empty and slide the Base Plate/Support Leg assembly under the center of the back of

the spa cabinet. This will be the side the spa cover will be stored behind. Ensure the ccFF Base Plate sits flat

on the ground, with no overhang off the slab or deck. See Fig 3.

4. Slide the legs of the ccAA Main Unit/ccEE Pivot Arm assembly over the ccGG Support Legs. See

Fig 4.

Figure 5

5. Loosely thread the ccE Adjustment Bolt through the ccH Adjustment Bolt Washer and into the threaded

holes in the Support Legs. DO NOT tighten the adjustment screws yet. See Fig 5.

TO CONTINUE WITH BASE MOUNT SETUP, SKIP TO STEP 8

Figure 4

ASSEMBLY INSTRUCTIONS

STEP 3

Slide the legs of the Lift Assembly (AA),

with Pivot Arm (EE) attached, over the

Support Uprights (GG).

STEP 4

Loosely thread the (2) Adjustment Bolts (E)

through the (2) Adjustment Bolt Washers (H)

and into the threaded holes in the Support

Legs. DO NOT tighten the adjustment

screws yet.

TO CONTINUE WITH BASE MOUNT

SETUP, SKIP TO STEP 7.

(Step 8)

6. Align the Main Unit assembly in the center of the spa. Line up the Pivot Arm as shown in Fig 6.

Mark the screw holes..

Figure 7

7. Mount the ccAA Main Unit to the side of the spa using the ccZ Lag Bolts. See Fig 7.

Figure 6

SIDE MOUNT ONLY

* COVER VALET CANNOT BE HELD RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF YOUR SPA CABINET

6. Align the Main Unit assembly in the center of the spa. Line up the Pivot Arm as shown in Fig 6.

Mark the screw holes..

Figure 7

7. Mount the ccAA Main Unit to the side of the spa using the ccZ Lag Bolts. See Fig 7.

Figure 6

SIDE MOUNT ONLY

* COVER VALET CANNOT BE HELD RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF YOUR SPA CABINET

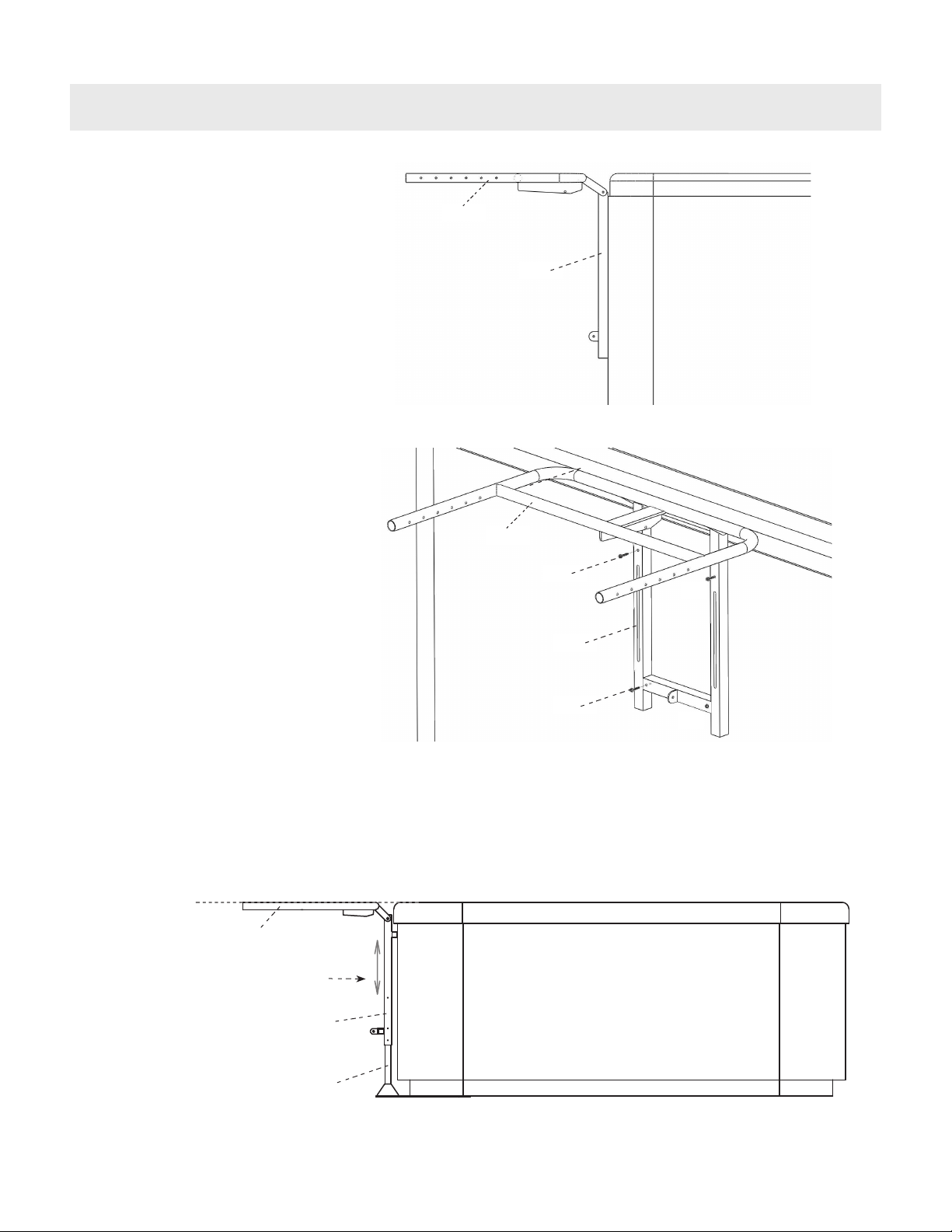

ASSEMBLY INSTRUCTIONS

STEP 5

Align the Lift Assembly (AA) in the center

of the spa with Pivot Arm (EE) lined up with

top of spa. Mark the (4) screw hole positions

(see below) and pre-drill pilot holes.

STEP 6

Mount the Lift Assembly (AA) to the side

of the spa using the (4) Lag Screws (Z).

STEP 7

Slide the Lift Assembly (AA) up the Support Uprights (GG) until the Pivot Arm (EE) lines up with the top

of the spa. Tighten the (2) Adjustment Bolts (E) that were threaded into the Support Leg hole in Step 4.

NOTE: Steps 5 and 6 are used only

if using a side mount setup and NOT

using the Base Plate (FF).

8. Attach the left and right U-Arm assemblies to the open tubes of the ccEE Pivot Arm using the spring

buttons. Use the hole that will allow the U-Arms to swing as low as possible, without hitting the ground. See

Fig 8.

Figure 8

NOTE: If your folded spa cover is too thick to fit within the U-Arms, use the ccF U-Arm Extension to widen

the arms.

Figure 9

9. Swing the U-Arms up so that they are parallel to the ground. Raise the Main Unit so that the bottom tube

of the U-Arms is level with the top of the spa without the cover. See Fig 9.

ASSEMBLY INSTRUCTIONS

STEP 8

Attach the left and right U-Arm assemblies (BB, CC) to the open tubes of the Pivot Arm (EE) using the

spring buttons. Use the hole that will allow the U-Arms to swing as low as possible, without hitting the

ground. Mount the Lift Assembly (AA) to the side of the spa using the (4) Lag Screws (Z).

STEP 9

Swing the U-Arms up so that they

are parallel to the ground. Raise the

Pivot Arm (EE) so that the bottom

tube is level with the top of the spa

without the cover.

NOTE: If the folded spa cover

is too thick to t within the

U-Arms, use the U-Arm Extension

(HH) to widen the arms.

Adjustment

Holes

Spring

Button

U-Arm Extension

ASSEMBLY INSTRUCTIONS

STEP 10

Attach the (2) Ball Studs (L) and

(2) Lock Nuts (K) to the tab and

n. Then snap the Hydraulic Lift

(DD) over the round ends of

the Ball Studs to lock in place.

STEP 11

Push the (2) Lock Pins (F), one

on each U-Arm, through the

hole directly behind the spring

button. Make sure the pin

passes through the diagonal

channel (not shown) on the

U-Arm and comes out the

other side to lock the arm in

place.

10. Attach the ccL Ball Studs and ccK Lock Nuts to the Tab and Fin. Then snap the ccDD Gas Shock over the

round ends of the Ball Studs. See Fig 10.

Figure 10

11. Push the ccF Pin through the hole directly underneath the spring button. Make sure the pin passes

through the diagonal channel (not shown) on the U-Arm. See Fig 11.

Figure 11

10. Attach the ccL Ball Studs and ccK Lock Nuts to the Tab and Fin. Then snap the ccDD Gas Shock over the

round ends of the Ball Studs. See Fig 10.

Figure 10

11. Push the ccF Pin through the hole directly underneath the spring button. Make sure the pin passes

through the diagonal channel (not shown) on the U-Arm. See Fig 11.

Figure 11

Spring Button

Fin

Tab

DIMENSION RANGE

53.1-in – 92.5-in

(1,350-mm – 2,350-mm)

74.8-in – 98.4-in

(1,900-mm – 2,500-mm)

31.4-in – 41.3-in

(800-mm – 1,050-mm)

Cover

Spa

F. Push the cover

downward

13. To use the Cover Caddy, follow the steps in Fig 13.

Figure 13

B. Rotate the arms outward and make

sure the spring pins lock.

D. Fold the cover in half

E. Slide the cover in between

the U-Arms

C. Cover Caddy deployed

A. Cover on the spa with Cover Caddy

stowed

F. Push the cover

downward

13. To use the Cover Caddy, follow the steps in Fig 13.

Figure 13

B. Rotate the arms outward and make

sure the spring pins lock.

D. Fold the cover in half

E. Slide the cover in between

the U-Arms

C. Cover Caddy deployed

A. Cover on the spa with Cover Caddy

stowed

F. Push the cover

downward

13. To use the Cover Caddy, follow the steps in Fig 13.

Figure 13

B. Rotate the arms outward and make

sure the spring pins lock.

D. Fold the cover in half

E. Slide the cover in between

the U-Arms

C. Cover Caddy deployed

A. Cover on the spa with Cover Caddy

stowed

OPERATION INSTRUCTIONS

To use the Premium Cover Lift, follow the steps below.

A) Start with the cover on the spa and the

Premium Cover Lift in stowed position.

C) Ensure that the Premium Cover Lift is

deployed, as shown.

E) Slide the cover in between the U-Arms.

B) Rotate the arms outward and

make sure the spring pins lock.

D) Fold the cover in half.

F) Push the cover downward.

Indice

Altri manuali Heat Wave Accessori per la spa

Heat Wave

Heat Wave NP5877 Manuale utente

Manuali Accessori per la spa popolari di altre marche

Spa Electrics

Spa Electrics R6 Manuale utente

Gecko

Gecko Aeware3 in.touch Manuale utente

Aroma Retail

Aroma Retail Smart 101 Manuale utente

Frog

Frog Serene Manuale utente

Gecko

Gecko MSPA-1-AS Manuale utente

Gecko

Gecko in.ye-V3 Manuale utente

Gecko

Gecko in.k300 Manuale utente

Spa Natural

Spa Natural SN14 Istruzioni operative

Tesla

Tesla AD100 Manuale utente

Create

Create AROMA STUDIO Manuale utente

Balboa Water Group

Balboa Water Group VL260 Manuale utente

Green SELECT

Green SELECT Luna Manuale utente

OZU

OZU UM-015 Manuale utente

GOTEL

GOTEL KS-600 Manuale utente

Takara Belmont

Takara Belmont YUME ESPOIR Manuale utente

Takara Belmont

Takara Belmont Yume DX Manuale utente

AROMATTER

AROMATTER Big Ben Diffuser Manuale utente

Soehnle

Soehnle RAVENNA Manuale utente
