Heath Zenith 7776 Manuale utente

Wireless Plug-In

Night Light Chime

Figure 1

Note: The night light

feature is controlled by

a photocell and turns on

and off automatically as

the surrounding light level

changes.

Photocell

Orange Tab

This package includes (Style of push button and chime may vary from illustration):

Model

Wireless

strobe

chime

Wireless push

button

Hardware

pack

7776 ✔ ✔ ✔

1. Remove orange battery tab from push

button. Remove back of case by pushing in

tab on bottom with a small screwdriver (see

Figure 1). Remove orange battery tab.

2. Plug in wireless chime.

Test range. Temporarily position push button

where you want it mounted.Press push button

to verify chime and push button work properly.

If chime does not sound, see Troubleshooting.

4. Adjust volume control to desired volume

(see Figure 2).

WARNING: To prevent possible

SERIOUS INJURY or DEATH:

• NEVER allow small children near

batteries.

• If battery is swallowed, immediately

notify doctor.

Figure 2

Chime Volume

Control

5. Mount push button. Use either screws or

double sided tape to mount push button.

• Screw Mounting: To mount with screws,

remove back of case by pushing in tab on

bottom with a small screwdriver (see Figure

1). Note: Remove material in screw holes

(if needed) before mounting with screws.

Attach back of case to door jamb or wall (see

Figure 3). Snap front of push button on.

• Tape Mounting: When attaching push but-

ton using double sided tape, make sure the

surface of the door jamb or wall is clean.

Figure 3

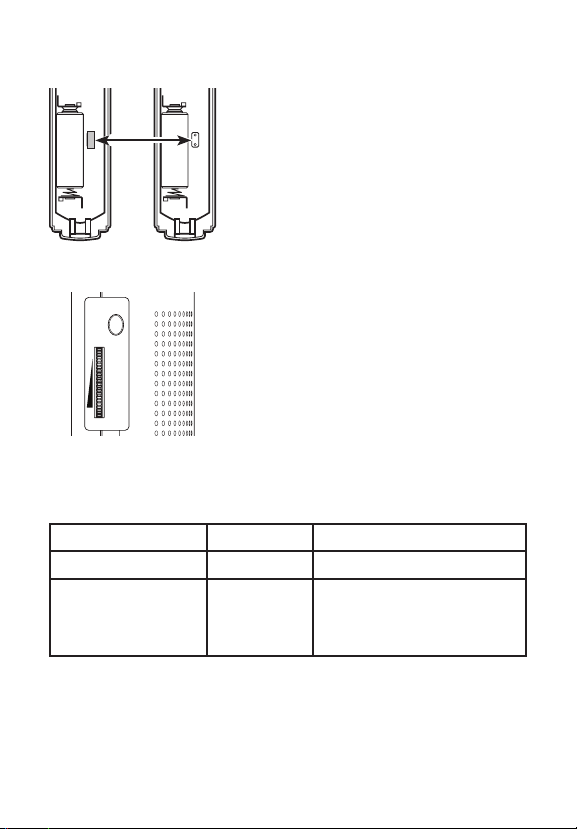

PRESS/HOLD TUNE: 1 SEC

SYNC: 3 SEC RESET: 10 SEC

Inside Push Button

Chime

Tune Settings

Tune Setting Table

Tune Push Button Chime

Ding Jumper - ON ———

Ding-Dong or

Westminster

Jumper - OFF Press button on chime. Listen

for single “Beep” tone. Release

button. Listen for selected tune.

Repeat to select different tune.

The chime has different selectable tunes: Ding

(one note tune), Ding-Dong (two note tune), or

Westminster (eight note tune). The factory set-

ting is for the Westminster tune. This tune can

be changed by following the instructions in the

Tune Setting Table.

Note: All chime models are designed to work

with up to 10 push buttons (sold separately). All

chimes are designed to play only two different

tunes no matter how many push buttons are used.

Troubleshooting

1. PROBLEM: Chime does not sound or rang one time and quit.

A. POSSIBLE CAUSE: Push button battery is not installed correctly.

A. CORRECTIVE ACTION: Make sure battery is installed according to the

diagram inside the push button.

B. POSSIBLE CAUSE: Push button battery is dead.

B. CORRECTIVE ACTION: Check charge of push button battery and replace

if necessary.

C. POSSIBLE CAUSE: Chime is not receiving power.

C. CORRECTIVE ACTION: Make sure the plug-in chime has power.

D. POSSIBLE CAUSE: Push button and chime are not synced.

D. CORRECTIVE ACTION: Sync the push button and chime.

• Press and hold the button on the chime until the chime sounds a

“Beep-Beep”.

• Press the push button within 30 seconds. The chime will sound a

“Beep-Beep” tone to indicate the push button is synced.

• Press the push button to ensure operation.

2. PROBLEM: Push button battery seems okay, but the chime does not work

after installation.

A. POSSIBLE CAUSE: Chime or push button is mounted on metal or near

metal studs. Note: Metal reduces transmission range.

A. CORRECTIVE ACTION: Use 1/4 in. to 1/2 in. (6 to 13 mm) wood shims

to move chime or push button away from metal surface.

B. POSSIBLE CAUSE: Chime is mounted near concrete ﬂoor or wall.Note:

Concrete may reduce range.

B. CORRECTIVE ACTION: Move chime away from concrete surface.

C. POSSIBLE CAUSE: Chime and push button are installed too far apart.

C. CORRECTIVE ACTION: Locate chime closer to push button.

3. PROBLEM: Chime sounds when not intended (false triggers).

POSSIBLE CAUSE: Chime is receiving interference from another wire-

less device.

CORRECTIVE ACTION: Reset chime and push button.

• Remove push button batteries. Wait 30 seconds.

• Press and hold the push button for 10 to 15 seconds within 60 seconds

after installing battery into the push button.

• Press and hold the button on the chime until the chime sounds a

“Beep-Beep-Beep-Beep”.

• To re-sync the push button and chime, press and hold the button on

the chime until the chime sounds a “Beep-Beep”.

• Press the push button within 30 seconds. The chime will sound a

“Beep-Beep” tone to indicate the push button is synced.

• Press the push button to ensure operation.

Note: The push button and chime come synced from the factory. The range of

the wireless chime can vary with location, temperature, and battery condition.
