Heatstore HSFAH30 Manuale utente

IMPORTANT SAFEGUARDS

WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY

PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.

PLEASE READ ALL INSTRUCTIONS CAREFULLY

AND RETAIN FOR FUTURE REFERENCE

IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF THIS

PRODUCT, CONSULT A COMPETENT ELECTRICIAN.

HSFAH30

Forced Air Heater

Installation and Operating Instructions

HSFAH30_instructions 13/7/15 12:55 Page 1

Important Safety Instructions

General Safety

•DANGER!

Risk of carbon monoxide poisoning. Failure to provide

proper ventilation could result in serious illness or death.

• Check that the heater is in sound condition and good

working order. Take immediate action to repair or

replace damaged parts.

• Only use diesel or kerosene to fuel this heater, in

accordance with instructions contained in this manual.

• Locate heater on a level and stable surface.

•WARNING! Only use heater in well ventilated areas.

Ensure continuous ventilation is provided to the heater

operating area via windows and doors etc. If people are

not required to be present in the heated area, the volume

of air to be heated (m3)/heat output (kW) ratio must be at

least 10:1 and people must be advised not to remain in

the heated area for prolonged periods. If people are

required to be present in the heated area, the volume of

air to be heated (m3)/heat output (kW) ratio must be at

least 30:1. Ventilation must be to the outside of the

premises in which the heater is to be operated. Minimum

Ventilation Opening Needed: AB2200Q - 5990cm2

(6.5ft2). The volume concentration of oxygen (O2) in the

heated room, must always remain above 17%.

•WARNING!

DO NOT use the heater near ﬂammable material,

liquids, solids, gases or compressed gas cylinders etc.

•DO NOT stand or place any object less than 3m from

the heater output and keep the heater a minimum of 2m

from any walls or objects (see ﬁgure 5 on page 8).

HSFAH30_instructions 13/7/15 12:55 Page 2

•DO NOT use the heater in closed rooms, living areas,

basements or below ground level.

•DO NOT allow unauthorised persons or children to

operate the heater.

•DO NOT move or handle the heater when hot, without

wearing protective gloves. Never move the heater whilst

it is operating.

•DO NOT leave the heater unattended for prolonged

periods of time when in use. Switch the heater off and

unplug from the mains before leaving work area.

•DO NOT ﬁll the fuel tank whilst the heater is running or

still hot.

•DO NOT over-ﬁll the fuel container. Wipe up any spilt

fuel immediately.

•DO NOT obstruct the air inlet (rear) and air outlet (front)

of the heater and DO NOT use duct work in front or at

the rear of the heater.

•DO NOT allow children or animals near the heater

when in use, or whilst still hot.

•WARNING! RISK OF ELECTRIC SHOCK

DO NOT expose the heater to water spray, rain,

dripping water or wind.

•DO NOT operate the heater when you are tired or under

the inﬂuence of alcohol, drugs or intoxicating

medication.

•DO NOT touch the heater outlet when in use, or for a

period of time after it’s switched off, as these are VERY

hot and will take time to cool down.

•DO NOT switch the heater off by disconnecting it from

the mains. ALWAYS set the switch on the burner to the

‘OFF’ position and allow the cooling cycle to ﬁnish,

before disconnecting from the mains.

HSFAH30_instructions 13/7/15 12:55 Page 3

•DO NOT use an external fuel tank. Only use the tank

that is ﬁtted to the heater, and only ﬁll it when the heater

has cooled down.

• Ensure that the heater is correctly turned off.

• When not in use for an extended period, store in a safe,

dry area, out of reach of children.

• Important: This heater is not intended for persons with

reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been

given supervision or instruction concerning use of the

heater by a person responsible for their safety. Children

should be supervised to ensure that they do not play with

the heater.

ELECTRICAL SAFETY

•WARNING! It is the responsibility of the owner and the

operator to read, understand and comply with the

following:

You must check all electrical products, before use, to

ensure that they are safe. You must inspect power cables,

plugs, sockets and any other connectors for wear or

damage. You must ensure that the risk of electric shock is

minimised by the installation of appropriate safety

devices. A Residual Current Circuit Breaker (RCCB)

should be incorporated in the main distribution board.

We also recommend that a Residual Current Device

(RCD) is used. It is particularly important to use an RCD

with portable products that are plugged into a supply

which is not protected by an RCCB. If in any doubt

consult a qualiﬁed electrician.

You must also read and understand the following

instructions concerning electrical safety.

• The Electricity at Work Act 1989 requires that all portable

HSFAH30_instructions 13/7/15 12:55 Page 4

electrical appliances, if used on business premises, are

tested by a qualiﬁed electrician, using a Portable

Appliance Tester (PAT), at least once a year.

• The Health & Safety at Work Act 1974 makes owners of

electrical appliances responsible for the safe condition of

those appliances and the safety of the appliance

operators. If in any doubt about electrical safety, contact

a qualiﬁed electrician.

• Ensure that the insulation on all cables and on the heater

is safe before connecting it to the power supply.

• Ensure that cables are always protected against short

circuit and overload.

• Regularly inspect power supply cables and plugs for wear

or damage and check all connections to ensure that

none is loose.

•DO NOT pull or carry the appliance by the power cable.

•DO NOT pull the plug from the socket by the cable.

•DO NOT use worn or damaged cables, plugs or

connectors. Immediately have any faulty item repaired or

replaced by a qualiﬁed electrician. When a BS 1363/A

UK 3 pin plug is damaged, cut the cable just above the

plug and dispose of the plug safely.

Fit a new plug according to the following instructions (UK

only).

a) Connect the GREEN/YELLOW earth wire to the

earth terminal ‘E’.

b) Connect the BROWN live wire to the live

terminal ‘L’.

c) Connect the BLUE neutral wire to the neutral

terminal ‘N’.

d) After wiring, check that there are no bare wires, that

all wires have been correctly connected, that the cable

outer insulation extends beyond the cable restraint and

HSFAH30_instructions 13/7/15 12:55 Page 5

that the restraint is tight.

A Hot air outlet

B Upper shell

C Front handle

D Air inlet guard

E Motor assembly

F Fuel tank

G Lower tube frame

H Power plug

I Power switch

J Start-up switch

K Control panel

L Wheel

M Fuel tank cap

N Lower shell

Q Fuel Gauge

Overview of heater parts and dimensions

Figure 1 Part Names

Figure 2 Dimensions

HSFAH30_instructions 13/7/15 12:55 Page 6

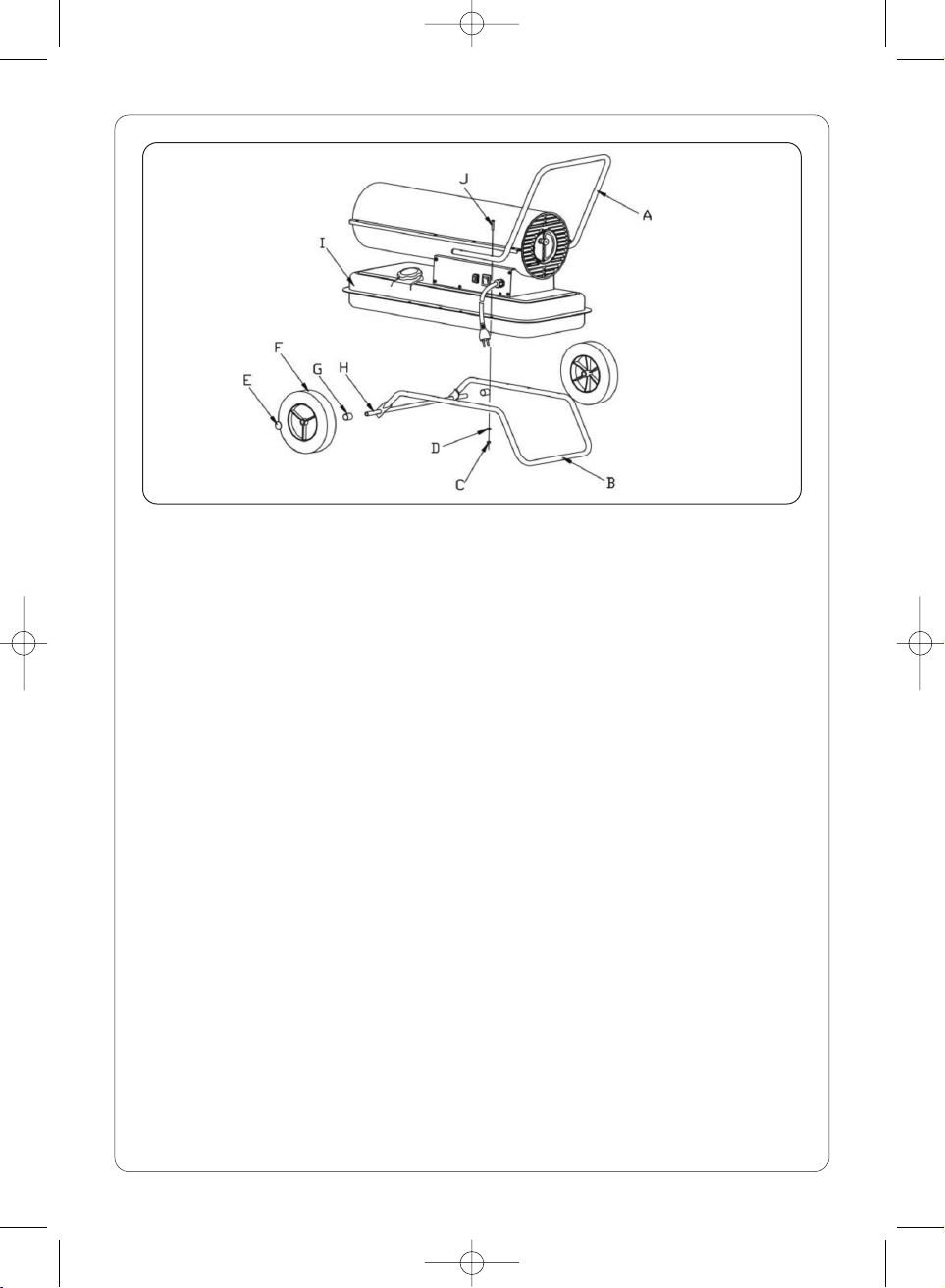

Figure 3 Frame Assembly

Assembling wheels and tube frame

Insert the wheel axle to the corresponding hole of lower tube frame, set bush

G at the two ends of wheel axle H. Then slide the wheel F over the wheel

axle H, put on the wheel cap E.

Put the heater body on the lower tube frame B, make sure the 4 holes of the

handle frame point towards the corresponding 4 holes on the lower tube

frame respectively.

Insert screws J in the holes place ﬂat washers D under the lower frame B and

tighten the hexagonal screw C.

Insert other screws in the holes respectively and use a screw driver to tighten

them by the same way.

Before operation

Never use high volatile fuel such as petrol. ONLY diesel or kerosene.

Only ﬁll the fuel tank when the heater stops running and the ﬂame goes out.

Please use diesel or No JIS1 kerosene. Never use degenerative, impure

diesel or kerosene.

When you ﬁll the fuel tank, the tank ﬁlter must be installed.

If diesel or kerosene comes into contact with human skin please wash with

soap immediately, to prevent potential inﬂammation.

The burner surface is very hot just after ﬂameout, so never touch it with your

hands. To prevent scalding or other injury, do not let fuel come in contact

with the burner.

HSFAH30_instructions 13/7/15 12:55 Page 7

Figure 5 Clearances around the heater before use

How to ﬁll the tank

Make sure the power plug is removed from the

power source and the power switch is in OFF

position “0”.

Place the appliance on stable and level ground,

remove the fuel cap and ﬁll the fuel tank – see

ﬁgure 4. DO NOT overﬁll with diesel or

kerosene. Only reﬁll when the fuel ﬁlter is

installed. After ﬁlling turn the cap clockwise and

tighten it.

Safety clearances

Figure 4 Filling the tank

Operation/Ignition

Check the fuel tank and ensure there is sufficient fuel in it.

DO NOT stand or place any object less than 3m from the heater output and

keep the heater a minimum of 2m from any walls or objects (see ﬁgure 5

above).

Insert the plug in the socket.

Put the POWER switch to position “1” the indicator lights up.

Press the IGNITION button, the motor begins to run and the spark plug

ignites.

Stop using the appliance if there is smoke or a strange odour omitted.

Make sure the heater is ignited.

ATTENTION! while the heater is operating, never allow the ﬂoor surface to

overheat.

HSFAH30_instructions 13/7/15 12:55 Page 8

Turning off the heater

When you shut off the heater, make sure the ﬂame is out before you leave

the heater.

Put the power switch to position “0” waiting as the fan stop working and the

indicator extinguishes, then remove the plug from the socket.

FLAME-OUT PROTECTION

The heater utilises a photocell to monitor the ﬂame in the chamber during

normal operation. If normal operation is exceeded, the photosensitive resistor

will cut off the fuel supply. The fan will continue to run for 90 seconds then the

power will cut off.

Electrical power-cut protection

If the power cuts out the heater stops working without the plug being removed

from the socket and the power switch is still at ON position. When the power is

restored, the indicator will light but the heater will not work. Please press the

START switch to start up the heater.

How the heater works

Figure 6

A Combustion chamber

B Spark plug

C Fan blade

D Motor

E Pump

F Air intake ﬁlter

G Air output ﬁlter

H Fuel tank

I Controller

J Air inlet pipe

K Electrovalve assembly

L Flame steady plate

M Oil nozzle

Description of working principles

Press the START switch once, the motor D begins to work, the spark plug

ignites. This heater is equipped with an electric air pump that forces air through

the air line connected to the fuel intake and then through a nozzle in the burner

head. When the air passes in front of the fuel intake it causes fuel to rise from

the tank and into the burner nozzle. This fuel and air mixture is then sprayed

into the combustion chamber in a ﬁne mist. The air blows by the fast turning fan

HSFAH30_instructions 13/7/15 12:55 Page 9

blades, enters the ﬂame steady plate and the burner, supplying additional

oxygen to the burner, making the burning more efficient. The fan dissipates heat

from the burner interior to the outside, so that the burner surface will not

overheat.

The spark plug stops working after 12 seconds of sparking.

Maintenance

Notice: Before maintenance shut off the

heater and pull out the plug.

Never maintain the heater with fuel in

the tank.

When the fuel ﬁlter gets dirty, replace it

with a new one.

Use a screw driver to open the side plate

and pull out the fuel pipe from the ﬁlter.

Use a screw driver to remove the fuel

plug from the tank and pull down the

transparent fuel pipe.

Remove the old ﬁlter and replace with a

new one. Re-install the transparent fuel

pipe and fuel outlet plug. Insert it in the

tank and connect the fuel inlet pipe –

see above ﬁgure 7.

Check the fuel tank.

When there is waste and water in the

tank, clean and drain the fuel tank.

How to drain the fuel tank – see above

ﬁgure 8

Put the heater on the working table and

place an oil container under the fuel

tank.

Use a spanner to loosen the drain screw

and release the water and waste inside the tank.

After draining tighten the drain screw again and wipe clean any spilt water

or oil.

Figure 8

Figure 7

A fuel ﬁlter

B fuel outlet plug

C transparent

fuel pipe

HSFAH30_instructions 13/7/15 12:55 Page 10

Indice

Altri manuali Heatstore Stufa

Heatstore

Heatstore HS4212XNi Manuale utente

Heatstore

Heatstore HS2000X Manuale utente

Heatstore

Heatstore HSDI330 Manuale di istruzioni

Heatstore

Heatstore HSAC6000X Manuale

Heatstore

Heatstore HSCEH7115N Manuale

Heatstore

Heatstore HSACW9000 Manuale

Heatstore

Heatstore HSXCA12X Manuale utente

Heatstore

Heatstore HSCFH60WX Manuale utente

Heatstore

Heatstore HS1500C Manuale utente

Heatstore

Heatstore HSAC9000X Manuale

Heatstore

Heatstore HSAC9000E Manuale utente

Heatstore

Heatstore HS2000T Manuale utente

Heatstore

Heatstore HSP500SSE Manuale d'uso e manutenzione

Heatstore

Heatstore HSAC9000CX Manuale

Heatstore

Heatstore HSAC3 Manuale utente

Heatstore

Heatstore HSAC3000X Manuale

Heatstore

Heatstore Turbo HS2020 Manuale utente

Heatstore

Heatstore HSP500WRF Manuale d'uso e manutenzione

Heatstore

Heatstore HSCVDURF Manuale d'uso e manutenzione

Heatstore

Heatstore HS2020TXN Manuale utente

Heatstore

Heatstore HS2020XCN Manuale utente

Heatstore

Heatstore Frost Guard HSMP05 Manuale utente

Heatstore

Heatstore HSDHHR070 Manuale utente

Heatstore

Heatstore HSOFR1500TX Manuale utente

Manuali Stufa popolari di altre marche

oventrop

oventrop Regucor Series Manuale utente

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuale utente

ELMEKO

ELMEKO ML 150 Manuale utente

BN Thermic

BN Thermic 830T Manuale utente

KING

KING K Series Guida

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guida rapida

Well Straler

Well Straler RC-16B Manuale utente

EUROM

EUROM 333299 Manuale utente

Heylo

Heylo K 170 Manuale utente

Eterna

Eterna TR70W Manuale utente

Clarke

Clarke GRH15 Manuale di istruzioni

IRSAP

IRSAP The Radiator Company Ovali Manuale utente

Empire Heating Systems

Empire Heating Systems WCC65 Manuale utente

Wetekom

Wetekom 92 86 43 Manuale utente

Desa

Desa SPC170-F Manuale utente

Watlow

Watlow Watrod Electric Tubular Heaters Manuale utente

Haverland

Haverland ECO-DRY GPS Series Manuale elenco delle parti

Stelpro

Stelpro ASILVC2060 Series Manuale utente
