PREFACE
Thank you for selecting a Hero MotoCorp SPLENDOR NXG. We wish you many miles
of continued riding pleasure in the years ahead.
We, at Hero MotoCorp, are committed to demonstrate excellence in our environment
performance on a continual basis, as an intrinsic element of our corporate philosophy. To
achieve this we commit ourselves to continue product innovations to improve
environment compatibility, comply with all applicable legislation including
environment legislation and strengthen the green supply chain.
This booklet is your guide to the basic operation and maintenance of your new Hero
MotoCorp SPLENDOR NXG. Please take time to read it carefully. As with any fine
machine, proper care and maintenance are essential for trouble-free operation and
optimum performance.
Let us make this world a safer, healthier and more environment friendly place.
Your Authorised Hero MotoCorp dealer will be glad to provide further information or
assistance and is equipped to handle your future service needs.
Your motorcycle is conforming to latest (Bharat Stage-III norms) regulation for
emission, safety & noise levels. We are also using non asbestos brake shoes and engine
gaskets which are environment friendly in nature.
NOTE
ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,
SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S
MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION
AVAILABLE AT THE TIME OF ITS PRINTING APPROVAL, AND THE
ACCURACY OR CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR
GUARANTEED. Hero MotoCorp Limited. RESERVES THE RIGHT TO MAKE
CHANGES IN ITS CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR
INCURRING ANY OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO
REPRODUCE ANY PART OF THIS PUBLICATION WITHOUT OBTAINING
PRIOR WRITTEN PERMISSION FROM Hero MotoCorp Limited.
RIGHT HANDLEBAR CONTROLS
STEERING LOCK
14
15
16
16
17
18
20
21
22
23
24
FUEL VALVE
IGNITION SWITCH 11
LEFT HANDLEBAR CONTROLS 12
13
13
ACCESSORIES AND MODIFICATIONS 5
7
10
10
PARKING / ANTI-THEFT TIPS
25
UTILITY BOX
SAFETY PRECAUTION
TOOL KIT / FIRST AID KIT
26
25
27
27
53
56
51
52AIR SUCTION VALVE
49
CATALYTIC CONVERTER 52
47
47
46
45
45
41
43
40
39
37
36
35
33
33
31
30
29
STOP LAMP SWITCH
FUSE REPLACEMENT
BRAKE WEAR INDICATORS
HEADLAMP ADJUSTMENT
HERO GENUINE PARTS
MBLXXXXAAYZXYYYYY
MBL
Manufacturer
Code
XXXXAA
Vehicle
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
MBLXXXXAAYZXYYYYY
XXXXEL
Engine
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
XXXXELYZXYYYYY
XXXXELY
ZXYYYYY
Model Engine
VIN
EX
EY
EK
EK
EZ EL
AA EL
Splendor NXG Electric Start/Drum (Cast Wheel)
Splendor NXG Kick Start/Drum (Spoke Wheel)
Splendor NXG Kick Start/Drum (Cast Wheel)
Splendor NXG Electric Start/Drum (Spoke Wheel)

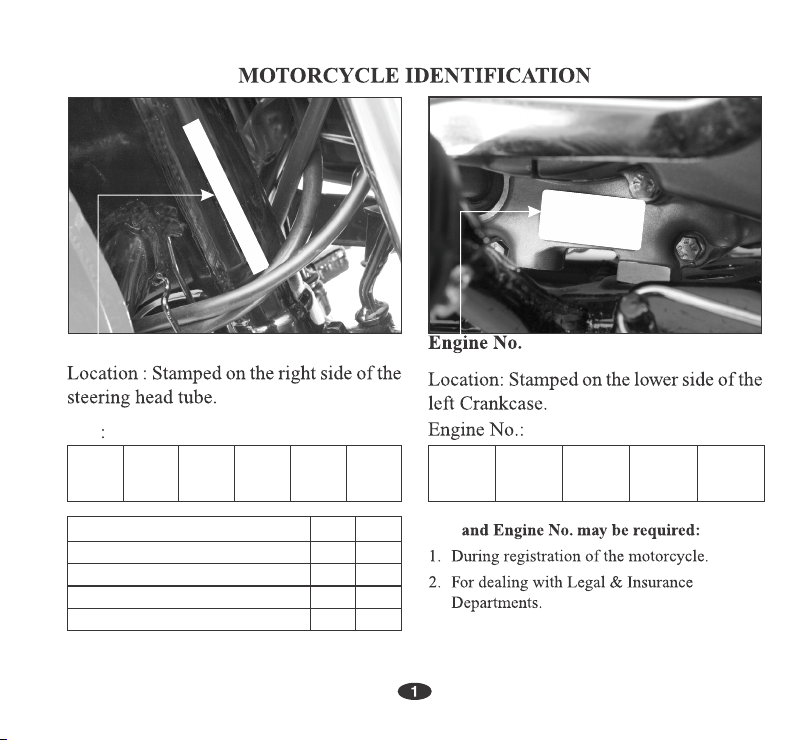

Vehicle Identification Number (VIN)
VIN
VIN
9.5 litres (minimum)
1.8 litres (usable)
1965 mm
1095 mm
770 mm
1235 mm
160 mm
0.95 litre at disassembly
0.80 litre at draining
9.9 :1
NGK-CR7HSA, BOSCH-UR4AC,
Champion-P-RZ9HC (Federal Mogul)
0.6 - 0.7 mm
IN : 0.10 mm EX : 0.10 mm
6.15 kW (8.36 Ps) @ 8000 r/min
97.2 cc
163 ml
Saddle Height 785 mm

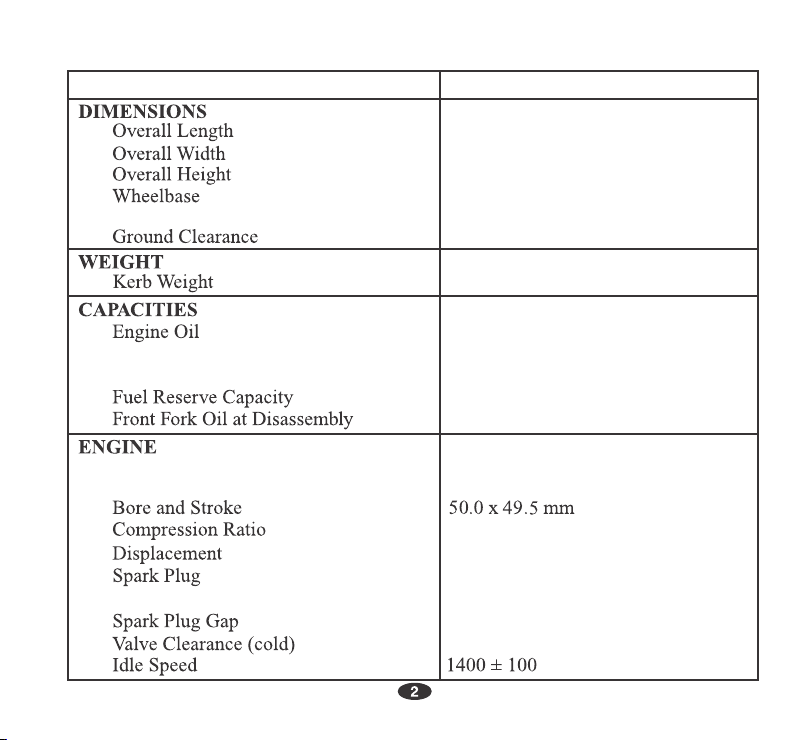

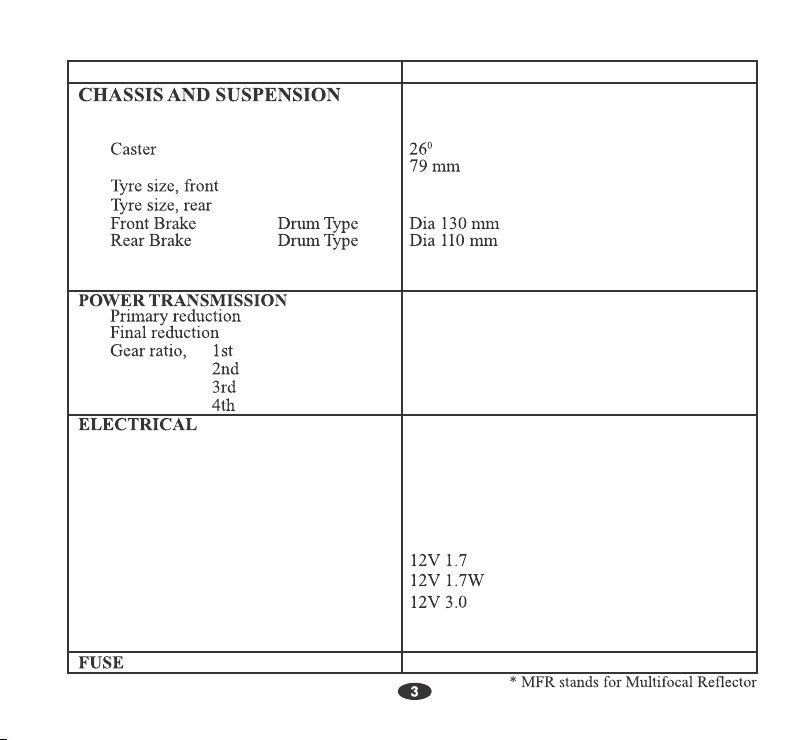

ITEM SPECIFICATIONS
PRODUCT SPECIFICATION
Fuel Tank Capacity
Maximum Torque 0.82 kgf-m (8.05 N-m) @ 5000 r/min
Maximum Power
(Kick start/Electric start) 109 / 112 kg
r/min
Telescopic Hydraulic Shock Absorbers
Swing Arm with Adjustable Hydraulic Shock Absorber
2.75 x 18 - 4 PR / 42P
2.75 x 18 - 6 PR / 48P
3.722 (67 / 18)
3.143 (44 / 14)
3.181 (35 / 11)
1.706 (29 / 17)
1.238 (26 / 21)
0.958 (23 / 24)
12V-3 Ah **MF Battery
10 A / 15 A
12V 35/35W Trapezoidal Halogen Bulb -MFR*
12V 10W x 4 (Amber Bulb) with clear lens-MFR*
Spoke Wheel / Cast Wheel (optional)
Spoke Wheel / Cast Wheel (optional)
12V 3.0W
Kick / Electric Start (Optional)
115 W
5 x 21W MFR*
** MF stands for Maintenance Free
Front Suspension
Trail length
Rear Suspension
Front Wheel
Rear Wheel
Battery
Alternator
Starting System
Headlamp (High/Low)
Tail / Stop Lamp
Turn Signal Lamp
Meter Illumination
Neutral Indicator
Turn signal indicator
Position Lamp
Hi Beam Indicator
ITEM SPECIFICATIONS
12V 1.7W
W x 2
W x 2
Do's:
2. Always wear a helmet (ISI marked)
with chinstrap securely fastened and
insist on a helmet for your pillion rider.
3. While riding, sit in a comfortable posi-
tion with your legs close to fuel tank.
5. For stopping motorcycle, use both
brakes simultaneously, keeping throttle
in the close position.
6. Respect road signs and obey traffic
rules for your own safety and that of
others on the road (ref. page no. 56-57).
7. During night time, dip headlamps of
your motorcycle for oncoming traffic,
or when following another vehicle.
8. Give way to others on the road and sig-
nal before you make a turn.
9. To make yourself more visible, wear
bright reflective clothing that fits well.
10. Tightly wrap loose / hanging clothes &
avoid entangling with moving parts.
4. Ride defensively and at a steady speed
(between 40-50 km/hr).
11. Get your motorcycle serviced regularly
by the Authorised Hero MotoCorp
workshop.
1. Always conduct simple pre-ride
inspections (ref. page no 19).
motorcycle.
muffler.
5. Never ride under the influence of
alcohol or drugs.
Modifying your motorcycle or using non-
Hero MotoCorp accessories can make
your motorcycle unsafe. Before you
consider making any modifications or
adding an accessory, be sure to read the
following information.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
• Make sure that the accessory does not
obscure any lamps, reduce ground
clearance, limit suspension travel or
steering travel, affect your riding
position or interfere with operating any
controls.
• Be sure electrical equipment does not
exceed the motorcycle's electrical
system capacity (page 3). A blown fuse
can cause a loss of lights.
• Do not pull a trailer or sidecar with
your motorcycle. This motorcycle was
not designed for these attachments,
and their use can seriously impair your
motorcycle's handling.
Modifications
We strongly advise you not to remove
any original equipment or modify your
motorcycle in any way that would
change its design or operation. Such
changes could seriously impair your
motorcycle's handling, stability and
braking, making it unsafe to ride.
Removing or modifying your lamps,
mufflers, emission control system or
other equipment can also make your
motorcycle illegal.
Accessories
ACCESSORIES & MODIFICATIONS
Regular Servicing: Get your motorcycle serviced at an Authorised Hero MotoCorp
workshop, as per the service schedule, for an optimum performance and keep the
emission level under check.
Genuine Engine Oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MA2) engine oil
recommended by Hero MotoCorp and make sure you change it every 6000 kms.
(with top up every 3000 kilometres) to keep the engine fit and environment healthy.
The following tips shall ensure a healthy motorcycle, healthy environment, and a healthy you.
Genuine Spares: Always insist on Hero MotoCorp genuine parts as spurious or
incompatible spares and accessories can upset or deteriorate your motorcycle’s
running condition.
& fuel efficiency.
Noise Pollution : Noise beyond a certain decibel is pollution. Whether it is from
horns or defective mufflers, excessive noise will cause headaches and discomfort.
Emission Pollution : Get emission of your motorcycle checked by Authorised
agencies atleast once every 3 months or as notified by the government from time to
time.
Fuel Saving & Reduce Pollution : Switch "OFF" the engine while waiting at traffic
signal points to save fuel and reduce pollution, if the waiting period is long.

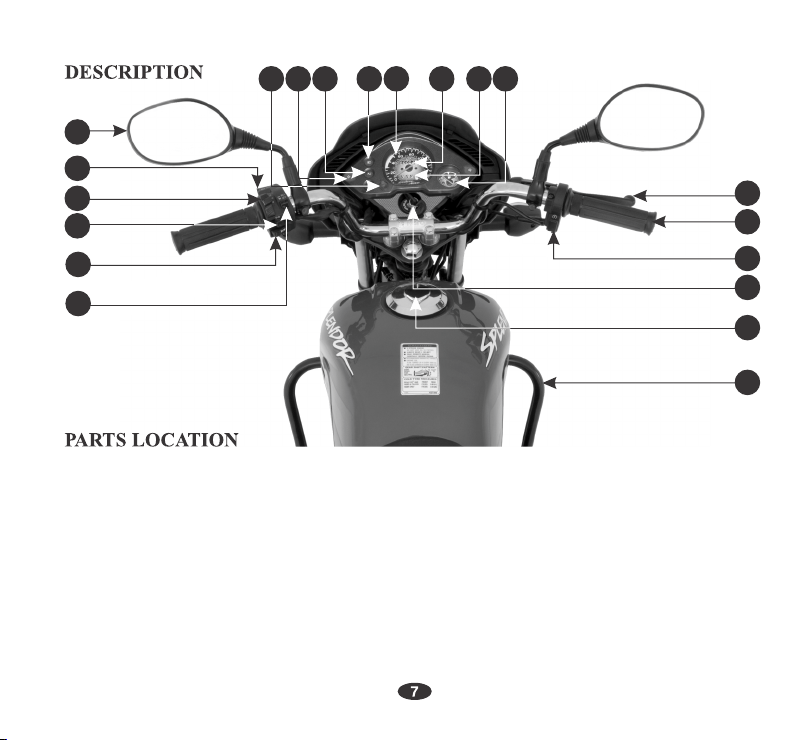

(9) Neutral indicator
(1) Headlamp dimmer switch
(2) Horn switch
(3) Turn signal switch
(5) Pass lamp switch
(6) Rear view mirror
(7) Trip meter knob
(8) Turn signal indicator
(4) Headlamp switch
(10) High beam indicator
(19) Fuel tank cap
(17) Electric starter switch (Optional)
(20) Leg guard (Optional)
(14) Fuel gauge
(15) Front brake lever
(18) Ignition switch with steering lock
(16) Throttle grip
(12) Odometer
(11) Speedometer
(13) Tripmeter
18
1413
11109
78
17
16
15
19
20
1
2
4
5
3
6
12
*Accessories and features shown may not be part of standard fitment.
