HERO SUPER SPLENDOR PROGRAMMED FI Manuale utente
PREFACE
We wish you many miles of continued riding pleasure in the years ahead.
We at are committed to demonstrate excellence in our environment Hero MotoCorp,
performance on a continual basis, as an intrinsic element of our corporate philosophy. To
achieve this we commit ourselves to continue product innovations to improve environment
compatibility, comply with all applicable legislation including environment legislation and
strengthen the green supply chain.
Thank you for selecting a . Hero MotoCorp SUPER SPLENDOR PROGRAMMED FI
Let us make this world a safer, healthier and more environment friendly place.
This booklet is your guide to the basic operation and maintenance of your new
. Please take time to read it Hero MotoCorp SUPER SPLENDOR PROGRAMMED FI
carefully. As with any fine machine, proper care and maintenance are essential for trouble-free
operation and optimum performance.
Your vehicle is conforming to latest (Bharat stage-VI norms) regulation for emission, safety &
noise levels. We are also using non asbestos brake shoes/pads and engine gaskets which are
environment friendly in nature.
This vehicle is fitted with a lighting feature known as “Automatic Headlamp ON”. The feature
is mandated for all 2 Wheelers by Ministry of Road Transport & Highways (Government of
India) vide notification GSR 188 (E) dated 22nd February 2016. This feature helps in
conspicuity for improving rider safety. The headlamp of this vehicle will always be lit ON when
the engine gets ON.
Your Authorised dealer will be glad to provide further information or Hero MotoCorp
assistance and is equipped to handle your future service needs.
Hero MotoCorp Ltd RESERVES THE RIGHT TO MAKE CHANGES IN ITS
CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR INCURRING ANY
OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO REPRODUCE ANY
PART OF THIS PUBLICATION WITHOUT OBTAINING PRIOR WRITTEN
PERMISSION FROM Hero MotoCorp Ltd.
ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,
SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S
MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION AVAILABLE
AT THE TIME OF ITS PRINTING APPROVAL, AND THE ACCURACY OR
CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR GUARANTEED.
NOTE
ACCESSORIES SHOWN MAY NOT BE THE PART OF STANDARD FITMENT. IT IS
OUR ENDEAVOUR TO CONSTANTLY IMPROVE OUR PRODUCTS. THIS COULD
LEAD TO CHANGE IN PRODUCT SPECIFICATIONS WITHOUT NOTICE. Hero
MotoCorp Ltd ‘ PROGRAMMED FI’ COMPLIES WITH THE SUPER SPLENDOR
LATEST EMISSION NORMS.
As per Ministry of Road Transport & Highways (Government of India) vide
Notification G.S.R. 540(E), Hemostatic agent is excluded from first aid kit in
reduction from existing kit effective from 31st August 2020.
ADDENDUM
Pg. No.Pg. No.
CONTENTS
Pg. No.
VEHICLE SPECIFICATION 5
SIDE STAND INDICATOR/SWITCH 18
ŸIgnition switch 12
RIDING 24
PARKING 25
VEHICLE IDENTIFICATION 1
ACCESSORIES & MODIFICATIONS 7
SAFE RIDING TIPS 10
ŸImportant safety information 8
VEHICLE VIEWS 2
PARTS FUNCTION 12
i3s (IDLE STOP START SYSTEM) 16
ANTI-THEFT TIPS 7
VEHICLE SAFETY 8
TIPS FOR HEALTHY ENVIRONMENT 11
ŸProtective apparel 9
ŸInstruments and Indicators 13
FEATURES 14
HANDLEBAR SWITCHES CONTROL 14
FUEL TANK 18
SEAT LOCK/HELMET HOLDER 19
USB CHARGER (OPTIONAL) 20
PRE-RIDE INSPECTION 21
STARTING THE ENGINE 22
BRAKING 24
TOOL KIT/FIRST AID KIT 25
CLEANING AND WASHING OF VEHICLE 26
MAINTENANCE 26
VALVE CLEARANCE ADJUSTMENT 37
CLUTCH LEVER FREE PLAY 39
DRIVE CHAIN SLIDER INSPECTION 43
WHEEL 48
AIR CLEANER 35
BRAKES 43
MAIN/SIDE STAND LUBRICATION 51
MAINTENANCE SCHEDULE 28
ENGINE OIL FILTER ELEMENT 33
OIL FILTER SCREEN 34
SAFETY PRECAUTION 27
TUBELESS TYRES 52
SPARK PLUG INSPECTION 31
ENGINE OIL 32
THROTTLE OPERATION 40
SUSPENSION 48
DRIVE CHAIN SLACKNESS 40
ROAD SIGNS 62
ZONAL/REGIONAL/AREA OFFICES
FUSE REPLACEMENT 57
HERO GENUINE PARTS
HEADLAMP FOCUS ADJUSTMENT 58
STOP LAMP SWITCH 57
NUTS, BOLTS & FASTENERS 55
BATTERY 55
POLISHING OF VEHICLE 59
CATALYTIC CONVERTER 58
EVAPORATIVE EMISSION CONTROL SYSTEM 59
WARRANTY
BASIC TROUBLESHOOTING 60
VEHICLE IDENTIFICATION
1
Model: SUPER SPLENDOR PROGRAMMED FI
Engine No.
Location: Stamped on the lower side of the
left crankcase.
MBLJAW18#########
JA07AB#
#######
2. For dealing with legal & insurance departments.
VIN and Engine No. may be required:
1. During registration of the vehicle.
VIN: MBLJAW18#########
MBL JAW18 #
Manufacturer
code Vehicle
Description Model Year
#
Check
Digit
Engine No.: JA07AB########
JA07AB # #
Engine
Description Year of
Manufacturing Assembly Plant
## #####
Plant
Code Month of
Manufacturing Production
Serial Number
# #####
Month of
Manufacturing Serial Number
Location: Stamped on the right side of the
steering head tube.
Vehicle Identification Number (VIN)
VIN Engine
Variant JAW18 JA07AB
Electric start/Front disc/Cast wheel JAW17 JA07AB
Electric start/Front drum/Cast wheel
2
*Accessories and features shown may not be part of standard fitment.
(1) High beam indicator
(2) USB charger (Optional)
(3) Dimmer switch
(7) Passing switch
(9) Neutral indicator
(8) Rear view mirror
(10) Programmed FI malfunction indicator
lamp (MIL)
(11) Side stand indicator
(5) Turn signal switch
(6) Clutch lever
(4) Horn switch
(13) i3s indicator
(14) Speedometer
(15) Odometer
(16) Fuel indicator
(17) Front brake master cylinder/Reservoir
(19) Front brake lever
(20) Throttle grip
(21) Electric starter switch
(22) Ignition switch with steering lock
(23) Fuel tank cap
(18) i3s switch
(12) Turn signal indicator

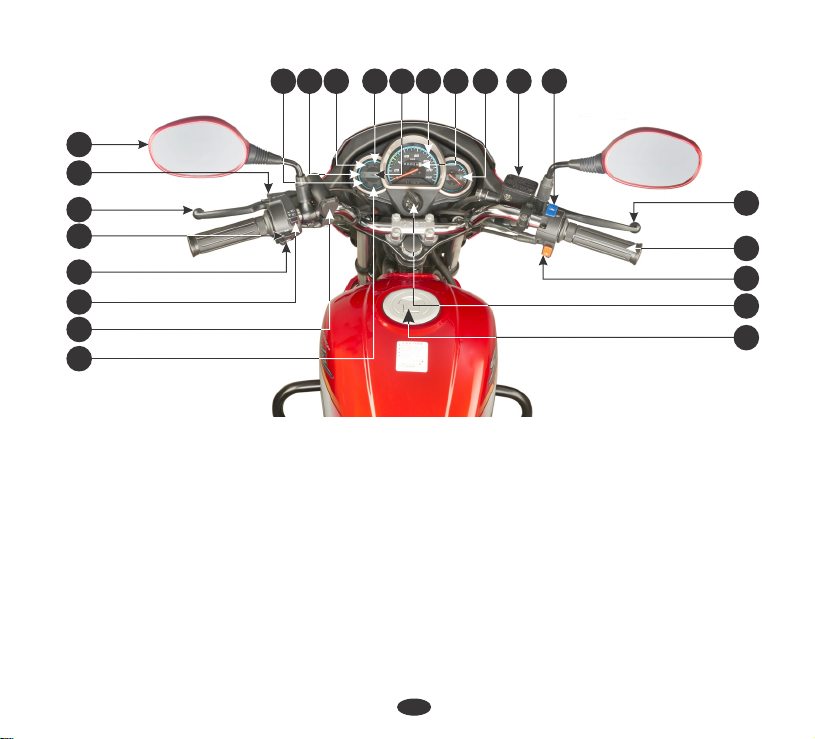

TOP VIEW VEHICLE VIEWS
15 16
11 14
12
10
913 17 18
1
2
6
7
8
4
5
3
19
22
20
21
23
3
*Accessories and features shown may not be part of standard fitment.

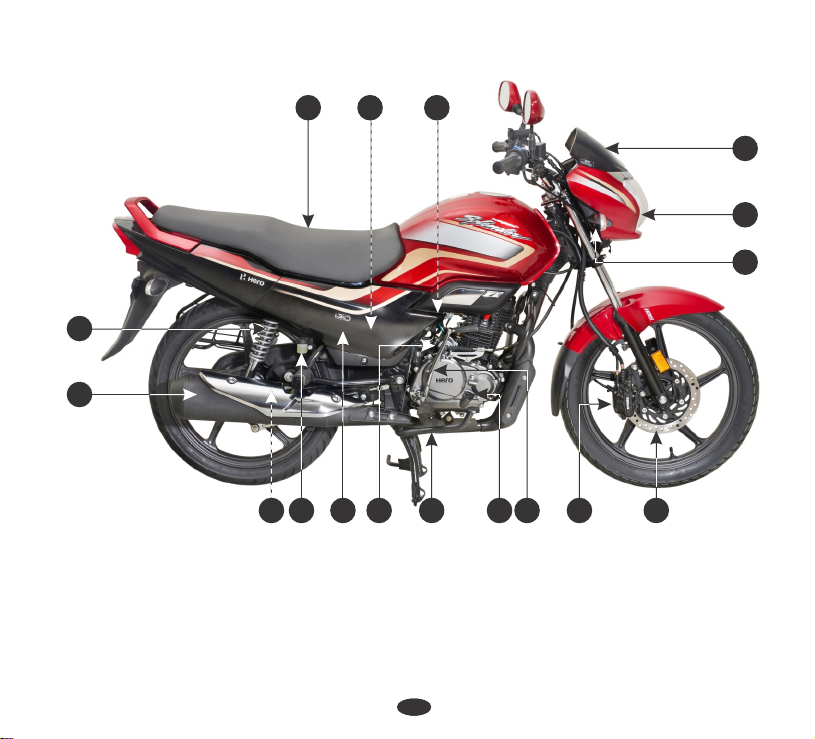

LEFT SIDE VIEW
1234678
10
13
12
(6) Side stand
(1) Leg guard (Optional)
(4) Main stand
(2) Rider footrest
(3) Gear shift pedal
(5) Left side cover
(7) Pillion footrest (13) Tail/Stop lamp
(12) Rear reflex reflector
(10) Rear fender
(8) Saree guard with
women pillion step
(11) Rear turn signal lamp
(9) Seat lock
(18) Front suspension
(16) Battery (inside)
(19) Front fender
(20) Front reflex reflector
(17) Side stand switch
(14) Rear grip
(15) Helmet holder (inside)
9
11
14151617
20
5
19
18
4
#
(8) Caliper assembly
#
(9) Front brake disc
(11) Headlamp
(7) Kick starter pedal
(12) Front visor
(10) Front turn signal lamp
(14) ECU (inside)
(15) Seat
(16) Rear shock absorber
(17) Exhaust muffler
(13) Throttle body
(2) Brake fluid reservoir
#
(3) Right side cover
(5) Brake pedal
(1) CBS Actuator (inside)
#
(4) Starter motor
(6) Oil level dipstick
11
12
*Accessories and features shown may not be part of standard fitment.
4
17
RIGHT SIDE VIEW
31
# Disc Variant
2 4 7 8 9
15 14 13
65
10
16
5
VEHICLE SPECIFICATION
Engine oil
Fuel tank capacity
Maximum power
Maximum torque
Bore and stroke
Compression ratio
Displacement
Spark plug gap
Valve clearance
Idle speed
Front suspension
Rear suspension
Caster angle
0.95 litre at disassembly and 0.75 litre at draining
12 litres
8 kW @ 7500 r/min
10.6 N-m @ 6000 r/min
52.4x57.8 mm
9.9:1
124.7 cc
0.8-0.9 mm
0.08 mm
0.12 mm
1400±100 r/min
Telescopic hydraulic shock absorbers
Swingarm with 5 step adjustable hydraulic shock
absorbers
26°
Capacities
Engine
Intake (cold)
Exhaust (cold)
Chassis and suspension
Spark plug
SPECIFICATIONSITEM
Dimensions
Overall length
Overall width
Overall height
Wheelbase
Saddle height
Ground clearance
2042 mm
740 mm
1102 mm
1273 mm
799 mm
180 mm
122 kg
Weight
NGK-CPR 7EA9, RG8YC (Federal Mogul)
714 mm
Disc-Drum
Drum-Drum
Kerb weight 123 kg
Disc-Drum
Drum-Drum
Payload 130 kg
6
VEHICLE SPECIFICATION SPECIFICATIONSITEM
Front
Rear
Primary reduction
Final reduction
st
Gear ratio, 1
rd
4th
5
Transmission
nd
2
Brakes Front (Drum type)
Tyre size
Front (Disc type)
Rear (Drum type)
Dia. 240 mm
Dia. 130 mm
80/100-18 47P (Tubeless tyre)
90/90-18 51P (Tubeless tyre)
Dia. 130 mm
Trail length 92 mm
3.214 (45/14)
*MF stands for Maintenance Free
**MFR stands for Multi-Focal Reflector
Battery
Alternator
Starting system
Headlamp (High/Low)
Tail/Stop lamp
Turn signal lamp 12V-21/5W-**MFR
Kick/Electric start
12V-35W/35W Halogen bulb-**MFR
12V-10Wx4 (Amber bulb) with clear lens-**MFR
*MF battery 12V-4Ah/ETZ5
140 W @ 5000 r/min
Electricals
Meter illumination
Neutral indicator
Turn signal indicator 12V-1.7W
12V-1.7W
12V-1.7Wx3
Hi beam indicator
Side stand indicator
i3s indicator 12V-0.5W (LED)
Fuse 15A, 10A, 10A
12V-0.5W (LED)
12V-1.7W
Programmed FI Malfunction indicator lamp (MIL) 12V-0.5W (LED)
3.35 (67/20)
3.17 (38/12)
1.83 (33/18)
1.04 (26/25)
0.923 (24/26)
rd
31.272 (28/22)
Transmission 5 speed transmission
Front & rear wheels Cast wheels
15A, 10A
Circuit fuse
Spare fuse
