HERO XPULSE 200 PROGRAMMED FI Manuale utente

PREFACE

Thank you for selecting a Hero MotoCorp XPULSE 200 PROGRAMMED FI. We wish

you many miles of continued riding pleasure in the years ahead.

This booklet is your guide to the basic operation and maintenance of your new

Hero MotoCorp XPULSE 200 PROGRAMMED FI. Please take time to read it carefully.

As with any fine machine, proper care and maintenance are essential for trouble-free

operation and optimum performance.

Your vehicle is conforming to latest (Bharat stage-VI norms) regulation for emission, safety &

noise levels. We are also using non asbestos brake shoes/pads and engine gaskets which are

environment friendly in nature.

This vehicle is fitted with a lighting feature known as “Automatic Headlamp ON”. The feature

is mandated for all 2 Wheelers by Ministry of Road Transport & Highways (Government of

India) vide notification GSR 188 (E) dated 22nd February 2016. This feature helps in

conspicuity for improving rider safety. The headlamp of this vehicle will always be lit ON when

the engine gets ON.

Your Authorised Hero MotoCorp dealer will be glad to provide further information or

assistance and is equipped to handle your future service needs.

Let us make this world a safer, healthier and more environment friendly place.

We at Hero MotoCorp, are committed to demonstrate excellence in our environment

performance on a continual basis, as an intrinsic element of our corporate philosophy. To

achieve this we commit ourselves to continue product innovations to improve environment

compatibility, comply with all applicable legislation including environment legislation and

strengthen the green supply chain.

Hero MotoCorp Ltd RESERVES THE RIGHT TO MAKE CHANGES IN ITS

CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR INCURRING ANY

OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO REPRODUCE ANY

PART OF THIS PUBLICATION WITHOUT OBTAINING PRIOR WRITTEN

PERMISSION FROM Hero MotoCorp Ltd.

ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,

SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S

MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION AVAILABLE

AT THE TIME OF ITS PRINTING APPROVAL, AND THE ACCURACY OR

CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR GUARANTEED.

NOTE

ACCESSORIES SHOWN MAY NOT BE THE PART OF STANDARD FITMENT. IT

IS OUR ENDEAVOUR TO CONSTANTLY IMPROVE OUR PRODUCTS. THIS

COULD LEAD TO CHANGE IN PRODUCT SPECIFICATIONS WITHOUT

NOTICE. Hero MotoCorp Ltd ‘XPULSE 200 ’ COMPLIES PROGRAMMED FI

WITH THE LATEST EMISSION NORMS.

As per Ministry of Road Transport & Highways (Government of India) vide

Notification G.S.R. 540(E), Hemostatic agent is excluded from first aid kit in

reduction from existing kit effective from 31st August 2020.

ADDENDUM

Pg. No. Pg. No.

CONTENTS

CATALYTIC CONVERTER 72

HERO GENUINE PARTS

ROAD SIGNS 77

NUT, BOLTS & FASTENERS 68

SIDE STAND LUBRICATION 66

BASIC TROUBLESHOOTING 74

ZONAL/REGIONAL/AREA OFFICES

EVAPORATIVE EMISSION CONTROL SYSTEM 73

NAVIGATION SIGNS 79

TYRES 66

FUSE REPLACEMENT 70

HEADLAMP FOCUS ADJUSTMENT 72

STOP LAMP SWITCH 71

POLISHING OF VEHICLE 73

BATTERY 69

WARRANTY

DRIVE CHAIN SLIDER INSPECTION 60

SPARK PLUG INSPECTION 48

MAINTENANCE 43

ENGINE OIL COOLER 52

CLUTCH LEVER FREE PLAY 55

DRIVE CHAIN SLACKNESS 57

THROTTLE OPERATION 56

BRAKES 60

CLEANING 50

OIL FILTER SCREEN & CENTRIFUGAL FILTER

ENGINE OIL 49

SAFETY PRECAUTION 44

VALVE CLEARANCE ADJUSTMENT 54

WHEEL 64

SUSPENSION 63

MAIN STAND (OPTIONAL)/

MAINTENANCE SCHEDULE 45

AIR CLEANER 52

VEHICLE IDENTIFICATION 1

VEHICLE VIEWS 2

VEHICLE SPECIFICATION 7

•Important safety information 9

•Off-road safety 11

•Load limits and guidelines 11

•Accessories & modifications 13

•Protective apparel 10

SAFE RIDING TIPS 14

TIPS FOR HEALTHY ENVIRONMENT 15

PART FUNCTION 16

•Ignition switch 16

VEHICLE SAFETY 9

•LCD panel 19

FEATURES 23

HANDLEBAR SWITCHES CONTROL 30

ABS INDICATOR 32

•Instruments and indicators 17

SIDE STAND INDICATOR/SWITCH 32

FUEL TANK 34

SEAT LOCK 35

HELMET HOLDER 35

ANTI-THEFT TIPS 13

PARKING/TOOL KIT 41

STARTING THE ENGINE 37

RIDING 39

FIRST AID KIT 42

CLEANING AND WASHING OF VEHICLE 42

USB CHARGER 35

PRE-RIDE INSPECTION 36

BRAKING 39

VIN: MBLLDL05#########

Model: XPULSE 200 PROGRAMMED FI

VIN Engine

Variants

LDL05 MC20AG

Electric start/Front disc with ABS/Rear disc/Spoke wheel

MBL LDL05 # # # #####

Manufacturer

code Vehicle

Description Model Year Plant

Code Month of

Manufacturing Production

Serial Number

Check

Digit

Engine No.: MC20AG########

MC20AG # # # #####

Engine

Description Year of

Manufacturing Assembly Plant Month of

Manufacturing Serial Number

•For dealing with legal & insurance departments.

VIN and Engine No. may be required:

•During registration of the vehicle.

VEHICLE IDENTIFICATION

Engine No.

Location: Stamped on the lower side of the

left crankcase.

Location: Stamped on the right side of the

steering head tube.

Vehicle Identification Number (VIN)

MBLLDL05#########

MC20AG#

#######

FRONT VIEW

(4) Front right turn signal lamp

(3) Right position lamp

(2) Headlamp (High beam)

(1) Leg guard

(5) Right hand guard

(6) Wind screen

(9) Front left turn signal lamp

(7) Left hand guard

(8) Headlamp (Low beam)

(11) Engine oil cooler

(10) Left position lamp

VEHICLE VIEWS

*Accessories and features shown may not be part of standard fitment.

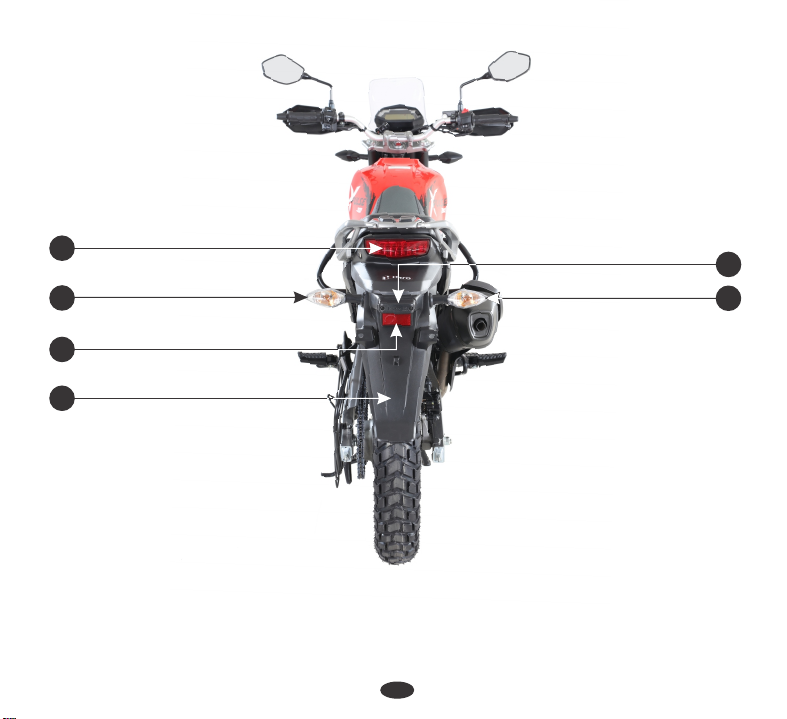

REAR VIEW

(1) Rear fender

(2) Rear reflex reflector

(3) Left rear turn signal lamp

(5) Licence plate lamp

(4) Tail/stop lamp

(6) Right rear turn signal lamp

*Accessories and features shown may not be part of standard fitment.

(4) Turn signal switch

(8) LCD panel of Meter console. refer

instruments and indicators (page 17)

for fuel gauge, speedometer and other

features of console

(5) Clutch lever

(2) Ignition switch with key

(3) Horn switch

(1) High beam indicator

(9) Side stand indicator

(10) Left turn signal indicator

(6) Rear view mirrors

(7) Pass lamp switch

(11) Neutral indicator

(12) Right turn signal indicator

(13) Programmed FI malfunction indicator

lamp (MIL)

(14) Mode (M) and Set (S) buttons

(15) Front brake master cylinder/Reservoir

(16) Engine stop/kill switch

(17) Front brake lever

(18) Throttle grip

(19) Electric starter switch

(20) ABS indicator

(21) Fuel tank cap

TOP VIEW

*Accessories and features shown may not be part of standard fitment.

6816

910 11 12 13 15

(6) Main stand (optional)

(3) Starter motor

(5) Rider footrest

(4) Gear shift pedal

(1) Side reflex reflector

(2) Front hugger fender (7) Side stand

(11) Rear grip

(8) Pillion foot rest

(9) Saree guard

(10) Seat lock

(12) Seat

(14) Battery compartment (inside)

(16) Front fender

(13) Left side cover

(15) Side stand switch

LEFT SIDE VIEW

14 12

*Accessories and features shown may not be part of standard fitment.

159

238

1113

(1) Rear caliper assembly

(6) Bash plate

(7) Oil level dipstick

(3) Kick starter pedal

(4) Rear brake master cylinder

(8) Front caliper assembly

(5) Brake pedal

(2) Rear brake fluid reservoir (10) Throttle body

(13) USB charger & First aid kit compartment (inside)

(9) Front disc

(11) Right side cover

(12) Tool kit compartment (inside)

(14) Air cleaner assembly (inside)

(16) Rear disc

(15) Exhaust muffler assembly

RIGHT SIDE VIEW

13 12 11

*Accessories and features shown may not be part of standard fitment.

12 3 79
