Herutu WCL-920R Manuale utente

LAN Connection Type Andon Receiver

WCL-920R

Instruction Manual V1.10

Please use this Instruction manual correctly on reading well.

Please keep it carefully to be able to read immediately, when required.


 Table of Contents

1．OVERVIEW............................................................................................................................................ 1
1-1．Introduction................................................................................................................................... 1
1-2．Main Unit and Accessories .......................................................................................................... 2
1-3．Safety Precautions (Be Sure to Read This)................................................................................ 3
1-4．Outline............................................................................................................................................ 5
2．Specification......................................................................................................................................... 6
2-1．Radio part specification............................................................................................................... 6
2-2．General Specification................................................................................................................... 6

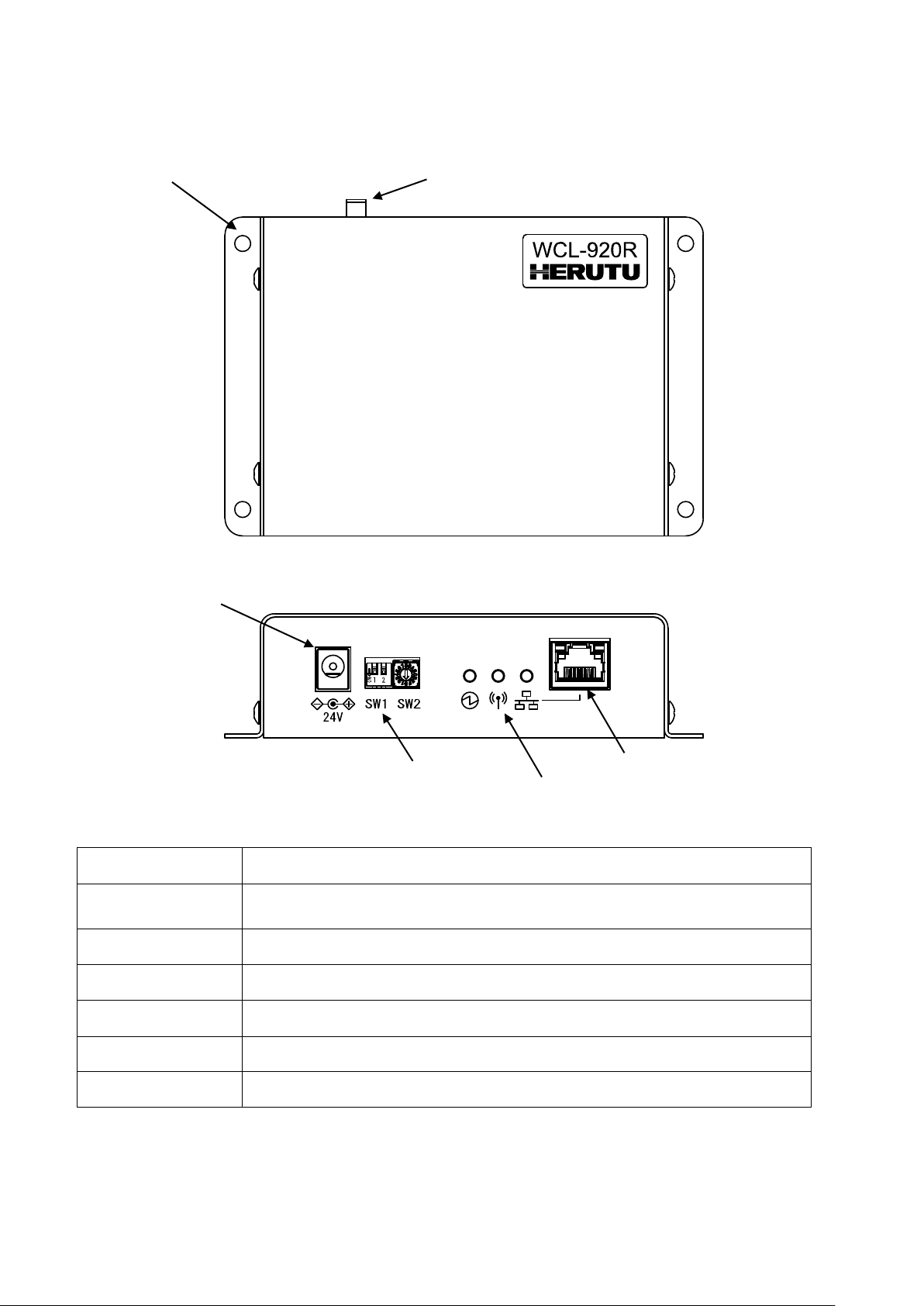

3．PART NAMES AND DESCRIPTIONS .................................................................................................. 7
4．Drawing................................................................................................................................................. 8
5．Prepare to Start Communication ....................................................................................................... 9
5-1．Installation of "Device Installer".................................................................................................. 9
5-2．Factory Default IP Address.......................................................................................................... 9
5-3．IP Address Settings and Procedure............................................................................................ 9
6．Settings............................................................................................................................................... 16
7．Communication Command Function............................................................................................... 18
7-1．Information Acquisition Command........................................................................................... 18
7-2．Setting Command ....................................................................................................................... 18
7-3．Command Execution Result...................................................................................................... 18
8．Installation Procedure....................................................................................................................... 22
8-1．Receiver Installation................................................................................................................... 22
8-2．LAN connector ............................................................................................................................ 23
9．Description of Operation................................................................................................................... 24
9-1．Basic Operation........................................................................................................................... 24
9-1-1．Opening................................................................................................................................. 24
9-1-2．Receive Data from Transmitter........................................................................................... 24
9-2．LED Monitor................................................................................................................................. 25
9-3．Processing at Power ON............................................................................................................ 27
10．After Service and Warranty............................................................................................................. 28

WCL-920R

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Industry Canada licenseexempt RSS standard(s). Operation is subject to the following two

conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2)

'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en

compromettre le fonctionnement.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or

lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the

antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than

that necessary for successful communication.

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avecune antenne d'un

type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada.

Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, ilfaut choisir le type

d'antenne et son gain de sorte quela puissance isotrope rayonnée équivalente (p.i.r.e.)

ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

1．OVERVIEW

1-1．Introduction

This instruction manual describes the information required for using this product including overview,

installation, and operation of this product. Read this manual carefully before using this product. Keep this

manual handy so that you can take it out immediately.

A wireless module "RN2903" built in this product obtained the transmitter approval of Federal

Communication Commission (FCC), CFR 47 Telecommunication, Part 15.212 Modular Transmitters, and the

module approval of Part15, Subpart C "International Radiators" based on the above approval.

The "RN2903" module is also approved for use in Canada according to the Radio Standards Specification

(RSS) RSS-210 and RSS-GEN of Industry Canada (IC).

■FCC Warning

■IC Warning

WCL-920R

This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by

Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna

impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the

maximum gain indicated for that type, are strictly prohibited for use with this device.

Conformément à la réglementation d'Industrie Canada,le présent émetteur radio peut fonctionner avecune antenne d'un

type et d'un gain maximal (ouinférieur) approuvé pour l'émetteur par Industrie Canada.

Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, ilfaut choisir le type

d'antenne et son gain de sorte quela puissance isotrope rayonnée équivalente (p.i.r.e.)

ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

■External Antenna Types

Type

Gain(dBi)

Impedance

Sleeve Dipole

Under 6dBi

50Ω

1.Do not use this product for the application that may cause harm to human body or damage to other

devices and equipment.

Do not use this product near the devices that may malfunction due to radio waves emitted from this

product.

2.Disassembly or modification of the device having an approval is prohibited by the law.

3.This product is available only in Canada and USA.

4.Because the communication performance is changed depending on the surrounding environment, be sure

to confirm the communication is established before installation of this product and then use it.

1-2．Main Unit and Accessories

■Receiver

Receiver main unit “WCL-920R” x1

AC adapter “ADB24050” x1

Cable Approx. 1.5 m

Anntena “MEGWX-467XSAXX-920” x1

WCL-920R

1-3．Safety Precautions (Be Sure to Read This)

This section describes the matters to be observed in order to prevent harm to the users and other persons

and damages to the property.

■The following marks and displays classify and describe the extent of harm and damage caused by failing

to observe the display content and using this product wrongly.

This display column shows "a failure to do observe it could result in death or

serious personal injury".

This display column shows "a failure to do observe it could result in only the

personal injury or property damage".

■Common matters in handling

●Avoid using this product in the humid or dusty place. Dusts or water enters the product,

which may cause the fault, fire, or electric shock.

■Handling this product

●This product is the wireless communication equipment made of precision parts. Do not

disassemble or modify it. Or the accident or fault may occur.

■Handling this product

●Do not use this product for application that requires the extremely high reliability affecting

the human life.

●Do not use this product in the area which the radio wave reaches or not.

■Handling the power supply

Be sure to observe the followings in order to prevent the accidents such as heat generation, damage, or

ignition ofAC adapter and power cord.

●Do not place the AC adapter and power cord close to fire or insert them into fire. Or they

may be burst and ignited, resulting in the accident.

●Use the AC adapter and main body only at the specified power supply voltage in order to

prevent burst and ignition accidents.

●Do not use the AC adapter and main body at the location where they easily get wet. Or the

accidents including heat generation, ignition, or electric shock and faults may occur.

! Warning

! Caution

! Warning

WCL-920R

●Do not touch the AC adapter, main body, power cord, and outlet with wet hands. Or the

accident such as an electric shock may occur.

●Do not damage the power cord. Short-circuit or heat generation may cause fire or electric

shock.

●Do not use the power plug with dusts attached. Short-circuit or heat generation may cause

fire or electric shock.

●Do not give a strong shock to the AC adapter.

Or the accident or fault may occur.

●If you find a deformation in theAC adapter, do not use it.

Or the accident or fault may occur.

●Do not charge the main body at the location where the flammable gas is generated.

Or the ignition accident may occur.

●Never disassemble the AC adapter.

Or the accident or fault may occur.

■Never disassemble the AC adapter.

Remove the power plug from the outlet because it may cause fire and electric shock. Request the dealer

or our company to repair it.

●When smoke comes or there is a strange smell, immediately stop usage and remove the

power plug from the outlet because it may cause fire and electric shock. Request the dealer

or our company to repair it.

●If the cord is damaged, do not use it. Using the cord damaged continuously may cause fire

or electric shock.

■Reliability of wireless communication

As wireless communication has properties that are different from those of wired communication,

communication errors may occur due to the following.

・Exceeds the communication distance.

・Enters a dead zone.

・Interfered by strong jamming

If signals are often jammed, or being jammed leads to operational problems, stop using the systems and

restart using the systems after removal of the cause.

Radio waves may not be received due to various reasons other than the above. Please understand this

before using the systems.

* A dead zone is an area where the radio wave transmitted from the transmitter becomes extremely weak

due to radio waves reflected from walls or other objects.

WCL-920R

1-4．Outline

WCL-920R is a LAN connection type Andon*1 receiver (hereinafter called “receiver”).

The receiver can wirelessly receive in real-time trouble occurrence reports transmitted from the AN920T

transmitter installed at the workstations and machines of the production line.

In addition, the receiver can externally output the received reports of trouble occurrence via LAN.

By utilizing and analyzing the information of trouble occurrences on the production line with applications on

computers, tablets and in the cloud, the receiver can be useful for visualizing and improving the operation

status of the production line.

Using the Windows application “Production Process Support Software for WCL Series WCL plus,” you can

save the trouble occurrence history received by up to 10Andon receivers in the CSV format.

●At the transmitter, there are two selectable input methods for reporting trouble occurrences: one for

workers with four push-buttons (orange, red, green, and white) and one for machines with four external

inputs (orange, red, green, and white). According to possible trouble occurrences in the production line, you

can assign each color a meaning, such as red for an exception occurrence, orange for parts out of stock,

green for requesting transportation of finished products, or white for trouble solved.

●When using the receiver linked to a wireless Andon series AN920, one receiver can wirelessly

communicate with up to 800 transmitters and a maximum of 16 receivers can be used in a factory. This

enables trouble occurrence reports to be collected from up to 12,800 locations in a factory.

When using the receiver with the transmitter without linking to a wireless Andon series AN920, each receiver

can wirelessly communicate with up to 1,000 transmitters and a maximum of 16 receivers can be used

within a factory. This enables trouble occurrence reports to be collected from up to 16,000 locations in a

factory.

*1: A system to notify management, maintenance, and other workers of a quality or process problem.

WCL-920R

2．Specification

2-1．Radio part specification

Item

Specification

A destination country

U.S.A., Canada

Standard

CFR47(FCC) Part15-247

IC RSS-210

RoHS1

Frequency Band

903MHz～927MHz

Modulation Band

LoRa Technology

Modulation Speed

Approx.1170bps

Channel Step

1.6MHz

Antenna

External Sleeve Antenna

Communication

Method

Half Duplex

Antenna Power

2.0mW / 70.79mW

2-2．General Specification

Item

Specification

Interface

Ethernet IEEEE802.3 10Base-T/100Base-TX Auto switching

Connector: RJ-45 × 1

Indication for network 2-color LED LED × 2

Indication

Red LED × 1 (Power supply monitor)

Red/Green 2-color LED × 1 (Monitor for wireless communication)

Red/Green 2-color LED × 1 (Monitor for wired communication)

Power supply

DC24V (Available at AC100-240V with supplied AC adapter.)

Current consumption

Approx. 120mA

Operating

Environment

Temperature:0-+40℃(32-104°F)

Humidity:20-80% (without condensation)

External Dimensions

(W × H × D) 135 × 90 × 35 mm (5.3 × 3.5 × 1.4″) (excluding protrusions)

Weight

Approx. 380g (13.4 oz)

Setting switch

2P DIP switch × 1 (For normal operation settings)

16P rotary switch × 1 (For channel settings)

Included

1 AC adapter, 1 Antenna

WCL-920R

Setting switch

Connector for antenna

LED monitor

LAN Connector

DC jack

Mounting hole

3．PART NAMES AND DESCRIPTIONS

Name

Function

Connector for

antenna

Connector for connection to the antenna. (SMA-J Connector)

Attach the supplied antenna.

Mounting holes

Mounting hole of φ4.5 × 4

DC jack

DC jack for connection of the included AC adapter.

Setting switch

DIP switch and rotary switch for settings.

LED monitor

LEDs for power supply, wireless communication and wired communication.

LAN Connector

Connector for LAN connection. (RJ-45)

Indice

Altri manuali Herutu Ricevitore

Herutu

Herutu TW-800 Series Manuale utente

Herutu

Herutu TW-800R-EXP Manuale utente

Herutu

Herutu TW-800R-MCL Manuale utente

Herutu

Herutu TW-800R-SC Manuale utente

Herutu

Herutu WCL-426R Manuale utente

Herutu

Herutu POKAYOKE TWF-600R Manuale utente

Herutu

Herutu TW-800R-SLNX Manuale utente

Herutu

Herutu AN426RM II Manuale utente

Herutu

Herutu TW-800R-EXS Manuale utente

Herutu

Herutu TW-800R-EXS Manuale utente

Herutu

Herutu TW-510R Manuale utente

Herutu

Herutu TW-800R-EXL Manuale utente

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
