HPE B-series 16Gb FC

Switches Quick Start

Instructions

*5900-4827*

Part Number: 5900-4827

Published: January 2016

Edition: 4

Overview

Read these instructions to set up and configure the

HPE StoreFabric SN6500B 16Gb 96-port FC

Switch, HPE SN6000B 16Gb 48-port FC Switch

and HPE SN3000B 16Gb 24-port FC Switch.

These instructions provide basic configuration

steps. For detailed rack mount and configuration

instructions, download the HPE B-series 16Gb

Switches Hardware reference guide from the

storage section of the Hewlett Packard Enterprise

website: http://www.hpe.com/support/manuals.

Figure 1 (page 1) shows the port side of the

96-port switch.

Figure 1 Port side of the 96-port switch

2. System status LED1. System power LED

4. FC ports 0–7 (all LEDs

above)

3. USB port

6. FC ports 48–955. FC ports 8–47

8. Management Ethernet port

with LED

7. Switch ID pull-out tab

9. Serial console port

Verify the SN6500B 16Gb 96–port FC switch

carton contents

Verify that the carton contains the following (any

SFPs ordered will not be in this carton; they will be

packaged separately):

•One HPE SN6500B 16Gb 96–port FC Switch

with two power supplies and three fan

assemblies

•Rubber feet, required to set up the switch as

a standalone unit.

•Serial cable with an RJ-45 connector.

•HPE SAN Network Advisor DVD.

•Brocade EZ Switch and China ROHS

documentation.

•One accessory kit with the following items:

Rack Mount Kit, including rails and rail

mounting hardware.

◦

◦Hewlett Packard Enterprise product

documentation, including Read Me First,

Safety Guides, End User License

Agreement and Warranty.

•Two power cords.

SN6000B 16Gb 48-port FC switch

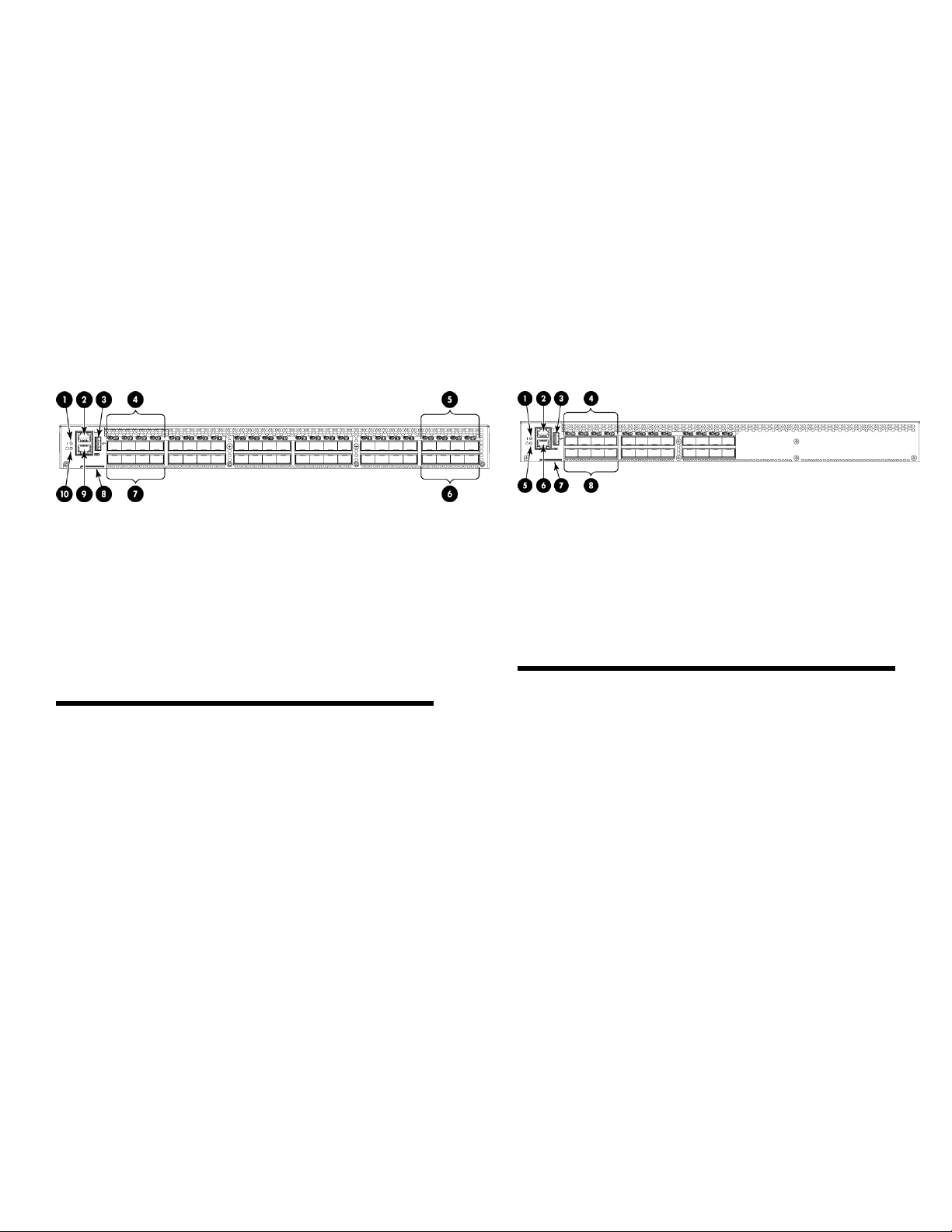

Figure 2 (page 2) shows the port side of the

48-port switch.

Figure 2 Port side of the 48-port FC Switch

2. Management Ethernet port

with LEDs

1. System status LED

4. FC ports (0-3)3. USB port

6. FC ports (44-47)5. FC ports (40-43)

8. Switch ID pull-out tab7. FC ports (4-7)

10. System power LED9. Serial console port

Verify the 16Gb 48-port FC switch carton

contents

Verify that the carton contains the following (any

SFPs ordered will not be in this carton; they will be

packaged separately):

•One SN6000B 16Gb 48-port FC Switch with

two integrated power supply/fan assemblies

•Rubber feet, required to set up the switch as

a standalone unit

•Serial cable with an RJ-45 connector plus an

adaptor for RJ-45 to DB9

•SAN Network Advisor DVD

•Brocade EZ Switch and China ROHS

documentation

•One accessory kit with the following items:

Rack Mount Kit, including rails, rail

mounting hardware, and plenum

◦

◦Hewlett Packard Enterprise product

documentation, including Read Me First,

Safety Guides, End User License

Agreement and Warranty

•Two power cords

SN3000B 16Gb 24-port FC switch

Figure 3 (page 2) shows the port side of the

24-port switch.

Figure 3 Port side of the 24-port switch

2. Management Ethernet port

with LEDs

1. System status LED

4. FC ports (0-3)3. USB port

6. Serial console port5. System power LED

8. FC ports (4–7)7. Switch ID pull-out tab

Verify the SN3000B 16Gb 24-port FC

switch carton contents

Verify that the carton contains the following (any

SFPs ordered will not be in this carton; they will be

packaged separately):

•One SN3000B 16Gb 24-port FC Switch with

one integrated power supply/fan assembly

•Rubber feet, required to set up the switch as

a standalone unit

•Serial cable with an RJ-45 connector plus an

adaptor for RJ-45 to DB9

•SAN Network Advisor DVD

•Brocade EZ Switch and China ROHS

documentation

•One accessory kit with the following items:

Rack Mount Kit, including rails, rail

mounting hardware, and plenum

◦

◦Hewlett Packard Enterprise product

documentation, including Read Me First,

Safety Guides, End User License

Agreement and Warranty

•One power cord

NOTE: The HPE SN3000B 16Gb Fibre

Channel Switch can, as an option, be

configured with a second power supply/fan

assembly, which must be ordered separately.

Verify the 16Gb FC Switch installation

requirements

To set up the switch for the first time, you will need

the following:

•Workstation with an installed terminal emulator

(such as HyperTerminal)

•Unused IP address and corresponding subnet

mask and gateway address

•Serial cable (supplied with the switch)

•Ethernet cable

•Access to an FTP server, SCP server, or USB

device for backing up the switch configuration

(optional)

•HPE B-series SFP+ transceivers and

compatible cables (HPE B-series 16 Gb/s

SFP+ transceivers required for 16 Gb/s

performance), as required

IMPORTANT: Order transceivers or cables

separately. The StoreFabric SN6500B 16Gb

96-port FC Switch, SN6000B, and SN3000B

16Gb FC Switches support only transceivers

labeled B-series SFP+. See the compatibility

matrix at http://www.hpe.com/support/

SANcompatibility for more information on

supported transceivers.

Plan the 16Gb FC Switch site

environment

To ensure adequate cooling, install the switch with

the non-port side (which contains the air intake

vents) facing the cool-air aisle. Verify that the

ambient air temperature does not exceed 40°C

(104°F) and that the ambient humidity remains

between 10% and 85% while the switch is

operating.

NOTE:

•For switches with Port Side Air Intake,

install the switch with the port side facing

the cool-air aisle.

•For the SN6000B and SN3000B, you

must install the plenum if the switch is

to be installed in a rack.

To install and operate the switch successfully,

ensure that:

•For the SN6500B 16Gb FC Switch, the primary

AC input is 90–264 VAC, Nominal: 100–240

VAC, 12.0A–5.0A; 47–63 Hz. The switch

auto-senses input voltage.

•For the SN6000B and SN3000B 16Gb

switches, the primary AC input is 85–264 VAC,

Nominal: 100–240 VAC, 2.0 A; 47–63 Hz. The

switch auto-senses input voltage.

•The primary outlet is wired correctly, protected

by a circuit breaker, and grounded in

accordance with local electrical codes.

•The supply circuit, line fusing, and wire size

are adequate, as specified by the electrical

rating on the switch nameplate.

For additional power supply information, see the

B-series 16Gb Switches Hardware Reference

Guide.

Install the SN6000B Switch and

SN3000B Switch in a rack using the

Rack Mount Kit

You can use the Switch Rack Mount Kits to install

your 16Gb FC Switch in an HPE 10000 Series

Rack.

CAUTION: Install the Rack Mount Kit so

that when the switch is installed, the port side

faces the rear of the rack. This configuration

optimizes performance by:

•Providing better airflow by using a

plenum to force cool air to enter the

switch from the front of the rack

•Providing room for a gradual bend in the

fiber optic cables because the port side

of the switch is set back from the edge

of the rack

Use only the screws provided in the Rack

Mount Kit. Using other screws can cause

damage to internal components.

NOTE: For switches with Port Side Air

Intake, install the Rack Mount Kit so that

when the switch is installed the port side

faces the front of the rack.

To install the switch in a rack using the Rack Mount

Kit:

1. Place the switch on a flat surface and attach

each inner rail to the switch using three

flat-head screws as shown in Figure 4 (page

4).

The rails are labeled Left and Right to

designate the left side and right side of the

switch as viewed from its non-port side.

Figure 4 Attaching the inner rails to the

switch

2. Choose a rack mounting location that provides

clearance for the switch power cords to run

between the rack sides and the rails at the front

of the rack.

3. Attach each rear mounting bracket to a rear

rack upright column using two Phillips screws

and adapter washers. See Figure 5 (page 4).

NOTE: For switches with Port Side Air

Intake, attach the rear mounting brackets

to the front rack upright column.

Figure 5 Installing the rear mounting

brackets

4. Attach each outer rail as shown in

Figure 6 (page 5).

The rails are labeled Left and Right to

designate the left side and right side of the rack

as viewed from the front of the cabinet.

NOTE: For switches with Port Side Air

Intake, attach Left outer rail to the right

side of the rack and Right outer rail to

the left side of the rack.

Figure 6 Attaching the outer rails

a. Slide the rail over the rear mounting

bracket.

b. Attach the front of the rail to a front rack

upright column using two Phillips screws

and adapter washers.

c. Attach the outer rail to the rear mounting

brackets using a Phillips screw.

TIP: Tighten the rear screws just

enough for the end of the screw to

go through the rear bracket. Later

in the procedure, you will need room

to slide the inner rail between the

screw head and the outer bracket.

5. From the front of the rack, slide the switch (with

inner rails attached) onto the outer rails, taking

care to align the inner rails with the attachment

screws on the outer rails at the rear of the rack.

See Figure 7 (page 5).

Figure 7 Installing the switch in the rack

6. When the switch is in place, secure the inner

rails to the outer rails by tightening the screws

at the rear of the rack.

7. At the front of the rack, run the switch power

cords from the sides of the rack through the

cutouts in the rail, and then connect them to

the switch power supplies. Connect two power

cords to the 48-port switch and the 96-port

switch. Connect one power cord to the 24-port

switch. See Figure 8 (page 5).

IMPORTANT: Make sure that the

power cords do not come in contact with

any sharp edges.

NOTE:

•For switches with Port Side Air

Intake, the power connections are

at the rear of the rack.

•If you are configuring the second

(optional) power supply, the 24-port

switch will also have two power

cords.

Figure 8 Connecting power and installing

the plenum

3. Power switches1. Cutouts for power cords

4. Plenum thumb screws2. Power cable plugs

8. Connect the other end of the power cords to

power sources on separate circuits to protect

against AC failure. (Make sure that two power

cords are connected to the 48-port switch and

one power cord is connected to the 24–poort

switch.)

NOTE: If you are configuring the

second (optional) power supply, the

24-port switch will also have two power

cords.

9. Power on the power supplies by setting the

power switches to the ON position (|).

The power supply LEDs are amber until the

Power On Self Test (POST) is complete, and

then change to green. The SN6000B 16Gb FC

Switch takes several minutes to boot and

complete POST.

NOTE: When installed, the plenum

covers the power supply switches and

LEDs. However, the LEDs are visible

through the air holes in the front of the

plenum.

10. Slide the plenum over the non-port side of the

inner rails, taking care to bypass the power

cables. See Figure 8 (page 5).

11. Tighten the thumbscrews to secure the plenum

to the front of the rack.

12. Proceed to “Switch setup ” (page 10).

Installing the SN6500B Switch in a rack

using the Rack Mount Kit

Use the SAN Switch Rack Mount Kit to install your

Hewlett Packard Enterprise device in the following

Hewlett Packard Enterprise custom racks:

•HPE System/e Rack

•10000 Series Rack

For optimal cable management, Hewlett Packard

Enterprise recommends that you install the SAN

Switch Rack Mount Kit to allow the nonport side of

the device to slide out of the cool-air side of the

rack. In this installation, the port side of the device

is set back from the edge of the rack, allowing a

more gradual bend in the fiber optic cables.

The following items are required to install the device

in a rack:

•Power cables

•#2 Phillips screwdriver

•7/16-inch wrench or socket

•SAN Switch Rack Mount Kit hardware

Table 1 (page 6) identifies the rails and

rail-mounting hardware.

Table 1 SAN Switch Rack Mount Kit hardware

DescriptionItem

Two rear mounting brackets

A right inner rail and a right outer

rail

A left inner rail and a left outer rail

14 #8-32 x 5/16-inch Phillips

panhead SEMS screws for use with

the SN6500B Switch. This device

requires 10 screws

14 #8-32 x 3/16-inch Phillips

panhead screws with thread lock

(do not use)

Ten #10-32 x 1/2-inch Phillips

panhead screws with captive star

lock washers

Eight #10 alignment washers

Eight #10 adapter washers

Two 1/4-20 hex nuts with captive

star lock washers

Two 1/4-inch flat washers

CAUTION: For proper air flow, the SFP+

media side of the device port side must face

the rear of the rack. This allows cool air to

enter the front of the rack and exit from the

rear.

For switches with Port Side Air Intake, the

SFP+ media side of the device port side must

face the front of the rack.

To install the device in a rack:

1. Verify that the required parts and hardware are

available (see Table 1 (page 6)).

2. Choose a mounting location for the device in

the rack.

3. Attach the rear mounting brackets to the rear

rack uprights.

NOTE: For switches with Port Side Air

Intake, attach the rear mounting brackets

to the front rack uprights.

•For 10000 series rack, assemble each of

the brackets using two #10-32 x 1/2-inch

Phillips panhead screws with captive star

lock washers and two #10 adapter

washers, as shown in Figure 9 (page 7).

•For System/e Rack, install the two rear

mounting brackets using 8-32 x 5/16-inch

Phillips panhead SEMS screws and two

#10 alignment washers, as shown in

Figure 10 (page 7).

Figure 9 Installing the rear mounting

brackets (HPE 10000 Series Rack)

Figure 10 Installing the rear mounting

brackets (HPE System/e Rack)

NOTE: The SAN Switch Rack Mount

Kit contains rails labeled Left and Right

to designate the left side and right side

of the device or cabinet as viewed from

the front of the cabinet.

4. Assemble the outer rails as follows:

NOTE: For switches with Port Side Air

Intake, attach Left outer rail to the right

side of the rack and Right outer rail to

the left side of the rack.

a. Attach the left outer rail and right outer rail

to the rear mounting brackets using two

1/4-20 hex with captive star lock washers

attached loosely as shown in

Figure 11 (page 8). Do not tighten the

nuts.

Figure 11 Installing the outer rails (HPE

10000 Series Rack)

b. Depending on the rack you are using,

complete one of the following tasks:

•For 10000 Series Rack, install two

#10-32 x 1/2-inch Phillips panhead

screws with captive star lock washers

and two #10 adapter washers in the

upper and lower holes on the right

rail. Then install two #10-32 x 1/2-inch

Phillips panhead screws with captive

star lock washers and two #10

adapter washers in the upper and

lower holes on the left rail (see

Figure 12 (page 8)).

Figure 12 Assembling the outer

rails (HPE 10000 Series Rack)

•For System/e Rack, install two #10-32

x 1/2-inch Phillips panhead screws

with captive star lock washers and

two #10 alignment washers in the

upper and lower holes on the right

rail. Then install two #10-32 x 1/2-inch

panhead screws with captive star lock

washers and two #10 alignment

washers in the upper and lower holes

on the left rail (see Figure 13 (page

8)).

Figure 13 Assembling the outer

rails (HPE System/e Rack)

5. Use the screw type #8-32 x 5/16-inch (in the

screw holes marked 16) to attach the two inner

rails to the switch. Five screws are required for

each rail.

Figure 14 (page 9) shows how the inner rails are

attached to the switch with the open ends

(highlighted in yellow) on the port side.

NOTE: The switch in the figure is not a

SN6500B, but it shows the direction of the

open ends of the rails when they are attached

to the switch.

Figure 14 Inner rails attachment

Securing the device to the outer rails

1. Insert the device with the attached inner rails

to the outer rails.

2. Insert the device into the rack and install one

#10-32 x 1/2-inch Phillips panhead screw with

captive star lock washer. Repeat for the other

side. See Figure 15 (page 9) and

Figure 16 (page 9).

Figure 15 Securing the device (HPE 10000

Series Rack)

Figure 16 Securing the device (HPE

System/e Rack)

3. Tighten the hex nuts installed in Step 4.

This completes the rack mount procedure.

Install a standalone switch

1. Unpack the switch and verify the contents as

described in “Verify the SN6500B 16Gb

96–port FC switch carton contents” (page 1).

2. Apply the adhesive rubber feet to prevent the

switch from sliding off the supporting surface.

a. Clean the indentations at each corner on

the bottom of the switch to ensure that

they are free of dust or other debris.

b. With the adhesive side against the

chassis, place one rubber foot in each

indentation and press into place.

3. Place the switch on a flat, sturdy surface.

Power on the switch

1. Connect a power cord to each power supply

present:

•For the 96-port switch and the 48-port

switch, connect the power cords to both

power supplies and then to power sources

on separate circuits to protect against AC

failure.

•For the 24-port switch, connect a power

cord to either the single power supply

present or to both power supplies, if an

optional second power supply is present.

Then connect the power cords to power

sources on separate circuits to protect

against AC failure.

Ensure that the cords have a minimum service

loop of 6 inches available and are routed to

avoid stress.

NOTE: If you are configuring the

second (optional) power supply, the

24-port switch will also have two power

cords.

2. Power on the power supplies by setting the AC

switches to the on position (|).

The power supply LEDs are amber until POST

is complete, and then change to green. The

switch takes several minutes to boot and

complete POST.

NOTE: Power is supplied to the switch

as soon as the first power supply is

connected and turned on.

3. After POST is complete, verify that the switch

power and status LEDs on the port side of the

switch are green.

Switch setup

To set up the switch, you will need the following:

•Standard screwdriver

•If you are using static IP addressing, you will

need the following items (not required if you

are using Dynamic Host Configuration Protocol

(DHCP)):

◦Fixed IP address (IPv4 or IPv6) for the

switch

◦Subnet mask value

◦Default gateway value

•World Wide Name (WWN), located on the

switch ID pull-out tab

•Ethernet connection (hub or switch)

•Ethernet and Fibre Channel cables

•Disk array with Fibre Channel ports

•Browser that allows pop-up windows

Connect the serial cable

1. Connect the serial cable to the serial port on

the switch and to an RS-232 serial port on the

workstation.

If the serial port is RJ-45 instead of RS-232,

remove the adapter on the end of the serial

cable and insert the exposed RJ-45 connector

into the RJ-45 serial port on the workstation.

2. Disable any serial communication programs

running on the workstation.

3. Open a terminal emulator (such as

HyperTerminal on a PC, or TERM, TIP, or

Kermit in a UNIX environment) and configure

the application as follows:

For most Windows systems:

Bits per second: 9,600

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None

For most UNIX systems:

tip /dev/ttyb -9600

If ttyb is already in use, try ttya instead:

tip /dev/ttya -9600

1. Verify that the switch has completed POST.

When POST is complete, the port status,

switch power, and status LEDs return to a

normal state.

2. When the terminal emulator stops reporting

information, press Enter to display the login

prompt.

3. Log in to the switch as admin, using the default

password, password.

You are prompted to change the default

password at initial login.

NOTE: You can configure the switch using

a static IP address or DHCP. With DHCP

(enabled by default), the switch obtains its IP

address, subnet mask, and default gateway

address from the DHCP server. The DHCP

client can connect only to a DHCP server that

is on the same subnet as the switch. The

Ethernet cable must be connected to the

management Ethernet port on the switch if

you are using DHCP. If you are using a static

IP address, see “Set a static IP address”

(page 11).

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Hewlett Packard Enterprise Interruttore

Hewlett Packard Enterprise

Hewlett Packard Enterprise Aruba 3810 Manuale utente

Hewlett Packard Enterprise

Hewlett Packard Enterprise JL354A Manuale utente

Hewlett Packard Enterprise

Hewlett Packard Enterprise Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W... Istruzioni per il montaggio

Hewlett Packard Enterprise

Hewlett Packard Enterprise HPE OfficeConnect 1405 v3 Switch Series Manuale utente

Hewlett Packard Enterprise

Hewlett Packard Enterprise Aruba 8360-32Y4C Istruzioni per il montaggio

Hewlett Packard Enterprise

Hewlett Packard Enterprise FlexFabric 5940 Series Manuale utente

Hewlett Packard Enterprise

Hewlett Packard Enterprise Edgeline EL4000 Manuale utente

Hewlett Packard Enterprise

Hewlett Packard Enterprise Brocade 32Gb/12 2SFP+ Manuale utente

Hewlett Packard Enterprise

Hewlett Packard Enterprise Aruba 6200F Manuale utente

Hewlett Packard Enterprise

Hewlett Packard Enterprise 5920 Series Manuale utente

Hewlett Packard Enterprise

Hewlett Packard Enterprise Altoline 6921 Istruzioni per il montaggio

Hewlett Packard Enterprise

Hewlett Packard Enterprise StorageWorks 8/8 Base SAN Switch Manuale utente

Hewlett Packard Enterprise

Hewlett Packard Enterprise 2930M Series Manuale utente

Hewlett Packard Enterprise

Hewlett Packard Enterprise Aruba 8360 Series Manuale utente

Hewlett Packard Enterprise

Hewlett Packard Enterprise Aruba 2920 Manuale utente

Hewlett Packard Enterprise

Hewlett Packard Enterprise SN2100M Manuale utente

Hewlett Packard Enterprise

Hewlett Packard Enterprise Aruba 2530 Manuale di programmazione

Hewlett Packard Enterprise

Hewlett Packard Enterprise M-Series Manuale utente

Hewlett Packard Enterprise

Hewlett Packard Enterprise OfficeConnect 1850 Series Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
