Hi-Tec RADIO CONTROL TRANSMITTER Manuale utente

RADIO CONTROL TRANSMITTER

(Hi-Tec)

15 16

RC Receive located in

the obot

D ive

D ive T im

Eyes & Head

Tu n

Powe On/Off

Cha ge

Si en

Lights/Beacon

Tape

Squi t Flashing Lights

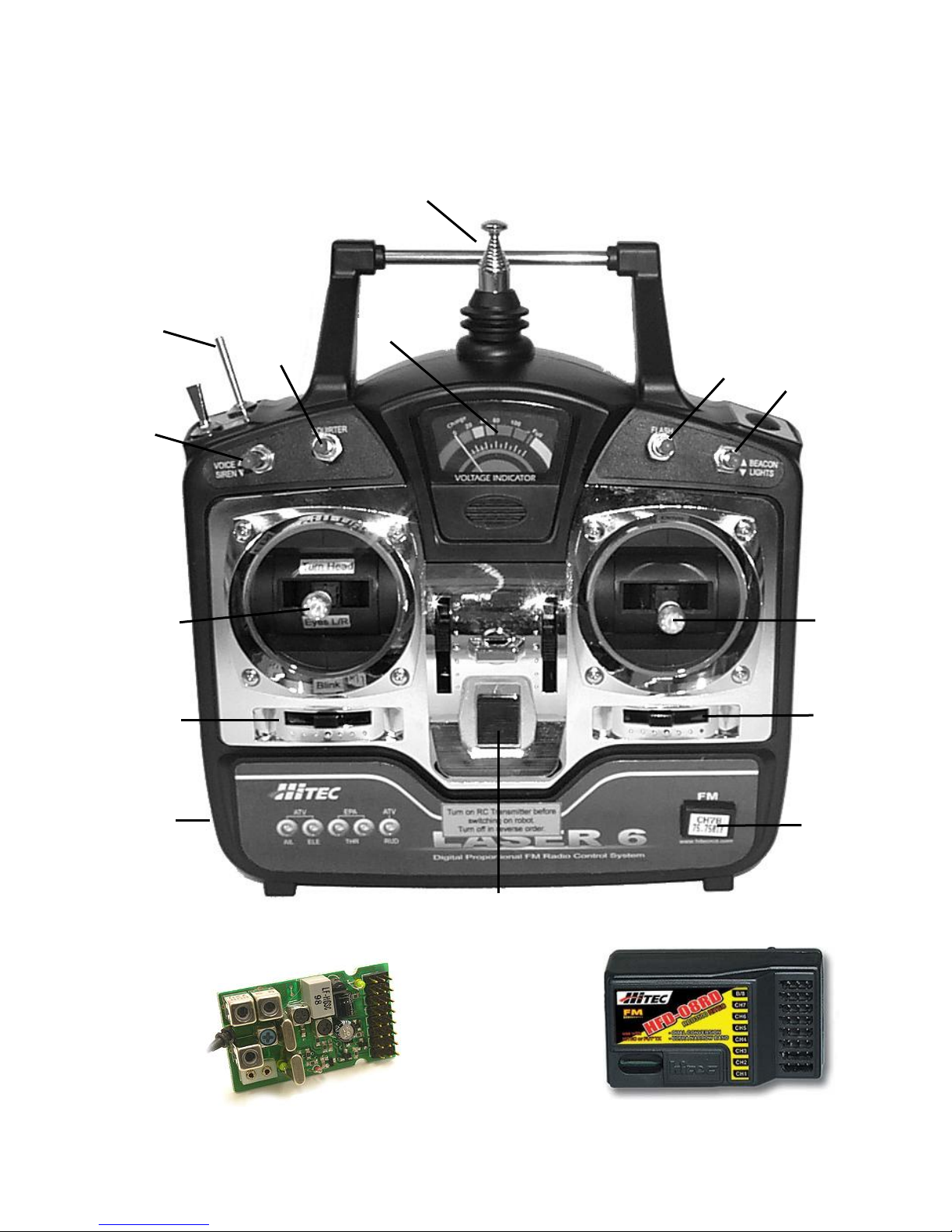

RC TRANSMITTER CONTROLS

Note: The following information on the transmitter controls includes information for a variety of

similar robots.

1. Telescopic Transmitter Aerial.

2. Transmitter Battery Voltage Meter ( xpand Scale Voltmeter)

3. Right control Stick-

Up and Down – Robot drive motors, forward and reverse.

Right and Left – Robot drive motors steering. Left and right turns.

4. Forward/Reverse Trim lever for right control stick. Normal = Center. Neutrals the drive

motors. If the robot is moving slightly slide this a few clicks until robot stops moving.

5. Left and right Trim lever for right control stick. Normal = Center. Neutrals the drive

motors. If the robot is moving slightly slide this a few clicks until robot stops moving.

6. Crystal.

7. On/Off Switch.

8. Recharge jack. Plug the RC battery charger in here to recharge the internal battery.

The charge light will come on, on the charger.

9. Forward and reverse trim lever for the left control stick. Normal = Center. Unused.

10. Left and right Trim lever for left control stick. Normal = Center. Centers the head on

robots with head movement (Character in Vehicle).

11. Left Control Stick

Left and right movement - Turning of the head left and right (Character in Vehicle) and

eyes left and right.

Up – Left lid and Right lid

Down – Blink

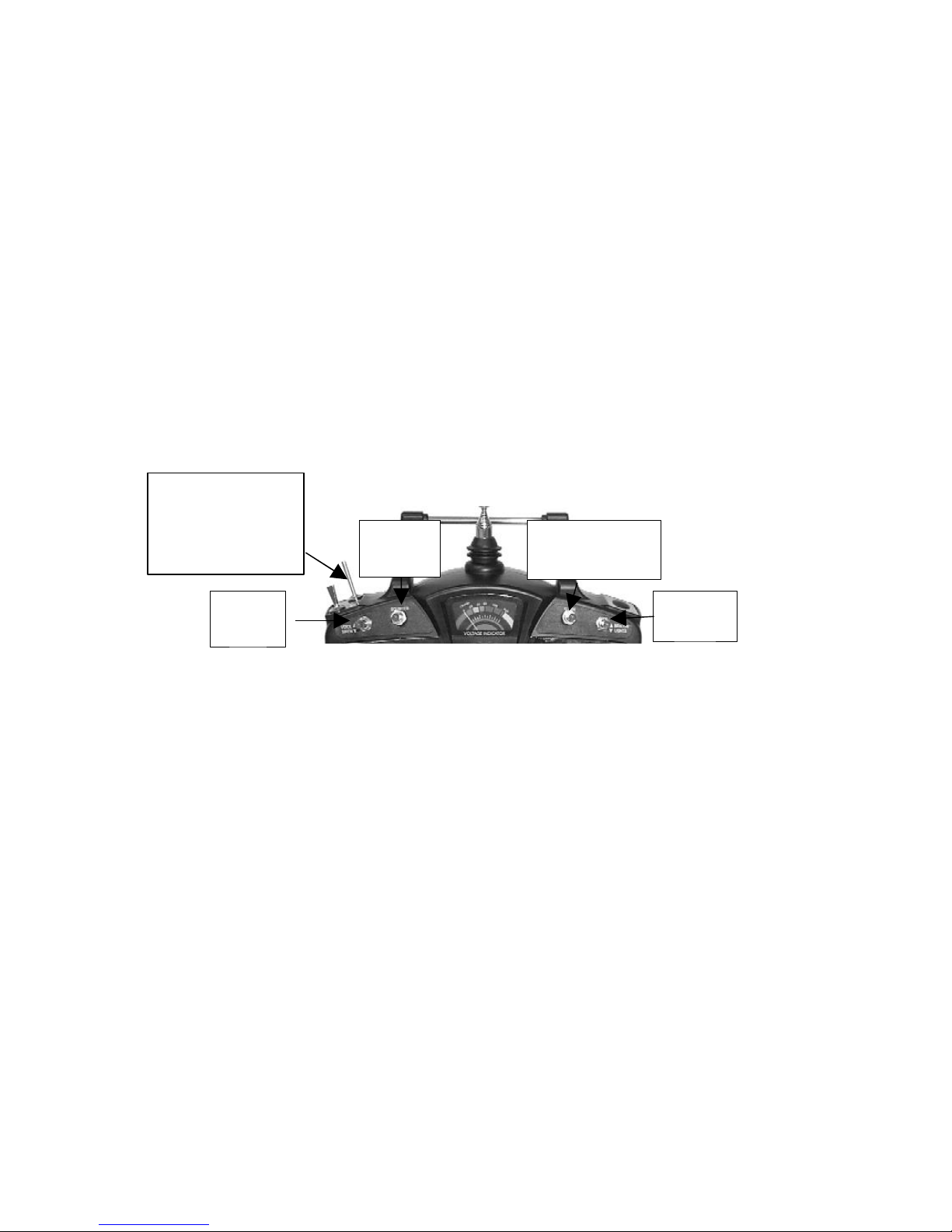

Top Switch Functions

12. Tape player

↑ snd4

↓ snd3

MP3 Mode Switch

Hold trainer switch

ON to use MP3

player ↑ snd2

↓ snd1

↑ Play

↓ Pause

↑ Forward track

↓ Back track

MP3 player functions

13. Voice and Siren

14. Squirter

15. Up- Flashing Lights- Red (Buster and Andy)

Down- Flashing Lights- Yellow (Buster)

16. Beacon and Lights

Cont ols fo the Integ ated MP3 Playe Option

The MP3 player is located in the robot and has a SD or MM memory card that you can load

music onto. If you have the MP3 player option then your switches will take on other functions

when the MP3 mode switch is held on. Two of the switches are for sound effects on the SD

memory card. The other two are for playing and selecting songs that you load on to the SD

card.

THE NICKEL METAL HYDRIDE (NI-MH) RC TRANSMITTER BATTERY

The NI-MH RC transmitter battery will last about 5-6 hours on a full charge. Charge the battery

for 14 hou s. A charge jack is provided on the transmitter for recharging its internal batteries.

This round jack is located on the right side of the radio control. (See the radio control diagram)

The RC power switch must be in the off position when the charger is plugged into it and must

remain in the off position while charging. A light on the charger will be on, when charging.

To avoid a RC battery going dead during a presentation, start the program with a fully charged

battery or be aware of how much charge there is left in the battery. If you have an extra battery

you can change batteries and keep going.

To install the NI-MH battery pack you need to take the battery cover off the RC.

Disconnect the RC battery and put the NI-MH battery in its place.

RC Batte y and Cha ge Specifications

RC transmitter battery 9.6 Volts 700mAH

RC transmitter battery charger 11.6 Volts 70mA

NI-MH RC Batte y and Cha ge Specifications

NI-MH RC transmitter battery 9.6 Volts 1500mAH

NI-MH RC transmitter battery charger 11.6 Volts 130mA

Caution: Do not overcharge the batteries as this could cause permanent damage to the

transmitter batteries. (Doubling the normal charging time is the type of over charging

that is meant here, and the battery getting hot.) When the battery level needle goes in

the red, the robot should be turned off because the robot could act erratic without the

transmitter signal.

Charging Jack for the

RC Battery

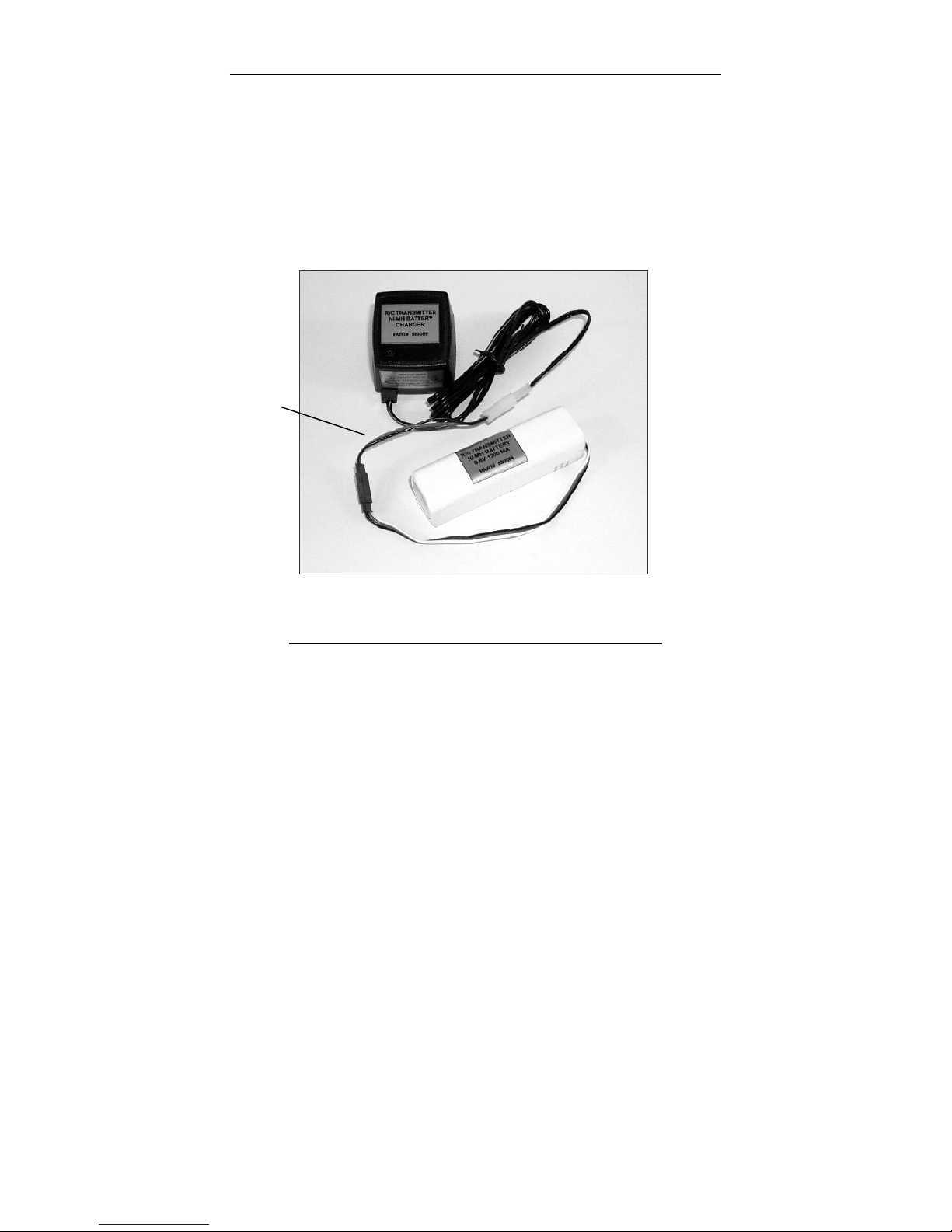

Adapte fo Cha ging an Ext a NI-MH RC T ansmitte Batte y

If you have an extra NI-MH RC battery, you can charge this outside the RC. You may need to

do this while you are using the robot or if you need to charge both batteries at the same time.

The adapter needed to do this is in the control case or it is on your charger. It has a white

connector on one side and a connection on the other end that will go directly to your battery. If

the barrel adapter is currently on the charger, disconnect it and connect the other adapter. The

charging time is still 14 hours.

110 Volt RC T ansmitte Powe Supply Option

The 110V RC Power Supply is a power unit that plugs into a standard electrical outlet and in to

the RC transmitter. This allows you to have continuous power without using batteries. This

connects into the same connection as the battery. To make the connection you need to take

the battery door off the RC. The wire feeds through a slot in the battery door. When you re-

close the case be sure that the wire is not pinched. With this option, you do need to stand near

an electrical outlet or have an extension cord.

Charging Adapter
