Hi-view HLC-36BM Manuale utente
User Manual
Megapixel
IP CAMERA
2
WARNINGS
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
COPYRIGHT
THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED
TO THEIR RESPECTIVE COMPANIES.
CONTENT
V1.0_120821
PrefaceI. 4
Product Specications II. 4
Product Installation III. 7
Monitor Setting A. 7
Hardware Installation B. 8
IP Assignment C. 10
Install ActiveX control D. 12
Live Video IV. 15
IP Camera Conguration V. 17
System A. 18
NetworkB. 22
A/V Setting C. 38
Event List D. 44
Network Conguration VI. 52
I/O Conguration VII. 54
Factory Default VIII. 56
Package Contents IX. 57
Micro SD Card Compatibility X. 58
4
PrefaceI.
This IP Camera is a 720P real time IP camera with the web server
built in. User can view real-time video via IE browser. IP Camera supports
simultaneously H.264, Motion JPEG & MPEG4 video compression and dual
streaming which provides smooth and high video quality. The video can be
stored in the Micro SD card and played back remotely. With user friendly
interface, it is an easy-to-use IP camera which is designed for security
application.
Product SpecicationsII.
Main Features:
HD 720P Real Time•
Digital Noise Reduction•
Digital Wide Dynamic Range•
Shutter Speed adjustable•
Sense Up adjustable•
IR-Cut lter (Option)•
Power over Ethernet available•
H.264/ M-JPEG / MPEG4 compression•
Micro SD card backup•
Support iPhone/iPad/Android•
Triple Streaming•
SDK for Software Integration•
Free Bundle 36 ch recording software•
HLC-36BM Specications
Hardware
CPU ARM 9 ,32 bit RISC
RAM 128MB
Flash 16MB
Image sensor 1/4” Megapixel CMOS sensor
Lens Changeable Yes, CS Mount
Sensitivity 1.0 [email protected]
Support DC IRIS Yes
Shutter Time 1 / 5 ~ 1 / 10,000 sec
ICR Mechanism IR cut Filter
5
I/O 1 D.I / 1 D.O
RS-485 Yes
Audio G.711(64K) and G.726(32K,24K) audio compression
Input : Mic Built-in
Output: 3.5mm phone jack, Support 2-way.
Power over Ethernet Yes
Power 12V DC Power consumption Max：2.4W
PoE Power consumption Max：2.88W
Operating Temperature -10°C ~ 45°C
Dimensions 125 x 53 x 60 (mm)
Weight 400g
Network
Ethernet 10/ 100 Base-T
Network Protocol IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list,
IEEE 802.1X, RTSP, TCP/ IP, UDP, SMTP, FTP, PPPoE,
DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour
System
Video Resolution 1280x800@30fps, 1280x720@30fps, 1280x720@30fps,
640x480@30fps, 320x240@30fps, 176x144@30fps
Video Adjust Brightness, Contrast, Hue, Saturation, Sharpness, Shutter
Speed adjustable, AGC, Sense-Up, D-WDR, Flip, Mirror,
Noise reduction
Triple Streaming Yes
Image snapshot Yes
Full screen monitoring Yes
Privacy Mask Yes, 3 different areas
Compression format H.264/ M-JPEG/ MPEG4
Video bitrates adjust CBR, VBR
Motion Detection Yes, 3 different areas
Triggered action Mail, FTP, Save to SD card, DO, SAMBA
Pre/ Post alarm Yes, congurable
Security Password protection, IP address ltering, HTTPS
encrypted data transmission, 802.1X port-based
authentication for network protection, QoS/DSCP
Firmware upgrade HTTP mode, can be upgraded remotely
Simultaneous connection Up to 10
Micro SD card management
Recording trigger Motion Detection, IP check, Network break down (wire
only), Schedule, DI
6
Video format AVI, JPEG
Video playback Yes
Delete les Yes
Client System requirement
OS Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above,
Chrome, Safari, Firefox
Mobile Support iOS 4.3 or above, Android 1.6 or above.
Hardware Suggested Intel Dual Core 2.53G,RAM: 1024MB, Graphic card:
128MB
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
7
Product InstallationIII.
Monitor SettingA.
Right-Click on the desktop. Select “ Properties”1.
Change color quality to highest (32bit).2.
8
Hardware InstallationB.
Box Camera Construction1.
The standard type is CS-
mount lens. If you use C-mount
lens, please apply the CS-C
conversion ring.
Connector Instruction2.
The back panel of camera is as below. Plug in the power adaptor, and connect
the IP camera to PC or network. Set up the network congurations according
to the network environment. About I/O setting, please refer to chapter VII in
User Manual: "I/O Conguration" for detail.
PoE (Power Over Ethernet)(Optional) 3. 802.3at, 30.0W PoE Switch is recommended
Power over Ethernet (PoE) is a technology that integrates power into a
standard LAN infrastructure. It enables power to be provided to the network
device, such as an IP phone or a network camera, using the same cable as
that used for network connection. It eliminates the need for power outlets at
the camera locations and enables easier application of uninterruptible power
supplies (UPS) to ensure 24 hours a day, 7 days a week operation.
9
10
IP AssignmentC.
You can use the software“IP Installer” to assign the IP address of IP Camera. 1.
The software is in the attached CD.
There are two language versions of IP installer. Choose one as your need:2.
IPInstallerCht.exe: Chinese version
IPInstallerEng.exe: English version
There are 3 kinds of IP conguration.3.
Fixed IP (Public IP or Virtual IP)a.
DHCP (Dynamic IP)b.
Dial-up (PPPoE)c.
Execute IP Installer4.

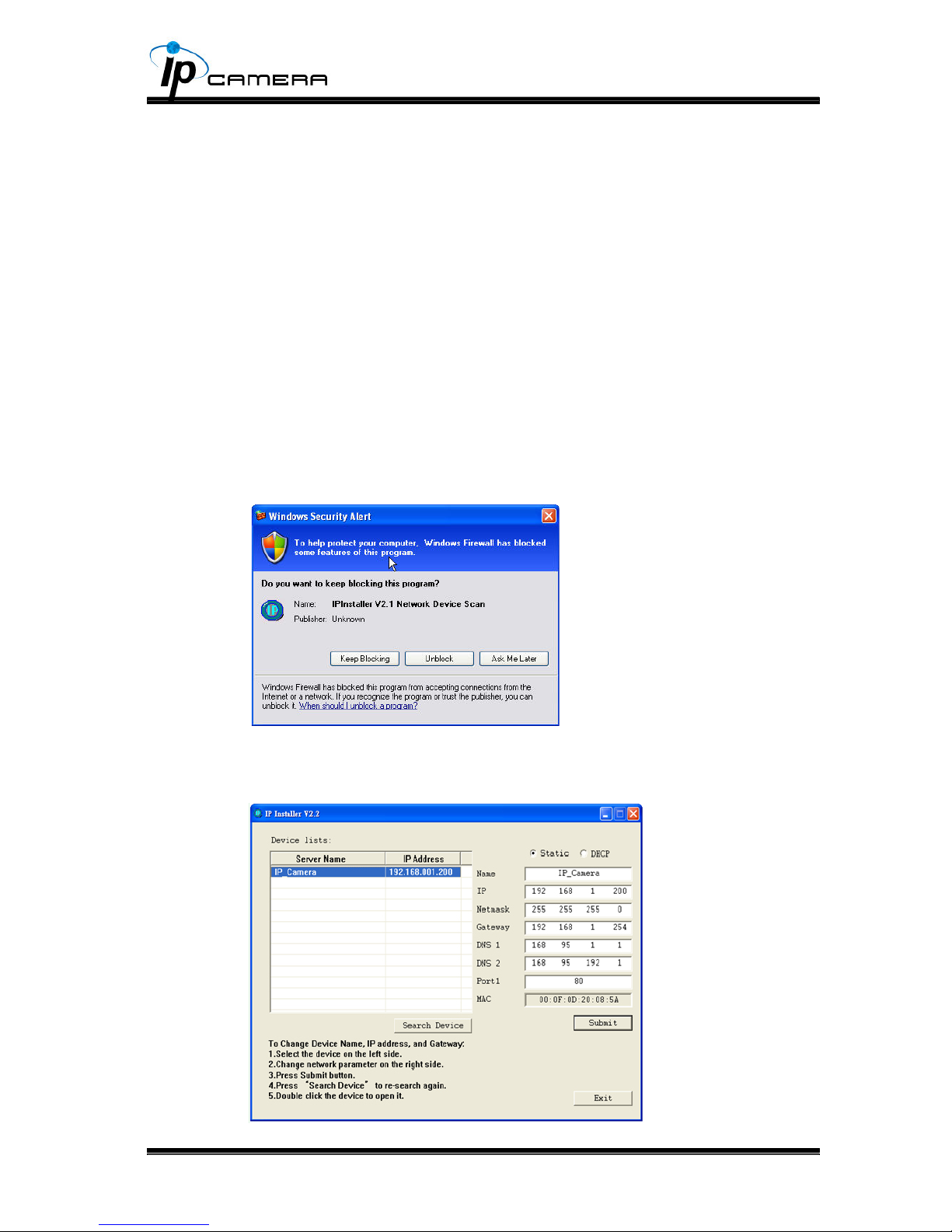

For Windows XP SP2 user, the following message box may pop up. Please 5.
click “Unblock”.
IP Installer conguration:6.
