HiBoost Mate Plus Series Manuale utente

Boost Your Bars

User Manual

Mate Plus Series

4K Mate Plus

4K Mate Plus Pro

10K Mate Plus

10K Mate Plus Pro

（F10GTI-5S-IOT）

（F10GTI-5S-IOT.Pro）

（F15GTI-5S-IOT）

（F15GTI-5S-IOT.Pro）

Package Content

Introduction

Pre-Installation Instructions

light pattern

APP Assisted Installation

LCD Assisted Installation

Quick Troubleshooting Guide

Technical Specications

Authorized Accessories List

FCC and IC Statements

Return and Warranty Policies

CONTENTS

Package Content

HIBoost 4K/10K Mate Plus

Outdoor Antenna Outdoor Cable

49.2ft NM-SMAM SMA-Male to SMA-Female

(No drilled hole)

are all provided to protect connetctions

Outdoor Cable to Booster

16.4ft SMAF-SMAM

Booster Power Supply

Accessories for main parts Waterproof tape

Through-Window Cable

Package Content

NOTE: Available accessories can be purchased through HiBoost.com

Warning: Un-authorized antennas, cables, and/or coupling devices are prohibited by new FCC

rules. Please contact FCC for details: 1(888)-CALL-FCC

HiBoost 4K/10K Mate Plus Pro

Outdoor Cable to Booster

16.4ft SMAF-SMAM

Booster

Power Supply

are all provided to protect connetctions

Accessories for main parts Waterproof tape

Outdoor Antenna Outdoor Cable

49.2ft NM-SMAM

Indoor AntennaIndoor Cable

30ft NM-SMAM

SMA-Male to SMA-Female

(No drilled hole)

Through-Window Cable

Introduction

Thanks again for purchasing HiBoost cell Booster. The HiBoost Mate Plus/Pro series is a collection of

precision-engineered products that improve cellular reception inside of homes and businesses by

amplifying incoming and outgoing cell phone signals.

Both HiBoost Mate Plus and Mate Plus Pro have built-in antennas, so both can directly receive and send

signals through boosters. But Plus Pro has one more indoor antenna to facilitate the need to cover more

rooms.

HiBoost Mate Plus/Pro exclusive cloud-based Signal Supervisor mobile application and LCD display allow

users to monitor the live status of HiBoost Mate Plus/Pro cell phone signal boosters directly from the LCD

display or remotely from a mobile device anywhere at any time.

If there are any issues while installing a HiBoost Mate Plus/Pro cell phone signal booster, please contact

the HiBoost technical support team through the following options:

Online Support: Create a ticket or chat via Signal Supervisor App

(972) 870-5666 (M-F from 9 am – 5 pm CST)

[email protected]

www.hiboost.com

We strongly recommend you to read the user guide completely before beginning the

installation.

HiBoost 4K/10K Mate Plus/Plus Pro provide 2 options of booster installation,

APP and LCD installation ways are unique methods provided by HiBoost

1. App assisted installation,

FIRST CHOICE From Page 13~28.

It’s more convenient and many work could be done by ONE person,

and the most important is that the obtained signal can be very precise.

2. LCD assisted installation,

SECOND CHOICE From Page 29~42.

It can achieve the same precise eect as App guidance.

But it may need two people and the installation process is a little

cumbersome.

Touchable LCD meter tells how

strong the signal is

Pre-Installation Instructions

The App helps you nd the

best signal outside

Then why has HiBoost spent extra big eorts and costs to design APP and LCD signal

meters to help you install?

Out of the various reasons, the most important reason is that we would like you, our valuable client, to get

the maximum output power from the booster system in order to get optimal signal reception for all your

mobile devices.

As it is known and a big thanks, FCC makes signal boosters legal in 2014 so that every body can install

and benet from the signals;

But FCC regulations do limit the gain and output power of all consumer boosters to low values in

order to avoid any interference to the cell towers;

Furthermore FCC stipulates that any improper install should trigger immediately further reduction of

the booster’s already-limited gain and power to protect the towers.

Therefore, you can understand how important you need to nd the perfect outside signal from the

tower and how important to squeeze every last gain and power from the booster, even 1dB more

power is so precious when you suer from no signals.

HiBoost App & LCD signal meters will help you to ne tune the best power and get

as much cover of your spaces.

General Working Principle:

※Please do spend sometime to read it fully, as it is crucial to get full bars for your rooms.

Before we start any of the two ways, please allow us to spend 3 pages to make you

understand how the booster system works for you.

How HiBoost Booster works

1. Outdoor antenna receives

outside signal from the nearby

cell tower and sends it to

HiBoost Booster

2. The booster amplifies the

signal and sends to indoor

antenna(s);

3. Indoor antenna(s) receive

amplified signal and send it

throughout your rooms

Vice versa,booster(plus)/indoor antenna receices cellphone signal and sends to the booster

The booster then amplies the signal and sends it to outdoor antenna

Outdoor antenna sends signal to the cell tower

Then you can make phone calls and internet streaming.

Noted: applicable to 4K Mate Plus and 10K Mate Plus

Noted: applicable to 4K Mate Plus Pro and 10K Mate Plus Pro; Or 4K Mate Plus and

10K Mate Plus with purchased secondary indoor antenna.

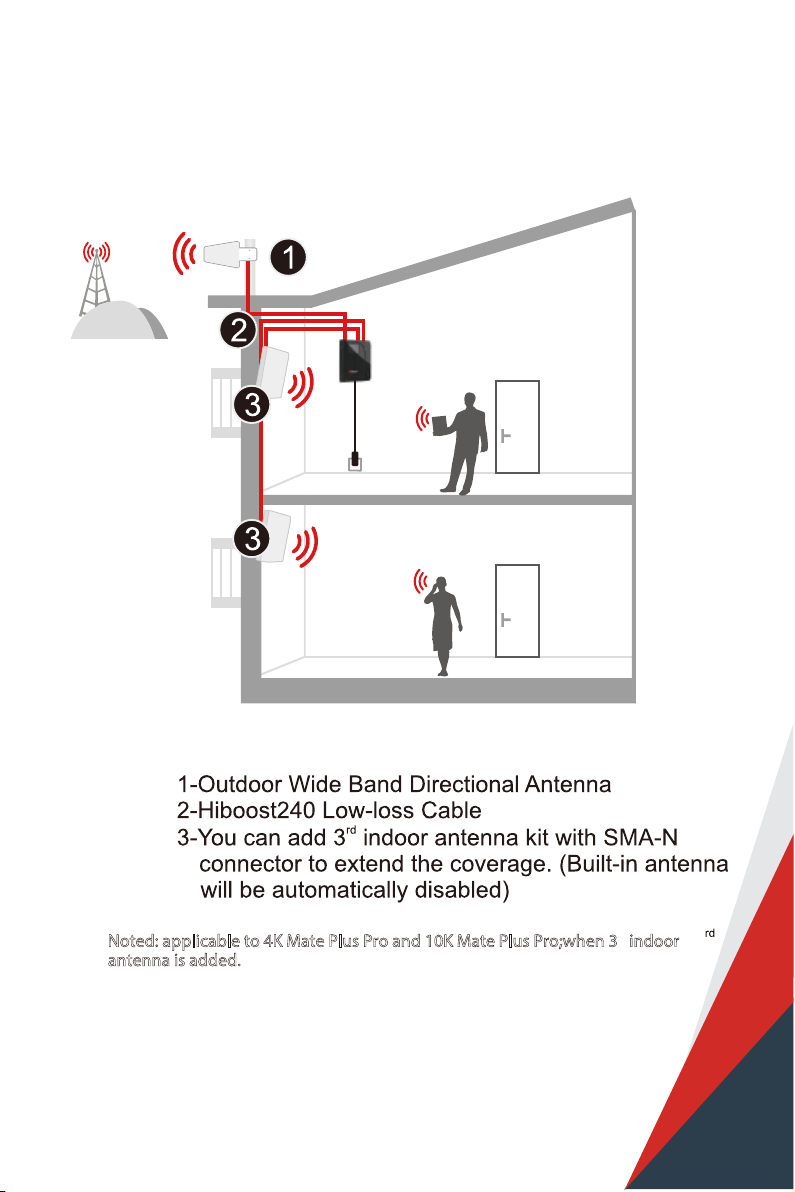

Noted: applicable to 4K Mate Plus Pro and 10K Mate Plus Pro;when 3 indoor

antenna is added.
