HiBoost Smart Link Series Manuale utente
Smart Link Series
Installation Guide
15K Smart Link Deluxe

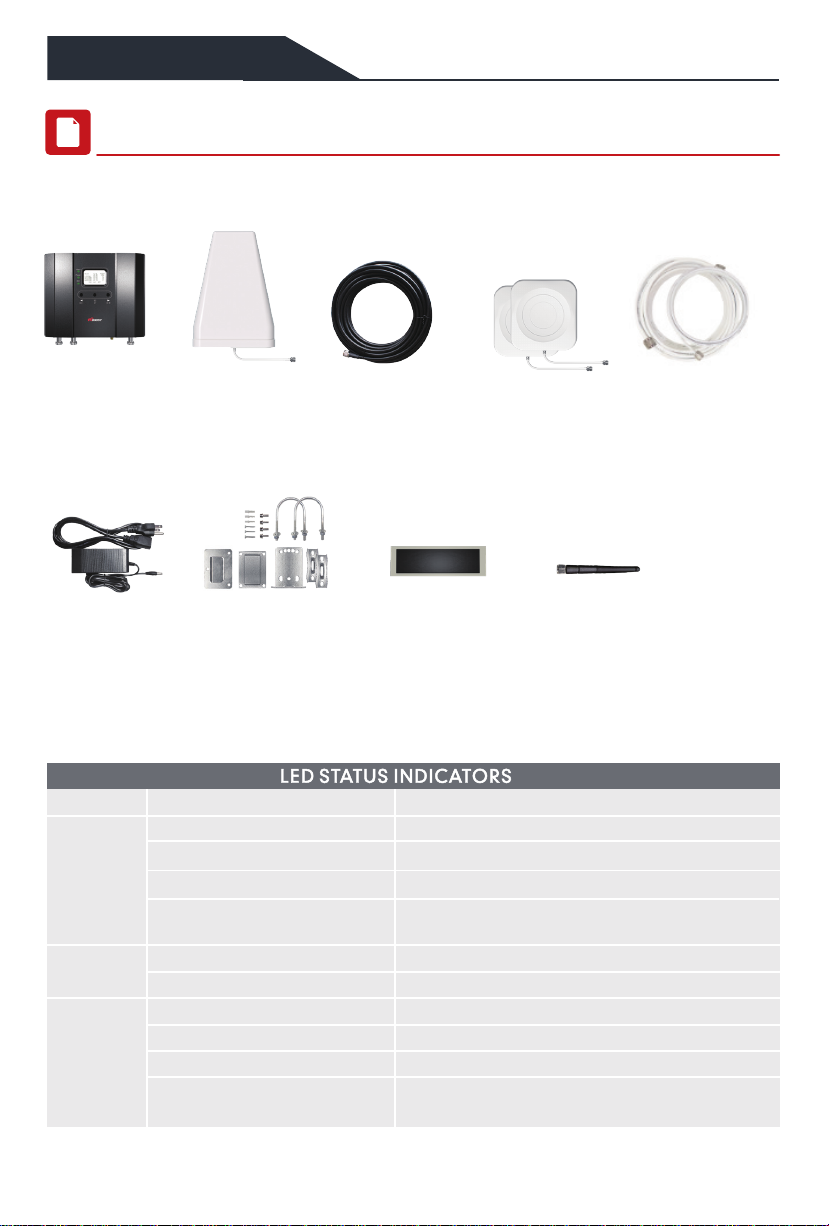

Package Contents
15K Smart Link Deluxe
01
Booster Light Patterns
Signal Booster Indoor Antenna*2 49.2' Indoor Cable
30' Indoor Cable
Outdoor Antenna
Power Supply waterproof tape
Accessories for main parts
are all provided to protect connections
Bluetooth and
Wi-Fi antenna
ALARM
Power
ISO
LED STATUS
Normal
Slight Overload
Overload
Slow Flashing Green
Solid Green
Quick Flashing Green
Quick Flashing Red
Green
Off
Solid Green
Slow Flashing Green
Quick Flashing Green
Quick Flashing Red
Normal
Slight Loopback
Loopback
Booster automatically shut
Normal
DC Power Problem
INDICATION
off due to strong loopback
Booster automatically shut off
Note: If the booster automatically shut off , please manually reboot it.
due to strong overload
50ft Outdoor Cable
02
Bands contained in the Gauges on Signal Supervisor
Gauge Band Uplink Downlink
LTE700
CELL800
PCS1900
AWS2100 4 1710-1755MHz 2110-2155MHz
12/17 698-716MHz 728-746MHz
13 776-787MHz 746-757MHz
5 824-849MHz 869-894MHz
25/2 1850-1915MHz 1930-1995MHz
Please focus on the gauge that contains the band you are using.
Getting Started
LED STATUS INDICATORS
LED
Bluetooth
Wi-Fi Slow Flashing Green Wi-Fi Connected
STATUS INDICATION
Slow Flashing Green Bluetooth Disconnected
Quick Flashing Green Bluetooth Connected
Solid Green Wi-Fi Disconnected
Step 2
Download the Signal Supervisor App, register ID and
booster.
Connect the Power Supply and the whip antenna to the
Booster
Step 1
Register an ID first and log in.
Add the booster to the device list.

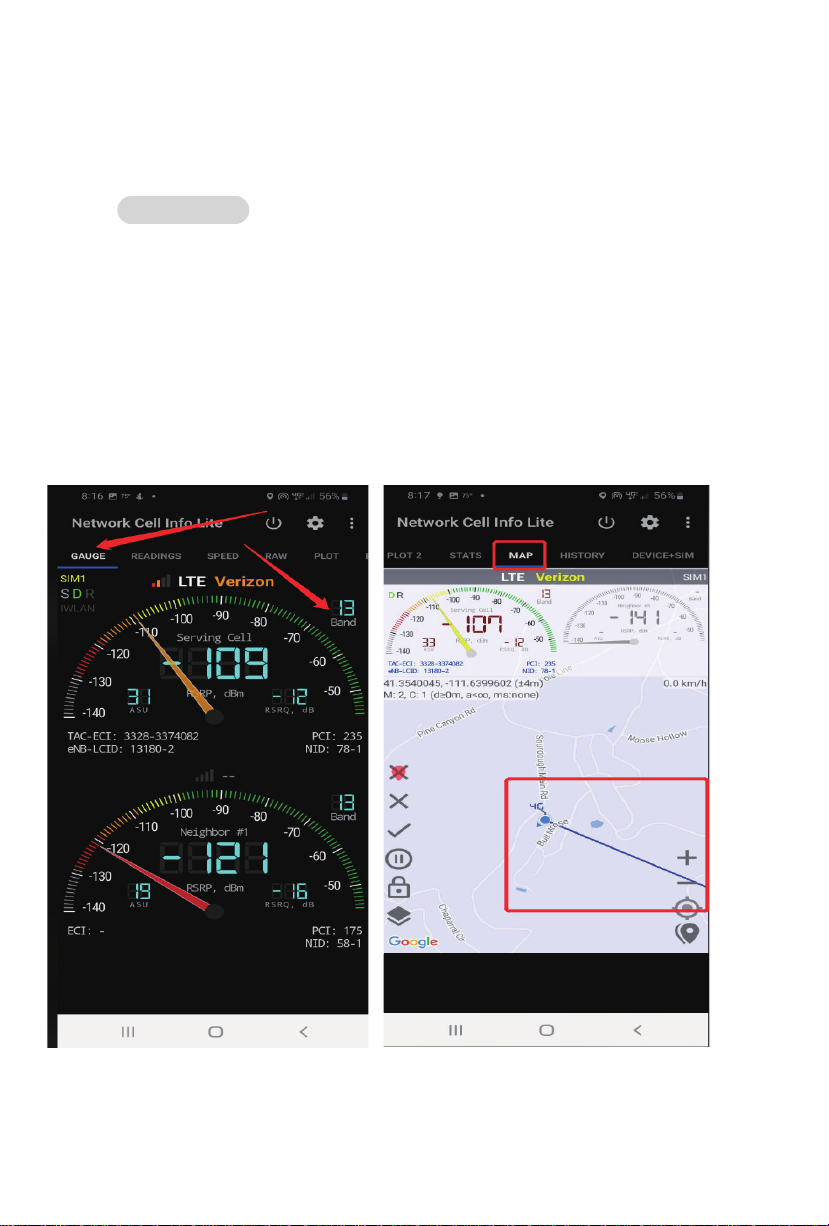

Download NetWork Cell Info Lite in the Google store and open it.
It can be seen from the example picture that the frequency band is band 13.
(According to the form before, you need to pay attention to Gauge LTE700)
Then click MAP. You can see your phone connecting to a tower, and you can try
aiming your outdoor antenna at it. But sometimes this is not accurate. You could also
move to Step 3.2 to find the tower
Note: Please take screenshots at this stage.
03
Step 3
Find the cell tower & Determine the outdoor antenna’s position
3.1 Find the band you are using
For Android
04
(1) Dial *3001#12345#*
(2) Follow the instructions, take the screenshots as required.
(1) Enter cellmapper.net
(2) Choose your own carrier and band here.
3.2 Find the cell tower
For ios
AT&T AT&T
05
(3) Then enter the coordinate of where you are trying to install the signal booster, and press
Enter key.
(In fact when you open Cellmapper, the map on the right will automatically locate your area
if you've given the site permission to access your location. If you found tower sites not even
displayed on the map, it might because the app intercepts the locations for security
reasons.)
(4) After the map jumps to the location, you can scroll the mouse pulley and zoom it out,
then you will see the tower near the location. It would be better to take a screenshot of this
page to guide the following installing steps. Should you have any questions, please contact
our tech support.
Note: If you need help finding the tower, please contact our tech support and provide your
carrier, band and screenshots taken in the last steps.
06
Step 4
Connect the outdoor antenna with the booster

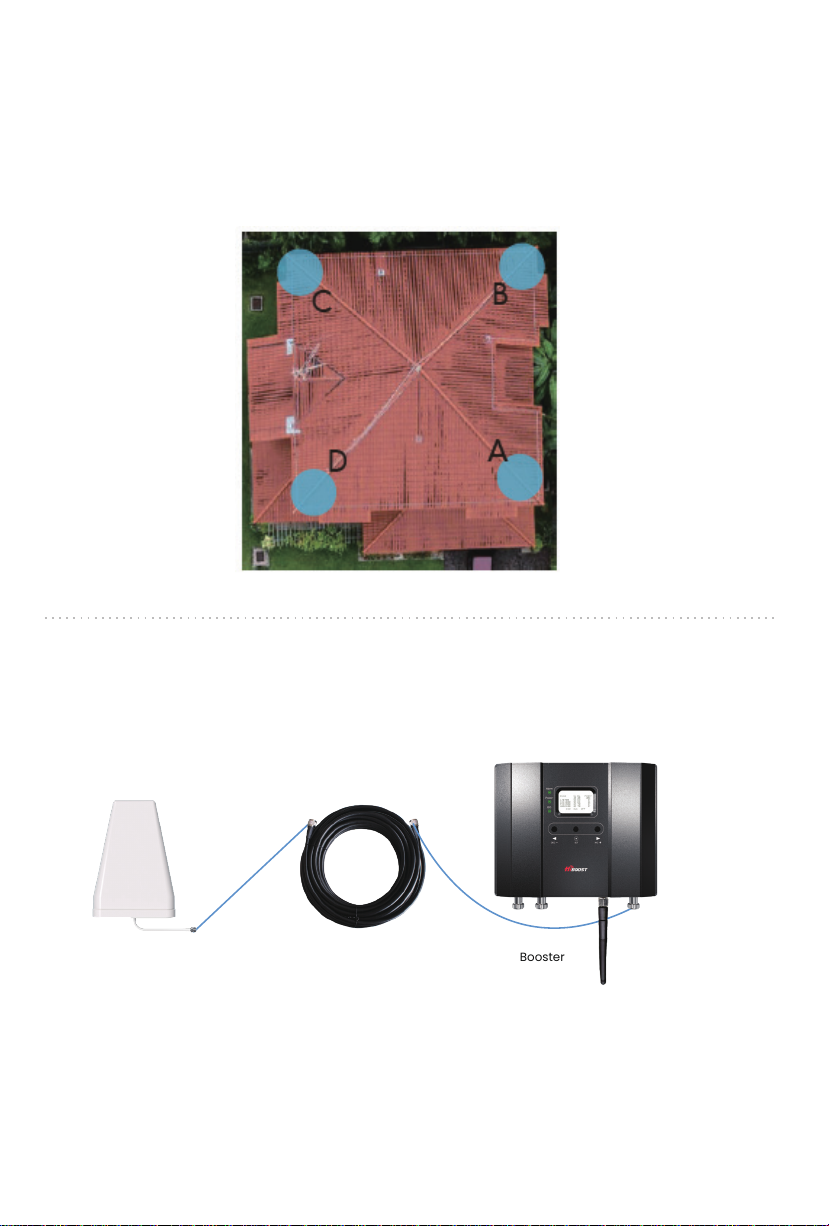

3.3 Determine the outdoor antenna’ s position
The outdoor antenna is usually placed at one of the 4 ends of the roof.
Please choose the position according to the tower’ s location. Make sure there are no barriers
between the antenna and the tower.
Note：At this stage, don’ t connect the indoor antenna to the booster.
Outside Antenna Booster
50' Outdoor Cable
Step 5
Adjust and fix the Outdoor Antenna
Step 6
Connect the 1st indoor antenna with the booster
Step 7
Adjust the indoor antenna
Have your outdoor antenna pointed to the cell tower
you found before and observe the reading on the
app. Adjust the outdoor antenna accordingly.
Notes:
(1) The output power should be the higher the better.
(2) The full output power for 15k Smartlink Deluxe is
13dBm. And the full gain is 70dB.
Have your indoor antenna pointed to the area you would
like to cover with signal.
Notes:
(1)It would be best if you could make the two antennas face
opposite directions.
(2)Make sure that the gain reaches about 65dB. If not, please
adjust the direction of the indoor antenna/increase the vertical
and horizontal distance between the two antennas/add some
barriers.
07
Indoor AntennnaBooster 49.2' Indoor Cable
30ft
Panel antenna
30ft
08
Step 8
Signal quality test
You could do the following:
(1)First make sure the signal gauge value is unchanged from that during
the outdoor antenna installation.
(2)Do speed tests with the booster on and off, and make a comparison.
(3)Check if the number of signal bars increases.
(4)Make a phone call or send messages and check if the voice and
streaming are better.
Step 9
Fix the 1st Indoor antenna
Step 10
Connect the 2nd indoor antenna with the booster
Fix the indoor antenna with the provided expansion bolt and hook.
Repeat the process from Step 7 to Step 8.
Indoor AntennnaBooster 30' Indoor Cable
09
Step 11
Fix the 2nd Indoor Antenna and the Booster
Fix the indoor antenna with the provided expansion bolt and hook.
Fix the ibooster with the provided expansion bolt and hook.
