HiBoost Mini Series Manuale utente

Mini Series

Installation Guide

Dot 2.0

Package Contents

Signal Booster Outdoor Cable

Outdoor Antenna Indoor Whip Antenna

Power Supply waterproof tape

Accessories for main parts

Dot 2.0

are all provided to protect connections

49.2ft NM-SMAM

Alarm(ISO) Bluetooth Wi-Fi

Booster Light Patterns

LED STATUSINDICATORS

Bluetooth LED

Wi-Fi LED solid blue wifi disconnected

slow flashing blue wifi connected

ALARM(ISO)

solid blue normal

slow flashing blue slight loopback

quick flashing blue loopback

quick flashing red

slow flashing blue

quick flashing blue

bluetooth disconnected

bluetooth connected

booster automatically shut off due to

strong loopback/overload

Step 1

Connect the Power Supply to the Booster

Signal BoosterPower Supply

Step 2

Connect the Booster with the App

Getting Started

Add the booster to the device list.

Bands contained in the Gauges on Signal Supervisor

Gauge Band Uplink Downlink

12/17 698-716MHz 728-746MHz

13 776-787MHz 746-757MHz

5 824-849MHz 869-894MHz

LTE700

CELL800

Please focus on the gauge that contains the band you are using

Download NetWork Cell Info Lite in the Google store and open it.

It can be seen from the example picture that the frequency band is band 13.

(According to the form before, you need to pay attention to Gauge LTE700)

Then click MAP. You can see your phone connecting to a tower, and you can try

aiming your outdoor antenna at it. But sometimes this is not accurate. You could also

move to Step 3.2 to find the tower

Note: Please take screenshots at this stage.

Step 3

Find the cell tower & Determine the outdoor antenna’s position

3.1 Find the band you are using

For Android

(1) Dial *3001#12345#*

(2) Follow the instructions, take the screenshots as required.

(1) Enter cellmapper.net

(2) Choose your own carrier and band here.

3.2 Find the cell tower

For ios

AT&T AT&T

(3) Then enter the coordinate of where you are trying to install the signal booster, and press

Enter key.

(In fact when you open Cellmapper, the map on the right will automatically locate your area

if you've given the site permission to access your location. If you found tower sites not even

displayed on the map, it might because the app intercepts the locations for security

reasons.)

(4) After the map jumps to the location, you can scroll the mouse pulley and zoom it out,

then you will see the tower near the location. It would be better to take a screenshot of this

page to guide the following installing steps. Should you have any questions, please contact

our tech support.

Note: If you need help finding the tower, please contact our tech support and provide your

carrier, band and screenshots taken in the last steps.

Signal BoosterOutdoor CableOutdoor Antenna

49.2ft SMAM-NM

Step 4

Connect the outdoor antenna with the booster

3.3 Determine the outdoor antenna’ s position

The outdoor antenna is usually placed at one of the 4 ends of the roof.

Please choose the position according to the tower’ s location. Make sure there are no barriers

between the antenna and the tower.

Note：At this stage, don’ t connect the indoor antenna to the booster.

Step 5

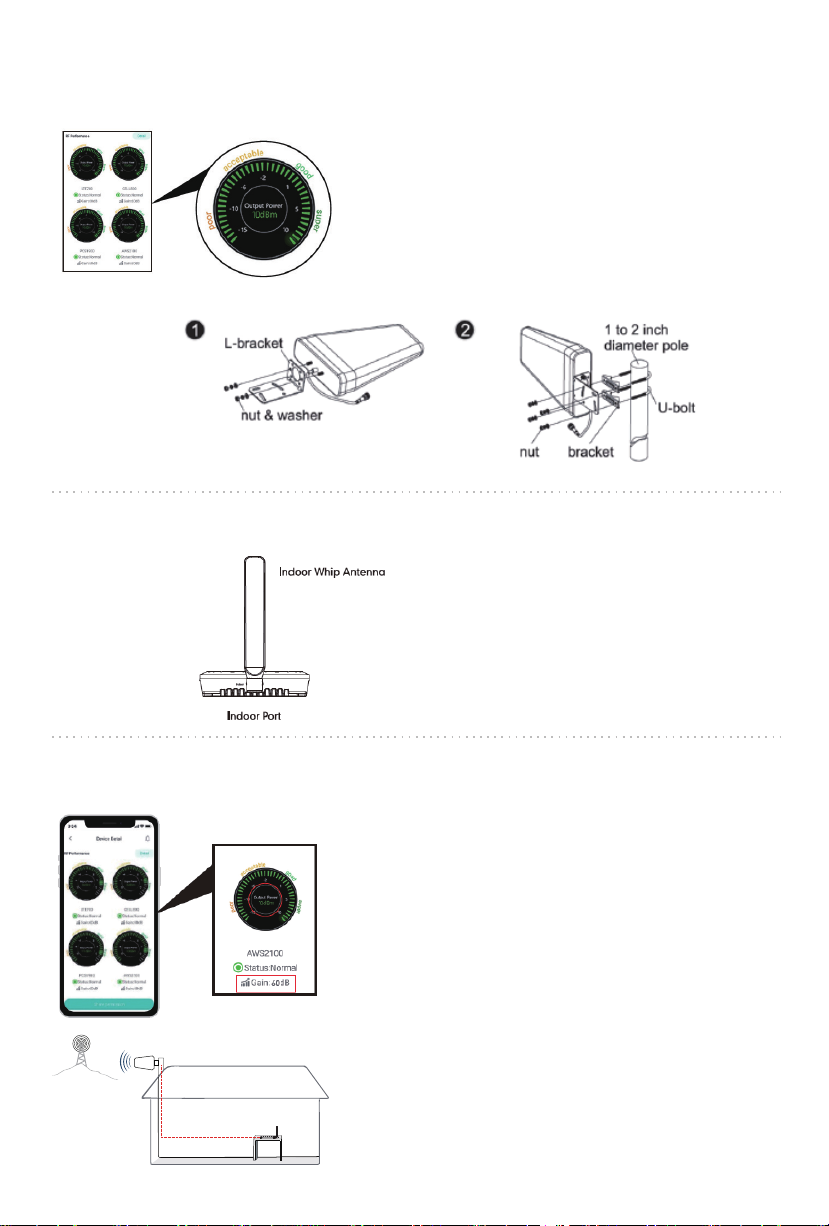

Adjust and fix the Outdoor Antenna

Step 6

Connect the indoor antenna with the booster

Step 7

Adjust the indoor antenna

Place the signal booster on a table and make sure

the booster is within the coverage area.

Have your outdoor antenna pointed to the cell tower

you found before and observe the reading on the

app. Adjust the outdoor antenna accordingly.

Notes:

(1) The output power should be the higher the better.

(2) The full output power for Dot is 10dBm. And the full

gain is 60dB.

Make sure that the gain reaches about 60dB. If not,

please increase the vertical and horizontal

distance between the two antennas or add some

barriers.

　OVERLOAD

DL GAIN OUTPUT POWER REASON SOLUTIONLED LIGHT PATTERN

<60dB >=8dBm

Outdoor signal is too strong

<60dB >=8dBm

LTE700

CELL800

4 Regular Problems and 1 normal status

Iftheboosterisworkingnormally,nofurtheradjustmentisrequired

Step 8

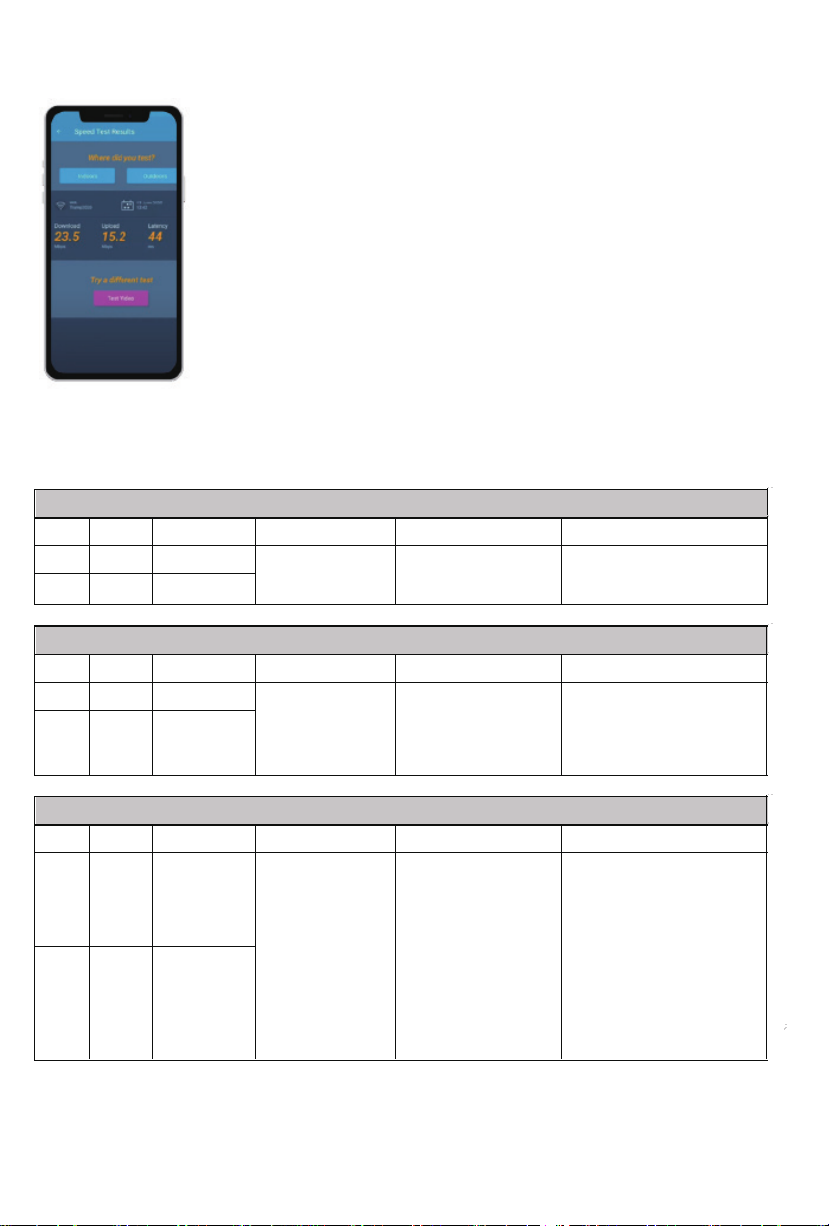

Signal quality test

You could do the following:

(1)First make sure the signal gauge value is unchanged from that during

the outdoor antenna installation.

(2)Do speed tests with the booster on and off, and make a comparison.

(3)Check if the number of signal bars increases.

(4)Make a phone call or send messages and check if the voice and

streaming are better.

Have your outdoor antenna

pointed slightly away from the

cell tower

ISO（Alarm）light

blinking red

　LOOP BACK

DL GAIN OUTPUT POWER REASON SOLUTIONLED LIGHT PATTERN

<60dB <8dBm

LTE700

CELL800

1、Increase vertical and

horizontal distance.

2、Add barriers(e.g. walls)

Please try these solutions until

the gain reaches or is over 60dB.

Inadequate separation

of the indoor and

outdoor antennas

ISO（Alarm）light

blinking blue or red

　POOR SIGNAL

DL GAIN OUTPUT POWER REASON SOLUTIONLED LIGHT PATTERN

>=60dB --/NEGATIVE

LTE700

CELL800

1、Try adjusting the outdoor

antenna to the best direction

2、Try adjusting the outdoor

antenna to another cell tower

3、Try increasing the height of

the outdoor antenna and make

sure there are no barriers

between the tower and the

outdoor antenna

Please try these solutions until

the output power reaches or is

over -5dBm.

Input signal is too weak

ISO（Alarm）light

solid blue

Note:

Some customers have some misunderstandings about boosters, and we would like to clarify

it here:

If you can't even get a stable 1 bar outside the house or on the roof, then we suggest you

return it as it won't work in areas with very weak signal, the same is true of all boosters on the

market.



Technical Specifications

NORMAL

DL GAIN OUTPUT POWER REASON SOLUTIONLED LIGHT PATTERN

>=60dB >=-5dBm

LTE700

CELL800

ISO（Alarm）light

solid blue

　Normal but No Boosted Signal

DL GAIN OUTPUT POWER REASON SOLUTIONLED LIGHT PATTERN

>=60dB >=-5dBm

LTE700

CELL800

Check the band you are using

again. If it stays at band66,get

into the 'detail'/'setting' of

gagues on Signal Supervisor

and switch off RF switch of

AWS2100, then adjust the

outdoor antenna again. It would

be better if there are two

persons and one can stay near

the indoor antenna to check if

the signal is boosted.

1、The band is not

supported

2、The Signal is from

other carriers

ISO（Alarm）light

solid blue

Working Band

UL Frequency Range(MHz)

DL Frequency Range(MHz)

Supported Standards

Max. Gain

Max. output power

MGC (Step Attenuation )

I/O Port

Impedance

Environment Conditions

Dimensions

Weight

Power Supply

824-849/698-716/776-787

869-894/728-746/746-757

Band 5 / Band 12 / Band 13

60 dB

UL 18 dBm,DL 10dBm

≥ 25 dB / 1 dB step

50 ohm

IP40

6.77*4.41*0.75in

≤ 3.3 lbs / 1.5 kg

Input AC100~240 V, 50/60 Hz, Output DC 5 V / 3 A

CDMA, LTE

Dot

Model No.

SMA-Female
