HSL KVM Quick Setup Guide

INTRODUCTION

SECTIONS

Table of Contents 2 3

HSL KVM Switches

Share keyboard, video, mouse, USB and audio peripherals to simplify

user experience when working with multiple computers.

Users that work with multiple computers such as, financial traders or

command & control operators are inconveniently forced to interact with

multiple sets of keyboard, video, mouse, USB and audio peripherals.

The Keyboard Video Mouse (KVM) switch offered by HSL allows

effortlessly sharing a single set of peripherals between multiple

computers.

This guide instructs how to install, configure and operate a HSL KVM

switch.

This guide refers to the following models:

SK21D-N – 2-Port DVI-I Video KVM Switch

SK21H-N – 2-Port 4K HDMI Video KVM Switch

SK21P-N – 2-Port DP to HDMI Video KVM Switch

DK22D-N – 2-Port DVI-I Video DH KVM Switch

DK22H-N – 2-Port 4K HDMI Video DH KVM Switch

DK22P-N – 2-Port DP to HDMI Video DH KVM Switch

DK22PD-N – 2-Port DVI and DP Video DH KVM Switch

SK41DU-N – 4-Port DVI-I Video KVM Switch w/fUSB

SK41HU-N – 4-Port 4K HDMI Video KVM Switch w/fUSB

SK41PU-N – 4-Port DP to HDMI Video KVM Switch w/fUSB

DK42DU-N – 4-Port DVI-I Video DH KVM Switch w/fUSB

DK42HU-N – 4-Port 4K HDMI Video DH KVM Switch w/fUSB

DK42PU-N – 4-Port DP to HDMI Video DH KVM Switch w/fUSB

DK42PDU-N – 4-Port DVI and DP Video DH KVM Switch w/fUSB

SK81DU-N – 8-Port DVI-I Video KVM Switch w/fUSB

SK81HU-N – 8-Port 4K HDMI Video KVM Switch w/fUSB

SK81PU-N – 8-Port DP to HDMI Video KVM Switch w/fUSB

DK82DU-N – 8-Port DVI-I Video DH KVM Switch w/fUSB

DK82HU-N – 8-Port 4K HDMI Video DH KVM Switch w/fUSB

DK82PU-N – 8-Port DP to HDMI Video DH KVM Switch w/fUSB

HSL KVM Quick Setup Guide

INSTALLATION

SECTIONS

Table of Contents 1 3

Installing the KVM

General

•Verify that all peripherals and computers are turned off prior to

connecting them to the product.

•The KVM’s back panel is divided into Console Ports and Computer

Ports sections.

–Connect peripherals which are due to be shared by the KVM

to the Console ports.

–Connect each computer that requires access to the shared

peripherals to a Computer port group.

–Make sure that every computer is connected to a separate

Computer port group.

–Computer port group numbers are represented by push

buttons on the product’s front panel.

–Switch peripherals between computers by pressing the push

buttons on the product’s front panel.

Step 1 – Connect peripherals to the KVM Console ports:

•Keyboard: Connect a USB keyboard to the corresponding KVM

console keyboard port.

•Video: Connect the monitor cable to the KVM console video port.

•Mouse: Connect a USB mouse to the corresponding KVM console

mouse port.

•Audio out peripherals: Connect headphones / speakers to the

KVM console audio-out ports (colored green).

•Audio in peripherals: Connect a microphone to the KVM

console audio-in ports (colored pink).

•USB peripherals: Connect USB peripherals to the KVM console

USB port.

3.0

HSL KVM Quick Setup Guide

INSTALLATION

SECTIONS

Table of Contents 1 3

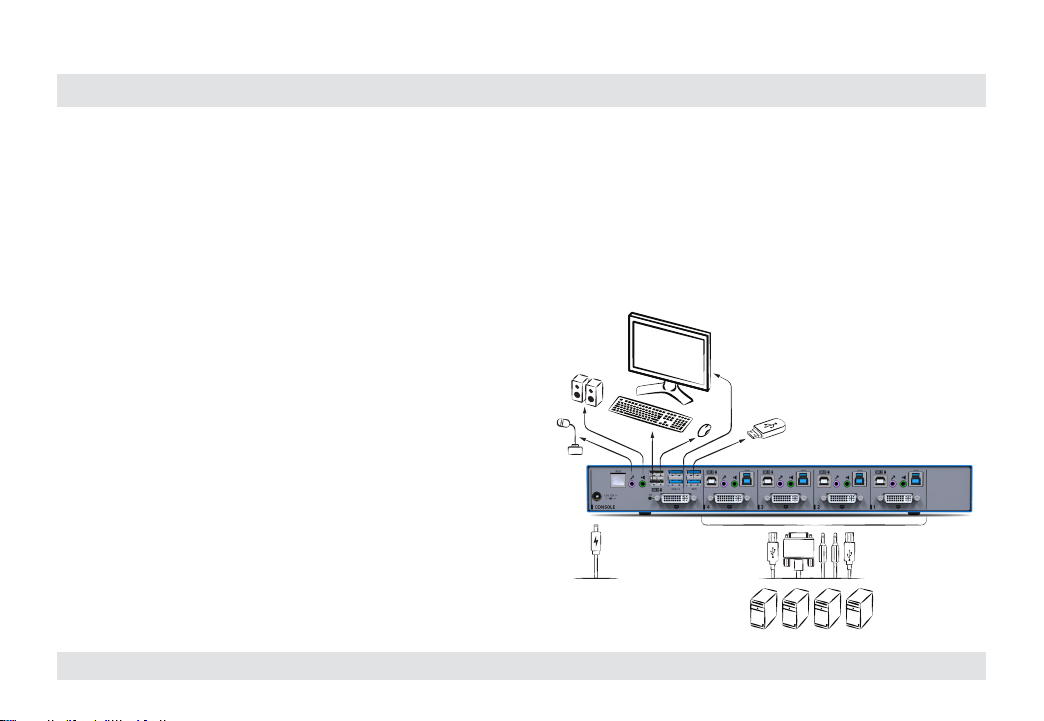

Step 2 – Connect computers to the KVM Computer ports:

•Computer keyboard & mouse connection: Connect each

computer to the KVM keyboard & mouse computer port using

a USB A to USB B cable. Connect the USB A end to the

computer and the USB B end to KVM.

•Computer video connection: Connect each

computer to the KVM computer video port using

the corresponding video cable (VGA/HDMI/

DVI/DP).

•Computer audio connection: Connect each

computer to the KVM audio ports using an

audio cable. Connect one end of the cable to

the computer’s audio ports using the 1/8” (3.5mm)

stereo plug. Connect the other end of the audio cable

to the KVM audio-in /audio-out computer port.

•Computer USB peripherals: Connect each computer to the

KVM USB computer port using a USB A to USB B cable. Connect

the USB A end to the computer and the USB B end to KVM.

Note: 4 channel product illustrations shown throughout this manual are

applicable to other KVM models.

Multiple Sources

Speakers

Single

Keyboard & Mouse

Single Display

PC #4

KVMKVM

HSL KVM Quick Setup Guide

INSTALLATION

SECTIONS

Table of Contents 1 3

Step 3 – Power ON your system:

•Power ON the monitor: Make sure that the monitor is turned ON

prior to powering ON the KVM.

•Power ON the system: Connect all peripherals and computers to

the KVM prior to powering it up. Power ON the KVM by plugging it

to the AC wall outlet. By default, after product power-up, the active

channel will be computer #1, indicated by the applicable front panel

push button LED lit.

Note: Power ON self-test: As the product powers-up it performs a self-test

procedure. In case of self- test failure for any reason, including jammed buttons,

the product will be Inoperable. Self-test failure will be indicated by abnormal LED

behavior – for further information please refer to the KVM setup guide.

Step 4 – Reset to Factory Defaults

Reset to factory defaults clears the device settings and restores the

device to its original configuration.

•System reset, clears behavioral characteristics such as mouse

settings and display presets. Type { L CTRL | L CTRL | F11| r } key

combination.

•Complete reset: clears all device settings and resets to factory

defaults. From the Terminal menu select the “Reset to Factory

Defaults” option (refer to terminal mode guide).

Important Notes:

1. Always use the left control key (CTRL) unless otherwise specified.

2. Keyboard shortcut keys are to be pressed sequentially

3. Do not use the numeric keypad for toggling shortcuts unless otherwise

specified.

4. ALL KEYBOARD SHORTCUTS REFER TO QWERTY KEYBOARDS. In case a non-

qwerty keyboard is in use, keep using the QWERTY layout.

(

)

Tab Q W E R T Y U I O P [

{

]

}

Caps A S D F G H J K L :

;‘

“

Shift

CtrlCtrl Alt Alt

Delete

Enter

Shift

Ctrl

çêè 0

123

456

789-

Num

Lock

Enter

=/*

Insert

Delete

Home

End

Page

Down

Z X C V B N M ?

HSL KVM Quick Setup Guide

OPERATION

SECTIONS

Table of Contents 123

Operating the KVM

Front Panel Push-Buttons

•Following power up, the default channel is #1.

•Select any other channel by pressing the appropriate front panel

push button.

•The mouse cursor will be positioned at the center of the selected

computer display.

•The currently selected channel is indicated by the illumination of

the appropriate push-button.

Freeze USB

•Once switching between channels, for example from channel

#1 to channel #3, the USB and Audio devices are automatically

switched accordingly. This is indicated by channel #3 USB and

Audio LEDs turning steady GREEN.

•When switching to a channel that has no USB connection, the

USB Port remains mapped to the last channel that had a USB

connection.

•Press the freeze USB button on the front panel to assign the USB

port to a specific computer. Freeze USB prevents switching the

USB port while the keyboard, video, mouse and audio peripherals

are switched between computers. Freeze USB is useful for various

scenarios, for instance, when a USB disk-on-key must remain

mapped to a certain computer.

Freeze Audio

•Press the freeze audio button on the front panel to assign

the audio port to a specific computer. Freeze audio prevents

switching the audio port while the keyboard, video, mouse and

USB peripherals are switched between computers. Freeze audio

is useful when a user has to listen to audio originating from one

computer while working on another computer.

HSL KVM Quick Setup Guide

OPERATION

SECTIONS

Table of Contents 123

Smoothly switch between computers (Virtual Display Technology)

•Automatically switch control from one computer to another by

dragging the mouse cursor over the computer’s display border.

•Shared peripherals (Keyboard, Audio, USB) switch to the next

computer without having to press any buttons once the mouse is

passing the display border.

To activate VDT mode:

•Change the mouse mode to Absolute by typing L CTRL | L CTRL

| F11 | c

•Enable Video Follow Mouse by typing L CTRL | L CTRL | f

Switch between computers:

•Press the front panel buttons to manually switch control from one

computer to another.

•Use cursor navigation switching (VDT) to automatically switch

between computers by dragging the mouse cursor over the

computer’s display border. Once the mouse is passing the display

border, shared peripherals (Keyboard, Audio, USB) switch to the

next computer without having to press any buttons.

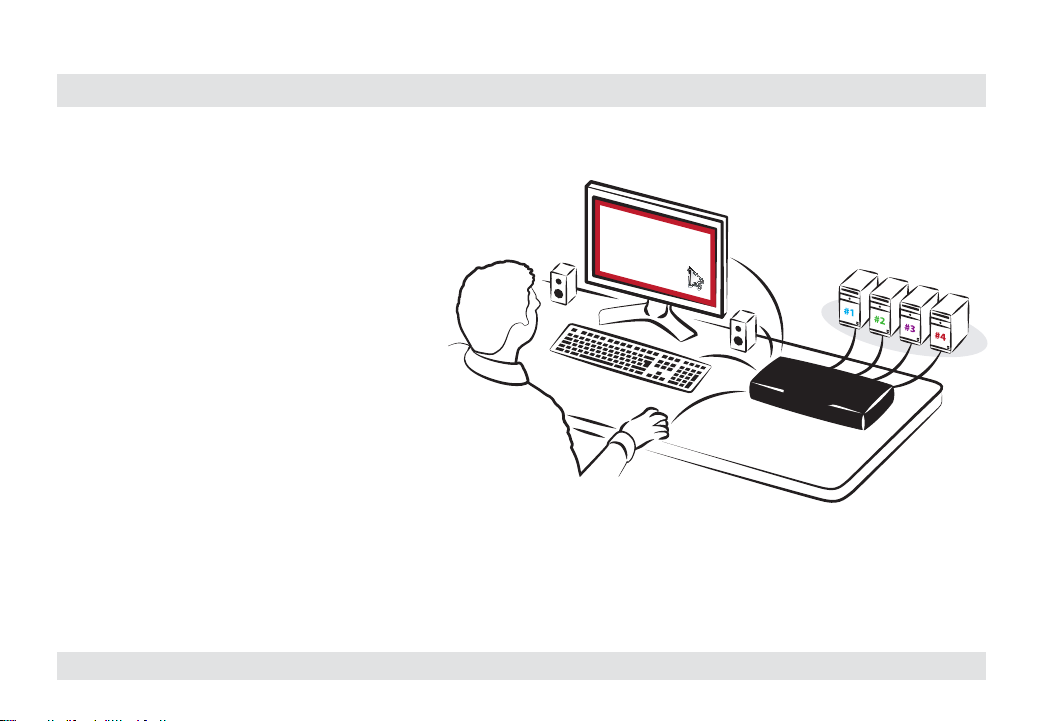

Screen border

Mouse cursor movement path

Switch display between computers

Multiple Sources

Speakers

Single

Keyboard & Mouse

Single Display

KVMKVM

To deactivate VDT mode:

•Change the mouse mode to Relative by typing L CTRL | L CTRL

| F11 | b

•Disable Video Follow Mouse by typing L CTRL | L CTRL | f

Notes:

•VDT is disabled by default. Resetting the product to factory defaults,

disables VDT.

•Multi-monitor computers require driver installation, currently available

only for Windows (http://highseclabs.com/support/downloads/?rid=19).

HSL KVM Quick Setup Guide

OPERATION

SECTIONS

Table of Contents 123

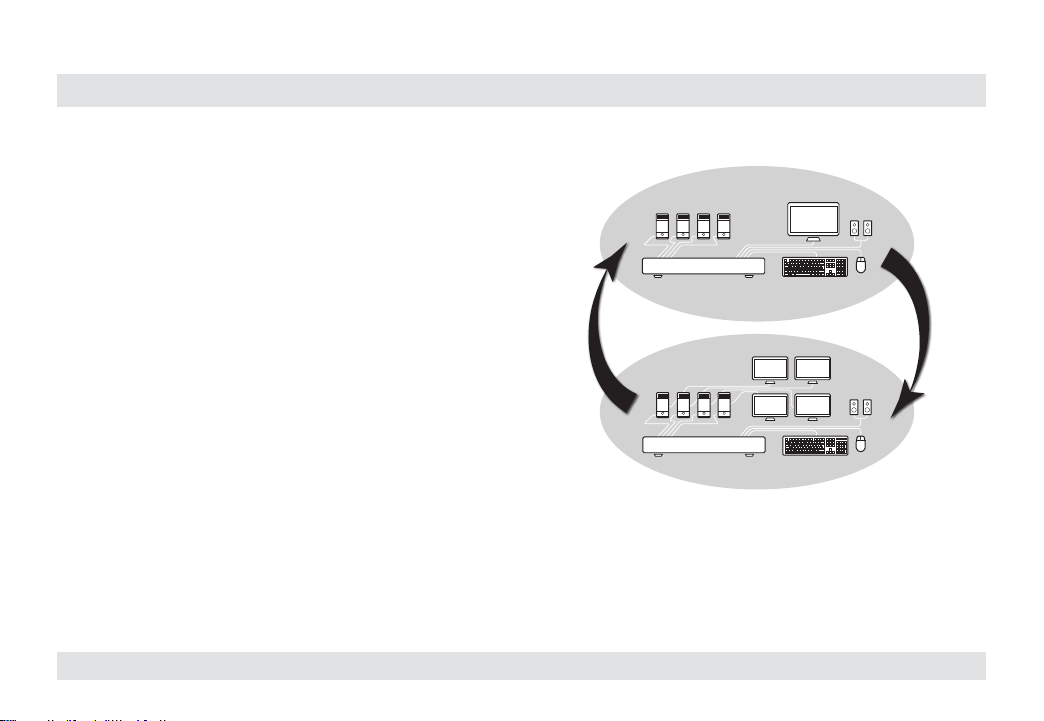

Interchangeable KVM-to-KM Functionality

•In KVM mode (default) one display, keyboard, mouse, USB and

audio peripheral set is shared between all computers.

•In KM mode each computer is connected to a separate display

while keyboard and mouse are shared.

To change from KVM to KM mode:

•Disconnect the Display from the KVM Console Port.

•Connect each computer directly to a separate display while

keeping the keyboard, mouse, USB and audio peripherals

connected to the KVM.

•Change the mouse mode to Absolute by typing L CTRL | L CTRL

| F11 | c

Keyboard

Audio

Computers

Mouse

Display

KVM Switch

Keyboard

KM Switch

Audio

Computers

Mouse

Displays

HSL KVM Quick Setup Guide

OPERATION

SECTIONS

Table of Contents 123

Switch between computers in KM mode:

•Press the front panel buttons to manually switch control from one

computer to another.

•Use cursor navigation switching (VDT) to automatically switch

between computers by dragging the mouse cursor over the

computer’s display border. Once the mouse is passing the display

border, shared peripherals (Keyboard, Audio, USB) switch to the

next computer without having to press any buttons.

PC #1 PC #2

Screen border

Mouse cursor movement path

To change from KM to KVM mode:

•Connect a Display to the KVM Console Port.

•Connect each computer to its corresponding KVM Computer

Video Port.

•Change the mouse mode to Relative by typing L CTRL | L CTRL

| F11 | b

Note: Resetting the product to factory defaults, disables the KM mode.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali High Sec Labs Interruttore

High Sec Labs

High Sec Labs SX42 U-3 Series Manuale utente

High Sec Labs

High Sec Labs SC21H-3 Manuale utente

High Sec Labs

High Sec Labs Mini-Matrix SX22D-3 Manuale utente

High Sec Labs

High Sec Labs K404F Manuale utente

High Sec Labs

High Sec Labs SM20N-4 Manuale utente

High Sec Labs

High Sec Labs SC44HU-3 Manuale utente

High Sec Labs

High Sec Labs K208E Manuale utente

High Sec Labs

High Sec Labs SX82PHU-4T Manuale utente

High Sec Labs

High Sec Labs SM20N-3 Manuale utente

High Sec Labs

High Sec Labs SX22H-M Manuale utente

High Sec Labs

High Sec Labs SK21D-3 Manuale utente

High Sec Labs

High Sec Labs DK22D-3 Manuale utente

High Sec Labs

High Sec Labs SK21PH-4 Manuale utente

High Sec Labs

High Sec Labs FV11D-M Manuale utente

High Sec Labs

High Sec Labs SM20N-N Manuale utente

High Sec Labs

High Sec Labs Mini-Matrix SX22H-3 Manuale utente

High Sec Labs

High Sec Labs SC42DU-3 Manuale utente

High Sec Labs

High Sec Labs SC21H-M Manuale utente

High Sec Labs

High Sec Labs DK22D-N Manuale utente

High Sec Labs

High Sec Labs K244E Manuale utente

High Sec Labs

High Sec Labs SC21H-N Manuale utente

High Sec Labs

High Sec Labs SK81DU-3 Manuale utente

High Sec Labs

High Sec Labs Mini-Matrix SX42PH-4 Manuale utente

High Sec Labs

High Sec Labs K304 Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
