Linux Debian on RR640L/620L Installation Guide



 







     

2023/4/12 V0.10 V1.00 SQY Init version

Linux Debian on RR640L/620L Installation Guide

RR640L/620L Controller

Linux Debian

Installation Guide

Linux Debian on RR640L/620L Installation Guide

Last updated on May 8, 2023

Linux Debian on RR640L/620L Installation Guide
Table of Contents
1 Overview..........................................................................................................................................1
2 Installing Linux Debian on RR Series RAID controller 1
Step 1 Prepare Your  ardware for Installation...........................................................................1
Step 2 Check System EFI Settings.............................................................................................1
Step 3 Flash UEFI Rom to RR Series RAID Controller............................................................3
Step 4 Create Array.....................................................................................................................4
Step 5 Prepare the Driver Diskette.............................................................................................5
Step 6 Install Linux Debian........................................................................................................5
3 Installing RAID Management Software 9
4 Troubleshooting 9
5 Rebuilding Driver Module for System Update 10
6 Appendix A 11
i

Linux Debian on RR640L/620L Installation Guide

1 Overview

The purpose of this document is to provide clear instructions on how to install Linux

Debian on the RR Series RAID controller.

Supported system: Debian10.1/10.2/10.3/10.4/10.5/10.6/10.7/10.8/10.9/11.3/

11.4/11.5/11.6

Supported controller: RR640L/620L

2 Installing Linux Debian on RR Series RAID

controller

If you would like to install Linux Debian onto drives attached to RR Series RAID

controller, please perform the following operations:

Step 1 Prepare Your Hardware for Installation

After you attach your hard disks to RAID controller, you can use EFI Utility to configure

your hard disks as RAID arrays, or just use them as single disks.

Before installation, you must remove all the ard disks, which are not physically attached

to RAID controller, from your system.

Note

RAID Controller support EFI boot If you have other SCSI adapters installed, you must

make sure the RR Series controller EFI will be loaded firstly. If not, try to move it to

another PCI slot. Otherwise you may be unable to boot up your system.

Step 2 Check System EFI Settings

In your system EFI SETUP menu, change Boot Sequence in such a way that the system

will first boot from EFI CDROM or EFI a Bootable USB drive, after you finish

installation, set RR Series RAID as the first boot device to boot up the system. Refer to

your motherboard EFI manual to see how to set boot sequence.

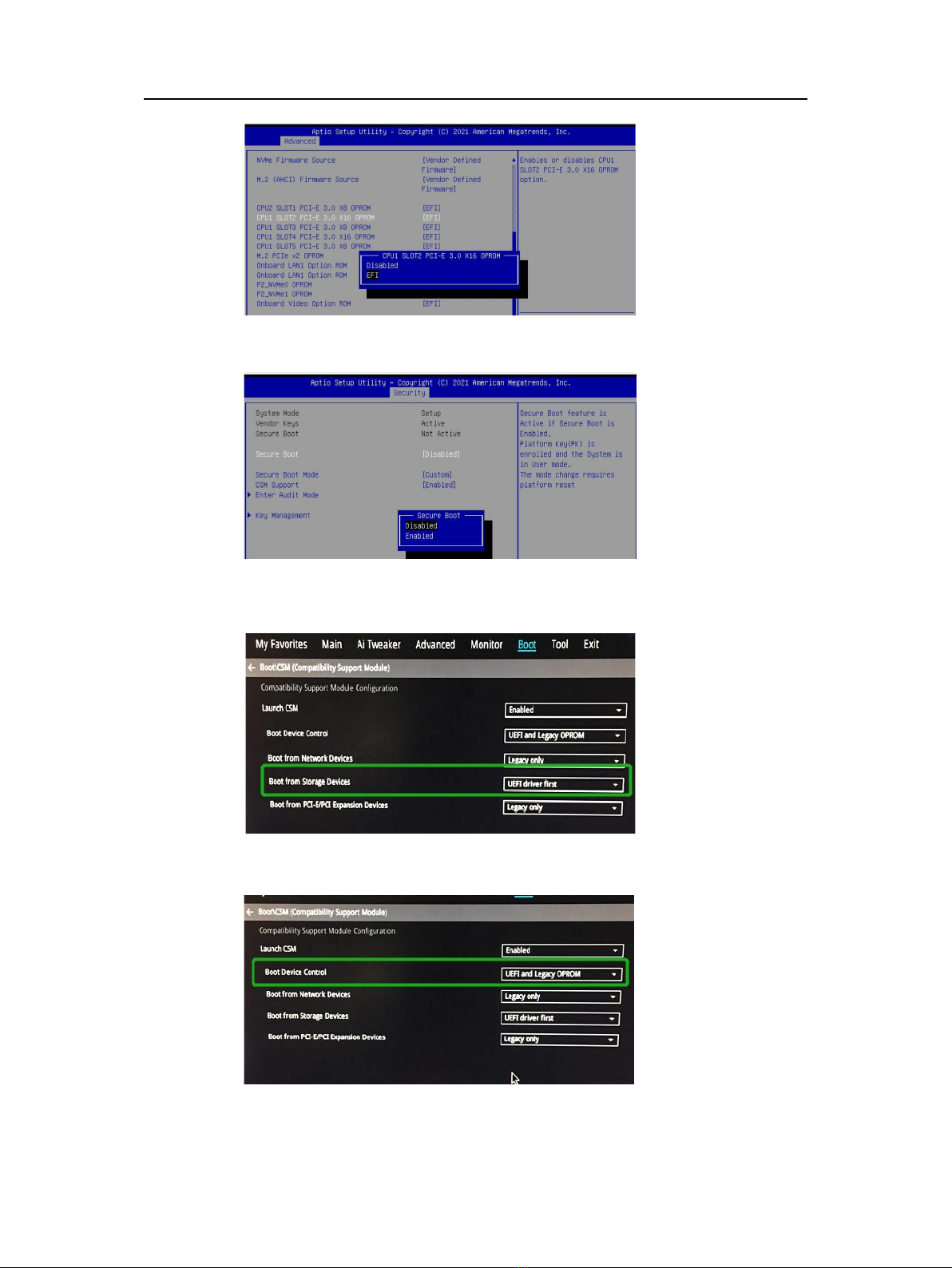

1. Set UEFI setting with SuperMicro X11DPi-NT motherboard as an example.

a. "Advanced->PCIe/PCI/PnP Configuration->CPUSlot PCI-E OPROM"

to "EFI". Suppose Controller is connected to motherboard CPU1 Slot 2 PCI-E

X16, then you should set "CPU1 Slot 2 PCI-E X16 OPROM" to "EFI";

- 1 -

Linux Debian on RR640L/620L Installation Guide

b. Disable "Secure Boot", set "Attempt Secure Boot" to "Disabled".

2. Set UEFI setting with ASUS PRIME X299 -DELUXE motherboard as an example:

a. Set "Boot from Storage Devices" to "UEFI driver first";

b. And "Boot Device Control" to "UEFI Only" or "UEFI and Legacy OPROM";

- 2 -

Linux Debian on RR640L/620L Installation Guide

c. Set "OS Type" to "Other OS".

Step 3 Flash UEFI Rom to RR Series RAID Controller

For Example RR640L：

Note

：

Make sure your USB flash partition format is FAT32.

a. Unzip RR640L UEFI package to root dir(/) of a USB flash drive, and insert the

USB flash drive to the motherboard;

b. Booting from the UEFI USB flash and enter the UEFI environment;

c. Command with “rr640l.nsh”, flash UEFI rom to RR640L Controller and reboot;

For RR620L:

- 3 -

Linux Debian on RR640L/620L Installation Guide

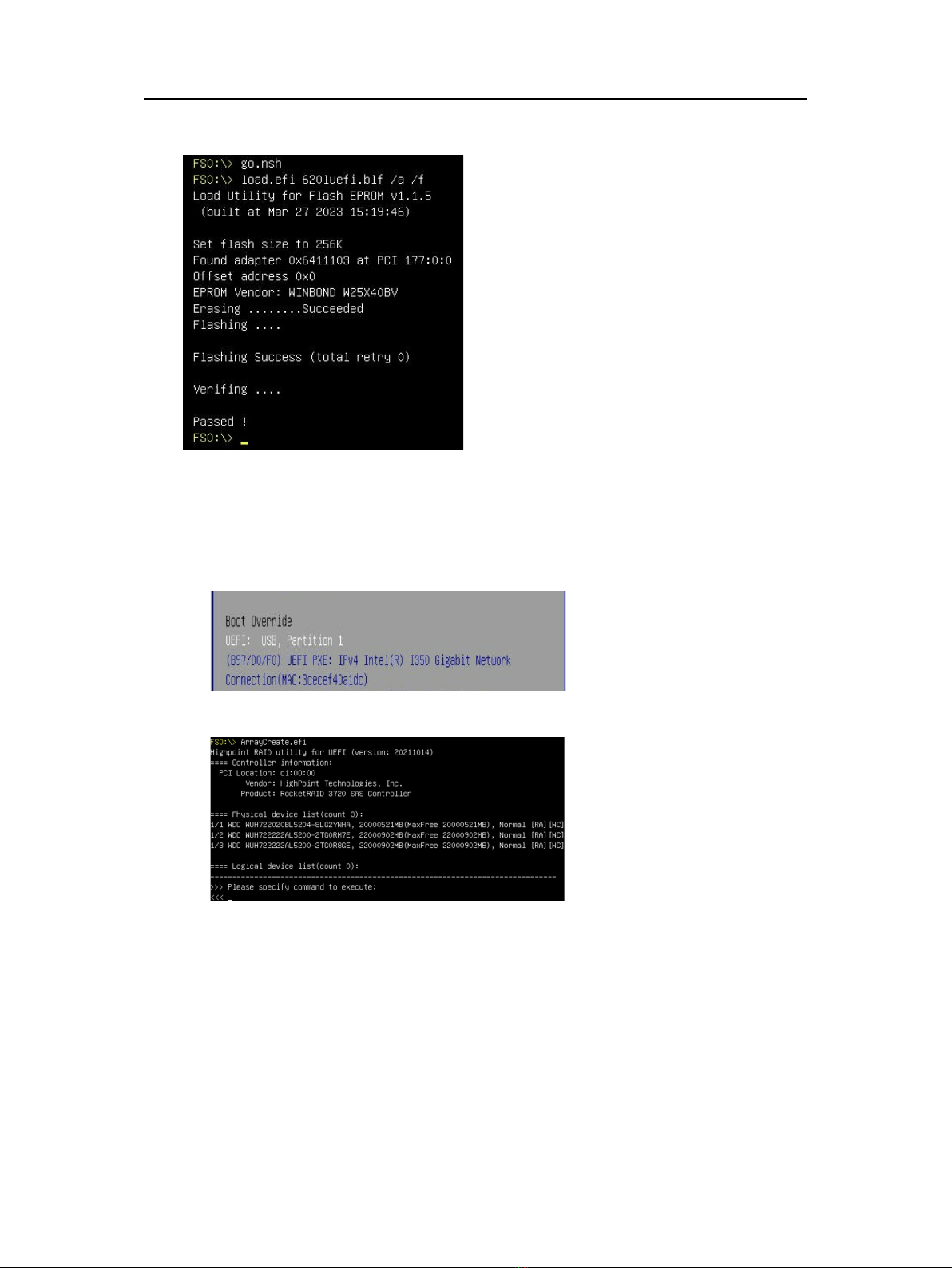

Command with“go.nsh”, flash UEFI rom to RR620L Controller and reboot:

Step 4 Create Array

a. Attach three hard disks to RR640L Controller;

b. Boot, enter the motherboard’s Boot List and select start from UEFI USB flash:

c. Command “ArrayCreate.efi” to enter the Utility:

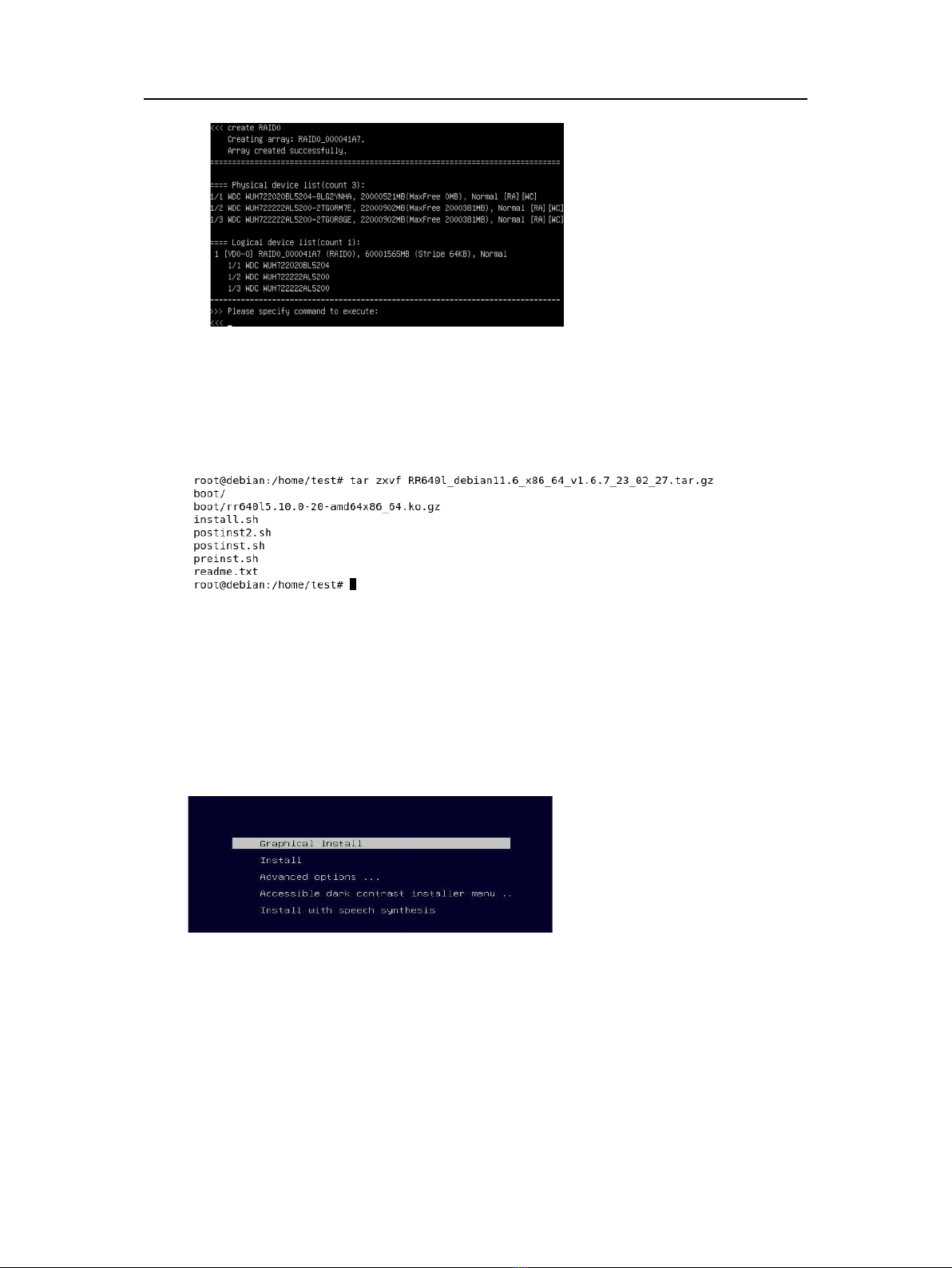

d. Command “create RAID0”.

Create RAID0 array with all disks and with maximum capacity.

- 4 -

Linux Debian on RR640L/620L Installation Guide

e. Command “exit”；

f. For more command usages, refer to Appendix A.

Step 5 Prepare the Driver Diskette

Extract RR640l_debian_11 6 0_x86_64_vx x x_xx_xx_xx tar gz to top (/) directory of an

USB flash drive. It will look like:

Step 6 Install Linux Debian

a Before you do the following, verify the status of your network environment To

ensure a proper installation, it is recommended to disconnect the network and install

the system in a network less environment

b. Insert the Bootable USB drive to the target system.

c. Booting from Bootable USB drive (EFI mode).

d. When the Installation screen appears, press ‘Graphical Install’ to start.

e. When the following window appears, if your motherboard is in UEFI mode, click YES

- 5 -

Linux Debian on RR640L/620L Installation Guide

f. When the following window appears during the installation process,

Press "Ctrl+ALT+F2" to switch to the shell on console 2, and the then execute following

commands to copy the driver contents:

# mkdir /hptdd ← Create mount point for USB flash drive

# mount /dev/sda1 /hptdd/ ← Mount the USB flash drive to /hptdd

# cp -a /hptdd /tmp/ ← Copy driver installation file to system temporary
