HighPoint SSD7105 Manuale utente

SSD7105

4x M.2 Port to PCIe 3.0x16 NVMe RAID Controller

Quick Installation Guide

V1.00

System Requirements

PC Requirements

•System with a free PCIe 3.0 x16 or PCIe 4.0 x16 slot

•Windows 10/11, Windows server 2012 r2, Windows Server 2016,

Windows Server 2019, Windows server 2022 and Microsoft

Hyper-V

•Linux kernel 3.10 and later

•macOS 10.13 and later

SSD7105 Kit Content

•SSD7105 Controller Card

•Quick Installation Guide

SSD7105 Hardware

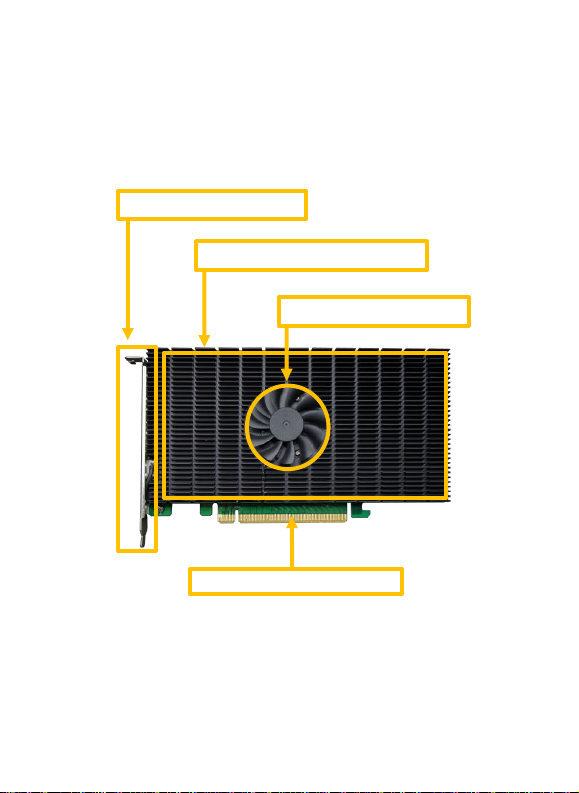

Front View

Full-Height form factor

Anodized aluminum heat sink

PCIe 3.0 x16 Host Interface

Low-Noise Cooling Fan

SSD7105 Hardware Installation:

Step 1. On the rear of the SSD7105, remove the six screws that secure

the unit’s heat sink to the PCB.

After removing the screws, carefully remove the heat sink from the

SSD7105.

Step 2. After removing the casing, carefully turn it over to view the

thermal pad. The blue film must be removed from the pad before

reinstalling the panel. This film protects the pad from damage and foreign

objects prior to installation, however, it can also prevent the thermal pad

form conducting the heat away from the NVMe SSDs if we don't remove

it.

Step 3. These 4 screws are used to install the NVMe SSDs.

Step 4. Please remove the screws on the right side of SSD7105

Step 5. Gently insert the SSD into the slot.

Note: Please make sure all disks are clean before you insert them

into the slot to avoid unexpected situations.

Step 6. Refasten the screw to secure the SSD.

Repeat Steps 3 to 5 to install the remaining SSD.

Note: Make sure the SSDs are carefully, but securely installed into

each M.2 port. Loose connections can cause a variety of stability

and performance issues, and may ultimately result in data loss.

The following example shows four SSDs installed into Port 1, 2, 3

& 4;

Step 7. Replace the heat sink after installing all SSDs

Step 8. On the rear of the SSD7105, refasten the 6 screws that were

removed in step 1.

Note

：

Make sure the aluminum cover is properly aligned with the

controller board (PCB), and that it makes full contact with the thermal

pad, before refastening it to the SSD7105. If the cover is improperly

installed, the fan and thermal pad will be unable to sufficiently cool the

NVMe SSD’s and controller componentry, which may result in damage

to the SSD’s or controller hardware, performance loss, unstable I/O,

and the loss of data.

Note: Please be sure to connect NVMe before using the product to

reduce the occurrence of unnecessary errors!

Note: Install the driver in the system first and then install the board

Resources

A variety of manuals, guides and FAQ’s are available for the SSD7105

RAID controller.

In addition, we recommend visiting the Software Downloads webpage

for the latest drivers, management interfaces, and installation guides.

Download link:

SSD7105 Driver, WebGUI, Installation Guide

https://www.highpoint-tech.com/ssd7105-overview

Other Reference Information:

Motherboard & NVMe SSD Compatibility List

SSD7105 User Guide – How to Set up & Monitor RAID Array

https://www.highpoint-tech.com/ssd7105-overview

Customer Support

If you encounter any problems while utilizing the SSD7105 drive, or

have any questions about this or any other HighPoint Technologies, Inc.

product, feel free to contact our Customer Support Department.

Web Support:

https://www.highpoint-tech.com/support-and-services

HighPoint Technologies, Inc. websites:

https://www.highpoint-tech.com
