RR37xx_8xx_28xx Controller Windows Boot RAID Installation Guide
RR37xx_8xx_28xx Controller
Windows Boot RAID
Installation Guide
Version 1.0.0
Copyright © 2021 HighPoint Technologies, Inc.
All rights reserved.
Update Jul 27, 2021
RR37xx_8xx_28xx Controller Windows Boot RAID Installation Guide
Contents
Prerequisites for a Bootable RAID Configuration....................................................1
UEFI BIOS Settings..................................................................................................... 2
How to install Windows to the RAID Controller...................................................... 3
Step 1 Preparing the USB Flash Drive....................................................................... 3
Step 2 Preparing the UEFI Package........................................................................... 3
Step 3 Creating the RAID Array................................................................................ 4
Step 4 Install Windows...............................................................................................6
Step 5 Disabling Hibernation..................................................................................... 8
Trouble shooting.........................................................................................................10
No supporting host adapter is found.........................................................................10
No supported controller detected..............................................................................10
Appendix..................................................................................................................... 11
RR37xx_8xx_28xx Controller Windows Boot RAID Installation Guide
1
Prerequisites for a Bootable RAID Configuration
The RR840/RR2840/RR3720/RR3740/RR3742 controllers can support bootable RAID
arrays. After configuring an array using the UEFI RAID tool, you can install a Windows or
Linux operating system to the RAID. In order to configure a bootable RAID array, you will
need the following:
1. RAID controller. A PCIe 3.0/4.0 slot with x8 or x16 lanes.
2. The RR840/RR2840/RR3720/RR3740/RR3742 must be installed into a PCIe 3.0/4.0 slot
with x8 or x16 lanes.
3. The motherboard needs to be booted into UEFI mode. Confirm that the motherboard
boots in UEFI mode.
4. USB flash drive: FAT32 format. Make sure the file system of the USB flash drive is
FAT32 format.
5. Secure Boot must be disabled.
6. Install an optical drive into the system (such as a DVD-ROM, DVD-RW or Blu-Ray
drive).
7. Prepare the OS Installation disc (Windows 10 & later / Windows server 2016 & later, or
a Linux Distribution that corresponds with the binary diver you intend to install).
Download and burn an official copy of the latest ISO image of your preferred operating
system to a DVD. This should be inserted into the optical drive when booting the system.
8. You will need a USB flash drive– the UEFI package and driver should be extracted to the
root directory of this flash drive.
9. Remove all other drives during the OS installation process. Make sure only the controller,
the USB flash drive, and the optical drive are installed into the system during this
procedure. This includes any other USB hard drives, USB flash drives, memory sticks, or
SAS/SATA drives. You can reattach these drives after the operating system has been
successfully installed.
10. For Windows 10 users, make sure to Disable Fast Boot.
RR37xx_8xx_28xx Controller Windows Boot RAID Installation Guide
2
UEFI BIOS Settings
Different motherboards will provide different UEFI-related BIOS settings. Please consult
your motherboard’s user manual for more information.

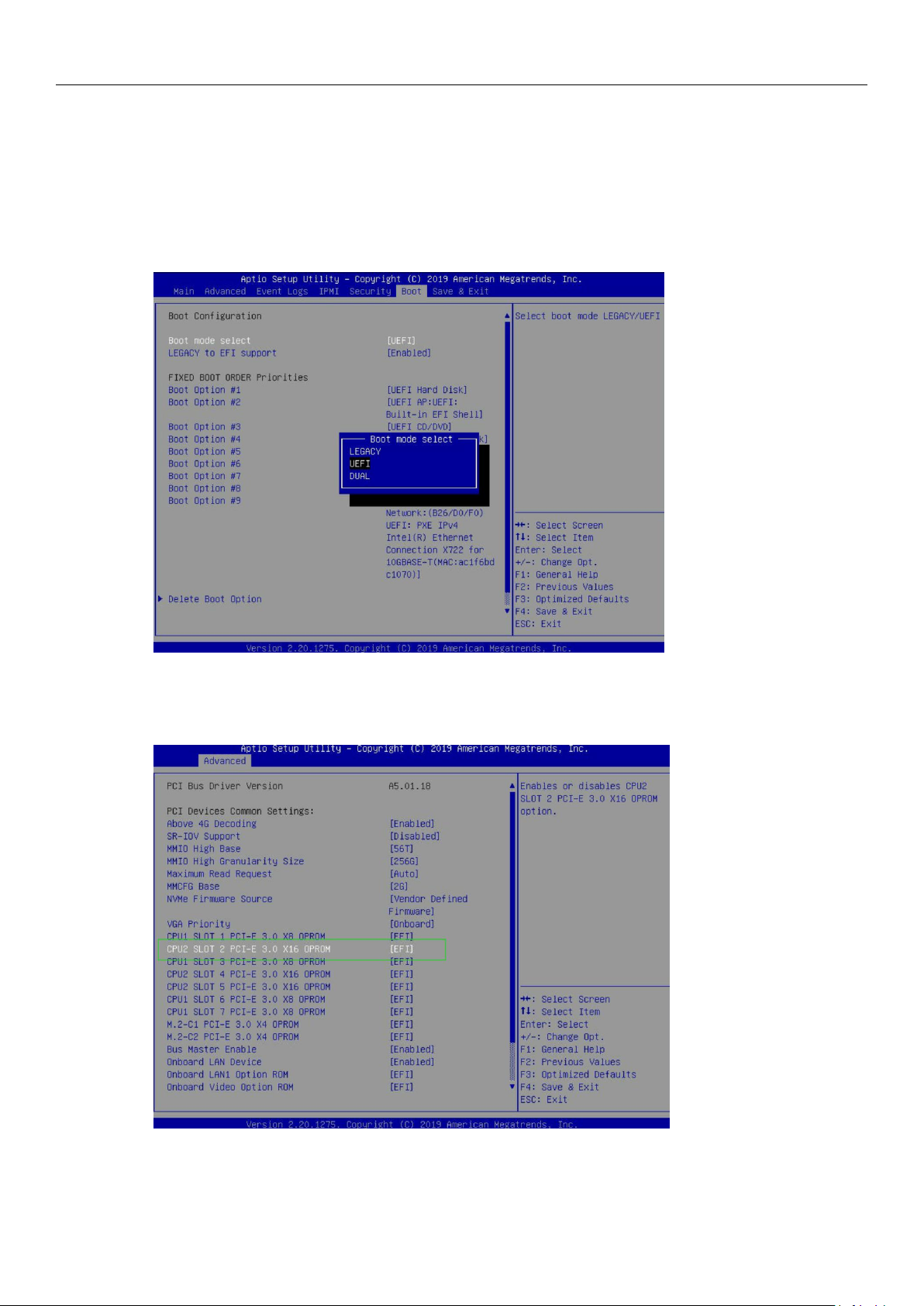

Set UEFI setting with SuperMicro X11DAi-N motherboard as an example.
a. Set "Boot Mode Select" to "UEFI";
b. Under "Advanced->PCIe/PCI/PnP Configuration->, change “CPUx Slot x PCI-E
OPROM" to "EFI". “x” represents the PCIE slot assignment. For this example,
the RR3720 is installed into “CPU2 Slot 2”
c. Set "Boot Mode Select" to "UEFI";
RR37xx_8xx_28xx Controller Windows Boot RAID Installation Guide
3
How to install Windows to the RAID Controller
Step 1 Preparing the USB Flash Drive
When preparing the USB flash dive, make sure to format the USB partition as FAT32. If
another file system is used, the USB drive may not be properly recognized, and will not
appear as an option under the motherboard’s UEFI BIOS menus.

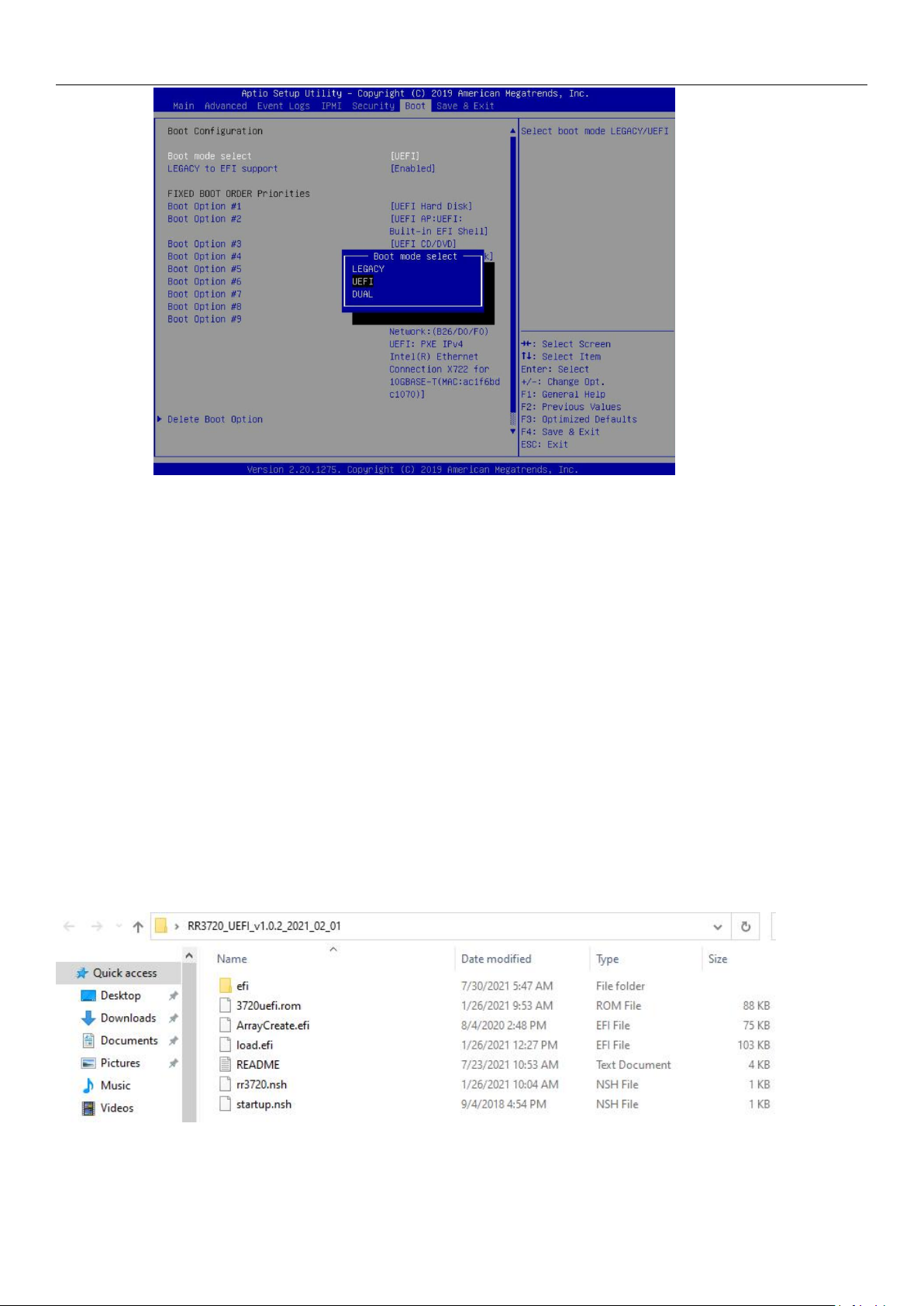

Step 2 Preparing the UEFI Package
The package must be unzipped directly to the root of the bootable USB flash drive (do not
extract the contents to a new folder). All of the following items must be present in the root of
the USB flash drive. For example (RR3720)
Note: If the above content is not present in the root directory, the UEFI boot device will not
be properly recognized, and/or you will be unable to create an array for OS installation.
RR37xx_8xx_28xx Controller Windows Boot RAID Installation Guide
4
Step 3 Creating the RAID Array

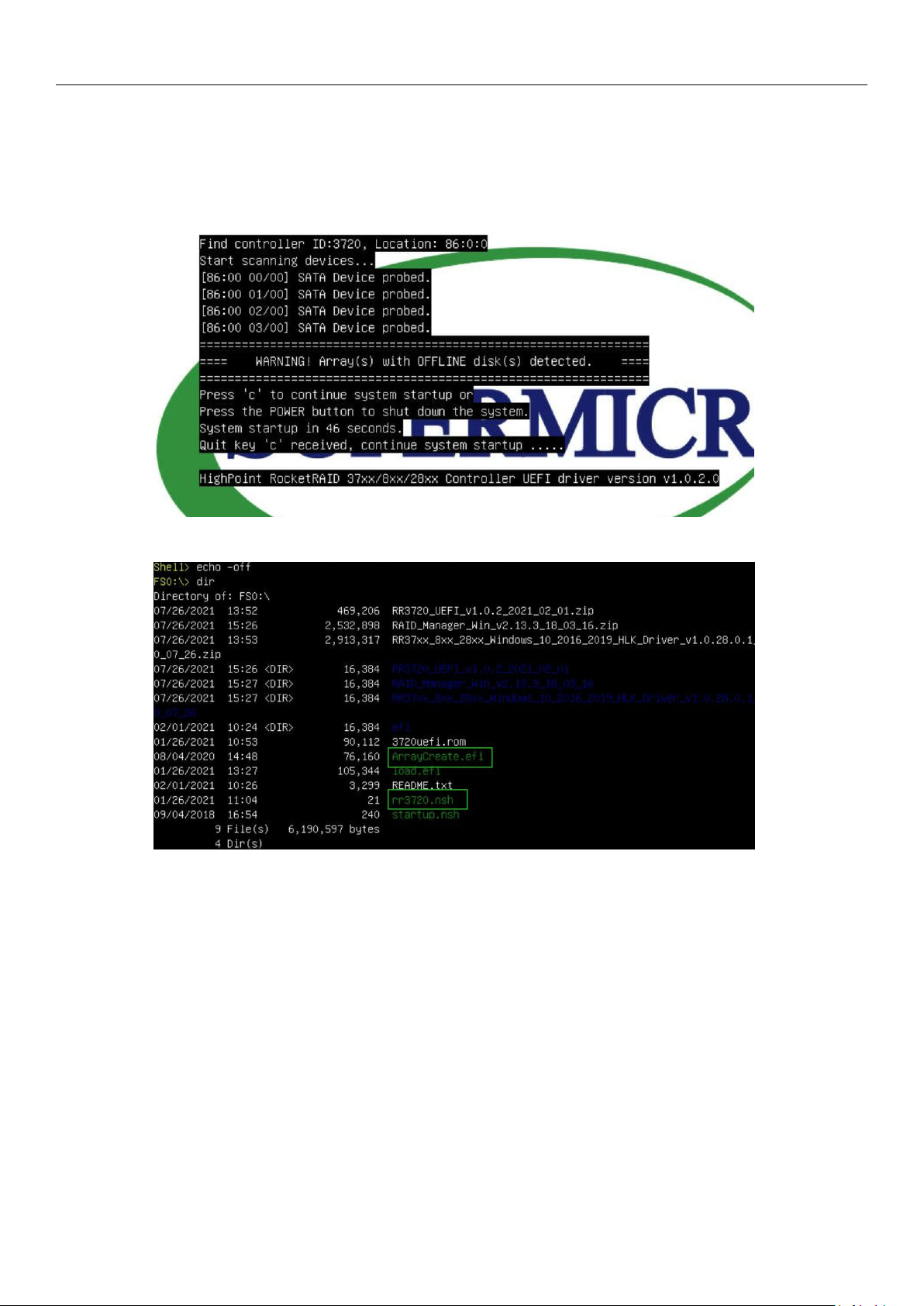

a. Insert the USB flash drive to the motherboard.
b. The screen should display information about the devices on the motherboard:
c. Query the files in the USB flash drive and enter the command: dir

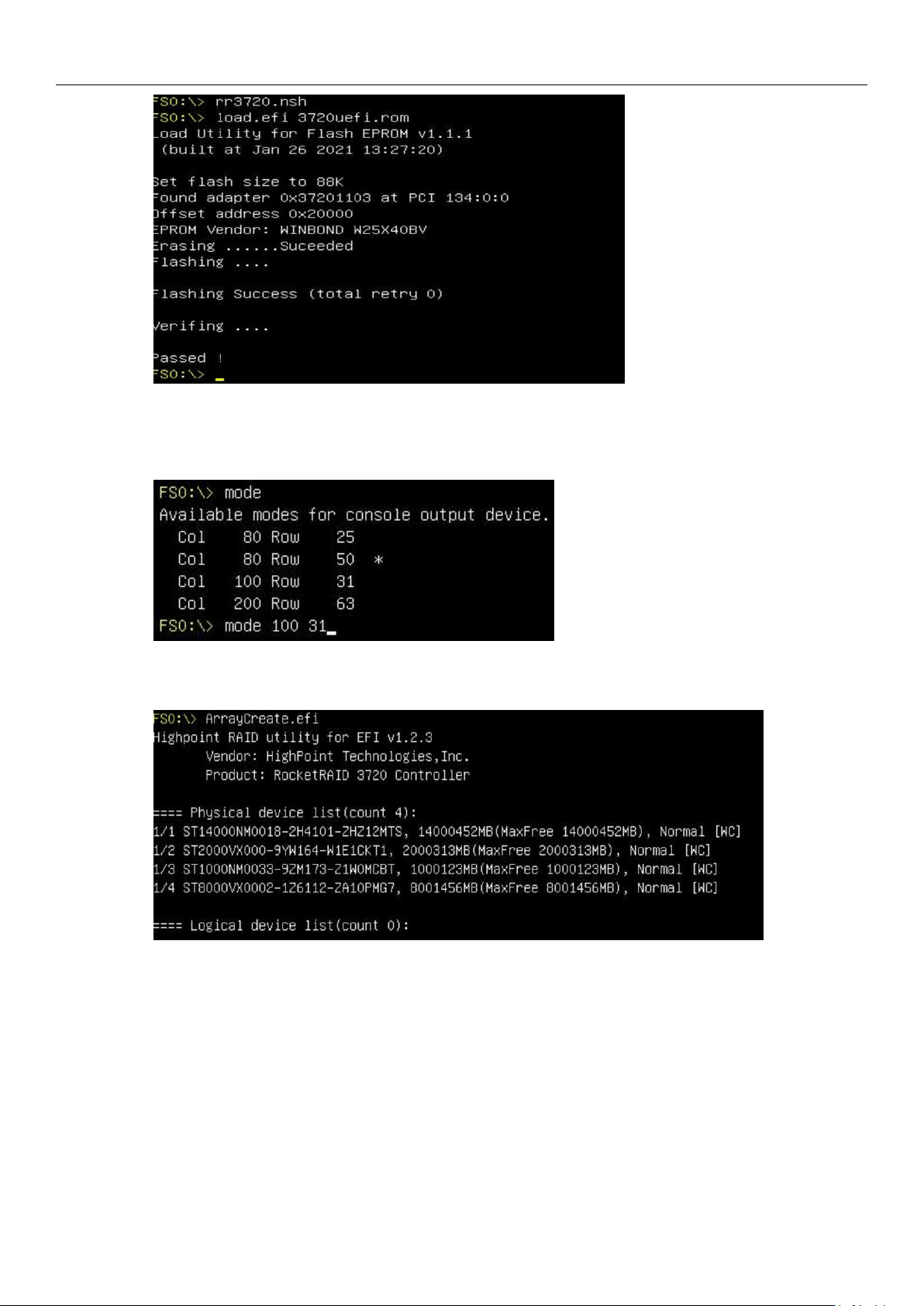

d. Enter the following command to flash the UEFI ROM to the RR3720 RAID
Controller: rr3720.nsh
RR37xx_8xx_28xx Controller Windows Boot RAID Installation Guide
5
When the message ‘Passed’ appears, the flash was successful.
e. At the prompt, enter the following command to change the resolution:
mode 100 31
f. Next, enter the following command to enter the RAID creation utility:
ArrayCreate.efi

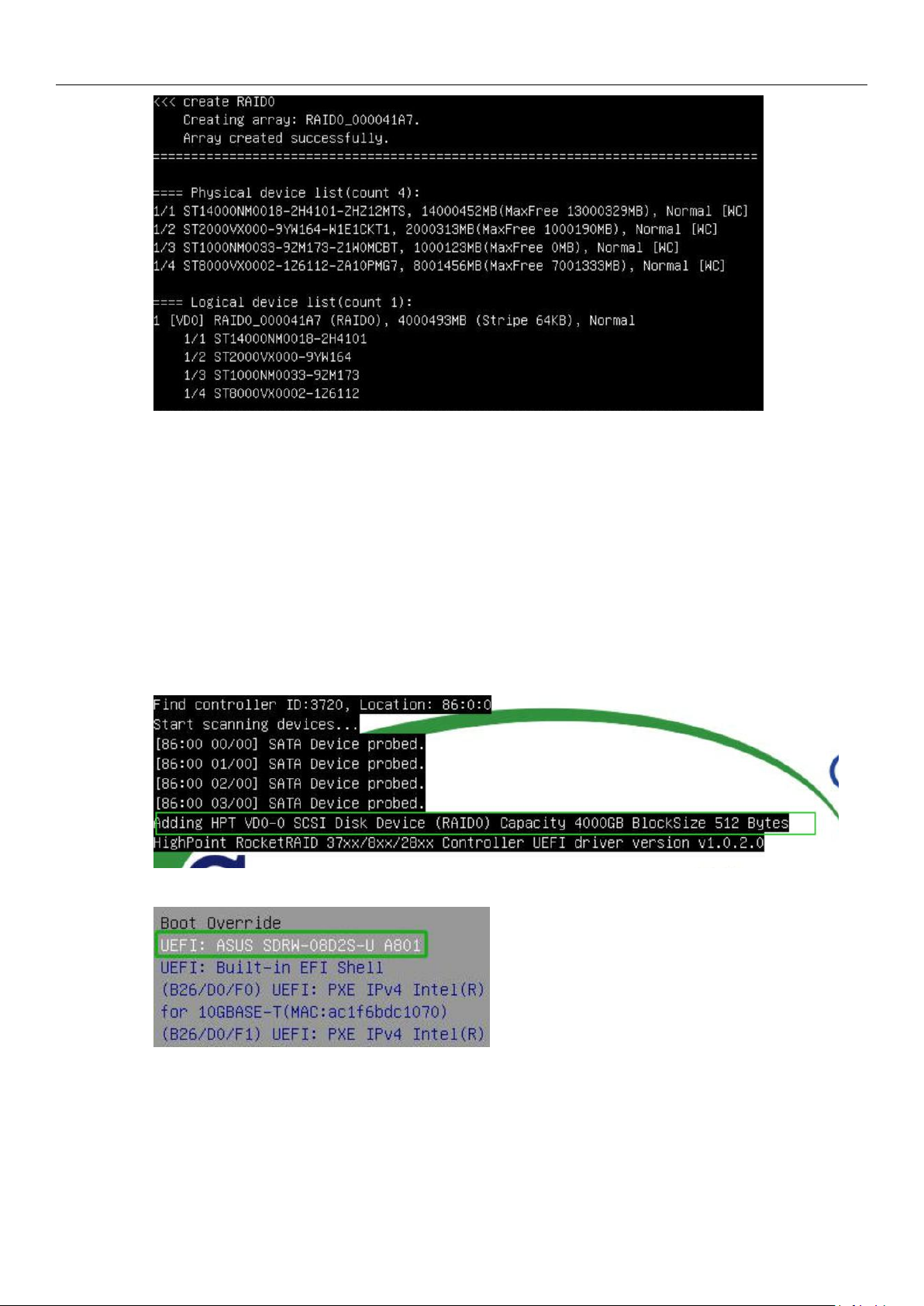

g. Next, create the array using the following command: create RAID0
This will create a RAID0 array using all of the HDDs, and configured for
maximum capacity:
RR37xx_8xx_28xx Controller Windows Boot RAID Installation Guide
6
You can now exit the utility. Enter the following command: exit.
Note: For more additional commands, please refer to Appendix of this user guide.
Step 4 Install Windows
a. Insert the Windows install DVD in your optical drive (DVD/Blu-ray, etc.) and
then reboot your system.
b. The following RAID information should be displayed by the motherboard BIOS
post screen:
c. Enter the Boot list, and select start from UEFI BOOT:

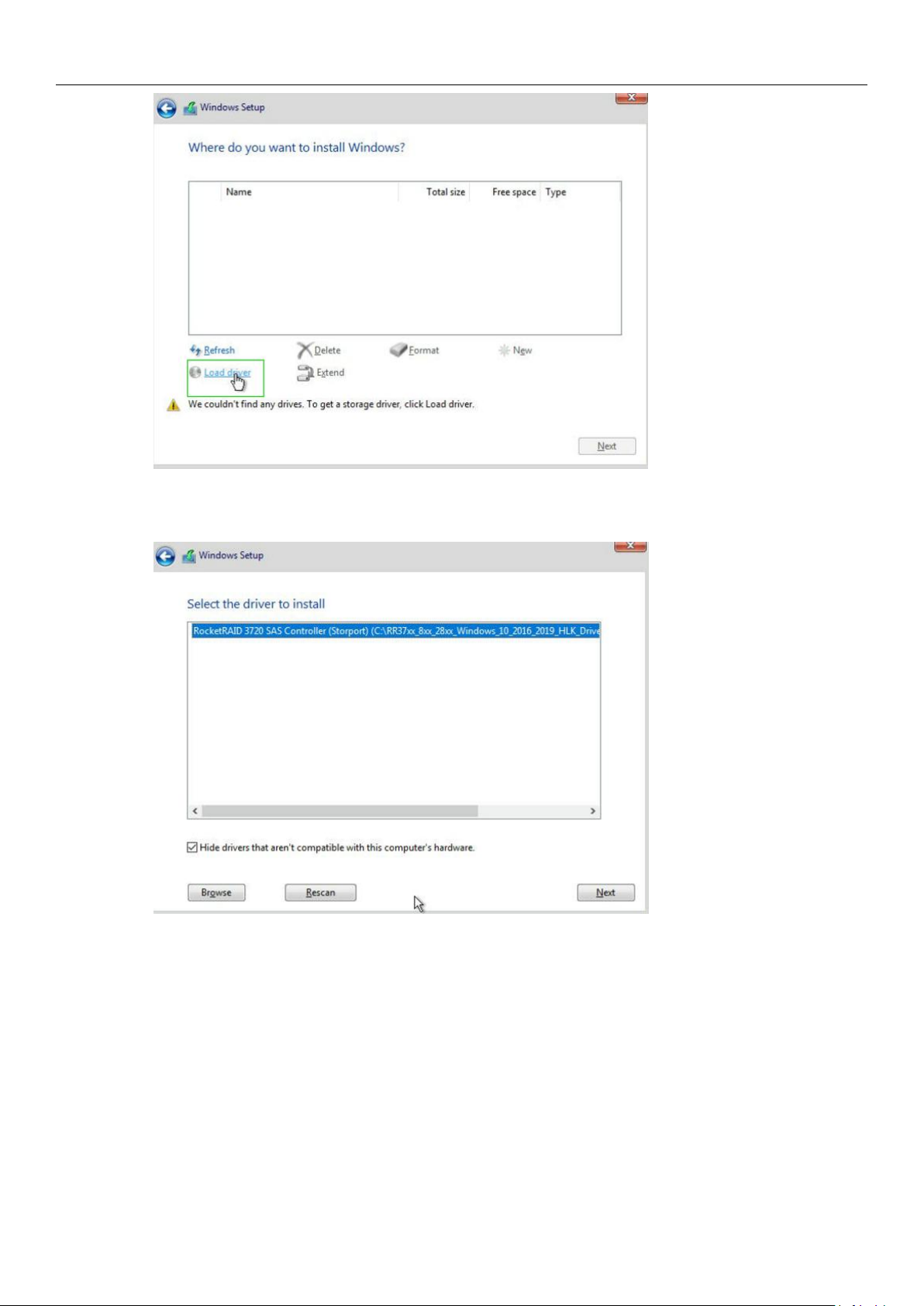

d. Install Windows, to “Where do you want to install Windows?”, you should see
several Legacy disks available.
RR37xx_8xx_28xx Controller Windows Boot RAID Installation Guide
7
e. Next, insert the USB flash that contains the driver into the motherboard USB slot
and click “Browse”. Select the driver file as shown:

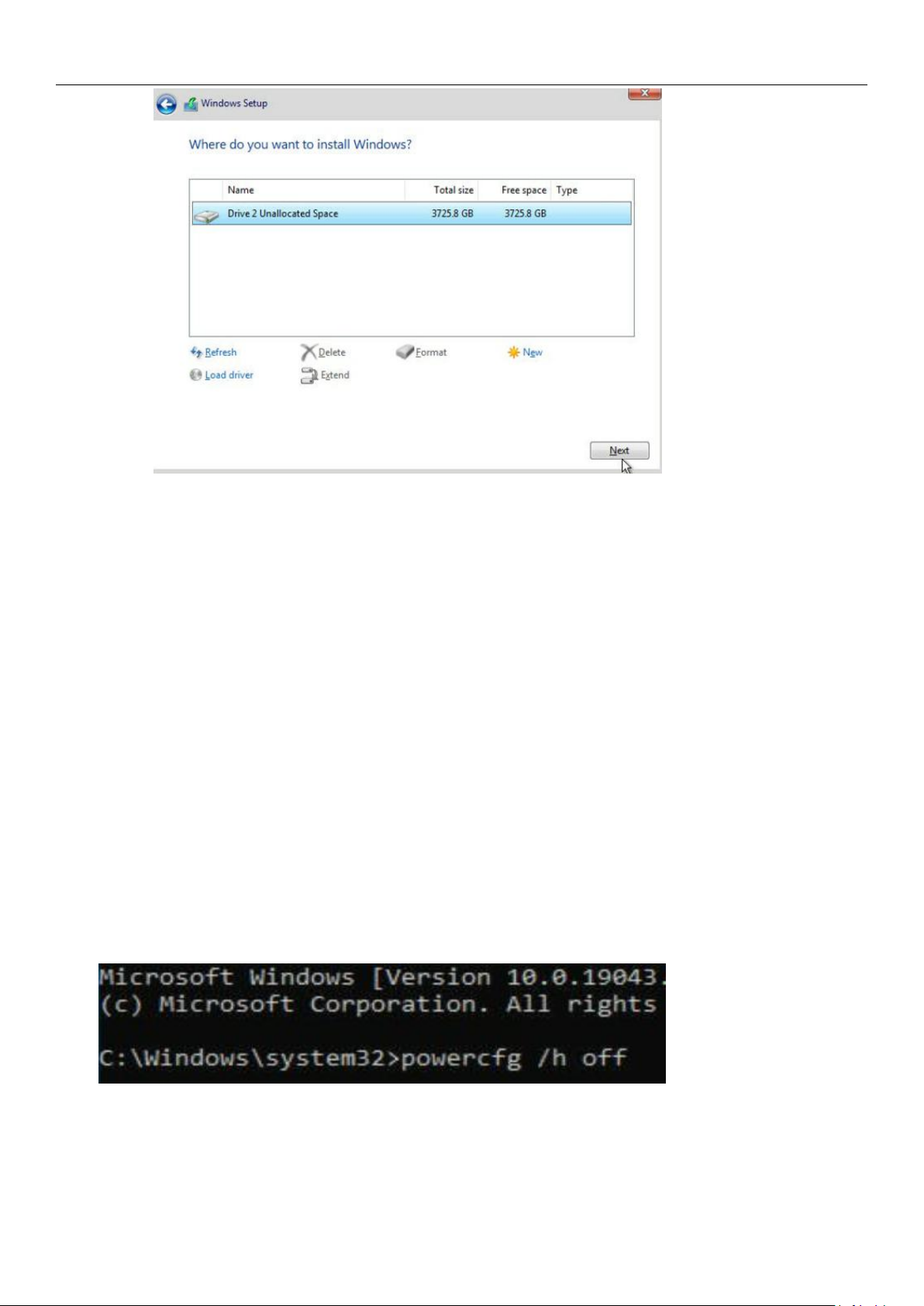

f. After loading the driver, return to the “Where do you want to install Windows?”
interface. The previous Legacy disks will now be recognized as a RAID array:
RR37xx_8xx_28xx Controller Windows Boot RAID Installation Guide
8
g. After partitioning, continue and complete the Windows installation procedure.
Step 5 Disabling Hibernation
After Windows is installed, boot into the operating system and disable Hibernation.
Hibernation fails when the system is installed on a RAID; this bug will slow down or prevent
startup and disable sleep mode.
If you do not turn the hibernation functionality off, you may experience the following
problems:
a) Shutdown time is extended by an additional 3-5 minutes.
b) You cannot shut down properly; you need to manually press the power switch button
of the motherboard to power off the system.
Please use administrator privileges to turn off hibernation using the following command
(Command Prompt utility): #powercfg /h off
Enter the command to check that the quick shutdown is turned off: powercfg / a
