HIK VISION DS-K1107 Series Manuale utente

DS-K1107 Series Card Reader

User Manual

UD01890B

User Manual

Any and all information, including, among others, wordings, pictures, graphs

are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its

subsidiaries (hereinafter referred to be “Hikvision”). This user manual

(hereinafter referred to be “the Manual”) cannot be reproduced, changed,

translated, or distributed, partially or wholly, by any means, without the

prior written permission of Hikvision. Unless otherwise stipulated, Hikvision

does not make any warranties, guarantees or representations, express or

implied, regarding to the Manual.

About this Manual

This Manual is applicable to DS-K1106 series card reader

The Manual includes instructions for using and managing the product.

Pictures, charts, images and all other information hereinafter are for

description and explanation only. The information contained in the Manual

is subject to change, without notice, due to firmware updates or other

reasons. Please find the latest version in the company website

(http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the properties of Hikvision in

various jurisdictions. Other trademarks and logos mentioned below are the

properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT

DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS

PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES

NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR

PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL

HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE

TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT

DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS

PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION,

IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS

BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF

PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT

TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE

OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK,

VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER,

HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT

LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO

ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION

SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH

ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE

APPLICABLE LAW, THE LATER PREVAILS.

0100001060229

Content

CHAPTER 1 PREVENTIVE AND CAUTIONARY TIPS ................... 2

CHAPTER 2 INTRODUCTION................................................... 3

2.1 OVER VIEW...................................................................3

2.2 INDICATOR AND COMPONENT ...........................................4

CHAPTER 3 INSTALLATION ..................................................... 4

3.1 INTRODUCTION FOR DIP SWITCH.......................................4

3.2 DEFINITION OF CABLE .....................................................6

3.3 WIRING CABLES.............................................................6

3.4 INSTALLING CARD READER................................................8

CHAPTER 4 SOUND PROMPT AND INDICATOR........................ 9

Chapter 1 Preventive and Cautionary

Tips

To guarantee the card reader works properly, please read and

obey the notes below.

If the card reader is powered by the controller, the power

supply distance is recommended to be no longer than 100m.

If the distance is longer than 100m, you are advised to power

the card reader by external 12V (range: -%10 ~ +%10) DC

power supply, which is nonswitched and linear.

To guarantee the communication between the controller and

the card reader, you must use RVVP cable above 0.5 to

connect them.

If the card reader is installed outside or in environment easy

to permeable, it is advisable to install a waterproof shield.

If you need to install several card readers, the distance

among them must over 30cm.

To reduce the noise in long distance transmission, the shield

of cable should connect to the GND of both controller and

card reader terminal.

Chapter 2 Introduction

2.1 Over View

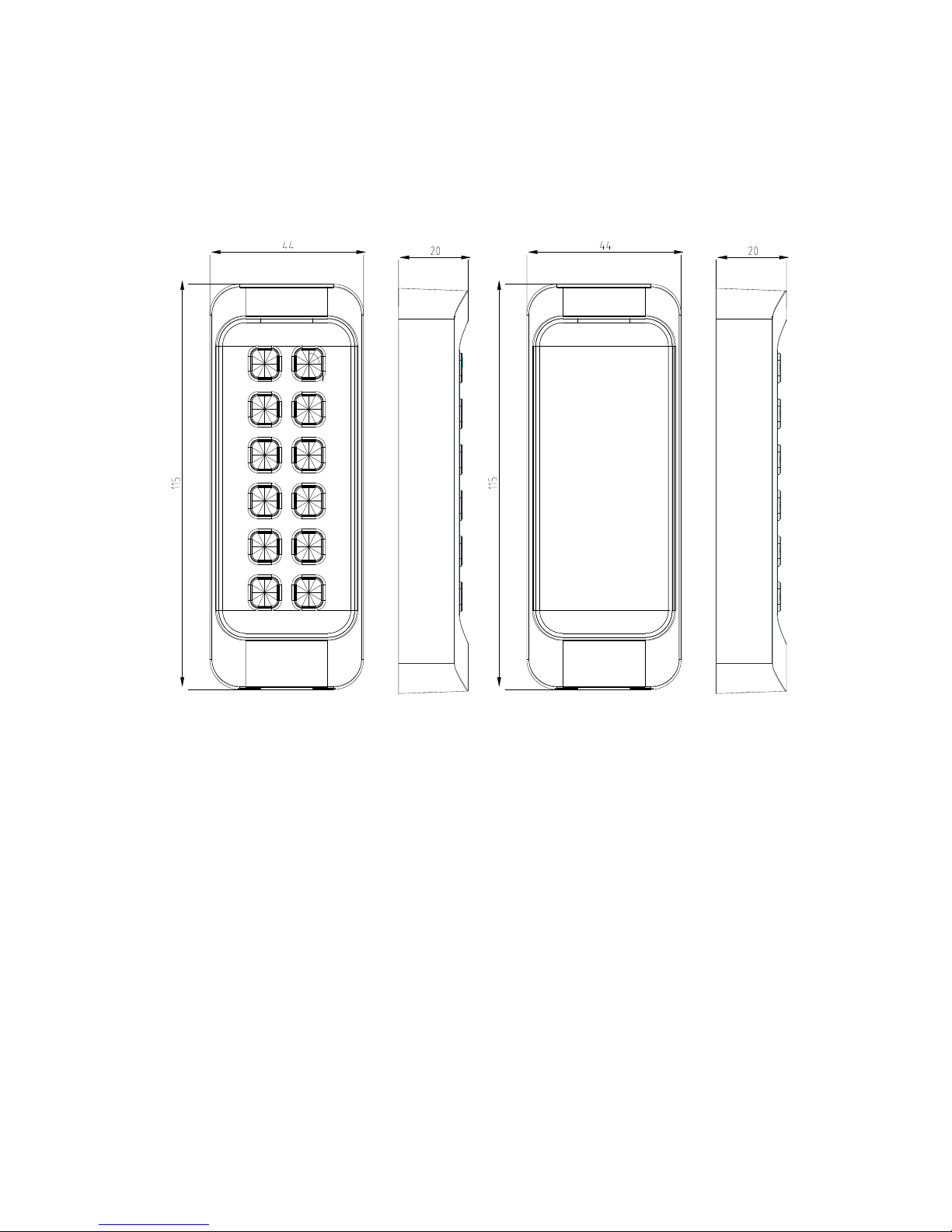

Figure 2-1 DS-K1107 Series Card Reader

DS-K1107 series card reader is a kind of high-performance

product, with a 32 bit high-speed processor. It communicates with

access controller via either RS-485 protocol or Wiegand protocol.

And a build-in tamper-proof module helps to protect card reader

from malicious damage. As to the physical appearance, the

PC+ABS material makes water proof and dust proof possible in

poor environment.

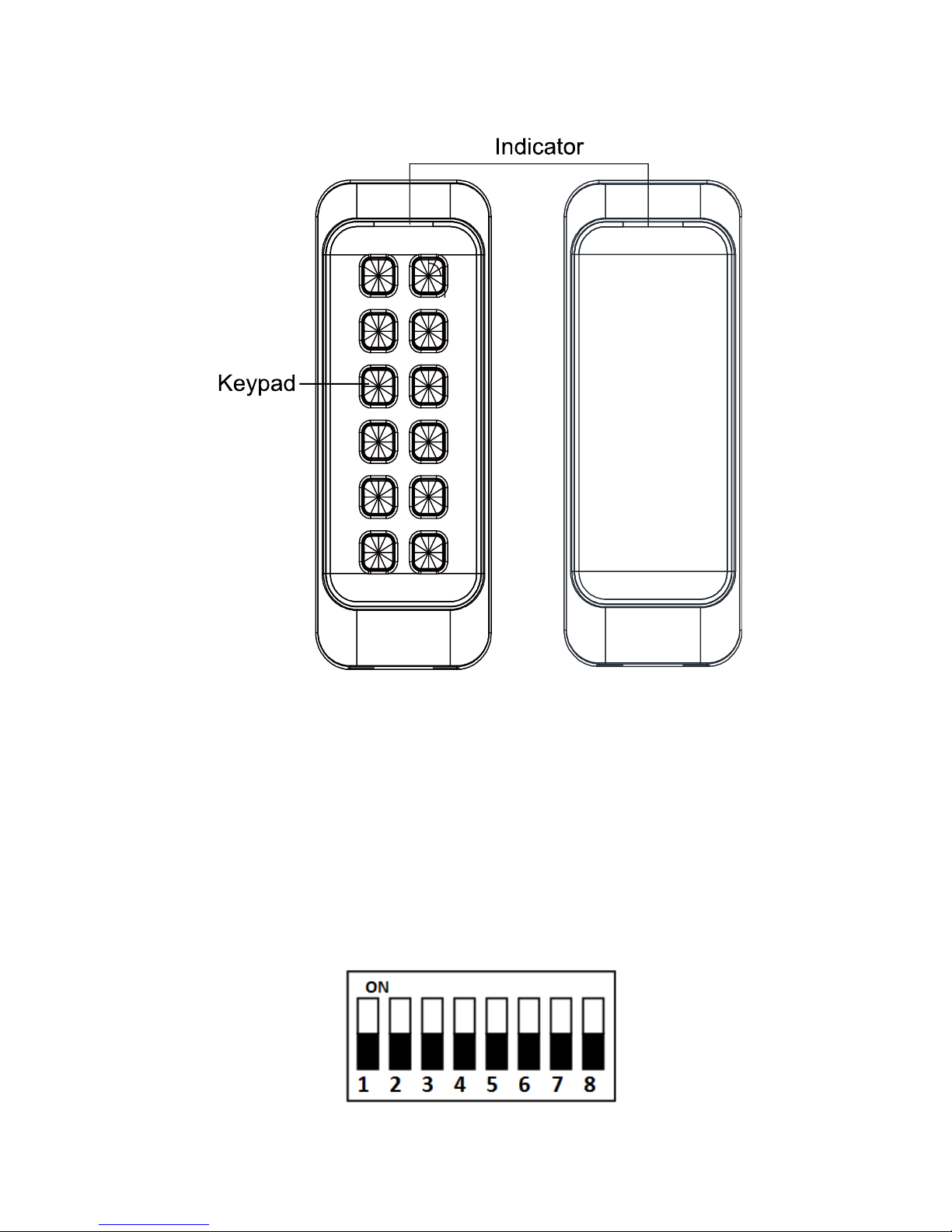

2.2 Indicator and Component

Figure 2-2 2.2 Indicator and Component

Chapter 3 Installation

3.1 Introduction for DIP Switch

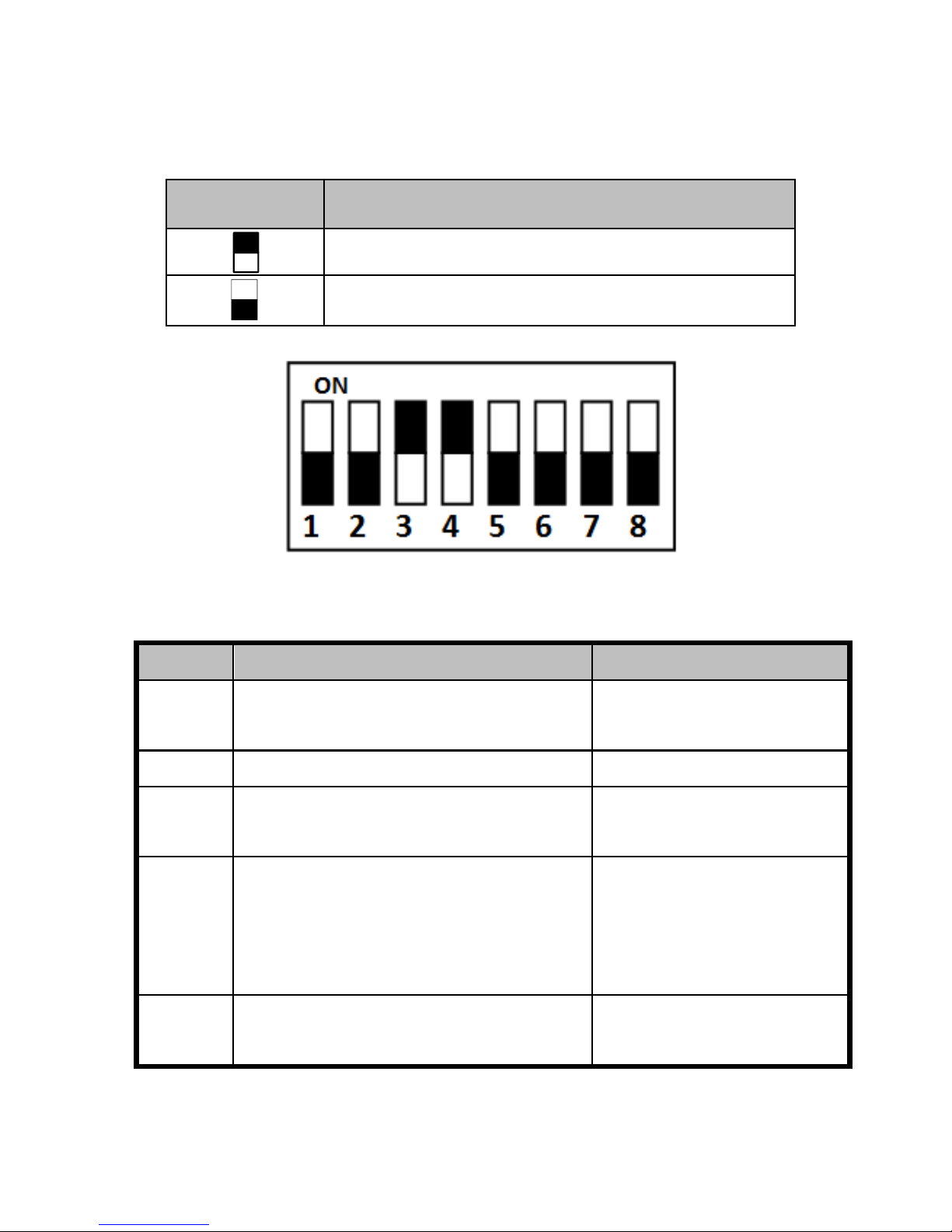

The DIP switch module is shown below. The No. of DIP switch

from left to right is 1 ~ 8.

Figure 3-1 DIP Switch Module

Table 3-1 Description of DIP Switch

Icon

Description

Represent 1 in binary mode

Represent 0 in binary mode

For example, binary value of the following status is: 0000 1100.

Figure 3-2 DIP Switch Module

Table 3-2 Description of DIP Switch

No.

Description

DIP Switch Status

1 ~ 4

Address of RS-485

1: 1

0: 0

Reserved

Wiegand protocol or RS-485

protocol.

1: Wiegand protocol;

0: RS-485 protocol.

Wiegand Protocol

(available when No. 6 is 1)

1: Wiegand protocol

of 26-bit;

0: Wiegand protocol

of 34-bit.

Matched Resistance

(available for RS-485 protocol)

1: Enable;

0: Disable.

3.2 Definition of Cable

The description of 10 cables is shown below.

Table 3-3 Description of Cable

Color

Description

Orange

Red LED Control (available for Wiegand Protocol)

White

Wiegand W1 (available for Wiegand Protocol)

Green

Wiegand W0 (available for Wiegand Protocol)

Green

RS-485B

Yellow

RS-485A

Red

PWR (+12 VDC)

Black

GND

Gray

TAMPER (available for Wiegand Protocol)

Purple

Beep Control (available for Wiegand Protocol)

Brown

Green LED Control (available for Wiegand

Protocol)

3.3 Wiring Cables

Purpose:

Wire the cables between controller and card reader, thus to

establish the communication between them.

Steps for RS-485 communication mode:

1. Set the DIP switch of No. 6 as 0.

2. Set the DIP switch of No. 1 ~ 4 for RS-485 address and

reading card mode. For details, please refer to 3.1

Introduction for DIP Switch.

3. Wire the cable between controller and card reader as

shown below.

Yellow

Blue

Black

Red

Black

Red

Green

White

Purple

Orange

Brown

Controller

Card Reader

Card Reader Card Reader

Green

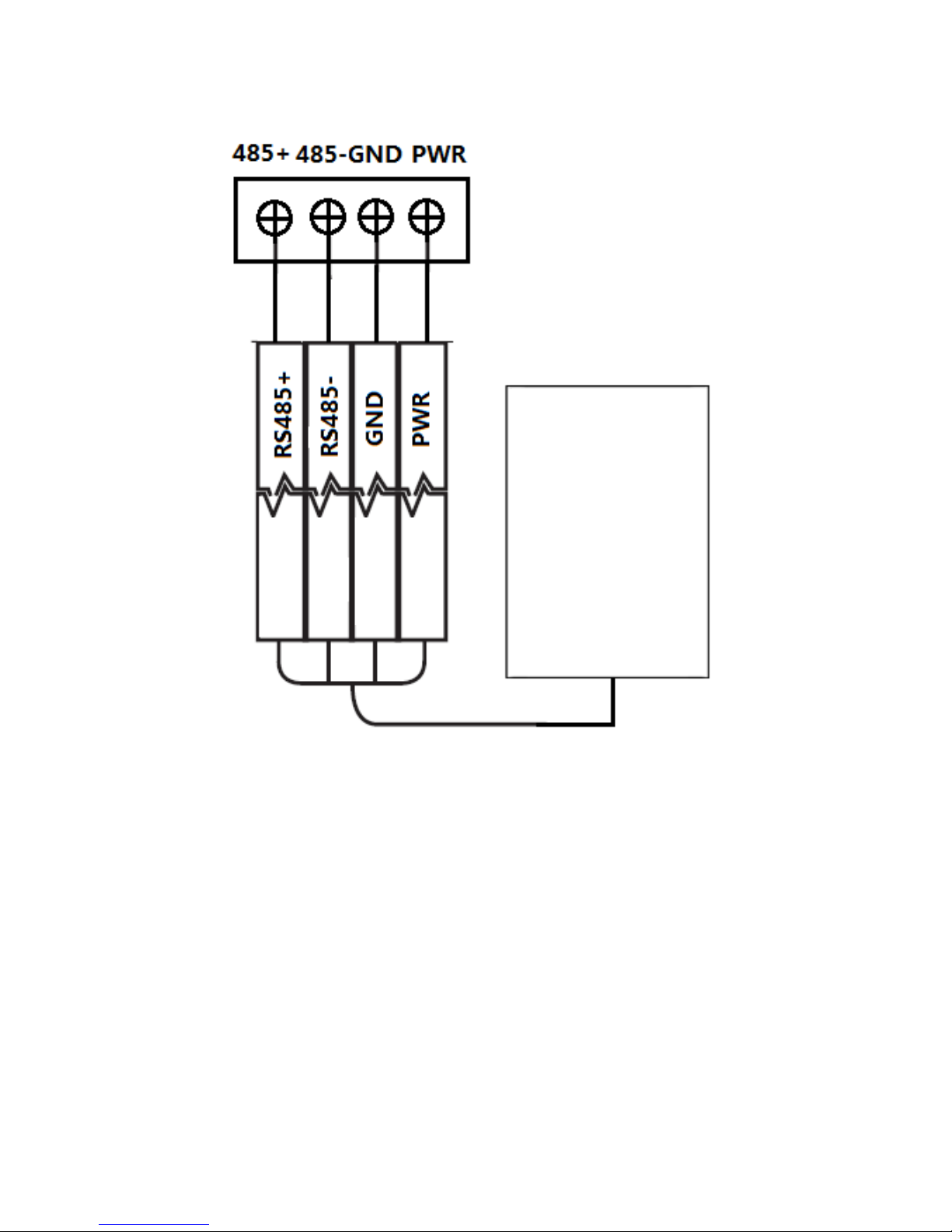

Figure 3-3 Wiring for RS-485 Communication Mode

Steps for Wiegand communication mode:

1. Set the DIP switch of No. 6 as 1.

2. Set the DIP switch of No. 7 for reading card mode and

Wiegand protocol. For details, please refer to 3.1

Introduction for DIP Switch.

3. Wiring the cable between controller and card reader as

shown below.
