User Manual of DS-1004KI Keyboard

DS-1005KI Keyboard

User Manual

UD.6L0203D1099A01

User Manual of DS-1005KI Keyboard

Regulatory information

FCC information

FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may

cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the

applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC

Directive 2004/108/EC, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal

waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of

equivalent new equipment, or dispose of it at designated collection points. For more information see:

www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal

waste in the European Union. See the product documentation for specific battery information. The battery is

marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For

proper recycling, return the battery to your supplier or to a designated collection point. For more information see:

www.recyclethis.info.

User Manual of DS-1005KI Keyboard

Preventive and Cautionary Tips

Before connecting and operating your keyboard, please be advised of the following tips:

Ensure unit is placed in a well-ventilated, dust-free environment.

Keep all liquids away from the keyboard.

Please check the power supply to avoid the damage caused by voltage mismatch.

Please make sure the keyboard work in the allowed range of temperature and humidity.

Please keep the device horizontal and avoid the installation under severe vibration

environment.

The dust board will cause a short circuit after damping. Please dedust regularly for the board,

connector, and chassis fan with brush.

User Manual of DS-1005KI Keyboard

Table of Contents

Chapter 1 Product Overview........................................................................................................ 4

1.1 Device Introduction..................................................................................................... 4

1.2 Typical Application..................................................................................................... 4

1.3 Controlling Mode........................................................................................................ 4

Chapter 2 Device Appearance...................................................................................................... 6

2.1 DS-1005KI Keyboard ................................................................................................. 6

2.2 DS-1005KI Keyboard Joystick ................................................................................... 7

Chapter 3 Keyboard Application .................................................................................................. 8

3.1 USB Keyboard Mode.................................................................................................. 8

3.1.1 Setting Keyboard Mode .................................................................................. 8

3.1.2 Keyboard Control............................................................................................ 8

3.2 USB Joystick Mode................................................................................................... 10

3.2.1 Keyboard Parameter Settings........................................................................ 10

3.2.2 Keyboard Control.......................................................................................... 10

Appendix1: Specification............................................................................................................... 12

Appendix2: Device Upgrade.......................................................................................................... 13

User Manual of DS-1005KI Keyboard

Chapter 1 Product Overview

1.1 Device Introduction

DS-1005KI keyboard is a kind of USB interface controlling keyboard which supports USB HID

protocol; it can be applied with USB joystick mode and supports various programmable keys for

users to set custom functions. It is equipped with simple interfaces and the operation is simple.

This keyboard can be widely used in public security and transportation as other fields.

1.2 Typical Application

Make sure the DVR and PC-DVR connected support the DS-1005KI keyboard access.

DS-1005KI is a USB keyboard independently developed by Hikvision and it can be accessed

directly by the client software, platform software of iVMS series, DVR and PC-DVR, and can

realize functions such as windows switch, PTZ control, capture, recording, etc.

1.3 Controlling Mode

The DS-1005KI keyboard connects with PC via keyboard USB interface and supports two ways of

controlling: USB keyboard mode and USB joystick mode.

DS-1005KI is compatible with the USB joystick via USB HID protocol, and can access to the

third-party platform software. It can be applied with USB joystick mode and supports capture,

User Manual of DS-1005KI Keyboard

PTZ control and window switch. The default mode is set as USB joystick mode when it is

powered on for the first time; there is no need to install the drive.

USB keyboard mode supports private SDK accessing and functions such as quick switch, PTZ

control, capture and recording.

It is required to install a drive before setting the DS-1005KI to USB keyboard mode. Two types of

drives can be selected, depending on 32 BIT system or 64 BIT system.

User Manual of DS-1005KI Keyboard

Chapter 2 Device Appearance

2.1 DS-1005KI Keyboard

7 8

Refer to the following table for the description of the keyboard:

NO.

Key Name

Function Description

Number Key

USB Keyboard Mode: For selecting window or channel;

USB Joystick Mode: For custom shortcuts;

USB Keyboard Mode: For confirming the input number;

Window/Channel

Press and hold it for 5s to switch between keyboard mode and

joystick mode;

USB Keyboard Mode: For selecting window switching mode or

channel switching mode;

(The window indicator lights while in window switching mode;

and the channel indicator lights while in channel switching mode.)

Capturing

USB Keyboard Mode: Capture;

USB Joystick Mode: Custom shortcut as number 12;

Recording

USB Keyboard Mode: For recording;

USB Joystick Mode: Custom shortcut as number 11;

F1, F2, F3

USB Keyboard Mode: Custom Shortcut;

Indicator

Single Indicator: The keyboard is in USB keyboard mode;

Double Indicator: The keyboard is in USB joystick mode;

Digital Tube

Display the input number.

User Manual of DS-1005KI Keyboard

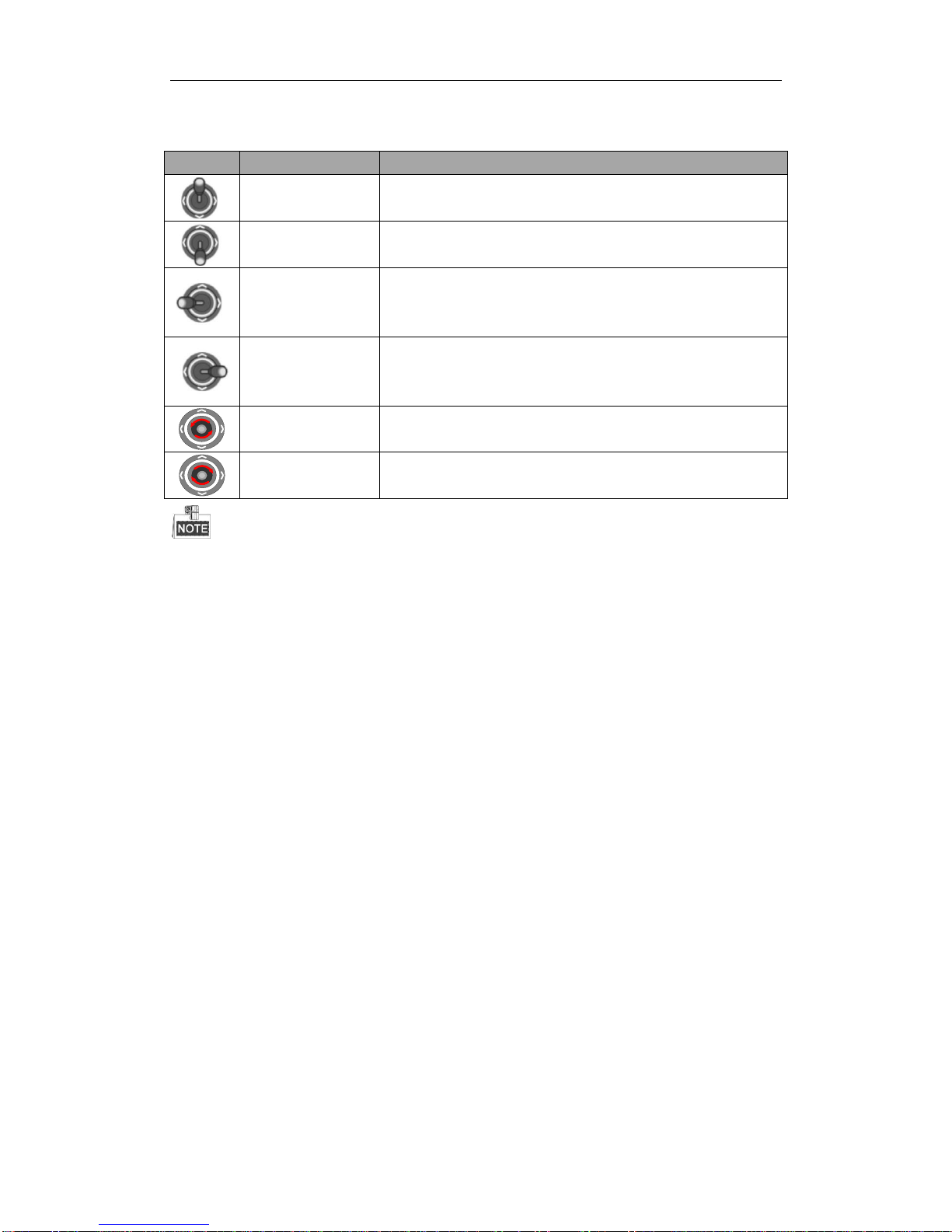

2.2 DS-1005KI Keyboard Joystick

Graphic

Operation

Function

PTZ control mode: Move the PTZ up.

Down

PTZ control mode: Move the PTZ down.

Left

PTZ control mode: Move the PTZ left.

Right

PTZ control mode: Move the PTZ right.

Contrarotate

Zoom Out(ZOOM-)

Clockwise Rotate

Zoom In(ZOOM+)

With the joystick moving in different ranges, the PTZ moves with different speeds that can divide

in 7 levels of speed.

User Manual of DS-1005KI Keyboard

Chapter 3 Keyboard Application

3.1 USB Keyboard Mode

3.1.1 Setting Keyboard Mode

Press and hold the key Window/Channel for 5s, and the keyboard will auto switch its mode. If

the single indicator is on, it implies that it is in USB keyboard mode.

3.1.2 Keyboard Control

USB keyboard mode supports window switch between client live view interface and video wall

interface, focusing window channel switch and PTZ control functions. The buttons F1, F2 and F3

can be set as functions like previous, next, preset, etc. according to certain needs and it supports

capturing and recording functions in the live view interface.

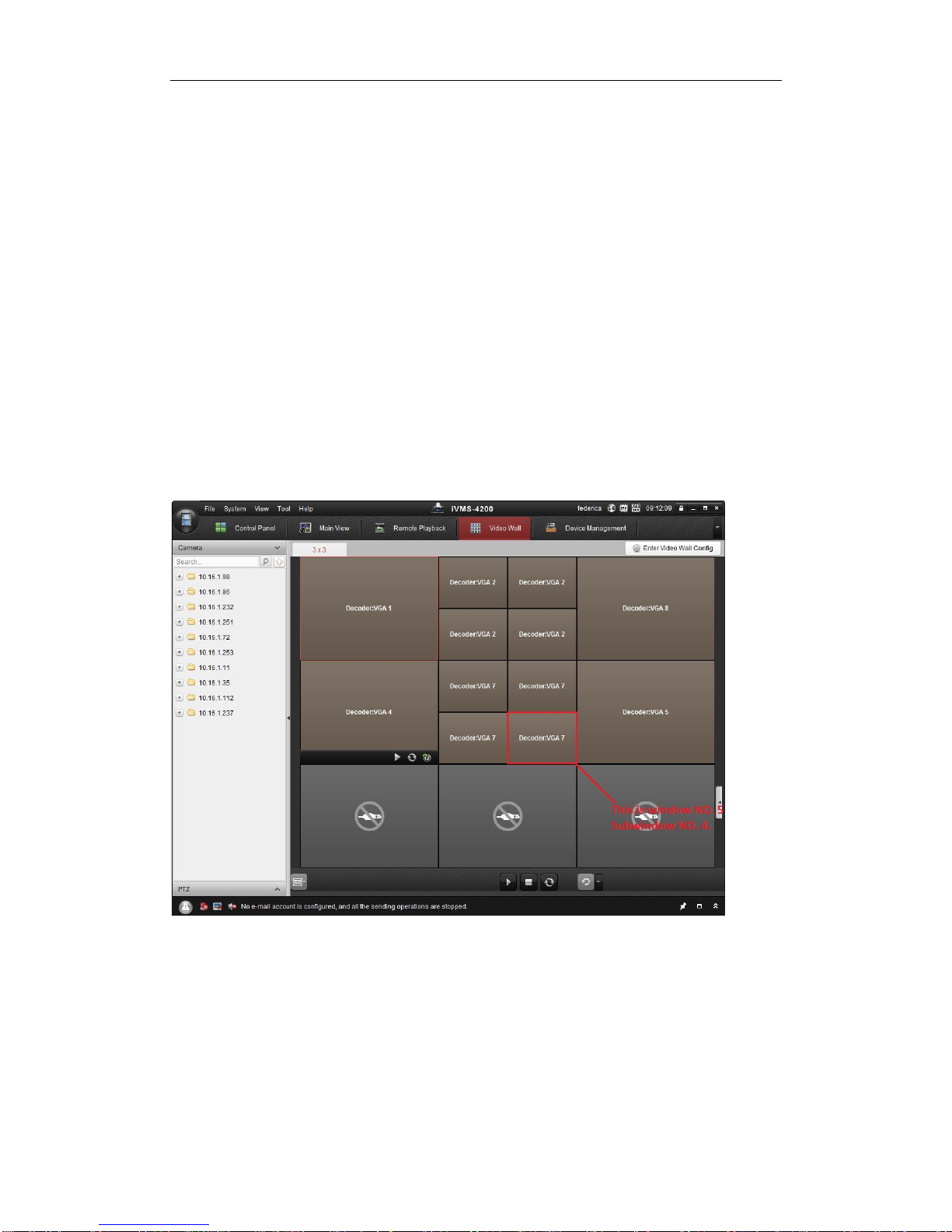

1. Shortcut Switch:

Click the button Window/Channel in the main live view interface or video wall interface, and the

window indicator will light. Click the number Iand the OK button, and it will switch to the

corresponding window. If the client supports camera switch function, you can click the button

Window/Channel and the indicator will light; then you click the number Jand the OK button to

switch the channel Jto window I.

Example: You can input number 504 or 0504 with the OK button as the figure above to switch to

the sub window 4 of window 5.

User Manual of DS-1005KI Keyboard

The input number I can be at most 4-digit number;

When the input number Iis 1-99, it implies the number of the selected window. It can be at

most 99 windows;

When the input number I is 1112, it implies the sub window 12 of window 11. When the input

number is 3-digit or 4-digit, the last two numbers implies sub window number, and the first one or

two numbers implies the window number. If the input number is 101, the selected window is sub

window 1 of window 1; if the input number is 0016, the selected window is window 16.

When the input number Iis hundreds (e.g., 100,200), the input number is invalid and the client

will not respond.

The window number and sub window number are counted from left to right and from top to

bottom.

2. Joystick: After selecting window in live view or video wall interface, move the joystick to

control the direction and zoom in or zoom out the channel of window. The moving speed of

dome is related to the movement of the joystick.

3. F1, F2, F3：

Click Tool-> System Configuration-> Keyboard and Joystick-> USB Keyboard on client and

then configure the corresponding shortcut keys of F1, F2, and F3. Select the window in live view

mode or video wall interface and operate according to each shortcut.

It supports shortcut settings as Speed Up, Speed Down, Focus, IRIS, Turn on the light,

Turn on the windshield wiper,Auto-Scanning,Auxiliary Focus, Lens Initialization, Previous,

Next, Preset, Patrol, Pattern;
