HIK VISION DS-9600 Series Manuale utente

User Manual of DS-9600/8600/7700/7600 Series NVR

Hikvision® Network Digital Video Recorder User Manual

This manual, as well as the software described in it, is furnished under license and may be used or

copied only in accordance with the terms of such license. The content of this manual is furnished for

informational use only, is subject to change without notice, and should not be construed as a

commitment by Hikvision Digital Technology Co., Ltd. (Hikvision). Hikvision assumes no

responsibility or liability for any errors or inaccuracies that may appear in the book.

Except as permitted by such license, no part of this publication may be reproduced, stored in a retrieval

system, or transmitted, in any form or by any means, electronic, mechanical, recording, or otherwise,

without the prior written permission of Hikvision.

HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT

LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, REGARDING THE HIKVISION SOFTWARE. HIKVISION DOES NOT

WARRANT, GUARANTEE, OR MAKE ANY REPRESENTATIONS REGARDING THE USE OR

THE RESULTS OF THE USE OF THE HIKVISION SOFTWARE IN TERMS OF ITS

CORRECTNESS, ACCURACY, RELIABILITY, CURRENTNESS, OR OTHERWISE. THE ENTIRE

RISK AS TO THE RESULTS AND PERFORMANCE OF THE HIKVISION SOFTWARE IS

ASSUMED BY YOU. THE EXCLUSION OF IMPLIED WARRANTIES IS NOT PERMITTED BY

SOME STATES. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.

IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE

LIABLE TO YOU FOR ANY CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES

(INCLUDING DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION,

LOSS OF BUSINESS INFORMATION, AND THE LIKE) ARISING OUT OF THE USE OR

INABILITY TO USE THE HIKVISION SOFTWARE EVEN IF HIKVISION HAS BEEN ADVISED

OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE

EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL

DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

User Manual of DS-9600/8600/7700/7600 Series NVR

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply

therefore with the applicable harmonized European standards listed under the Low Voltage Directive

2006/95/EC, the EMC Directive 2004/108/EC.

2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted

municipal waste in the European Union. For proper recycling, return this product to your local

supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted

municipal waste in the European Union. See the product documentation for specific battery

information. The battery is marked with this symbol, which may include lettering to indicate

cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier

or to a designated collection point. For more information see: www.recyclethis.info.

Description on Laser Specification

The optical disc drive such as DVD Super Multi (Double Layer) Drive 22X that is used in this computer is equipped

with laser. The classification label with the following sentence is affixed to the surface of the drive.

CLASS 1 LASER

PRODUCT TO IEC60825-1

LASER KLASSE 1

The drive with the above label is certified by the manufacturer that the drive complies with the requirement for laser

product on the date of manufacturing pursuant to article 21 of Code of Federal Regulations by the United States of

America, Department of Health & Human Services, Food and Drug Administration.

In other countries, the drive is certified to comply with the requirement pursuant to IEC 60825-1 and EN 60825-1 on

class 1 laser product.

This computer is equipped with the optical disc drive in the following list according to the model.

User Manual of DS-9600/8600/7700/7600 Series NVR

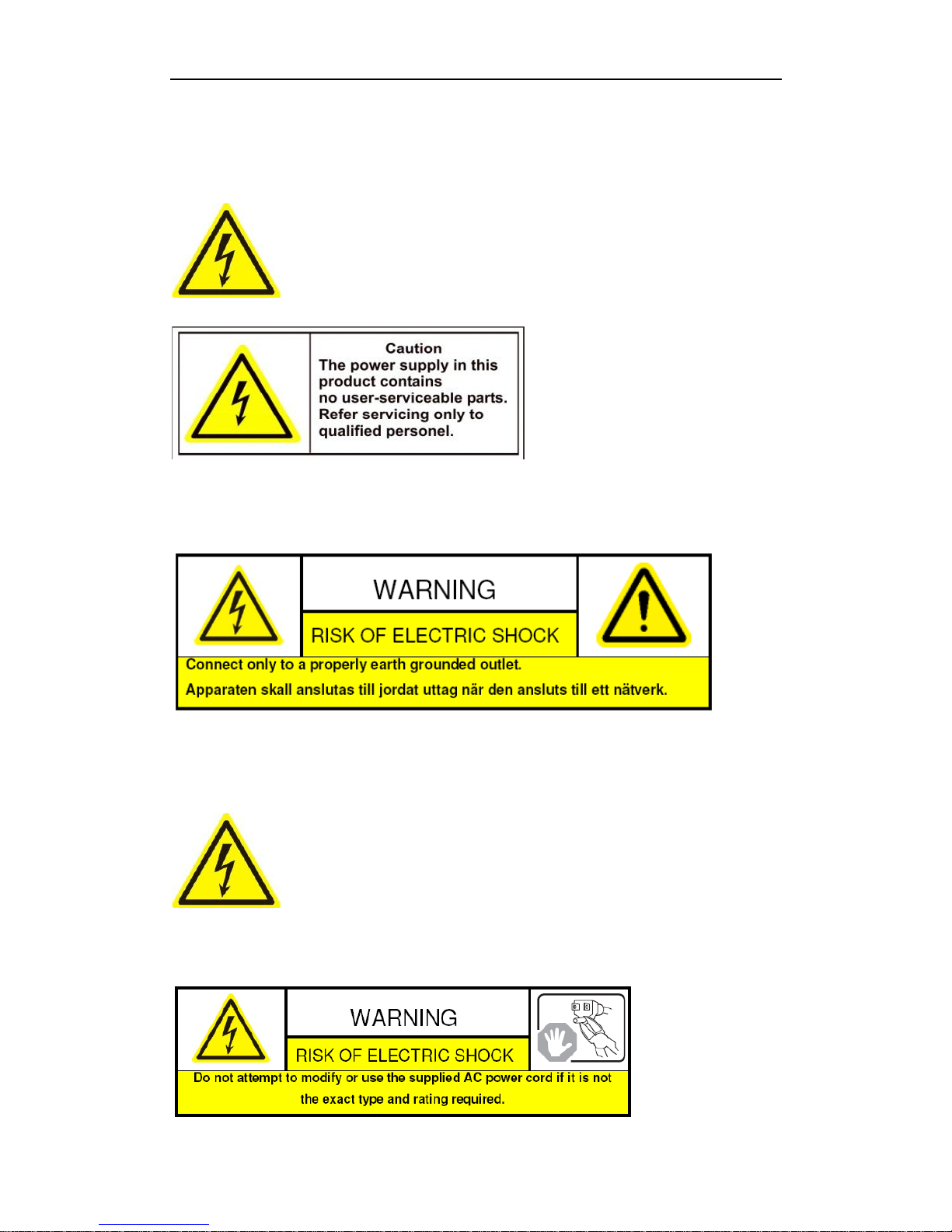

Safety Warnings and Cautions

Please pay attention to the following warnings and cautions:

Hazardous Voltage may be present: Special measures and precautions must be

taken when using this device. Some potentials (voltages) on the device may present a

hazard to the user. This device should only be used by the Employees from our company

with knowledge and training in working with these types of devices that contain live circuits.

Power Supply Hazardous Voltage: AC mains voltages are present within the power supply assembly. This

device must be connected to a UL approved, completely enclosed power supply, of the proper rated voltage and

current. No user serviceable parts inside the power supply.

System Grounding (Earthing): To avoid shock, ensure that all AC wiring is not exposed and that the earth

grounding is maintained. Ensure that any equipment to which this device will be attached is also connected to

properly wired grounded receptacles and are approved medical devices.

Power Connect and Disconnect: The AC power supply cord is the main disconnect

device to mains (AC power).The socket outlet shall be installed near the equipment and

shall be readily accessible.

Installation and Maintenance: Do not connect/disconnect any cables to or perform installation/maintenance

on this device during an electrical storm.

User Manual of DS-9600/8600/7700/7600 Series NVR

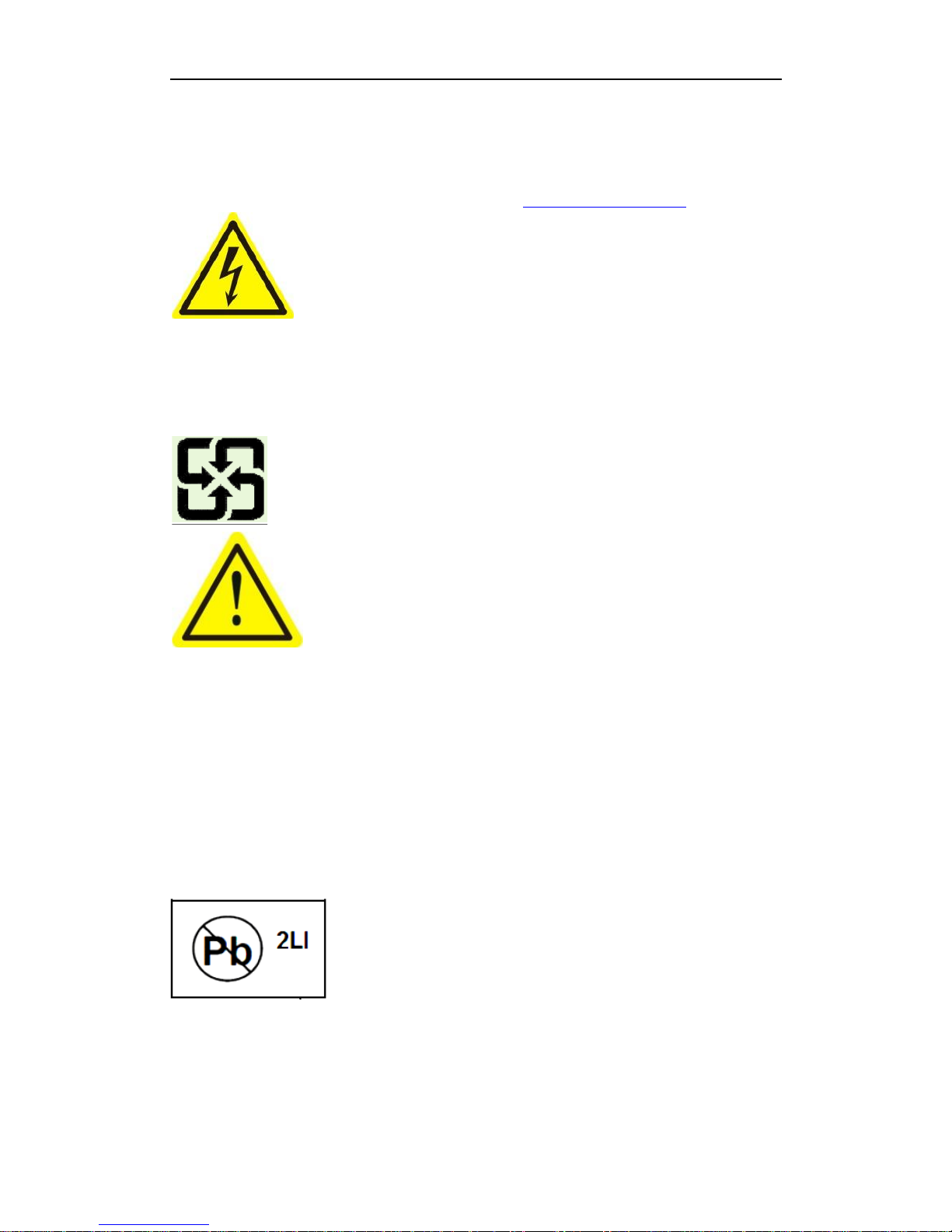

Power Cord Requirements: The connector that plugs into the wall outlet must be a grounding-type male

plug designed for use in your region. It must have certification marks showing certification by an agency in your

region. The connector that plugs into the AC receptacle on the power supply must be an IEC 320, sheet C13,

female connector. See the following website for more information http://kropla.com/electric2.htm.

Lithium Battery: This device contains a Lithium Battery. There is a risk of explosion

if the battery is replaced by an incorrect type. Dispose of used batteries according to the

vendor’s instructions and in accordance with local environmental regulations.

Perchlorate Material: Special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate. This notice is required by California Code

of Regulations, Title 22, Division 4.5, Chapter 33: Best Management Practices for Perchlorate Materials. This

device includes a battery which contains perchlorate material.

Taiwan battery recycling:

Please recycle batteries.

Thermal and Mechanical Injury: Some components such as heat sinks, power

regulators, and processors may be hot; care should be taken to avoid contact with these

components.

Electro Magnetic Interference: This equipment has not been tested for compliance with emissions limits of

FCC and similar international regulations. This device is not, and may not be, offered for sale or lease, or sold, or

leased until authorization from the United States FCC or its equivalent in other countries has been obtained. Use of

this equipment in a residential location is prohibited. This equipment generates, uses and can radiate radio

frequency energy which may result in harmful interference to radio communications. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment on and off,

the user is required to take measures to eliminate the interference or discontinue the use of this equipment.

Lead Content:

Please recycle this device in a responsible manner. Refer to local environmental

regulations for proper recycling; do not dispose of device in unsorted municipal

waste.

User Manual of DS-9600/8600/7700/7600 Series NVR

Preventive and Cautionary Tips

Before connecting and operating your device, please be advised of the following tips:

•Ensure unit is installed in a well-ventilated, dust-free environment.

•Unit is designed for indoor use only.

•Keep all liquids away from the device.

•Ensure environmental conditions meet factory specifications.

•Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it

may cause damage to the sensitive electronics within the unit.

•Use the device in conjunction with an UPS if possible.

•Power down the unit before connecting and disconnecting accessories and peripherals.

•A factory recommended HDD should be used for this device.

•Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or

equivalent type only. Dispose of used batteries according to the instructions provided by the battery

manufacturer.

User Manual of DS-9600/8600/7700/7600 Series NVR

Product Key Features

General

Connectable to network cameras, network dome and DVS.

Connectable to the third-party network cameras like AXIS, ONVIF, PANASONIC,

PSIA, SAMSUNG and SANYO.

PAL/NTSC adaptive video inputs.

Each channel supports dual-stream.

Up to 32 network cameras can be added. (For 7600NI-ST/SP series NVR, up to 16

network cameras can be connected. For 7600NI-SE(/N) series NVR, up to 8 network

cameras can be connected)

Independent configuration for each channel, including resolution, frame rate, bit rate,

image quality, etc.

The quality of the imported and exported record is configurable.

Local Monitoring

Simultaneous HDMI, VGA and CVBS outputs. (Not supported with

DS-7600NI-SE(/N) series NVR.)

HDMI output and VGA output at up to 1920×1080 resolution.

Multiple screen display in live view is supported, and the display sequence of screens

is adjustable.

Live view screen can be switched in group, and manual switch and automatic cycle

review is also provided, the interval of automatic cycle can be adjusted.

Quick setting menu is provided for live view.

Motion detection, tamper-proof, video exception alert and video loss alert functions.

Privacy mask.

Several PTZ protocols supported; PTZ preset, patrol and pattern.

Zooming in by clicking the mouse and PTZ tracing by dragging mouse.

HDD Management

Up to 8 SATA hard disks, 8 network disks (8 NAS disks, or 7 NAS disks+1 IP SAN

disk) and 1 eSATA disk can be connected, each disk with a maximum of 4TB storage

capacity. (For 9600NI-XT series, up to 16 SATA hard disks and 2 eSATA disks can be

connected. For 7600NI-ST/SP series, 2 SATA hard disks are available. For

7700NI-ST/SP series, 4 SATA hard disks and 1 eSATA disk can be connected. For

7600NI-SE(/N) series, 2 SATAhard disks can be connected.)

Support eSATA disks for recording or backup.

HDD group management.

Support HDD standby function.

HDD property: redundancy, read-only, read/write (R/W).

HDD quota management; different capacity can be assigned to different channel.

Support RAID0, RAID1, RAID5, RAID10 storage scheme. And 8 virtual disks can be

configured. (Only for the DS-9600NI-RT series NVR.)

Recording, Capture and Playback

Holiday recording schedule configuration.

User Manual of DS-9600/8600/7700/7600 Series NVR

Normal and event video encoding parameters.

Multiple recording types: manual, normal, alarm, motion, motion | alarm, motion &

alarm.

8 recording time periods with separated recording types.

Pre-record and post-record for alarm, motion detection for recording, and pre-record

time for schedule and manual recording.

Searching record files and captured pictures by events (alarm input/motion detection).

Tag adding for record files, searching and playing back by tags.

Locking and unlocking record files.

Local redundant recording and capture. (For DS-7600NI-SE(/N) series NVR,

redundant recording is only supported.)

Searching and playing back record files by channel number, recording type, start time,

end time, etc.

Motion analysis for the selected area in the video.

Zooming in when playback.

Playing reversely.

Adverse Playback of Multi-channel.

Supports pause, rewind, play fast, play slow, skip forward, and skip backward when

playback, locating by dragging the mouse.

Up to 16-ch synchronous playback at 4CIF real time.

Manual capture, continuous capture of video images and playback of captured pictures.

(Not supported with DS-7600NI-SE(/N) series NVR.)

Backup

Export video data by USB, SATA or eSATA device. (Backup by eSATA is not

supported with DS-7600NI-SE(/N) series NVR.)

Export video clips when playback.

Management and maintenance of backup devices.

Alarm and Exception

Configurable arming time of alarm input/output.

Alarm for video loss, motion detection, tampering, abnormal signal, video input/output

standard mismatch, illegal login, network disconnected, IP confliction, abnormal

record/capture, HDD error, and HDD full, etc.

Alarm triggers full screen monitoring, audio alarm, notifying surveillance center,

sending email and alarm output.

Automatic restore when system is abnormal.

Other Local Functions

Users can operate by front panel, mouse, remote control, and control keyboard.

Three-level user management; admin user is allowed to create many operating

accounts and define their operating permission, which includes the limit to access any

channel.

Operation, alarm, exceptions and log recording and searching.

Manually triggering and clearing alarms.

Import and export of device configuration information.

Network Functions

2 self-adaptive 10M/100M/1000M network interfaces, and various working mode is

User Manual of DS-9600/8600/7700/7600 Series NVR

configurable: multi-address, load balance, network fault tolerance, etc. (Two NIC are

only for the DS-9600NI-ST/RT/XT series NVR.)

8 independent PoE network interfaces are provided for DS-7700/7600NI-SP series.

8 independent network interfaces with switch function are provided for

DS-7600NI-SE/N series.

IPv6 is supported.

TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, and

iSCSI are supported.

TCP, UDP and RTP for unicast.

Remote search, playback, download, locking and unlocking the record files, and

downloading files broken transfer resume.

Remote parameters setup; remote import/export of device parameters.

Remote viewing of the device status, system logs and alarm status.

Remote keyboard operation.

Remote locking and unlocking of control panel and mouse.

Remote HDD formatting and program upgrading.

Remote system restart and shutdown.

RS-232, RS-485 transparent channel transmission.

Alarm and exception information can be sent to the remote host

Remotely start/stop recording.

Remotely start/stop alarm output.

Remote PTZ control.

Remote JPEG capture. (Not supported with DS-7600NI-SE(/N) series NVR.)

Two-way voice talk and voice broadcasting.

Embedded WEB server.

Development Scalability:

SDK for Windows and Linux system.

Source code of application software for demo.

Development support and training for application system.

User Manual of DS-9600/8600/7700/7600 Series NVR

TABLE OF CONTENTS

Product Key Features.........................................................................................................6

Chapter 1 Introduction....................................................................................................13

1.1 Front Panel...............................................................................................................14

1.2 IR Remote Control Operations.................................................................................22

1.3 USB Mouse Operation.............................................................................................24

1.4 Input Method Description........................................................................................25

1.5 Rear Panel................................................................................................................26

Chapter 2 Getting Started ...............................................................................................31

2.1 Starting Up and Shutting Down the NVR................................................................32

2.2 Using the Wizard for basic configuration ................................................................34

2.3 Adding and Connecting the IP Cameras ..................................................................39

2.3.1 Adding the online IP Cameras..................................................................39

2.3.2 Editing the connected IP cameras and Configuring Customized Protocols40

2.3.3 Editing IP cameras connected to the PoE interfaces (Only for

DS-7600/7700NI-SP series NVR)............................................................................42

2.3.4 Editing IP cameras connected to the extra network interfaces (Only

DS-7600NI-SE/N series NVR) ................................................................................44

Chapter 3 Live View.........................................................................................................46

3.1 Introduction of Live View........................................................................................47

3.2 Operations in Live View Mode................................................................................48

3.2.1 Front Panel Operation on Live View........................................................48

3.2.2 Using the Mouse in Live View.................................................................49

3.2.3 Using anAuxiliary Monitor .....................................................................50

3.2.4 Quick Setting Toolbar in Live View Mode ..............................................51

3.3 Adjusting Live View Settings ..................................................................................53

3.4 Channel-zero Encoding............................................................................................55

3.5 User Logout..............................................................................................................56

Chapter 4 PTZ Controls..................................................................................................57

4.1 Configuring PTZ Settings........................................................................................58

4.2 Setting PTZ Presets, Patrols & Patterns...................................................................59

4.2.1 Customizing Presets.................................................................................59

4.2.2 Calling Presets..........................................................................................60

4.2.3 Customizing Patrols.................................................................................61

4.2.4 Calling Patrols..........................................................................................62

4.2.5 Customizing Patterns ...............................................................................63

4.2.6 Calling Patterns........................................................................................64

4.3 PTZ Control Toolbar................................................................................................66

Chapter 5 Record and Capture Settings........................................................................67

5.1 Configuring Encoding Parameters...........................................................................68

5.2 Configuring Record/Capture Schedule ....................................................................71

5.3 Configuring Motion Detection Record and Capture................................................75

Altri manuali per DS-9600 Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HIK VISION Hardware di rete

HIK VISION

HIK VISION DS-9608NI-I8 Manuale utente

HIK VISION

HIK VISION DS-K3BC411X Series Manuale utente

HIK VISION

HIK VISION DS-9608NI-I8 Manuale utente

HIK VISION

HIK VISION DS-E04NI-Q1 Manuale utente

HIK VISION

HIK VISION DS-9616NI-I8 Manuale utente

HIK VISION

HIK VISION DS-9608NI-I8 Manuale utente

HIK VISION

HIK VISION DS-96128NI-E16 Manuale utente

HIK VISION

HIK VISION DS-MP3516-RS Manuale utente

HIK VISION

HIK VISION DS-7732NI-I4/16P Manuale utente

HIK VISION

HIK VISION DS-7608NI-K2/8P/4G Manuale utente

HIK VISION

HIK VISION DS-7700NXI-I/S Series Manuale utente

HIK VISION

HIK VISION DS-96128NI-H16DS-96128NI-H16/HDS-96128NI-H16/IDS-96128NI-H16/H/IDS-96128NI-F16DS-96128NI-F16/HDS-96128NI-F16/IDS-96128NI Manuale utente

HIK VISION

HIK VISION DS-9600NI-I16 DS-9616NI-I16 Manuale utente

HIK VISION

HIK VISION DS-9664NI-RH Series Manuale utente

HIK VISION

HIK VISION DS-96000NI-M8 Series Manuale utente

HIK VISION

HIK VISION DS-96128NI-H16 Manuale utente

HIK VISION

HIK VISION DS-7604NI-KI/W Manuale utente

HIK VISION

HIK VISION DeepinMind Super DS-96000NXI-I Series Manuale utente

HIK VISION

HIK VISION TBK-NVR2100 Series Manuale utente

HIK VISION

HIK VISION DS-96000NI-I16 Series Manuale utente

HIK VISION

HIK VISION DS-9600 Series Manuale utente

HIK VISION

HIK VISION DS-8600 Series Manuale utente

HIK VISION

HIK VISION DS-7100NI-Q1 Series Manuale utente

HIK VISION

HIK VISION DS-7604NI-SE/P Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
