HIK VISION DS-7604NI-E1/4P Manuale utente

www.hikvision.com/en/us

Quick Start Guide

Plug ’n Play NVR

DS-7604NI-E1/4P

DS-7608NI-E2/8P

Note: For more information refer to the complete User Manual located on the CD-ROM

www.hikvision.com/en/us

Please connecta monitor and a USB mouse (supplied) to the NVR for configuration purposes

OVERVIEW

1. Overview

2. Main Menu Layout

3. Formatting the HDD

4. Setting up Time/Date

5. Setting up The Network

6. Adding IP Cameras (Non-PoE Models)

7. Setting up Recording

8. Configuring the Mobile APP

9. Playing Back Recorded Video

10.Making a Backup

www.hikvision.com/en/us

Please note, that the Quick Start Guide is compiled for the latest firmware

versions. Please upgrade the firmware of the NVR to the latest version before

proceeding. Also note, that the CD may contain outdated manuals and software.

For the latest firmware, manual and software downloads please visit:

www.hikvision.com/en/us/download.asp

WHAT’S IN THE BOX

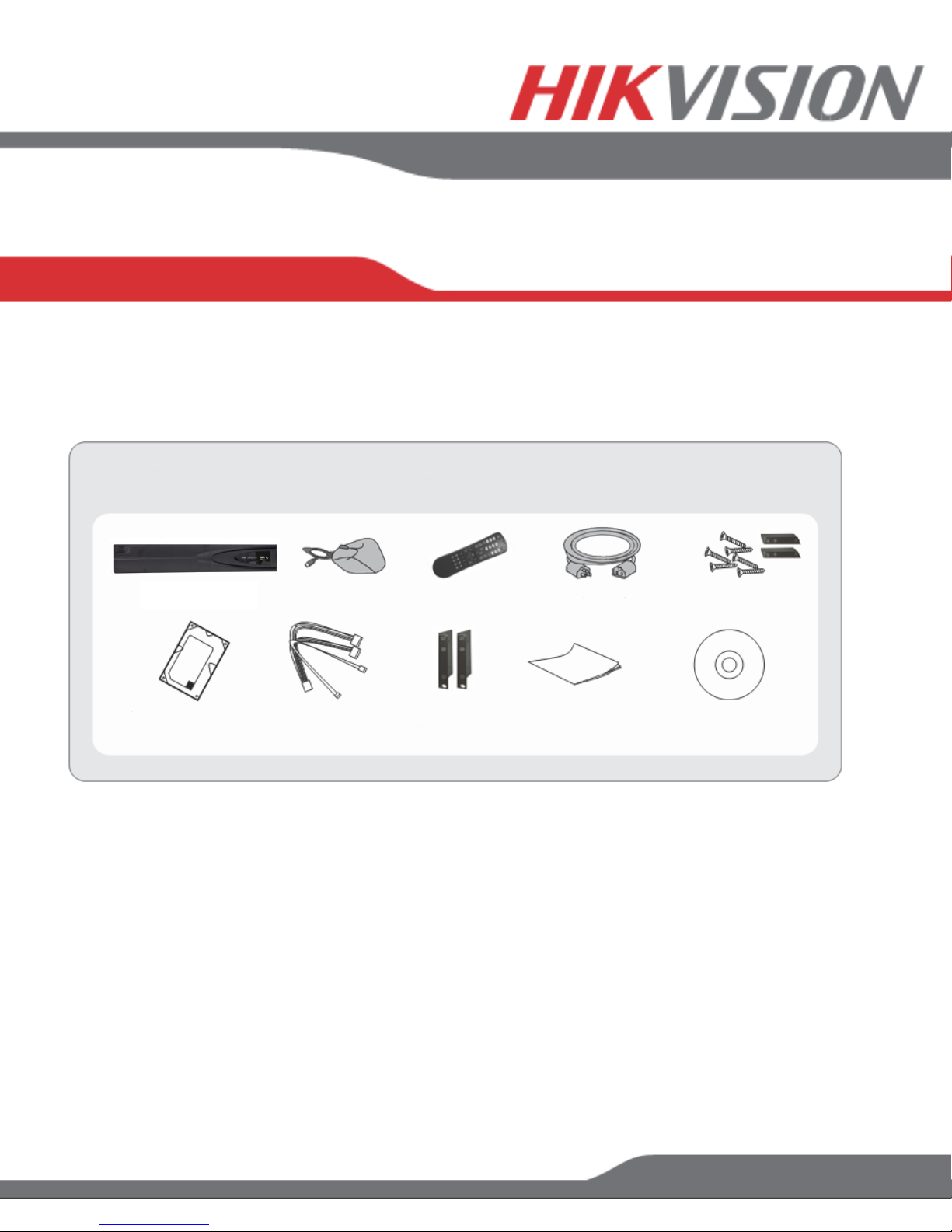

THE BOX CONTAINS:

1. OVERVIEW

NVR

USB Mouse

IR Remote

(Batteries not included)

Power Cord

Hard Drive Mounting

screws and brackets

Hard Drive

(Preinstalled)

Hard Drive Cables

Rack Mount Ear

(not included in 4-ch

model box)

Quick Start Guide

Manual/Software CD

www.hikvision.com/en/us

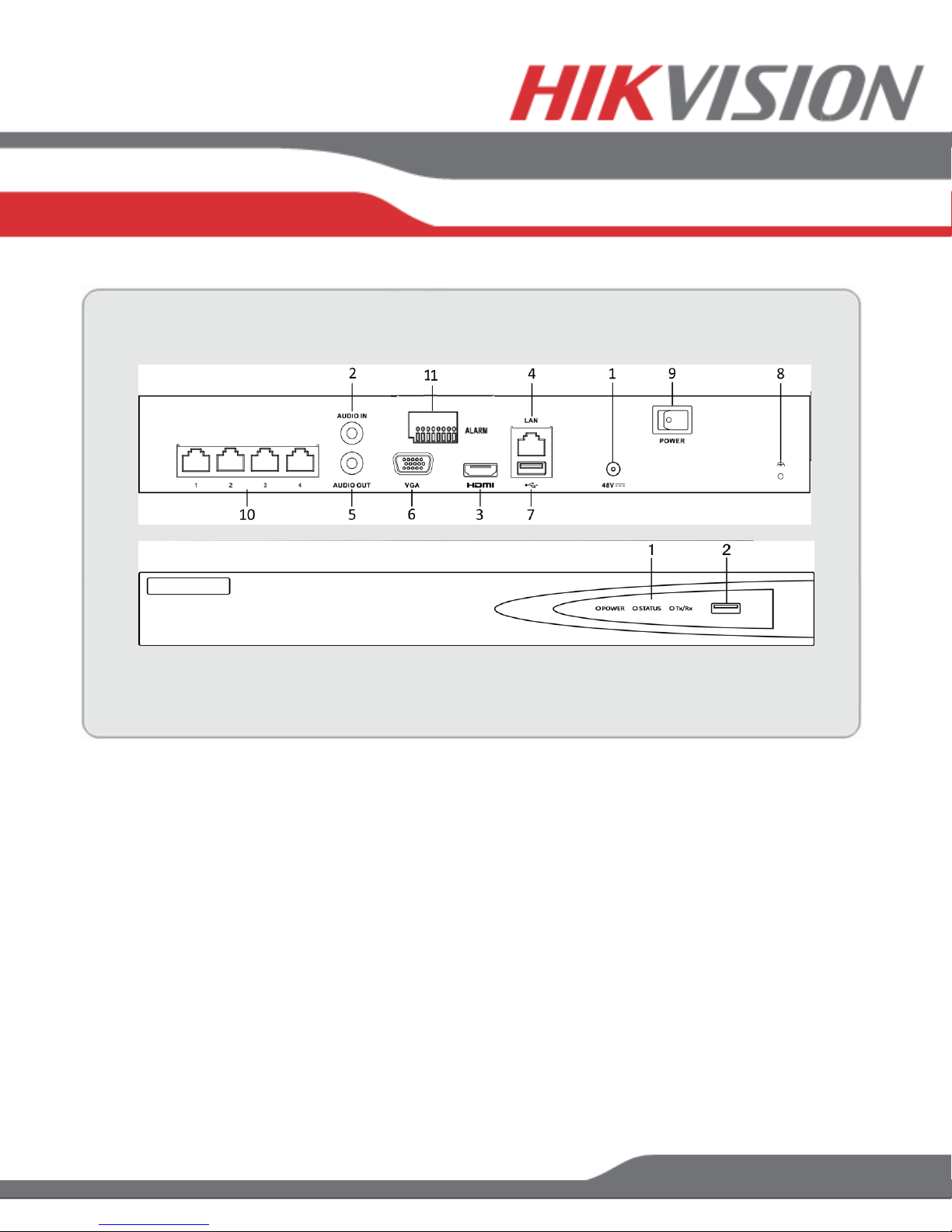

FRONT AND REAR VIEW

DS-7604NI-E1/4P

FRONT VIEW

1. Power, Status and Tx/Rx indicators

2. USB Port

REAR VIEW

1. Power Supply Port

2. Audio In

3. HDMI Monitor Output

4. Network Interface(RJ45)

5. Audio Out

6. VGA Output

7. USB Port

8. Grounding Screw

9. Power Switch

10. Built in POE Switch

11. Alarm In/Out

www.hikvision.com/en/us

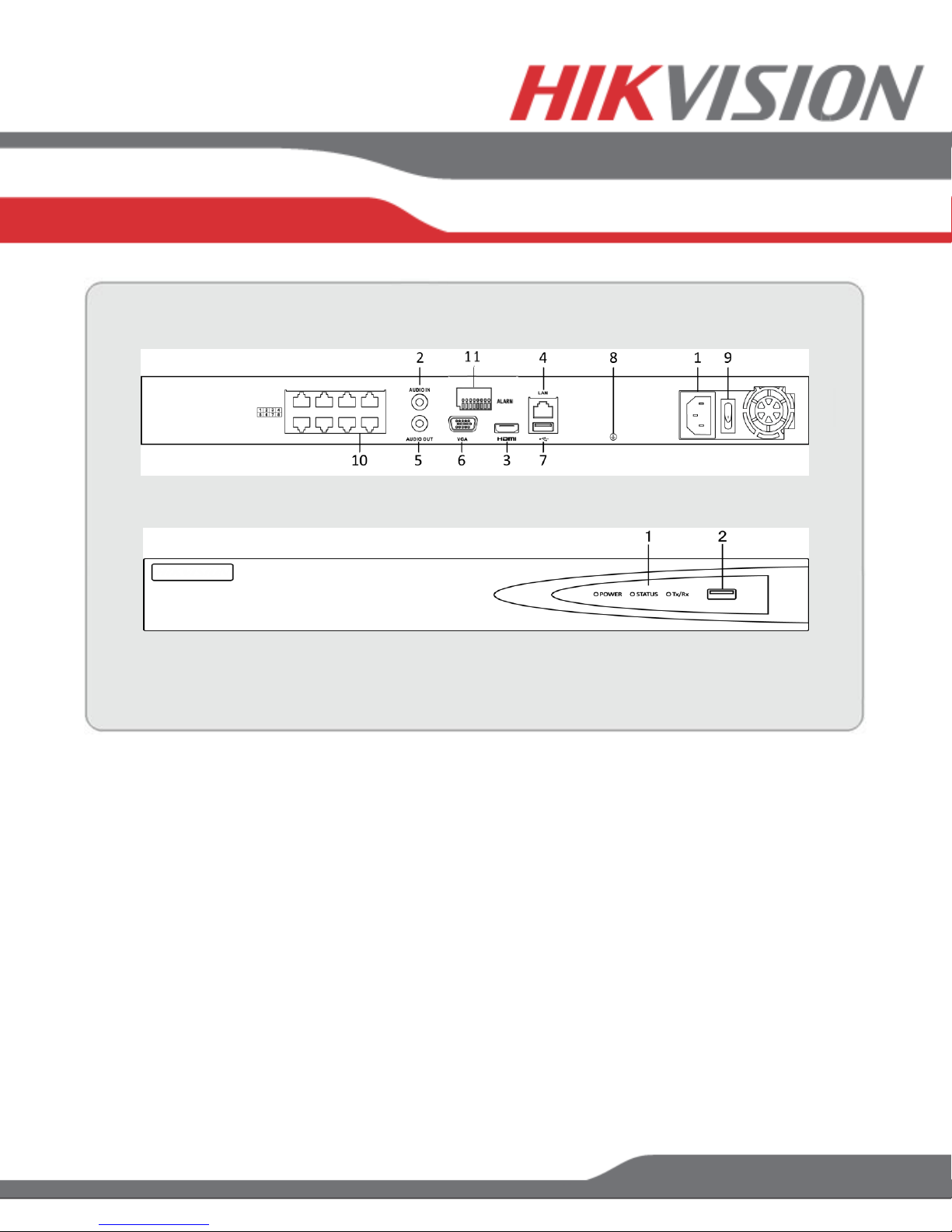

FRONT AND REAR VIEW

DS-7608NI-E2/8P

REAR VIEW

1. Power Supply Port

2. Audio In

3. HDMI Monitor Output

4. Network Interface(RJ45)

5. Audio Out

6. VGA Output

7. USB Port

8. Grounding Screw

9. Power Switch

10. Built in POE Switch

11. Alarm In/Out

FRONT VIEW

1. Power, Status and Tx/Rx indicators

2. USB Port

www.hikvision.com/en/us

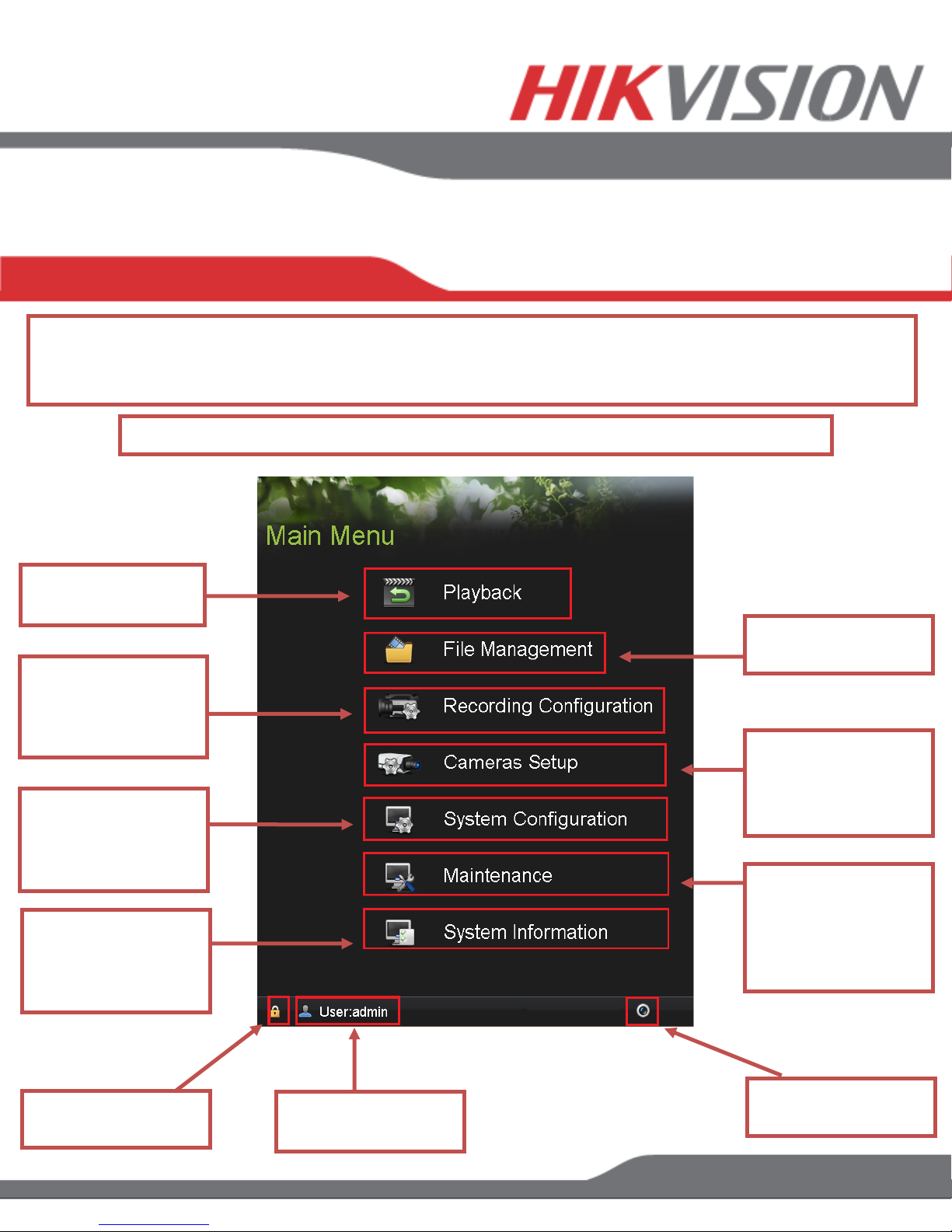

2. MAIN MENU LAYOUT

MAIN MENU LAYOUT

View recorded video

and make Backup

Setup recording type,

motion detection,

resolution and frame

rate and more

Setup Date/Time,

network, screen

settings, user

accounts and more

Model number,

firmware version,

camera status, HDD

status and more

Search for snapshots,

make large backups

Add cameras,

Change brightness,

contrast… Camera

name, PTZ, Privacy

mask

Upgrade firmware,

factory default,

system logs,

import/export

settings

Display the current

logged in user

Exit MENU to

Live View

DEFAULT USERNAME: admin DEFAULT PASSWORD: 12345

(Please note, that the username and password are case sensitive)

Log Out and Lock

the NVR

IT IS STRONGLY RECOMMENDED TO CHANGE THE DEFAULT PASSWORD

www.hikvision.com/en/us

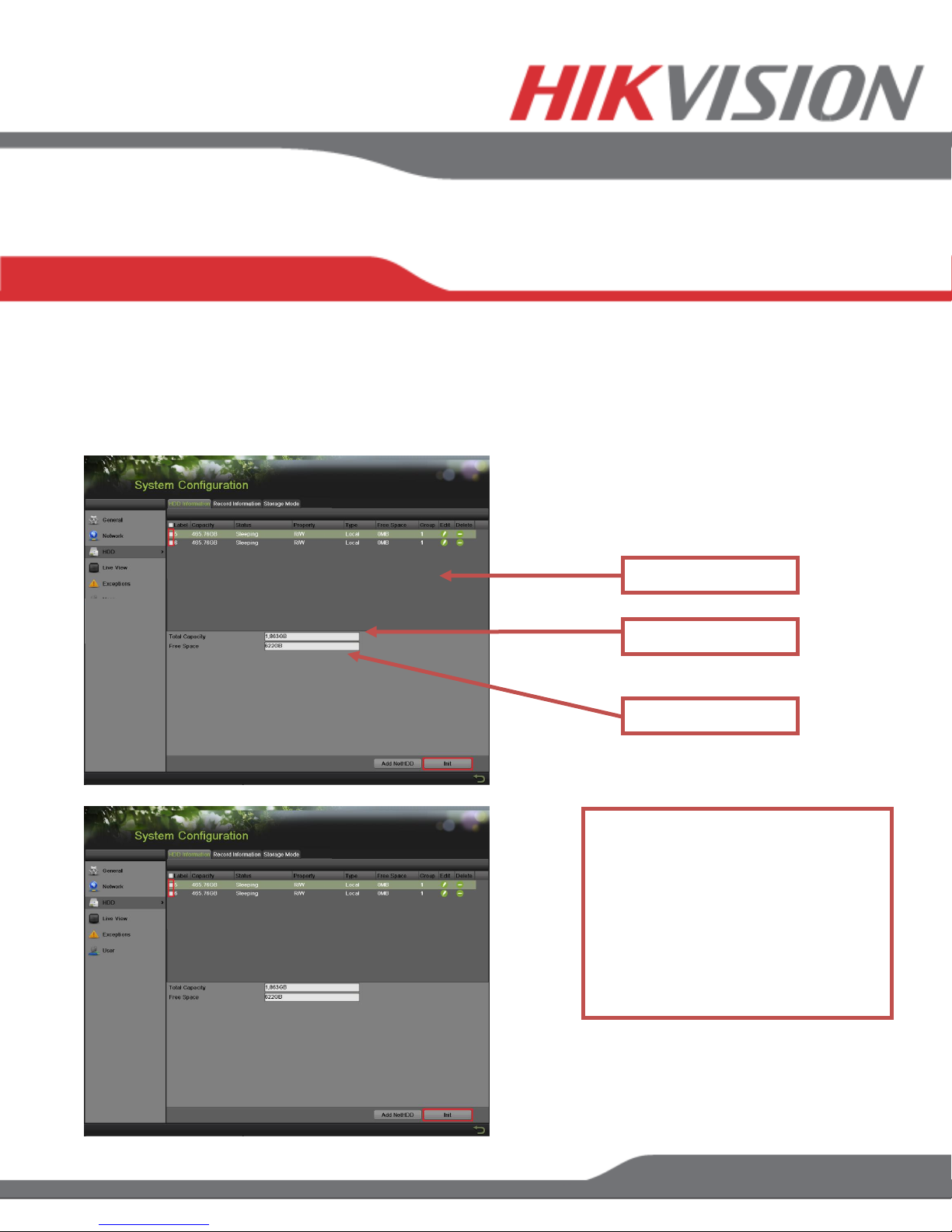

If the Hard Drive (HDD) is not formatted (initialized), the NVR will begin to beep. The beeping will

continue until the HDD is formatted. To format the HDD, go to:

“MENU” > “SYSTEM CONFIGURATION” > “HDD”

Select the HDDs that need to be formatted, and press “INIT”

FORMATTING THE HARD DRIVE

3. FORMATTING THE HARD DRIVE

Please Note:

Units purchased with HDDs,

already come with formatted

HDDs

Formatting the HDDs also erases

the recorded video from the HDDs

(this does not affect the settings).

Free Space

Total HDD Space

List of HDDs

www.hikvision.com/en/us

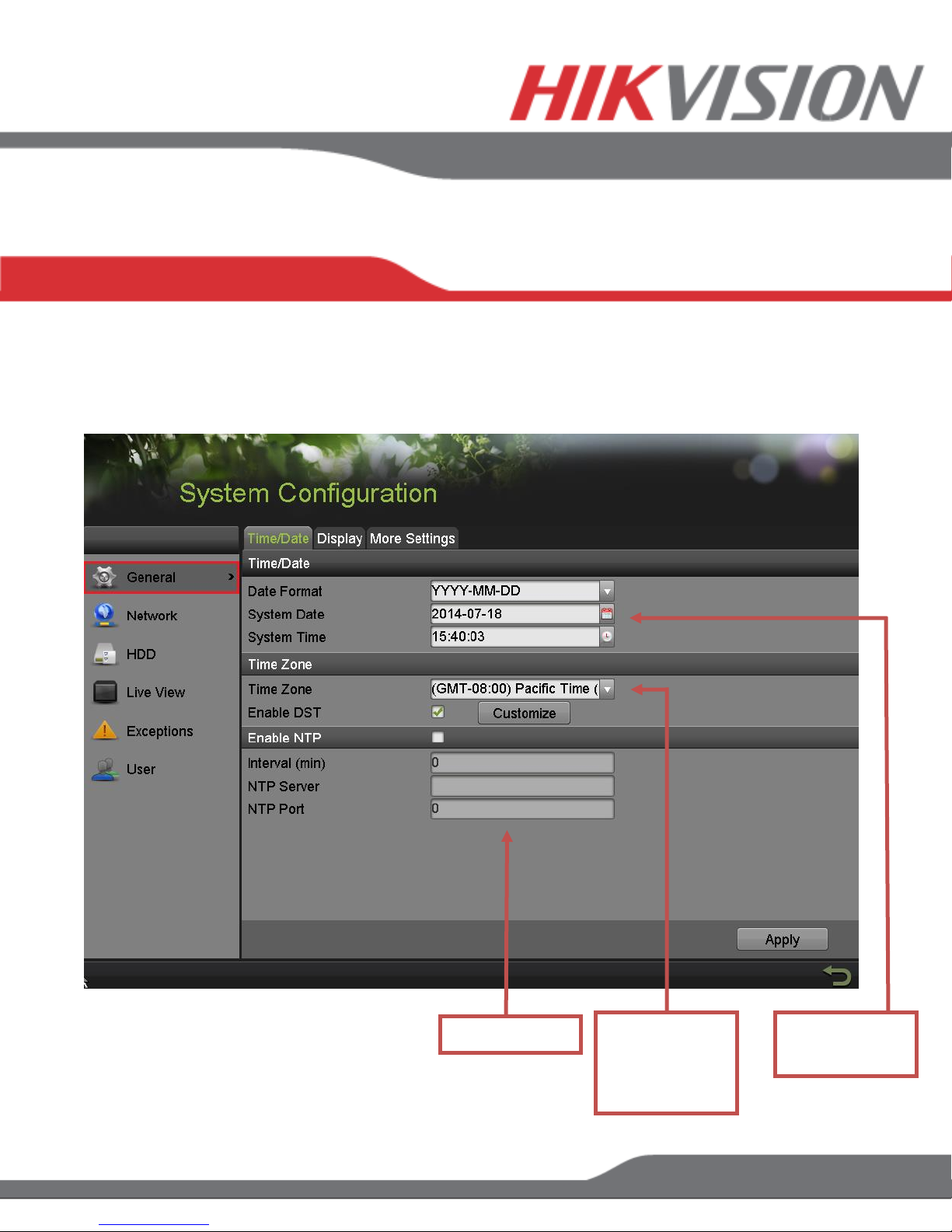

To setup the Time and Date on a NVR, please go to:

“MENU” > “SYSTEM CONFIGURATION” > “GENERAL”

DATE AND TIME SETUP

4. SETING UP DATE/TIME

NTP Settings

Time Zone and

Daylight

Savings Time

settings

Date and Time

settings

www.hikvision.com/en/us

Networking a NVR requires 3 steps:

1. Assign an IP address, Default Gateway, Subnet Mask, and a DNS server (Please note: DNS,

not DDNS) to the NVR

2. Forward the appropriate ports on the router (Port Forwarding).

3. Register DDNS (DDNS registration is required only if the public IP address is Dynamic).

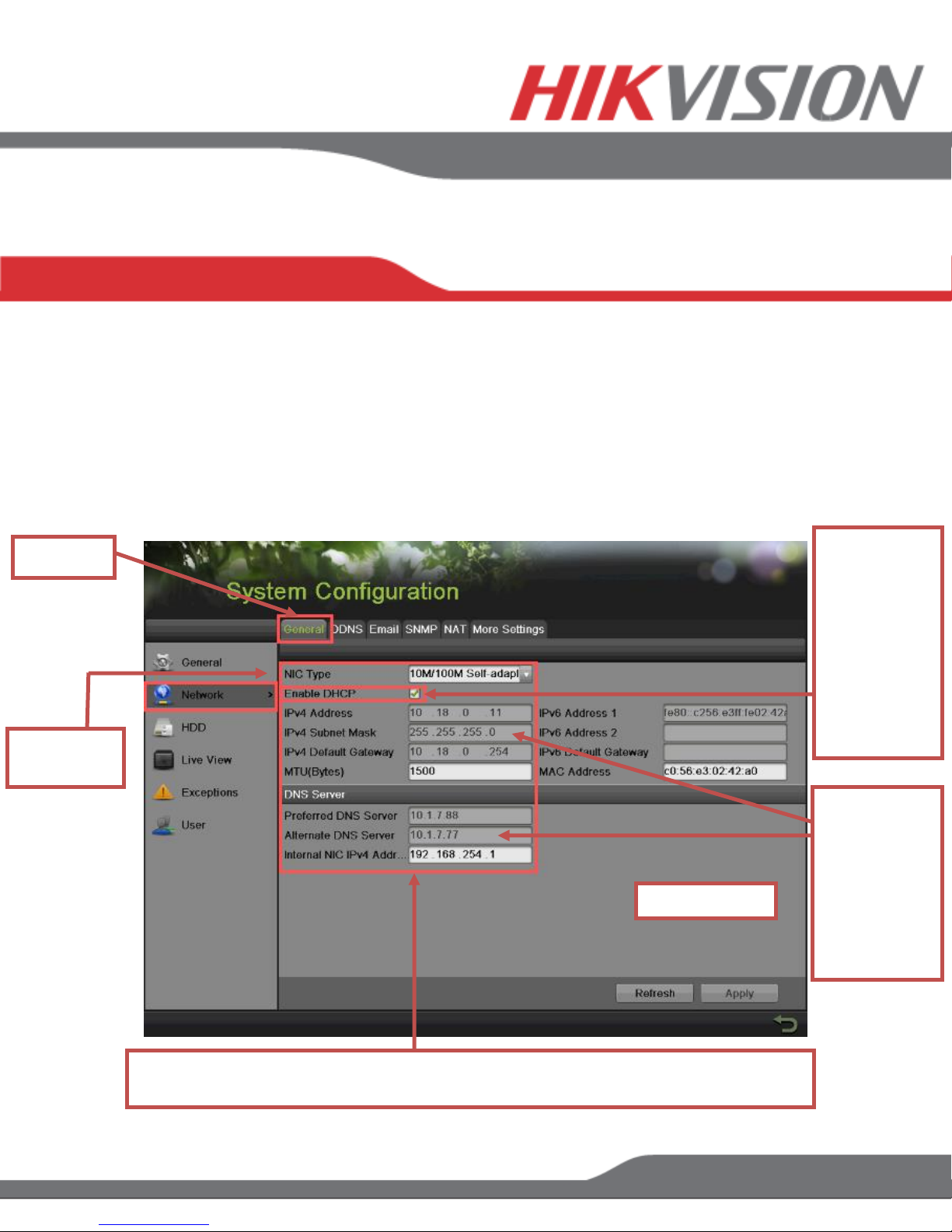

To assigning an IP ADDRESS, go to “MENU”>”SYSTEM CONFIGURATION”>”NETWORK”

5. SETTING UP THE NETWORK

SETTING UP NETWORK ACCESS

General

IP CONFIGURATION

Please note that the NVR’s default IP Address is set to 192.0.0.64

Enable

DHCP

With DHCP

enabled, the

router will

assign an IP

address to

the NVR

Select NIC

Type

Please Note:

After

enabling

DHCP,

The IP

configuration

becomes

“Greyed out”

REFRESH

www.hikvision.com/en/us

Step 1.

Enable DHCP (check the checkbox). Press “APPLY” and then press “REFRESH”

Step 2.

After pressing refresh, the IPv4 Address,IPv4 Subnet Mask and IPv4 Default Gateway will have

new values.

Step 3.

Disable DHCP (uncheck the checkbox)

Step 4.

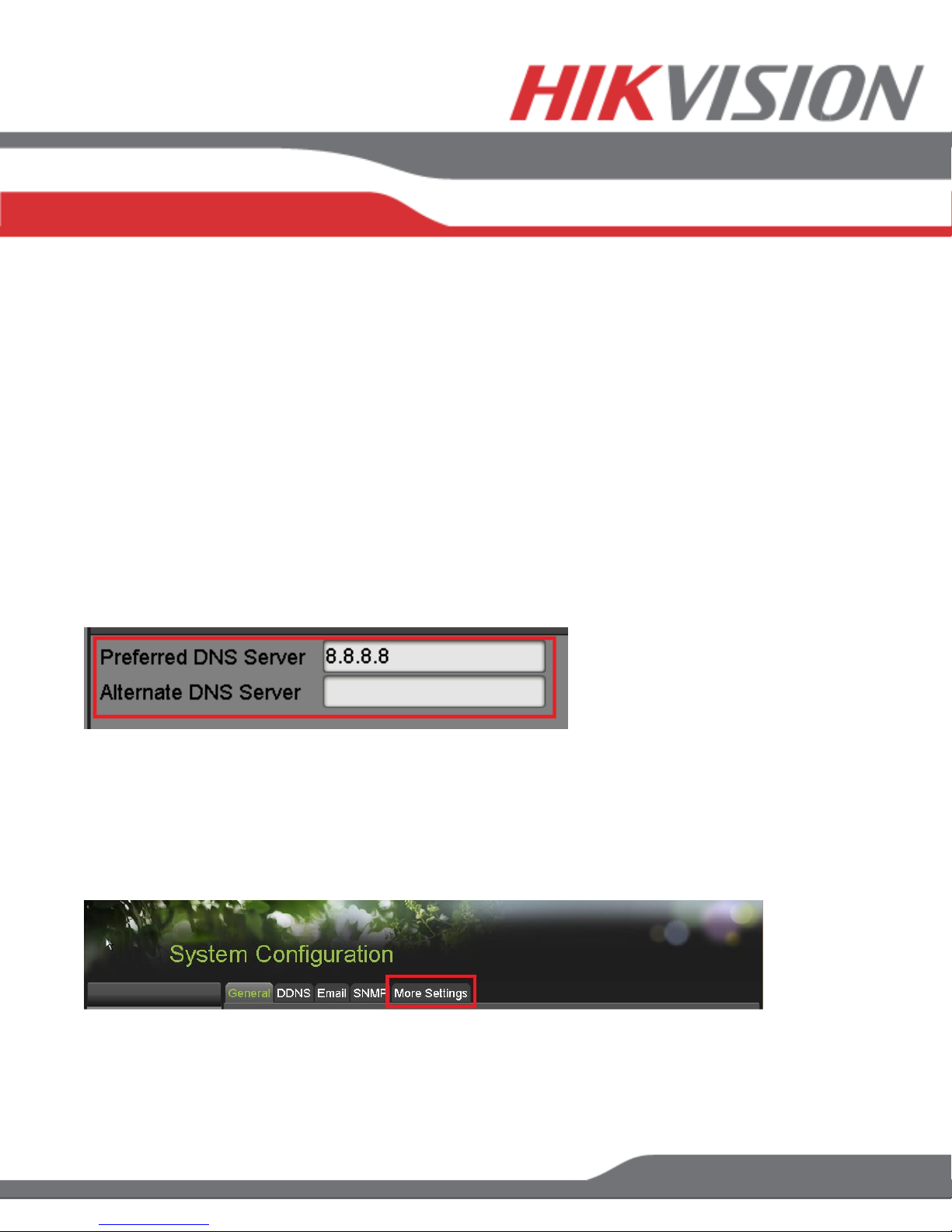

Change the value of “PREFFERED DNS SERVER” to 8.8.8.8 (“ALTERNATE DNS SERVER” can

be left blank).

After assigning the IP information, click on the “MORE SETTINGS” tab

SETTING UP NETWORK ACCESS
