HIK VISION DS-K3BC411X Series Manuale utente

Swing Barrier

Quick Start Guide

Swing Barrier • User Manual

Legal Information

This Manual is the property of Hangzhou Hikvision Digital Technology Co., Ltd. or its affiliates (hereinafter referred to

as "Hikvision"), and it cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means,

without the prior written permission of Hikvision. Unless otherwise expressly stated herein, Hikvision does not make

any warranties, guarantees or representations, express or implied, regarding to the Manual, any information

contained herein.

About this Manual

The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other

information hereinafter are for description and explanation only. The information contained in the Manual is subject

to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at

the Hikvision website (https://www.hikvision.com/).

Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions.

Other trademarks and logos mentioned are the properties of their respective owners.

LEGAL DISCLAIMER

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS

HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKVISION

MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY,

SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR

OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR

INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS

INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON

BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH

THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.

YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION

SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES

RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;

HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE

FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR

USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING

WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER

PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE

DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF

CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR .

Swing Barrier • User Manual

Data Protection

During the use of device, personal data will be collected, stored and processed. To protect data, the

development of Hikvision devices incorporates privacy by design principles. For example, for device with facial

recognition features, biometrics data is stored in your device with encryption method; for fingerprint device,

only fingerprint template will be saved, which is impossible to reconstruct a fingerprint image.

As data controller, you are advised to collect, store, process and transfer data in accordance with the

applicable data protection laws and regulations, including without limitation, conducting security controls to

safeguard personal data, such as, implementing reasonable administrative and physical security controls,

conduct periodic reviews and assessments of the effectiveness of your security controls.

Swing Barrier • User Manual

FCC Information

Please take attention that changes or modification not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore

with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the LVD

Directive 2014/35/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted

municipal waste in the European Union. For proper recycling, return this product to your local supplier

upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more

information see: www.recyclethis.info

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted

municipal waste in the European Union. See the product documentation for specific battery information.

The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more

information see: www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Swing Barrier • User Manual

Applicable Models

This manual is applicable to the models listed in the following table.

Series

Model

DS-K3BC411X

DS-K3BC411X-L

DS-K3BC411X-R

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Safety Instructions

Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

In the use of the product, you must be in strict compliance with the electrical safety

regulations of the nation and region. Please refer to technical specifications for detailed

information.

Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power

Source with 100 to 240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to

technical specifications for detailed information.

Do not connect several devices to one power adapter as adapter overload may cause

over-heating or a fire hazard.

Please make sure that the plug is firmly connected to the power socket.

If smoke, odor or noise rise from the device, turn off the power at once and unplug the power

cable, and then please contact the service center.

Symbol

Description

Provides additional information to emphasize or supplement

important points of the main text.

Indicates a potentially hazardous situation, which if not avoided,

could result in equipment damage, data loss, performance

degradation, or unexpected results.

Indicates a hazard with a high level of risk, which if not avoided, will

result in death or serious injury.

Swing Barrier • User Manual

CONTENTS

1 Product introduction ........................................................................ 6

1.1 Brief introduction ...........................................................................6

1.2 Product structure and principle......................................................6

1.3 Function Features ...........................................................................9

1.4 Technical parameters......................................................................9

2Equipment Installation...................................................................... 9

2.1 Installation notes ............................................................................9

2.2 Equipment Installation....................................................................9

2.3 Connection....................................................................................12

2.4 Debugging instruction ..................................................................12

2.5 Use notes ......................................................................................13

3 Control Board and parameter instruction........................................ 13

3.1 Control Board instruction .............................................................13

3.2 Wiring diagram .............................................................................16

3.3 parameter instruction...................................................................18

4 Trouble shooting and maintenance................................................. 20

4.1 Trouble shooting...........................................................................21

4.2 maintenance.................................................................................22

Swing Barrier • User Manual

1 Product introduction

1.1 Brief introduction

The flap /slide barrier and swing gate is a kind of 2-way speed access control equipment

designed for places with high class security requirements. It is easy to combine IC access control,

ID access control, code reader, fingerprint, face recognition and other identification devices，It

realizes the intelligent and efficient management of passage.

1.2 Product structure and principle

The structure of the product is mainly composed of mechanical system and electric control

system.

The mechanical system is composed of cabinet and core mechanism. The cabinet is equipped

with indicator, infrared sensor and other device.

The core mechanism is composed of motor, position sensor, transmission, shaft.

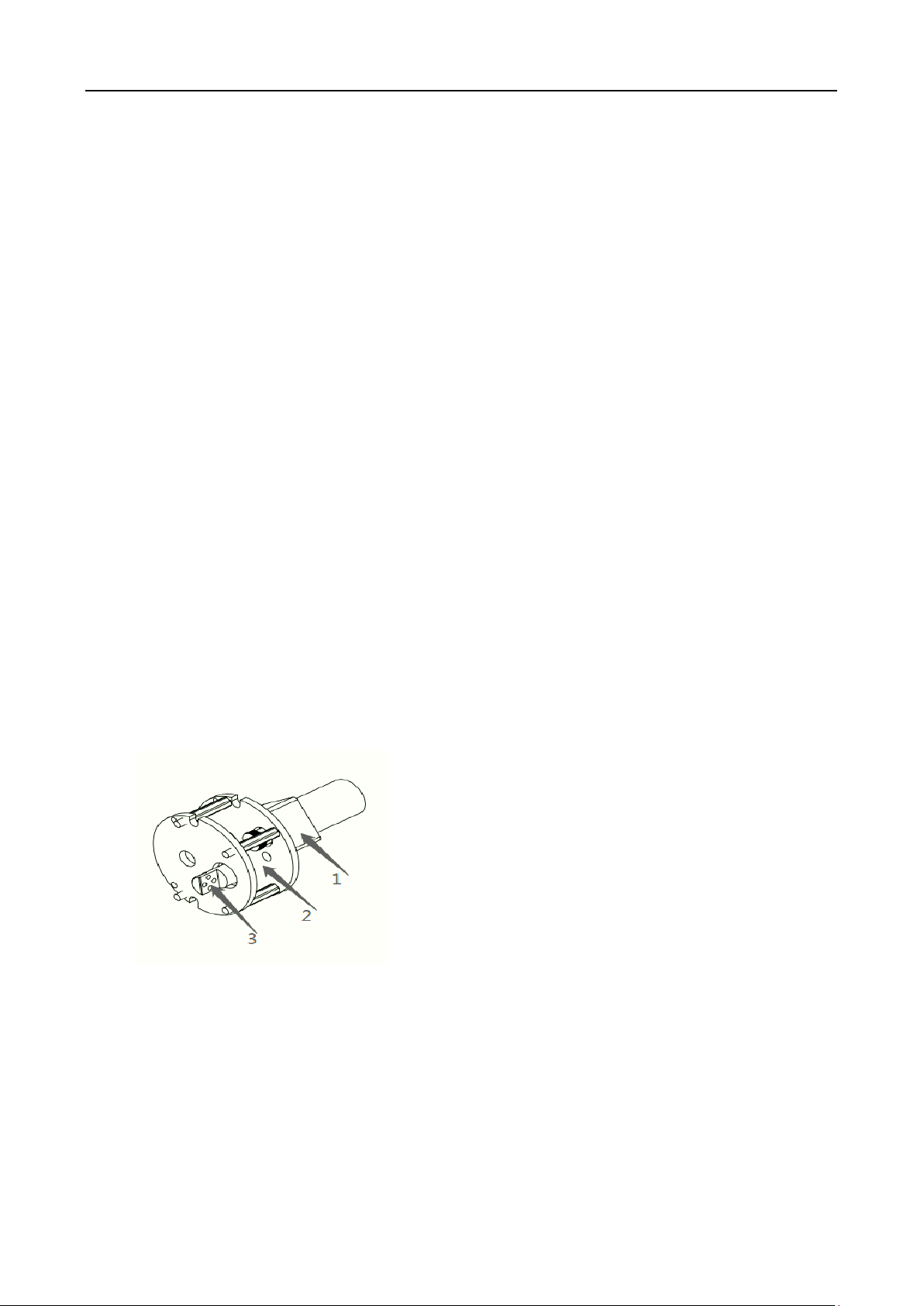

Swing core

The electric control system consists of access control system, control board, infrared sensor,

direction indicator, position sensor, motor, power supply, battery and so on.

1. Motor

2. Core

3. Roting shaft

Swing Barrier • User Manual

Name

Function

Access control

device

IC/ID card access control, fingerprint, face recognition, code

reader, access control device send delay signal to the

turnstile board door signal. Remote control or button to

open the door(select the configuration)

Main board

(control)

The control center of the system, when receiving the access

control device delay signal, it control motor running so that

the gate opened, the direction indicator light turns green,

while receiving core position sensor, infrared sensor, and

judging and processing logic of these signals, keep the gate

components of intelligent coordination work

Infrared sensor

Detect the passage of people in the lane, Anti pinch

Indicator

Display the current channel status

Position sensor

Detects and controls the opening and closing position of the

gate

Motor

Drive the barrier moving

Power Supply

power supply to control board

12V battery

The gate will keep open the door automatically when

power failure

System Operation Principle

1) Turn on the power, wait for the end of the self-examination ; the system enters into work

mode;

2) After swipe legal card or QR code and fingerprint, Access control device send opening

signal to main board.

3) The main board receives open signal, control indicator to green, motor acts to open the

barrier.

4) After the passenger passing through the passage in accordance with the direction indicator

Swing Barrier • User Manual

mark, the infrared sensor detects the complete process of the passenger passing through the

passage, and issues signal continuously to the main controller board, until the passenger passes

through the passage completely.

5) After the passenger passes through the passage completely, the main controller board

delivers a signal to the counter, which will increase 1 automatically, ending the passing process.

6) If the passenger forgets to swipe card when go into the passage, sound/light alarm signal

will be given from main board. The alarm signal will not be cancelled until the passenger retreats

from the passage and the passing is only allowed after reading again the effective card

1.3 Function Features

Varied pass mode can be chosen flexibly;

Standard signal input port, can be connected with most of the access control board,

fingerprint device and scanner other equipment;

The turnstile has automatic reset function, if people swipe the authorized card, but don’t

pass through within the settled time, it need to swipe card again for entry;

Card-reading Recording function: single-directional or bi-directional access can be set by the

users

Automatic opening after emergency fire signal input

Pinch protection;

Anti-tailgating control technology

Automatic detection, diagnosis and alarm, sound and light alarm, including trespassing

alarm, anti-pinch alarm and anti-tailgating alarm.

High light LED indicator , displaying passing status.

Self diagnostic and alarm function for convenient maintenance and use

Gate will automatically open when power failure(connect 12V battery)

1.4 Technical parameter

Swing Barrier • User Manual

Housing Material

304 stainless steel

Power

AC220±10% V、50HZ

Working voltage

DC 24V

Motor

Brush DC motor 30W

Working temperature

-20 ℃- 60 ℃

Work environment

≦90%, no condensation

Open signal

Passive signals (relay signals, dry contact signals,)

Communication

RS485

Pass rate

≦35 person/min

Passage width

Swing gate 600--900mm

2 Equipment Installations

2.1 Installation notes

Please read this manual carefully before install it;

The gates must be correctly arranged in order, and the left and right gates of each lane should

be aligned;

If the equipment is used outdoors, equipment should be installed at the establishment of

100-200mm high cement platform, so as to prevent moisture, and install ceilings and other

sunscreen, rain protection facilities;

Protective earth wire must be connected;

Please confirm each RJ45 cable straight through;

Please check all wires has been properly connected before power on;

Please test all function before using.

2.2 Equipment Installation

1) Tool preparations

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HIK VISION Hardware di rete

HIK VISION

HIK VISION DS-7032NI-Q4 Manuale utente

HIK VISION

HIK VISION iDS-96000NXI-I16B Series Manuale utente

HIK VISION

HIK VISION LTN07128/256 Manuale utente

HIK VISION

HIK VISION DS-7116HQHI-K1 Manuale utente

HIK VISION

HIK VISION DS-7104NI-SL Manuale utente

HIK VISION

HIK VISION DS-7608NXI-I2/8P/4S Manuale utente

HIK VISION

HIK VISION DS-9608NI-ST Series Manuale utente

HIK VISION

HIK VISION DS-7600NI-E1/A Manuale utente

HIK VISION

HIK VISION DS-9600NI-SH Series Manuale utente

HIK VISION

HIK VISION iDS-9600NXI-I8/8FB Series Manuale utente

HIK VISION

HIK VISION DS-9504NI-S Manuale utente

HIK VISION

HIK VISION DS-96128NI-H16DS-96128NI-H16/HDS-96128NI-H16/IDS-96128NI-H16/H/IDS-96128NI-F16DS-96128NI-F16/HDS-96128NI-F16/IDS-96128NI Manuale utente

HIK VISION

HIK VISION DS-3WF01C-2N/O Manuale utente

HIK VISION

HIK VISION DS-7100NI-Q1 Series Manuale utente

HIK VISION

HIK VISION HiWatch Series Manuale utente

HIK VISION

HIK VISION HiLook IK-6288TH-MH/P Manuale utente

HIK VISION

HIK VISION DS-7608NI-I2/8P Manuale utente

HIK VISION

HIK VISION DS-7608NI-M2 Series Manuale utente

HIK VISION

HIK VISION HWN-2104H-4P Manuale utente

HIK VISION

HIK VISION DS-9608NI-ST Series Guida utente

HIK VISION

HIK VISION iDS-9600NXI-I16/4F Series Manuale utente

HIK VISION

HIK VISION DS-9616NI-I8 Manuale utente

HIK VISION

HIK VISION DS-7600NI-E1/A Manuale utente

HIK VISION

HIK VISION DS-8600 Series Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
